fuse TOYOTA TUNDRA 2008 2.G Navigation Manual

OTHER FUNCTIONS
1352008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (vii) By POI call
5U5339G
You can call by touching when it is
displayed on the screen from navigation
system. (See page 27 for details.)
— Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
— Talk on the Bluetooth
phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.

AUDIO/VIDEO SYSTEM
1832008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
XS00213
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.
6U5014G
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until a
beep is heard. This sets the station to the
touchscreen button and the frequency
appears on the touchscreen button.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the touch−screen but-
ton (1 — 6) for the station you want. The
touch−screen button is highlighted and the
station frequency appears on the screen.
Seek tuning: Push the “SEEK/TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch “SCAN”
on the screen or push the “SCAN” button
briefly. “SCAN” appears on the screen. The
radio will find the next station and stay there
for a few seconds, and then scan again. To
select a station, touch “SCAN” or push the
“SCAN” button again.
To scan the preset stations: Touch
“SCAN” on the screen or push the “SCAN”
button for longer than a second. “P. SCAN”
appears on the screen. The radio will tune in
the next preset station, stay there for a few se-
conds, and then move to the next preset sta-
tion. To select a station, touch “SCAN” or
push the “SCAN” button again.

AUDIO/VIDEO SYSTEM
1872008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

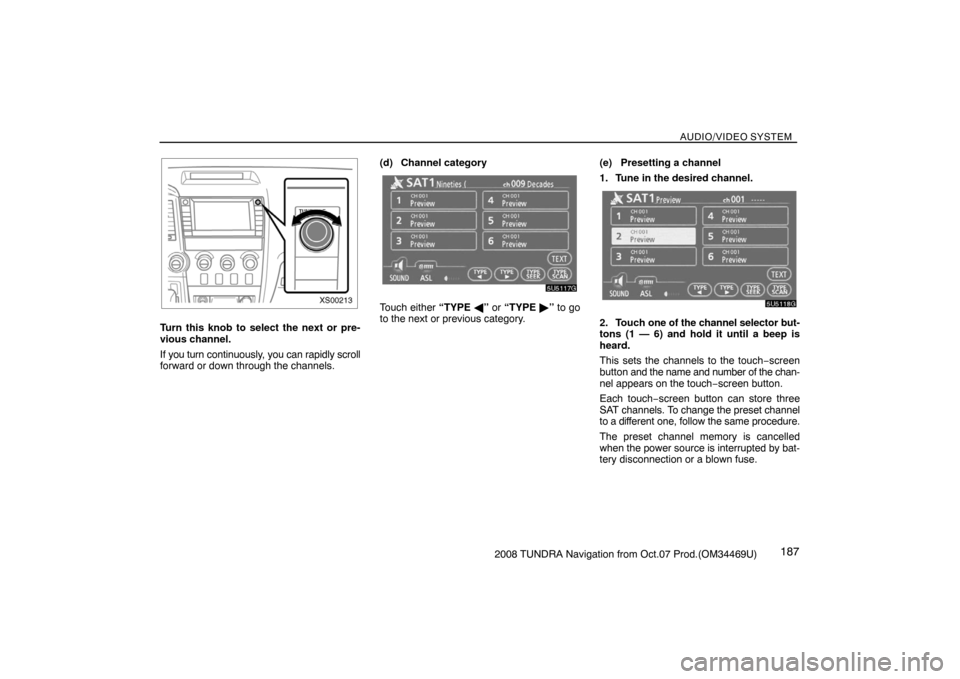

XS00213
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly scroll
forward or down through the channels.(d) Channel category
5U5117G
Touch either “TYPE ” or “TYPE ” to go
to the next or previous category.(e) Presetting a channel
1. Tune in the desired channel.
5U5118G
2. Touch one of the channel selector but-
tons (1 — 6) and hold it until a beep is
heard.
This sets the channels to the touch−screen
button and the name and number of the chan-
nel appears on the touch−screen button.
Each touch−screen button can store three
SAT channels. To change the preset channel
to a different one, follow the same procedure.
The preset channel memory is cancelled
when the power source is interrupted by bat-
tery disconnection or a blown fuse.

APPENDIX
2392008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) NOTICE OF USE
CONTRACTOR (MANUFACTURER/
SUPPLIER) NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/
SUPPLIER) ADDRESS:
222 Merchandise Mart Plaza,
Suite 900, Chicago, Illinois 60654
This Data is a commercial item as de-
fined in FAR 2.101 and is subject to
the End User Terms under which this
Data was provided.
©2006 NAVTEQ − All rights reserved.
If the Contracting Officer, federal gov-
ernment agency, or any federal official
refuses to use the legend provided
herein, the Contracting Officer, federal
government agency, or any federal offi-
cial must notify NAVTEQ prior to seek-
ing additional or alternative rights in the
Data.
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE SPATIAL MAP
DATABASE, INCLUDING LOCATION
CODES AND RELATED PRODUCTS
(COLLECTIVELY, THE ”DATABASE”),
USED IN THE NAVIGATION SYSTEM.
BY USING THE NAVIGATION SYSTEM
AND THE DATABASE, YOU ACCEPT
AND AGREE TO BE BOUND BY ALL
TERMS AND CONDITIONS SET
FORTH BELOW.
LICENSE GRANT
Denso Corporation (“Denso”), as a
licensed distributor of the DATABASE,
grants to you a non−exclusive,
non−perpetual license to use your copy
of the DATABASE for your personal use
or for your use in your business’ internal
operations and not for any other purpose.
This license does not include the right to
grant sub−licenses.OWNERSHIP
The DATABASE and the copyrights and
intellectual property and neighboring
rights therein are owned by Tele Atlas
North America, Inc. (“TANA”) and its
licensors. This Agreement does not
transfer any title or interest in the
DATABASE, except for the license to use
the DATABASE according and subject to
the terms and conditions of this
Agreement. You shall not alter, obscure
or remove any copyright notices,
trademark notices or other restrictive
legends relating to the DATABASE.
The DATABASE comprises confidential
and proprietary information and materi-
als of TANA. Accordingly, you shall hold
the DATABASE in confidence and trust.
You shall take reasonable steps to pro-
tect the DATABASE from misappropri-
ation or misuse. You shall not extract
stand−alone data from or publish any
part of the DATABASE without the prior
written consent of TANA and its licen-
sors.
