DESTINATION SEARCH
572008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
— Destination search by
“Memory”
1. Push the “DEST” button.
2. Touch “Memory” on the “Destination”
screen.
A list of registered memory points is dis-
played. (To register or edit memory points,
see “My places” on page 91.)
2U5035G
3. Touch the touchscreen button of your
desired memory point.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
— Destination search by
“Previous”
1. Push the “DEST” button.
2. Touch “Previous”
on the “Destination”
screen.
2U5037G
The previous starting point and up to 100 pre-
viously set destinations are displayed on the
screen.
3. Touch the touchscreen button of the
desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
INFORMATION
The list of previous destinations can be
deleted while the vehicle is stopped, if
these destinations are no longer neces-
sary. (See “ — Deleting previous points”
on page 103.)

DESTINATION SEARCH
612008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5048G
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 97.)
Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
2U5049aG
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling.2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 63.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch it to
view items such as name, address, and
phone number.

ROUTE GUIDANCE
812008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
3U5083aG
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 miles
(50 km).
3U5102G
Touch “Map View”.
3U5107G
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
3U5084G
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

AUDIO/VIDEO SYSTEM
1912008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
6U5025aG
2. Touch “LOAD”. The display opens.
XS00216
3. The amber indicators at either side of
the slot start blinking. When the indica-
tors change to green, insert only one disc.
After the disc is loaded, the amber indica-
tors at either side of the slot start blinking
again. When the indicators change to
green, you can insert the next disc.
4. Push the “LOAD·
/CLOSE” button to
close the display.
The changer will automatically start playing
from the last disc you inserted.
If the label faces down, the disc cannot be
played. In this case, “CD Check” appears on
the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your audio
system.
Do not insert one disc stacked on top
of another one or feed them in contin-
uously, to prevent discs from getting
stuck in the changer.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

AUDIO/VIDEO SYSTEM
2072008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
6U5030G
OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the file
or folder you are currently listening to.
Repeating a file —
Touch “RPT” briefly while the file is playing.
“RPT” appears on the screen. When the file
is finished, the player will automatically go
back to the beginning of the file and play the
file again. To cancel it, touch “RPT” once
again.
Repeating a folder —
Touch and hold “RPT” until the beep sounds
while the folder is playing. “FLD.RPT” ap-
pears on the screen. When the folder is fin-
ished, the player will automatically go back to
the beginning of the folder and play the folder
again. To cancel it, touch “RPT” once again.“RAND”: Use it for automatic and random
selection of the folder which you are currently
listening to or of all the folders.
Playing the files in one folder in random order
—
Touch “RAND” briefly. “RAND” appears on
the screen. The system selects a file in the
folder you are currently listening to. To cancel
it, touch “RAND” once again.
Playing the files in all the folders in random or-
der —
Touch and hold “RAND” until the beep
sounds. “FLD.RAND” appears on the screen.
The system selects a file in the folders of all
the trays which are set and plays it. To cancel
it, touch “RAND” once again.
When a file is skipped or the system is inop-
erative, touch “RAND” to reset.(f) Operating a DVD video disc
NOTE: The playback condition of some
DVD video discs may be determined by a
DVD video software producer. This DVD
player plays a disc as the software
producer intended. So some functions
may not work properly. Be sure to read the
instruction manual for the DVD video disc
separately provided. For the detailed
information about DVD video discs, see
“(i) DVD player and DVD video disc
information”.
Precautions on DVD video disc
When recording with a DVD video or video
CD, audio tracks may not record in some
cases while the menu is displayed. As audio
will not play in this case, verify that the video
tracks are playing and then activate playback.
When playback of a disc is completed:
If an audio CD or MP3 disc is playing, the
first track or file starts.
If a DVD video or video CD is playing,
playback will stop or the menu screen will
be displayed.
The title/chapter number and playback time
display may not appear while playing back
certain DVD video discs.

AUDIO/VIDEO SYSTEM
2082008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

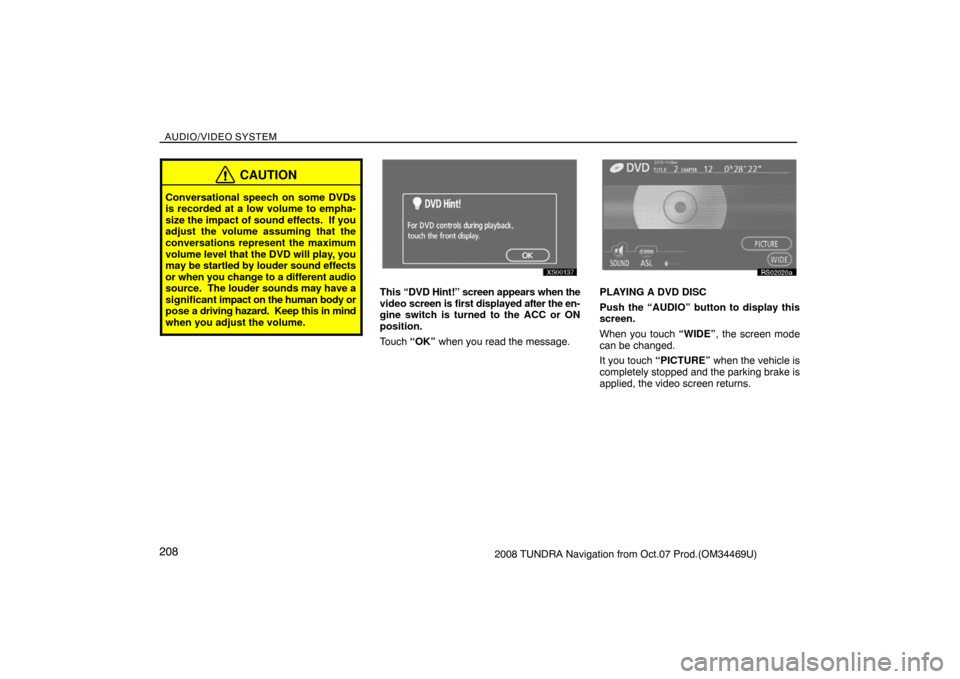

CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
XS00137
This “DVD Hint!” screen appears when the
video screen is first displayed after the en-
gine switch is turned to the ACC or ON
position.
Touch “OK” when you read the message.
RS02020a
PLAYING A DVD DISC
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
It you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.

AUDIO/VIDEO SYSTEM
2092008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
6U5035aG
6U5036aG
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where con-
trols are not located while watching video,
DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.“Hide Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the screen when you touch
a control, the operation relevant to the control
is not permitted.
DESCRIPTION OF DVD CONTROLS
Top page of DVD video controls
“Menu” and “Top Menu”: If you touch any
of the above controls, the menu screen for
DVD video appears. (For the operation, see
the manual that come with the DVD video disc
provided separately.)
: The menu control key appears on the
screen. (See page 210.)
: Touching this will pause the video
screen.
: Touching this will fast reverse during
playback.
: Touching this will stop the video screen.
: Touching this will resume normal play dur-
ing pause.
: Touching this will fast forward during
playback and forward frame by frame during
pause.
Second page of DVD video controls
“Setup”: The initial set up screen appears.
(See page 211.)
“Search”: The title search screen appears.
(See page 210.)
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“AUDIO”: The audio changing screen ap-
pears. (See page 211.)
“Subtitle”: The subtitle changing screen ap-
pears. (See page 210.)
“Angle”: The angle selection screen ap-
pears. (See page 211.)

AUDIO/VIDEO SYSTEM
2162008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
RS02022a
(g) Operating a video CD
PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
If you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.
6U5046aG
6U5047aG
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not lo-
cated while you are watching video on the vid-
eo CD, video CD controls will appear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the top
page of video CD controls.“Hide Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the display when you touch
a control, the operation is not permitted.
DESCRIPTION OF VIDEO CD CONTROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 217.)
“Prev. Menu”: When you touch this while the
disc menu is displayed, the previous page ap-
pears on the screen. If you touch this while
the player is playing video, the previous track
is searched and played.
“Next Menu”: When you touch this while the
disc menu is displayed, the next page ap-
pears on the display. If you touch this while
the player is playing video, the next track is
searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to Main/
Sub by touching this control.
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
