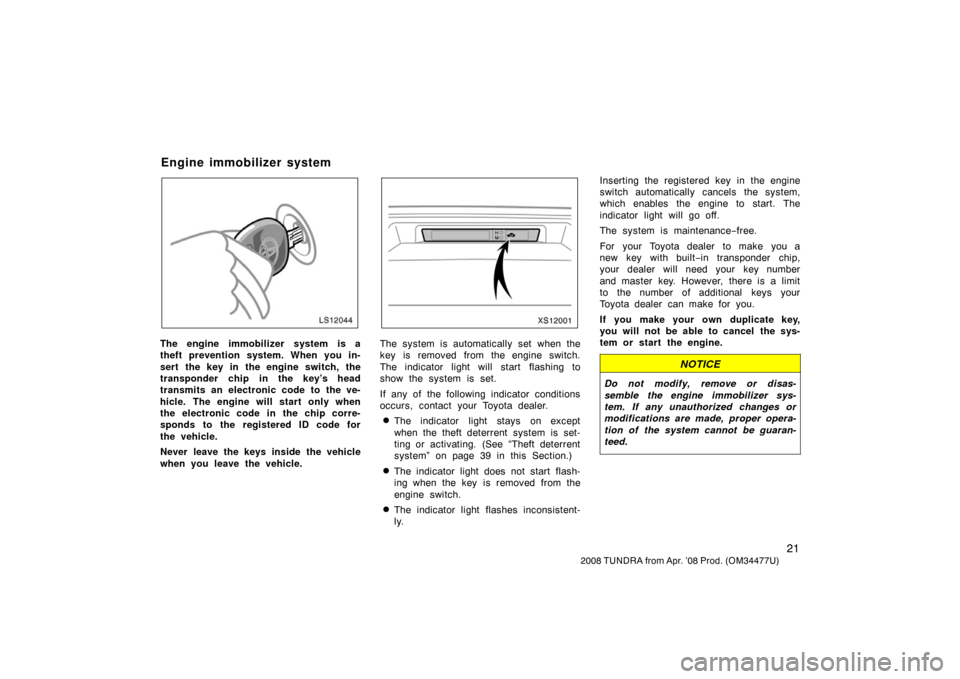

The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.
XS12001
The system is automatically set when the
key is removed from the engine switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 39 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly. Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−
free.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system
Page 32 of 621
22
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
For vehicles sold in U.S.A.
FCCID:MOZRI−21BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
XS12030

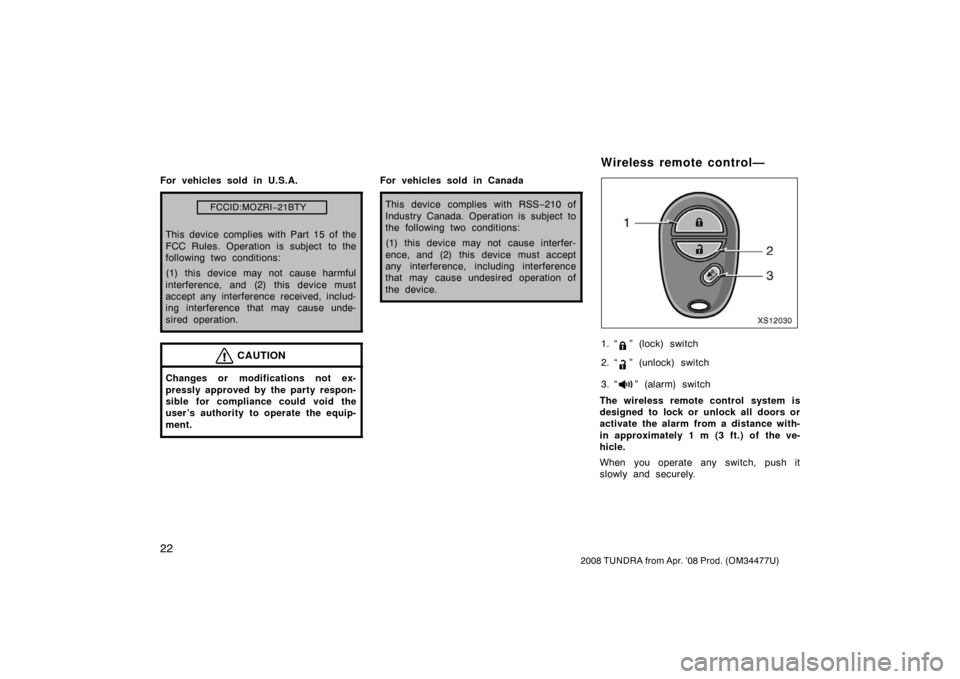

1. “” (lock) switch
2. “
” (unlock) switch
3. “
” (alarm) switch
The wireless remote control system is
designed to lock or unlock all doors or
activate the alarm from a distance with-
in approximately 1 m (3 ft.) of the ve-
hicle.
When you operate any switch, push it
slowly and securely.
Wireless remote control—
Page 33 of 621
23
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may be depleted. Check
the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 25. If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an
accident. (See “If you lose your wireless
remote control transmitter” on page 523 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
For vehicles sold in Canada
NOTE
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
XS12035a
Locking operation
XS12034a
Unlocking operation
—Locking and unlocking
doors
Page 34 of 621
24
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To lock and unlock all doors, push the
switches of the transmitter slowly and
securely.
To lock: Push the “
” (lock) switch. All
the doors are locked simultaneously. At
this time one beep will be heard, and the
turn signal lights flash once.
Check to see that all the doors are se-
curely locked after locking.
If any of the doors is not securely closed,
locking cannot be performed by the “
”
(lock) switch and a beep will sound con-
tinuously for 10 seconds. However, if the
key is in the engine switch, a beep will
not sound.
To stop the beep, close all the doors se-
curely or push the “
” (unlock) switch.
The beep and flashing turn signal lights
can be disabled. If your vehicle is
equipped with the multi −information display
(For further information, see
“Multi −information display” on page 187 in
Section 1 −6.), these can be changed by
yourself. For details, contact your Toyota
dealer. To unlock: Push the “
” (unlock) switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “
” (unlock) switch is pushed,
two beeps will be heard, and the turn
signal lights flash twice.
This double switch operation to unlock all
the doors can be changed to a single
switch operation. If your vehicle is
equipped with the multi −information display
(For further information, see
“Multi −information display” on page 187 in
Section 1 −6.), it can be changed by
yourself. For details, contact your Toyota
dealer.
When you unlock all the doors using the
wireless remote control, the Illuminated
entry system, interior lights, personal
lights and cargo lamp will be activated.
(For further information, see “Interior
lights” on page 170, “Personal lights” on
page 171, “Illuminated entry system” on
page 173 and “Cargo lamp” on page 174
in Section 1− 5.)
You have 60 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again. The time for automatic door lock function
can be changed. If your vehicle is
equipped with the multi
−information display
(For further information, see
“Multi −information display” on page 187 in
Section 1 −6.), it can be changed by
yourself. For details, contact your Toyota
dealer.
If the “
” (lock) or “” (unlock) switch
is kept pressed in, the locking the unlock-
ing operation is not repeated. Release the
switch and then push again.
Page 35 of 621
25
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12036
Holding the “” (alarm) switch blows
the horn intermittently and flashes the
headlights, tail lights, turn signal lights,
interior light and personal lights.
The “
” switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “
” switch once
again, lock or unlock a door with transmit-
ter, or turn the engine switch from the
“LOCK” to “ON” position.
The alarm does not work when the engine
switch is in the “ON” position. For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
LS12017
1. Using a coin or equivalent, open the
transmitter case.
—Activating alarm —Replacing battery
Page 36 of 621
26
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
LS12018
2. Remove the circuit board, then remove
the discharged transmitter battery.
NOTICE
Take care not to damage the circuit
board.
Do not bend the terminals.
LS12019
3. Put in a new transmitter battery with
positive (+) side up. Install the circuit
board into the transmitter case.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
Page 37 of 621
27
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12002

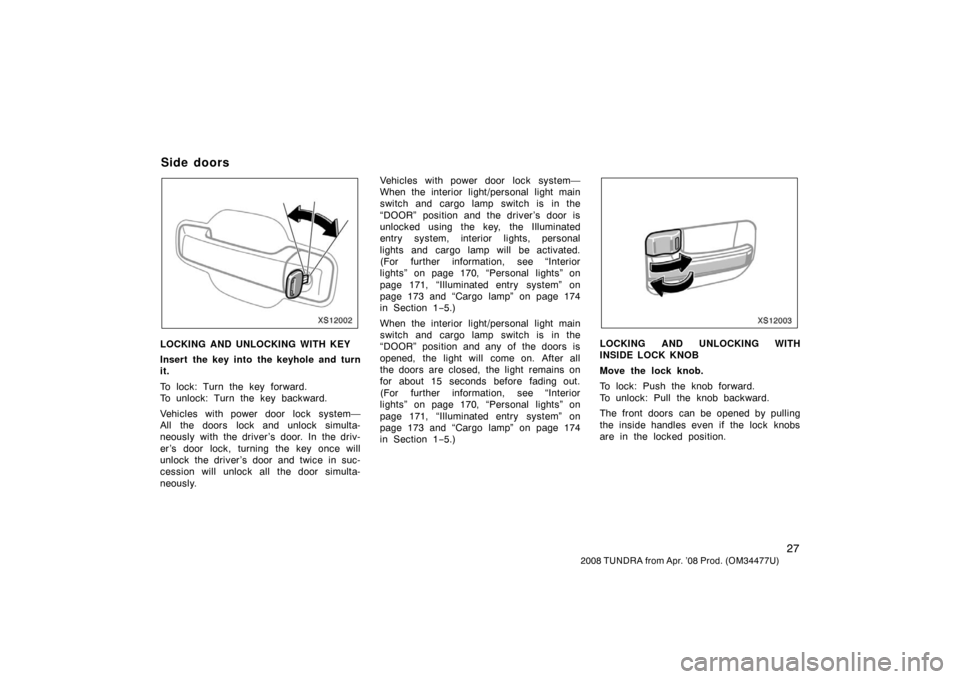

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the doors lock and unlock simulta-
neously with the driver ’s door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the door simulta-
neously. Vehicles with power door lock system—
When the interior light/personal light main
switch and cargo lamp switch is in the
“DOOR” position and the driver’s door is
unlocked using the key, the Illuminated
entry system, interior lights, personal
lights and cargo lamp will be activated.
(For further information, see “Interior
lights” on page 170, “Personal lights” on
page 171, “Illuminated entry system” on
page 173 and “Cargo lamp” on page 174
in Section 1−
5.)
When the interior light/personal light main
switch and cargo lamp switch is in the
“DOOR” position and any of the doors is
opened, the light will come on. After all
the doors are closed, the light remains on
for about 15 seconds before fading out.
(For further information, see “Interior
lights” on page 170, “Personal lights” on
page 171, “Illuminated entry system” on
page 173 and “Cargo lamp” on page 174
in Section 1− 5.)
XS12003
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
Side doors
Page 38 of 621
28
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
The door will not lock if the key is left in
the engine switch when closing the front
doors.

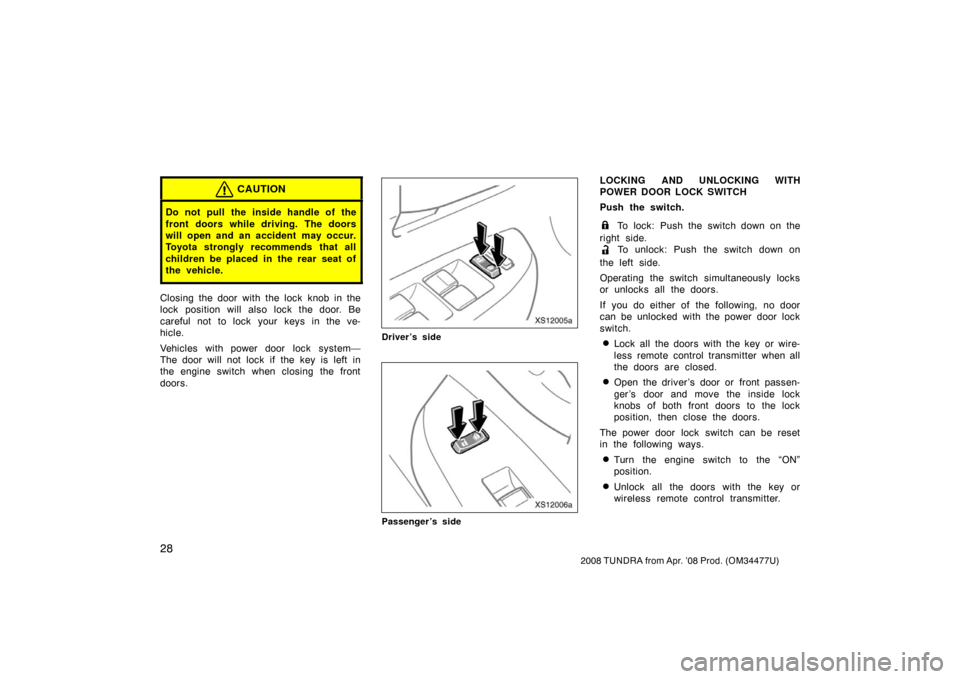

XS12005a
Driver’s side
XS12006a
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on
the left side.
Operating the switch simultaneously locks
or unlocks all the doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the doors.
The power door lock switch can be reset
in the following ways.
Turn the engine switch to the “ON”
position.
Unlock all the doors with the key or
wireless remote control transmitter.
Page 39 of 621
29
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
XS12007
REAR DOOR CHILD PROTECTORS
(Double cab and Crew Max models)
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
Page 40 of 621
30
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Vehicles with power door lock system—
Locking function—All doors are automati-
cally locked when the vehicle speed goes
above about 20 km/h (12 mph).
Unlocking function—All doors are automat-
ically unlocked when the selector lever is
moved to the “P” position with the engine
started.
The following functions can be changed:
Shift position linked auto lock.
Driver ’s door open linked auto unlock.
If your vehicle is equipped with the multi −
information display (For further informa-
tion, see “Multi −information display” on
page 187 in Section 1 −6.), these can be
changed by yourself.
For details, contact your Toyota dealer.
XS12051b
Regular cab models

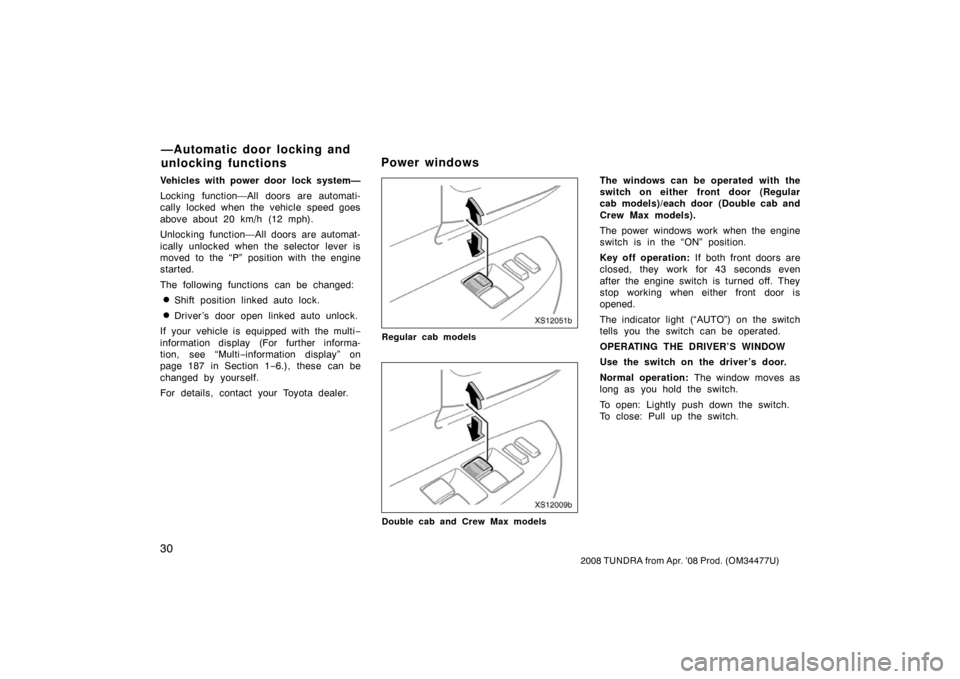

XS12009b
Double cab and Crew Max models
The windows can be operated with the
switch on either front door (Regular
cab models)/each door (Double cab and
Crew Max models).
The power windows work when the engine
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the engine switch is turned off. They
stop working when either front door is
opened.
The indicator light (“AUTO”) on the switch
tells you the switch can be operated.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
—Automatic door locking and
unlocking functions Power windows
