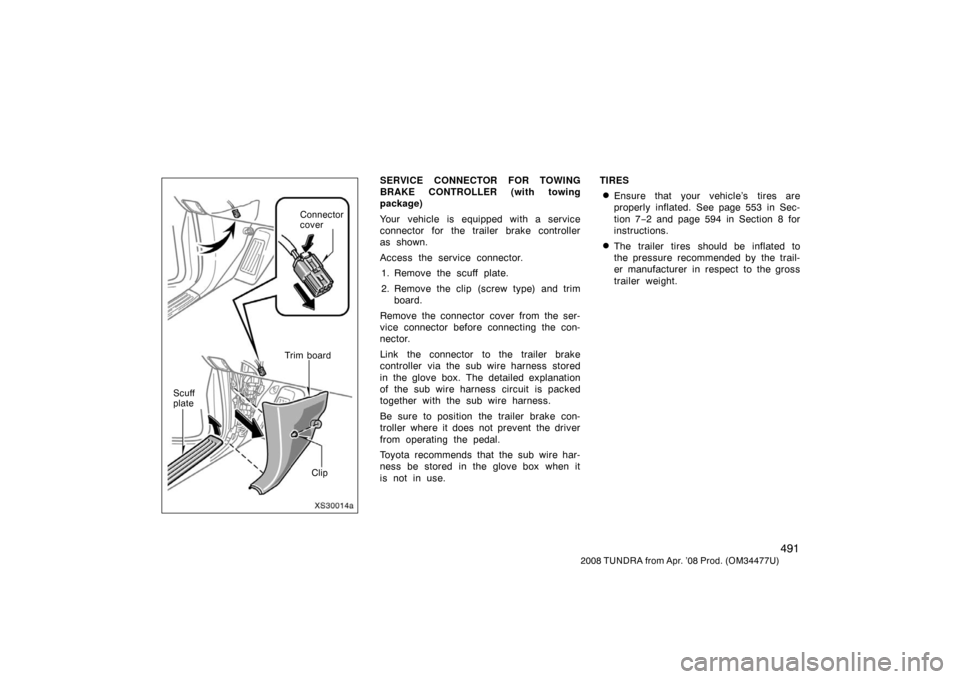

SERVICE CONNECTOR FOR TOWING
BRAKE CONTROLLER (with towing
package)
Your vehicle is equipped with a service
connector for the trailer brake controller
as shown.
Access the service connector.
1. Remove the scuff plate.
2. Remove the clip (screw type) and trim board.
Remove the connector cover from the ser-
vice connector before connecting the con-
nector.
Link the connector to the trailer brake
controller via the sub wire harness stored
in the glove box. The detailed explanation
of the sub wire harness circuit is packed
together with the sub wire harness.
Be sure to position the trailer brake con-
troller where it does not prevent the driver
from operating the pedal.
Toyota recommends that the sub wire har-
ness be stored in the glove box when it
is not in use. TIRES
Ensure that your vehicle’s tires are
properly inflated. See page 553 in Sec-
tion 7
−2 and page 594 in Section 8 for
instructions.
The trailer tires should be inflated to
the pressure recommended by the trail-
er manufacturer in respect to the gross
trailer weight.

492
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS30005
4Pin connector
XS30006
4Pin, 7Pin connector

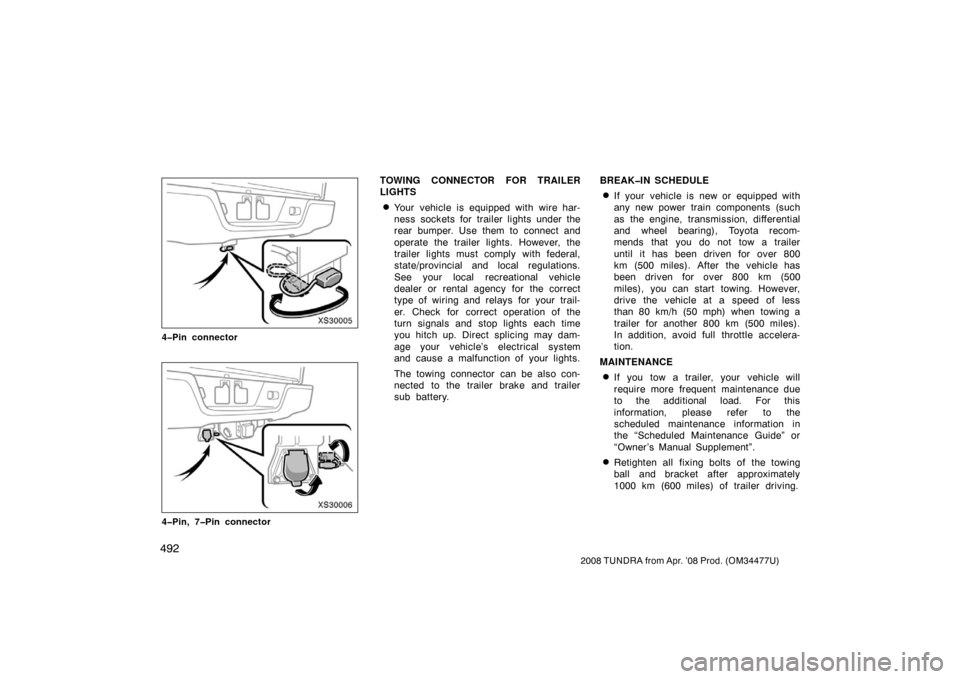

TOWING CONNECTOR FOR TRAILER
LIGHTS
Your vehicle is equipped with wire har-
ness sockets for trailer lights under the
rear bumper. Use them to connect and
operate the trailer lights. However, the
trailer lights must comply with federal,
state/provincial and local regulations.
See your local recreational vehicle
dealer or rental agency for the correct
type of wiring and relays for your trail-
er. Check for correct operation of the
turn signals and stop lights each time
you hitch up. Direct splicing may dam-
age your vehicle’s electrical system
and cause a malfunction of your lights.
The towing connector can be also con-
nected to the trailer brake and trailer
sub battery. BREAKIN SCHEDULE
If your vehicle is new or equipped with
any new power train components (such
as the engine, transmission, differential
and wheel bearing), Toyota recom-
mends that you do not tow a trailer
until it has been driven for over 800
km (500 miles). After the vehicle has
been driven for over 800 km (500
miles), you can start towing. However,
drive the vehicle at a speed of less
than 80 km/h (50 mph) when towing a
trailer for another 800 km (500 miles).
In addition, avoid full throttle accelera-
tion.
MAINTENANCE
If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. For this
information, please refer to the
scheduled maintenance information in
the “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.
Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.

493
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
PRETOWING SAFETY CHECK
Check that your vehicle remains level
when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle has
an abnormal nose−up or nose −down
condition, and check for improper
tongue load, overload, worn suspension
or other possible causes.
Make sure the trailer cargo is securely
loaded so that it cannot shift.
Check that your rear view mirrors con-
form to any applicable federal state/
provincial or local regulations. If not,
install the rear view mirrors required
for towing purpose.
TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing. The three main causes of vehicle
trailer accidents are driver error, exces-
sive speed and improper trailer loading.
Keep these in mind when towing:
Speed limits for towing a trailer vary
by state or province. Do not exceed
the posted towing speed limit.
Before starting out, check operation of
the lights and all vehicle −trailer connec-
tions. After driving a short distance,
stop and recheck the lights and con-
nections. Before actually towing a trail-
er, practice turning, stopping and back-
ing with a trailer in an area away from
traffic until you learn the feel.
Backing with a trailer is difficult and
requires practice. Grip the bottom of
the steering wheel and move your hand
to the left to move the trailer to the
left. Move your hand to the right to
move the trailer to the right. (This pro-
cedure is generally opposite to that
when backing without a trailer.) Also,
just turn the steering wheel a little at
a time, avoiding sharp or prolonged
turning. Have someone guide you when
backing to reduce the risk of an acci-
dent.
Because stopping distance may be in-
creased, following distance should be
increased when towing a trailer. For
each 16 km/h (10 mph) of speed, allow
at least one vehicle and trailer length
between you and the vehicle ahead.
Avoid sudden braking as you may skid,
resulting in jackknifing and loss of con-
trol. This is especially true on wet or
slippery surfaces.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.
Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room be-
fore changing lanes.

494
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
In order to maintain engine braking effi-
ciency when driving on a long steep
downgrade, do not use the transmis-
sion in “D”. Select an appropriate shift
range in “S” mode (See “Automatic
transmission” on page 211 in Section
1−7).
Because of the added load of the trail-
er, your vehicle’s engine may overheat
on hot days (at temperatures over
30 C [85 F]) when going up a long or
steep grade with a trailer. If the engine
coolant temperature gauge indicates
overheating, immediately turn off the air
conditioning (if in use), pull off the road
and stop in a safe spot. Refer to “If
your vehicle overheats” on page 502 in
Section 4.
Always place wheel blocks under both
the vehicle and trailer wheels when
parking. Apply the parking brake firmly.
Put the transmission in “P”. Avoid park-
ing on a slope with a trailer, but if it
cannot be avoided, do so only after
performing the following:
1. Apply the brakes and hold.
2. Have someone place wheel blocks un- der both the vehicle and trailer wheels.
3. When the wheel blocks are in place, release your brakes slowly until the
blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine.
When restarting out after parking on a
slope: 1. With the transmission in “P” position, start the engine. Be sure to keep the
brake pedal depressed.
2. Shift into gear.
3. Release the parking brake and brake pedal, and slowly pull or back away
from the wheel blo cks. Stop and apply
your brakes.
4. Have someone retrieve the blo cks.CAUTION
Do not use cruise control when you
are towing down long, steep grades
or with heavy loads.
Slow down and downshift before
descending steep or long downhill
grades. Do not make sudden down-
shifts.
Avoid holding the brake pedal down
too long or too frequently. This
could cause the brakes to overheat
and result in reduced braking effi-
ciency.

495
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Improving fuel economy is easy—just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See page
553 in Section 7 −2 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Avoid lengthy warmup idling. Once
the engine is running smoothly, begin
driving—but gently. Remember, howev-
er, that on cold winter days this may
take a little longer.
Put the selector lever into the “D”
when engine braking is not required.
Driving with the selector lever in a
position other than “D” will reduce the
fuel economy (For details, see
“Automatic transmission” on page 211
in Section 1− 7.)
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid long engine idling. If you have
a long wait and you are not in traffic,
it is better to turn off the engine and
start again later.
Avoid engine lugging or overrev-
ving. Use a gear position suitable for
the road on which you are travelling.
Avoid continuous speeding up and
slowing down. Stop−and− go driving
wastes fuel.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on brake ped-
al. This causes premature wear, over-
heating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the engine, which, in turn, wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corrosion
Keep your vehicle tunedup and in
top shape. A dirty air cleaner,
improper valve clearance, dirty plugs,
dirty oil and grease,brakes not
adjusted, etc. all lower engine
performance and contribute to poor fuel
economy. For longer life of all parts
and lower operating costs, keep all
maintenance work on schedule, and if
you often drive under severe
conditions, see that your vehicle
receives more frequent maintenance.
(For scheduled maintenance
information, please refer to the
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
How to save fuel and make
your vehicle last longer

496
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
Never turn off the engine to coast
down hills. Your power steering and
brake booster will not function with-
out the engine running. Also, the
emission control system operates
properly only when the engine is run-
ning.

497
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
IN CASE OF AN EMERGENCY
In case of an emergency
If your vehicle will not start 498
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 502
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 502
. . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 502
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
If you have a flat tire 503
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle becomes stuck 516
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 517
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission selector lever 522
. . . . . . . .
If you lose your keys 523
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 523
. . . . . . . . . . . . .
SECTION 4

498
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Before making these checks, make sure
you have followed the correct starting pro-
cedure given in “How to start the engine”
on page 474 in Section 3 and that you
have sufficient fuel. If your vehicle is
equipped with the engine immobilizer sys-
tem, also check whether the other keys
will start the engine. If they work, your
key may be broken. Have the key
checked at your Toyota dealer. If none of
your keys work, there may be a malfunc-
tion in the immobilizer system. Call your
Toyota dealer. (See “Keys (with engine
immobilizer system)” on page 18 in Sec-
tion 1−2.)
If the engine is not turning over or is
turning over too slowly— 1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior lights or personal lights.
3. If the light is out, dim or goes out when the starter is cranked, the battery
is discharged. You may try jump start-
ing. See “(c) Jump starting” for further
instructions.
If the light is O.K., but the engine still will
not start, it needs adjustment or repair.
Call a Toyota dealer or qualified repair
shop.NOTICE
Do not pull or pushstart the ve-
hicle. It may damage the vehicle or
cause a collision when the engine
starts. Also the threeway catalytic
converter may overheat and become a
fire hazard.
If the engine turns over at its normal
speed but will not start—
1. Turn the engine switch to the “ACC” or “LOCK” position and try starting the
engine again.
2. If the engine will not start, the engine may be flooded because of repeated
cranking. See “(b) Starting a flooded
engine” for further instructions.
3. If the engine still will not start, it needs adjustment or repair. Call a Toyota
dealer or qualified repair shop. If the engine will not start, your engine
may be flooded because of repeated
cranking.
If this happens, turn the engine switch to
the “START” position with the accelerator
pedal fully depressed. Keep the key and
accelerator pedal in these positions for 15
seconds and release them. Then try start-
ing the engine with your foot off the accel-
erator pedal.
If the engine does not start after 15 se-
conds of cranking, release the key, wait
a few minutes and try again.
If the engine still will not start, it needs
adjustment or repair. Call a Toyota dealer
or qualified repair shop for assistance.
NOTICE
Do not crank for more than 30 se-
conds at a time. This may overheat
the starter and wiring systems.
If your vehicle will not start—
(a) Simple checks
(b) Starting a flooded engine

499
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To avoid serious personal injury and
damage to your vehicle which might re-
sult from battery explosion, acid burns,
electrical burns, or damaged electronic
components, these instructions must be
followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION
Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water imme-
diately. Then get immediate medical
attention. If possible, continue to
apply water with a sponge or cloth
while en route to the medical office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.
JUMP STARTING PROCEDURE
1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.
(c) Jump starting

500
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
LS40034
Jumper
cable
Positive
terminal
(“+” mark)
Positive terminal
(“+” mark)
Discharged battery
Booster
battery
4. Make the cable connections in the or-der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
LS40035
Discharged battery
Negative terminal
(“−” mark) Jumper cable
Booster
battery
c. Connect the clamp of the negative
(black) jumper cable to the negative (–)
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting points
are shown in the following illustrations:
XS40001
Connecting point for 4.0 L V6 (1GRFE)
engine
XS40002
Connecting point for 4.7 L V8 (2UZFE)
engine
