Rsca TOYOTA TUNDRA 2008 2.G Owners Manual

2
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

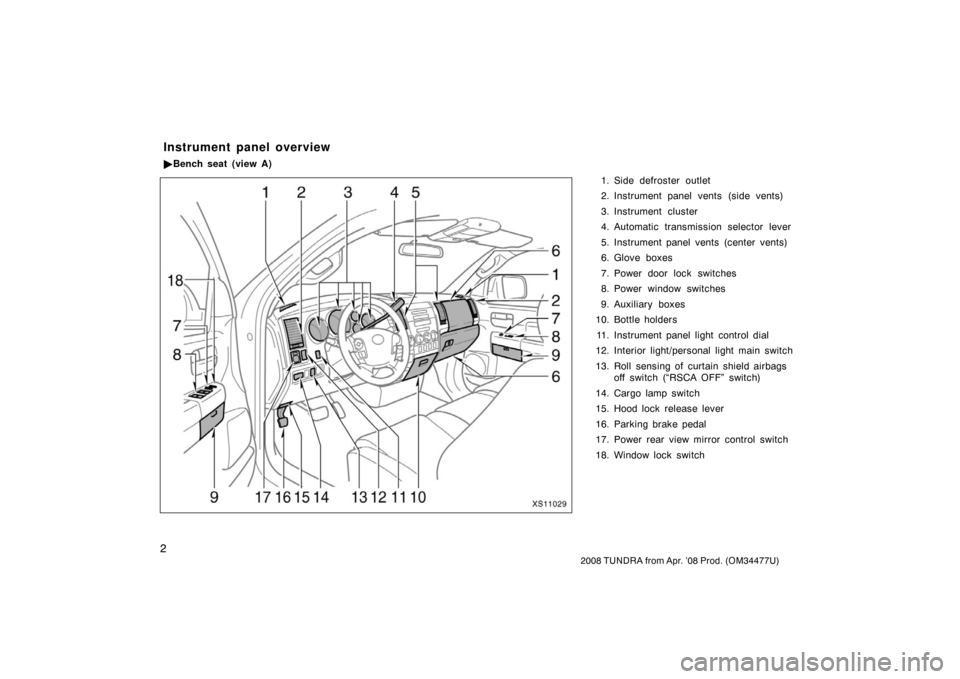

1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Automatic transmission selector lever
5. Instrument panel vents (center vents)
6. Glove boxes
7. Power door lock switches
8. Power window switches
9. Auxiliary boxes
10. Bottle holders
11. Instrument panel light control dial
12. Interior light/personal light main switch
13. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
14. Cargo lamp switch
15. Hood lock release lever
16. Parking brake pedal
17. Power rear view mirror control switch
18. Window lock switch
Instrument panel overview
 Bench seat (view A)
XS11029

3
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

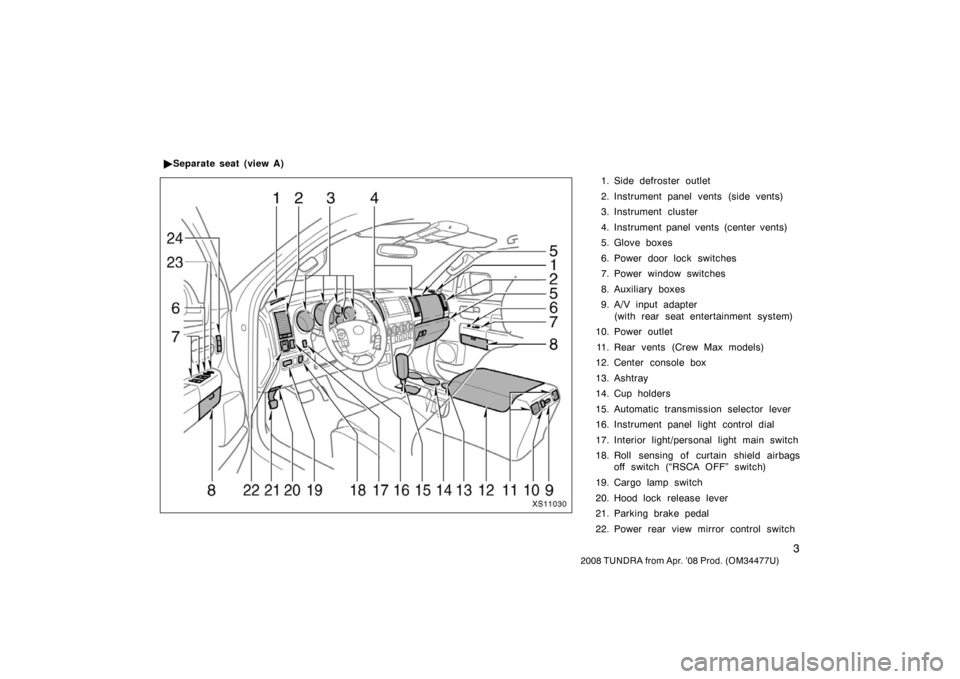

1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Instrument panel vents (center vents)
5. Glove boxes
6. Power door lock switches
7. Power window switches
8. Auxiliary boxes
9. A/V input adapter
(with rear seat entertainment system)
10. Power outlet
11. Rear vents (Crew Max models)
12. Center console box
13. Ashtray
14. Cup holders
15. Automatic transmission selector lever
16. Instrument panel light control dial
17. Interior light/personal light main switch
18. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
19. Cargo lamp switch
20. Hood lock release lever
21. Parking brake pedal
22. Power rear view mirror control switch

Separate seat (view A)
XS11030

74
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13132a

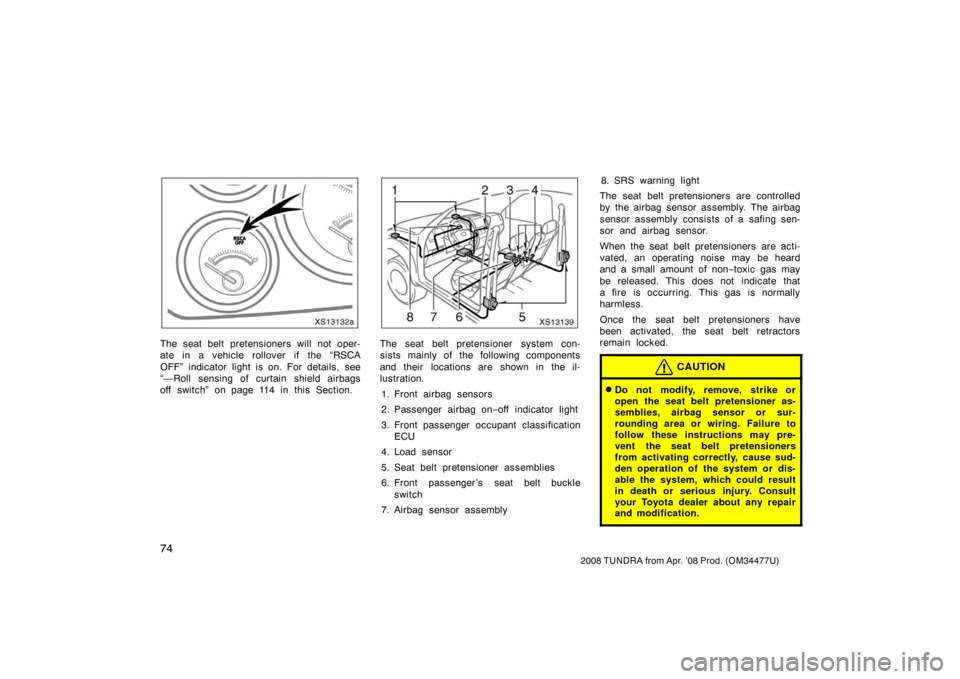

The seat belt pretensioners will not oper-
ate in a vehicle rollover if the “RSCA
OFF” indicator light is on. For details, see
“—Roll sensing of curtain shield airbags
off switch” on page 114 in this Section.
XS13139
The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
lustration.
1. Front airbag sensors
2. Passenger airbag on −off indicator light
3. Front passenger occupant classification ECU
4. Load sensor
5. Seat belt pretensioner assemblies
6. Front passenger ’s seat belt buckle switch
7. Airbag sensor assembly 8. SRS warning light
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non −toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or
open the seat belt pretensioner as-
semblies, airbag sensor or sur-
rounding area or wiring. Failure to
follow these instructions may pre-
vent the seat belt pretensioners
from activating correctly, cause sud-
den operation of the system or dis-
able the system, which could result
in death or serious injury. Consult
your Toyota dealer about any repair
and modification.

76
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger
occupant classification system
∗, passenger
airbag off switch, passenger airbag on −off
indicator light, seat belt pretensioner
assemblies, inflators, “RSCA OFF”
indicator light, interconnecting wiring and
power sources. (For details, see “Service
reminder indicators and warning buzzers”
on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor,
front passenger ’s seat belt buckle switch.
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.
XS13121
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.

85
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

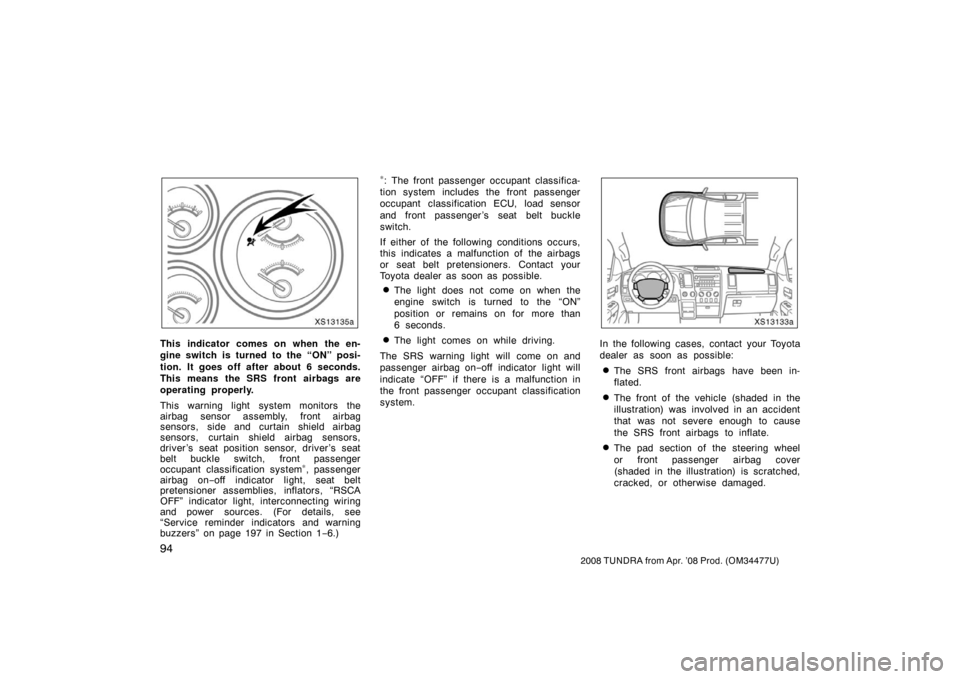

XS13135a
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS airbags are operat-
ing properly. This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, driver ’s seat position sensor,
driver ’s seat belt buckle switch, front
passenger occupant classification system
∗,
passenger airbag off switch, passenger
airbag on −off indicator light, seat belt
pretensioner assemblies, inflators, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving. The SRS warning light will come on and
passenger airbag on
−off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.

94
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS13135a
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS front airbags are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side and curtain shield airbag
sensors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger
occupant classification system
∗, passenger
airbag on −off indicator light, seat belt
pretensioner assemblies, inflators, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving.
The SRS warning light will come on and
passenger airbag on −off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.
XS13133a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.

100
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

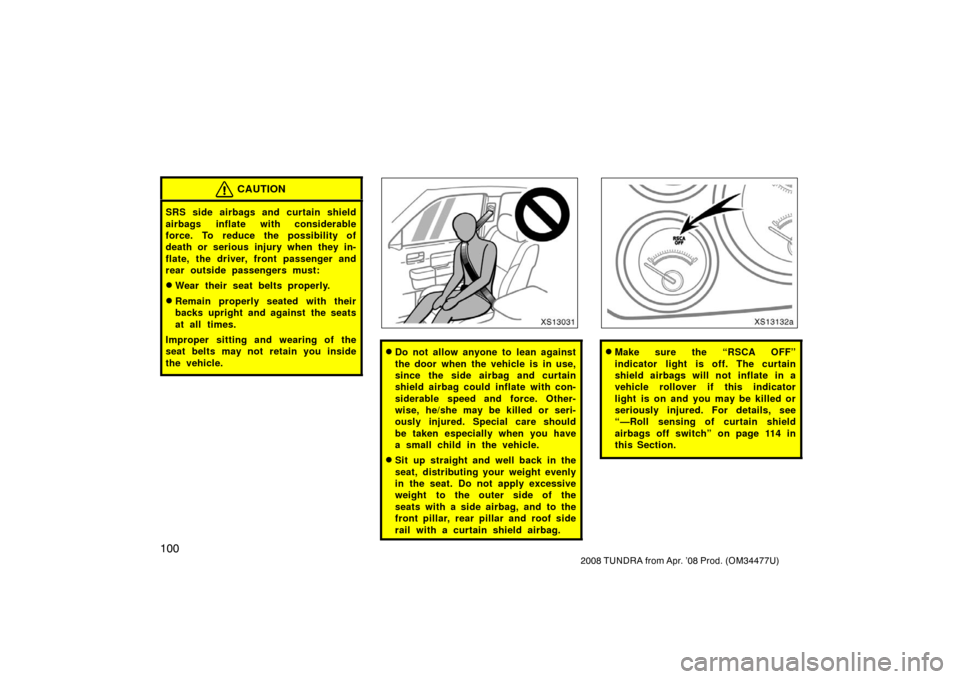

CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
rear outside passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
XS13031
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.
XS13132a
Make sure the “RSCA OFF”
indicator light is off. The curtain
shield airbags will not inflate in a
vehicle rollover if this indicator
light is on and you may be killed or
seriously injured. For details, see
“—Roll sensing of curtain shield
airbags off switch” on page 114 in
this Section.

104
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system
∗, passenger airbag
off switch, passenger airbag on −off indica-
tor light, seat belt pretensioner assem-
blies, inflators, “RSCA OFF” indicator light,
interconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 197 in
Section 1 −6.)
∗: The front passenger occupant classifica-
tion system includes the front passenger
occupant classification ECU, load sensor
and front passenger ’s seat belt buckle
switch.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on for more than
6 seconds.
The light comes on while driving. The SRS warning light will come on and
passenger airbag on
−off indicator light will
indicate “OFF” if there is a malfunction in
the front passenger occupant classification
system.

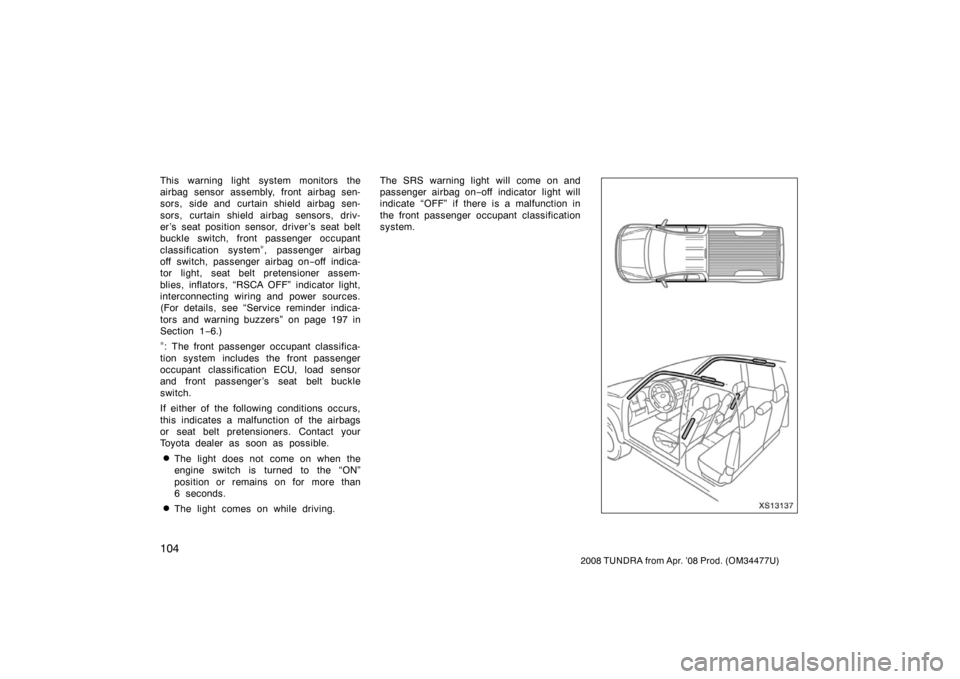

XS13137

11 4
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

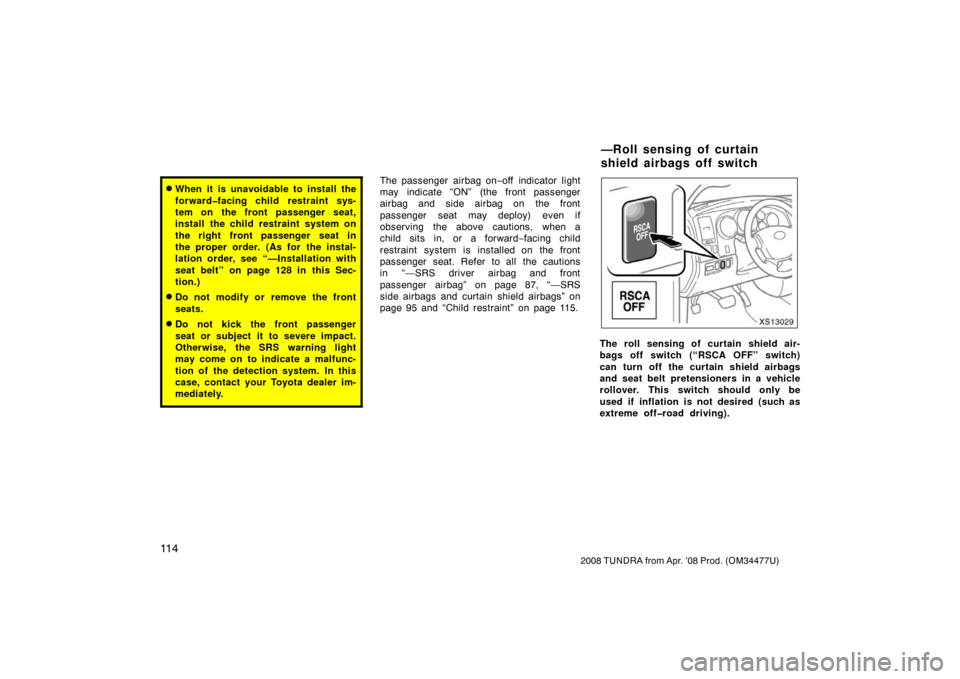

When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the right front passenger seat in
the proper order. (As for the instal-
lation order, see “—Installation with
seat belt” on page 128 in this Sec-
tion.)
Do not modify or remove the front
seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The passenger airbag on−off indicator light
may indicate “ON” (the front passenger
airbag and side airbag on the front
passenger seat may deploy) even if
observing the above cautions, when a
child sits in, or a forward −facing child
restraint system is installed on the front
passenger seat. Refer to all the cautions
in “—SRS driver airbag and front
passenger airbag” on page 87, “—SRS
side airbags and curtain shield airbags” on
page 95 and “Child restraint” on page 115.
XS13029
The roll sensing of curtain shield air-
bags off switch (“RSCA OFF” switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme offroad driving).
—Roll sensing of curtain
shield airbags off switch

11 5
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
When you push the “RSCA OFF” switch
for a few seconds with the engine switch
on, the “RSCA OFF” indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sens-
ing function is turned on. (For details
about the roll sensing function, see
“—SRS side airbags and curtain shield
airbags” on page 95 in this Section.)
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield air-
bags, see “—SRS side airbags and curtain
shield airbags” on page 95 in this Sec-
tion.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
“—Seat belt pretensioners” on page 73 in
this Section.)
If the engine switch is turned to “ACC” or
“LOCK” with the roll sensing function off
and then the engine switch is turned back
to “ON”, the roll sensing function will turn

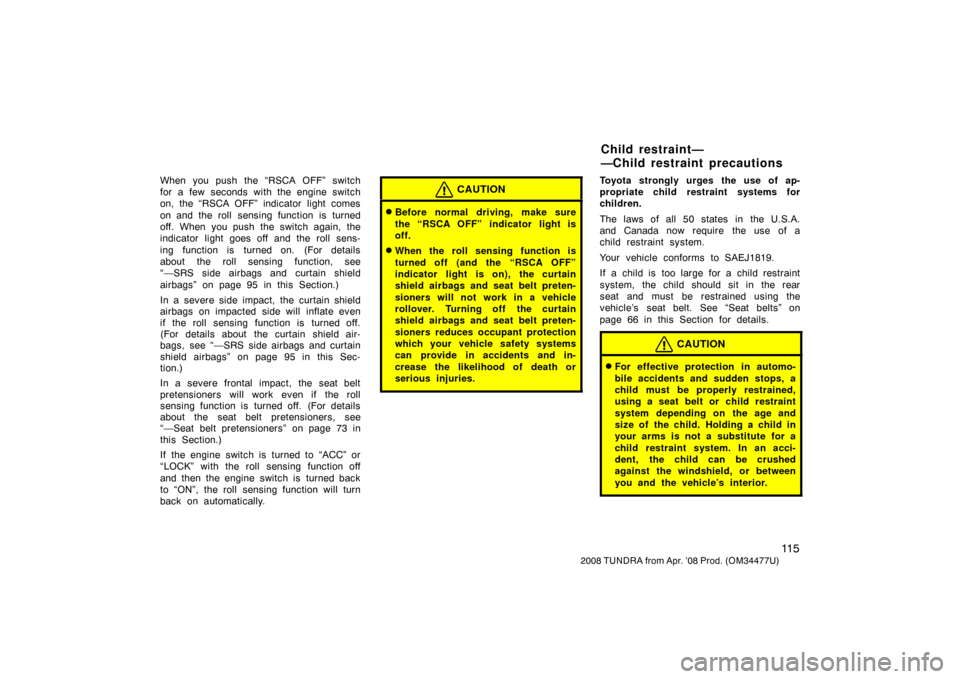

back on automatically.CAUTION
Before normal driving, make sure
the “RSCA OFF” indicator light is
off.
When the roll sensing function is
turned off (and the “RSCA OFF”
indicator light is on), the curtain
shield airbags and seat belt preten-
sioners will not work in a vehicle
rollover. Turning off the curtain
shield airbags and seat belt preten-
sioners reduces occupant protection
which your vehicle safety systems
can provide in accidents and in-
crease the likelihood of death or
serious injuries.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 66 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Child restraint—
—Child restraint precautions
