seat adjustment TOYOTA TUNDRA 2008 2.G Owners Manual

49
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Front passenger seats
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system, or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

57
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed for a button that already
has a memory setting, the previous posi-
tion will be erased and the new position
will be memorized.
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
XS13099a
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The engine switch is in the “ON” posi-
tion and the selector lever is in the “P”
position.
The key is not in the engine switch
and less than 30 seconds have passed
since opening the driver ’s door.
To stop the operation, push any driving
position memory button. To reactivate the system, push button “1”
or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

64
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

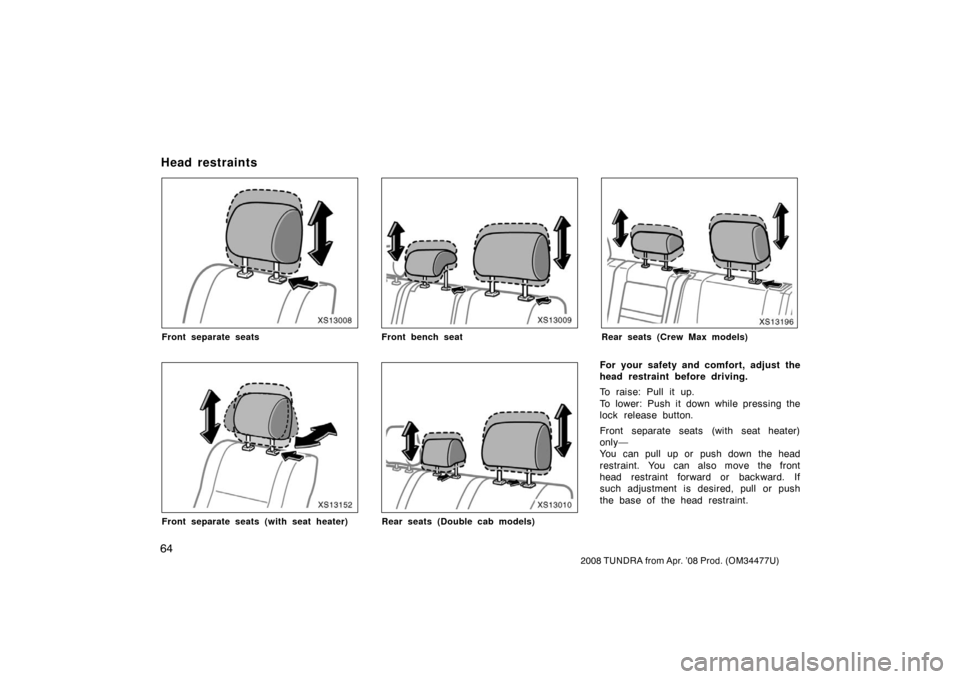

XS13008
Front separate seats
XS13152
Front separate seats (with seat heater)
XS13009
Front bench seat
XS13010
Rear seats (Double cab models)
XS13196
Rear seats (Crew Max models)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front separate seats (with seat heater)
only—
You can pull up or push down the head
restraint. You can also move the front
head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.
Head restraints

69
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

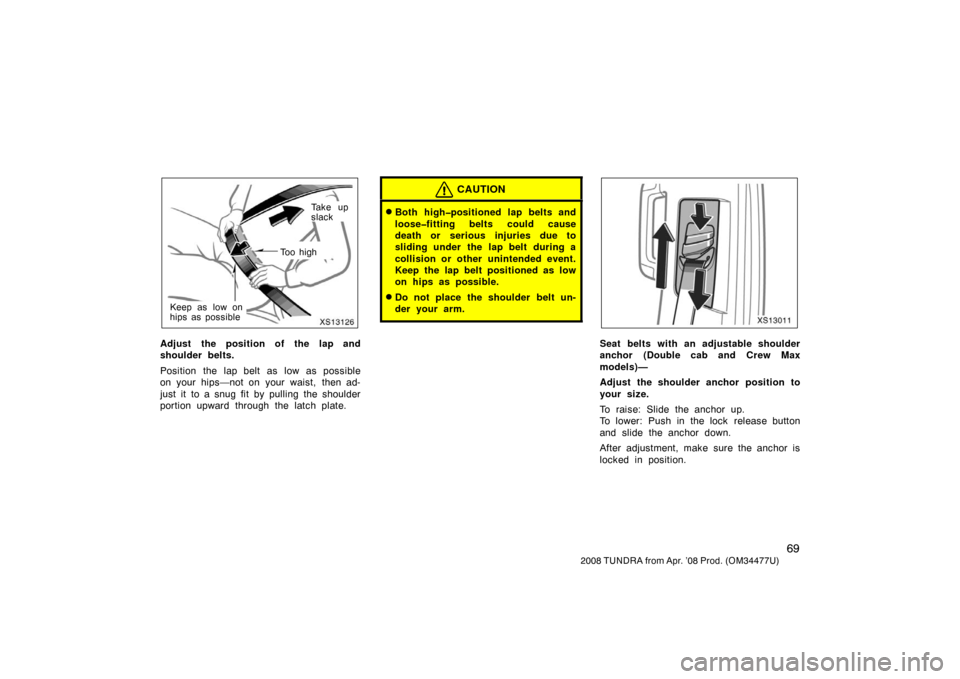

XS13126
Ta k e u p
slack
Keep as low on
hips as possible
To o h i g h
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on hips as possible.
Do not place the shoulder belt un-
der your arm.
XS13011
Seat belts with an adjustable shoulder
anchor (Double cab and Crew Max
models)—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
