check engine TOYOTA TUNDRA 2009 2.G Navigation Manual

OTHER FUNCTIONS
121
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones
5U5003F
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
5. Touch “OK”.
The screen then returns to the
“Maintenance” screen.
INFORMATION
 For scheduled maintenance
information, please refer to the
“Scheduled Maintenance Guide”
or “Owner’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.

OTHER FUNCTIONS
154

Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any switch) af-
ter the preset time.
5U5092F
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.
The Bluetooth connection status
at startup
5U5093F
When the engine switch is turned to the
ACC or ON position and the Bluetooth
is automatically connected, the con-
nection check is displayed.
5U5094F
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at
startup”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

AUDIO/VIDEO SYSTEM
205
XS00415
(a) Inserting discs
The engine switch must be in the ACC or
ON position.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “LOAD·
/CLOSE” but-
ton. The “LOAD·EJECT” screen ap-
pears.
6U5017F
2. Touch “LOAD”. The display opens.
XS00416
3. The amber indicators at either side
of the slot start blinking. When the indi-
cators change to green, insert only one
disc with the label side up. After the
disc is loaded, the amber indicators at
either side of the slot start blinking
again. When the indicators change to
green, you can insert the next disc.
4. Push the “LOAD·
/CLOSE” but-
ton to close the display.
The changer will automatically start play-
ing from the last disc you inserted.
If the label faces down, the disc cannot be
played. In this case, “CD CHECK” ap-
pears on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the display
closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
— CD changer operation

REAR VIEW MONITOR SYSTEM
252
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up. The left and right displayed on the
screen are the same as those of the in-
side rear view mirror.
To display the rear view image on the
screen, place the selector lever in the R
position when the engine switch is in
the ON position.
If you move the selector lever out of the R
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.

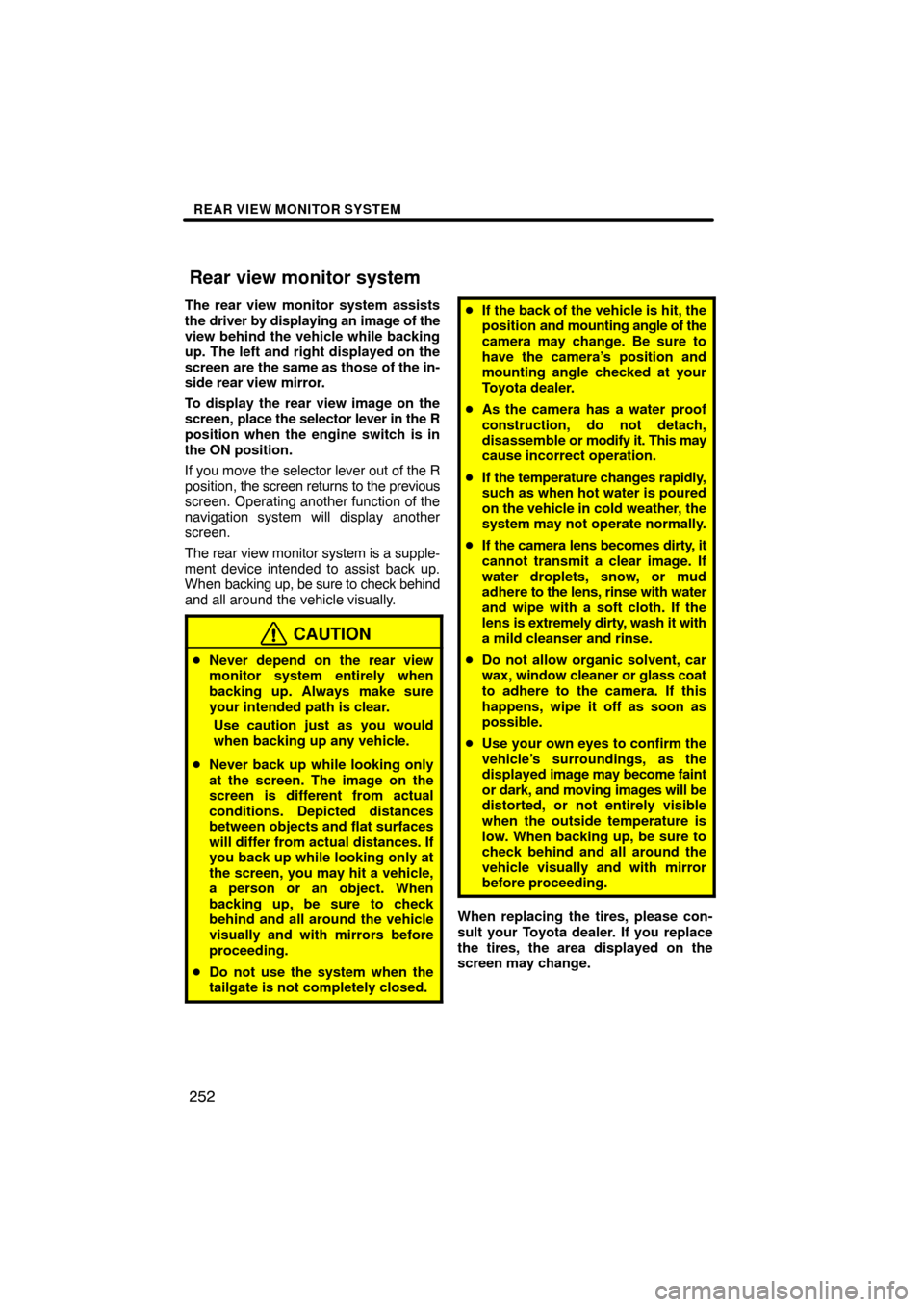

CAUTION
 Never depend on the rear view
monitor system entirely when
backing up. Always make sure
your intended path is clear.
Use caution just as you would
when backing up any vehicle.
 Never back up while looking only
at the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distances. If
you back up while looking only at
the screen, you may hit a vehicle,
a person or an object. When
backing up, be sure to check
behind and all around the vehicle
visually and with mirrors before
proceeding.
 Do not use the system when the
tailgate is not completely closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
 As the camera has a water proof
construction, do not detach,
disassemble or modify it. This may
cause incorrect operation.
 If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
 If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud
adhere to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
 Do not allow organic solvent, car
wax, window cleaner or glass coat
to adhere to the camera. If this
happens, wipe it off as soon as
possible.
 Use your own eyes to confirm the
vehicle’s surroundings, as the
displayed image may become faint
or dark, and moving images will be
distorted, or not entirely visible
when the outside temperature is
low. When backing up, be sure to
check behind and all around the
vehicle visually and with mirror
before proceeding.
When replacing the tires, please con-
sult your Toyota dealer. If you replace
the tires, the area displayed on the
screen may change.
Rear view monitor system
