ROUTE GUIDANCE
91
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Starting route from adjacent road
You can start the route guidance from the
adjacent road.
(ex. When route guidance is set on the
freeway, but the vehicle is driven parallel
along the freeway.)
1. Touch “Route”.
2. Touch “Preferences”.
3. Touch “Start from Adjacent Road”.
When there is no adjacent road, this button
will not be displayed.
To pause guidance
1. Touch “Route”.
2. Touch “Pause Guidance”.
INFORMATION
Without route guidance, “Pause
Guidance” cannot be used.
The screen will return to the current posi-
tion map without route guidance.
— Pausing and resuming
guidance

ROUTE GUIDANCE
92
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
To resume guidance
1. Touch “Route”.
2. Touch “Resume Guidance”.
The screen will change to the current posi-
tion map with route guidance.Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
1. Touch “Show on Map”.
2. Touch
“Select POI” to display a par-
ticular type of Point of Interest on the
screen.
When the Points of Interest to be displayed
on the map screen have already been set,
“Change POI” is displayed.
A screen with a limited choice of Points of
Interest will be displayed. (To change the
displayed POI, see page 250.)
Show on map —
— Display POI icons

ROUTE GUIDANCE
93
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Selecting POIs to be displayed
Up to 5 categories of icons can be dis-
played on the screen.
Touch the desired Point of Interest
category to display POI location sym-
bols on the map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To turn off the Points of Interest icons on
the map screen, touch “Clear”.
“Other POIs”: If the desired Point of Inter-
est can not be found on the limited choice
screen, touch this button.
“Find Local POI”: When searching for the
nearest Point of Interest, touch this button.
Then choose one of the categories. The
system will list the points within 200 miles
(320 km). (See page 94.) Touch “Other POIs” on the “Select POI
Icons” screen.
When a Point of Interest category is se-
lected from either the limited list or the
complete list, the screen will display sym-
bols of those locations on the map screen.
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching
“OK”, the selected POI
icons are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.

ROUTE GUIDANCE
94
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Select the desired POI categories from
the list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.
To display the local POI list
Points of Interest that are within 200 miles
(320 km) of the current position will be
listed from among the selected categories.
1. Touch “Find Local POI” on the “Se-
lect POI Icons” screen.
2. Touch the button of the desired
Point of Interest.
The selected Points of Interest are dis-
played on the map screen.
“Near...”: To search for Points of Interest
near the current position or along the
route.

ROUTE GUIDANCE
95
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
“Near Here” : When “Near Here” is
touched, the list of Points of Interest near
the current position will be displayed.
“Along My Route” : When “Along My
Route” is touched, the list of Points of In-
terest along the route will be displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination
and use it for route guidance.
1. Directly touch the Point of Interest
icon that you want to set as a destina-
tion.
The map will shift so that the icon is cen-
tered on the screen and overlaps with the
cursor
. At this time, the distance from
the current position is displayed on the
screen. The distance shown is measured
as a straight line from the current vehicle
position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and
route preference. (See
“Starting route
guidance” on page 72.)

ROUTE GUIDANCE
96
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
To hide POI icons
1. Touch “Show on Map”.
2. Touch “POI Icons”.
The “POI Icons” indicator is dimmed.
The map screen will be displayed with the
POI icons hidden.
To display the POI icons again, touch “POI
Icons” on the “Show on Map” screen.It is possible to store the traveled route up
to 124 miles (200 km) and retrace the route
on the display.
INFORMATION
This feature is available on the map
with
more detailed map scale than 30
mile (50 km).
— Route trace

ROUTE GUIDANCE
97
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
To start recording the route trace
1. Touch “Show on Map”.
2. Touch “Route Trace”.
“Route Trace” indicator is highlighted.
To stop recording the route trace
1. Touch “Show on Map”.
2. Touch “Route Trace”. The following
screen will be displayed.
Touching “Yes” stops recording and the
route trace remains displayed on the
screen.
Touching “No” stops recording and the
route trace is erased.

ROUTE GUIDANCE
98
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
The XM
 NavTraffic service that allows the
navigation system to display traffic infor-
mation on the map is available if your satel-
lite radio tuner can receive traffic informa-
tion.
To receive the XM NavTraffic service, a
subscription to the XM Satellite Radio
with NavTraffic is necessary.
The XM  NavTraffic is available in the con-
tiguous 48 U.S. states and some Canadian
cities. For details about the XM  NavTraf-
fic service coverage area, refer to
www.xmradio.com
(U.S.A.) or www.xmra-dio.ca (CANADA).
How to activate the XM  NavTraffic
service
To receive the XM  NavTraffic service,
it is necessary to activate the service.
To activate the service, an extra fee is
required in addition to subscription
fees for the XM  Satellite Radio. For
details about service and activation,
call XM Listener Care Center at
1−800−967−2346 (U.S.A.) or
1−877−438−9677 (CANADA).
Customers should have their radio ID
ready; the radio ID can be found by select-
ing “channel 000” on the radio. For details,
see “(b) Displaying the radio ID” on page
158.
XM  Satellite Radio has the responsibility
for all fees and service, they are subject to
change. The following operations can be per-
formed.
Show XM
 NavTraffic Information
Traffic information is displayed on the map.
(See page 99.)
Auto Avoid Traffic
If any heavy congestion or moderate traffic
has been detected on the guidance route,
it may be possible for you to select another
route offered by the system. (See page
248.)
Traffic Voice Guidance
Traffic information is provided using voice
guidance. (See page 244.)
Show Free Flowing Traffic
Freely flowing traffic is shown by the arrow
on the map. (See page 249.)
INFORMATION
 Traffic voice guidance is available
only in English. To select English,
see “
 Selecting a language” on
page 237.
 When the “Traffic Information” in-
dicator is dimmed, “Auto Avoid
Traffic”, “Traffic Voice Guidance”
and “Show Free Flowing Traffic”
will not operate.
 Objects, especially metal objects,
such as cargo, a camper, or a truck
rack, may adversely affect the re-
ception of XM Satellite Radio.
XM NavTraffic

ROUTE GUIDANCE
99
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

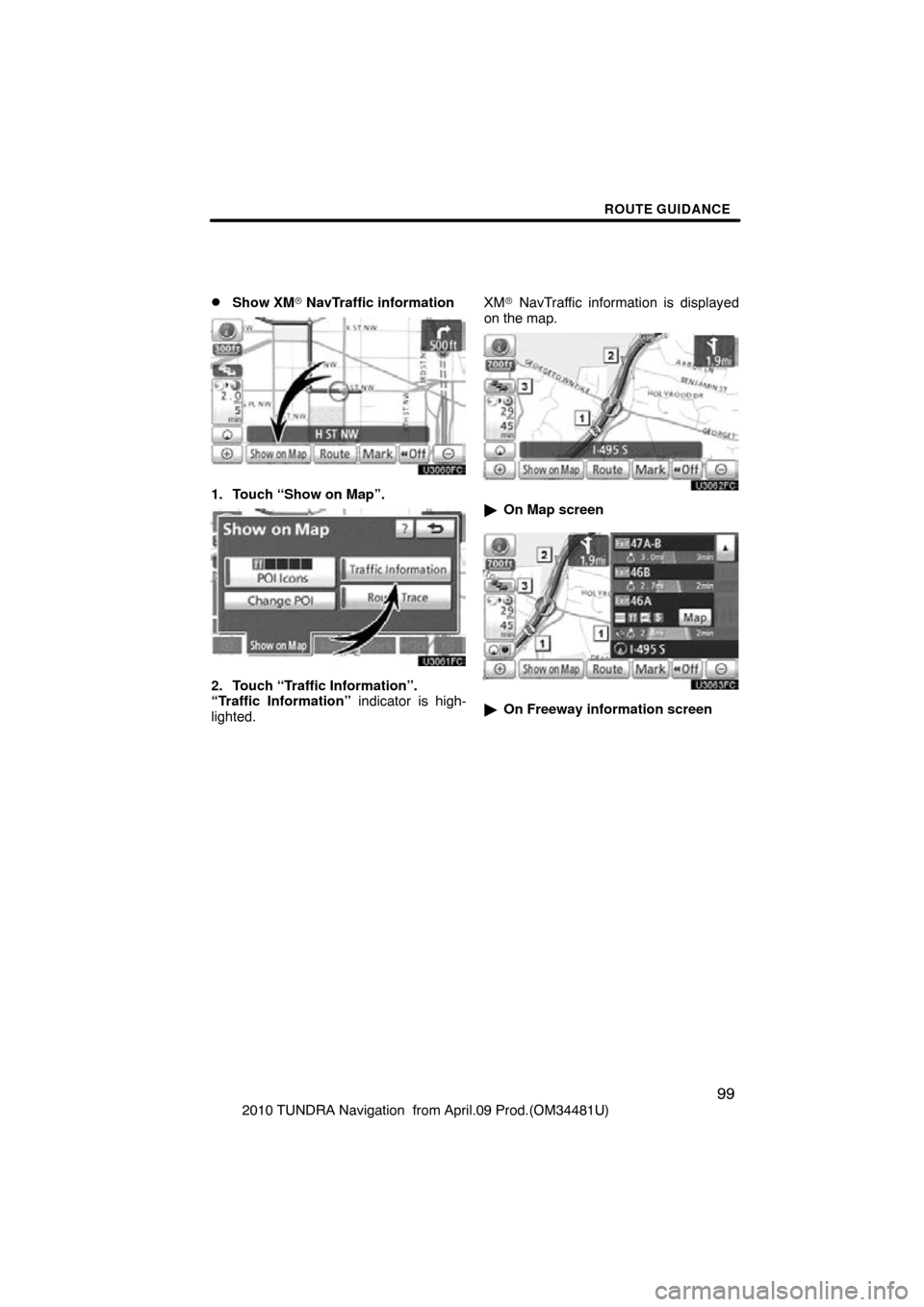

Show XM NavTraffic information
1. Touch “Show on Map”.
2. Touch “Traffic Information”.
“Traffic Information” indicator is high-
lighted. XM
 NavTraffic information is displayed
on the map.
 On Map screen
On Freeway information screen

ROUTE GUIDANCE
100
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
1XM NavTraffic icon
When any traffic information has been
received, the XM  NavTraffic icon will
appear on the map screen. Touching the
XM  NavTraffic icon on the screen will
start voice guidance for the traffic informa-
tion. (See page 39.)
INFORMATION
When the XM NavTraffic icon is
touched, voice guidance for the traf-
fic information will start even if “Off”
for “Traffic Voice Guidance” is se-
lected.
2XM  NavTraffic information arrow
When any XM NavTraffic information has
been received, the XM  NavTraffic infor-
mation arrow will appear on the map
screen. The color of the arrow changes
depending on the traffic information re-
ceived.
“Orange”: Heavy congestion
“Yellow”: Moderate traffic
“Green”: Freely flowing traffic
3XM  NavTraffic indicator
When any XM NavTraffic information has
been received, the XM NavTraffic indica-
tor will appear on the screen. The color of
the indicator changes depending on the
traffic information received.
“White”: Traffic information has been re-
ceived.
“Yellow”: Traffic restriction information on
the guidance route has been received
(touch switch
∗).
“Orange”: Congestion information on the
guidance route has been received (touch
switch
∗).∗: Touching the XM NavTraffic indicator
will start voice guidance.
