navigation TOYOTA TUNDRA 2010 2.G Navigation Manual

TELEPHONE AND INFORMATION
141
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Interrupt call
When the call is interrupted by the third
party while talking, this screen is dis-
played.
Touch
or push of the steering
wheel to start talking with the other party.
Touch
or push of the steering
wheel to refuse the call.
Everytime you touch or push of
the steering wheel while interrupt call, the
other party will be switched.
If your cellular phone is not accepted for
HFP Ver. 1.5, this function can not be used.
INFORMATION
Interrupt call operation may differ
depending on your phone company
and cellular phone.

TELEPHONE AND INFORMATION
142
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

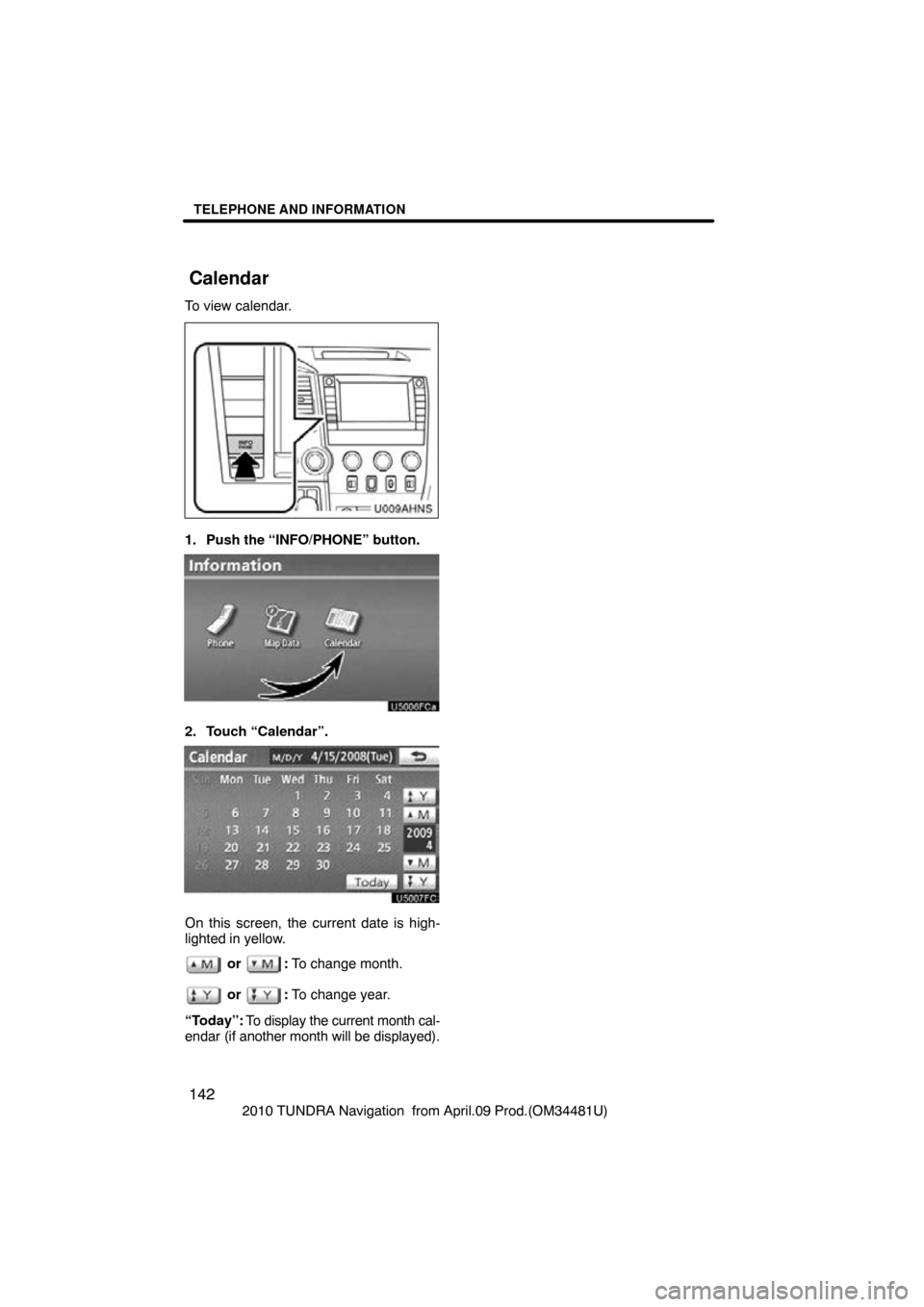

To view calendar.
U009AHNS
1. Push the “INFO/PHONE” button.
2. Touch “Calendar”.
On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month will be displayed).
Calendar

SECTION 6
AUDIO/VIDEO SYSTEM
143
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
AUDIO/VIDEO SYSTEM
Audio/video system
Quick reference 144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 Using your audio/video system 145
. . . . . . . . . . . . . . . . . . . . . . .
Some basics 145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Radio operation 153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

CD changer operation 164 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 176 . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player operation 184 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory player/iPod  player operation 210 . . . . . . . . . . . .
 Audio/video remote controls 217 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio/video system operating hints 219 . . . . . . . . . . . . . . . . . . . . . .

AUDIO/VIDEO SYSTEM
144
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the
“AUDIO” button.
U028AHNS
1Function menu display screen
To control the radio, CD changer,
DVD player
∗, Bluetooth audio
player, AUX or USB memory
player/iPod
, touch the
touch−screen buttons. For details,
see page 148.
2Function menu tab
To control the radio, CD changer,
DVD player
∗, Bluetooth audio
player, AUX or USB memory
player/iPod
, touch the
touch−screen tabs. For details, see
page 147.
3“TUNE·FILE” knob
Turn this knob to move the station
band and files up or down. For de-
tails, see pages 154, 159 and 172.
4“FM” button
Push this button to choose an FM sta-
tion. Each time this button is pushed,
the mode switches between FM1 and
FM2. For details, see pages 147 and
153.
∗: Vehicles with rear seat entertainment system
Quick reference

AUDIO/VIDEO SYSTEM
145
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
5“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 147 and
153.
6“SAT” button
Push this button to choose an SAT
station. For details, see pages 147
and 159.
7“DISC/AUX” button
Push this button to turn the CD
changer, DVD player
∗, Bluetooth
audio player, AUX or USB memory
player/iPod
 on. For details, see
pages 147, 153, 167, 181 and 186.
8“AUDIO” button
Push this button to display the audio
control screen. For details, see page
147.
9“LOAD/CLOSE” button
Push this button to display the
“Load·Eject” screen or close the dis-
play. For details, see page 164.
10“SEEK/TRACK” button
Push either side of this button to seek
up or down for a station, or to access
a desired track, file or chapter. For
details, see pages 155, 168, 172,
182, 187 and 190.
11“PWR·VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 147. This section describes some of the basic
features of your audio system. Some in-
formation may not
pertain to your system.
Your audio system works when the engine
switch is turned to the “ACC” or “ON” posi-
tion.
CAUTION
For vehicles sold in U.S.A. and Cana-
da:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in
construction not expressly approved
by the party responsible for com-
pliance could void the user’s author-
ity to operate the equipment. Radio
frequency exposure. This device is
approved for Mobile Application only
and, to comply with applicable FCC
radio frequency exposure regula-
tions, must be used with a distance of
at least 7.9 in. (20 cm) between the an-
tenna and the body of any person at
all time during use.
∗: Vehicles with rear seat entertainment system
Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
146
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Laser products Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The la-
ser is carefully shielded so that
its rays remain inside the cabi-
net. Therefore, never try to dis-
assemble the player or alter any
of its parts since you may be ex-
posed to laser rays and danger-
ous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified here-
in may result in hazardous radi-
ation exposure.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
(a) Speech command system
U004AHNS
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

AUDIO/VIDEO SYSTEM
147
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
(b) Turning the system on and off
U023AHNS
“AUDIO”:
Push this button to display
touch−screen buttons for audio system
(audio control mode).
“PWR·VOL”: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 236 for
details. (c) Switching between functions
U033AHNS
Push the “AM”, “FM”, “SAT”or
“DISC/AUX” button to turn on the
desired mode.
U6080GS
Push
the “AUDIO” button and touch the
“AM”, “FM”, “SAT”, “CD”, “DVD∗”,
“BT”, “AUX”or “USB” tab to turn on the
desired mode.
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
148
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Push these buttons or tabs if you want to
switch from one mode to another.
If the disc is not set, the CD changer/DVD
player
∗ does not turn on.
You can turn of f the CD changer/DVD play-
er
∗ by ejecting all the discs. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject all the discs. If the other function was
previously playing, it will come on again.U6081GS
U6080GS
U6082GS
U6083GS
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
149
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
U6084GS
U6086GS
U6085GS
U6078GS
U6079GS
The touchscreen buttons for radio, CD
changer, DVD player∗, Bluetooth au-
dio player, AUX and USB memory play-
er/iPod
 operation are displayed on the
function touchscreen button display
screen when the audio control mode is
selected. Touch them lightly and di-
rectly on the screen.
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
150
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

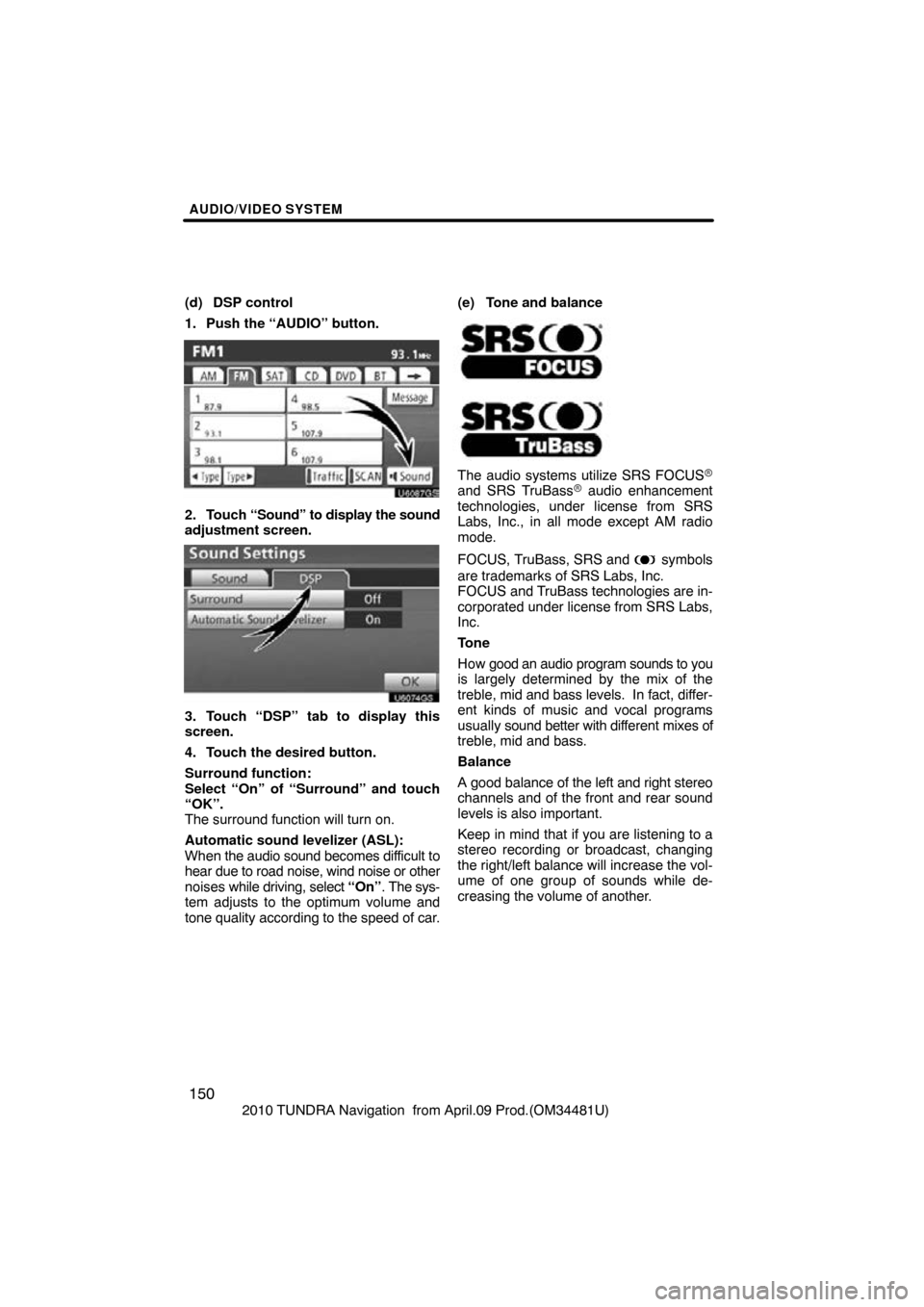

(d) DSP control
1. Push the “AUDIO” button.
U6087GS
2. Touch
“Sound” to display the sound
adjustment screen.
U6074GS
3. Touch “DSP” tab to display this
screen.
4. Touch the desired button.
Surround function:
Select “On” of “Surround” and touch
“OK”.
The surround function will turn on.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to
hear due to road noise, wind noise or other
noises while driving, select “On”. The sys-
tem adjusts to the optimum volume and
tone quality according to the speed of car. (e) Tone and balance
The audio systems utilize SRS FOCUSand SRS TruBass audio enhancement
technologies, under license from SRS
Labs, Inc., in all mode except AM radio
mode.
FOCUS, TruBass, SRS and
symbols
are trademarks of SRS Labs, Inc.
FOCUS and TruBass technologies are in-
corporated under license from SRS Labs,
Inc.
Tone
How good an audio program sounds to you
is largely determined by the mix of the
treble, mid and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with dif ferent mixes of
treble, mid and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
