key TOYOTA TUNDRA 2010 2.G Navigation Manual

SETUP
237
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
No.
Function
5Line color can be changed. (See
“ Selecting
the line color” on page
238.)
6Keyboard layout can be changed.
(See “ Selecting a keyboard lay-
out” on page 239.)
7Distance unit can be changed.
(See “ Unit of measurement” on
page 240.)
8The personal data can be deleted.
(See “ Delete personal data” on
page 240.)
Selecting a language
You can change the language.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Language”.
4. Touch the desired button.
The previous screen will be displayed.
5. Touch “Save”.

SETUP
239
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Selecting a keyboard layout
Keyboard layout can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Keyboard Layout”.
4. Touch “ABC” or “QWERTY” of
“Keyboard Layout” to choose the key-
board layout.
5. Touch “Save”. LAYOUT TYPE

“ABC” type
“QWERTY” type

SETUP
262
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

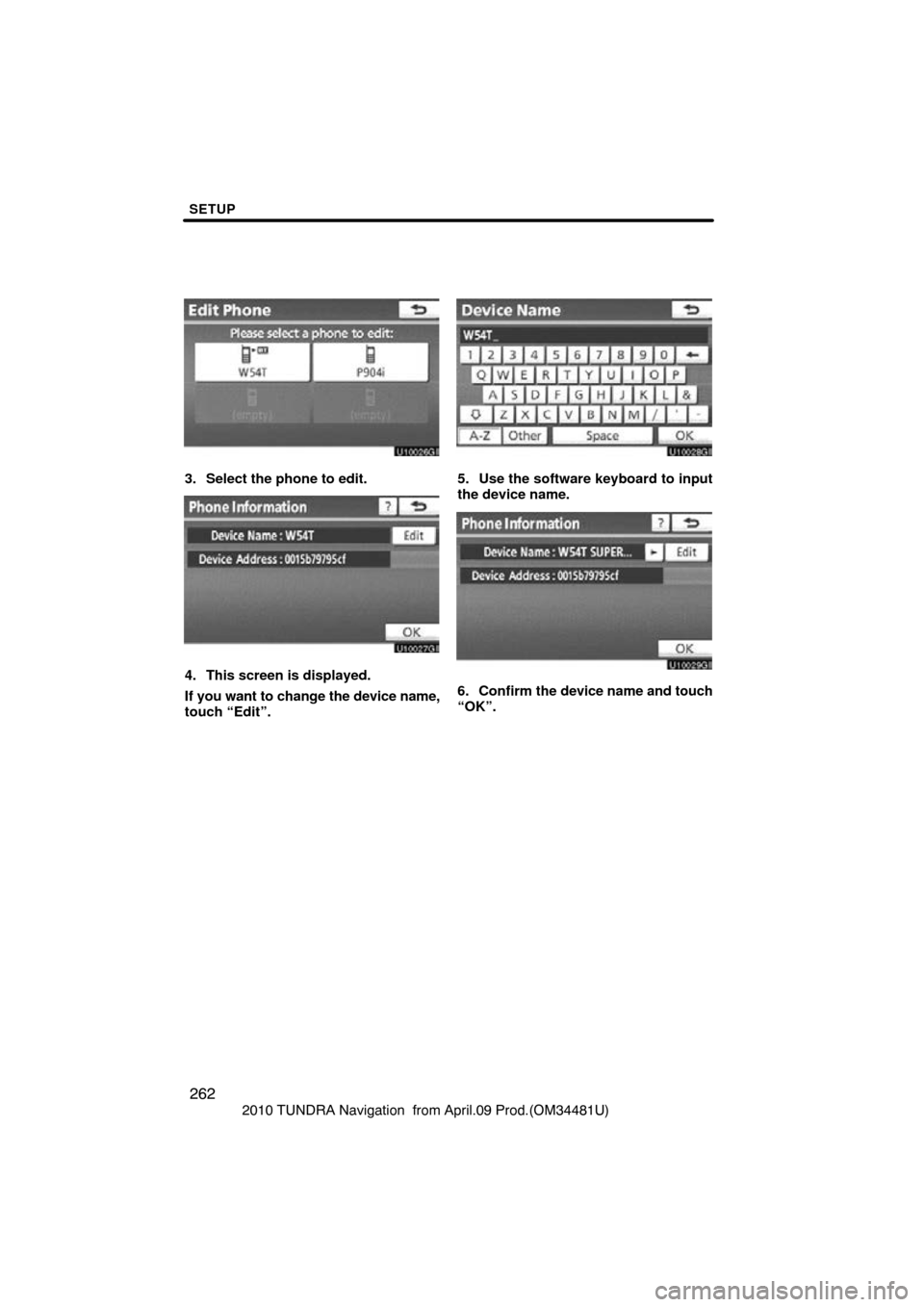

3. Select the phone to edit.
4. This screen is displayed.
If you want to change the device name,
touch “Edit”.
5. Use the software keyboard to input
the device name.
6. Confirm the device name and touch
“OK”.

SETUP
268
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

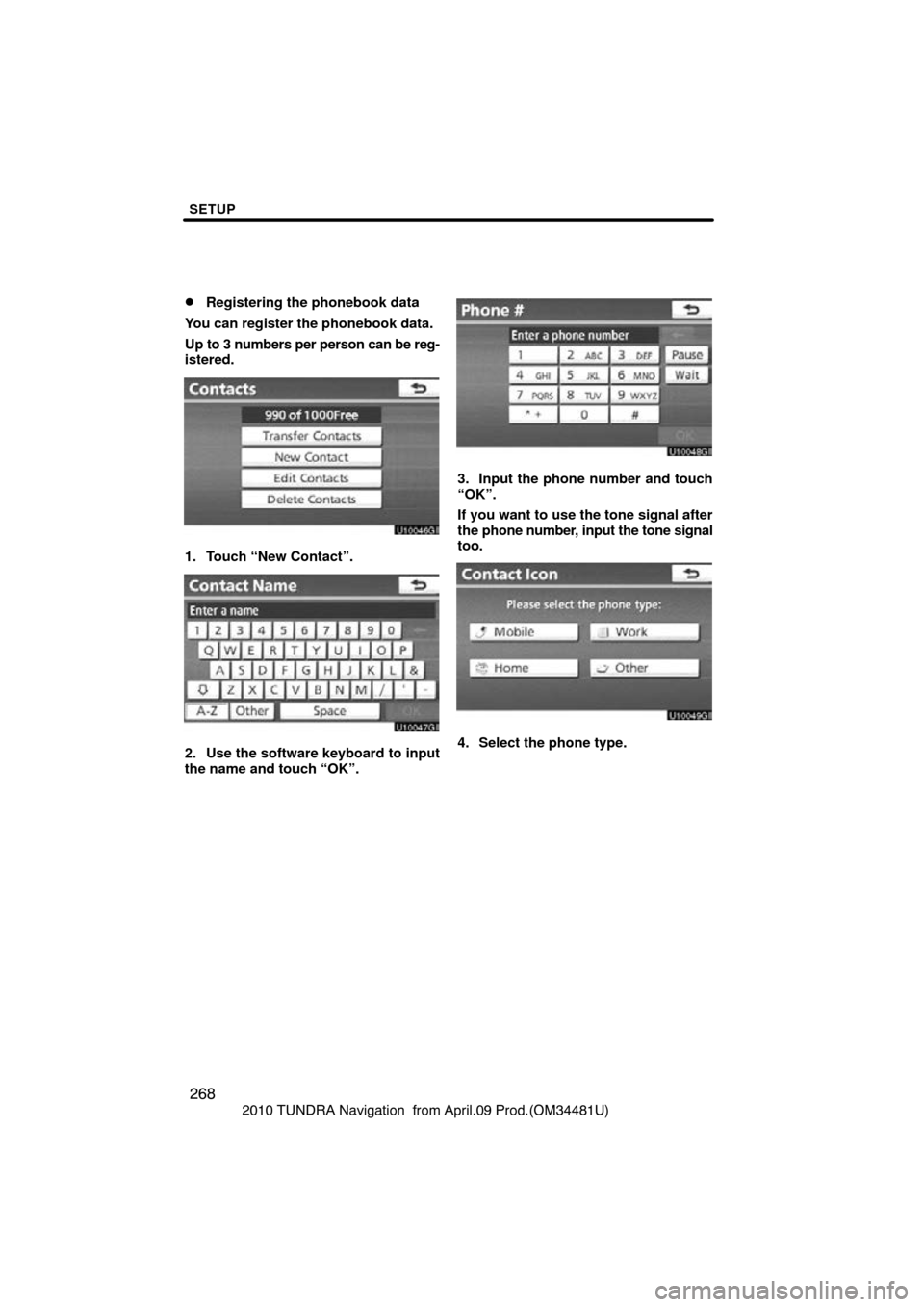

Registering the phonebook data
You can register the phonebook data.
Up to 3 numbers per person can be reg-
istered.
1. Touch “New Contact”.
2. Use the software keyboard to input
the name and touch “OK”.
3. Input the phone number and touch
“OK”.
If you want to use the tone signal after
the phone number, input the tone signal
too.
4. Select the phone type.

SETUP
278
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

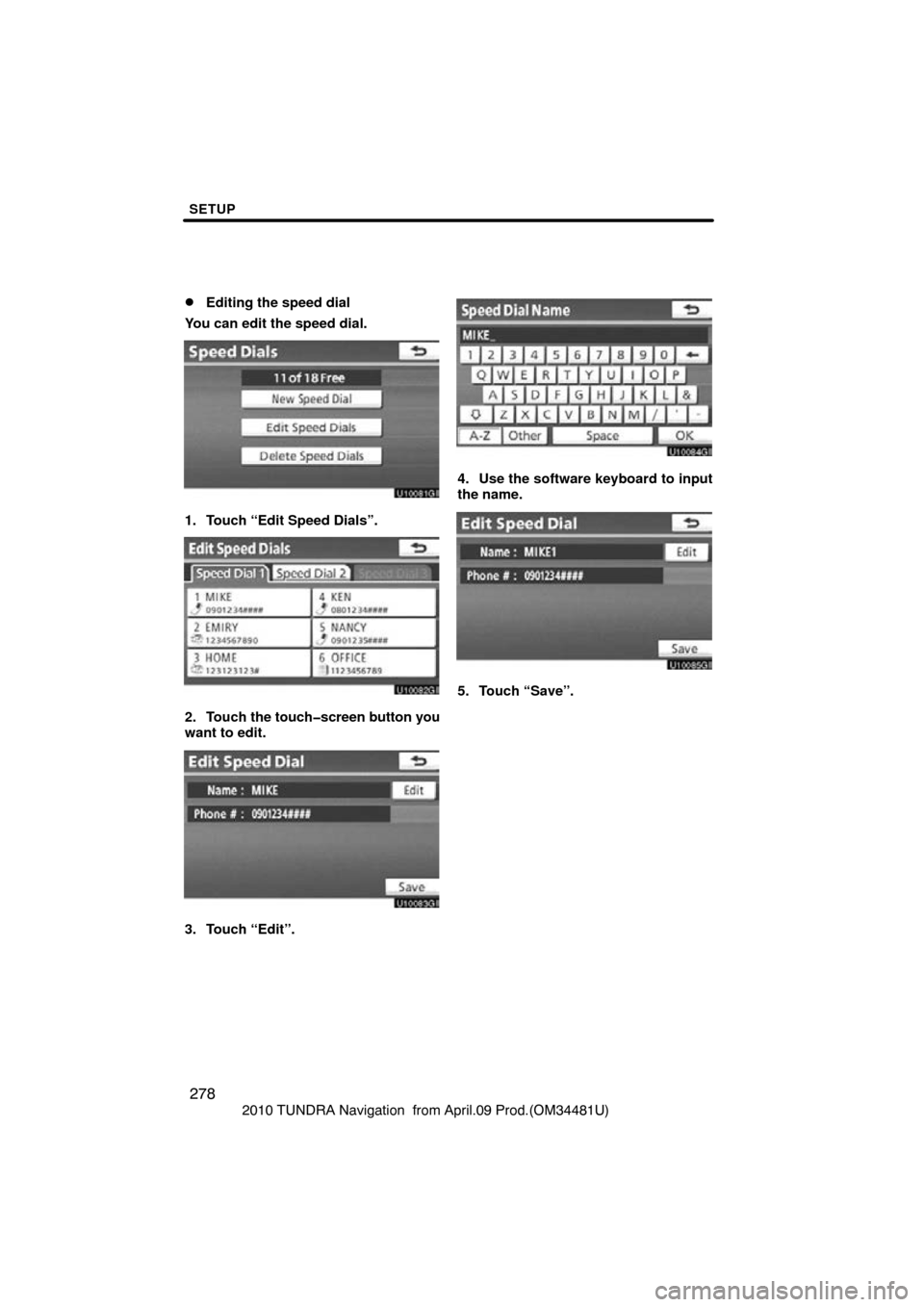

Editing the speed dial
You can edit the speed dial.
1. Touch “Edit Speed Dials”.
2. Touch the touchscreen button you
want to edit.
3. Touch “Edit”.
4. Use the software keyboard to input
the name.
5. Touch “Save”.

SETUP
288
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Editing the device name
1. Touch “Edit” of “Device Name”.
2. Use the software keyboard to input
the device name.
INFORMATION
The device names are common
Bluetooth
 audio and Bluetooth
phone.
If you change the device name of the
phone, the device name of the audio
will change at same time.
However, passcodes can be set sep-
arately.
Editing the passcode
1. Touch “Edit” of “Passcode”.
2. Input a passcode and touch “OK”.

SETUP
294
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Displaying Bluetooth information
You can see or change the information
of the portable player on the system.
“Device Name” The name of Bluetooth  portable
. . .
player which is displayed on the
screen. You can change it into a de-
sired name.
“Device Address” The address peculiar to the system.
. . .
You cannot change it. If you have reg-
istered two Bluetooth  portable play-
ers with the same device name and
you cannot distinguish one from the
other, refer to it.
“Connection Method” The connection method can be
. . .
switched between “From V ehicle” and
“From Portable Player”.
U10004GS
Select the desired portable player and
then touch “Portable Player Info”.
Changing a device name
You can change a device name. Even if
you change a device name, the name
registered in your portable player is not
changed.
U10004GS
1. Touch “Portable Player Info” on
“Select Portable Player” screen.
U10005GS
2. Touch “Edit” for “Device Name” on
“Portable Player Information” screen.
U10006GS
3. Use the software keyboard to input
the device name.

SETUP
304
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
To edit “Dealer” or “Contact”
1. Touch “Edit” of “Dealer” or “Con-
tact”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional touch
screen button to move the cursor to
the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.

SETUP
305
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
To edit “Phone #” (telephone num-
ber)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

INDEX
3222010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Numbers/Symbols
? button20, 33
. . . . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 74
. . . . . . . . . . . . . . . . . .
A
A2DP (Advanced Audio
Distribution Profile) 176
. . . . . . . . . . . . . . .
Adding destinations 84
. . . . . . . . . . . . . . . . .
Address Book button 20, 66
. . . . . . . . . . . . .
Address book entry information 37 . . . . . . .
Address button 20, 55
. . . . . . . . . . . . . . . . . .
Alphabet key 28
. . . . . . . . . . . . . . . . . . . . . . .
AM button 144, 147, 153
. . . . . . . . . . . . . . . .
AM tab 147, 153
. . . . . . . . . . . . . . . . . . . . . . .
Angle mark 200
. . . . . . . . . . . . . . . . . . . . . . .
Areas to avoid 115
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 39, 80
. . . . . . . . . . . . . . . . . . . .
ASL 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO button 144, 147
. . . . . . . . . . . . . . . . .
Audio button 22, 293
. . . . . . . . . . . . . . . . . . .
Audio language 200
. . . . . . . . . . . . . . . . . . . .
Audio settings 293
. . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 217
. . . . . . . . .
Audio/video system 143
. . . . . . . . . . . . . . . .
Audio/video system operating hints 219 . . .
Auto avoid traffic 98, 246, 248
. . . . . . . . . . . .
Auto complete text 246
. . . . . . . . . . . . . . . . .
Auto screen change 236
. . . . . . . . . . . . . . . .
Auto voice guidance 243
. . . . . . . . . . . . . . . .
Automatic recognition 243
. . . . . . . . . . . . . .
Automatic sound levelizer 150
. . . . . . . . . . .
AUX adapter 153
. . . . . . . . . . . . . . . . . . . . . .
AUX button 144, 147, 181
. . . . . . . . . . . . . . .
AUX tab 147
. . . . . . . . . . . . . . . . . . . . . . . . . .
AVRCP(Audio/Video Remote Control Profile) 176
. . . . . . . . . . .
B
Balance 150
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic function 25
. . . . . . . . . . . . . . . . . . . . . .
Bass 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  122, 176, 285, 293
. . . . . . . . . . . .
Bluetooth  audio operation 176
. . . . . . . . . .
Bluetooth  audio player 176, 293
. . . . . . . . .
Bluetooth  connection status
at start up 291
. . . . . . . . . . . . . . . . . . . . . .
Bluetooth  information 294
. . . . . . . . . . . . . .
Brightness 31
. . . . . . . . . . . . . . . . . . . . . . . . .
BT tab 147, 181
. . . . . . . . . . . . . . . . . . . . . . .
Building information 43
. . . . . . . . . . . . . . . . .
C
Calendar 142
. . . . . . . . . . . . . . . . . . . . . . . . .
Calendar button 23, 142
. . . . . . . . . . . . . . . .
Calibration 246, 251
. . . . . . . . . . . . . . . . . . . .
Call by call history 134
. . . . . . . . . . . . . . . . .
Call by dial 131
. . . . . . . . . . . . . . . . . . . . . . . .
Call by phonebook 132
. . . . . . . . . . . . . . . . .
Call by POI call 138
. . . . . . . . . . . . . . . . . . . .
Call by speed dial 134
. . . . . . . . . . . . . . . . . .
Call by voice recognition 136
. . . . . . . . . . . .
Call history 134
. . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone 131
. . . . . . . .
Categories 61
. . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 26
. . . . . . . . . . . . . . . . . . .
CD changer operation 164
. . . . . . . . . . . . . .
CD tab 147, 167
. . . . . . . . . . . . . . . . . . . . . . .
Cellular p hone 122
. . . . . . . . . . . . . . . . . . . . .
