MY PLACES
11 2
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

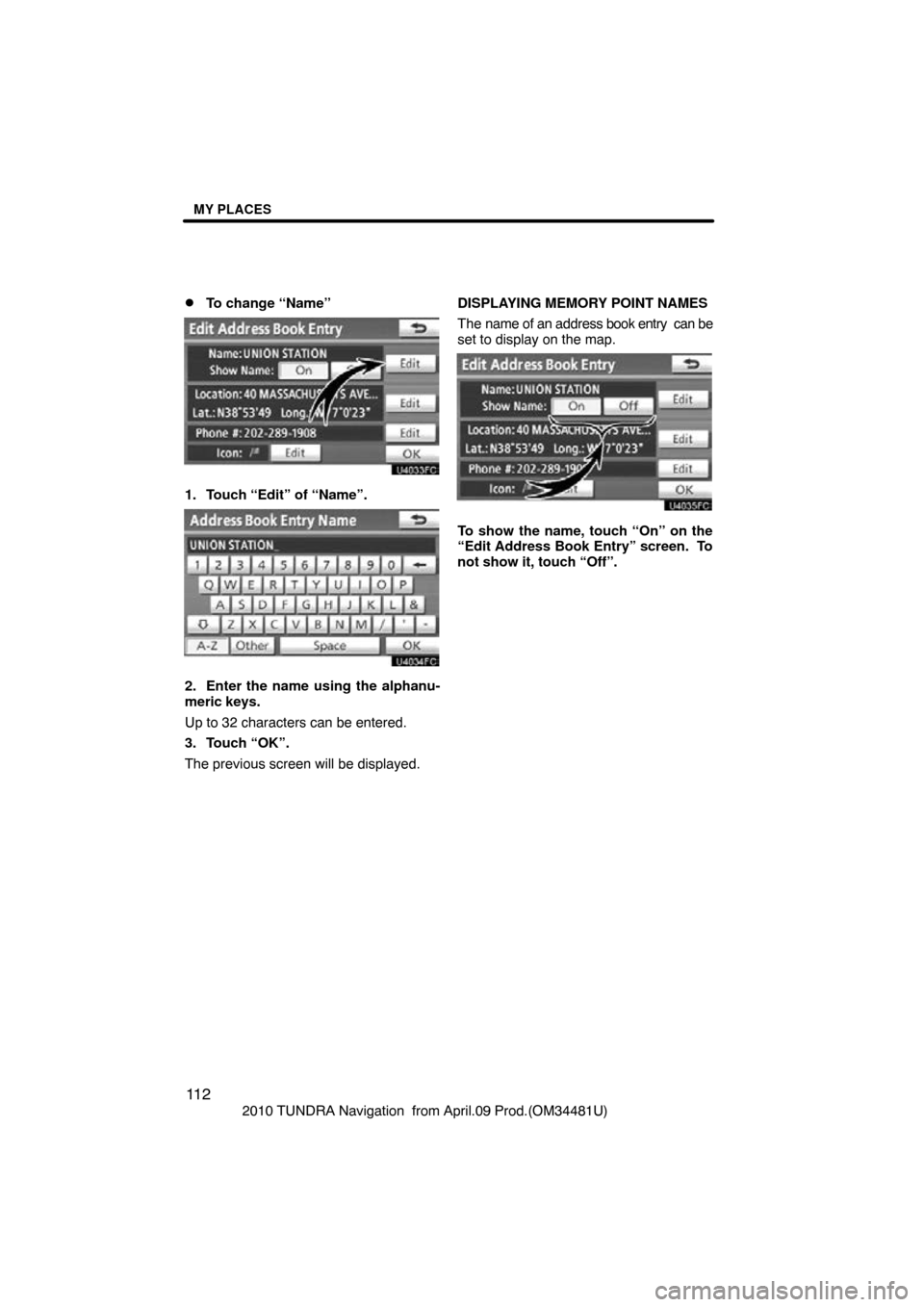

To change “Name”
1. Touch “Edit” of “Name”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING MEMOR
Y POINT NAMES
The name of an address book entry can be
set to display on the map.
To show the name, touch “On” on the
“Edit Address Book Entry” screen. To
not show it, touch “Off”.

MY PLACES
11 3
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

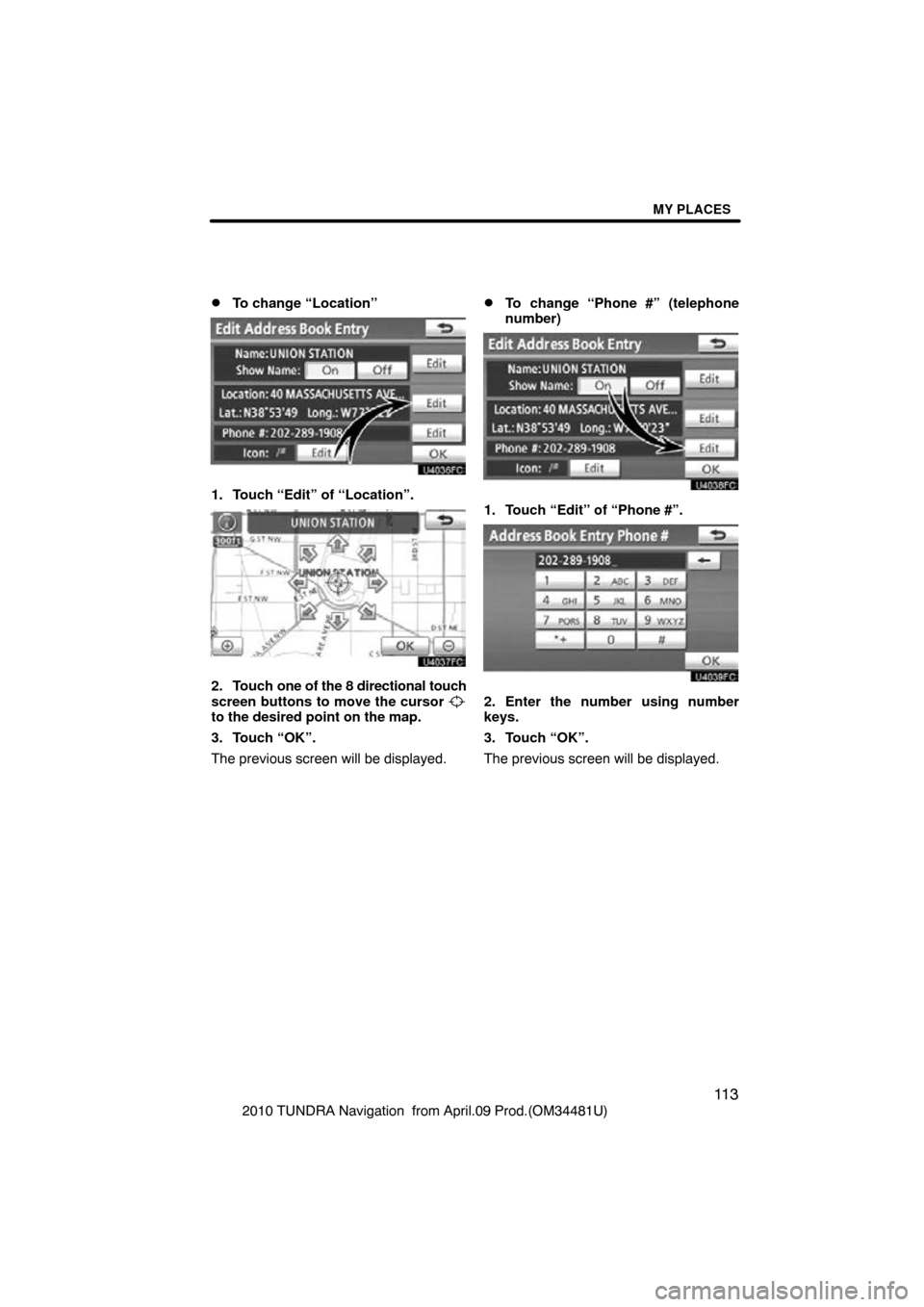

To change “Location”
1. Touch “Edit” of “Location”.
2. Touch one of the 8 directional touch
screen buttons to move the cursor
to the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To change “Phone #” (telephone
number)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

MY PLACES
11 5
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

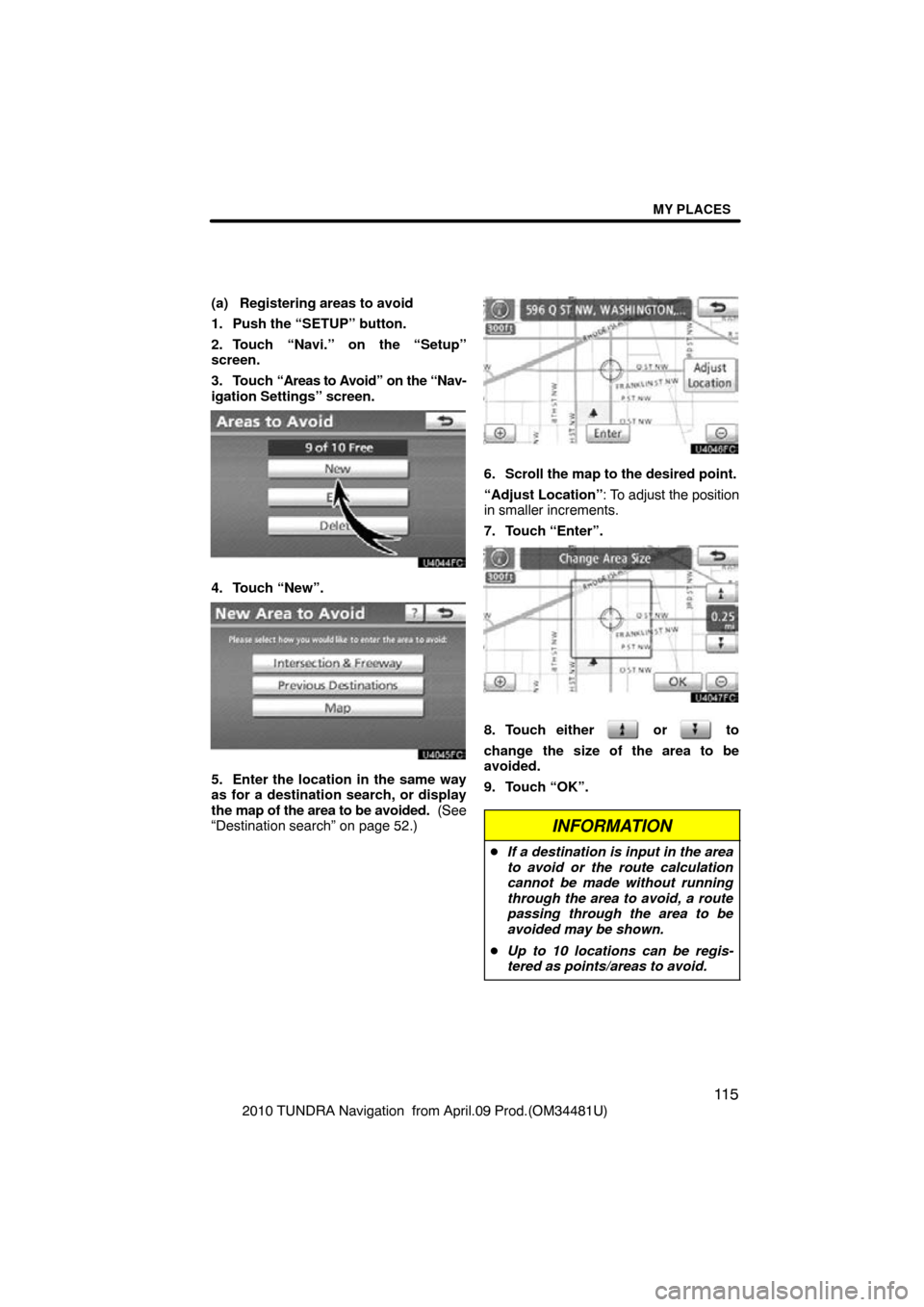

(a) Registering areas to avoid
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch
“Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “New”.
5. Enter the location in the same way
as for a destination search, or display
the map of the area to be avoided. (See
“Destination search” on page 52.)
6. Scroll the map to the desired point.
“Adjust Location” : To adjust the position
in smaller increments.
7. Touch “Enter”.
8. Touch either or to
change the size of the area to be
avoided.
9. Touch “OK”.
INFORMATION
 If a destination is input in the area
to avoid or the route calculation
cannot be made without running
through the area to avoid, a route
passing through the area to be
avoided may be shown.
 Up to 10 locations can be regis-
tered as points/areas to avoid.

MY PLACES
11 6
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

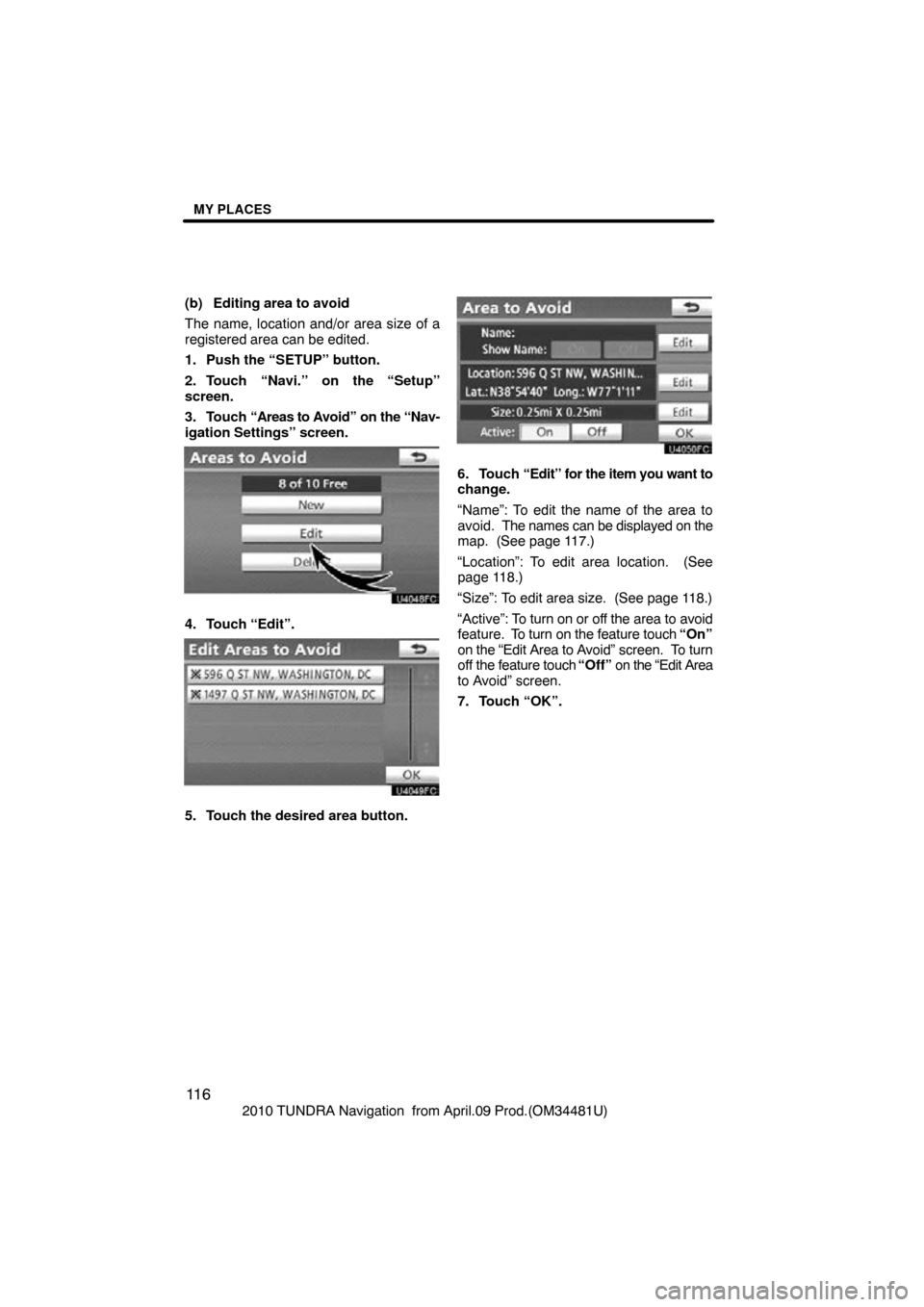

(b) Editing area to avoid
The name, location and/or area size of a
registered area can be edited.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch
“Areas to A void” on the “Nav-
igation Settings” screen.
4. Touch “Edit”.
5. Touch the desired area button.
6. Touch “Edit” for the item you want to
change.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 117.)
“Location”: To edit area location. (See
page 118.)
“Size”: To edit area size. (See page 118.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “On”
on the “Edit Area to A void” screen. To turn
off the feature touch “Off” on the “Edit Area
to Avoid” screen.
7. Touch “OK”.

MY PLACES
11 7
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

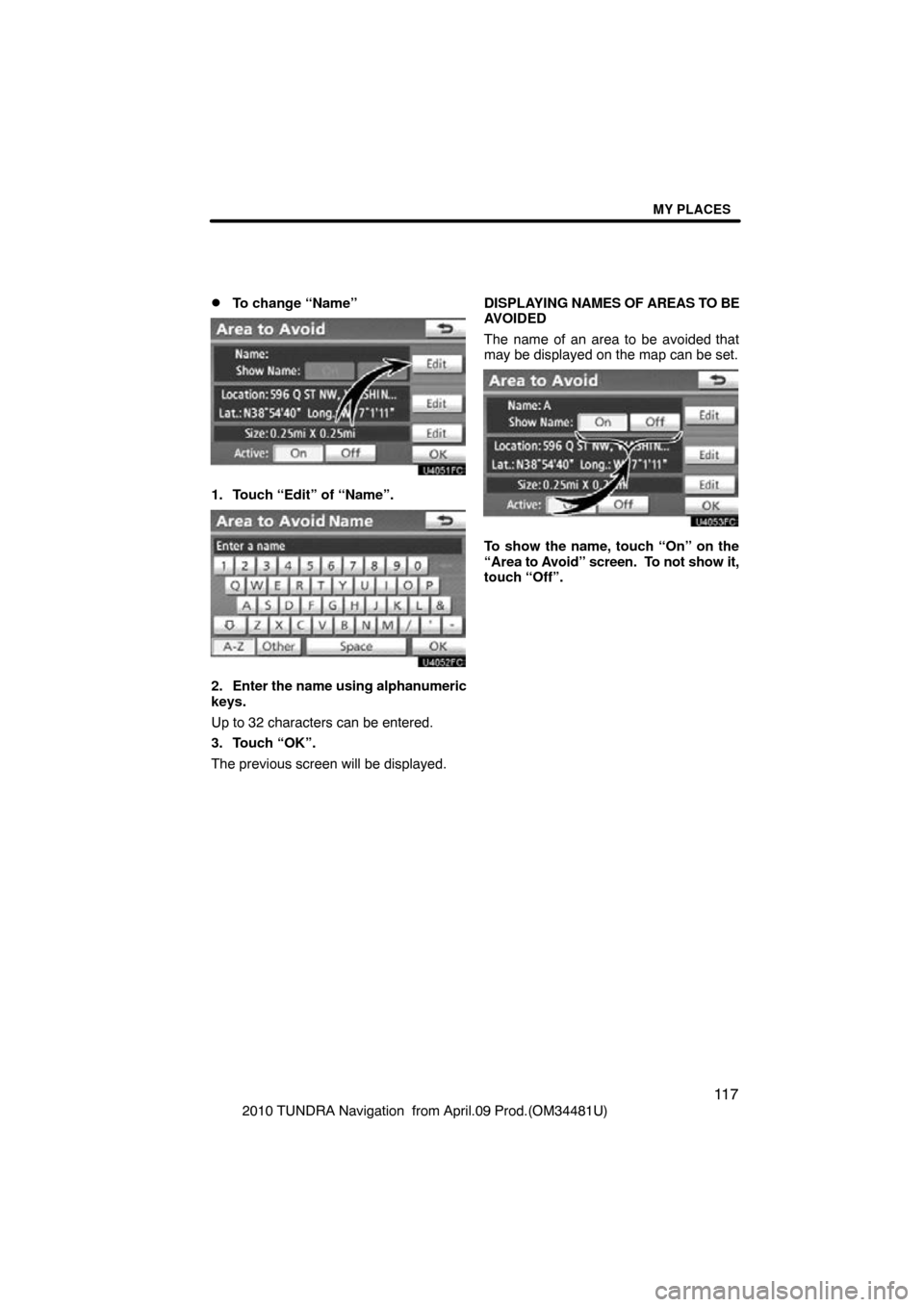

To change “Name”
1. Touch “Edit” of “Name”.
2. Enter the name using alphanumeric
keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed. DISPLAYING
NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that
may be displayed on the map can be set.
To show the name, touch “On” on the
“Area to A void” screen. To not show it,
touch “Off”.

MY PLACES
11 8
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

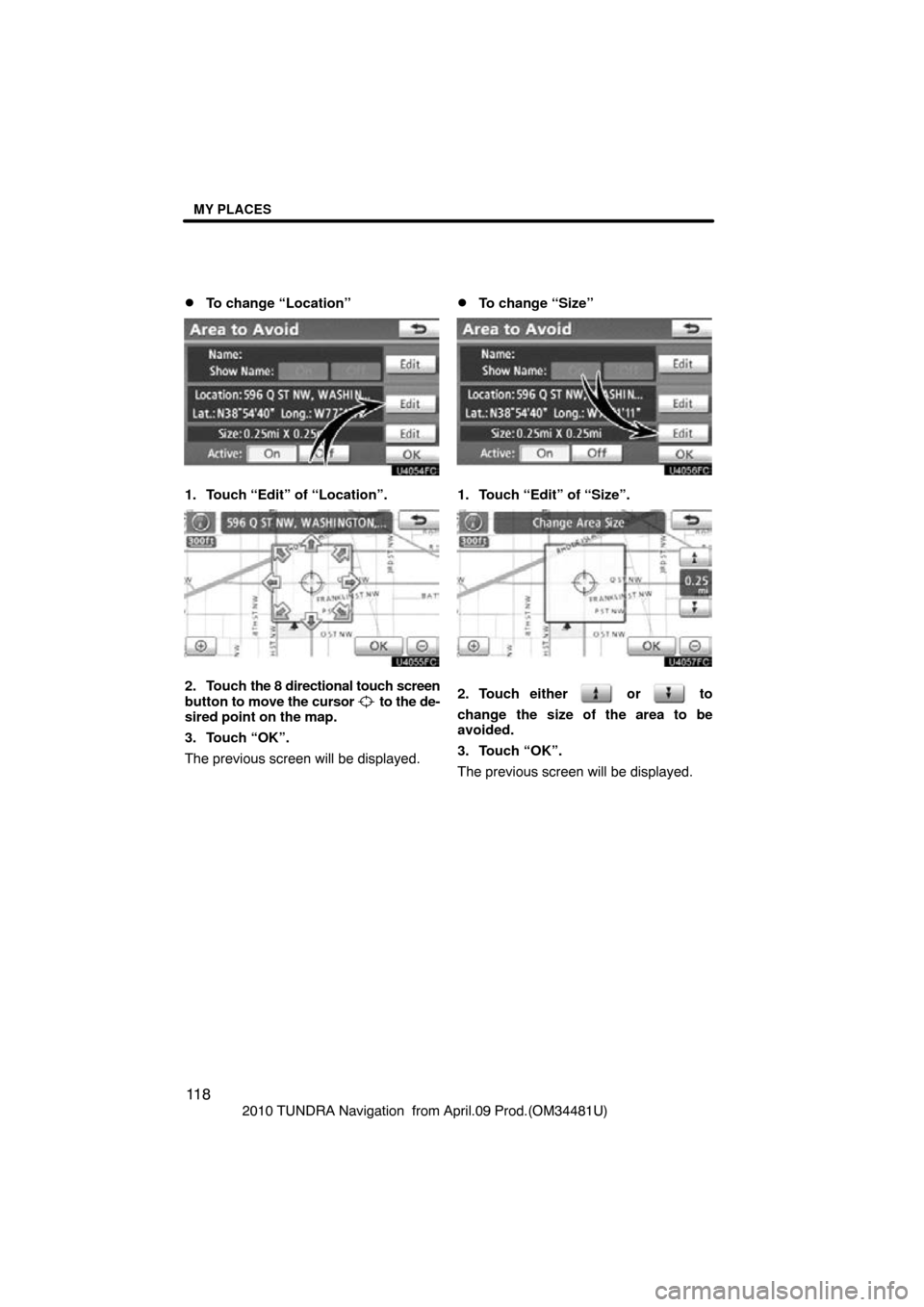

To change “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional touch screen
button to move the cursor
to the de-
sired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To change “Size”
1. Touch “Edit” of “Size”.
2. Touch either or to
change the size of the area to be
avoided.
3. Touch “OK”.
The previous screen will be displayed.

TELEPHONE AND INFORMATION
124
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
front speaker. When the received calls or
received voice outputs, the
audio from the
audio system or voice guidance from the
navigation system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not
reach each other. (It is not a mal-
function.)
Keep the volume of receiving voice
down. Otherwise, an echo will be
heard and receiving voice can be
heard outside of the vehicle.
When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your voice may not reach the other
party.
 Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning
vents towards the microphone.
 The sound of the aircondition-
ing fan is loud.
 There is an effect from the net-
work of the cellular phone.
1Indicates the condition of
Bluetooth  connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
This is not displayed when the Bluetooth
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
The amount of battery charge left may not
be displayed depending on the phone you
have. This system doesn’t have a charg-
ing function.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
The receiving area may not be displayed
depending on the phone you have.

TELEPHONE AND INFORMATION
125
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
4Indicates the level of reception.

Poor Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
The level of reception may not be dis-
played depending on the phone you have.
When you are out of the service area or in
a place inaccessible by radio waves, “No
Service” is displayed.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the display (behind the seat or in the
glove box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed. About the phonebook in this system
The following data is stored for every regis-
tered phone. When
another phone is con-
necting, you cannot read the registered
data.
Phonebook data
Voice tag
All of call history
Speed dial
When you delete the phone, the
above −mentioned data is also deleted.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data. (See “ Delete personal
data” on page 240.)
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting

TELEPHONE AND INFORMATION
127
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

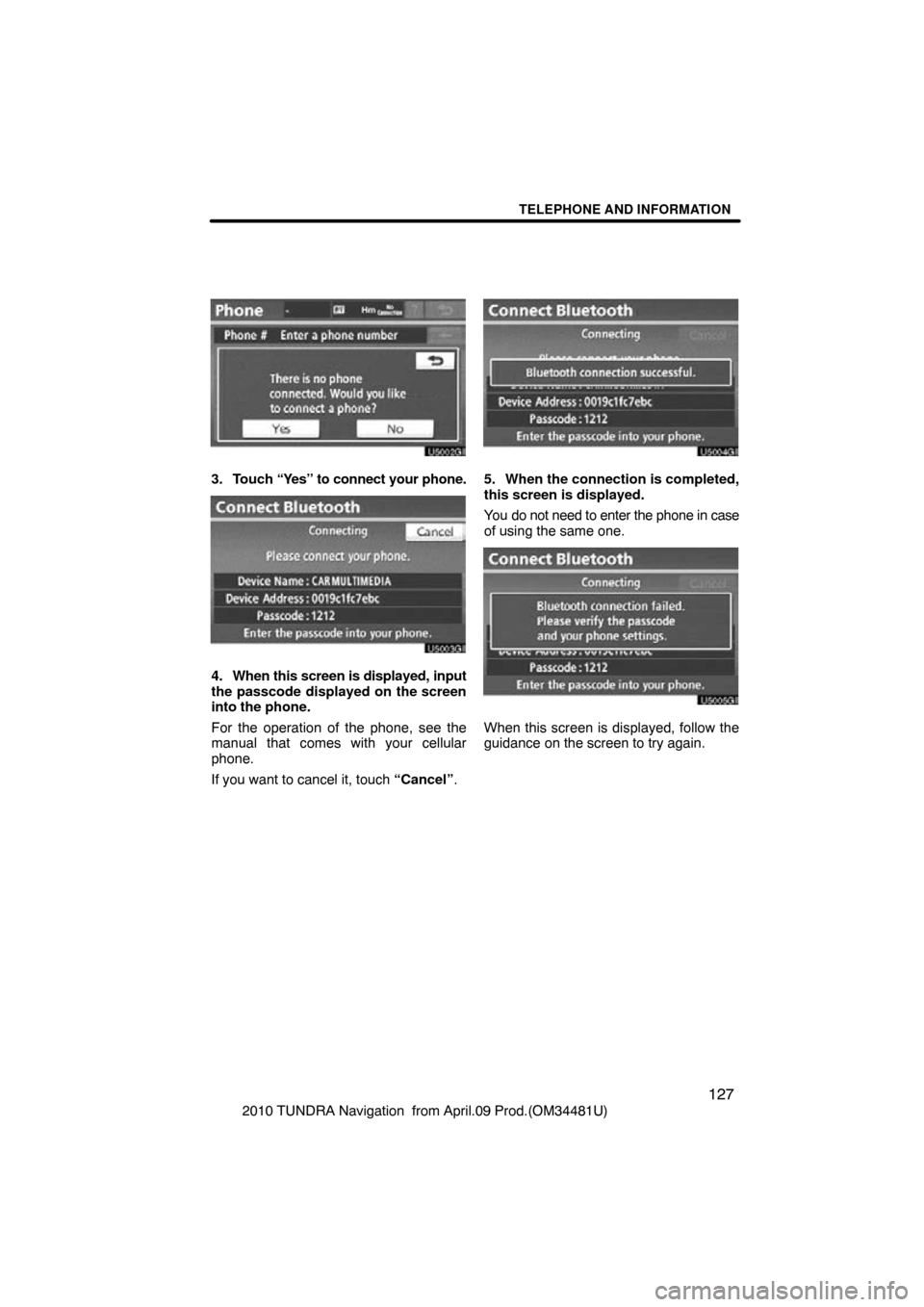

3. Touch “Yes” to connect your phone.
4. When this screen is displayed, input
the passcode displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
5. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.

TELEPHONE AND INFORMATION
130
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

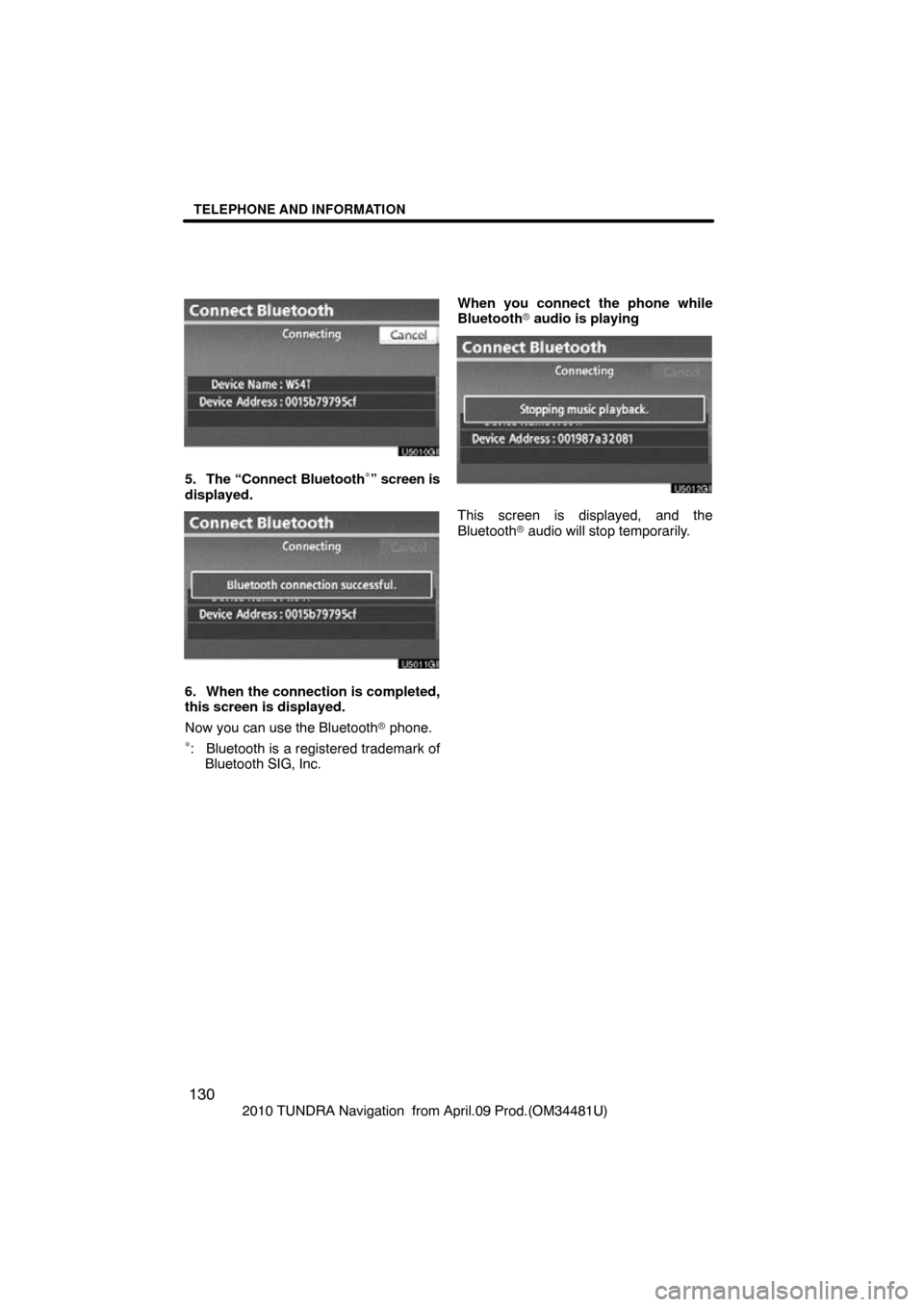

5. The “Connect Bluetooth∗” screen is
displayed.
6. When the connection is completed,
this screen is displayed.
Now you can use the Bluetooth  phone.
∗: Bluetooth is a registered trademark of
Bluetooth SIG, Inc. When you connect the phone while
Bluetooth
 audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily.
