TOYOTA TUNDRA 2010 2.G Owners Manual

161
1-7. Safety information
1
Before driving

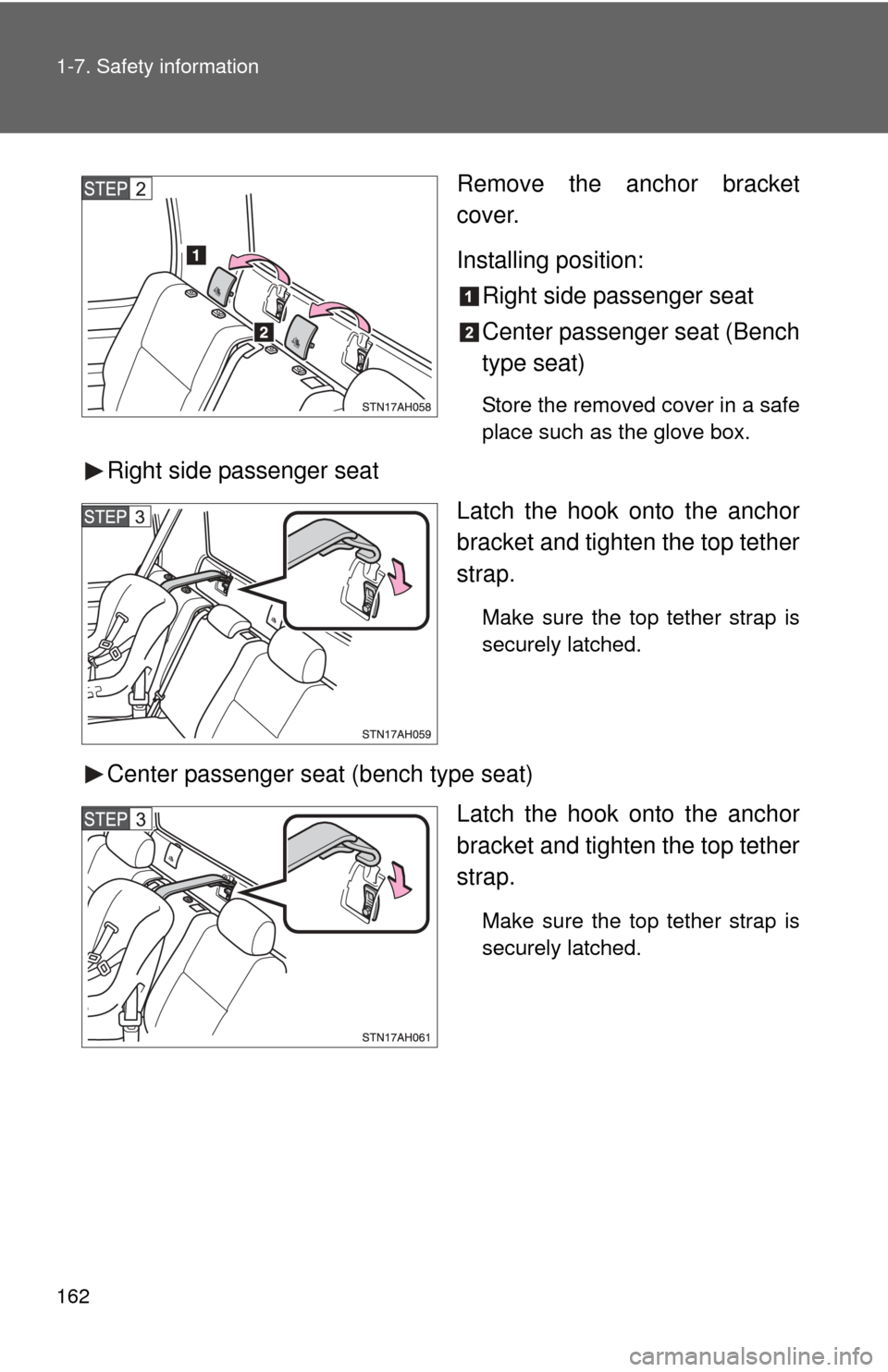

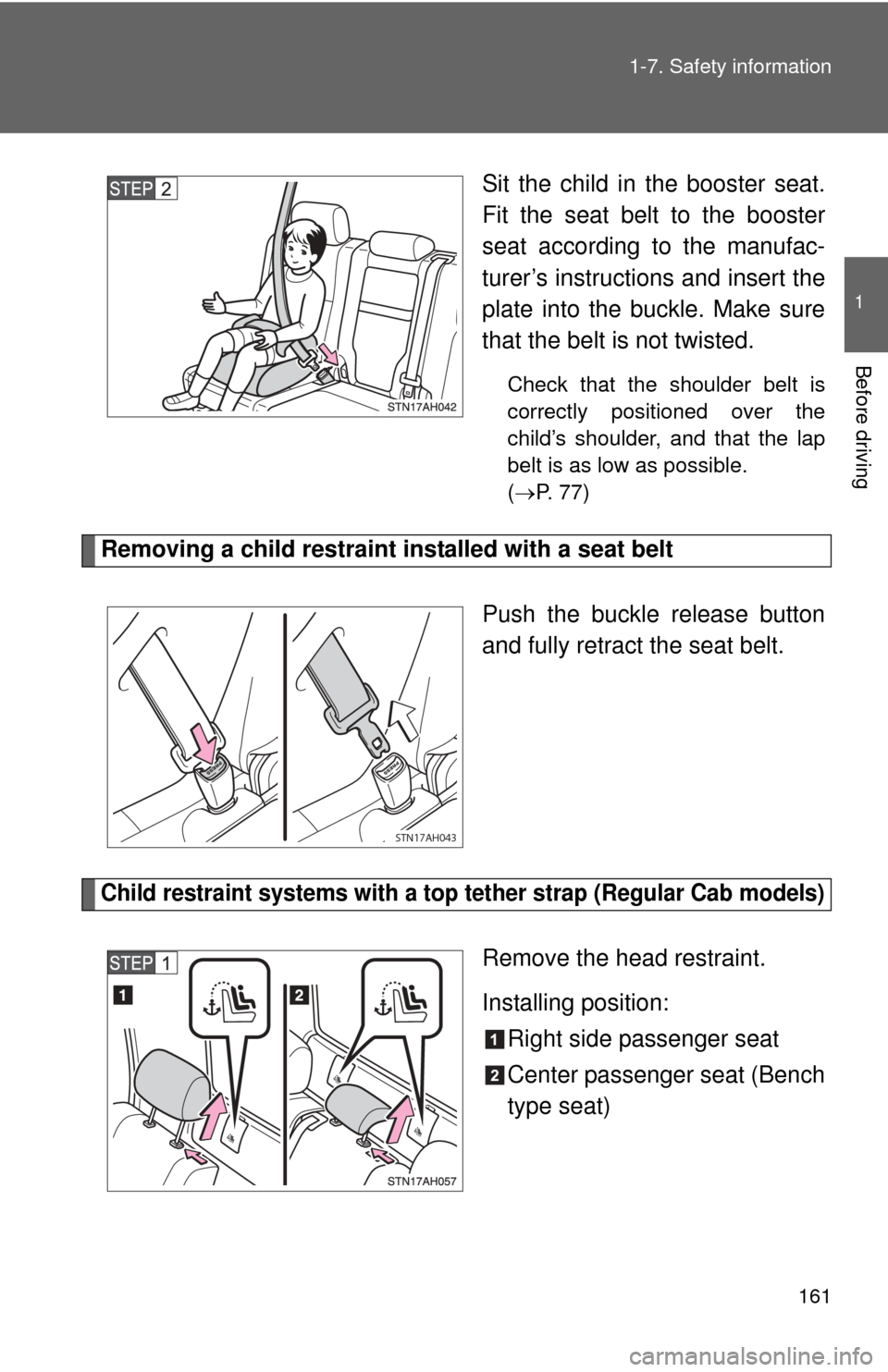

Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions
and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 77)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strap (Regular Cab models)
Remove the head restraint.
Installing position:Right side passenger seat
Center passenger seat (Bench
type seat)
STN17AH043

162 1-7. Safety information
Remove the anchor bracket
cover.
Installing position:Right side passenger seat
Center passenger seat (Bench
type seat)
Store the removed cover in a safe
place such as the glove box.
Right side passenger seat
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Center passenger seat (bench type seat)
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.

163
1-7. Safety information
1
Before driving

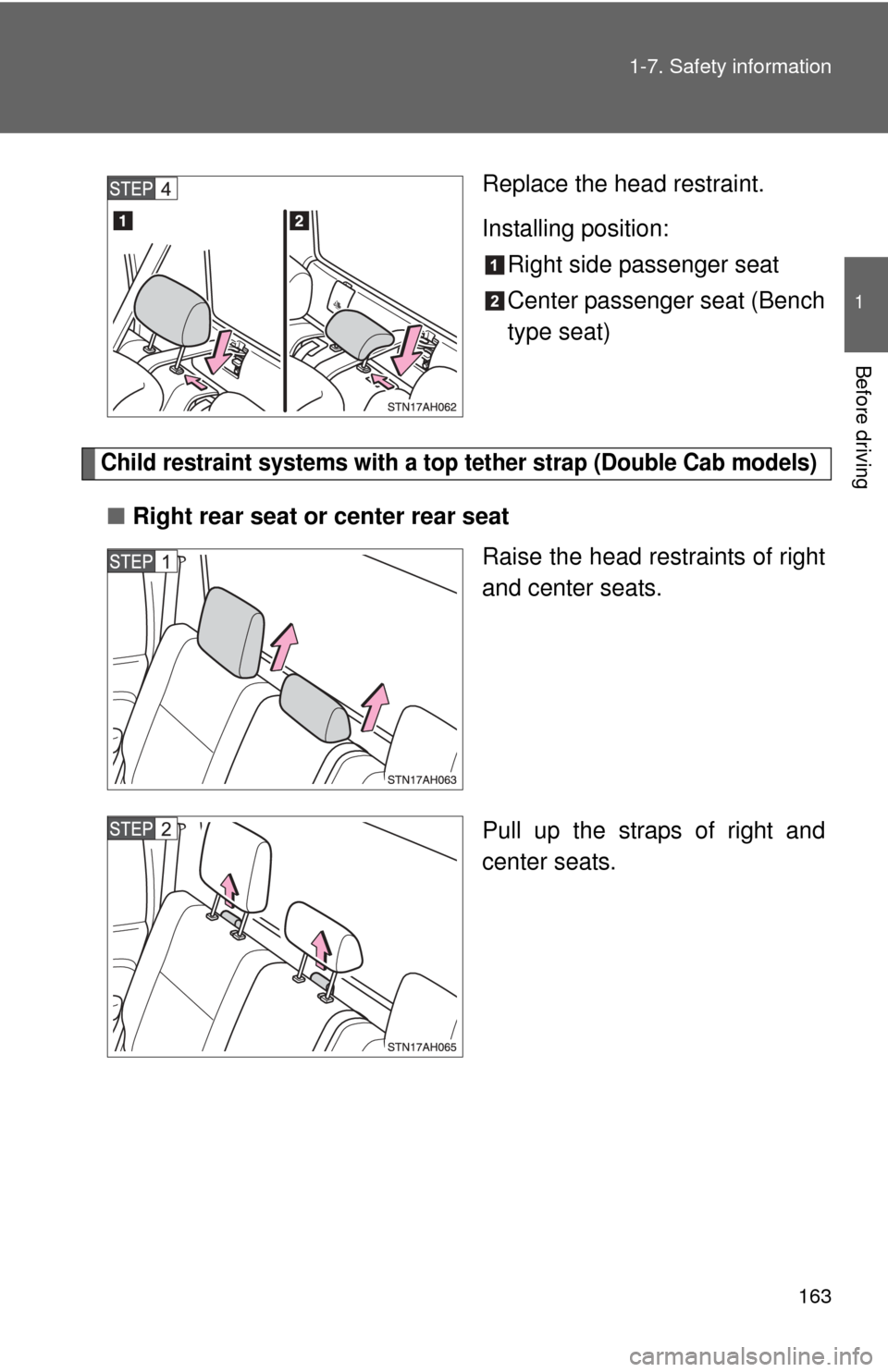

Replace the head restraint.
Installing position:
Right side passenger seat
Center passenger seat (Bench
type seat)
Child restraint systems with a top tether strap (Double Cab models)

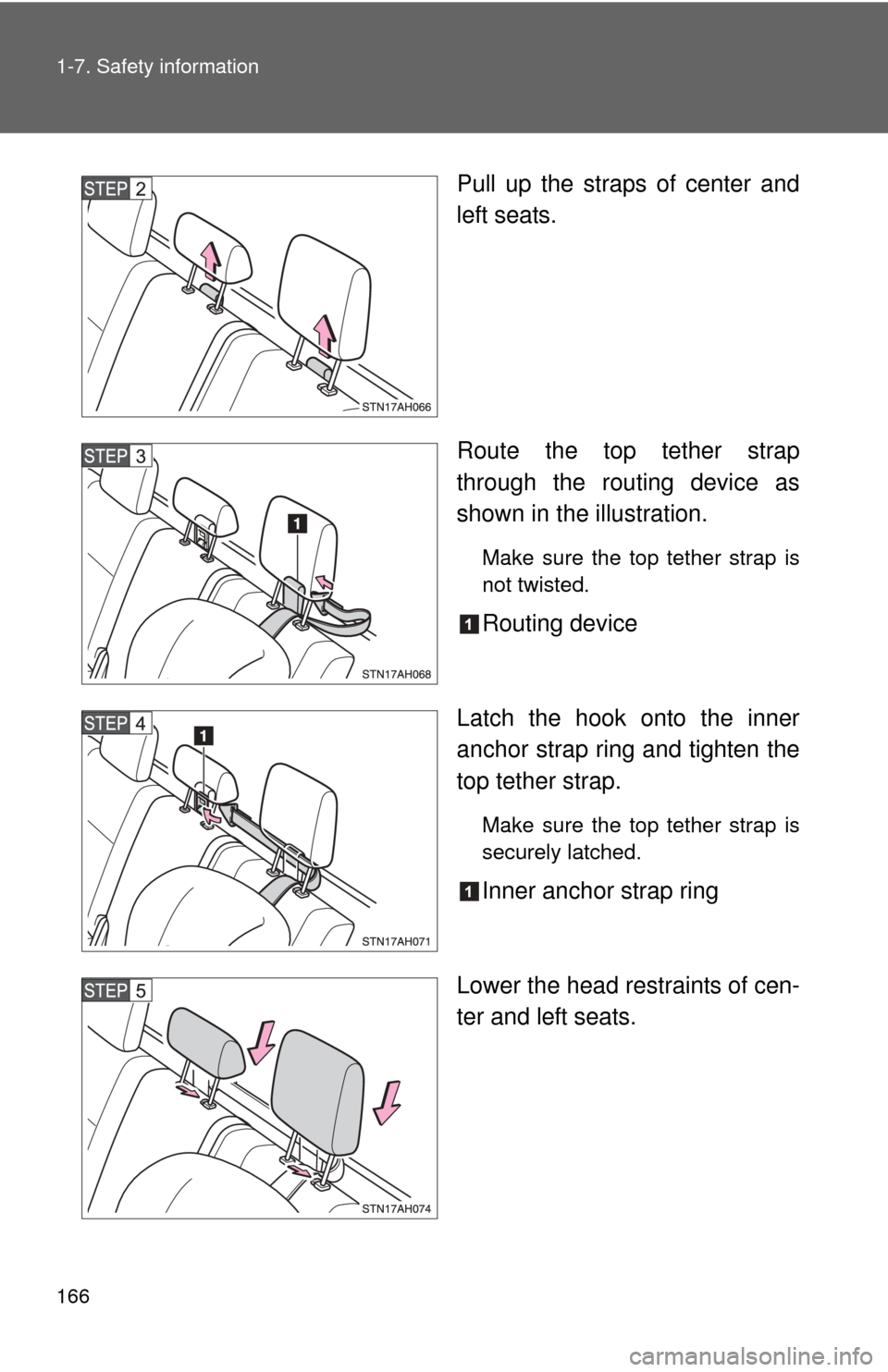

■Right rear seat or center rear seat
Raise the head restraints of right
and center seats.
Pull up the straps of right and
center seats.

164 1-7. Safety information

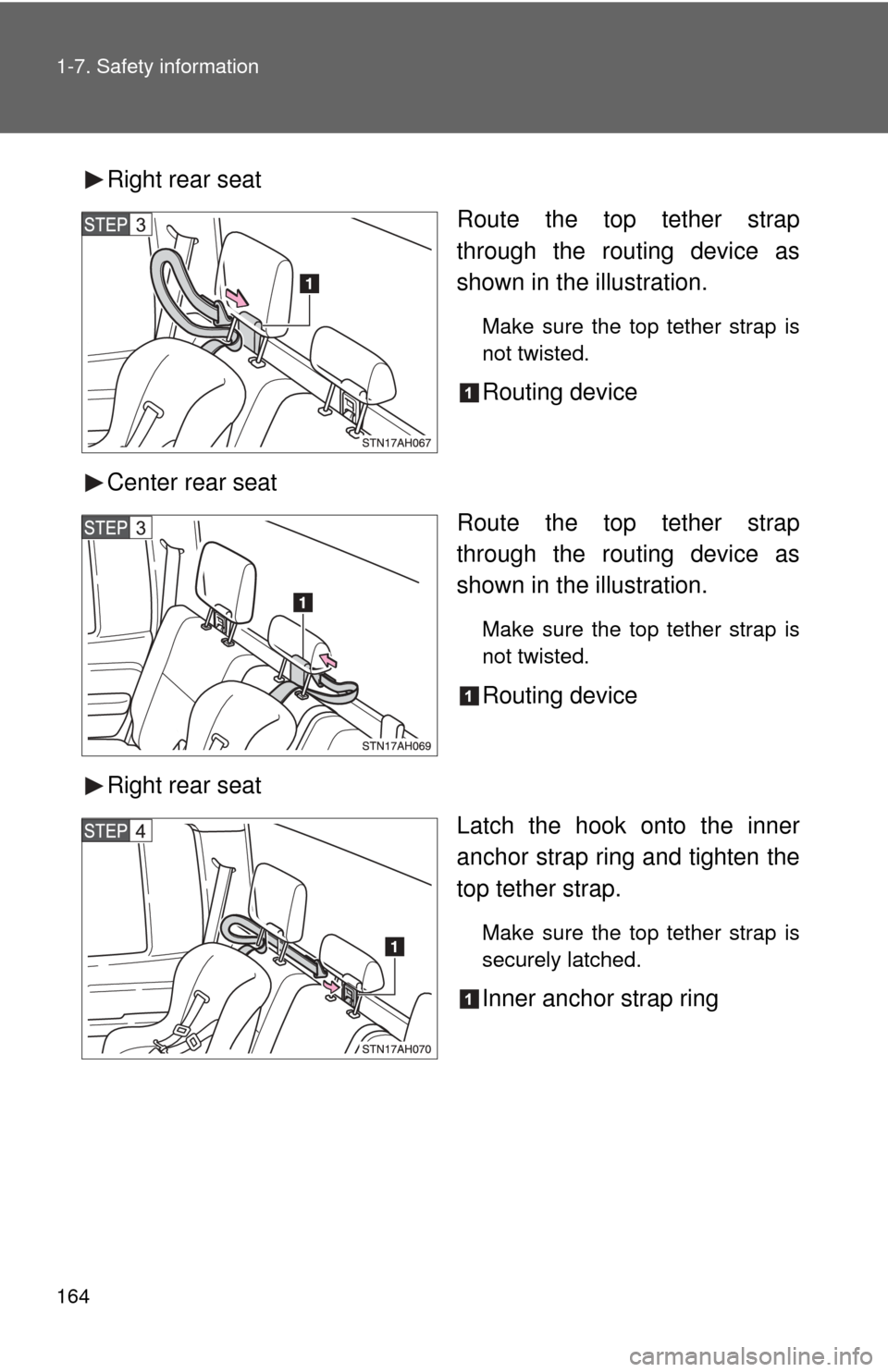

Right rear seatRoute the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Routing device
Center rear seat Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Routing device
Right rear seat Latch the hook onto the inner
anchor strap ring and tighten the
top tether strap.
Make sure the top tether strap is
securely latched.
Inner anchor strap ring

165
1-7. Safety information
1
Before driving
Center rear seat
Latch the hook onto the inner
anchor strap ring and tighten the
top tether strap.
Make sure the top tether strap is
securely latched.
Inner anchor strap ring
Lower the head restraints of right
and center seats.

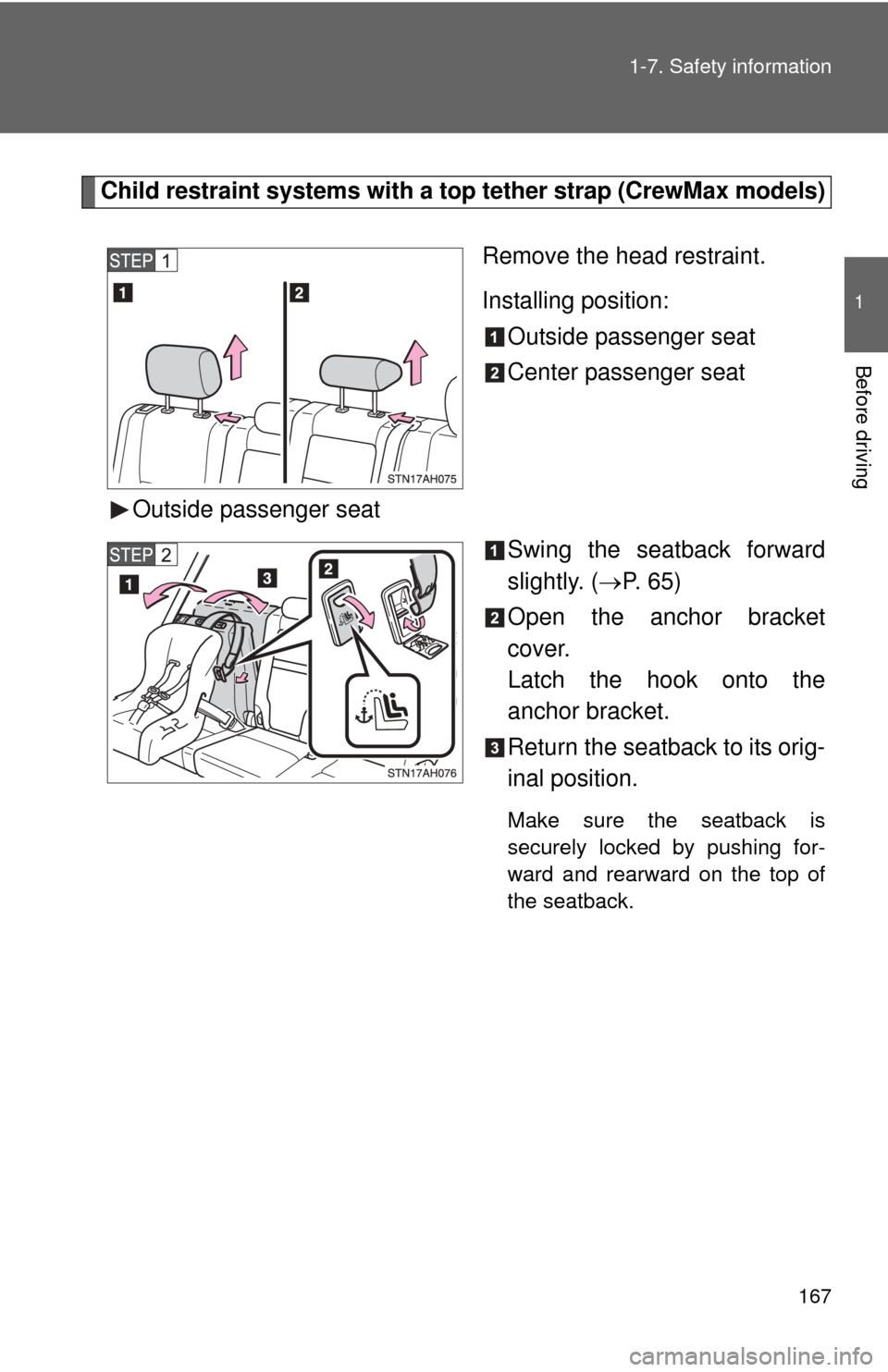

■ Left rear seat
Raise the head restraints of cen-
ter and left seats.

166 1-7. Safety information
Pull up the straps of center and
left seats.
Route the top tether strap
through the routing device as
shown in the illustration.
Make sure the top tether strap is
not twisted.
Routing device
Latch the hook onto the inner
anchor strap ring and tighten the
top tether strap.
Make sure the top tether strap is
securely latched.
Inner anchor strap ring
Lower the head restraints of cen-
ter and left seats.

167
1-7. Safety information
1
Before driving

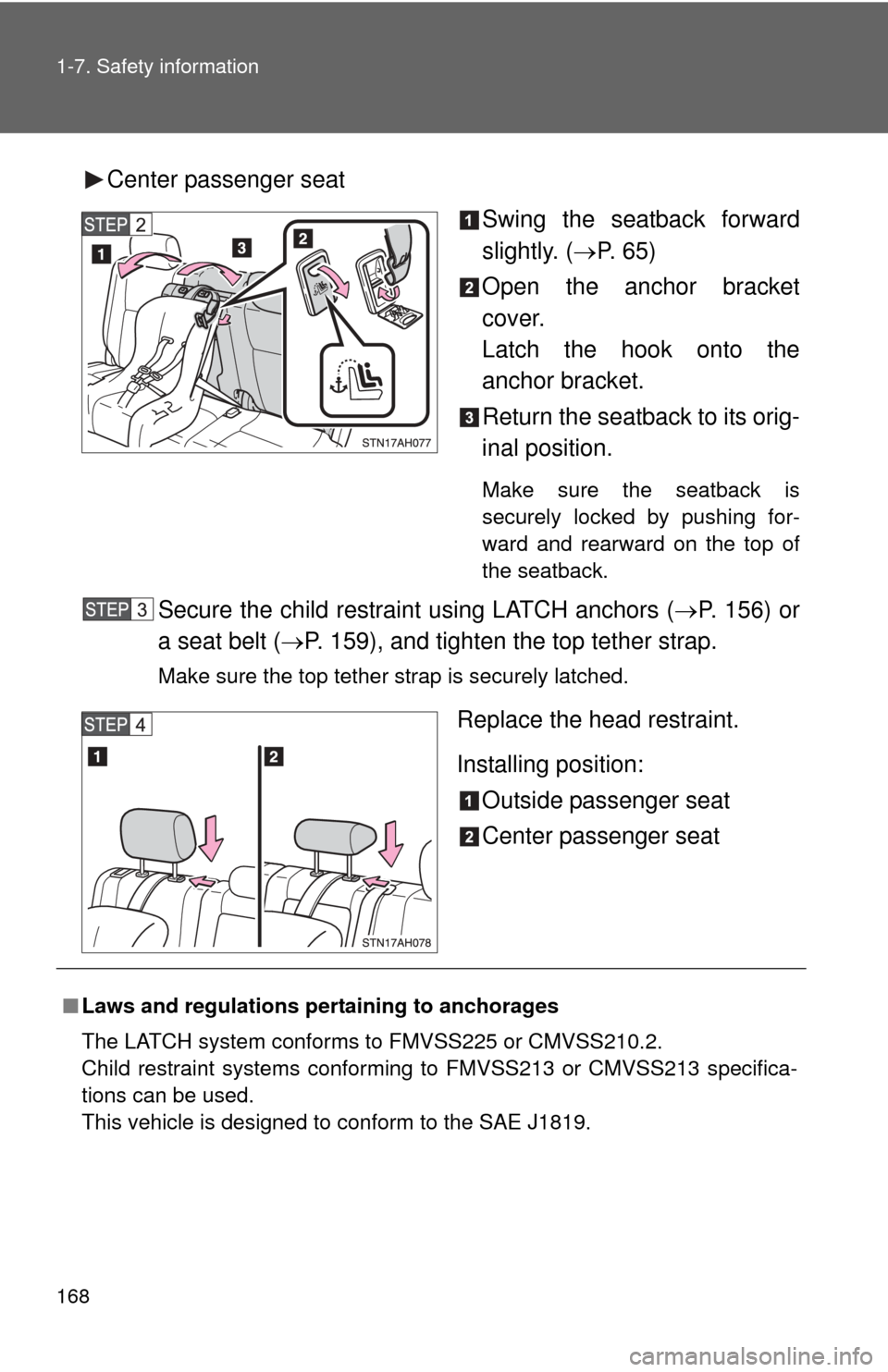

Child restraint systems with a top tether strap (CrewMax models)
Remove the head restraint.
Installing position:Outside passenger seat
Center passenger seat
Outside passenger seat Swing the seatback forward
slightly. (P. 65)
Open the anchor bracket
cover.
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.

168 1-7. Safety information
Center passenger seatSwing the seatback forward
slightly. (P. 65)
Open the anchor bracket
cover.
Latch the hook onto the
anchor bracket.
Return the seatback to its orig-
inal position.
Make sure the seatback is
securely locked by pushing for-
ward and rearward on the top of
the seatback.
Secure the child restraint using LATCH anchors ( P. 156) or
a seat belt ( P. 159), and tighten the top tether strap.
Make sure the top tether strap is securely latched.
Replace the head restraint.
Installing position:
Outside passenger seat
Center passenger seat
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

169
1-7. Safety information
1
Before driving

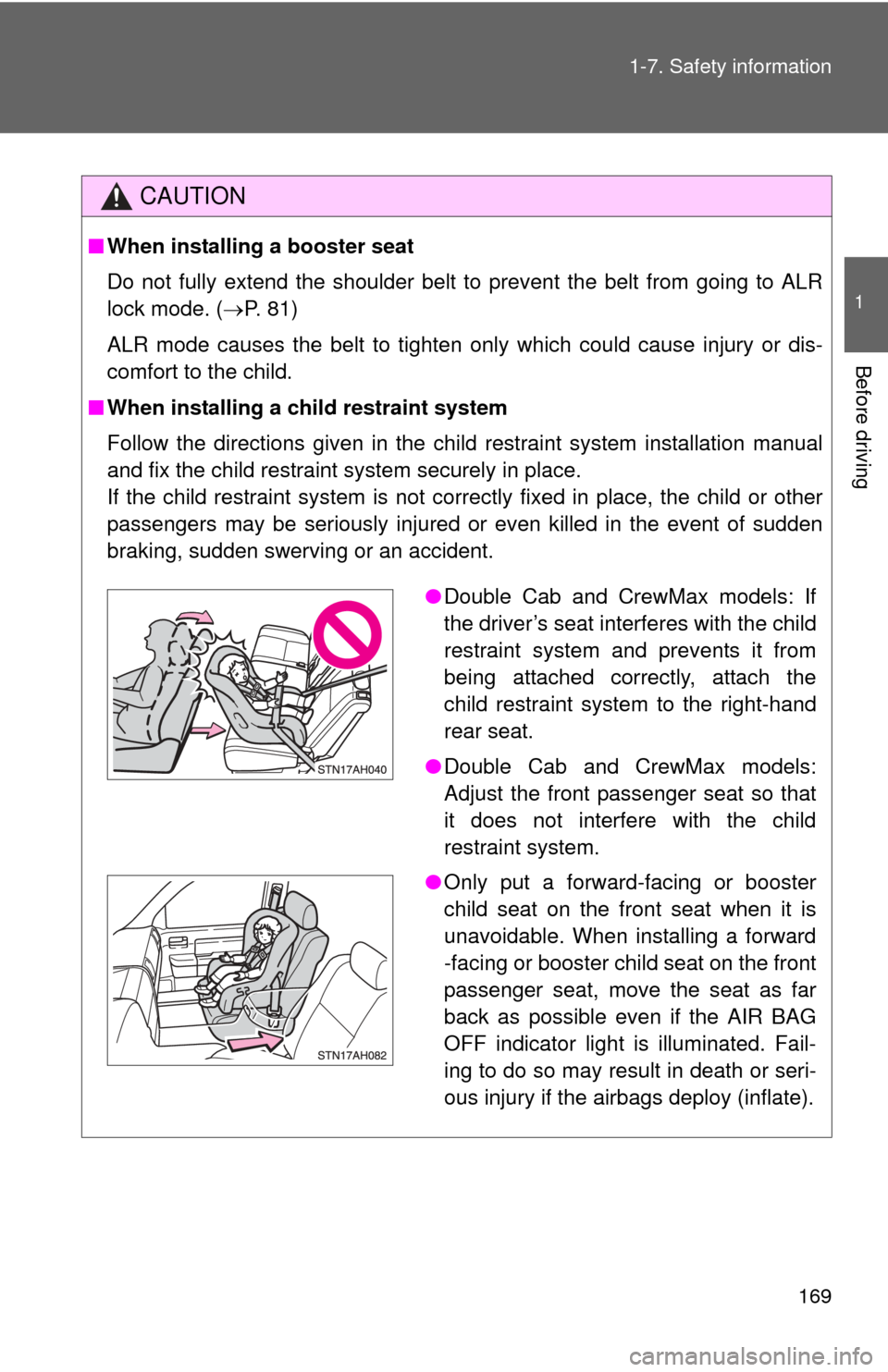

CAUTION
■
When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode. ( P. 81)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
●Double Cab and CrewMax models: If
the driver’s seat interferes with the child
restraint system and prevents it from
being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Double Cab and CrewMax models:
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing or booster
child seat on the front seat when it is
unavoidable. When installing a forward
-facing or booster child seat on the front
passenger seat, move the seat as far
back as possible even if the AIR BAG
OFF indicator light is illuminated. Fail-
ing to do so may result in death or seri-
ous injury if the airbags deploy (inflate).

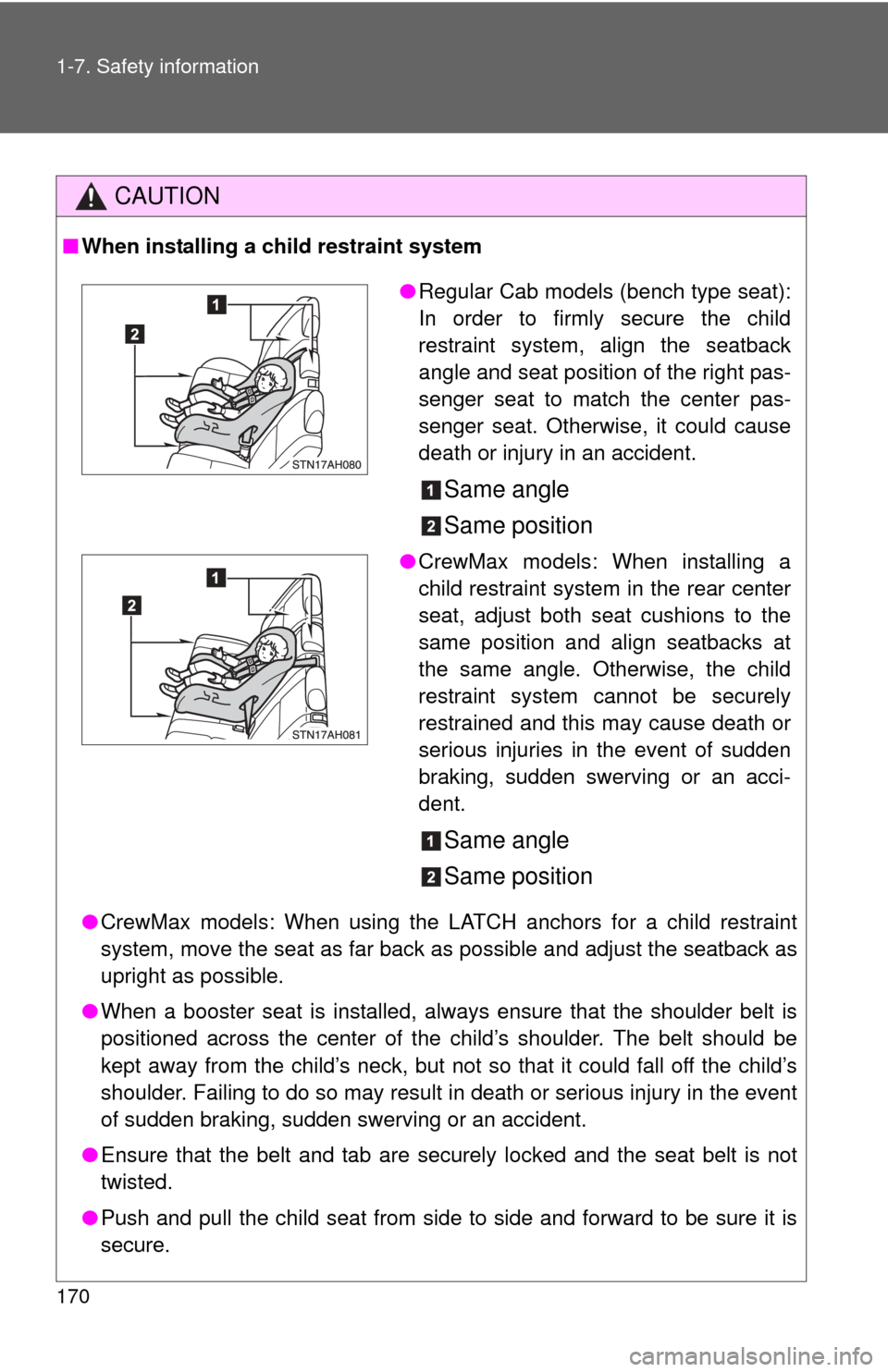

170 1-7. Safety information
CAUTION
■When installing a child restraint system
●CrewMax models: When using the LATCH anchors for a child restraint
system, move the seat as far back as possible and adjust the seatback as
upright as possible.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child seat from side to side and forward to be sure it is
secure.
●Regular Cab models (bench type seat):
In order to firmly secure the child
restraint system, align the seatback
angle and seat position of the right pas-
senger seat to match the center pas-
senger seat. Otherwise, it could cause
death or injury in an accident.
Same angle
Same position
●CrewMax models: When installing a
child restraint system in the rear center
seat, adjust both seat cushions to the
same position and align seatbacks at
the same angle. Otherwise, the child
restraint system cannot be securely
restrained and this may cause death or
serious injuries in the event of sudden
braking, sudden swerving or an acci-
dent.
Same angle
Same position
