TOYOTA TUNDRA 2011 2.G Owners Manual

5
When trouble arises
641
5-2. Steps to take in an emergency
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

642 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

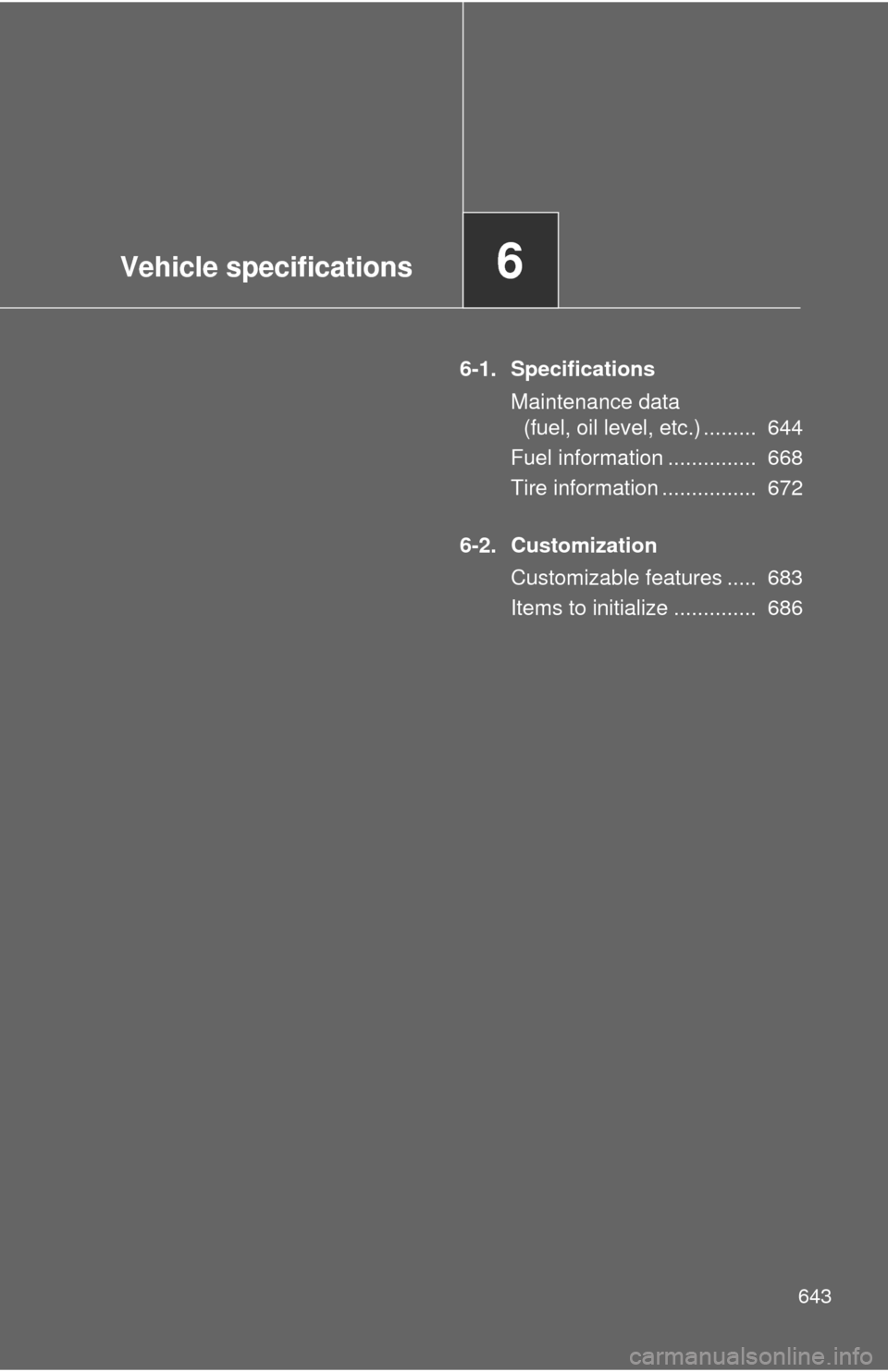

Vehicle specifications6
643
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 644
Fuel information ............... 668
Tire information ................ 672
6-2. Customization Customizable features ..... 683
Items to initialize .............. 686

644
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions2WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type Regular Cab Double Cab
Bed type Standard Long Standard Long
Overall
length210.2 in.
(5340 mm) 229.1 in. (5820 mm) 248.0 in.
(6300 mm)
Overall width 79.9 in. (2030 mm)
Overall
height*1
75.9 in.
(1930 mm)*275.7 in.
(1925 mm)*275.9 in.
(1930 mm)*275.7 in.
(1925 mm)*2
75.7 in.
(1925 mm)*3,*475.5 in.
(1920 mm)*375.7 in.
(1925 mm)*3,*475.5 in.
(1920 mm)*3
Wheelbase 126.7 in.
(3220 mm) 145.6 in. (3700 mm) 164.5 in.
(4180 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

645
6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type
CrewMax
Bed type Short
Overall
length229.1 in. (5820 mm)
Overall width
79.9 in. (2030 mm)
Overall
height*1
75.7 in. (1925 mm)*2
75.5 in. (1920 mm)*3,*4
Wheelbase145.6 in. (3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

646 6-1. Specifications
4WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab typeRegular Cab Double Cab
Bed type Standard Long Standard Long
Overall
length210.2 in.
(5340 mm) 229.1 in. (5820 mm) 248.0 in.
(6300 mm)
Overall width 79.9 in. (2030 mm)
Overall
height*1
76.3 in.
(1940 mm)*276.1 in.
(1935 mm)*276.3 in.
(1940 mm)*276.1 in.
(1935 mm)*2
76.1 in.
(1935 mm)*3,*475.9 in.
(1930 mm)*376.1 in.
(1935 mm)*3,*475.9 in.
(1930 mm)*3
Wheelbase 126.7 in.
(3220 mm) 145.6 in. (3700 mm) 164.5 in.
(4180 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

647
6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type
CrewMax
Bed type Short
Overall length229.1 in. (5820 mm)
Overall width 79.9 in. (2030 mm)
Overall height*176.1 in. (1935 mm)*2
75.9 in. (1930 mm)*3,*4
Wheelbase145.6 in. (3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread67.9 in. (1725 mm)

648 6-1. Specifications
Vehicle capacity weightRegular Cab models
*1: The model code is indicated on the Certification Label. (P. 654)*2: With towing package*3: Without option
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
GSK50L-TRADKA 4.0L V6
(1GR-FE) engine 2WD
Standard 1485 lb. (670 kg)
GSK51L-THADKA Long 1580 lb. (715 kg)
UPK50L-TRTDKA 4.6L V8
(1UR-FE) engine 2WD Standard 1710 lb. (775 kg)
1635 lb. (740 kg)
*2
USK51L-THTDKA
5.7L V8
(3UR-FE) engine 2WD Long
1960 lb. (885 kg)
1885 lb. (855 kg)*2
2055 lb. (930 kg)*3
USK55L-TRTDKA
4WDStandard
1595 lb. (720 kg)
1520 lb. (685 kg)*2
USK56L-THTDKA Long1895 lb. (855 kg)
1820 lb. (825 kg)*2
USK55L-TRTDGA 5.7L V8
(3UR-FBE) engine 4WDStandard
1595 lb. (720 kg)
1520 lb. (685 kg)*2
USK56L-THTDGA Long1895 lb. (855 kg)
1820 lb. (825 kg)*2

649
6-1. Specifications
6
Vehicle specifications
Double Cab models
*1: The model code is indicated on the Certification Label. (P. 654)*2: With towing package
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
GSK51L-CRASKA 4.0L V6
(1GR-FE) engine 2WD
Standard1290 lb. (585 kg)
UPK51L-CRTSKA 4.6L V8
(1UR-FE) engine 2WD
Standard
1410 lb. (635 kg)
1335 lb. (605 kg)
*2
UPK56L-CRTSKA 4WD1330 lb. (600 kg)
1255 lb. (565 kg)*2
USK51L-CRTSKA
5.7L V8
(3UR-FE) engine 2WD
Standard
1540 lb. (695 kg)
1465 lb. (660 kg)
*2
USK51L-CRTLKA 1570 lb. (710 kg)
1495 lb. (675 kg)*2
USK52L-CHTSKALong1455 lb. (655 kg)
USK56L-CRTSKA 4WD
Standard
1455 lb. (655 kg)
1380 lb. (625 kg)
*2
USK56L-CRTLKA 1485 lb. (670 kg)
1410 lb. (635 kg)*2
USK57L-CHTSKALong1360 lb. (615 kg)
USK56L-CRTSGA 5.7L V8
(3UR-FBE) engine 4WD
Standard 1455 lb. (655 kg)
1380 lb. (625 kg)
*2
USK56L-CRTLGA 1485 lb. (670 kg)
1410 lb. (635 kg)*2
USK57L-CHTSGA Long 1360 lb. (615 kg)

650 6-1. Specifications
CrewMax models
*1: The model code is indicated on the Certification Label. (P. 654)*2: With towing package or electric moon roof*3: With towing package and electric moon roof
Model code*1EngineDriving
systemBed typeVehicle capacity weight (Occupants+luggage)
UPK51L-PSTSKA 4.6L V8
(1UR-FE) engine 2WD
Short 1330 lb. (600 kg)
1255 lb. (565 kg)
*2
1220 lb. (550 kg)*3
UPK56L-PSTSKA 4WD1250 lb. (565 kg)
1175 lb. (530 kg)*2
1140 lb. (515 kg)*3
USK51L-PSTSKA
5.7L V8
(3UR-FE) engine 2WD
1445 lb. (655 kg)
1370 lb. (620 kg)*2
1335 lb. (605 kg)*3
USK51L-PSTLKA 1495 lb. (675 kg)
1420 lb. (640 kg)*2
1385 lb. (625 kg)*3
USK56L-PSTSKA
4WD1375 lb. (620 kg)
1300 lb. (585 kg)*2
1265 lb. (570 kg)*3
USK56L-PSTLKA 1405 lb. (635 kg)
1330 lb. (600 kg)*2
1295 lb. (585 kg)*3
USK56L-PSTSGA 5.7L V8
(3UR-FBE) engine 4WD 1375 lb. (620 kg)
1300 lb. (585 kg)*2
1265 lb. (570 kg)*3
USK56L-PSTLGA 1405 lb. (635 kg)
1330 lb. (600 kg)*2
1295 lb. (585 kg)*3
