TOYOTA TUNDRA 2011 2.G Owners Manual

711
7
For owners
Gross axle and vehicle weight ratingsSecure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual ax le loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicl e Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. ( P. 654) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
Gross axle weight rating Front GAWR
Rear GAWR
Gross vehicle weight rating Not exceed GVWR

712
■GAWR and GVWR
Regular Cab models
: The model code is indicated on the Certification Label. (P. 654)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK50L- TRADKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3700 lb.
(1675 kg) 6200 lb.
(2810 kg)
GSK51L- THADKA Long
3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK50L- TRTDKA 4.6L V8
(1UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3950 lb.
(1790 kg) 6600 lb.
(2990 kg)
USK51L- THTDKA 5.7L V8
(3UR-FE) engine 2WD
Long3900 lb.
(1765 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK55L- TRTDKA 4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L- THTDKA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK55L-
TRTDGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L-
THTDGA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)

713
7
For owners
Double Cab models
: The model code is indicated on the Certification Label. (P. 654)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK51L-
CRASKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK51L- CRTSKA 4.6L V8
(1UR-FE) engine 2WD
Standard
3900 lb.
(1765 kg) 4000 lb.
(1810 kg) 6700 lb.
(3035 kg)
UPK56L- CRTSKA 4WD
4000 lb.
(1810 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L- CRTSKA
5.7L V8
(3UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L-
CRTLKA
USK52L-
CHTSKA Long4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK56L- CRTSKA
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLKA
USK57L-
CHTSKA Long7200 lb.
(3265 kg)
USK56L-
CRTSGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLGA
USK57L-
CHTSGA Long7200 lb.
(3265 kg)

714
CrewMax models
: The model code is indicated on the Certification Label. (P. 654)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
UPK51L- PSTSKA 4.6L V8
(1UR-FE) engine 2WD
Short
3900 lb.
(1765 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
UPK56L- PSTSKA 4WD
4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L- PSTSKA
5.7L V8
(3UR-FE) engine 2WD
3900 lb.
(1765 kg)
4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L-
PSTLKA
USK56L- PSTSKA 4WD4000 lb.
(1810 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLKA
USK56L-
PSTSGA
5.7L V8
(3UR-FBE) engine
4WD 4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLGA

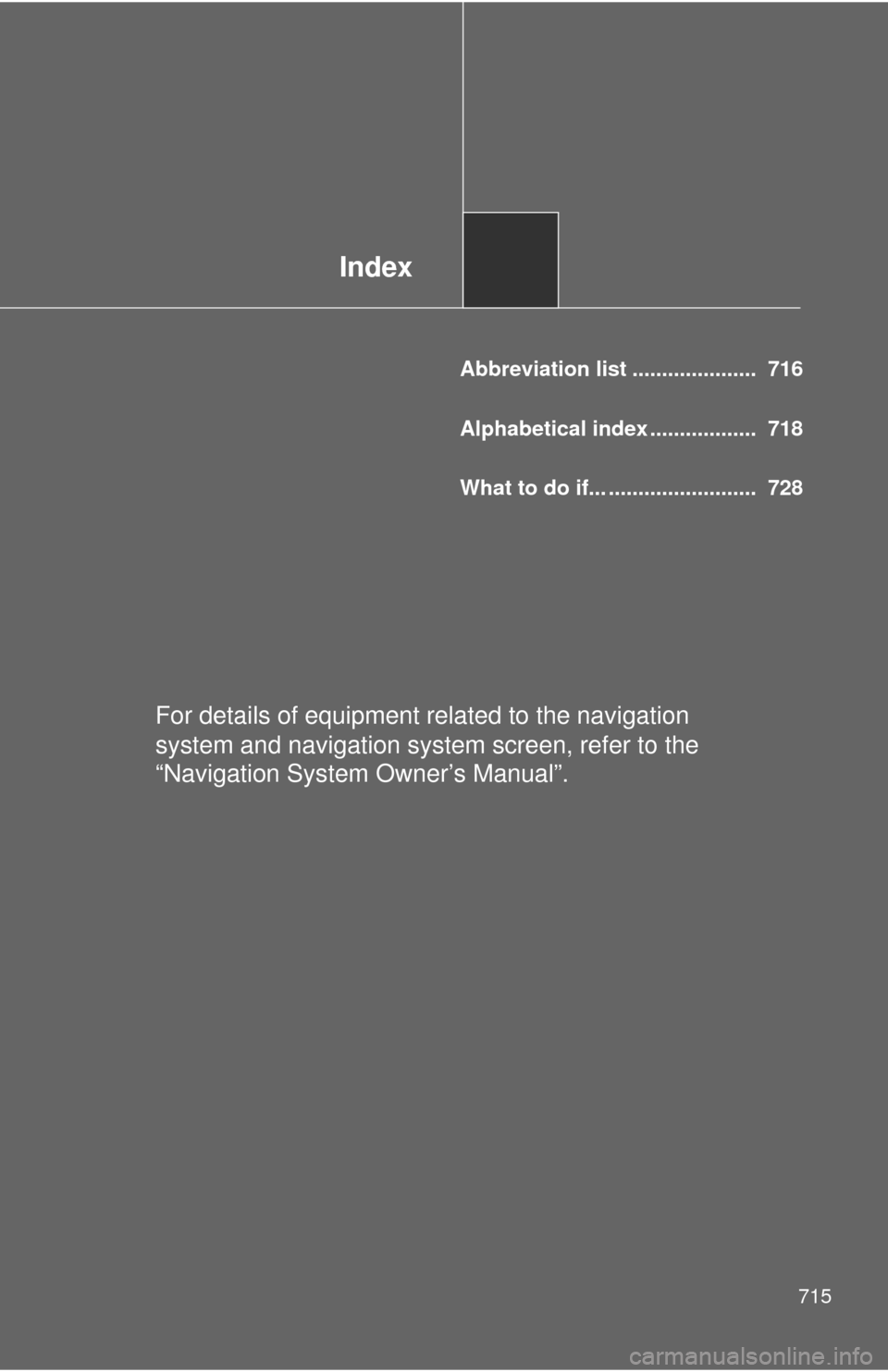

Index
715
Abbreviation list ..................... 716
Alphabetical index .................. 718
What to do if... ......................... 728
For details of equipment related to the navigation
system and navigation system screen, refer to the
“Navigation System Owner’s Manual”.

716
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
4WD Four Wheel Drive ABS Anti-Lock Brake System
ACC Accessory
AI-SHIFT Artificial Intelligence shifting ALR Automatic Locking Retractor
A-TRAC Active Traction Control
AUTO LSD Automatic Limited Slip Differential CAL Calibration
CRS Child Restraint System
ECU Electronic Control Unit
EDR Event Data Recorder ELR Emergency Locking Retractor
FFV Flexible Fuel Vehicle
GAWR Gross Axle Weight Rating
GCWR Gross Combination Weight Rating
GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
INFO Information
LATCH Lower Anchors and Tethers for Children LED Light Emitting DiodeLT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
PWR Power

717
RES Resume
RSCA Roll Sensing of Curtain shield Airbags SRS Supplemental Restraint System
TIN Tire Identification Number
TPMS Tire Pressure Warning System TRAC Traction Control
TWI Treadwear indicators
TWR Trailer Weight Rating VIN Vehicle Identification Number
VSC Vehicle Stability Control
ABBREVIATIONSMEANING

718
Alphabetical index
Alphabetical index
A/C ..................................... 292, 301
ABS ........................................... 243
Accessory meter ...................... 209
Active traction control system .................................... 243
Air conditioning filter............... 560
Air conditioning system Air conditioning filter .............. 560
Automatic air conditioning system ................................ 292
Manual air conditioning system ................................ 301
Airbags
Airbag operating conditions............................ 122
Airbag precautions for your
child .................................... 126
Airbag warning light............... 600
Curtain shield airbag operating conditions............ 123
Curtain shield airbag precautions ......................... 126
Front passenger occupant classification system ........... 135
General airbag
precautions ......................... 126
Locations of airbags .............. 119
Modification and disposal of airbags ............................ 130
Passenger airbag off switch .......................... 131, 150
Proper driving posture ........................ 117, 126
Roll sensing of curtain shield airbag off switch .................. 133
Side airbag operating conditions............................ 123
Side airbag precautions ........ 126
SRS airbags .......................... 119 Alarm......................................... 114
Antenna ............................ 323, 516
Anti-lock brake system
ABS warning light.................. 600
Anti-lock brake system .......... 243
Armrest ..................................... 496
Audio input ............................... 360
Audio remote controls ............ 362
Audio system Antenna................................. 323
Audio input ............................ 360
Audio visual input .................. 407
AUX port ............................... 360
A/V input port ........................ 407
CD player/changer ................ 326
DVD player............................ 390
iPod ....................................... 343
MP3/WMA disc ..................... 335
Optimal use ........................... 356
Portable music player ........... 360
Radio..................................... 318
Rear seat entertainment
system ................................ 381
Steering wheel audio switch.................................. 362
Type ...................................... 314
USB memory......................... 349
Audio visual input.................... 407
AUTO LSD system ................... 240
Automatic light control system .................................... 215
Automatic transmission Automatic transmission ......... 184
If the shift lever cannot be shifted from P ..................... 630
TOW/HAUL switch ................ 187
AUX port ................................... 360
Auxiliary boxes ....................... 473
A/V input port ........................... 407A

719
Alphabetical index
Back-up lights
Replacing light bulbs ............ 582
Wattage ................................ 667
Back window Back window .......................... 98
Power back window................ 99
Back window defogger ........... 311
Battery Charging system warning light .................................... 599
Checking .............................. 543
If the vehicle has
discharged battery ............. 634
Preparing and checking
before winter ...................... 261
Bluetooth
® audio..................... 365
Bluetooth® phone ................... 417
Bottle holders .......................... 471
Brakes Brake system warning
buzzer ................................ 599
Brake system warning light .................................... 599
Fluid...................................... 540
Parking brake ....................... 190
Brake assist ............................. 243
Break-in tips ............................ 173
Camper information ................ 705
Card holder .............................. 457
Care
Exterior ................................. 516
Interior .................................. 519
Seat belts ............................. 520
Cargo capacity ........................ 259
Cargo hooks ............................ 501
Cargo lamp Replacing light bulbs ............ 583
Switch ................................... 450
Wattage ................................ 667 CD changer
CD .........................................326
MP3 .......................................335
WMA disc ..............................335
CD player ..................................326
Certification label .............269, 654
Chains .......................................262
Child restraint system
Booster seats, definition ........142
Booster seats, installation .....159
Convertible seats, definition .............................142
Convertible seats, installation ...........................158
Front passenger occupant classification system ........... 135
Infant seats, definition ...........142
Infant seats, installation.........157
Installing CRS with lower anchorages .........151, 154, 155
Installing CRS with seat belts ....................................157
Installing CRS with top
tether straps ........160, 162, 166
Passenger airbag off switch .......................... 131, 150
Child safety Airbag precautions ................126
Battery precautions .......544, 636
Child restraint system............142
Child-protectors .......................49
How your child should wear the seat belt ..........................80
Installing child restraints ........148
Moon roof precautions ..........106
Power window lock switch.......96
Power window precautions .....97
Removed wireless remote control battery
precautions .........................564
Seat belt extender
precautions ...........................82
Seat belt precautions ..............80
B
C

720 Alphabetical index
Seat heater precautions ................. 493, 495
Child-protectors .........................49
Cleaning Exterior .................................. 516
Interior ................................... 519
Seat belts .............................. 520
Clock ........................................ 480
Compass ................................... 510
Condenser ................................ 540
Console box ............................. 455
Cooling system
Engine overheating ............... 637
CRS ........................................... 142
Cruise control........................... 220
Cup holders .............................. 468
Curtain shield airbags ............. 119
Customizable features..... 205, 683
Daytime running light
system .................................... 214
Deck hooks ............................... 500
Defogger
Back window ......................... 311
Side mirrors ................... 309, 311
Dimension................................. 644
Dinghy towing .......................... 288
Display Trip information ..................... 203
Warning message ................. 608
Do-it-yourself main tenance..... 528
Doors Door glasses ...........................94
Door lock ...........................44, 47
Open door warning........601, 609
Side doors ...............................47
Side mirrors .............................89
Driver’s seat belt reminder buzzer ..................................... 601
Driver’s seat belt
reminder light......................... 601 Driving
Break-in tips .......................... 173
Correct posture ..................... 117
Driving assist systems .......... 243
Procedures............................ 172
Winter driving tips ................. 261
Driving position memory .......... 68
DVD player................................ 390
Emergency flashers................. 588
Emergency flashers switch .... 588
Emergency, in case of Blown fuse ............................ 565
If the engine will not start ...... 628
If the shift lever cannot be shifted ................................. 630
If the vehicle has discharged battery .............. 634
If the warning buzzer
sounds ................................ 599
If the warning light turns on........................................ 599
If the warning message is displayed ......................... 608
If you have a flat tire ............. 612
If you lose your keys ............. 633
If you think something is wrong .............................. 595
If your vehicle becomes stuck ................................... 640
If your vehicle has to be
stopped in an emergency ... 641
If your vehicle needs to be towed ............................. 589
If your vehicle overheats ....... 637
Engine Compartment ........................ 533
Engine switch ........................ 181
Exhaust gas .......................... 178
Hood ..................................... 532
How to start the
engine ................................. 181
Identification number............. 655
D
E
