TOYOTA TUNDRA 2012 2.G Owners Manual

721
7
For owners
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger numberC.W.R
(lbs)(kg)
1UR- FE 2WD
Crew Max Short SR5 6 325 147
4WD SR5 6 250 113
3UR- FE 2WD SR5 6 460 209
Limited 5 665 302
3UR- FE
3UR- FBE 4WD
SR5 6 390 177
Limited 5 560 254
CAUTION
■Overloading
Be careful — overloading can cause dangerous braking and handling
problems, and can damage your vehicle and its tires.

722
Gross axle and vehicle weight ratingsSecure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual ax le loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicle Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. ( P. 668) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
Gross axle weight rating Front GAWR
Rear GAWR
Gross vehicle weight rating Not exceed GVWR

723
7
For owners
■GAWR and GVWR
Regular Cab models
: The model code is indicated on the Certification Label. (P. 668)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK50L- TRADKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3700 lb.
(1675 kg) 6200 lb.
(2810 kg)
GSK51L- THADKA Long
3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK50L- TRTDKA 4.6L V8
(1UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3950 lb.
(1790 kg) 6600 lb.
(2990 kg)
USK51L- THTDKA 5.7L V8
(3UR-FE) engine 2WD
Long3900 lb.
(1765 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK55L- TRTDKA 4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L- THTDKA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK55L-
TRTDGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L-
THTDGA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)

724
Double Cab models
: The model code is indicated on the Certification Label. (P. 668)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK51L-
CRASKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK51L- CRTSKA 4.6L V8
(1UR-FE) engine 2WD
Standard
3900 lb.
(1765 kg) 4000 lb.
(1810 kg) 6700 lb.
(3035 kg)
UPK56L- CRTSKA 4WD
4000 lb.
(1810 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L- CRTSKA
5.7L V8
(3UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L-
CRTLKA
USK52L-
CHTSKA Long4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK56L- CRTSKA
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLKA
USK57L-
CHTSKA Long7200 lb.
(3265 kg)
USK56L-
CRTSGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLGA
USK57L-
CHTSGA Long7200 lb.
(3265 kg)

725
7
For owners
CrewMax models
: The model code is indicated on the Certification Label. (P. 668)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
UPK51L- PSTSKA 4.6L V8
(1UR-FE) engine 2WD
Short
3900 lb.
(1765 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
UPK56L- PSTSKA 4WD
4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L- PSTSKA
5.7L V8
(3UR-FE) engine 2WD
3900 lb.
(1765 kg)
4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L-
PSTLKA
USK56L- PSTSKA 4WD4000 lb.
(1810 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLKA
USK56L-
PSTSGA
5.7L V8
(3UR-FBE) engine
4WD 4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLGA

726

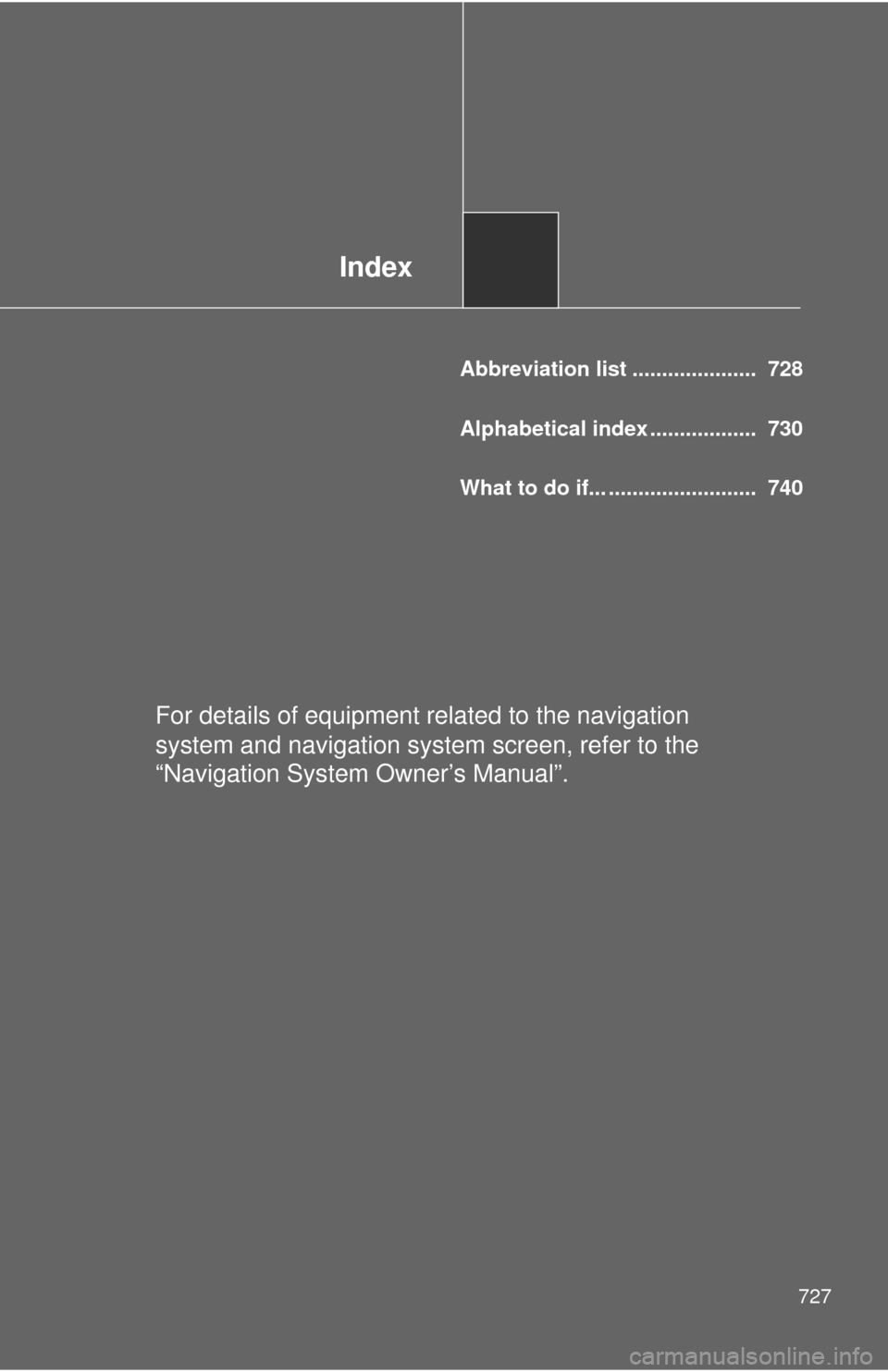

Index
727
Abbreviation list ..................... 728
Alphabetical index .................. 730
What to do if... ......................... 740
For details of equipment related to the navigation
system and navigation system screen, refer to the
“Navigation System Owner’s Manual”.

728
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WDTwo Wheel Drive
4WD Four Wheel Drive ABS Anti-Lock Brake System
ACC Accessory
AI-SHIFT Artificial Intelligence shifting ALR Automatic Locking Retractor
A-TRAC Active Traction Control
AUTO LSD Automatic Limited Slip Differential CAL Calibration
CRS Child Restraint System
ECU Electronic Control Unit
EDR Event Data Recorder ELR Emergency Locking Retractor
FFV Flexible Fuel Vehicle
GAWR Gross Axle Weight Rating
GCWR Gross Combination Weight Rating
GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
INFO Information
LATCH Lower Anchors and Tethers for Children LED Light Emitting DiodeLT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
PWR Power

729
Abbreviation list
RES Resume
RSCA Roll Sensing of Curtain shield Airbags SRS Supplemental Restraint System
TIN Tire Identification Number
TPMS Tire Pressure Warning System TRAC Traction Control
TWI Treadwear indicators
TWR Trailer Weight Rating VIN Vehicle Identification Number
VSC Vehicle Stability Control
ABBREVIATIONSMEANING

730
Alphabetical index
Alphabetical index
A/C ..................................... 298, 307
ABS ........................................... 249
Accessory meter ...................... 207
Active traction control system .................................... 249
Air conditioning filter............... 572
Air conditioning system Air conditioning filter .............. 572
Automatic air conditioning system ................................ 298
Manual air conditioning system ................................ 307
Airbags
Airbag operating conditions............................ 125
Airbag precautions for your
child .................................... 129
Airbag warning light............... 610
Curtain shield airbag operating conditions............ 126
Curtain shield airbag precautions ......................... 129
Front passenger occupant classification system ........... 135
General airbag
precautions ......................... 129
Locations of airbags .............. 122
Modification and disposal of airbags ............................ 133
Proper driving posture ........................ 120, 129
Roll sensing of curtain shield airbag off switch .................. 134
Side airbag operating conditions............................ 126
Side airbag precautions ........ 129
SRS airbags .......................... 122
Alarm ......................................... 117
Antenna..................... 329, 371, 526
Anti-lock brake system ABS warning light .................. 610
Anti-lock brake system .......... 249
Armrest ..................................... 506 Audio input ............................... 366
Audio remote controls ............ 368
Audio system
Antenna................. 329, 371, 526
Audio input ............................ 366
Audio visual input .................. 416
AUX port ............................... 366
A/V input port ........................ 416
CD player/changer ................ 332
DVD player............................ 399
iPod ....................................... 349
MP3/WMA disc ..................... 341
Optimal use ........................... 362
Portable music player ........... 366
Radio..................................... 324
Rear seat entertainment
system ................................ 390
Steering wheel audio switch.................................. 368
Type ...................................... 320
USB memory......................... 355
Audio visual input.................... 416
AUTO LSD system ................... 246
Automatic light control system .................................... 214
Automatic transmission Automatic transmission ......... 181
If the shift lever cannot be shifted from P ..................... 643
TOW/HAUL switch ................ 184
AUX port ................................... 366
Auxiliary boxes ....................... 483
A/V input port ........................... 416
Back-up lights
Replacing light bulbs ............. 594
Wattage................................. 680
Back window Back window ......................... 101
Power back window .............. 102
Back window defogger............ 317A
B
