TOYOTA TUNDRA 2013 2.G Owners Manual

5
When trouble arises
621
5-2. Steps to take in an emergency
CAUTION
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati
on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

622
5-2. Steps to take in an emergency
If a war ning message is displayed (vehicles with multi-infor mation display)
Stop the vehicle immediately.The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Warning messageDetails
(Flashing) Indicates that the engine coolant temperature is
too high
A buzzer also sounds.
If a warning is shown on the multi- information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning lights turns on again after performing the fol-
lowing actions, contact your Toyota dealer.

5
When trouble arises
623
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed. The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Open door warning light
also comes on. Make sure that all of
the doors are closed.
Indicates that the auto-
matic transmission fluid
temperature is too high A buzzer also sounds. Stop the vehicle in a
safe place, shift the
shift lever to P and wait
until the light goes off.
If the light goes off,
you may start the
vehicle again. If the
light does not go off,
contact your Toyota
dealer.
Indicates a malfunction
in the automatic trans-
mission system A buzzer also sounds. Have the system
checked by your
Toyota dealer.

624 5-2. Steps to take in an emergency
(Flashing)Indicates that the park-
ing brake is still
engaged with the vehicle
having reached a speed
of more than 3 mph (5
km/h).
A buzzer also sounds
intermittently. Release the parking
brake.
Indicates that the
washer fluid level is low. A buzzer also sounds. Add washer fluid.
(U.S.A. only) Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule*
should be performed
soon.
If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km) after
the maintenance data has
been reset.
(U.S.A. only) Indicates that all mainte-
nance is required to corre-
spond to the driven
distance on the mainte-
nance schedule*.
Perform the necessary
maintenance.
Please reset the main-
tenance data after the
maintenance is per-
formed. (
P. 535)
Comes on approximately
5000 miles (8000 km) after
the maintenance data has
been reset.
(The indicator will not work
properly unless the main-
tenance data has been
reset.)
Warning messageDetailsCorrection procedure

5
When trouble arises
625
5-2. Steps to take in an emergency
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle. Indicates that the fuel
level is low.
A buzzer also sounds
and the low fuel level
warning light comes on. Fill up the tank as soon
as possible.
Warning messageDetailsCorrection procedure

626
5-2. Steps to take in an emergency

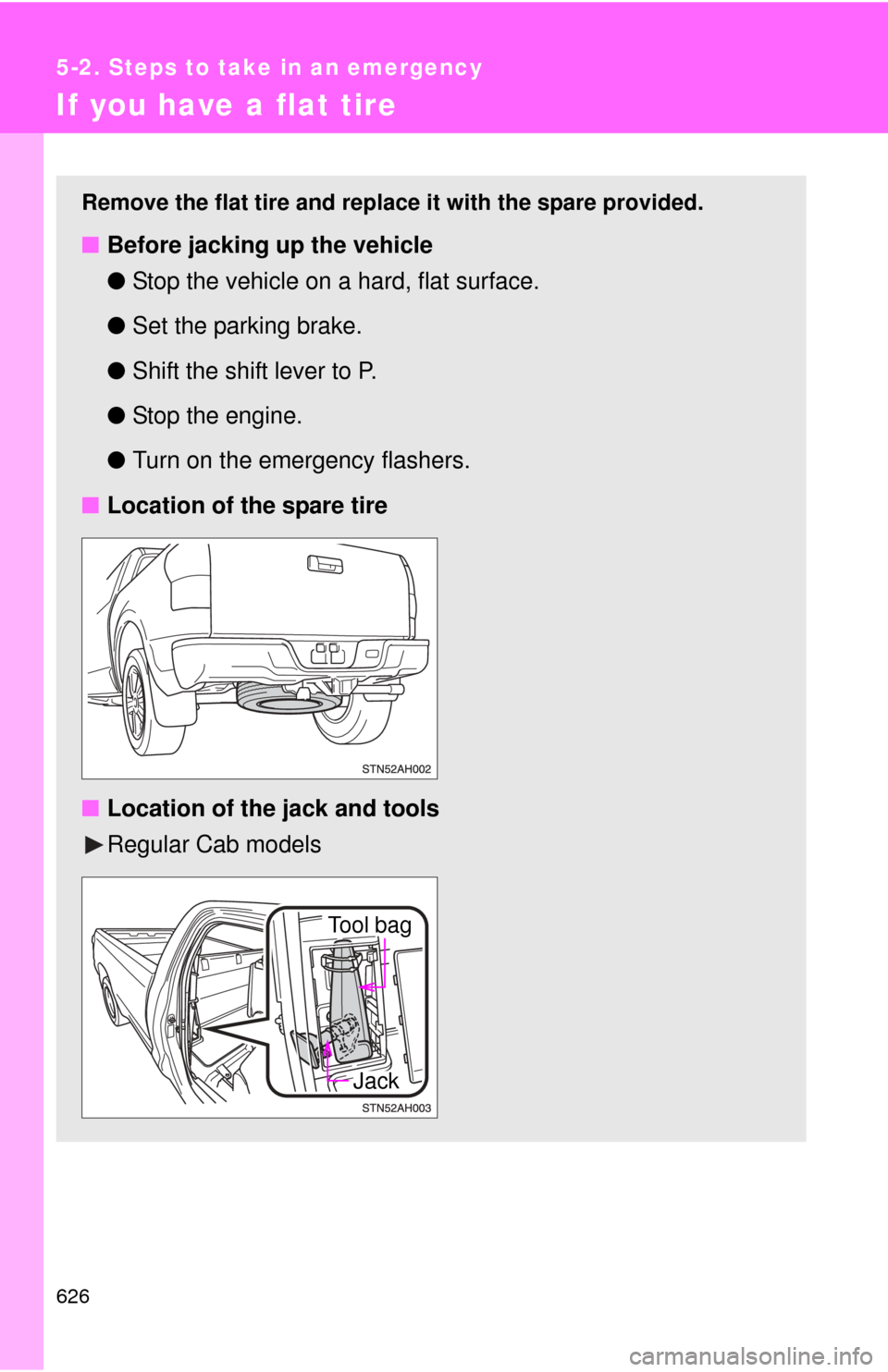

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire
■ Location of the jack and tools
Regular Cab models
Tool bag
Jack

5
When trouble arises
627
5-2. Steps to take in an emergency

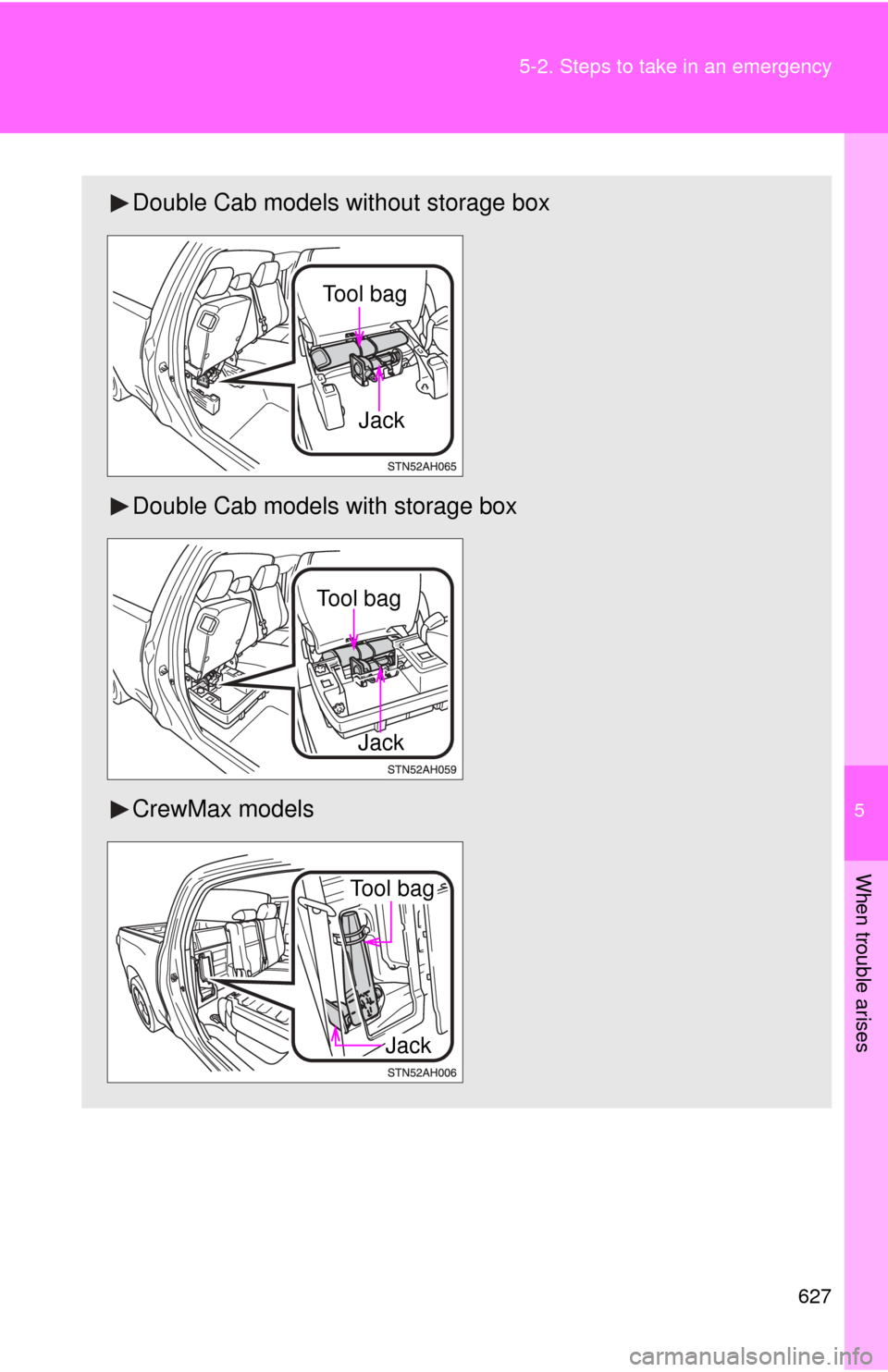

Double Cab models without storage box
Double Cab models with storage box
CrewMax models
To o l b a g
Jack
Tool bag
Jack
Tool bag
Jack

628 5-2. Steps to take in an emergency

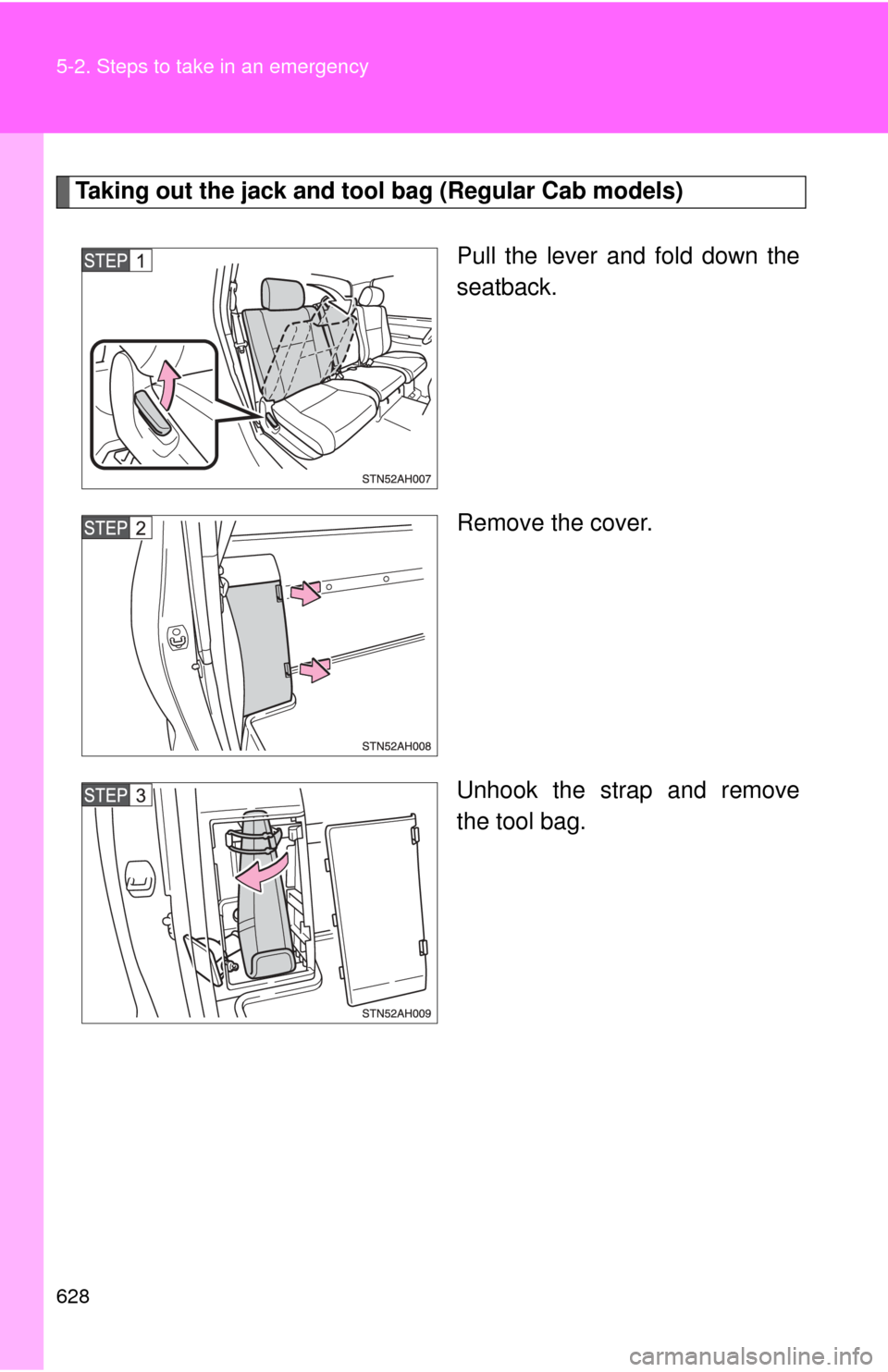

Taking out the jack and tool bag (Regular Cab models)Pull the lever and fold down the
seatback.
Remove the cover.
Unhook the strap and remove
the tool bag.

5
When trouble arises
629
5-2. Steps to take in an emergency

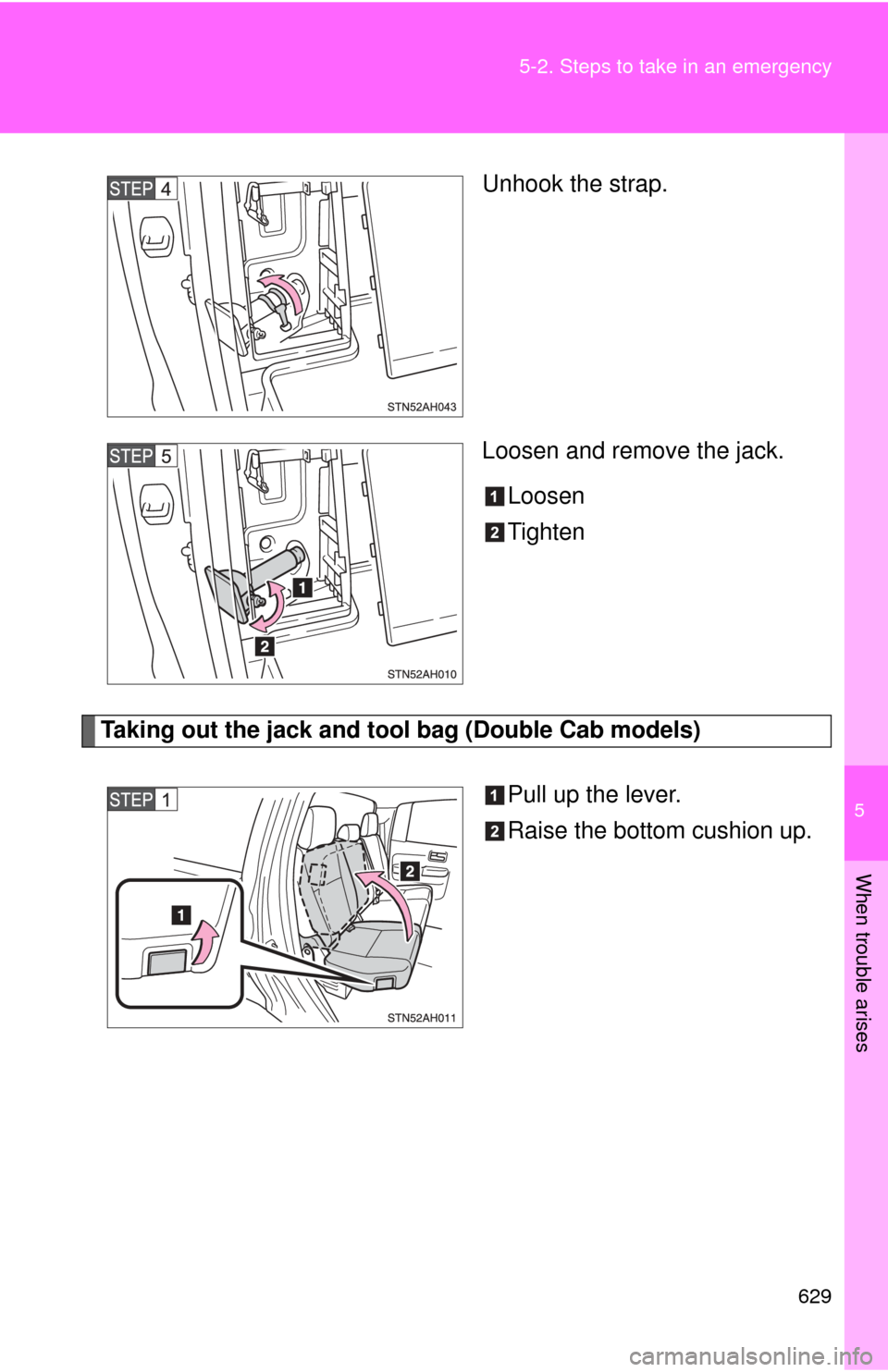

Unhook the strap.
Loosen and remove the jack.
Loosen
Tighten
Taking out the jack and tool bag (Double Cab models)
Pull up the lever.
Raise the bottom cushion up.

630 5-2. Steps to take in an emergency

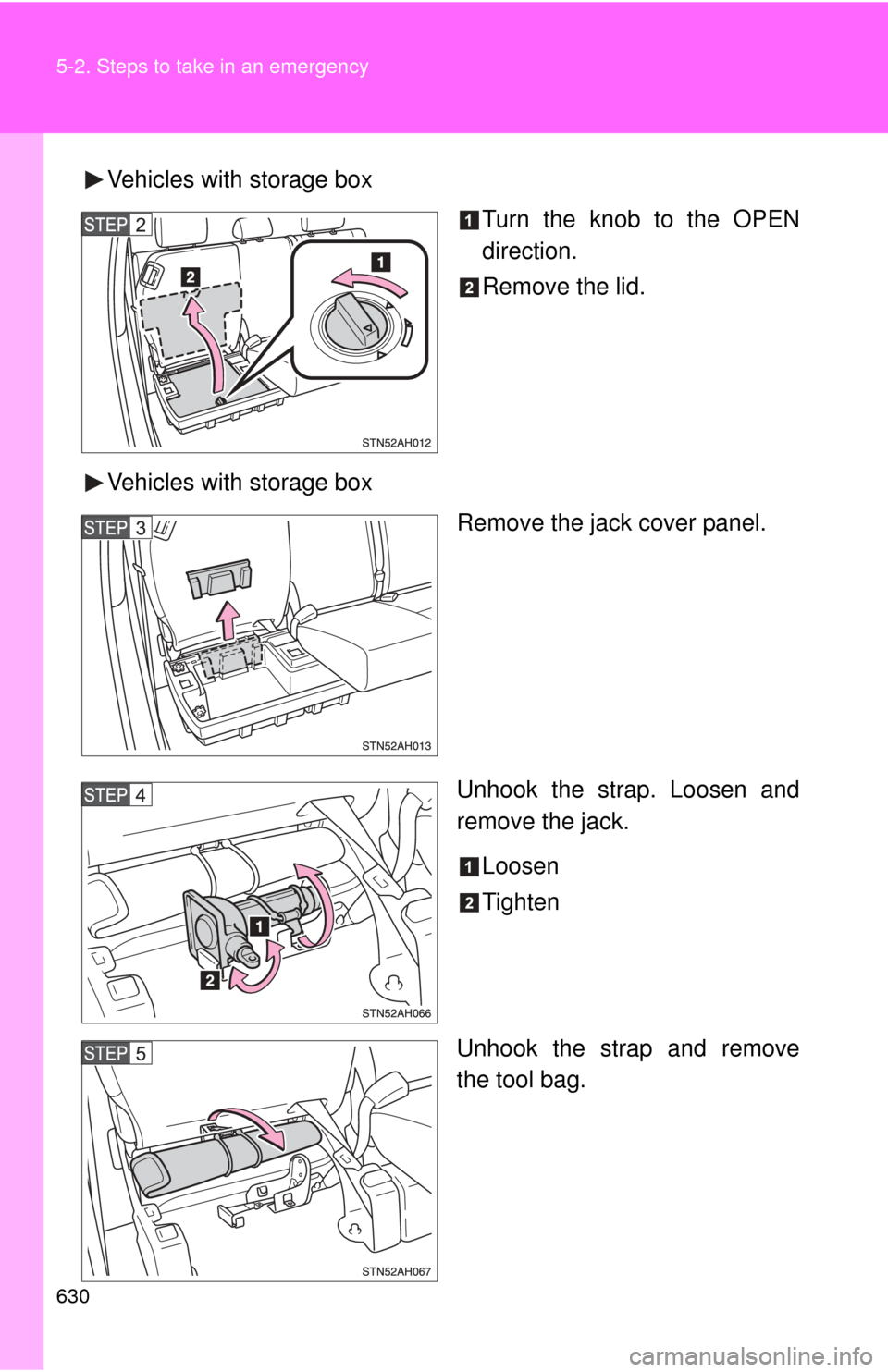

Vehicles with storage boxTurn the knob to the OPEN
direction.
Remove the lid.
Vehicles with storage box Remove the jack cover panel.
Unhook the strap. Loosen and
remove the jack.
Loosen
Tighten
Unhook the strap and remove
the tool bag.
