721
7
For owners
Double Cab models with standard bedRecommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
Double Cab models with long bed Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
CrewMax models Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
Regular Cab models
42.6 in. (1082mm) 37.6 in. (955 mm)
Double Cab models
CrewMax models

722
Cargo weight rating and proper matchingWhen the truck is used to carry a slide-in camper, the total cargo load
of the truck consists of the manufacturer’s camper weight figure, the
weight of installed additional camper equipment not included in the
manufacturer’s camper weight figu re, the weight of camper cargo,
and the weight of passengers in the camper.
The total cargo load should not exceed the truck’s cargo weight rating
and the camper’s center of gravity should fall within the truck’s rec-
ommended center of gravity zone when installed.

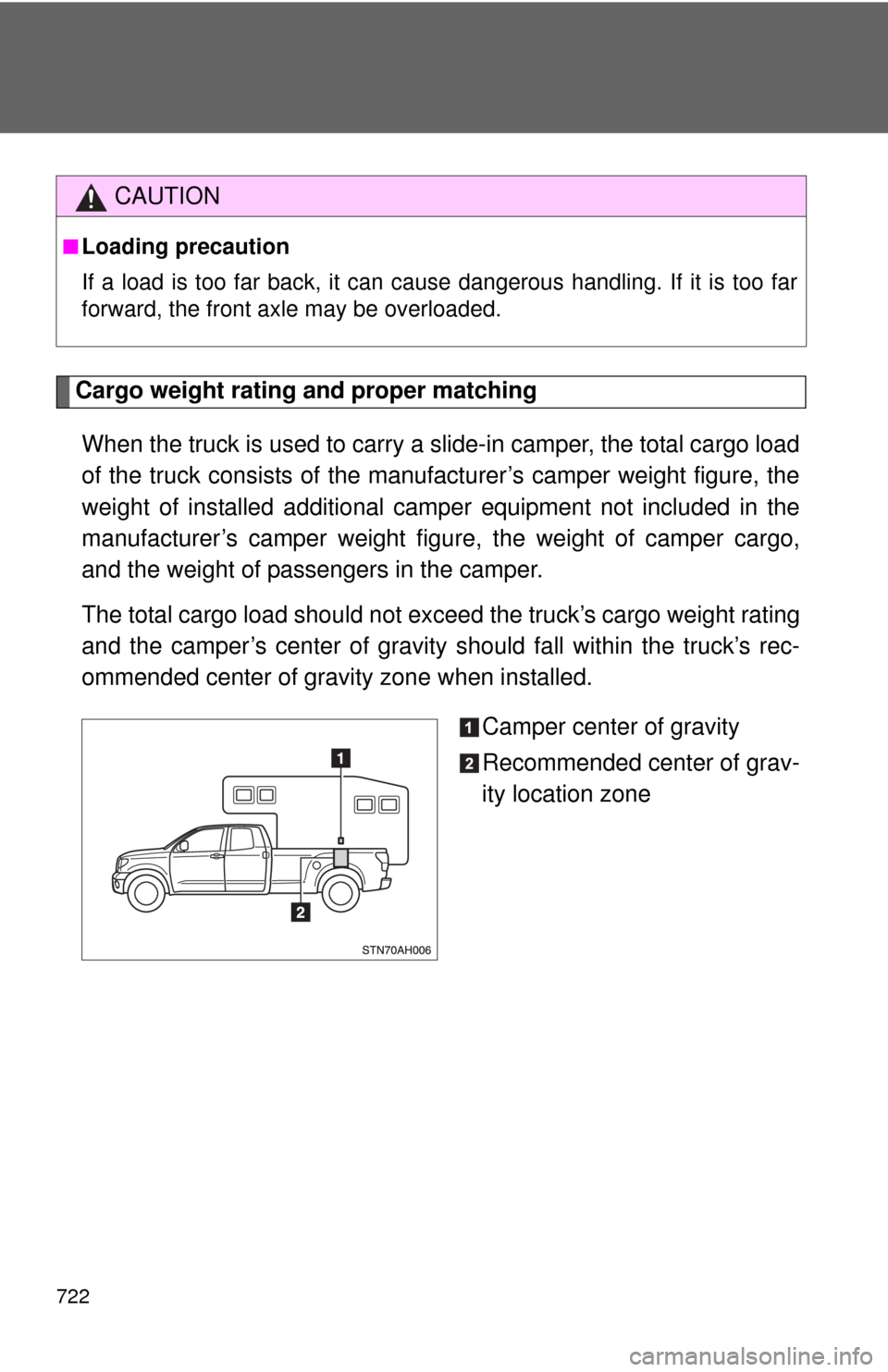

Camper center of gravity
Recommended center of grav-
ity location zone
CAUTION
■Loading precaution
If a load is too far back, it can cause dangerous handling. If it is too far
forward, the front axle may be overloaded.

723
7
For owners
■Cargo weight rating
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger
numberC.W.R
(lbs)(kg)
1GR- FE 2WD
Regular Standard
Delux 3 1035 469
Long 3 1130 513
1UR- FE 2WD Standard 3 1185 538
3UR- FE
3UR- FBE 2WD Long 3 1435 651
4WD
Standard 3 1070 485
Long 3 1370 621

724
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger numberC.W.R
(lbs)(kg)
1GR- FE 2WD
Double Standard SR5 6 425 193
1UR- FE 2WD Standard SR5 6 435 197
4WD Standard SR5 6 355 161
3UR- FE 2WD StandardSR5 6 565 256
Limited 5 745 338
Long SR5 6 555 252
3UR- FE
3UR- FBE 4WD
StandardSR5 6 480 218
Limited 5 660 299
Long SR5 6 460 209

725
7
For owners
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger numberC.W.R
(lbs)(kg)
1UR- FE 2WD
Crew Max Short SR5 6 360 163
4WD SR5 6 275 125
3UR- FE 2WD SR5 6 435 197
Limited 5 635 288
3UR- FE
3UR- FBE 4WD
SR5 6 400 181
Limited 5 545 247
CAUTION
■Overloading
Be careful — overloading can cause dangerous braking and handling
problems, and can damage your vehicle and its tires.

726

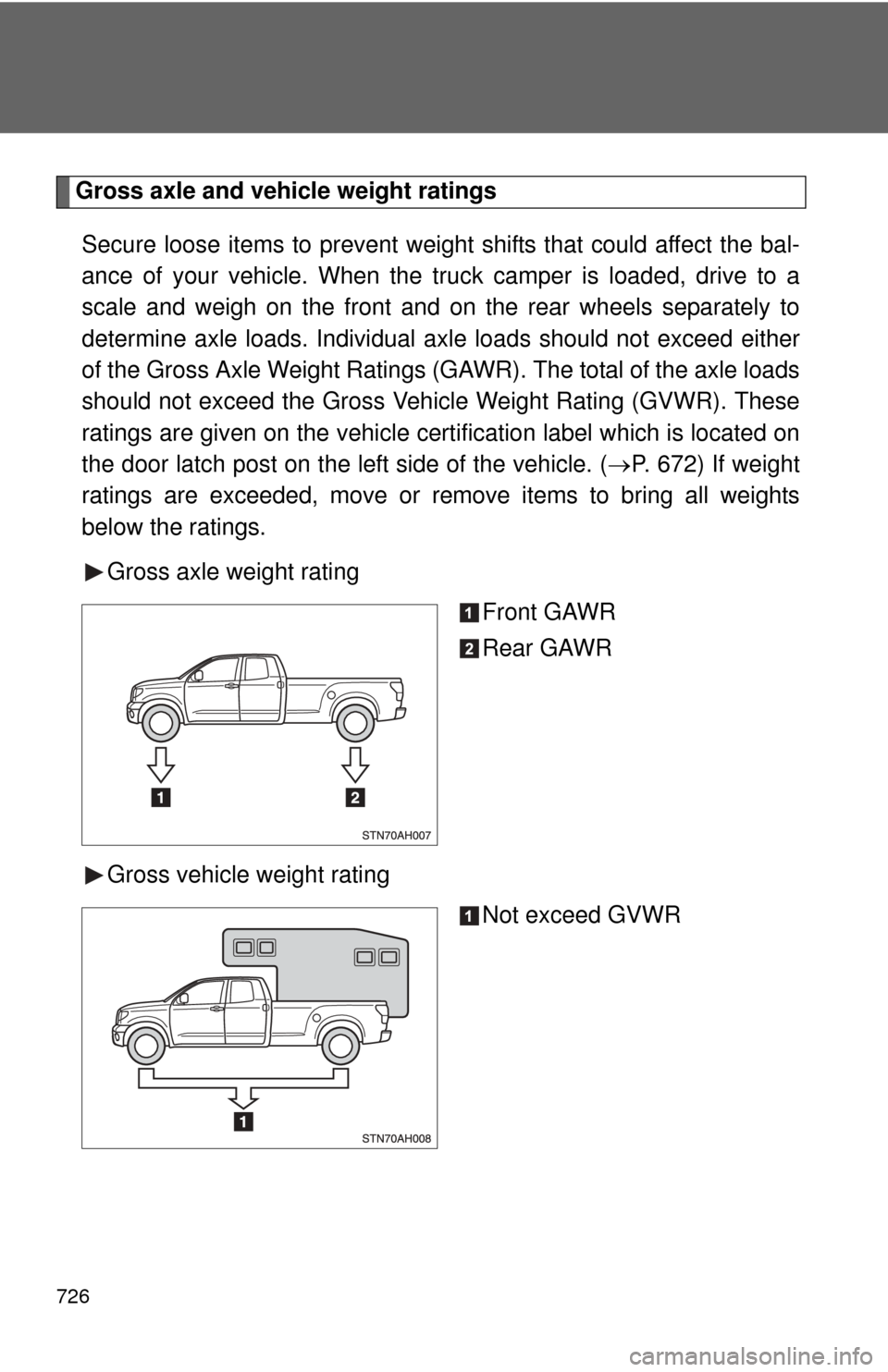

Gross axle and vehicle weight ratingsSecure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual ax le loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehicle Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. ( P. 672) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
Gross axle weight rating Front GAWR
Rear GAWR
Gross vehicle weight rating Not exceed GVWR

727
7
For owners
■GAWR and GVWR
Regular Cab models
: The model code is indicated on the Certification Label. (P. 672)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK50L- TRADKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3700 lb.
(1675 kg) 6200 lb.
(2810 kg)
GSK51L- THADKA Long
3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK50L- TRTDKA 4.6L V8
(1UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3950 lb.
(1790 kg) 6600 lb.
(2990 kg)
USK51L- THTDKA 5.7L V8
(3UR-FE) engine 2WD
Long3900 lb.
(1765 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK55L- TRTDKA 4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L- THTDKA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK55L-
TRTDGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
USK56L-
THTDGA Long4150 lb.
(1880 kg) 7200 lb.
(3265 kg)

728
Double Cab models
: The model code is indicated on the Certification Label. (P. 672)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
GSK51L-
CRASKA 4.0L V6
(1GR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 3800 lb.
(1720 kg) 6400 lb.
(2900 kg)
UPK51L- CRTSKA 4.6L V8
(1UR-FE) engine 2WD
Standard
3900 lb.
(1765 kg) 4000 lb.
(1810 kg) 6700 lb.
(3035 kg)
UPK56L- CRTSKA 4WD
4000 lb.
(1810 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L- CRTSKA
5.7L V8
(3UR-FE) engine 2WD
Standard3900 lb.
(1765 kg) 4100 lb.
(1855 kg) 6900 lb.
(3125 kg)
USK51L-
CRTLKA
USK52L-
CHTSKA Long4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK56L- CRTSKA
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLKA
USK57L-
CHTSKA Long7200 lb.
(3265 kg)
USK56L-
CRTSGA
5.7L V8
(3UR-FBE) engine
4WD
Standard4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7100 lb.
(3220 kg)
USK56L-
CRTLGA
USK57L-
CHTSGA Long7200 lb.
(3265 kg)

729
7
For owners
CrewMax models
: The model code is indicated on the Certification Label. (P. 672)
Model codeEngineDriving
systemBed
typeGAWRGVWRFrontRear
UPK51L- PSTSKA 4.6L V8
(1UR-FE) engine 2WD
Short
3900 lb.
(1765 kg) 4050 lb.
(1835 kg) 6800 lb.
(3080 kg)
UPK56L- PSTSKA 4WD
4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L- PSTSKA
5.7L V8
(3UR-FE) engine 2WD
3900 lb.
(1765 kg)
4150 lb.
(1880 kg) 7000 lb.
(3175 kg)
USK51L-
PSTLKA
USK56L- PSTSKA 4WD4000 lb.
(1810 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLKA
USK56L-
PSTSGA
5.7L V8
(3UR-FBE) engine
4WD 4000 lb.
(1810 kg) 4150 lb.
(1880 kg) 7200 lb.
(3265 kg)
USK56L-
PSTLGA
