TOYOTA TUNDRA 2014 2.G Owners Manual

4417-3. Do-it-yourself maintenance
7
Maintenance and care

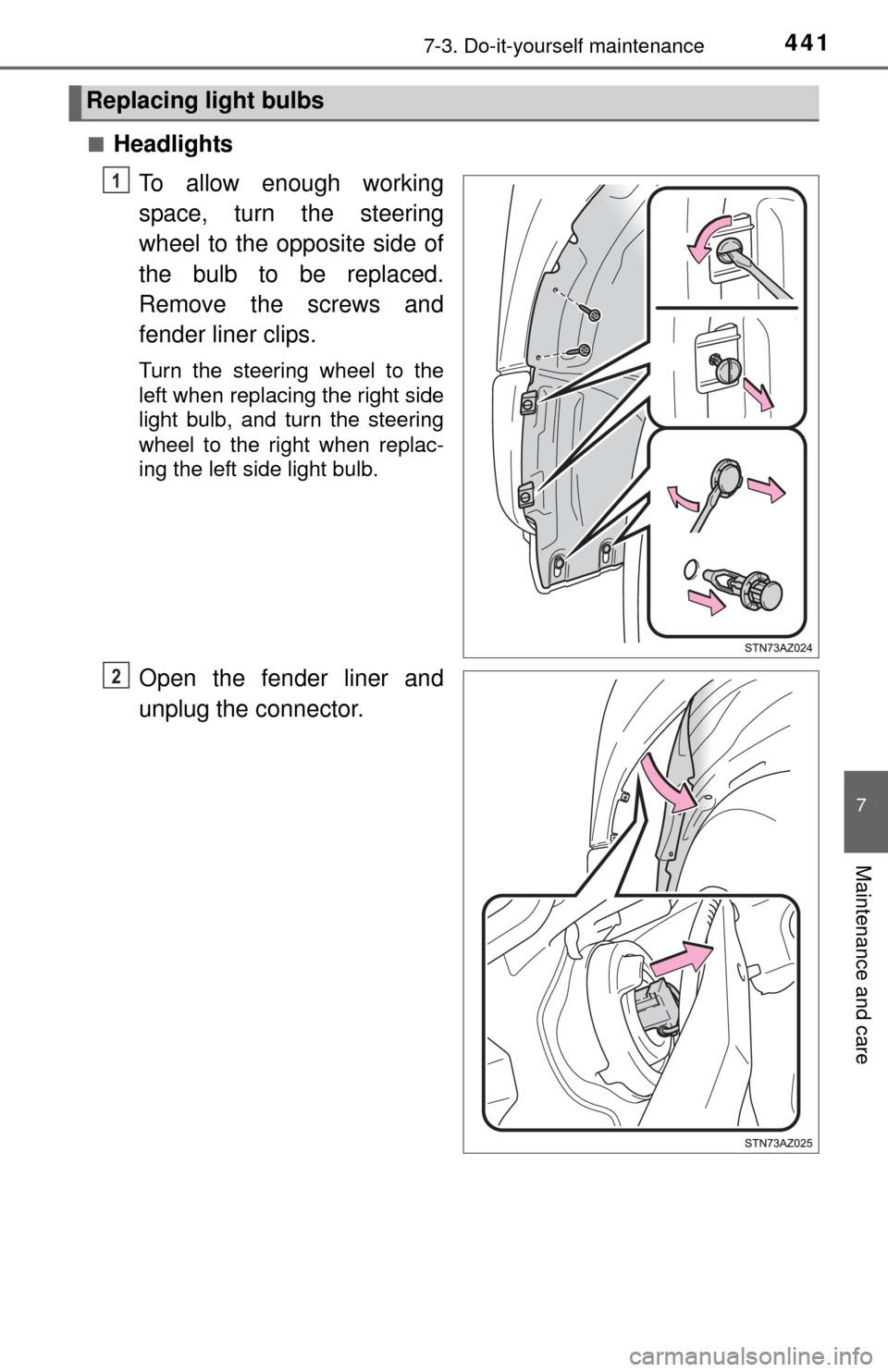

■HeadlightsTo allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector.
Replacing light bulbs
1
2

4427-3. Do-it-yourself maintenance

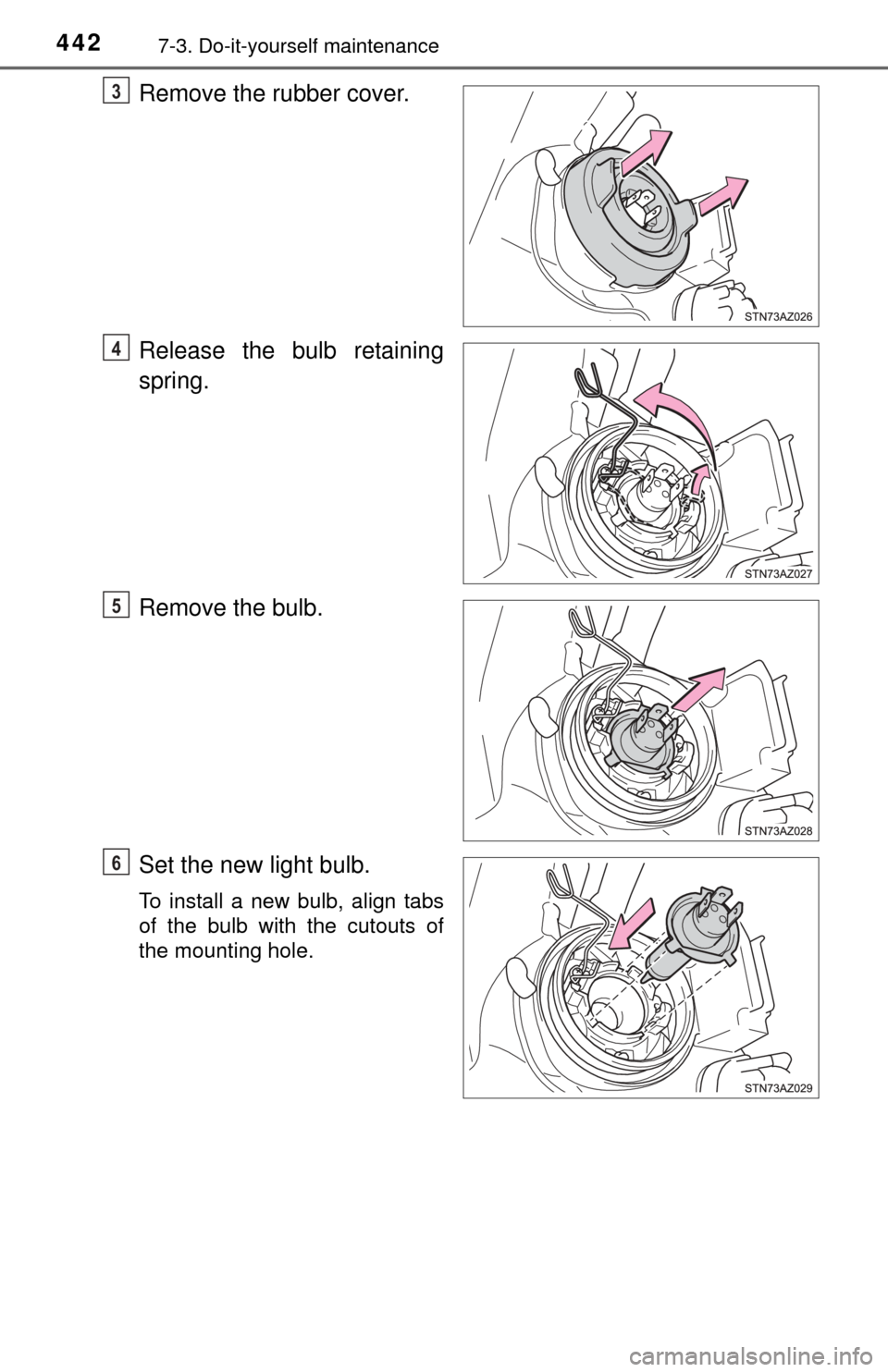

Remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
Set the new light bulb.
To install a new bulb, align tabs
of the bulb with the cutouts of
the mounting hole.
3
4
5
6

4437-3. Do-it-yourself maintenance
7
Maintenance and care

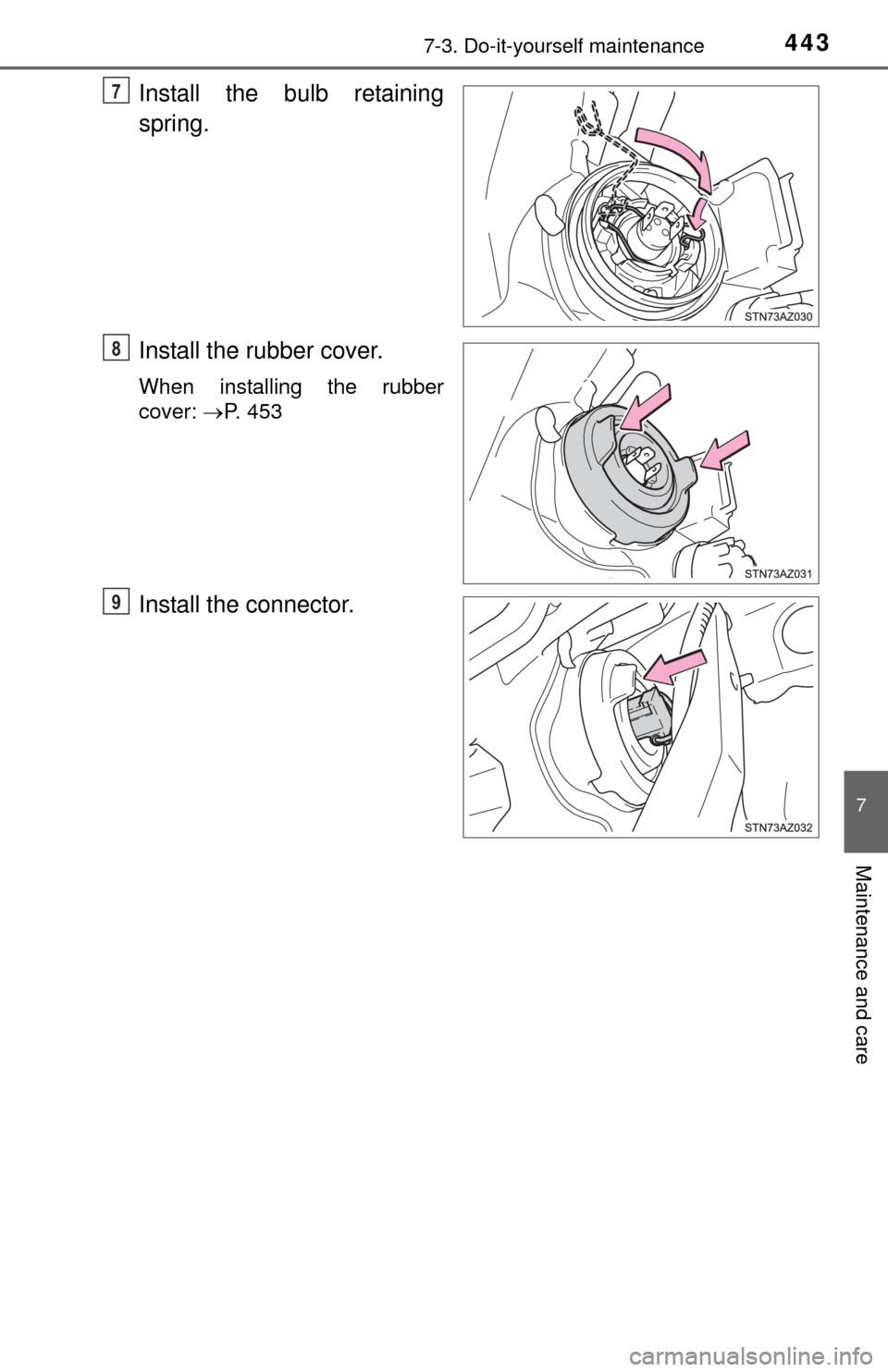

Install the bulb retaining
spring.
Install the rubber cover.
When installing the rubber
cover: P. 453
Install the connector.
7
8
9

4447-3. Do-it-yourself maintenance

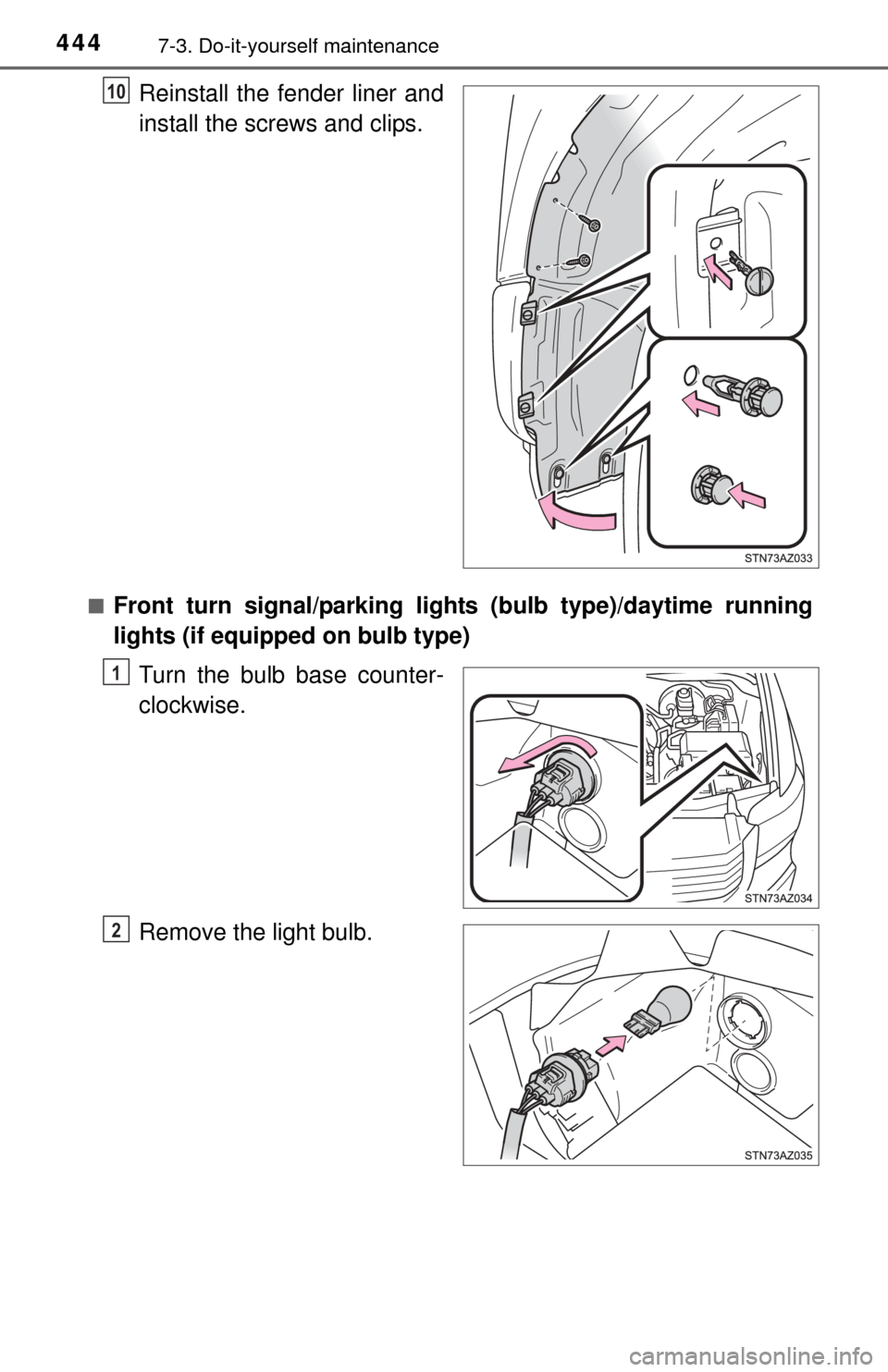

Reinstall the fender liner and
install the screws and clips.
■Front turn signal/parking lights (bulb type)/daytime running
lights (if equipped on bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
10
1
2

4457-3. Do-it-yourself maintenance
7
Maintenance and care

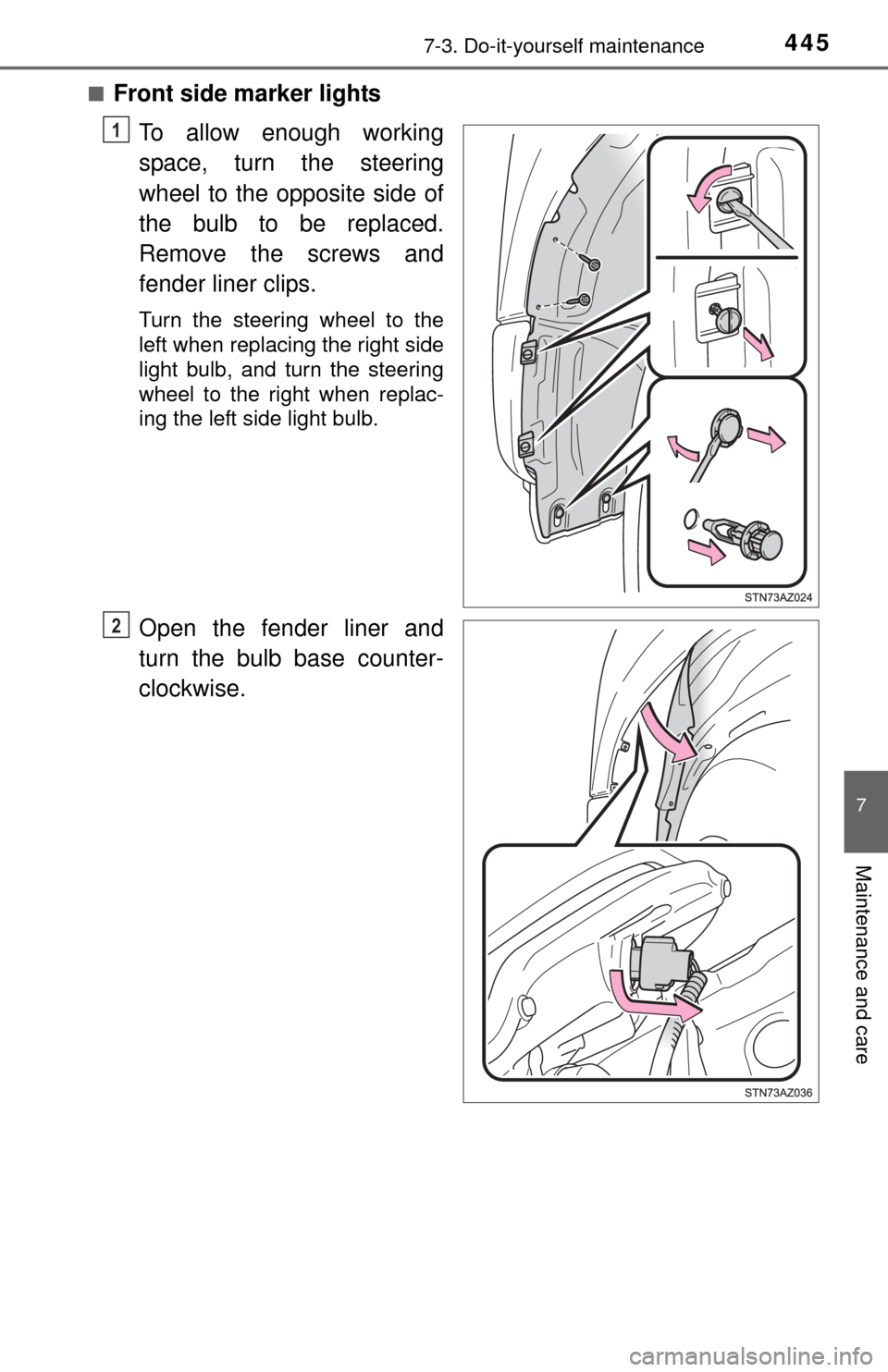

■Front side marker lightsTo allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws and
fender liner clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
turn the bulb base counter-
clockwise.
1
2

4467-3. Do-it-yourself maintenance

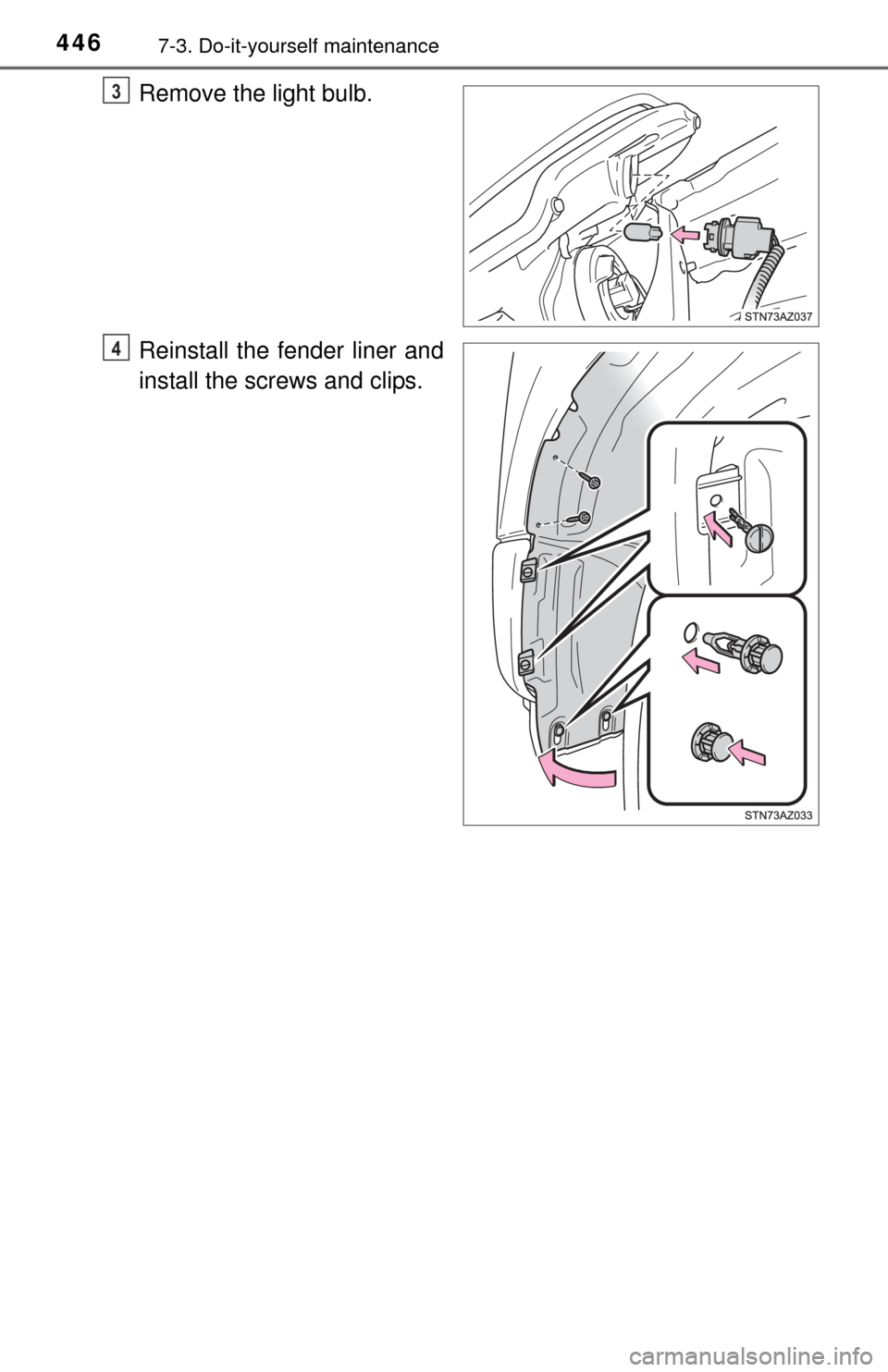

Remove the light bulb.
Reinstall the fender liner and
install the screws and clips.3
4

4477-3. Do-it-yourself maintenance
7
Maintenance and care
■Front fog lights (if equipped)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner
clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector while
depressing the lock release.
1
2

4487-3. Do-it-yourself maintenance
Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the fog lights, on once and visu-
ally confirm that no light is leak-
ing through the mounting.
3
4
5

4497-3. Do-it-yourself maintenance
7
Maintenance and care
Reinstall the fender liner and
install the clips.6

4507-3. Do-it-yourself maintenance
■Stop/tail and rear side marker lights, back-up lights and rear
turn signal lightsRemove the bolts and rear
combination assembly.
Turn the bulb bases counter-
clockwise.Rear turn signal light
Back-up light
Stop/tail and rear side
marker light
Remove the light bulb. Rear turn signal light
Back-up light
Stop/tail and rear side
marker light
1
2
1
2
3
3
1
2
3
