TOYOTA TUNDRA 2014 2.G Owners Manual

5019-1. Specifications
9
Vehicle specifications
4WD models
*1: Unladen vehicle
*2: P255/70R18 tires
*3: P275/65R18 tires
*4: P275/55R20 tires
Cab type Regular Cab Double CabCrewMax
Bed type Long Standard Long Short
Overall
length228.9 in. (5815 mm) 247.8 in.
(6295 mm) 228.9 in.
(5815 mm)
Overall
width 79.9 in. (2030 mm)
Overall
height
*1
76.1 in.
(1935 mm)
*276.3 in.
(1940 mm)
*276.1 in.
(1935 mm)
*2
75.9 in.
(1930 mm)
*376.1 in.
(1935 mm)
*3,*475.9 in.
(1930 mm)
*3,*4
Wheelbase 145.6 in. (3700 mm) 164.5 in.
(4180 mm) 145.6 in.
(3700 mm)
Front tread 67.9 in. (1725 mm)
Rear tread 67.9 in. (1725 mm)

5029-1. Specifications
Regular Cab models
*1: The model code is indicated on the Certification Label. (P. 506)
*2: Vehicles with towing package
*3: Vehicles without option
Vehicle capacity weight
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
GSK51L-THASKA 1GR-FE
engine 2WD
Long 1630 lb. (735 kg)
USK51L-THTSKA 3UR-FE engine 2WD
1970 lb. (890 kg)
1895 lb. (855 kg)*2
2040 lb. (925 kg)*3
USK56L-THTSKA
4WD1910 lb. (865 kg)
1835 lb. (830 kg)*2
USK56L-THTSGA3UR-FBE
engine 4WD1910 lb. (865 kg)
1835 lb. (830 kg)*2

5039-1. Specifications
9
Vehicle specifications
Double Cab models
*1: The model code is indicated on the Certification Label. (P. 506)
*2: Vehicles with towing package
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
GSK51L-CRASKA 1GR-FE
engine 2WD Standard 1340 lb. (605 kg)
UPK51L-CRTSKA 1UR-FE
engine 2WD
Standard
1410 lb. (635 kg)
UPK56L-CRTSKA 4WD
1320 lb. (595 kg)
USK51L-CRTSKA
3UR-FE engine 2WD
Standard
1595 lb. (720 kg)
1520 lb. (685 kg)*2
USK51L-CRTLKA1565 lb. (705 kg)
1490 lb. (675 kg)*2
USK52L-CHTSKA
Long1565 lb. (705 kg)
1490 lb. (675 kg)*2
USK56L-CRTSKA
4WDStandard1500 lb. (680 kg)
1430 lb. (645 kg)*2
USK56L-CRTLKA1495 lb. (675 kg)
1420 lb. (640 kg)*2
USK57L-CHTSKA
Long1480 lb. (670 kg)
1410 lb. (635 kg)*2
USK56L-CRTSGA
3UR-FBE engine 4WDStandard1500 lb. (680 kg)
1430 lb. (645 kg)*2
USK56L-CRTLGA1495 lb. (675 kg)
1420 lb. (640 kg)*2
USK57L-CHTSGA
Long1480 lb. (670 kg)
1410 lb. (635 kg)*2

5049-1. Specifications
CrewMax models
Model code*1EngineDriving
systemBed type
Vehicle capacity weight
(Occupants + luggage)
UPK51L-PSTSKA 1UR-FE engine 2WD
Short
1355 lb. (610 kg)
1325 lb. (600 kg)*2
UPK56L-PSTSKA 4WD1255 lb. (565 kg)
1225 lb. (555 kg)*2
USK51L-PSTSKA
3UR-FE engine 2WD
1520 lb. (685 kg)
1485 lb. (670 kg)*2
1435 lb. (650 kg)*3
1410 lb. (635 kg)*4
USK51L-PSTLKA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1425 lb. (645 kg)*3
1395 lb. (630 kg)*4
USK51L-PSTZKA
1505 lb. (680 kg)
1470 lb. (665 kg)*2
1425 lb. (645 kg)*3
1395 lb. (630 kg)*4
USK56L-PSTSKA
4WD
1440 lb. (650 kg)
1410 lb. (635 kg)*2
1360 lb. (615 kg)*3
1330 lb. (600 kg)*4
USK56L-PSTLKA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4

5059-1. Specifications
9
Vehicle specifications
*1: The model code is indicated on the Certification Label. (P. 506)
*2: Vehicles with electric moon roof
*3: Vehicles with towing package
*4: Vehicles with towing package and electric moon roof
USK56L-PSTZKA
3UR-FE
engine 4WD
Short
1415 lb. (640 kg)
1380 lb. (625 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
USK56L-PSTSGA 3UR-FBE engine 4WD
1440 lb. (650 kg)
1410 lb. (635 kg)*2
1360 lb. (615 kg)*3
1330 lb. (600 kg)*4
USK56L-PSTLGA
1410 lb. (635 kg)
1375 lb. (620 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
USK56L-PSTZGA
1415 lb. (640 kg)
1380 lb. (625 kg)*2
1335 lb. (605 kg)*3
1305 lb. (590 kg)*4
Model code*1EngineDriving
systemBed type
Vehicle capacity
weight
(Occupants + luggage)

5069-1. Specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification
1GR-FE engine1UR-FE engine

5079-1. Specifications
9
Vehicle specifications

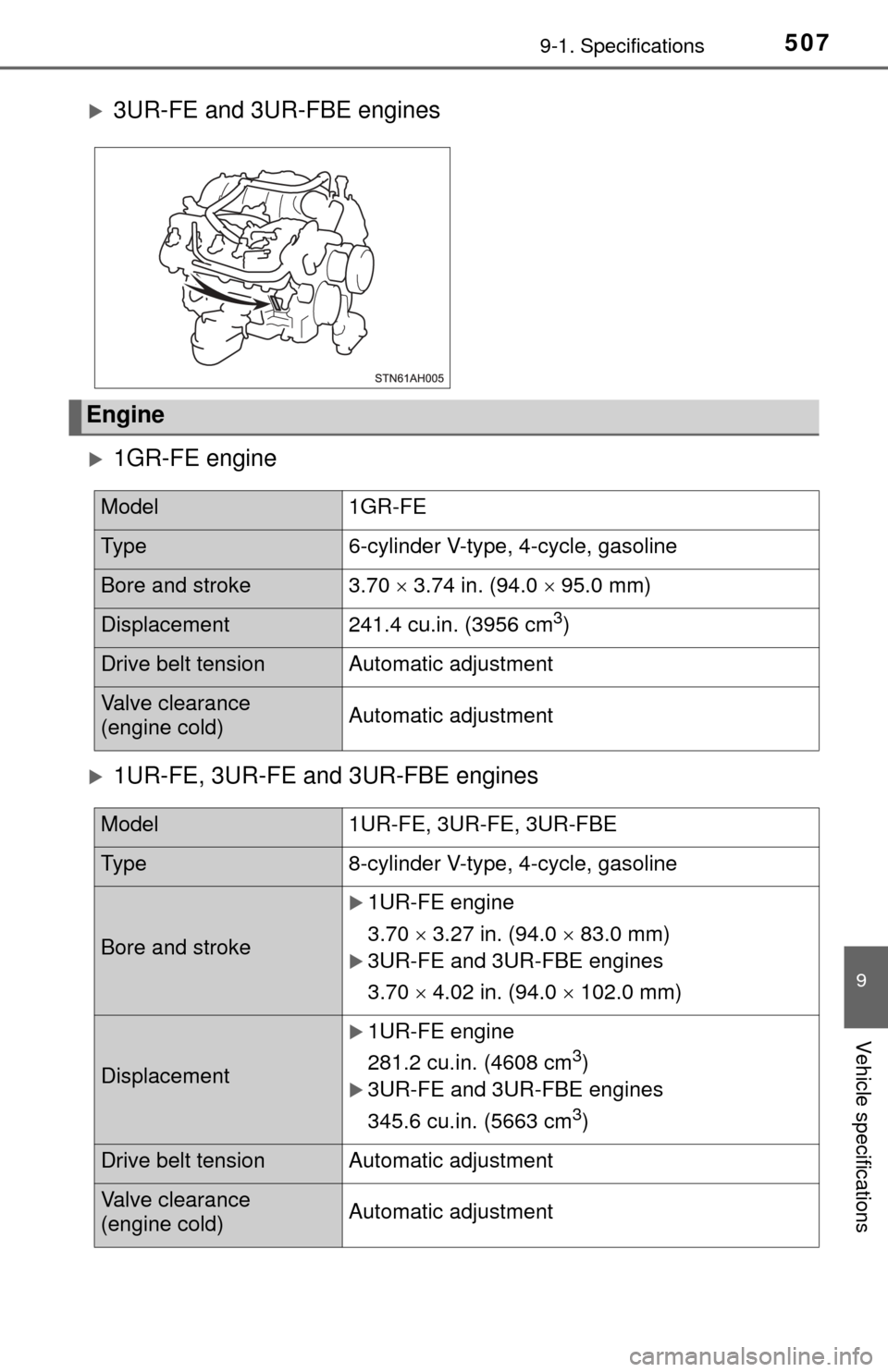

1GR-FE engine
1UR-FE, 3UR-FE and 3UR-FBE engines
3UR-FE and 3UR-FBE engines
Engine
Model1GR-FE
Ty p e6-cylinder V-type, 4-cycle, gasoline
Bore and stroke3.70  3.74 in. (94.0  95.0 mm)
Displacement241.4 cu.in. (3956 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Model1UR-FE, 3UR-FE, 3UR-FBE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke
1UR-FE engine
3.70  3.27 in. (94.0  83.0 mm)
3UR-FE and 3UR-FBE engines
3.70  4.02 in. (94.0  102.0 mm)
Displacement
1UR-FE engine
281.2 cu.in. (4608 cm
3)
3UR-FE and 3UR-FBE engines
345.6 cu.in. (5663 cm
3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment

5089-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Fuel
EngineGasoline engineFlex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gaso-
line)
87 (Research octane number 91) or higher
Ethanol percent-
age (E85)—85% or less
Fuel tank capacity
(Reference)26.4 gal. (100.0 L, 22.0 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill - reference
*)
With filter
Without filter
1GR-FE engine
6.4 qt. (6.1 L, 5.4 Imp.qt.)
1UR-FE, 3UR-FE and 3UR-FBE engines
7.9 qt. (7.5 L, 6.6 Imp.qt.)
1GR-FE engine
5.9 qt. (5.6 L, 4.9 Imp.qt.)
1UR-FE, 3UR-FE and 3UR-FBE engines
7.5 qt. (7.1 L, 6.2 Imp.qt.)

5099-1. Specifications
9
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature

5109-1. Specifications
Cooling system
Capacity
1GR-FE
engine11.3 qt. (10.7 L, 9.4 Imp.qt.)
1UR-FE
engine
Vehicles without towing package
11.4 qt. (10.8 L, 9.5 Imp.qt.)
Vehicles with towing package
12.6 qt. (11.9 L, 10.5 Imp.qt.)
3UR-FE,
3UR-FBE
enginesVehicles without towing package
11.4 qt. (10.8 L, 9.5 Imp.qt.)
Vehicles with towing package
12.4 qt. (11.7 L, 10.3 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make1GR-FE engine
DENSO SK16HR11
1UR-FE, 3UR-FE and 3UR-FBE engines
DENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
