TOYOTA TUNDRA 2016 2.G Navigation Manual

21
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.56
Select to customize the “Home” screen.34
Select to set the voice settings.61
Select to adjust the contrast and brightness of the screens.39
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
232, 241
Select to turn the screen off.
Select to set radio and external media settings.11 2
Select to set the phone sound, contacts, message settings, etc.169
Select to set Bluetooth® phones and Bluetooth® audio devices.49
*Select to set Entune App Suite settings.268
*Select to set data services settings.138
Select to link the driver’s cellular phone settings (audio presets, lan-
guage, etc.).63
Select to set vehicle information.“Owner’s
Manual”
*Select to set traffic information.245
*Select to change the phone data plan pop-up message timing. 
(Connected navigation is iPhone application.)
*: Available in the 48 states, D.C. and Alaska

22
2. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for your home. ( P. 2 0 5 )
*: Entune Premium Audio only
1
2
3
4
5
6
2. NAVIGATION OPERATION

23
2. NAVIGATION OPERATION
QUICK GUIDE
1Select “Enter”.
Select “OK”.
Registration of home is complete.
Registering home in a different way 
P.233
 Editing
the name, location, phone num -
ber and icon 
P.233
 Settin
g home as the destination 
P.208
7
8

24
2. NAVIGATION OPERATION
2. REGISTERING PRESET DESTINATIONS *
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”. Select one of the preset destina-
tion buttons.
Select “Yes”.
Cho

ose a search method.
There are different kinds of methods to
search for a destination. ( P. 2 0 5 )
Select “Enter ”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif -
ferent way 
P.234
 Edi
ting the name, location, phone num -
ber and icon 
P.235
 Setting
preset destinations as the desti -
nation 
P.208
*: Entune Premium Audio only
1
2
3
4
5
6
7
8
9

25
2. NAVIGATION OPERATION
QUICK GUIDE
1
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Choose a search method.
There are different kinds of methods to
search for a destination. ( P.205)
Select “Go”.
Select “OK”.
Selectin
g routes other than the one recom-
mended ( P.218)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5
6

26
2. NAVIGATION OPERATION
4. SETTING HOME AS THE DESTINATION*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Select “Go Home”.Select “OK”.
Se
lecting routes other than the one recom-
mended ( P.218)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5

27
QUICK GUIDE
1

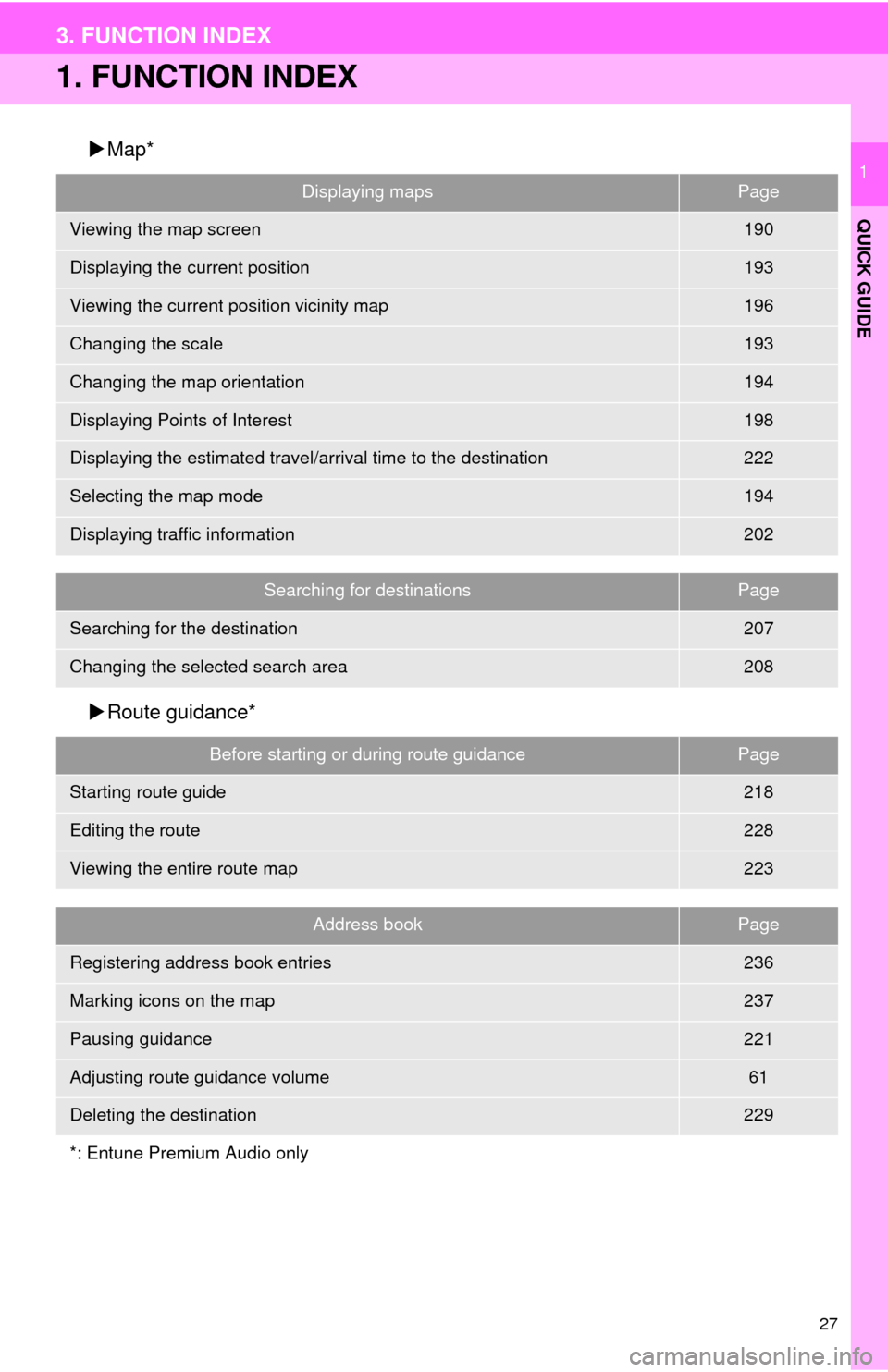

3. FUNCTION INDEX
1. FUNCTION INDEX
Map*
 R
oute guidance*
Displaying mapsPage
Viewing the map screen190
Displaying the current position193
Viewing the current position vicinity map196
Changing the scale193
Changing the map orientation194
Displaying Points of Interest198
Displaying the estimated travel/arrival time to the destination222
Selecting the map mode194
Displaying traffic information202
Searching for destinationsPage
Searching for the destination207
Changing the selected search area208
Before starting or during route guidancePage
Starting route guide218
Editing the route228
Viewing the entire route map223
Address bookPage
Registering address book entries236
Marking icons on the map237
Pausing guidance221
Adjusting route guidance volume61
Deleting the destination229
*: Entune Premium Audio only

28
3. FUNCTION INDEX
Useful functions
InformationPage
Displaying vehicle maintenance*64
Hands-free system (for cellular phone)Page
Registering/connecting Bluetooth® phone41
Making a call on a Bluetooth® phone154
Receiving a call on the Bluetooth® phone160
Voice command systemPage
Operating the system with your voice124
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle140
*: Entune Premium Audio only

2
29
1
2
3
4
5
6
7
8
9
1. INITIAL SCREEN ........................... 30
2. TOUCH SCREEN GESTURES ...... 32
3. TOUCH SCREEN OPERATION .... 33
4. “Home” SCREEN OPERATION.... 34
5. “Apps” SCREEN OPERATION..... 35
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ................................ 36
ENTERING LETTERS 
AND NUMBERS.................................. 36
LIST SCREEN ....................................... 36
7. SCREEN ADJUSTMENT ............... 39
1. REGISTERING/CONNECTING Bluetooth® DEVICE .................... 41
REGISTERING A Bluetooth® PHONE 
FOR THE FIRST TIME ....................... 41
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ........ 42
PROFILES ............................................. 43
CERTIFICATION ................................... 45
2. SETTING Bluetooth® DETAILS ... 49
“Bluetooth* Setup” SCREEN.................. 49
REGISTERING A Bluetooth® 
DEVICE ............................................... 50
DELETING A Bluetooth
® DEVICE ......... 51
CONNECTING A Bluetooth® DEVICE ... 51
EDITING THE Bluetooth® DEVICE
INFORMATION ................................... 53
“System Settings” SCREEN .................. 54
1. GENERAL SETTINGS .................. 56
GENERAL SETTINGS SCREEN ........... 56
2. VOICE SETTINGS ......................... 61
VOICE SETTINGS SCREEN ................. 61
3. VEHICLE SETTINGS .................... 62
4. DRIVER SETTINGS ...................... 63
MANUALLY SELECT LINKED 
SETTINGS .......................................... 63
5. MAINTENANCE ............................ 64
1BASIC INFORMATION 
BEFORE OPERATION
2Bluetooth® SETTINGS
3OTHER SETTINGS
BASIC FUNCTION
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.

30
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in the “ACC”
or “ON” position, the initial screen will
be displayed and the system will begin
operating.
After a few seconds, the “Caution” screen
will be displayed.
 Af
ter about 5 seconds, the “Caution”
screen automatically switches to the next
screen. (Select “Continue” or press the
“HOME” button to display the “Home”
screen.)
 Images shown on the initial screen can
be changed to suit individual prefer-
ences. ( P.59)
CAUTION
● When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE INFORMATION
(ENTUNE PREMIUM AUDIO)
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the “Maintenance Reminder” screen
will be displayed when the navigation
system is turned on.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
P. 6 4
 If is selected, the registered
phone number can be called.
