21Pictorial index

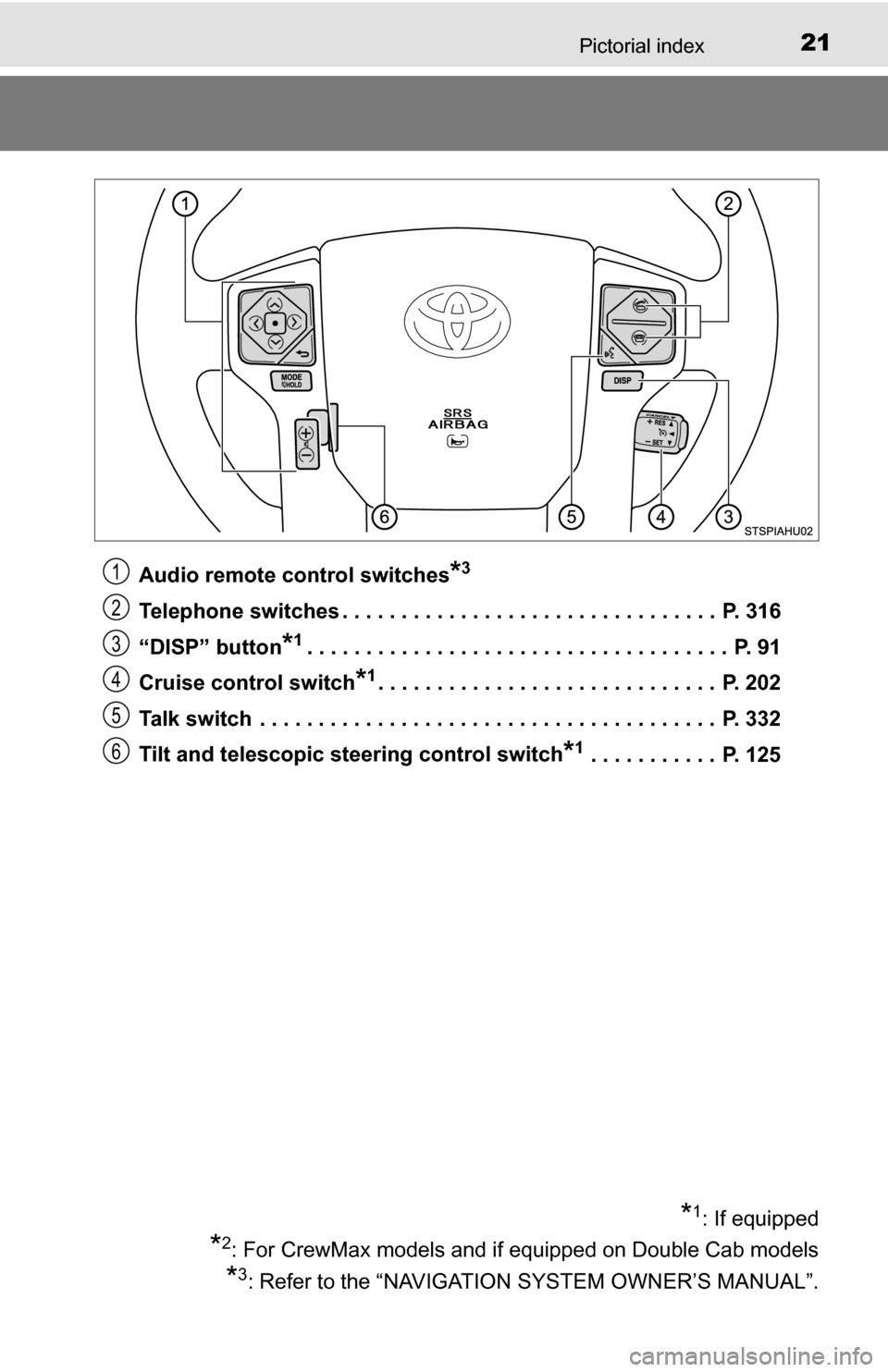

Audio remote control switches*3
Telephone switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
“DISP” button
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91
Cruise control switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Talk switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Tilt and telescopic steering control switch
*1 . . . . . . . . . . . P. 125
*1: If equipped
*2: For CrewMax models and if equipped on Double Cab models
*3: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6

22Pictorial index

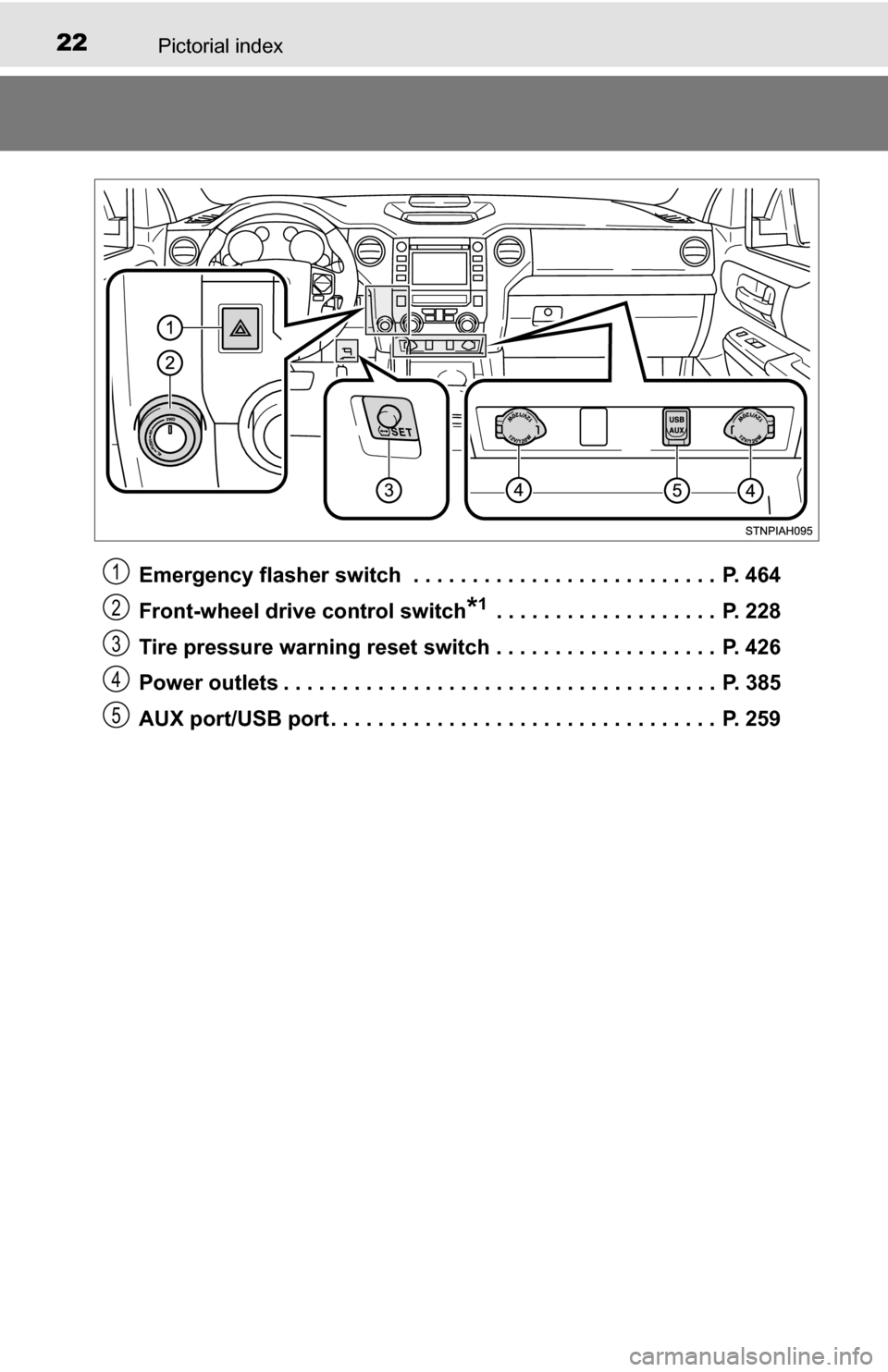

Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Front-wheel drive control switch
*1 . . . . . . . . . . . . . . . . . . . P. 228
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 426
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
AUX port/USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
1
2
3
4
5

23Pictorial index
■Interior

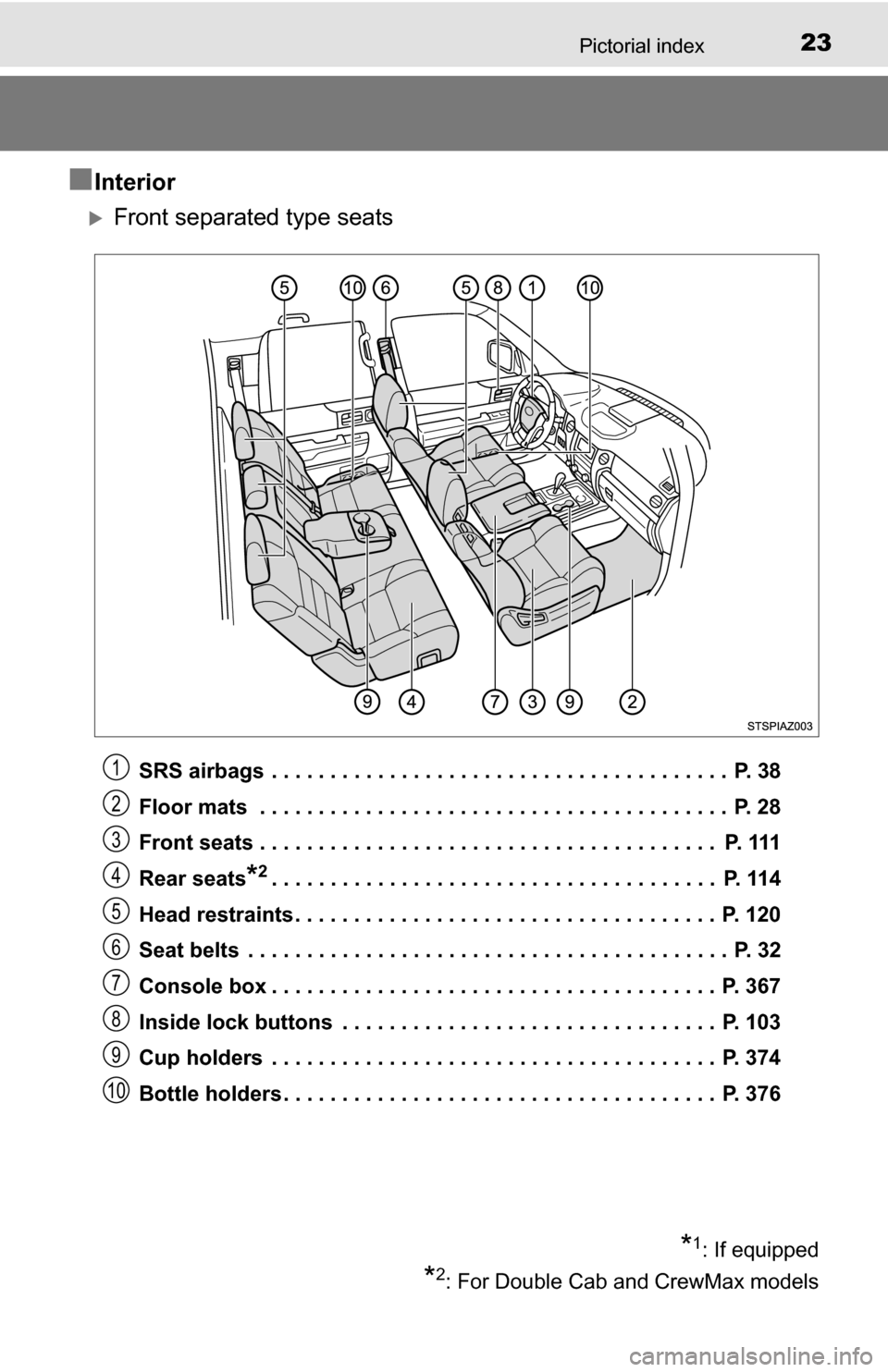

Front separated type seats
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Rear seats
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 367
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
*1: If equipped
*2: For Double Cab and CrewMax models
1
2
3
4
5
6
7
8
9
10

24Pictorial index
Front bench type seat
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Rear seats
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
1
2
3
4
5
6
7
8
9

25Pictorial index

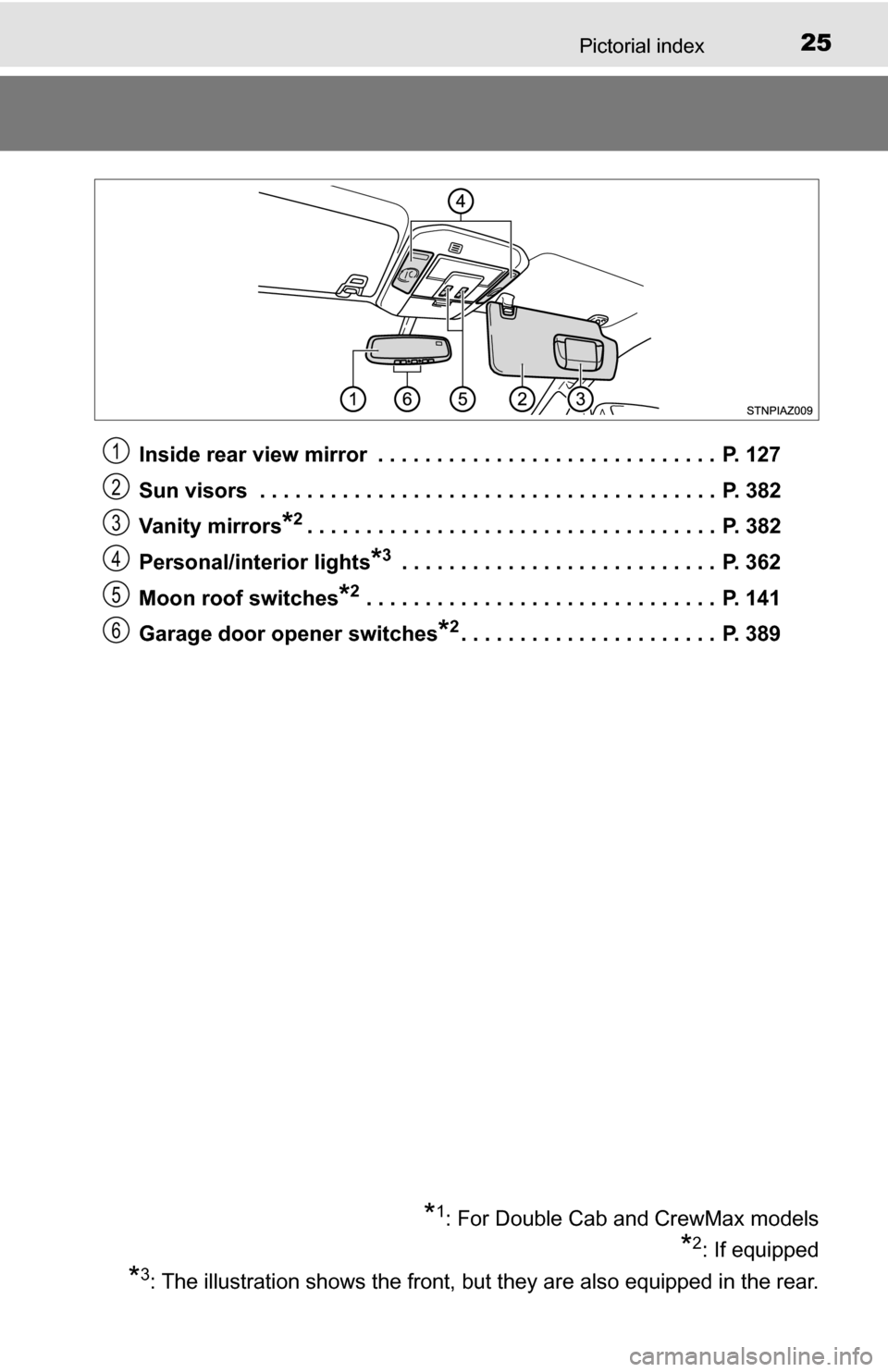

Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382
Va n i ty m i rr or s
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Moon roof switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Garage door opener switches
*2. . . . . . . . . . . . . . . . . . . . . . P. 389
*1: For Double Cab and CrewMax models
*2: If equipped
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6

26Pictorial index

27

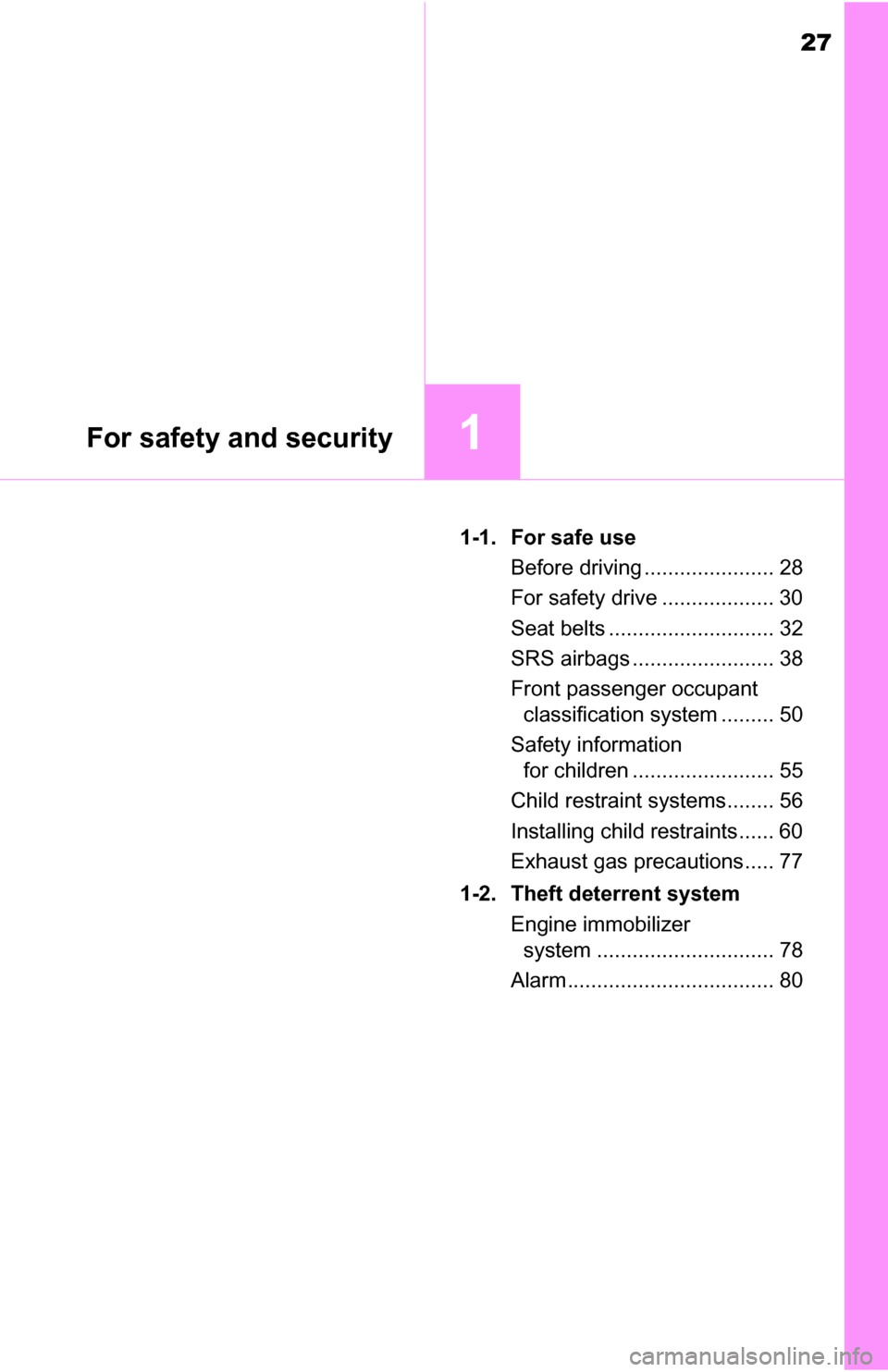

For safety and security1
1-1. For safe useBefore driving ...................... 28
For safety drive ................... 30
Seat belts ............................ 32
SRS airbags ........................ 38
Front passenger occupant classification system ......... 50
Safety information for children ........................ 55
Child restraint systems........ 56
Installing child restraints...... 60
Exhaust gas precautions..... 77
1-2. Theft deterrent system Engine immobilizer system .............................. 78
Alarm................................... 80

281-1. For safe use
Before driving

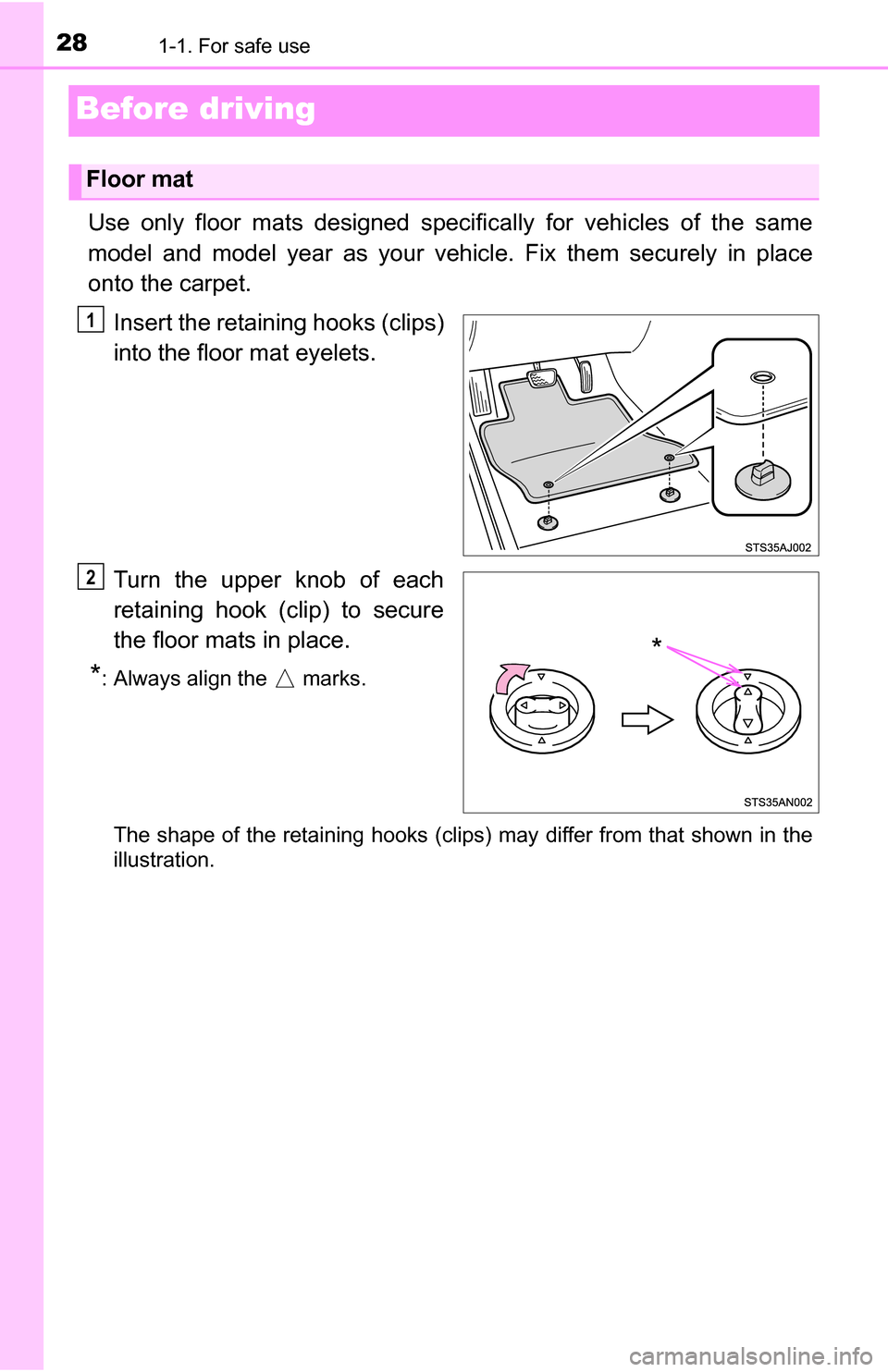

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

291-1. For safe use
1
For safety and security
CAUTION

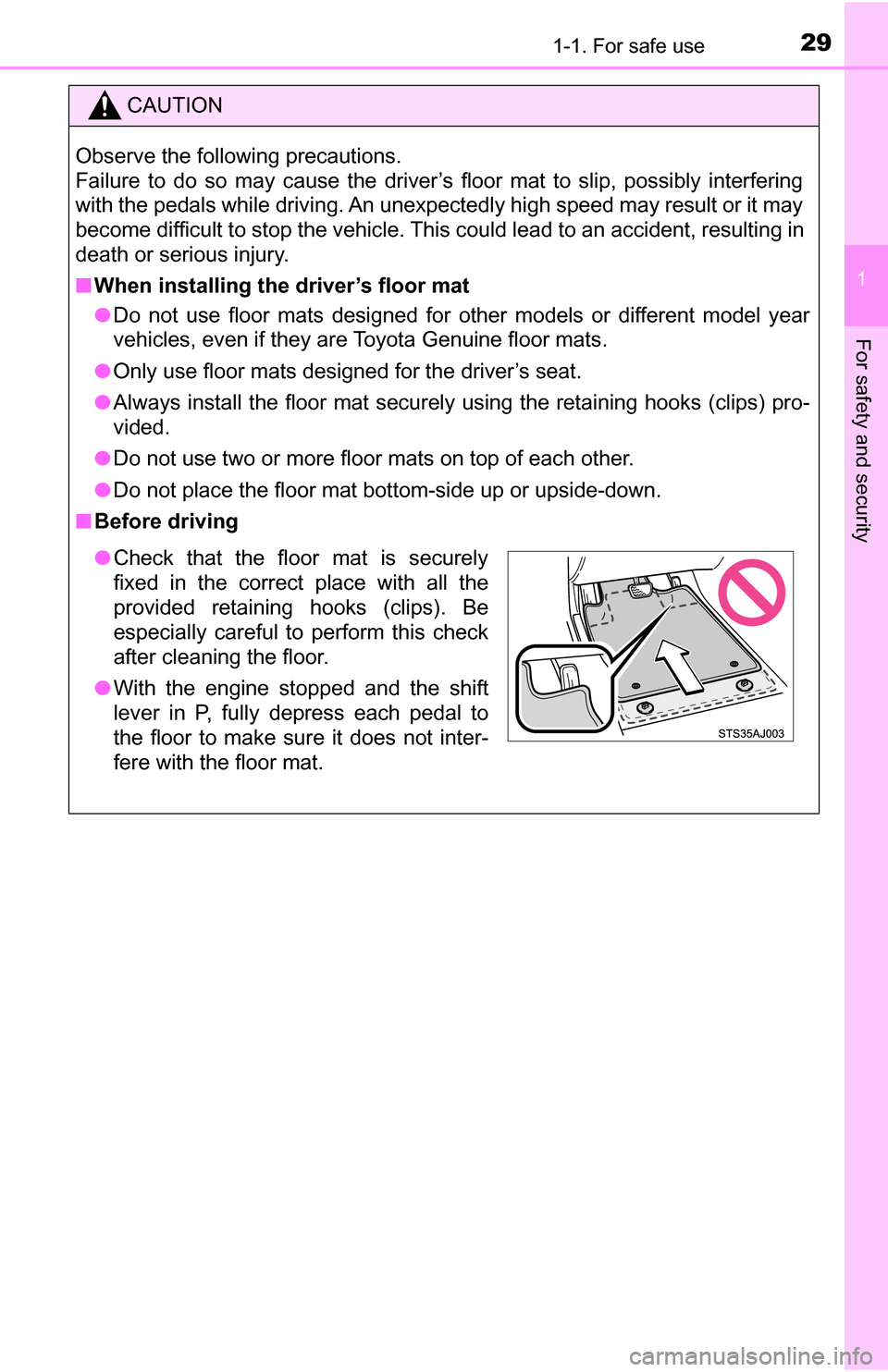

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

301-1. For safe use
For safety drive

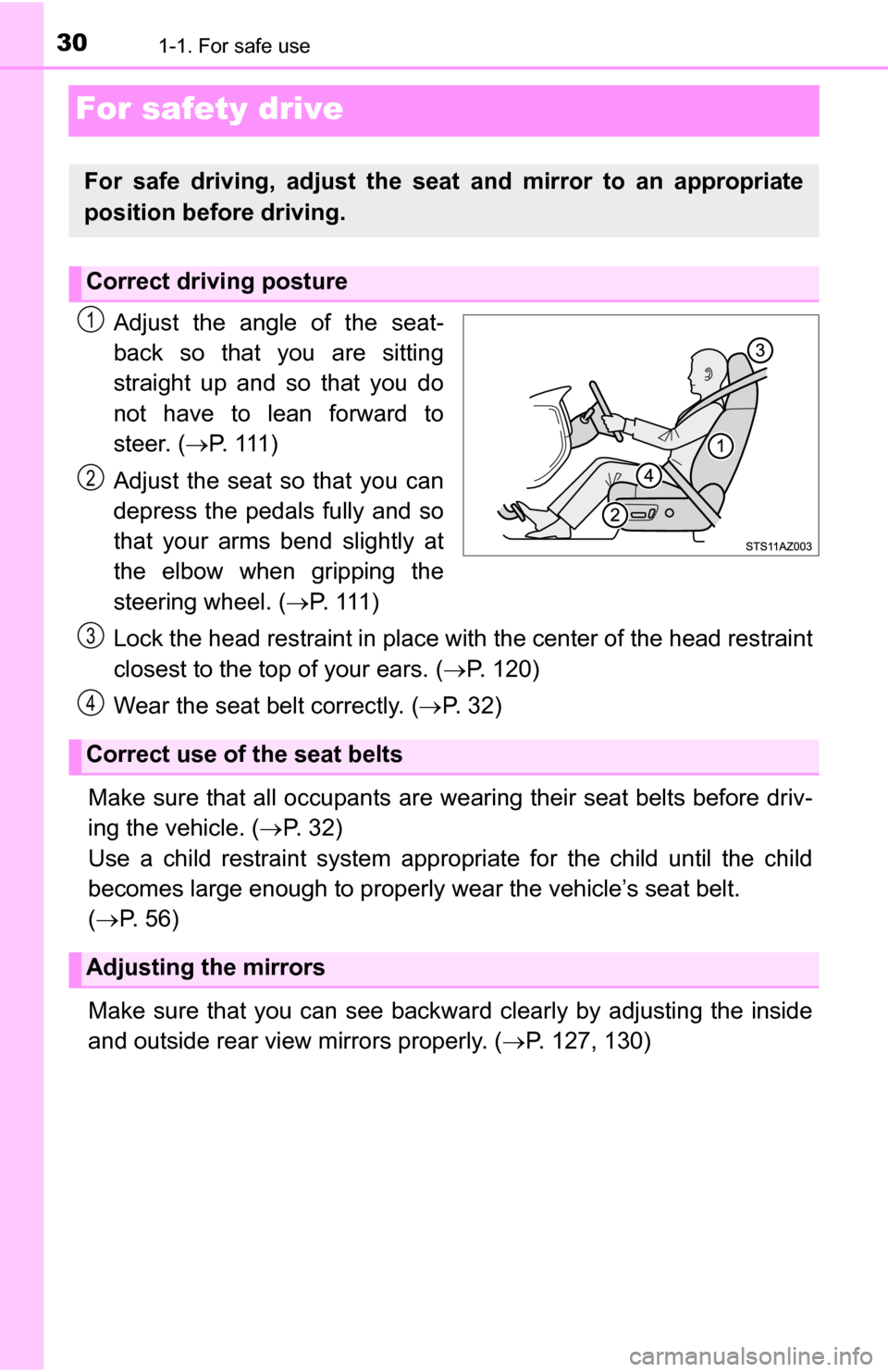

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 1 1 1 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 11 1 )
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 120)
Wear the seat belt correctly. ( P. 3 2 )
Make sure that all occupants are we aring their seat belts before driv-
ing the vehicle. ( P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 56)
Make sure that you can see backwar d clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 127, 130)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
