561
10
For owners
ATTENTION

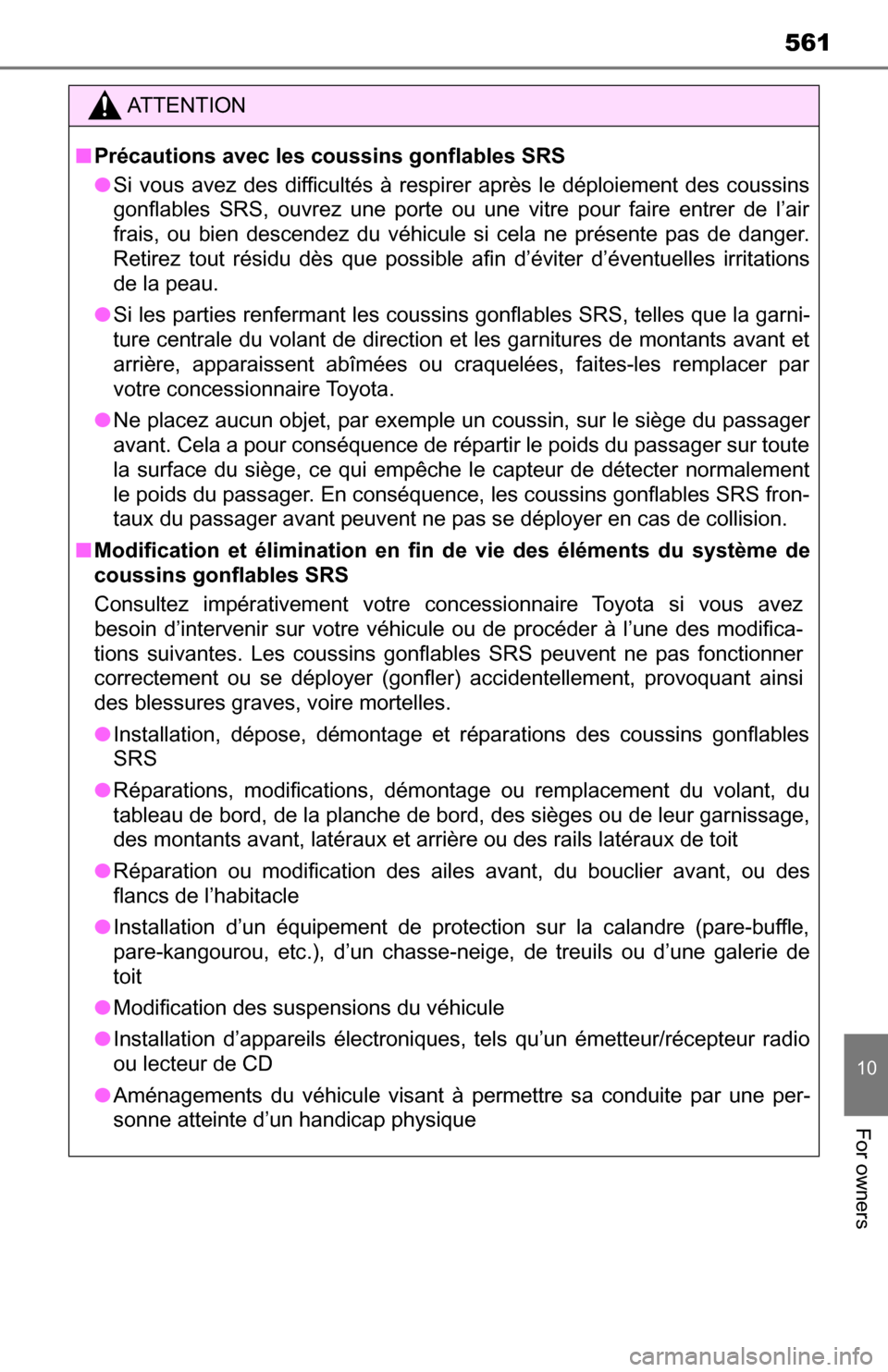

■Précautions avec les coussins gonflables SRS
● Si vous avez des difficultés à respirer après le déploiement des coussins
gonflables SRS, ouvrez une porte ou une vitre pour faire entrer de l’air
frais, ou bien descendez du véhicule si cela ne présente pas de danger.
Retirez tout résidu dès que possible afin d’éviter d’éventuelles irritations
de la peau.
● Si les parties renfermant les coussins gonflables SRS, telles que la garni-
ture centrale du volant de direction et les garnitures de montants avant et
arrière, apparaissent abîmées ou craquelées, faites-les remplacer par
votre concessionnaire Toyota.
● Ne placez aucun objet, par exemple un coussin, sur le siège du passager
avant. Cela a pour conséquence de répartir le poids du passager sur toute
la surface du siège, ce qui empêche le capteur de détecter normalement
le poids du passager. En conséquence, les coussins gonflables SRS fron-
taux du passager avant peuvent ne pas se déployer en cas de collision.
■ Modification et élimination en fin de vie des éléments du système de
coussins gonflables SRS
Consultez impérativement votre concessionnaire Toyota si vous avez
besoin d’intervenir sur votre véhicule ou de procéder à l’une des modifica-
tions suivantes. Les coussins gonflables SRS peuvent ne pas fonctionner
correctement ou se déployer (gonfler) accidentellement, provoquant ainsi
des blessures graves, voire mortelles.
● Installation, dépose, démontage et réparations des coussins gonflables
SRS
● Réparations, modifications, démontage ou remplacement du volant, du
tableau de bord, de la planche de bord, des sièges ou de leur garnissage,
des montants avant, latéraux et arrière ou des rails latéraux de toit
● Réparation ou modification des ailes avant, du bouclier avant, ou des
flancs de l’habitacle
● Installation d’un équipement de protection sur la calandre (pare-buffle,
pare-kangourou, etc.), d’un chasse-nei ge, de treuils ou d’une galerie de
toit
● Modification des suspensions du véhicule
● Installation d’appareils électroniques, tels qu’un émetteur/récepteur radio
ou lecteur de CD
● Aménagements du véhicule visant à permettre sa conduite par une per-
sonne atteinte d’un handicap physique

562
Camper information
C

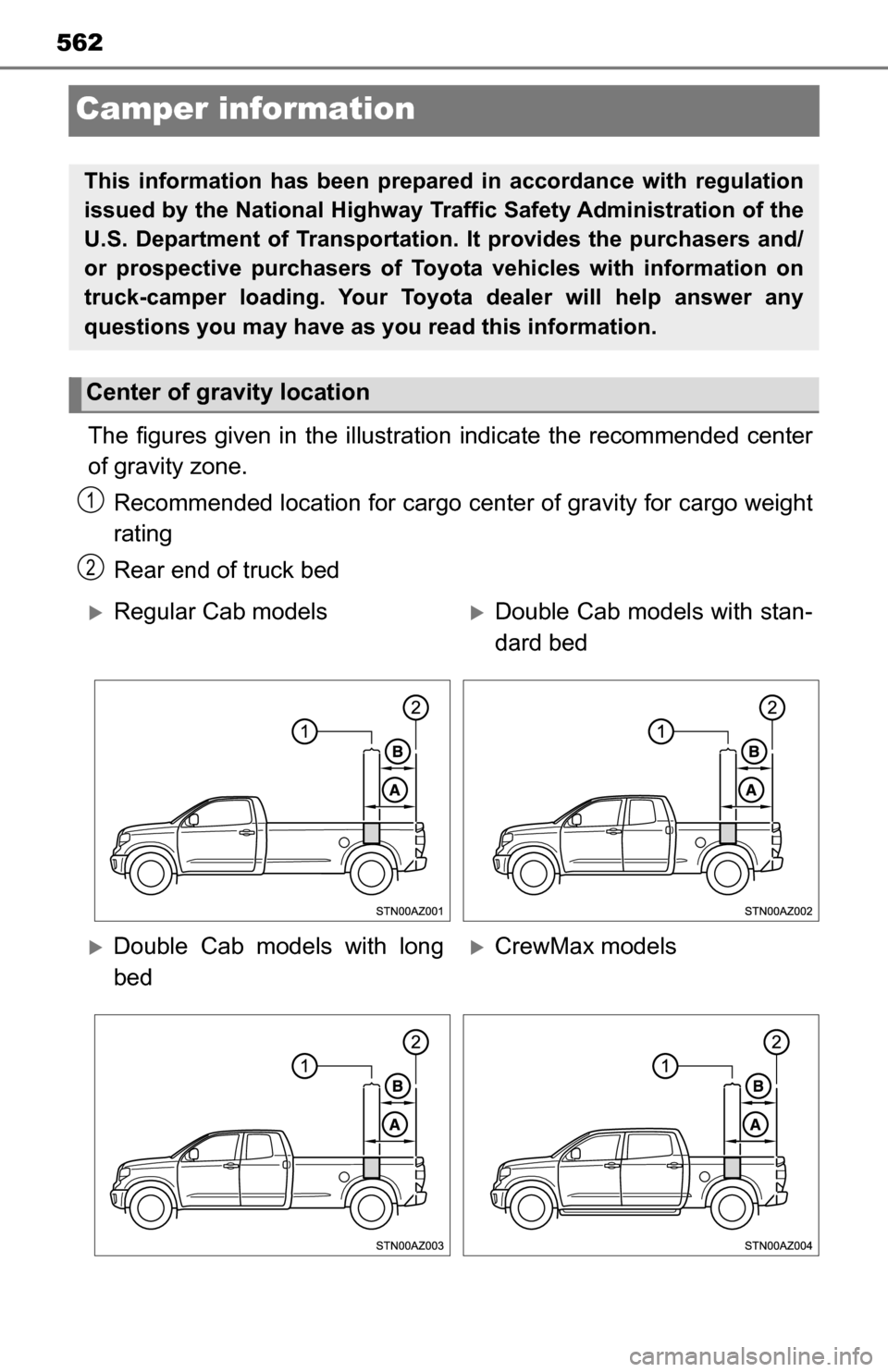

The figures given in the illustration indicate the recommended center
of gravity zone.
Recommended location for cargo center of gravity for cargo weight
rating
Rear end of truck bed
This information has been prepared in accordance with regulation
issued by the National Highway Tr affic Safety Administration of the
U.S. Department of Transportation. It provides the purchasers and/
or prospective purchasers of Toyota vehicles with information on
truck-camper loading. Your Toyota dealer will help answer any
questions you may have as you read this information.
Center of gravity location
1
2
Regular Cab modelsDouble Cab models with stan-
dard bed
Double Cab models with long
bedCrewMax models

563
10
For owners

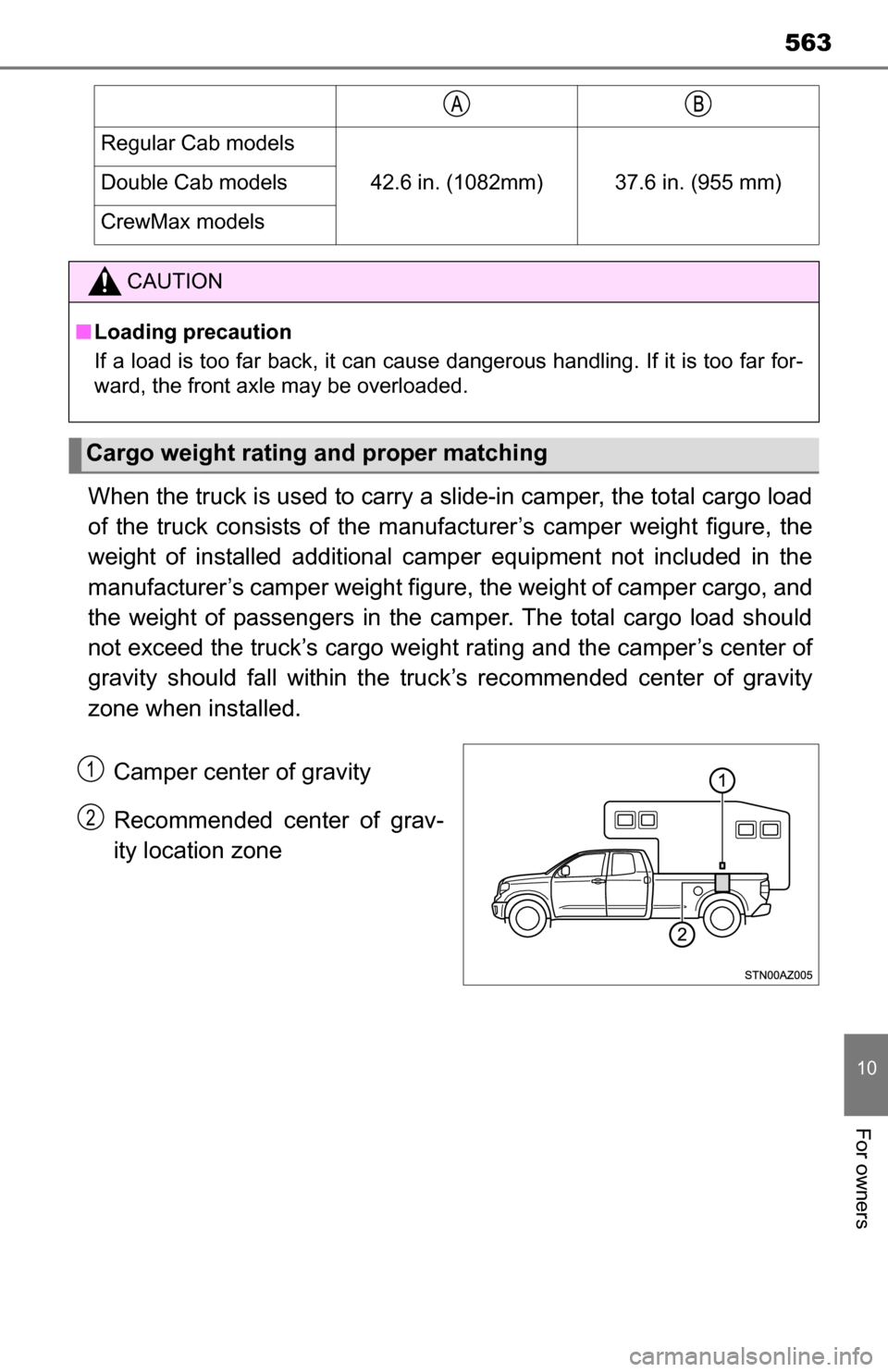

When the truck is used to carry a slide-in camper, the total cargo load
of the truck consists of the manufacturer’s camper weight figure, the
weight of installed additional camp er equipment not included in the
manufacturer’s camper weight figure, the weight of camper cargo, and
the weight of passengers in the camper. The total cargo load should
not exceed the truck’s cargo weight rating and the camper’s center of
gravity should fall within the truck’s recommended center of gravity
zone when installed.
Camper center of gravity
Recommended center of grav-
ity location zone
Regular Cab models
42.6 in. (1082mm)37.6 in. (955 mm)Double Cab models
CrewMax models
CAUTION
■ Loading precaution
If a load is too far back, it can cause dangerous handling. If it is too far for-
ward, the front axle may be overloaded.
Cargo weight rating and proper matching
1
2

564

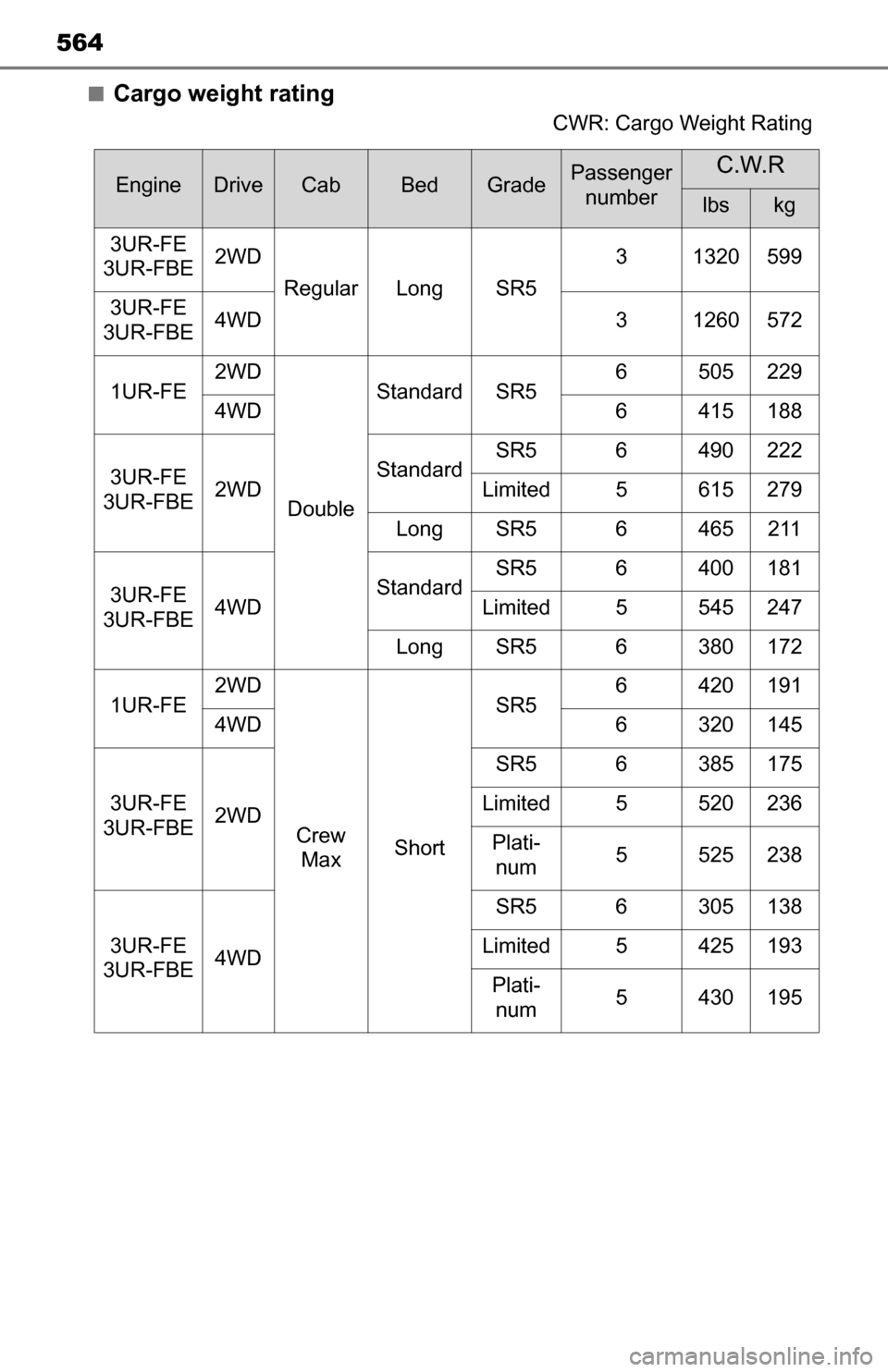

■Cargo weight rating
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger numberC.W.R
lbskg
3UR-FE
3UR-FBE2WD
RegularLongSR5
31320599
3UR-FE
3UR-FBE4WD31260572
1UR-FE2WD
Double
StandardSR56505229
4WD6415188
3UR-FE
3UR-FBE2WDStandardSR56490222
Limited5615279
LongSR56465211
3UR-FE
3UR-FBE4WDStandardSR56400181
Limited5545247
LongSR56380172
1UR-FE2WD
Crew MaxShort
SR56420191
4WD6320145
3UR-FE
3UR-FBE2WD
SR56385175
Limited5520236
Plati- num5525238
3UR-FE
3UR-FBE4WD
SR56305138
Limited5425193
Plati-
num5430195

565
10
For owners

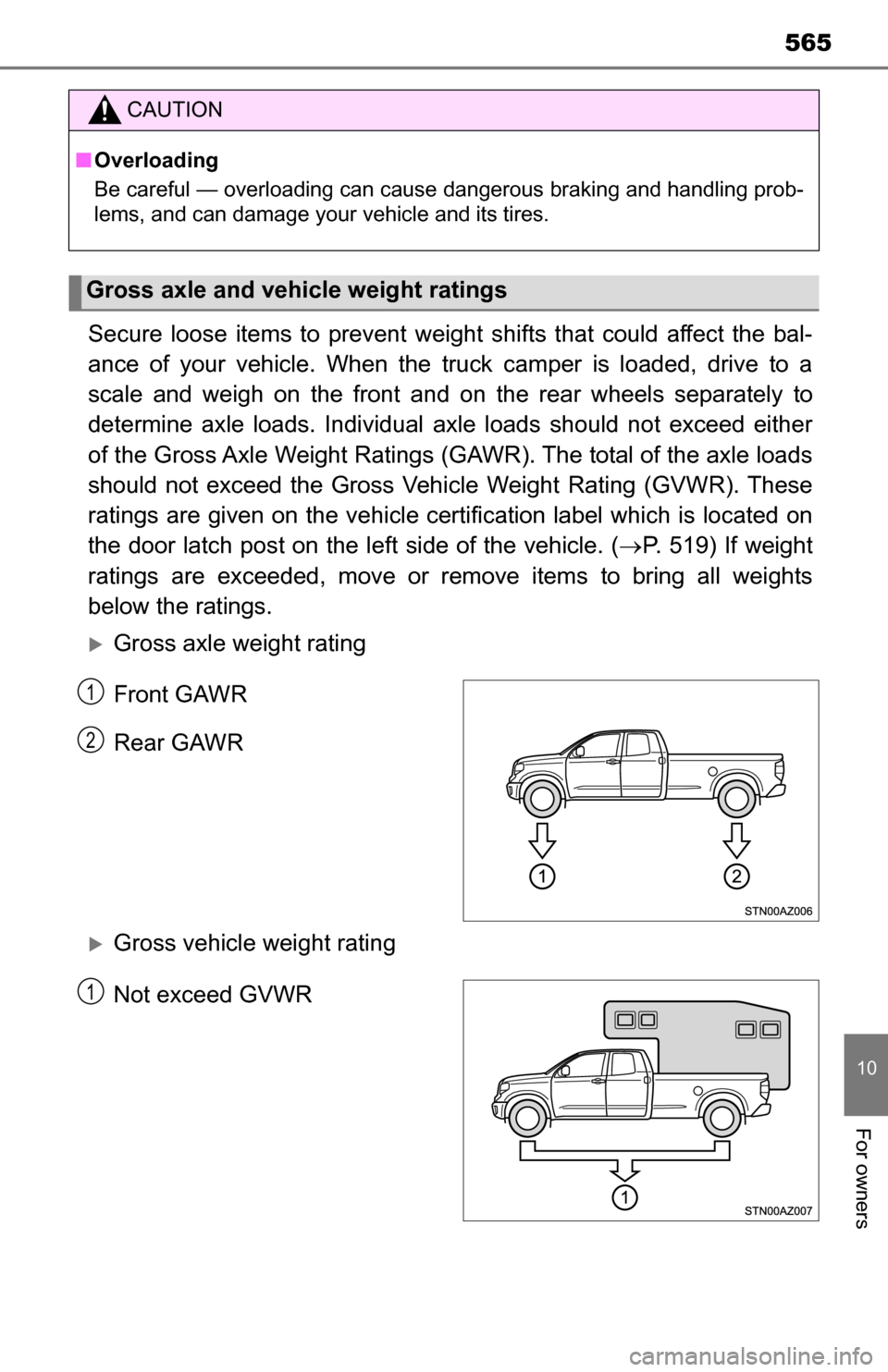

Secure loose items to prevent weight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual axle loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle loads
should not exceed the Gross Vehi cle Weight Rating (GVWR). These
ratings are given on the vehicle cert ification label which is located on
the door latch post on the left side of the vehicle. (P. 519) If weight
ratings are exceeded, move or remove items to bring all weights
below the ratings.
Gross axle weight rating
Front GAWR
Rear GAWR
Gross vehicle weight rating
Not exceed GVWR
CAUTION
■ Overloading
Be careful — overloading can cause dangerous braking and handling prob-
lems, and can damage your vehicle and its tires.
Gross axle and vehicle weight ratings
1
2
1

566

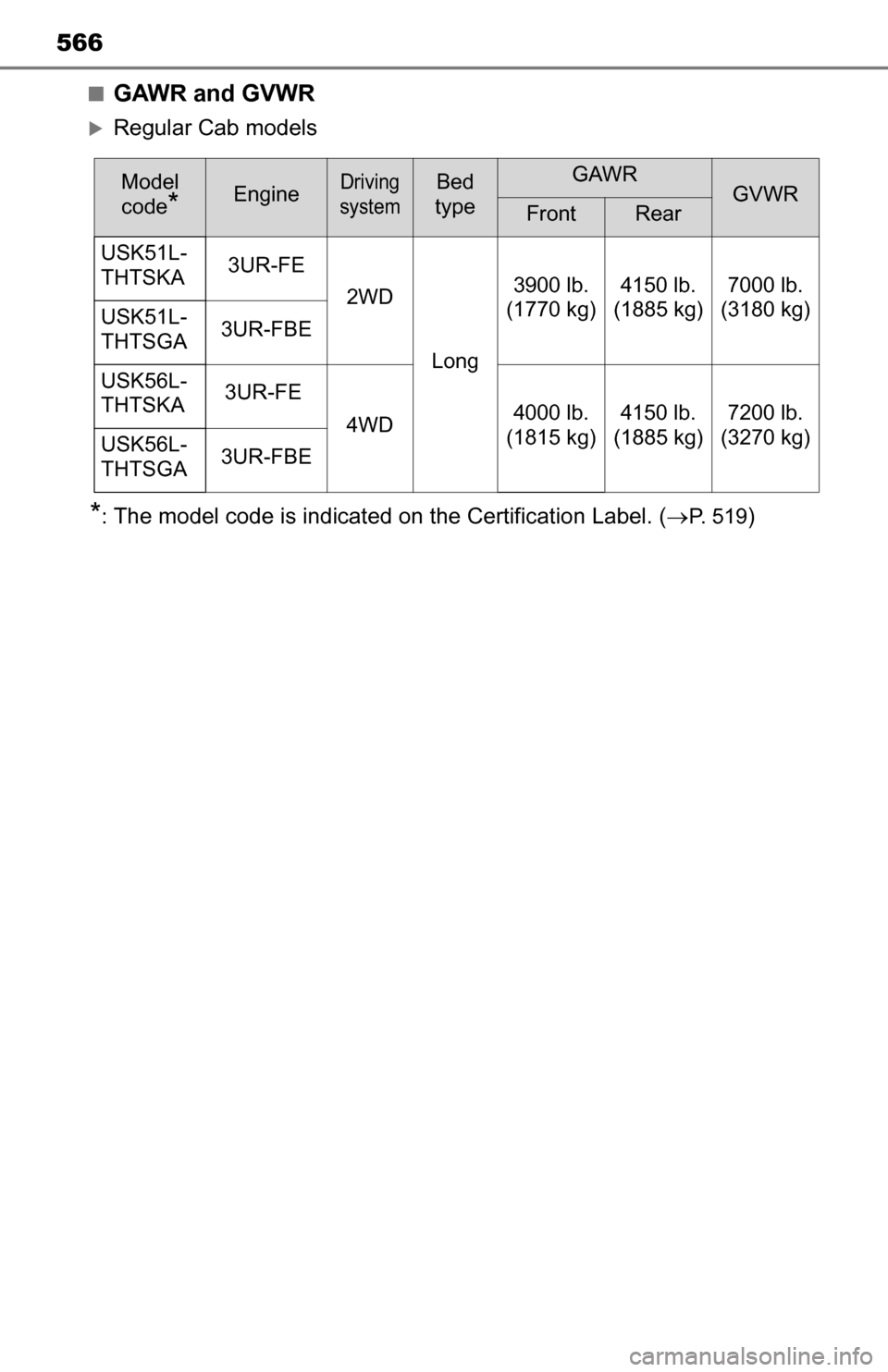

■GAWR and GVWR
Regular Cab models
*:The model code is indicated on the Certification Label. (P. 5 1 9)
Model
code
*EngineDriving
systemBed
typeGAWRGVWRFrontRear
USK51L-
THTSKA 3UR-FE
2WD
Long
3900 lb.
(1770 kg)4150 lb.
(1885 kg)7000 lb.
(3180 kg)
USK51L-
THTSGA 3UR-FBE
USK56L-
THTSKA 3UR-FE
4WD
4000 lb.
(1815 kg)4150 lb.
(1885 kg)7200 lb.
(3270 kg)
USK56L-
THTSGA 3UR-FBE

567
10
For owners
Double Cab models
*:The model code is indicated on the Certification Label. (P. 5 1 9)
Model
code
*EngineDriving
systemBed
typeGAWRGVWRFrontRear
UPK51L-
CRTSKA 1UR-FE2WD
Stan-dard 3900 lb.
(1770 kg) 4000 lb.
(1815 kg) 6700 lb.
(3040 kg)
UPK56L-
CRTSKA 4WD
4000 lb.
(1815 kg)
4100 lb.
(1860 kg)6900 lb.
(3130 kg)
USK51L-
CRTSKA
3UR-FE
2WD
3900 lb.
(1770 kg)
USK51L-
CRTLKA
USK51L-
CRTSGA
3UR-FBE
USK51L-
CRTLGA
USK52L-
CHTSKA 3UR-FE
Long
4150 lb.
(1885 kg)
7000 lb.
(3180 kg)
USK52L-
CHTSGA 3UR-FBE
USK56L-
CRTSKA
3UR-FE
4WDStan-
dard
4000 lb.
(1815 kg)
7100 lb.
(3225 kg)
USK56L-
CRTLKA
USK57L-
CHTSKA Long
7200 lb.
(3270 kg)
USK56L-
CRTSGA
3UR-FBE Stan-
dard
7100 lb.
(3225 kg)
USK56L-
CRTLGA
USK57L-
CHTSGA Long
7200 lb.
(3270 kg)

568

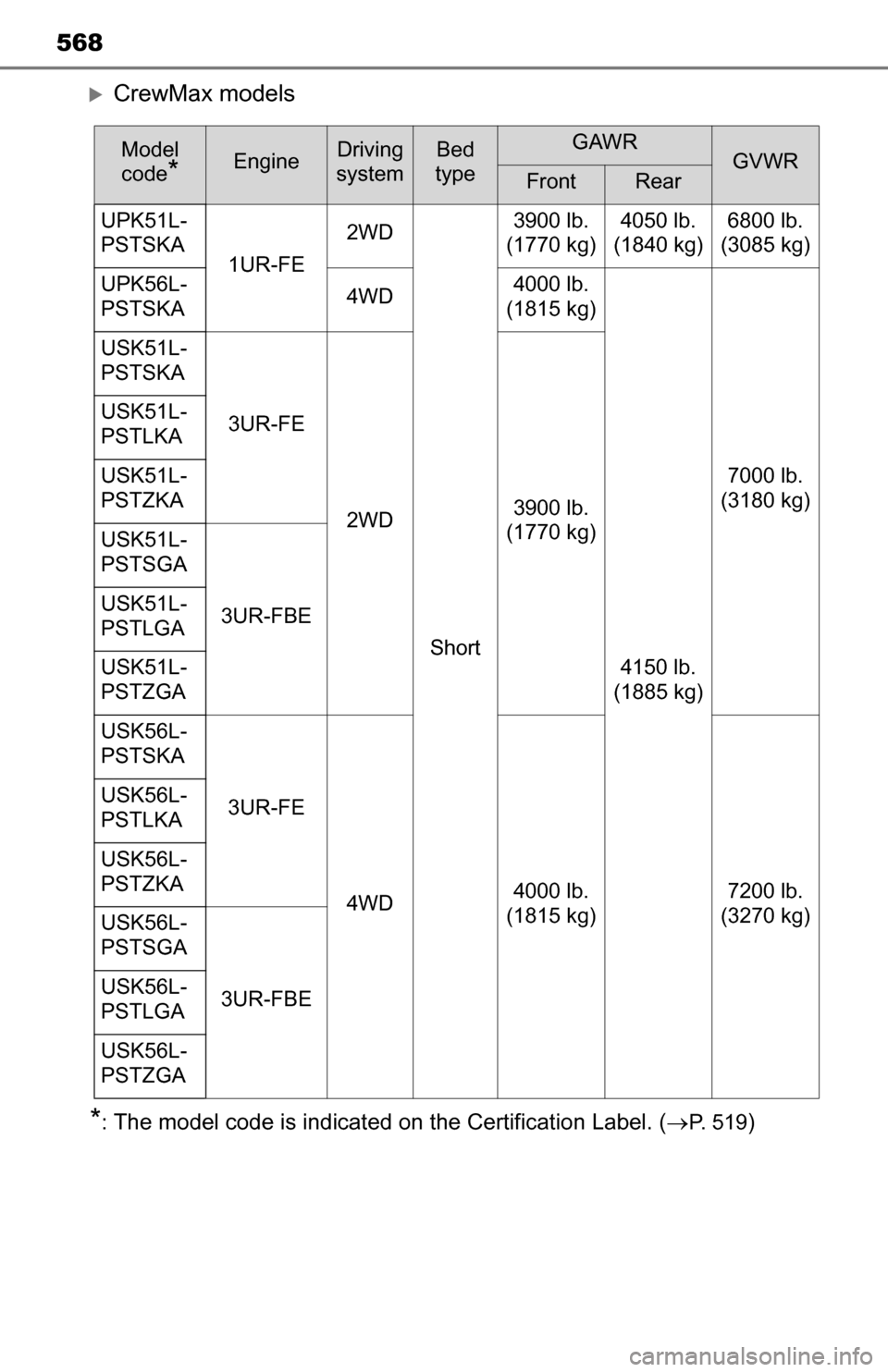

CrewMax models
*:The model code is indicated on the Certification Label. (P. 5 1 9)
Model
code
*EngineDriving
systemBed
typeGAWRGVWRFrontRear
UPK51L-
PSTSKA 1UR-FE2WD
Short3900 lb.
(1770 kg) 4050 lb.
(1840 kg) 6800 lb.
(3085 kg)
UPK56L-
PSTSKA 4WD
4000 lb.
(1815 kg)
4150 lb.
(1885 kg)
7000 lb.
(3180 kg)
USK51L-
PSTSKA
3UR-FE
2WD
3900 lb.
(1770 kg)
USK51L-
PSTLKA
USK51L-
PSTZKA
USK51L-
PSTSGA
3UR-FBE
USK51L-
PSTLGA
USK51L-
PSTZGA
USK56L-
PSTSKA
3UR-FE
4WD
4000 lb.
(1815 kg)7200 lb.
(3270 kg)
USK56L-
PSTLKA
USK56L-
PSTZKA
USK56L-
PSTSGA
3UR-FBE
USK56L-
PSTLGA
USK56L-
PSTZGA

569

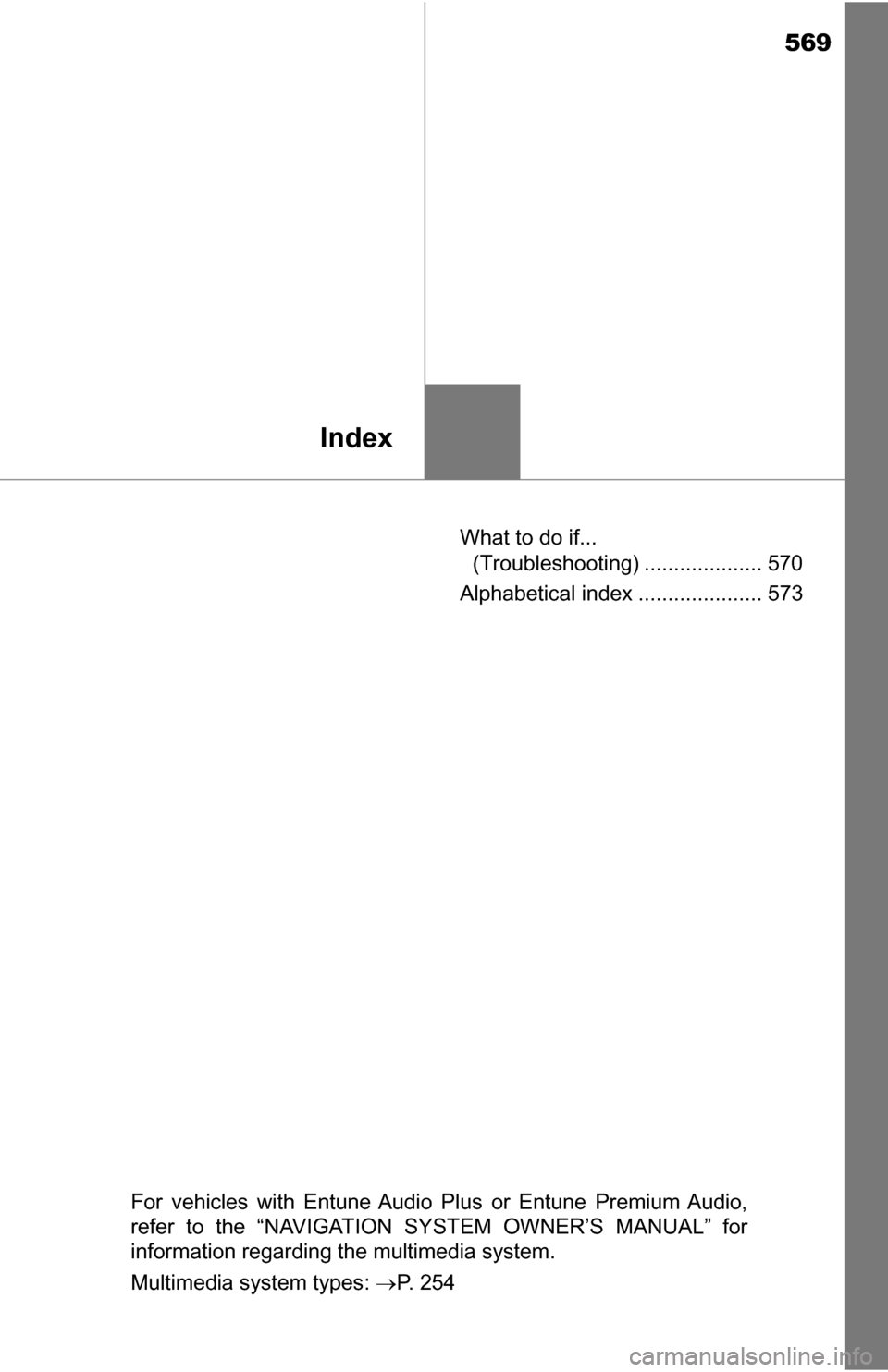

Index
What to do if... (Troubleshooting) .................... 570
Alphabetical index ..................... 573
For vehicles with Entune Audio Plus or Entune Premium Audio,
refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for
information regarding the multimedia system.
Multimedia system types: P. 254

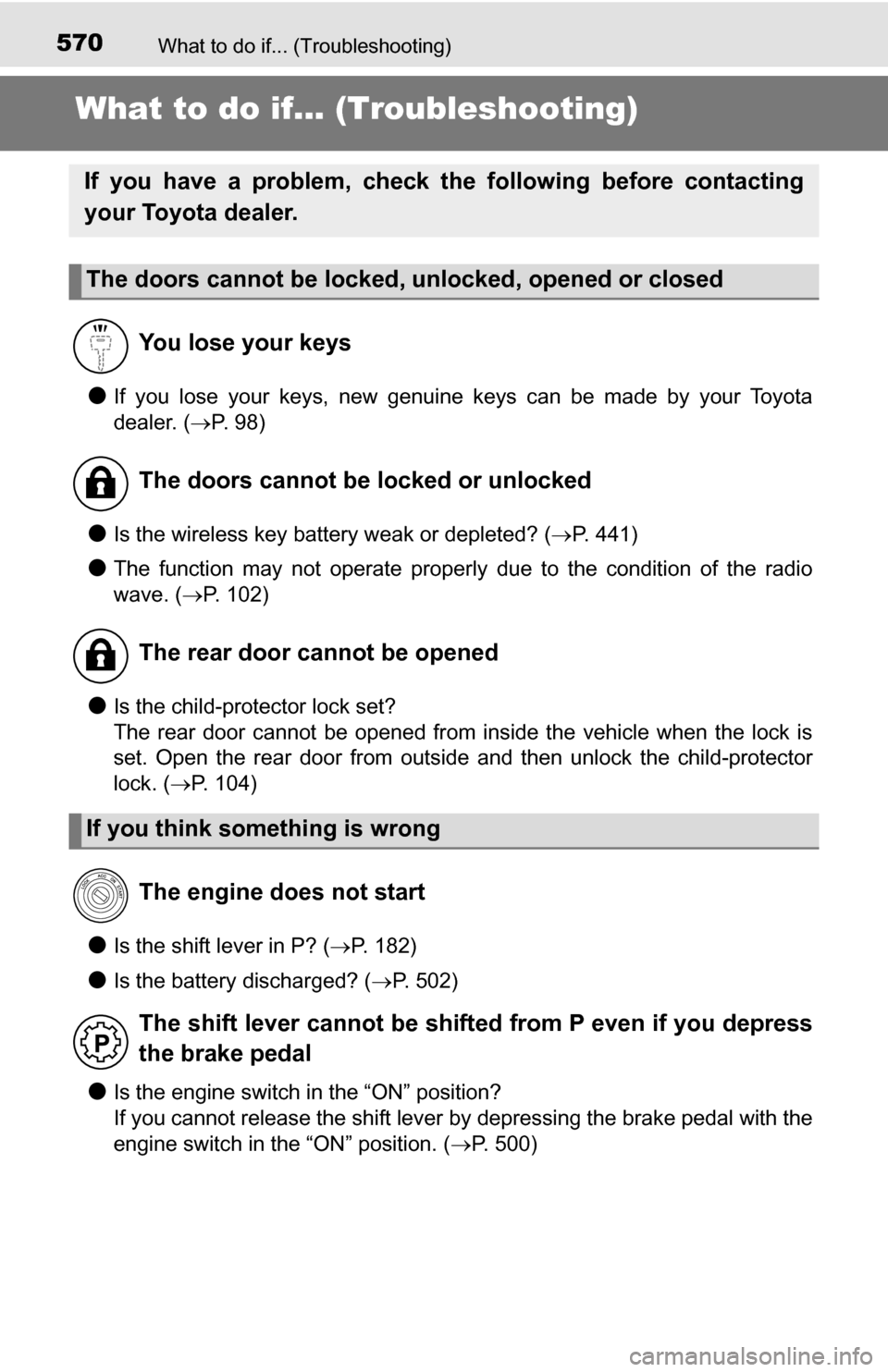

570What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys, new genuine keys can be made by your Toyota
dealer. (P. 98)
●Is the wireless key battery weak or depleted? ( P. 441)
●The function may not operate properly due to the condition of the radio
wave. (P. 102)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 104)
●Is the shift lever in P? ( P. 182)
●Is the battery discharged? ( P. 502)
●Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. ( P. 500)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
If you think something is wrong The engine does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
