TOYOTA TUNDRA 2019 Warranties & Maintenance Guides (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: TUNDRA, Model: TOYOTA TUNDRA 2019Pages: 66, PDF Size: 1.34 MB
Page 41 of 66
40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
17,500 miles or 21 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
20,000 miles or 24 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
22,500 miles or 27 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
25,000 miles or 30 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate: Mileage:
D
ealer Service verification:
D
ate: Mileage:
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 407/5/18 10:19 PM
Page 42 of 66

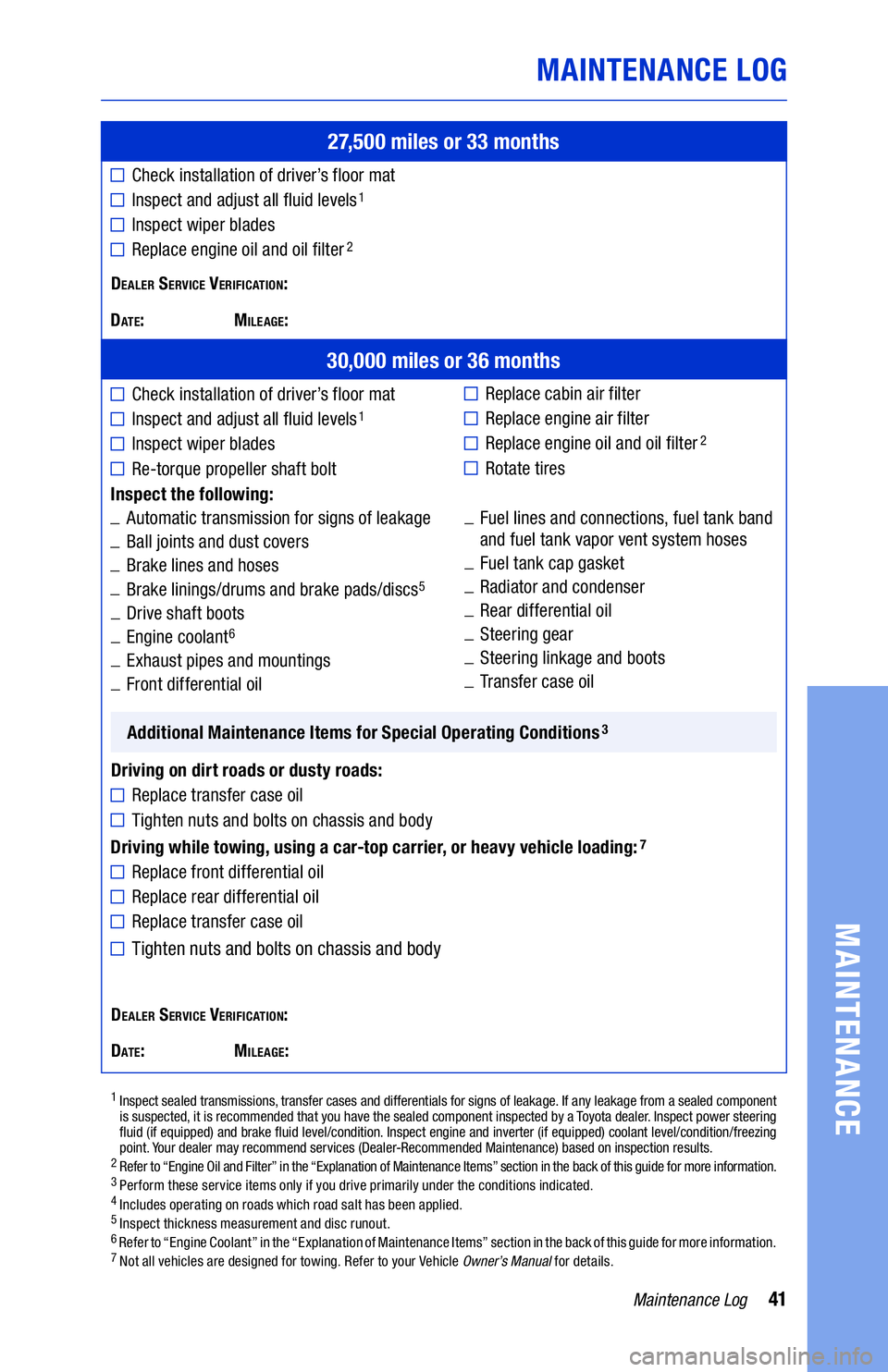

41Maintenance Log
Dealer Service verification:
D
ate: Mileage:
MAINTENANCE LOG
MAINTENANCE
27,500 miles or 33 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
30,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following:
_ Au
tomatic transmission for signs of leakage
_ Ba
ll joints and dust covers
_ Br
ake lines and hoses
_ Br
ake linings/drums and brake pads/discs
5
_ Dri ve shaft boots
_Eng
ine coolant6
_Ex haust pipes and mountings
_Fr
ont differential oil
Driving on dirt roads or dusty roads:
Replace transfer case oil
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
7
Replace front differential oil
Replace rear differential oil
Replace transfer case oil
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leaka ge. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/fre\
ezing
point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Refer to “Engine Oil and Filter” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout.6 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual f or details.
_ Fu
el lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fu
el tank cap gasket
_Ra
diator and condenser
_Re
ar differential oil
_St
eering gear
_St
eering linkage and boots
_Tr
ansfer case oil
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Additional Maintenance Items for Special Operating Conditions3
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 417/5/18 10:19 PM
Page 43 of 66
42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
32,500 miles or 39 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
35,000 miles or 42 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
37,500 miles or 45 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
40,000 miles or 48 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate: Mileage:
D
ealer Service verification:
D
ate: Mileage:
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 427/5/18 10:19 PM
Page 44 of 66

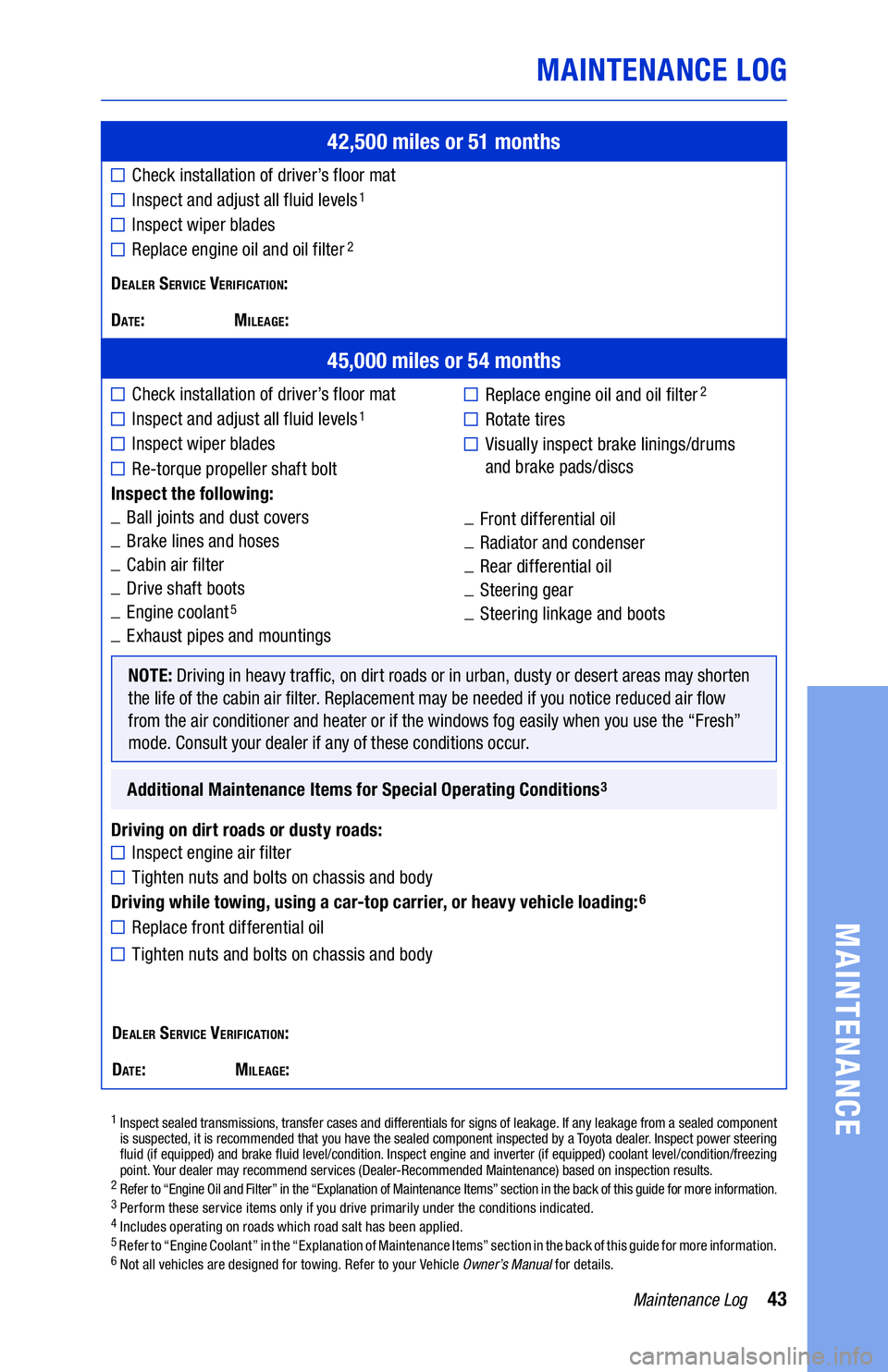

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
42,500 miles or 51 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
45,000 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following:
_ Ba
ll joints and dust covers
_ Br
ake lines and hoses
_ Ca
bin air filter
_ Dri
ve shaft boots
_ Eng
ine coolant
5
_Ex haust pipes and mountings
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace front differential oil
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leaka ge. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/fre\
ezing
point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Refer to “Engine Oil and Filter” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual f or details.
Dealer Service verification:
D
ate: Mileage:
_ fr
ont differential oil
_ra
diator and condenser
_re
ar differential oil
_St
eering gear
_St
eering linkage and boots
replace engine oil and oil filter2
rotate tires
visually inspect brake linings/drums
and brake pads/discs
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 437/5/18 10:21 PM
Page 45 of 66
44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
47,500 miles or 57 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
50,000 miles or 60 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
52,500 miles or 63 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
55,000 miles or 66 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate: Mileage:
D
ealer Service verification:
D
ate: Mileage:
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 447/5/18 10:21 PM
Page 46 of 66

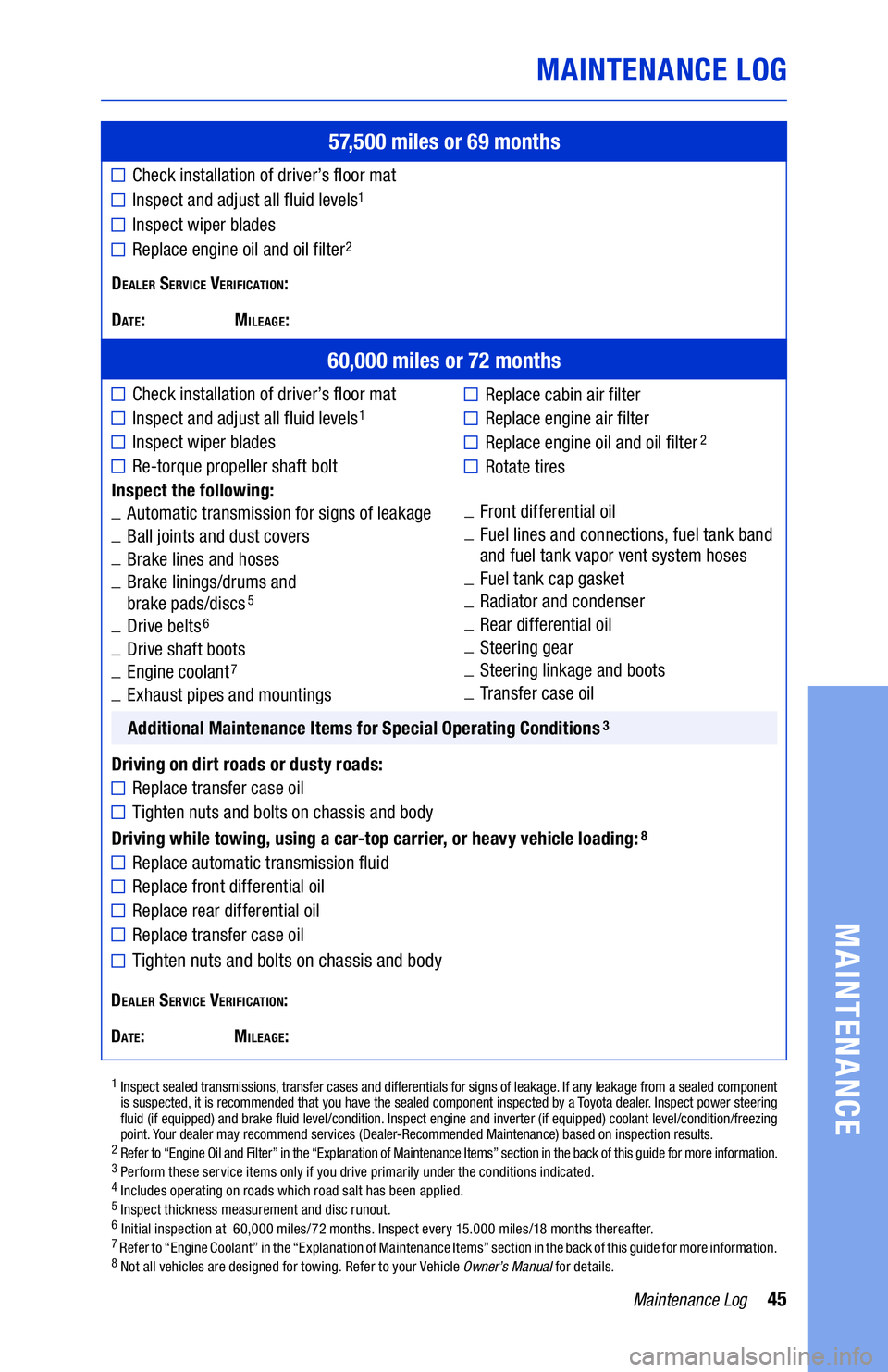

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Dealer Service verification:
D
ate: Mileage:
57,500 miles or 69 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
60,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following:
_ Au
tomatic transmission for signs of leakage
_ Ba
ll joints and dust covers
_ Br
ake lines and hoses
_ Br
ake linings/drums and
brake pads/discs
5
_ Dri ve belts6
_Dri ve shaft boots
_Eng
ine coolant7
_Ex haust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:
Replace transfer case oil
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace front differential oil
Replace rear differential oil
Replace transfer case oil
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leaka ge. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/fre\
ezing
point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Refer to “Engine Oil and Filter” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout.6 Initial inspection at 60,000 miles/ 72 months. Inspect every 15.000 miles/18 months thereafter.7 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.8 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual f or details.
_ Fr
ont differential oil
_ Fu
el lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fu
el tank cap gasket
_Ra
diator and condenser
_Re
ar differential oil
_St
eering gear
_St
eering linkage and boots
_Tr
ansfer case oil
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 457/5/18 10:21 PM
Page 47 of 66

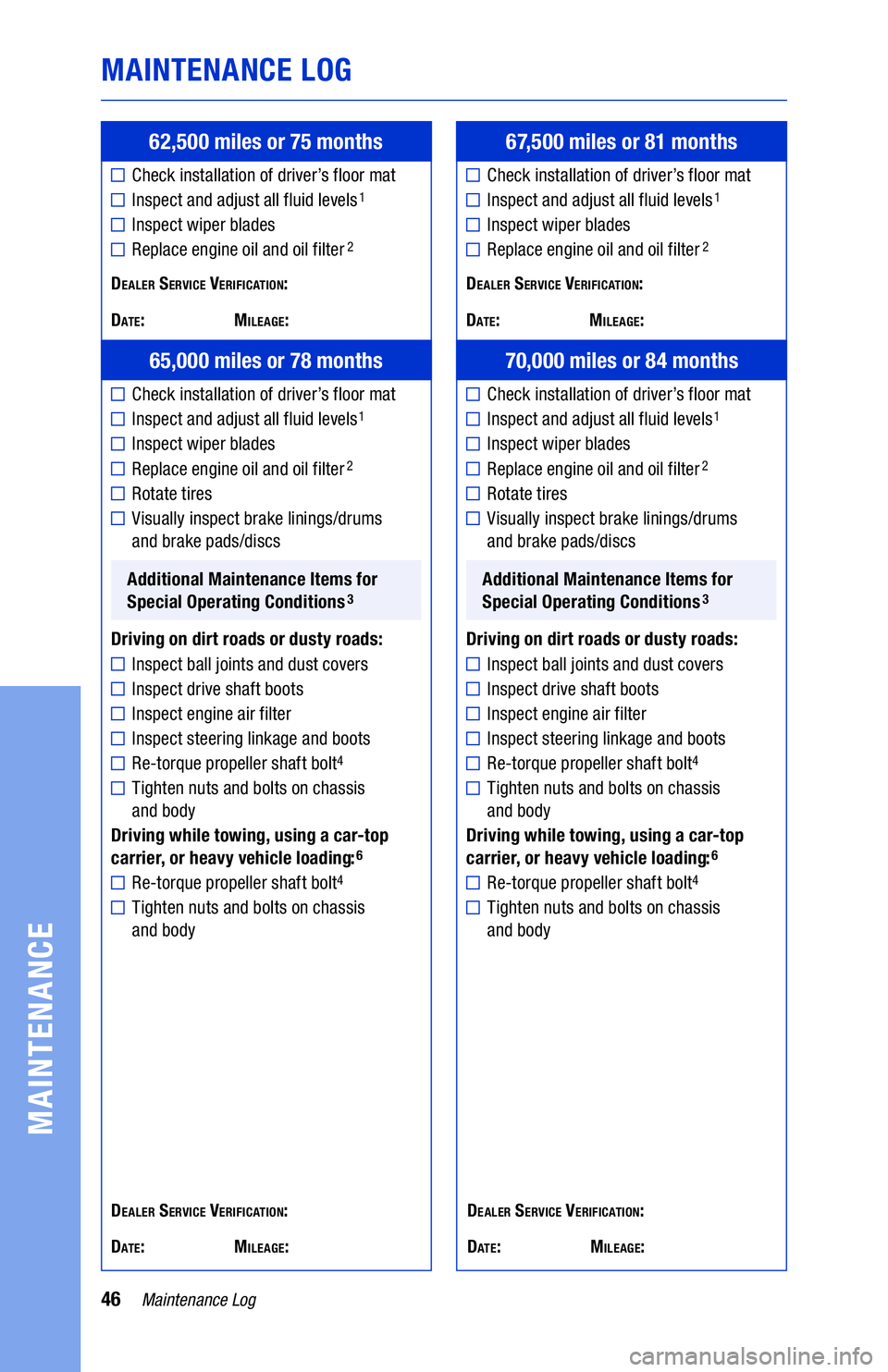

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE
62,500 miles or 75 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
65,000 miles or 78 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
67,500 miles or 81 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
70,000 miles or 84 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate: Mileage:
D
ealer Service verification:
D
ate: Mileage:
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 467/5/18 10:21 PM
Page 48 of 66

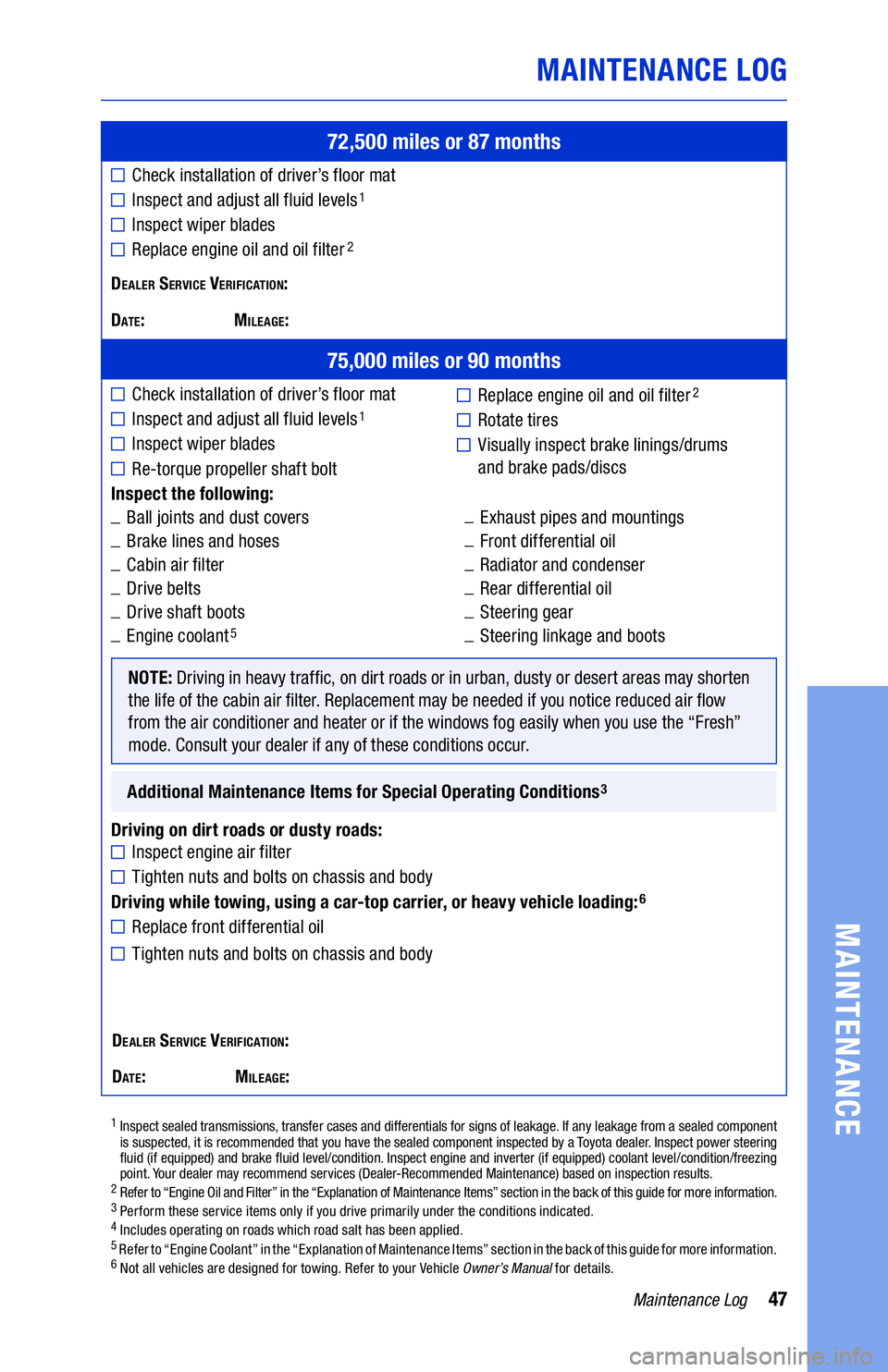

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
72,500 miles or 87 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
75,000 miles or 90 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following: _
Ba
ll joints and dust covers
_Br
ake lines and hoses
_Ca
bin air filter
_Dri
ve belts
_Dri
ve shaft boots
_Eng
ine coolant
5
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace front differential oil
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leaka ge. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/fre\
ezing
point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Refer to “Engine Oil and Filter” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual f or details.
Dealer Service verification:
D
ate: Mileage:
_
ex haust pipes and mountings
_ fr
ont differential oil
_ra
diator and condenser
_re
ar differential oil
_St
eering gear
_St
eering linkage and boots
replace engine oil and oil filter2
rotate tires
visually inspect brake linings/drums
and brake pads/discs
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 477/5/18 10:22 PM
Page 49 of 66
48Maintenance Log
MAINTENANCE LOG
MAINTENANCE
77,500 miles or 93 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
80,000 miles or 96 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
82,500 miles or 99 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
85,000 miles or 102 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt4
Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate: Mileage:
D
ealer Service verification:
D
ate: Mileage:
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 487/5/18 10:26 PM
Page 50 of 66

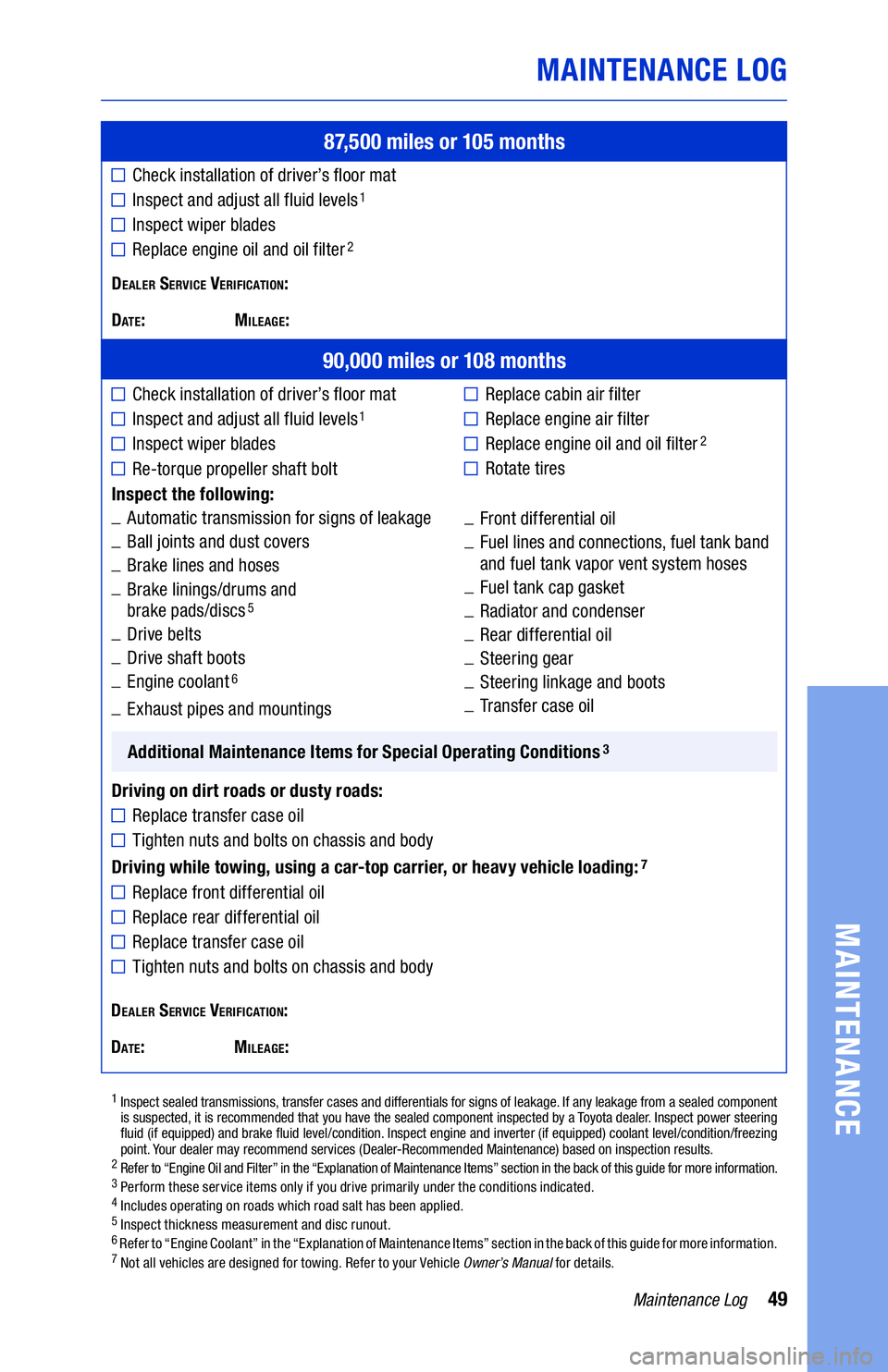

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Dealer Service verification:
D
ate: Mileage:
87,500 miles or 105 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
90,000 miles or 108 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt
Inspect the following:
_ Au
tomatic transmission for signs of leakage
_ Ba
ll joints and dust covers
_ Br
ake lines and hoses
_ Br
ake linings/drums and
brake pads/discs
5
_ Dri ve belts
_Dri
ve shaft boots
_Eng
ine coolant
6
_Ex haust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:
Replace transfer case oil
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
7
Replace front differential oil
Replace rear differential oil
Replace transfer case oil
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leaka ge. If any leakage from a sealed component
is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering
fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/fre\
ezing
point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.
2 Refer to “Engine Oil and Filter” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied. 5 Inspect thickness measurement and disc runout.6 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual f or details.
_ Fr
ont differential oil
_ Fu
el lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fu
el tank cap gasket
_Ra
diator and condenser
_Re
ar differential oil
_St
eering gear
_St
eering linkage and boots
_Tr
ansfer case oil
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
18-TCS-11469_Toyota_WMG_MY19_Tundra_FFV_GUTS_3_0_tw .indd 497/5/18 10:26 PM
