3615-3. Using the storage features
5
Interior features
Rear (Access Cab models [veh icles without rear seats])
Turn the knob counterclockwise
and open the lid.

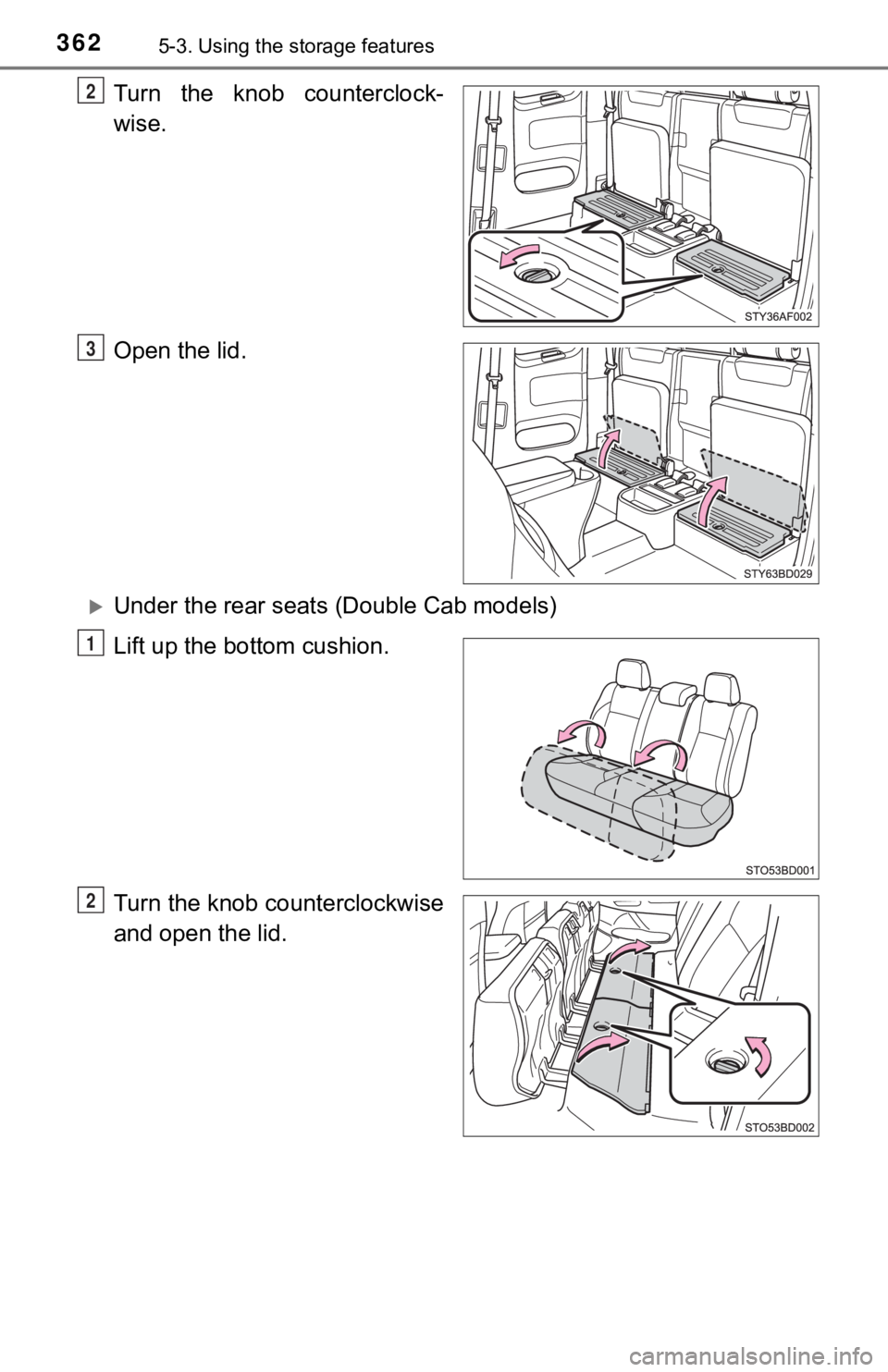

Under the rear seats (Access Cab models [vehicles with rear
seats])
Pull up the lever and raise the
bottom cushion up.
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders .
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■ Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.

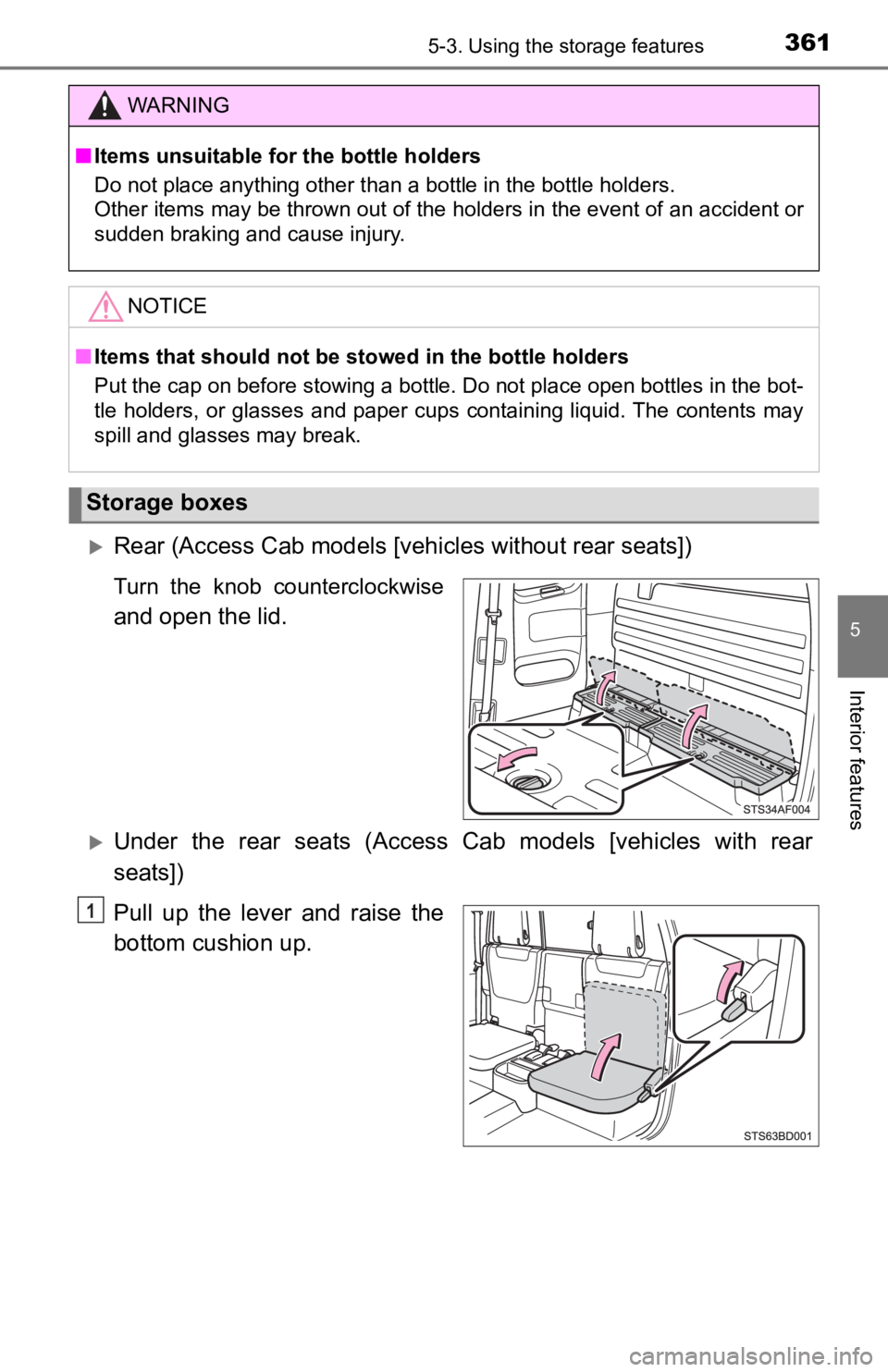

Storage boxes
1

3625-3. Using the storage features
Turn the knob counterclock-
wise.
Open the lid.
Under the rear seats (Double Cab models)
Lift up the bottom cushion.
Turn the knob counterclockwise
and open the lid.
2
3
1
2

3635-3. Using the storage features
5
Interior features
WARNING
■Caution while driving
Keep the storage boxes closed and locked.
Injuries may result in the event of an accident or sudden braking.
■ Storage box (Access cab models [vehicles without rear seat])
Never let anyone sit on the storage box. Doing so may damage the storage
box and cause injury. In addition, it may cause death or severe injury in the
event of sudden braking, sudden swerving or an accident.

3645-3. Using the storage features
Luggage compartment features
■Deck
■Tonneau cover (if equipped)
P. 3 6 8
■Behind the rear seat (Do uble Cab models only)
Grocery bag hooks ( P. 372)
Storage boxes ( P. 373)
Left sideRight side
Deck hooks ( P. 367)
Auxiliary box ( P. 3 6 5 )
Tie-down cleats ( P. 365) Power outlet
(if equipped) (
P. 376)
1
2
3
4
1
2

3655-3. Using the storage features
5
Interior features
■Auxiliary box
Turn the knob and open the lid.
■Tie-down cleats
The deck rail system enables you to insert and move tie-down
cleats to their best location al ong deck rails to secure a load .
Locking plate
Thumb wheel
Tie-down cleat
Deck
1
2
3

3665-3. Using the storage features

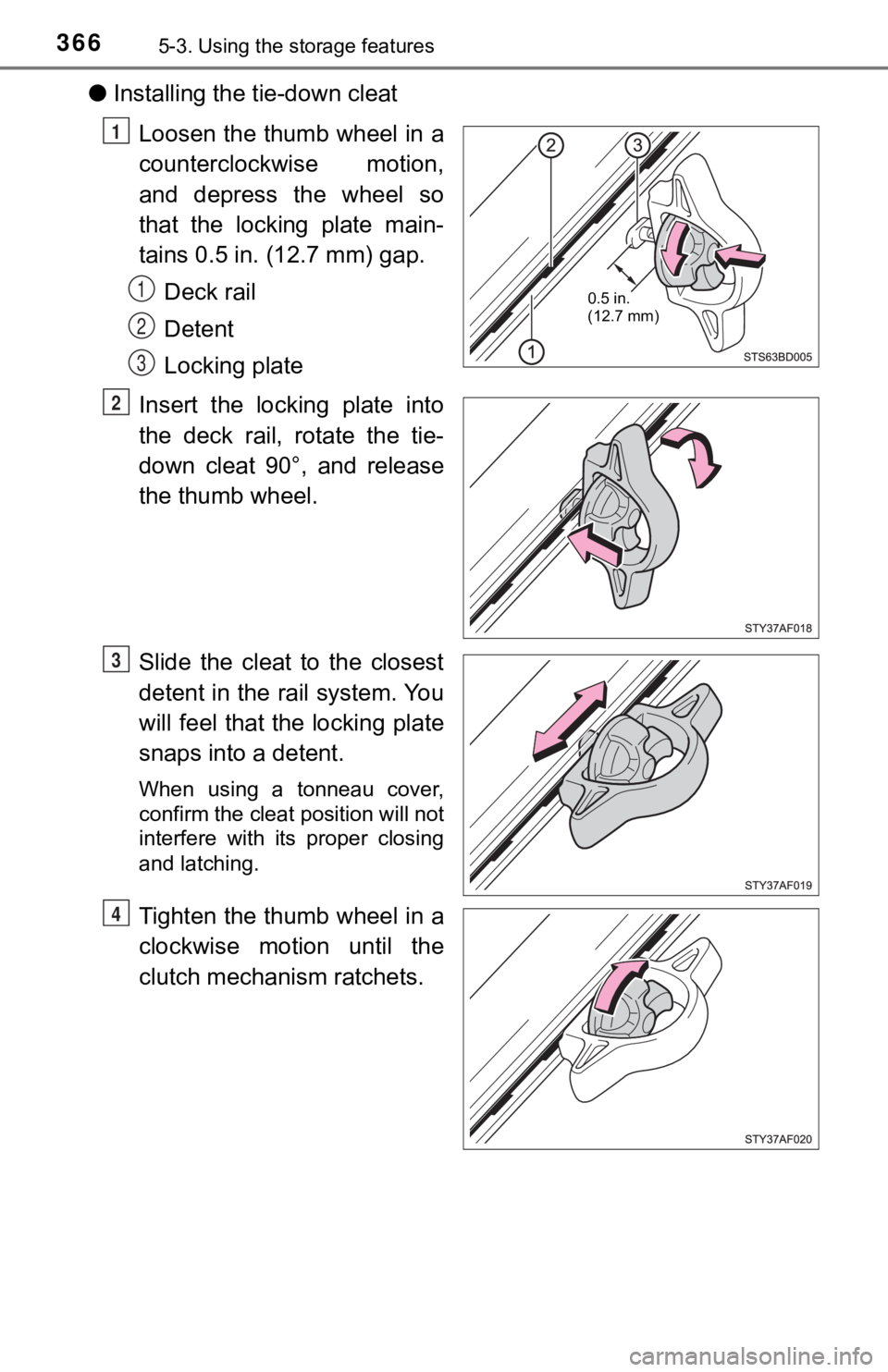

●Installing the tie-down cleat
Loosen the thumb wheel in a
counterclockwise motion,
and depress the wheel so
that the locking plate main-
tains 0.5 in. (12.7 mm) gap.Deck rail
Detent
Locking plate
Insert the locking plate into
the deck rail, rotate the tie-
down cleat 90°, and release
the thumb wheel.
Slide the cleat to the closest
detent in the rail system. You
will feel that the locking plate
snaps into a detent.
When using a tonneau cover,
confirm the cleat position will not
interfere with its proper closing
and latching.
Tighten the thumb wheel in a
clockwise motion until the
clutch mechanism ratchets.
0.5 in.
(12.7 mm)
1
1
2
3
2
3
4

3675-3. Using the storage features
5
Interior features
Check the tie-down cleat to
confirm that it is locked into a
detent and securely mounted
to the deck rail system.

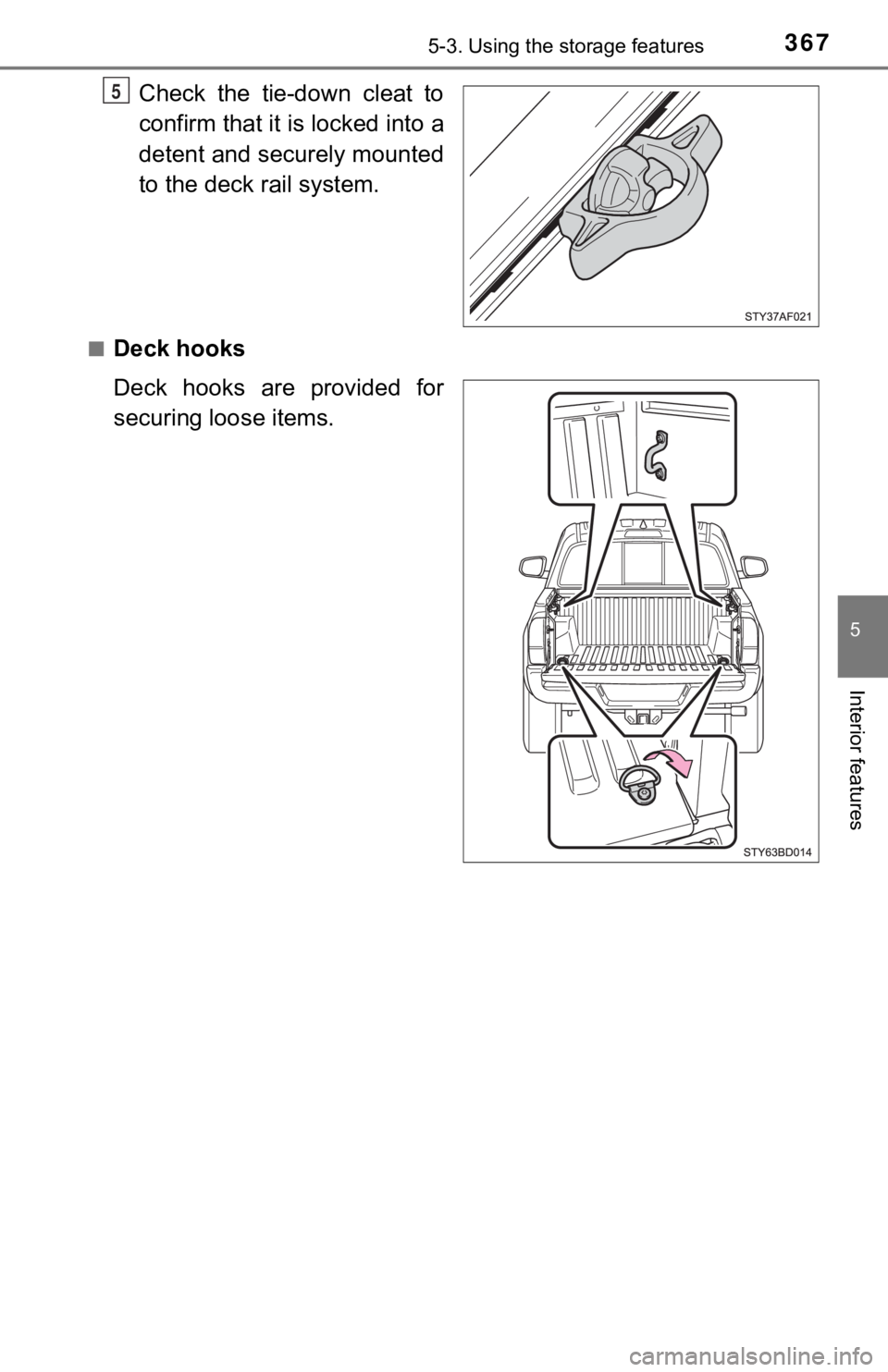

■Deck hooks
Deck hooks are provided for
securing loose items.
5

3685-3. Using the storage features

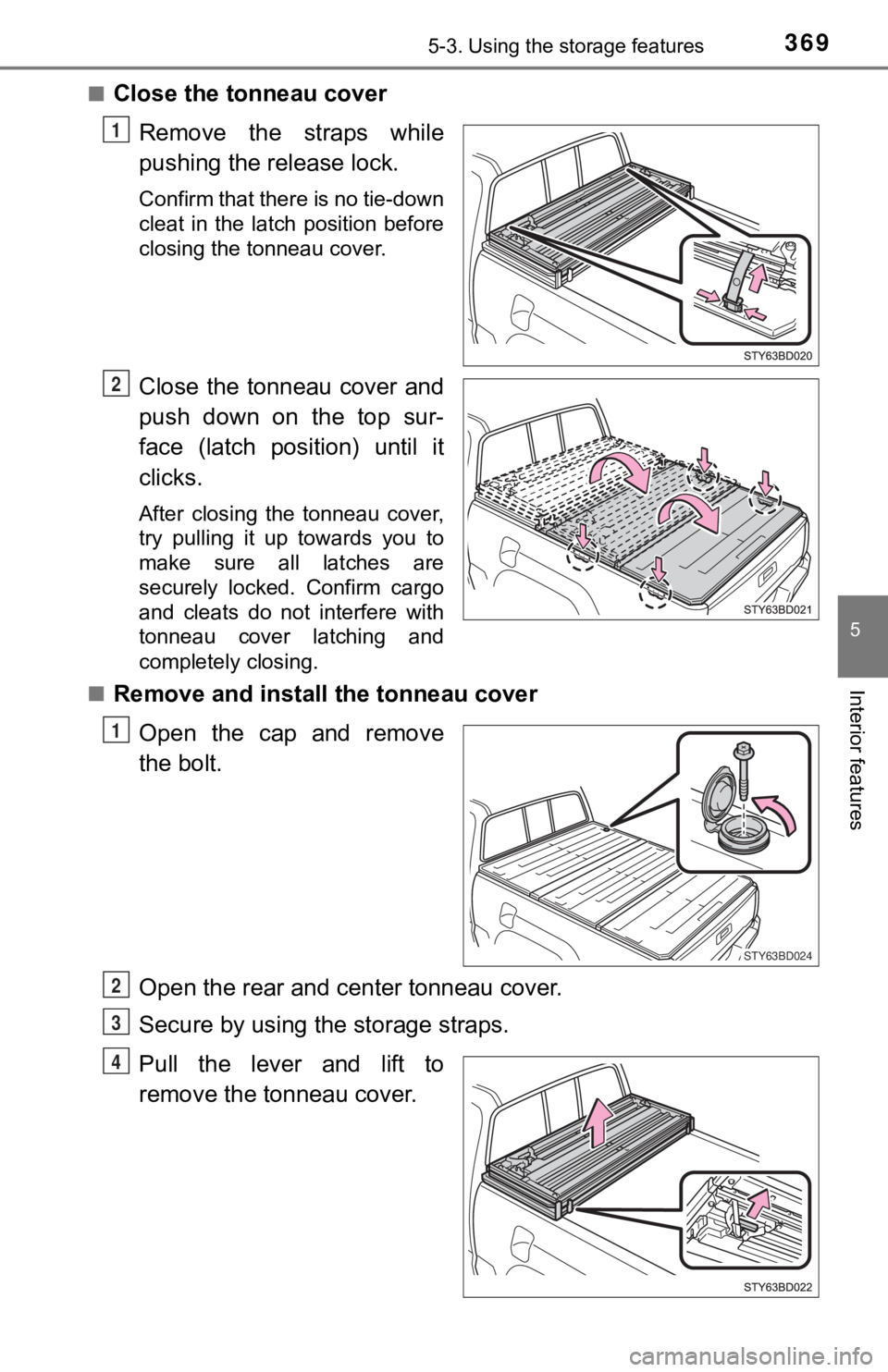

■Open the tonneau cover
Open the tailgate. ( P. 126)
Pull the lever and lift to open
the rear tonneau cover.
Pull the lever and lift to open
the center tonneau cover.
Secure by using the storage
straps.
Make sure that the buckle is
fully engaged by pulling on the
strap.
Tonneau cover (if equipped)
1
2
3
4

3695-3. Using the storage features
5
Interior features
■Close the tonneau cover
Remove the straps while
pushing the release lock.
Confirm that there is no tie-down
cleat in the latch position before
closing the tonneau cover.
Close the tonneau cover and
push down on the top sur-
face (latch position) until it
clicks.
After closing the tonneau cover,
try pulling it up towards you to
make sure all latches are
securely locked. Confirm cargo
and cleats do not interfere with
tonneau cover latching and
completely closing.
■
Remove and instal l the tonneau cover
Open the cap and remove
the bolt.
Open the rear and center tonneau cover.
Secure by using the storage straps.
Pull the lever and lift to
remove the tonneau cover.
1
2
STY63BD024
1
2
3
4

3705-3. Using the storage features
When installing, reverse the steps listed.
Push down on the top surface (latch position) until it clicks, tighten the
bolt, and then close the cap.
After closing the tonneau cover, try pulling it up towards you to make
sure all latches are securely locked.
WARNING
■Caution while driving
Keep the auxiliary boxes closed and locked.
Injuries may result in the event of an accident or sudden braki ng.
■ When the deck hooks are not in use
To avoid injury, always return the deck hooks to their stowed positions.
■ Tie-down cleat precautions
● Properly install and tighten the tie-down cleats into the deck rail system.
Failure to properly install and tighten the tie-down cleats can cause cargo
to become unsecured. Unsecured cargo can cause injury when the vehi-
cle is in motion.
● Properly secure all cargo to prevent shifting or sliding during driving.
Failure to properly secure cargo can cause injury when the vehicle is in
motion.
● Applying loads at an angle to the tie-down cleat greater than 4 5° or loads
greater than 220 lb. (100 kg) may cause damage to the deck, deck rail
system, tie-down cleat and/or the cargo.
● Do not exceed a total tensile load of 440 lb. (200 kg) per deck rail.
● Do not install more than the following number of tie-down cleats per deck
rail:
• Side rail:
Short deck—Max. 3 locations
Long deck—Max. 4 locations
● Confirm cargo and cleats do not interfere with tonneau cover latching and
completely closing.
