TOYOTA TUNDRA 2023 Owners Manual

4616-3. Do-it-yourself maintenance
6
Maintenance and care

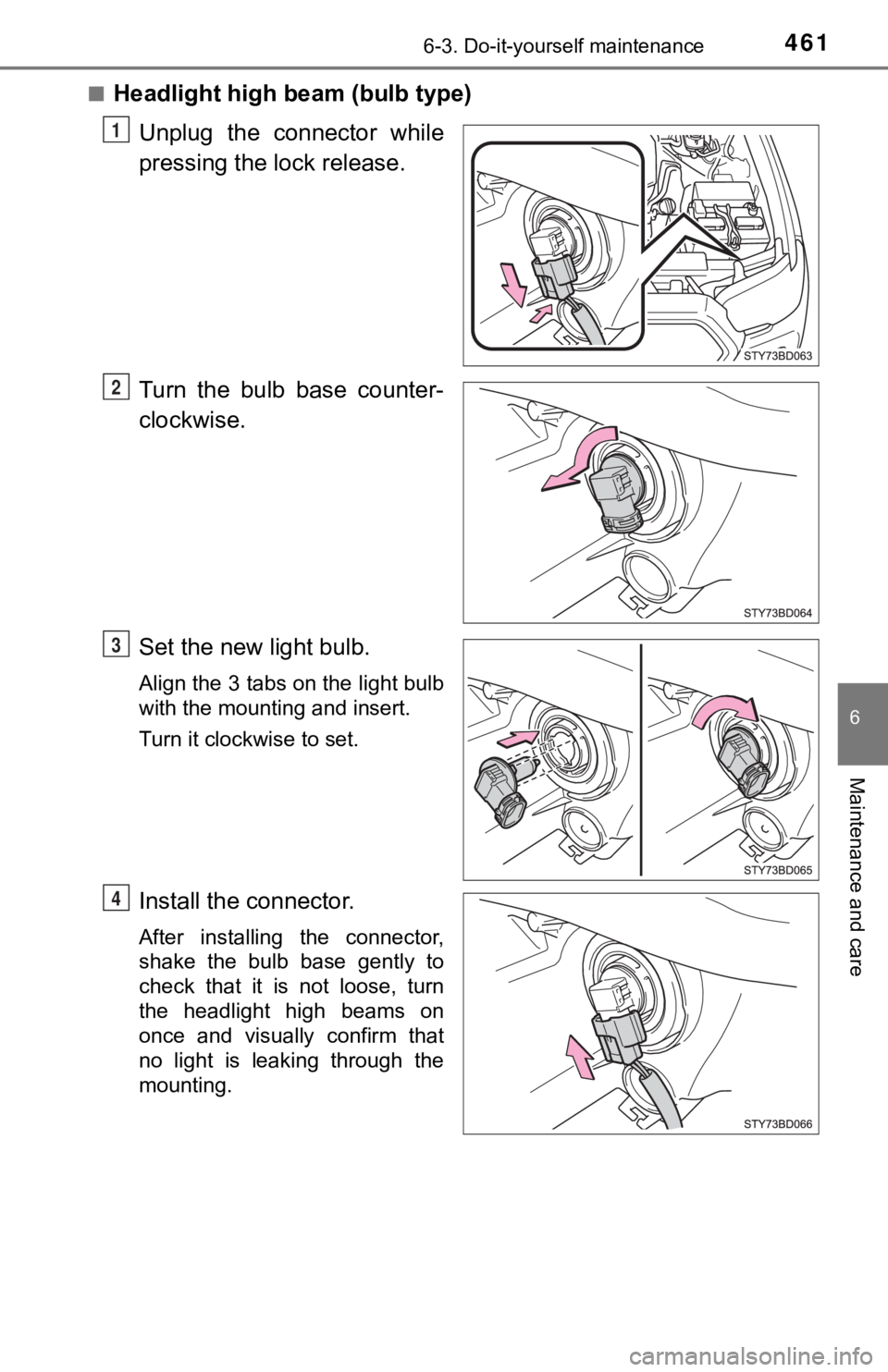

■Headlight high beam (bulb type)Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn it clockwise to set.
Install the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.
1
2
3
4

4626-3. Do-it-yourself maintenance

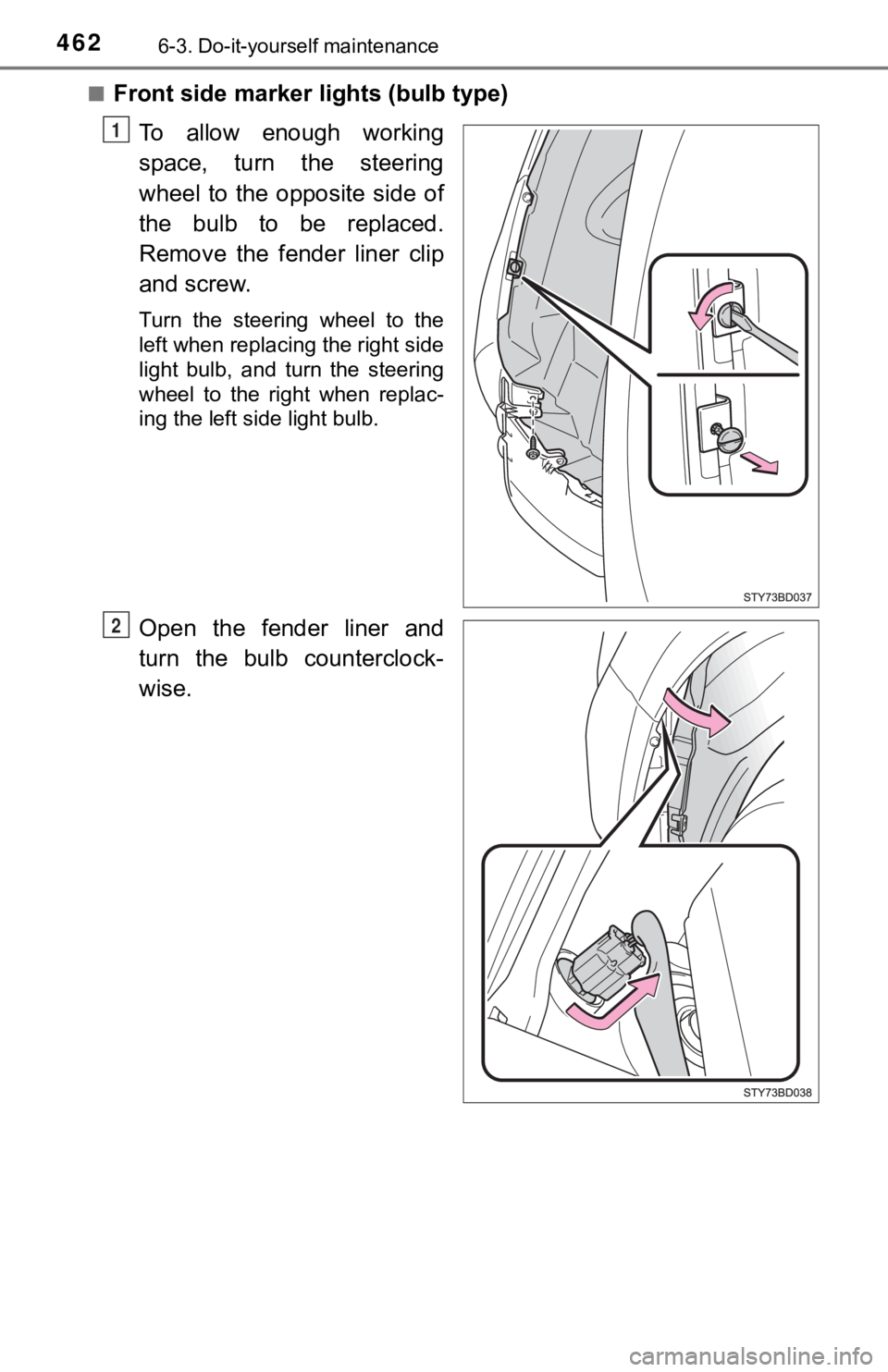

■Front side marker lights (bulb type)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
turn the bulb counterclock-
wise.
1
2

4636-3. Do-it-yourself maintenance
6
Maintenance and care

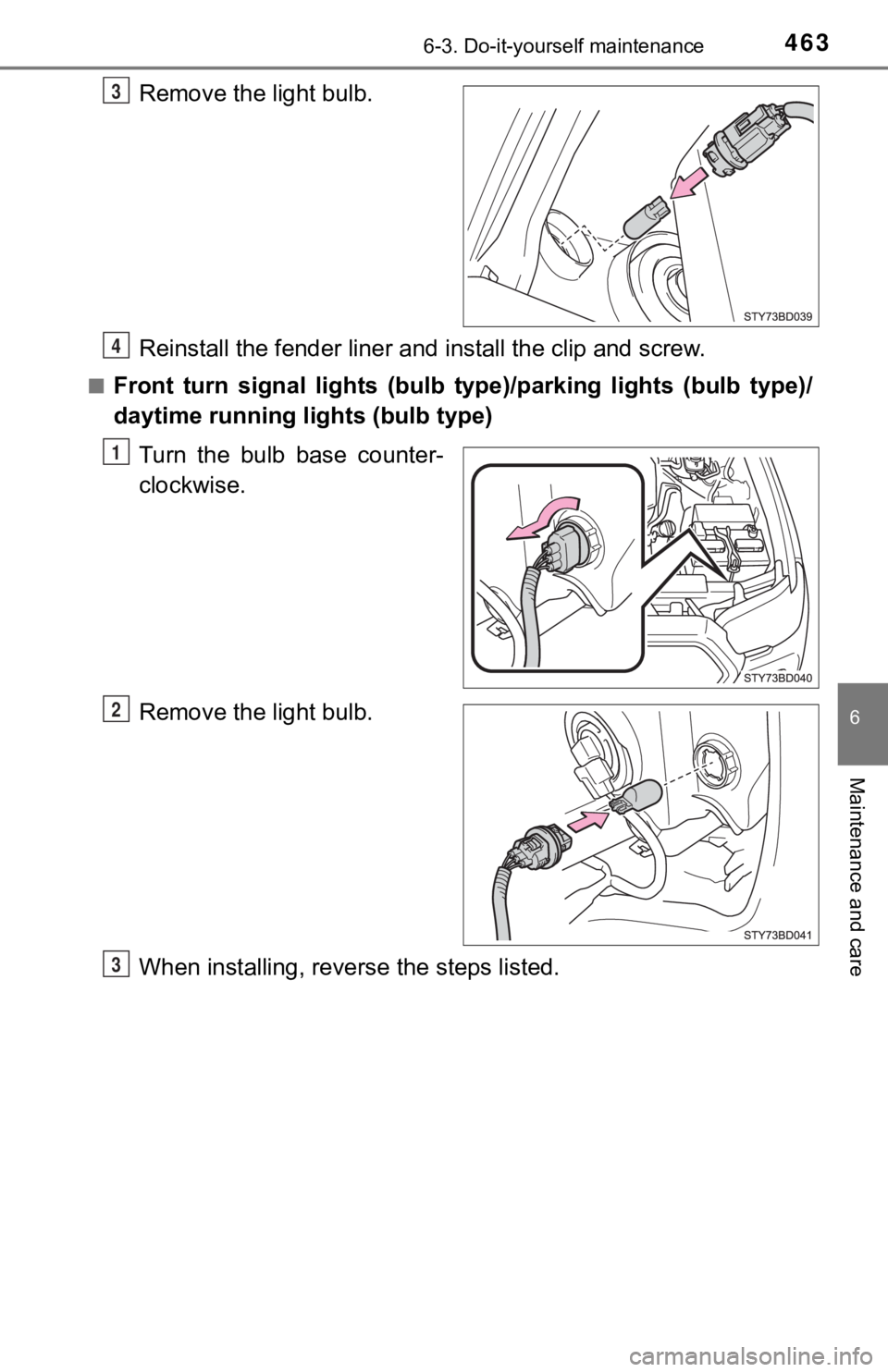

Remove the light bulb.
Reinstall the fender liner and install the clip and screw.
■Front turn signal lights (bulb ty pe)/parking lights (bulb type)/
daytime running li ghts (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
3
4
1
2
3

4646-3. Do-it-yourself maintenance
■Front fog lights (bulb type) (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector while
depressing the lock release.
1
2

4656-3. Do-it-yourself maintenance
6
Maintenance and care

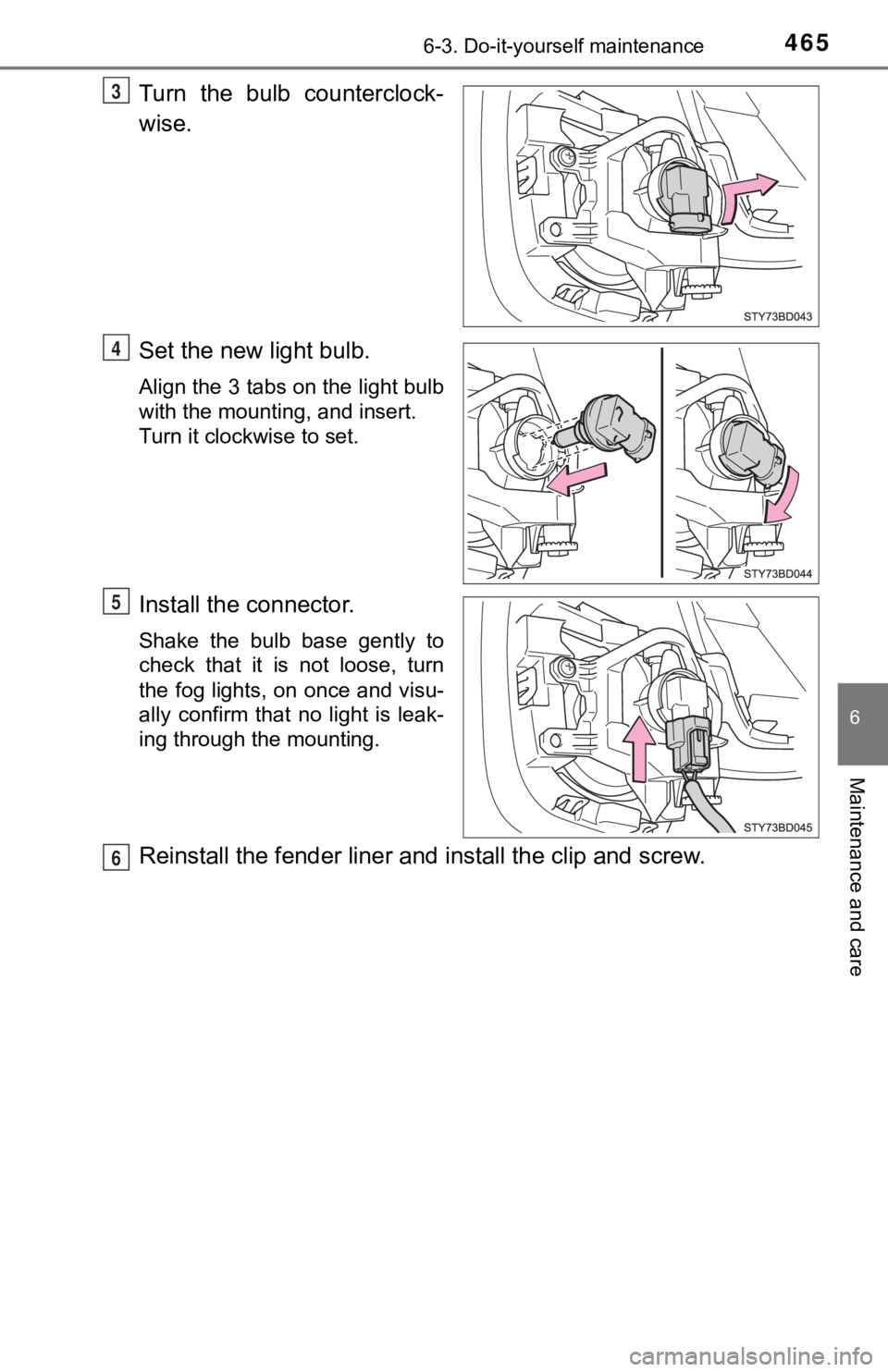

Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the fog lights, on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and install the clip and screw.
3
4
5
6

4666-3. Do-it-yourself maintenance
■Tail/rear turn signal/rear side marker lights, stop/tail/rear side
marker lights and back-up lights
Remove the bolts and rear
combination assembly.
Turn the bulb bases counter-
clockwise.Tail/rear turn signal/rear
side marker lights
Stop/tail/rear side marker
lights
Back-up lights
Remove the light bulb. Tail/rear turn signal/rear
side marker lights
Stop/tail/rear side marker
lights
Back-up lights
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

4676-3. Do-it-yourself maintenance
6
Maintenance and care

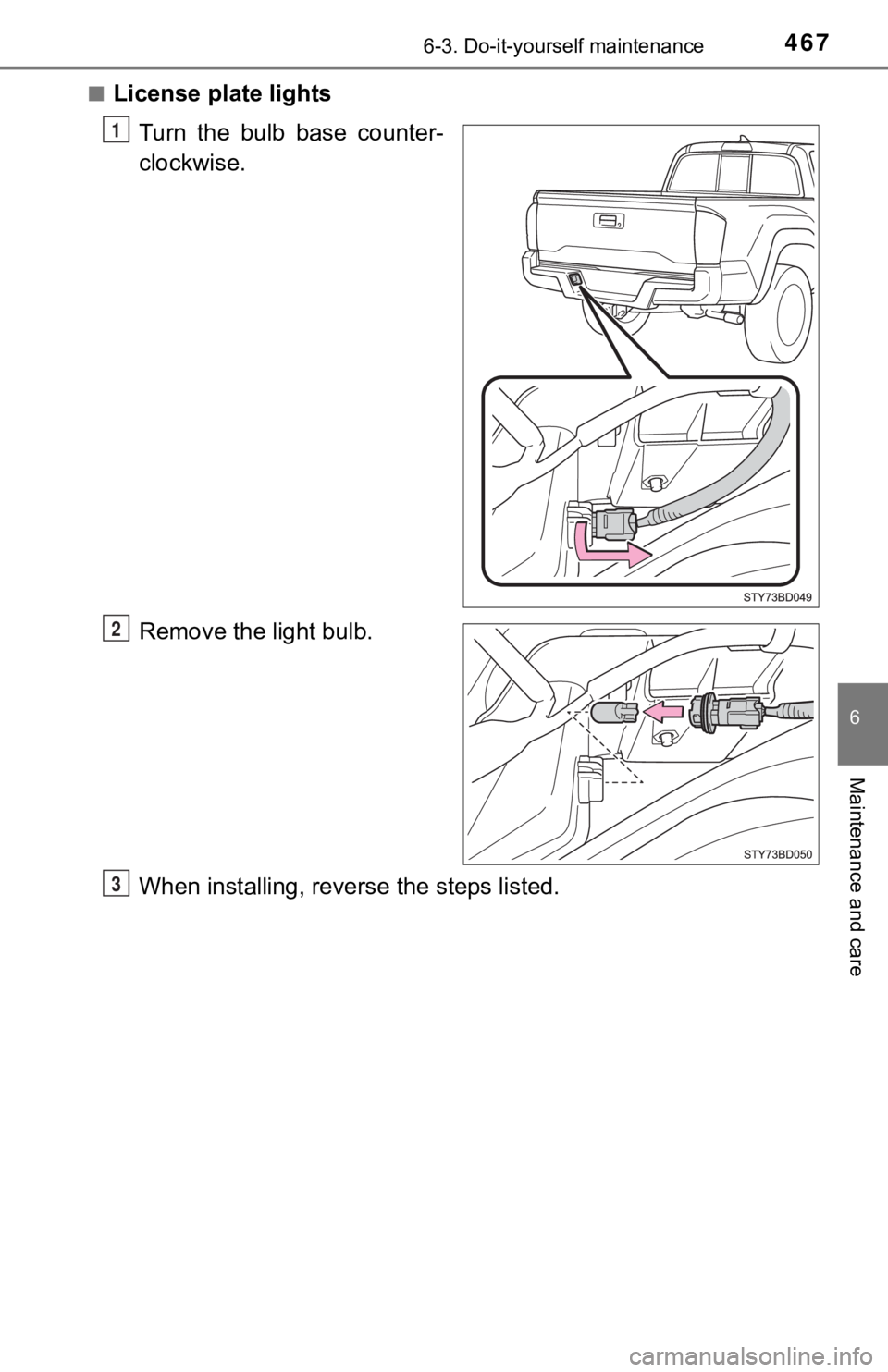

■License plate lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

4686-3. Do-it-yourself maintenance

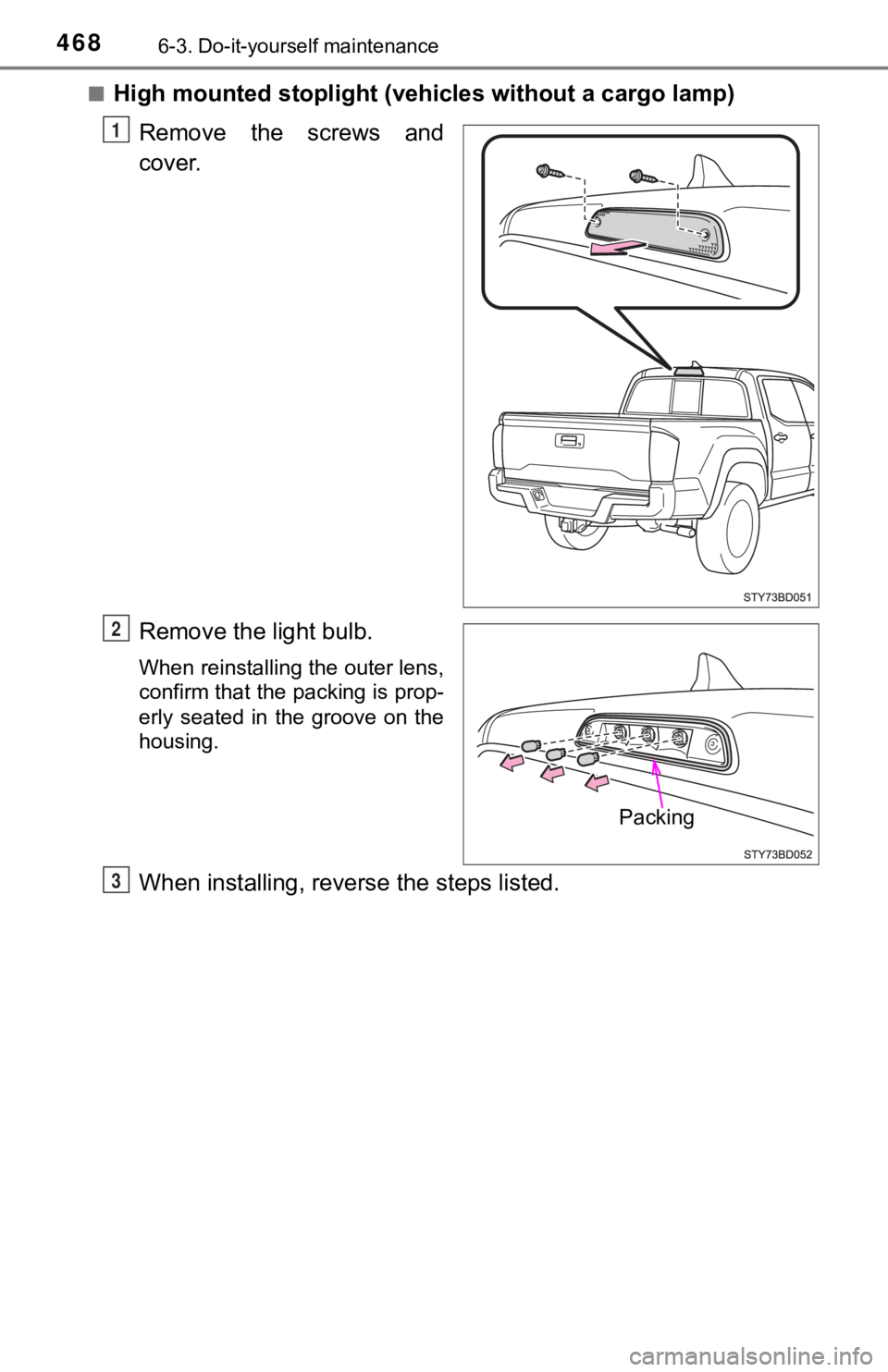

■High mounted stoplight (vehicles without a cargo lamp)
Remove the screws and
cover.
Remove the light bulb.
When reinstalling the outer lens,
confirm that the packing is prop-
erly seated in the groove on the
housing.
When installing, reverse the steps listed.
1
Packing
O
P

4696-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights low beam (LED type)
● Headlights high beam (LED type)
● Front turn signal lights (LED type)
● Front side marker lights (LED type)
● Fog lights (LED type)
● Parking lights (LED type)
● Daytime running lights (LED type)
● High mounted stoplight (vehicles with cargo lamp)
● Side turn signal lights (if equipped)
■LED Lights
The side turn signal lights (if equipped), parking lights (LED type), daytime
running light (LED type) and, high mounted stoplight (vehicles with cargo
lamp) consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Toyota lamps are vented to all surrounding environmental conditions and may
experience temporary condensation build-up that is visible from outside of the
lamp. Condensation and fogging does not indicate a malfunction of the lamp
assembly. It is normal for condensation to improve and disappea r after time
and normal driving use. Visible pools of water or large droplets are a sign of a
lamp in which the seal has malfunctioned. If this is the case o r condensation
and fogging remain after long periods of time, contact your Toyota dealer for
more information.

4706-3. Do-it-yourself maintenance
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immedia tely after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the lights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble the bulb, bulb base, el ectrical wir-
ing, or subcomponents.
Doing so could result in electric shock and serious injury.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.
