151 1-7. Safety information
1
Before driving
URBAN CRUISER_EE (OM52C21E)

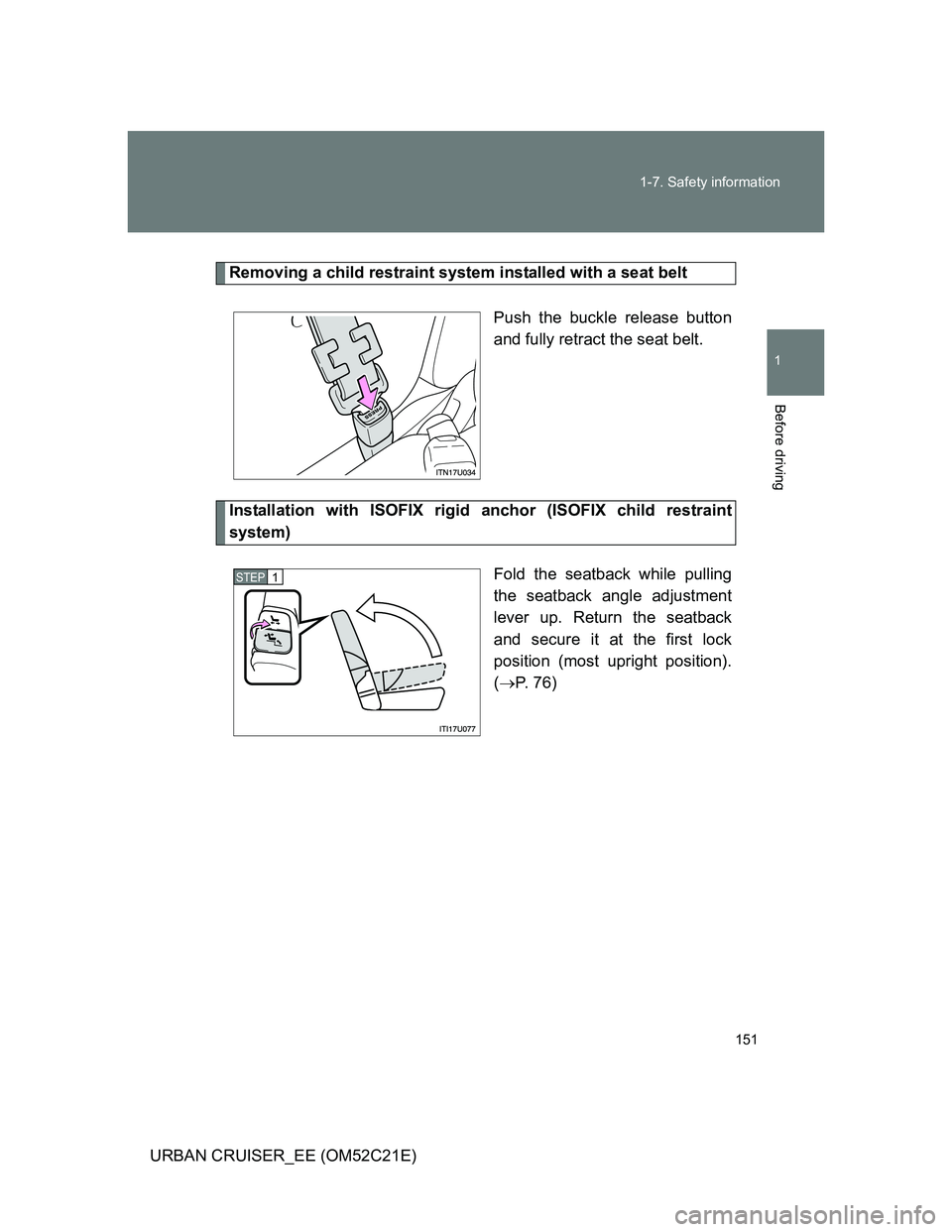

Removing a child restraint system installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)
Fold the seatback while pulling
the seatback angle adjustment
lever up. Return the seatback
and secure it at the first lock
position (most upright position).
(P. 7 6 )
STEP1

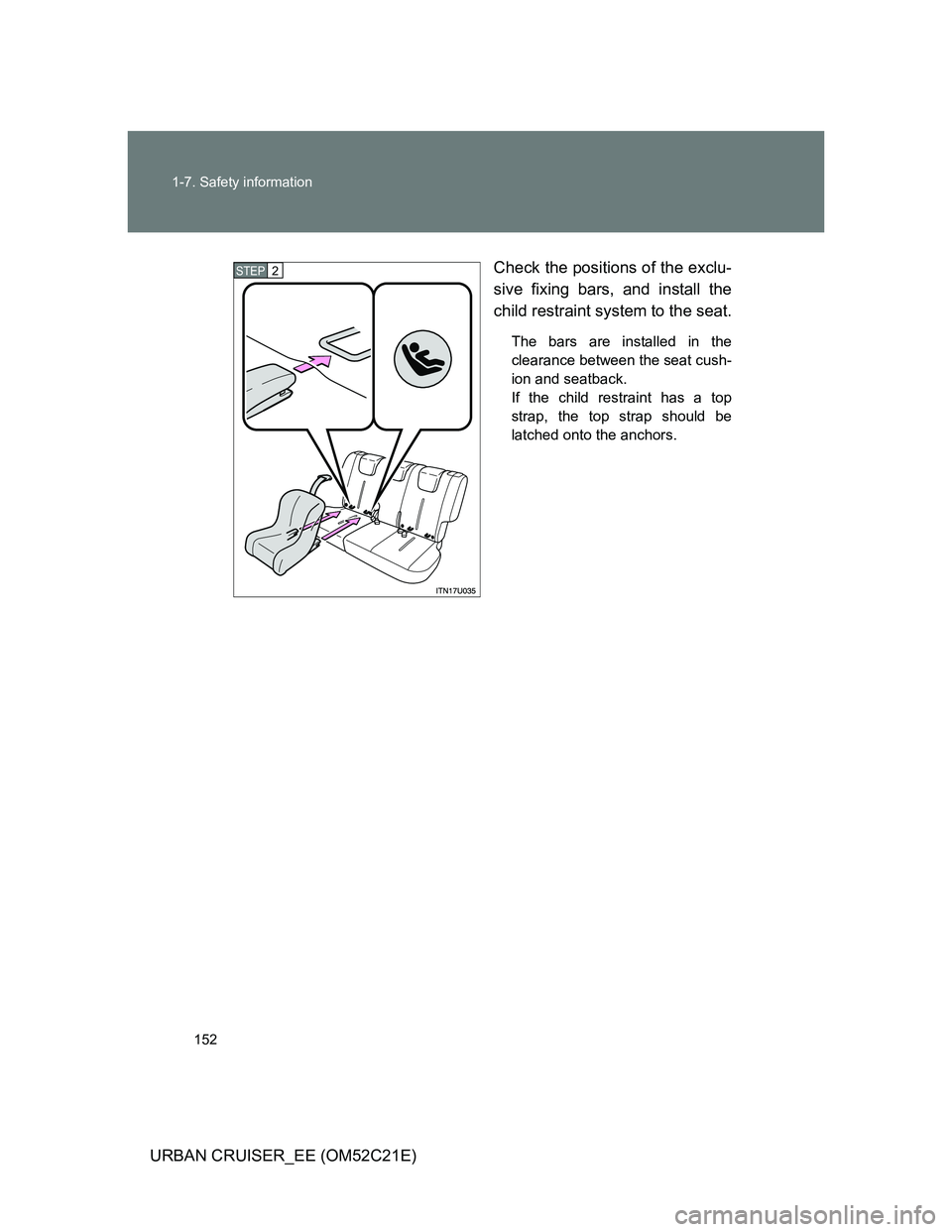

152 1-7. Safety information
URBAN CRUISER_EE (OM52C21E)Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the
clearance between the seat cush-
ion and seatback.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
STEP2

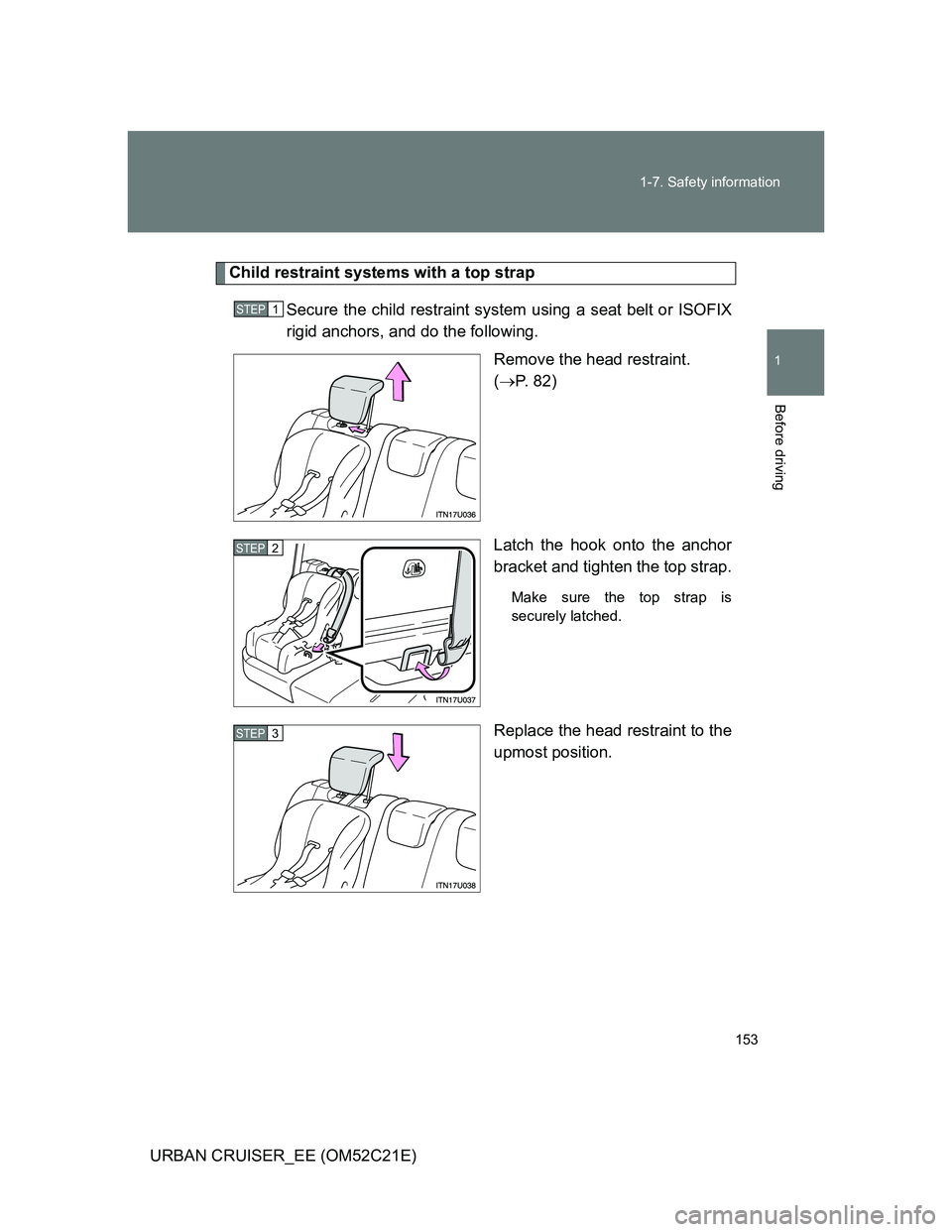

153 1-7. Safety information
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Child restraint systems with a top strap
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors, and do the following.
Remove the head restraint.
(P. 8 2 )
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Replace the head restraint to the
upmost position.
STEP1
STEP2
STEP3

154 1-7. Safety information
URBAN CRUISER_EE (OM52C21E)

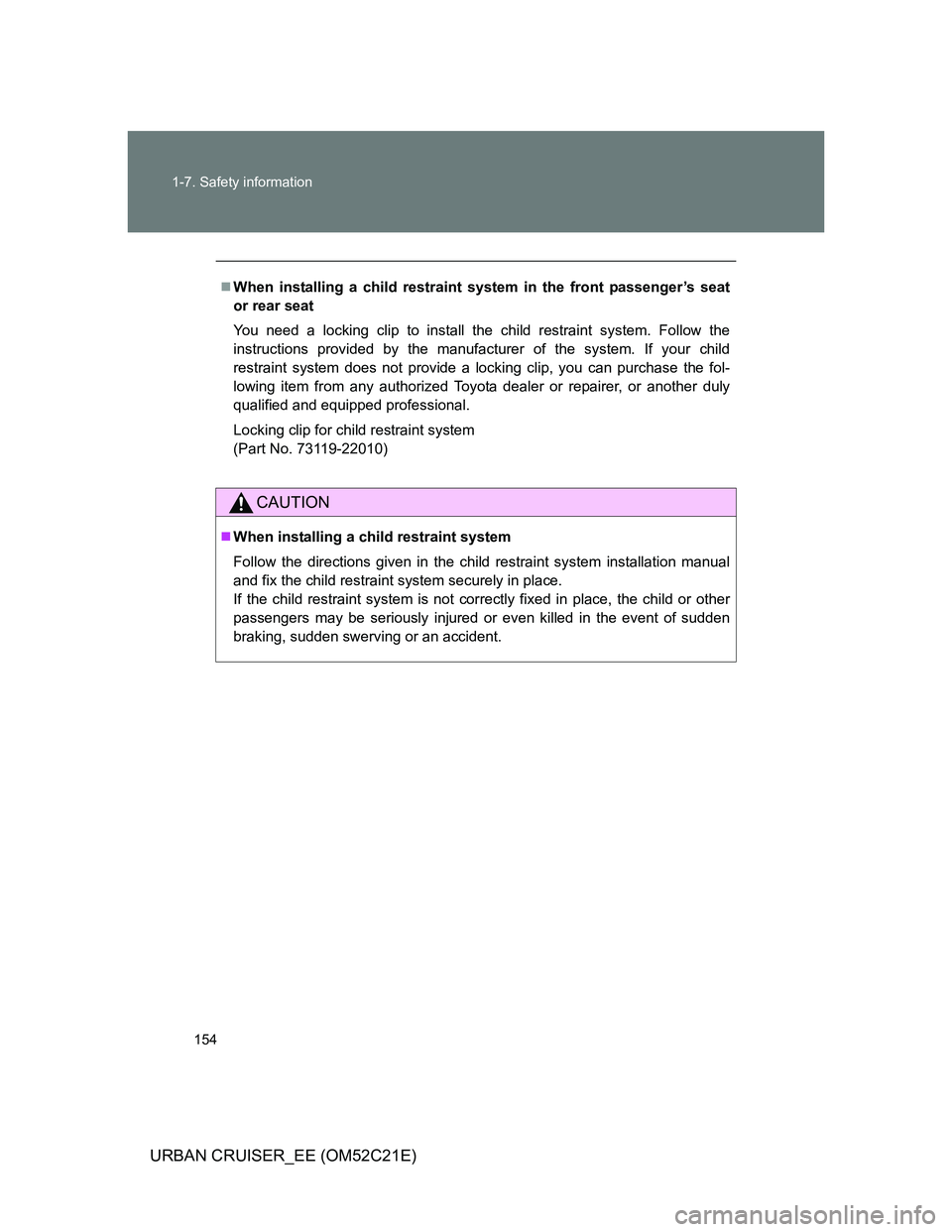

When installing a child restraint system in the front passenger’s seat
or rear seat
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.

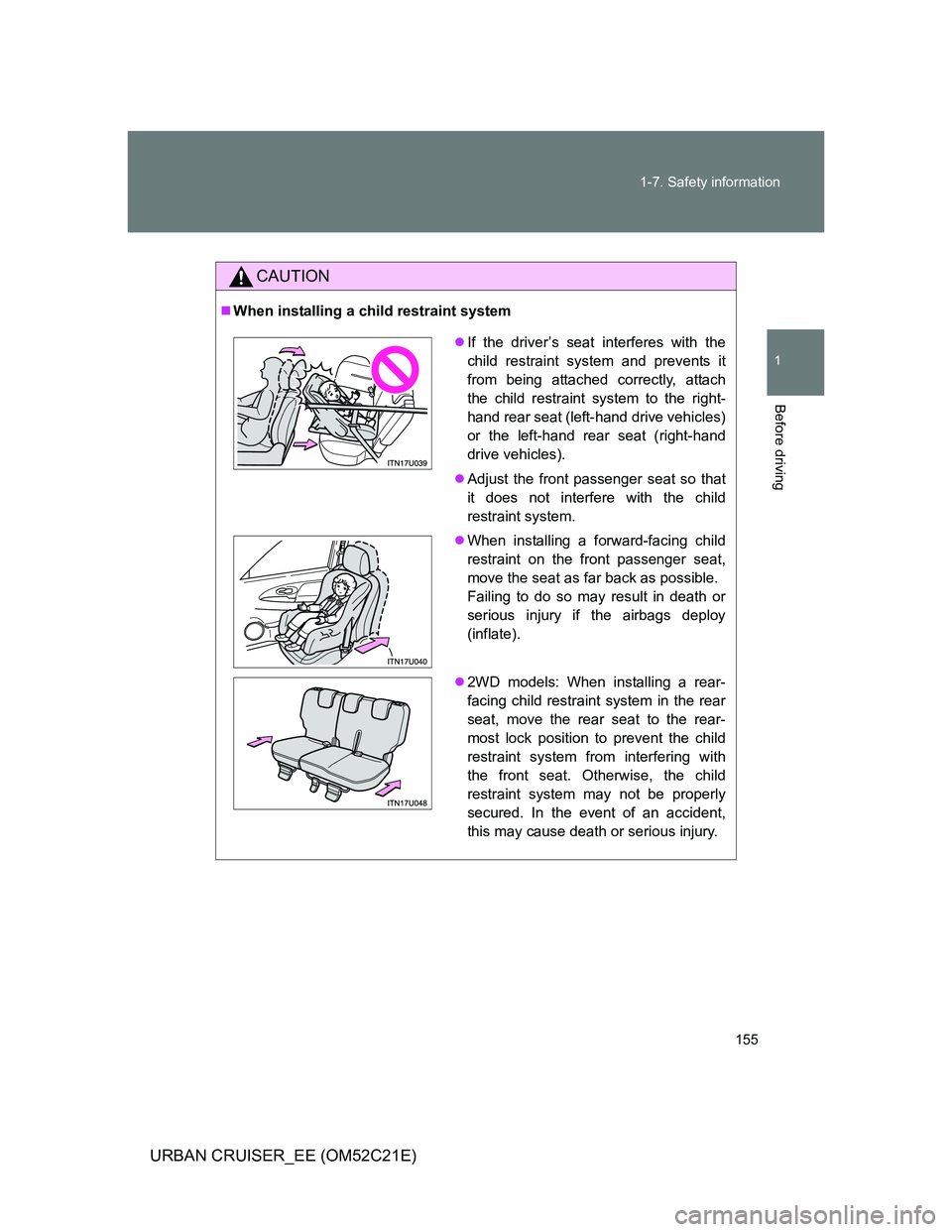

155 1-7. Safety information
1
Before driving
URBAN CRUISER_EE (OM52C21E)
CAUTION
When installing a child restraint system
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward-facing child
restraint on the front passenger seat,
move the seat as far back as possible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).
2WD models: When installing a rear-
facing child restraint system in the rear
seat, move the rear seat to the rear-
most lock position to prevent the child
restraint system from interfering with
the front seat. Otherwise, the child
restraint system may not be properly
secured. In the event of an accident,
this may cause death or serious injury.

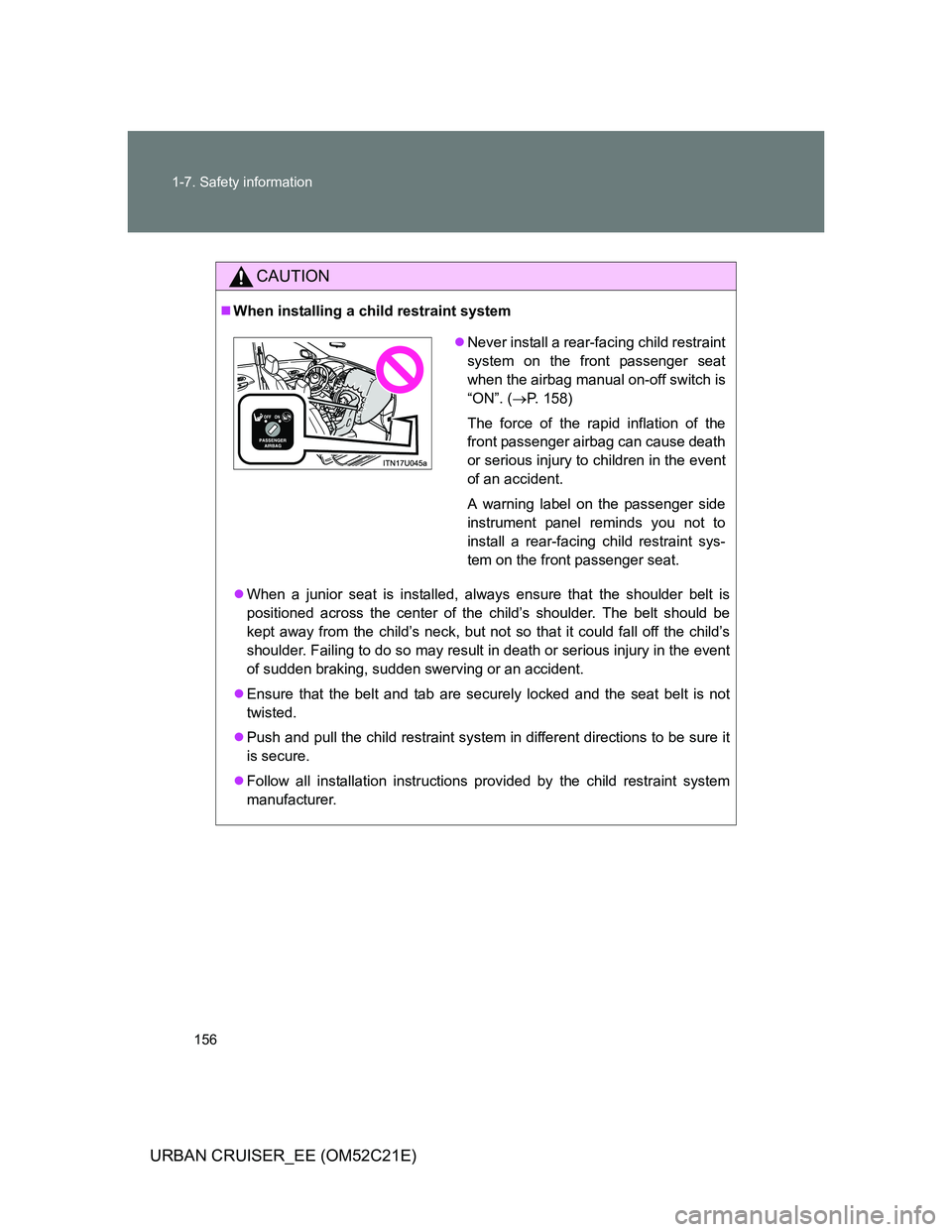

156 1-7. Safety information
URBAN CRUISER_EE (OM52C21E)
CAUTION
When installing a child restraint system
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system in different directions to be sure it
is secure.
Follow all installation instructions provided by the child restraint system
manufacturer.
Never install a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
“ON”. (P. 158)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
A warning label on the passenger side
instrument panel reminds you not to
install a rear-facing child restraint sys-
tem on the front passenger seat.

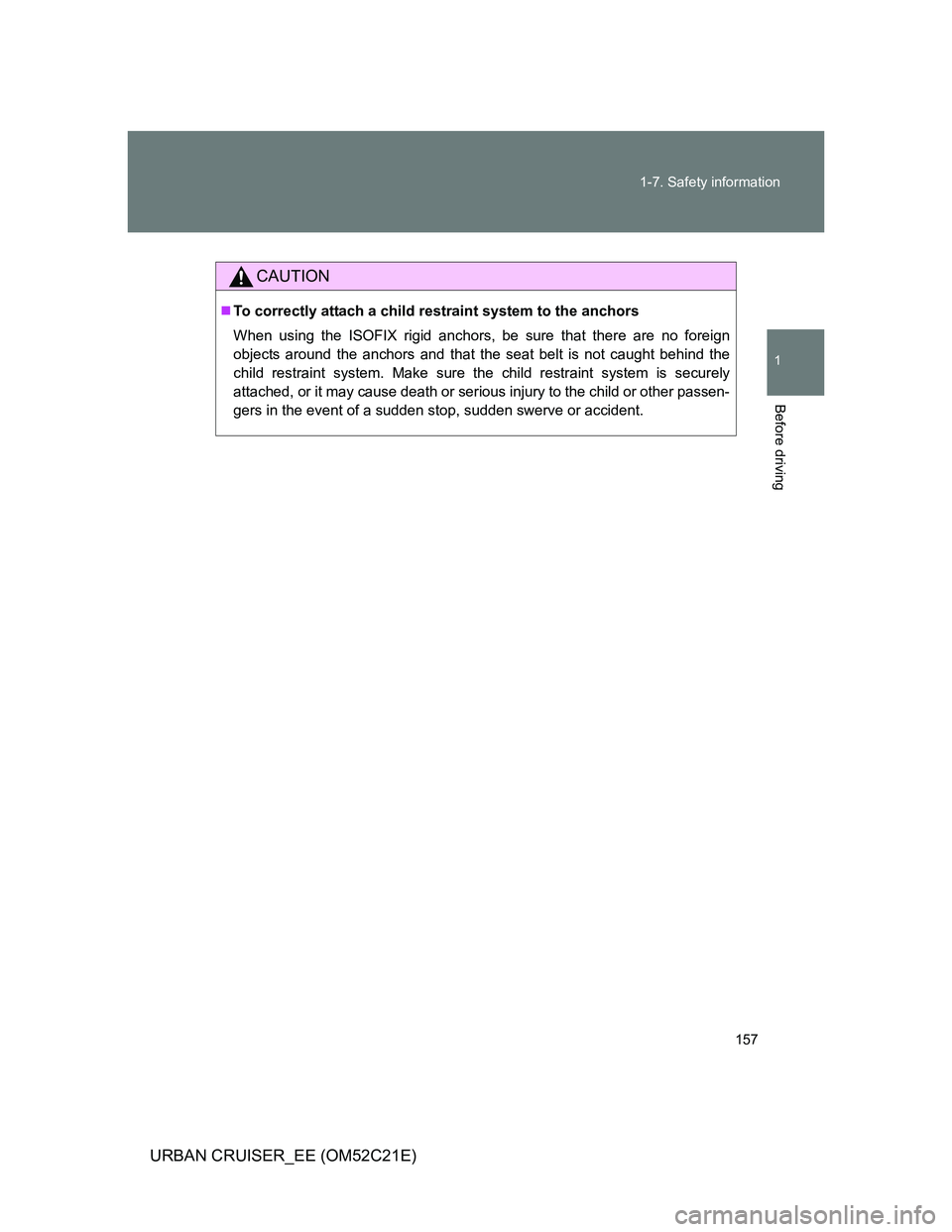

157 1-7. Safety information
1
Before driving
URBAN CRUISER_EE (OM52C21E)
CAUTION
To correctly attach a child restraint system to the anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the anchors and that the seat belt is not caught behind the
child restraint system. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other passen-
gers in the event of a sudden stop, sudden swerve or accident.

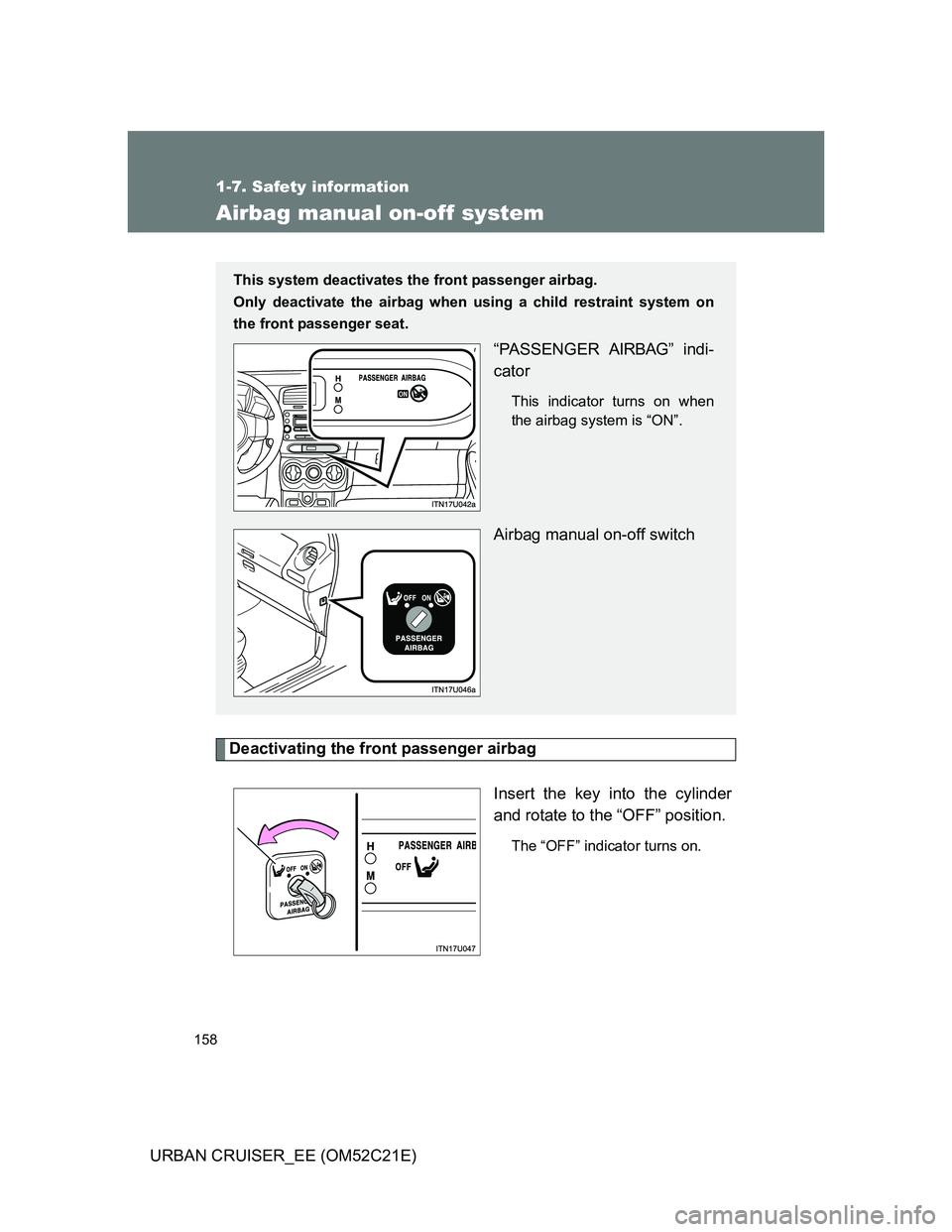

158
1-7. Safety information
URBAN CRUISER_EE (OM52C21E)
Airbag manual on-off system
Deactivating the front passenger airbag
Insert the key into the cylinder
and rotate to the “OFF” position.
The “OFF” indicator turns on.
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system on
the front passenger seat.
“PASSENGER AIRBAG” indi-
cator
This indicator turns on when
the airbag system is “ON”.
Airbag manual on-off switch

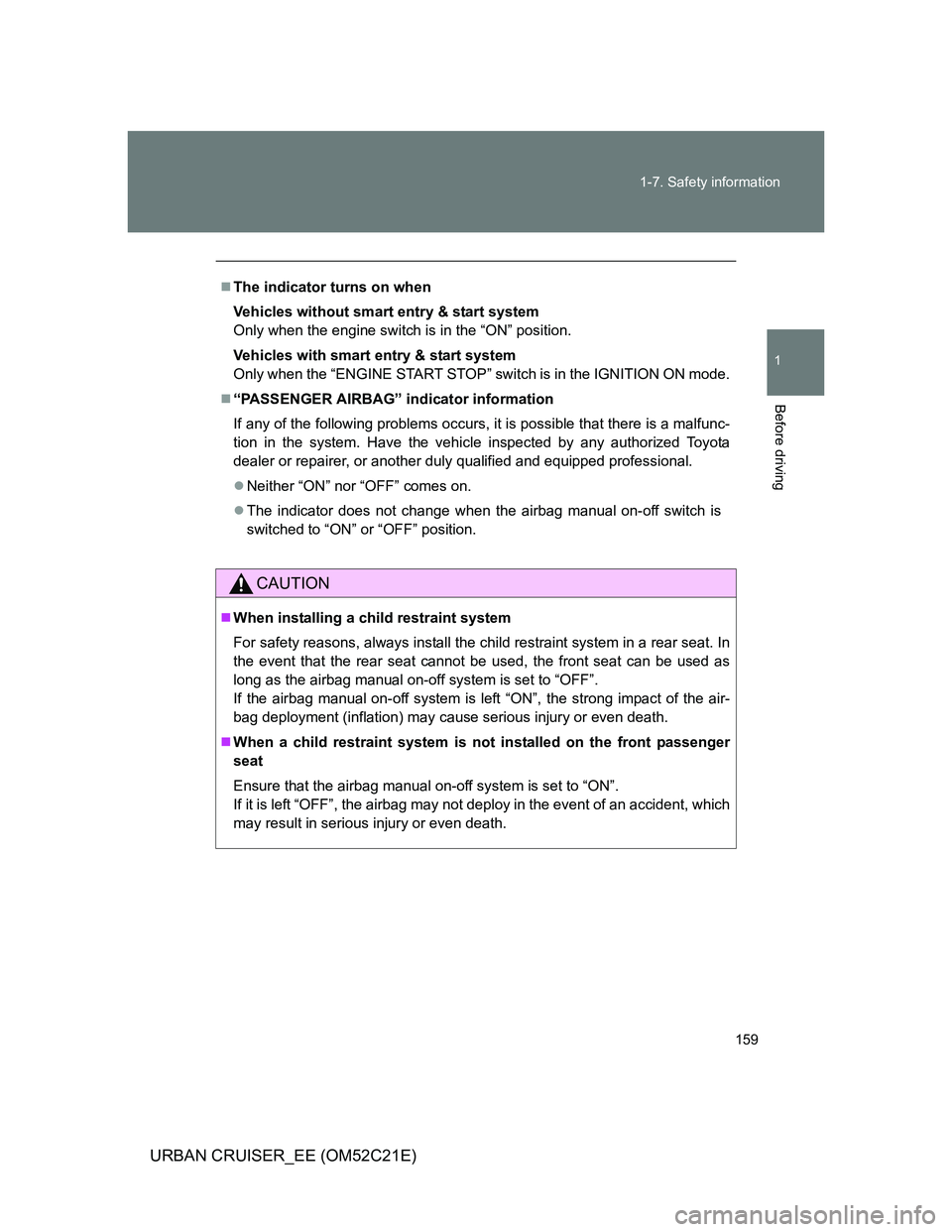

159 1-7. Safety information
1
Before driving
URBAN CRUISER_EE (OM52C21E)
The indicator turns on when
Vehicles without smart entry & start system
Only when the engine switch is in the “ON” position.
Vehicles with smart entry & start system
Only when the “ENGINE START STOP” switch is in the IGNITION ON mode.
“PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator does not change when the airbag manual on-off switch is
switched to “ON” or “OFF” position.
CAUTION
When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

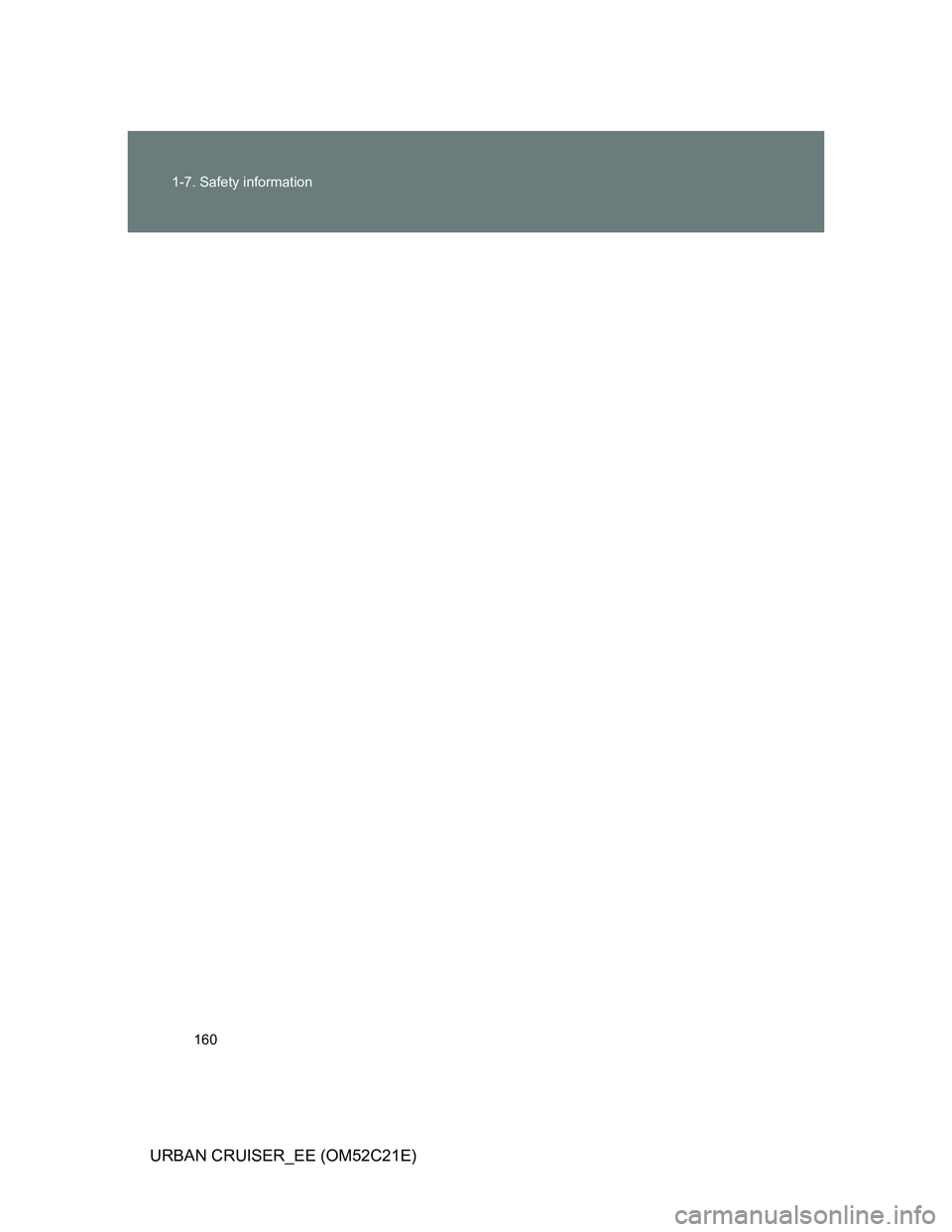

160 1-7. Safety information
URBAN CRUISER_EE (OM52C21E)
