TOYOTA URBAN CRUISER 2011 Owner's Guide

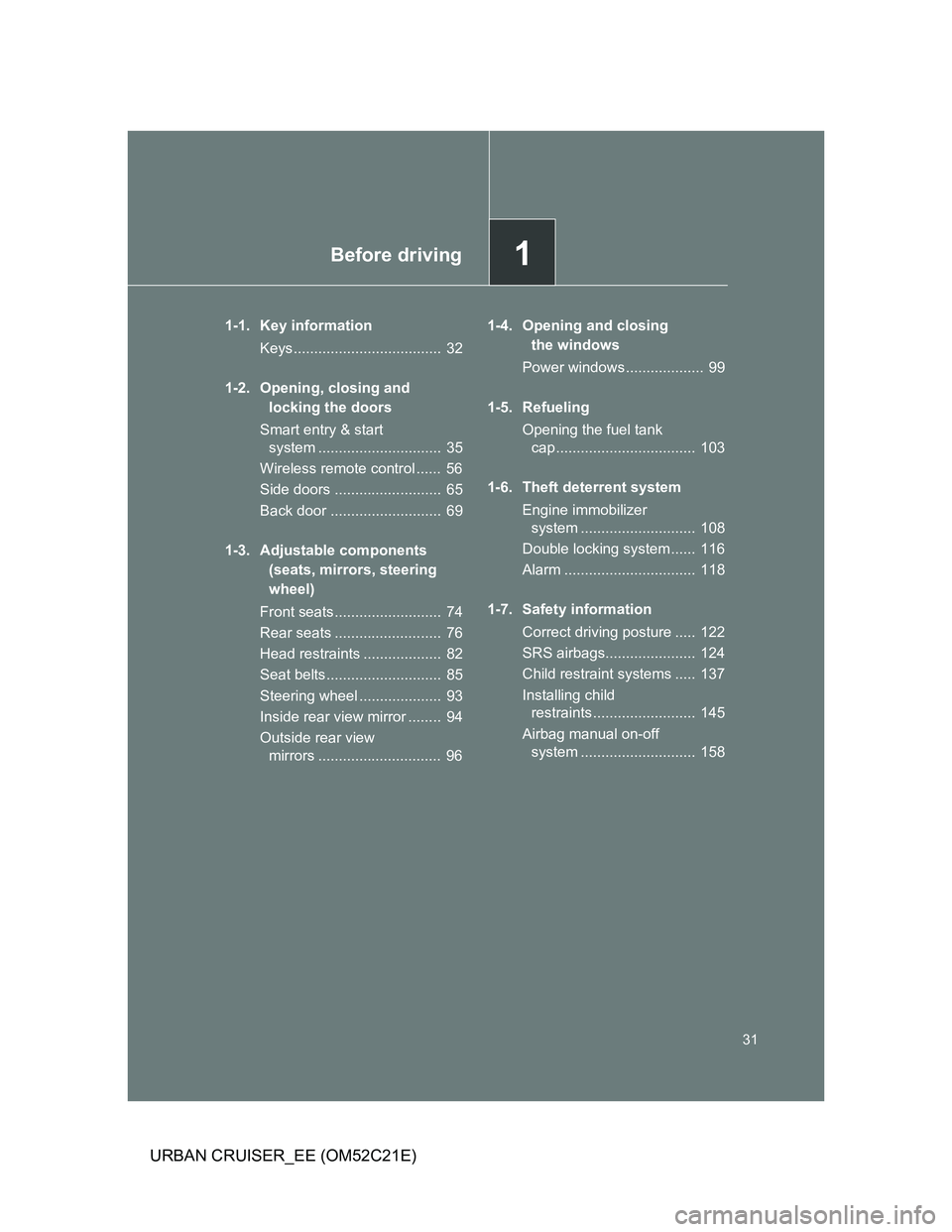

1Before driving
31
URBAN CRUISER_EE (OM52C21E)
1-1. Key information
Keys.................................... 32
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 35
Wireless remote control ...... 56
Side doors .......................... 65
Back door ........................... 69
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 74
Rear seats .......................... 76
Head restraints ................... 82
Seat belts............................ 85
Steering wheel .................... 93
Inside rear view mirror ........ 94
Outside rear view
mirrors .............................. 961-4. Opening and closing
the windows
Power windows ................... 99
1-5. Refueling
Opening the fuel tank
cap .................................. 103
1-6. Theft deterrent system
Engine immobilizer
system ............................ 108
Double locking system ...... 116
Alarm ................................ 118
1-7. Safety information
Correct driving posture ..... 122
SRS airbags...................... 124
Child restraint systems ..... 137
Installing child
restraints ......................... 145
Airbag manual on-off
system ............................ 158

32
URBAN CRUISER_EE (OM52C21E)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without smart entry & start system
Master key (with wireless
remote control function)
Operating the wireless remote
control function (P. 56)
Master key (without wire-
less remote control func-
tion)
Va l e t k e y
Key number plate
Vehicles with smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 35)
• Operating the wireless
remote control function
(P. 56)
Mechanical keys
Key number plate

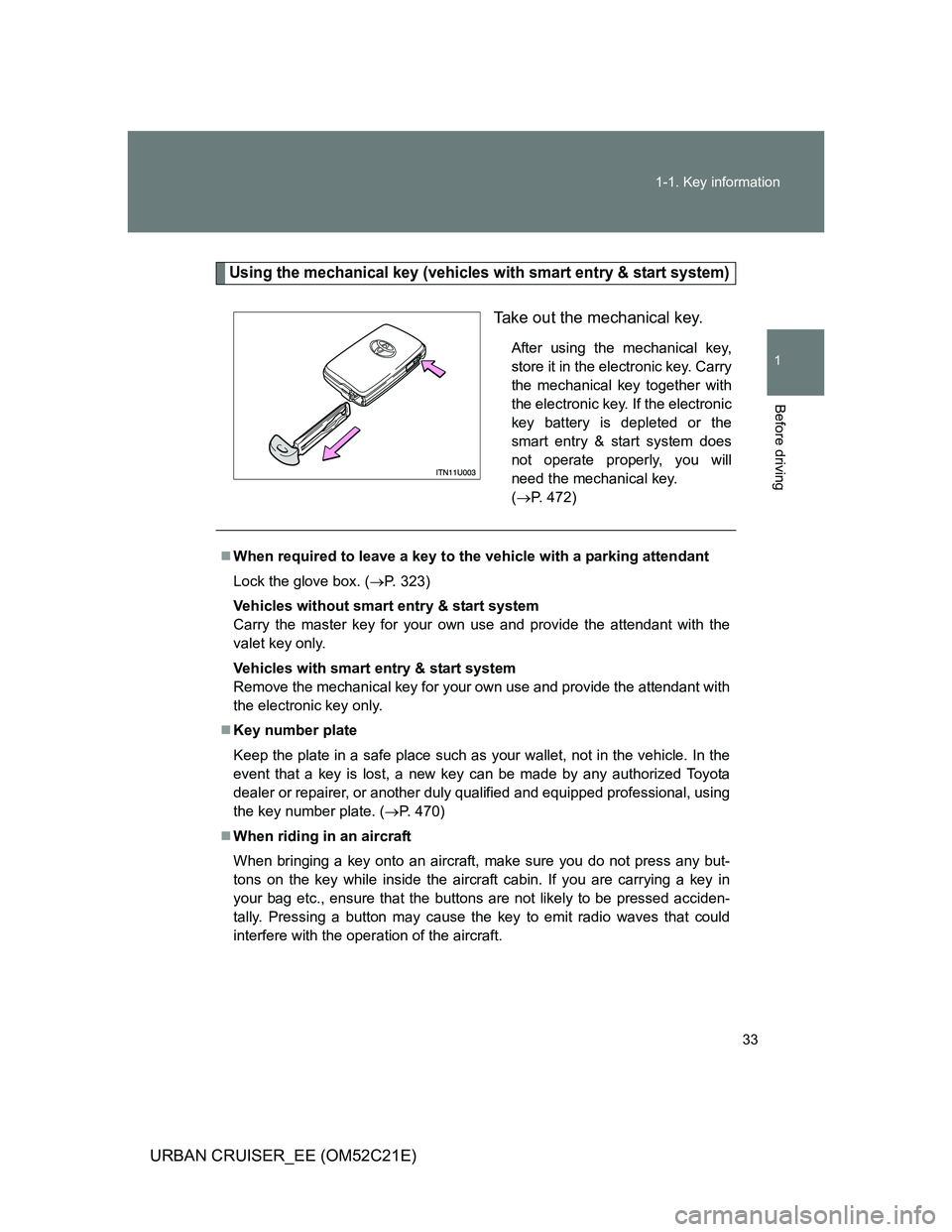

33 1-1. Key information
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Using the mechanical key (vehicles with smart entry & start system)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart entry & start system does
not operate properly, you will
need the mechanical key.
(P. 472)
When required to leave a key to the vehicle with a parking attendant
Lock the glove box. (P. 323)
Vehicles without smart entry & start system
Carry the master key for your own use and provide the attendant with the
valet key only.
Vehicles with smart entry & start system
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 470)
When riding in an aircraft
When bringing a key onto an aircraft, make sure you do not press any but-
tons on the key while inside the aircraft cabin. If you are carrying a key in
your bag etc., ensure that the buttons are not likely to be pressed acciden-
tally. Pressing a button may cause the key to emit radio waves that could
interfere with the operation of the aircraft.

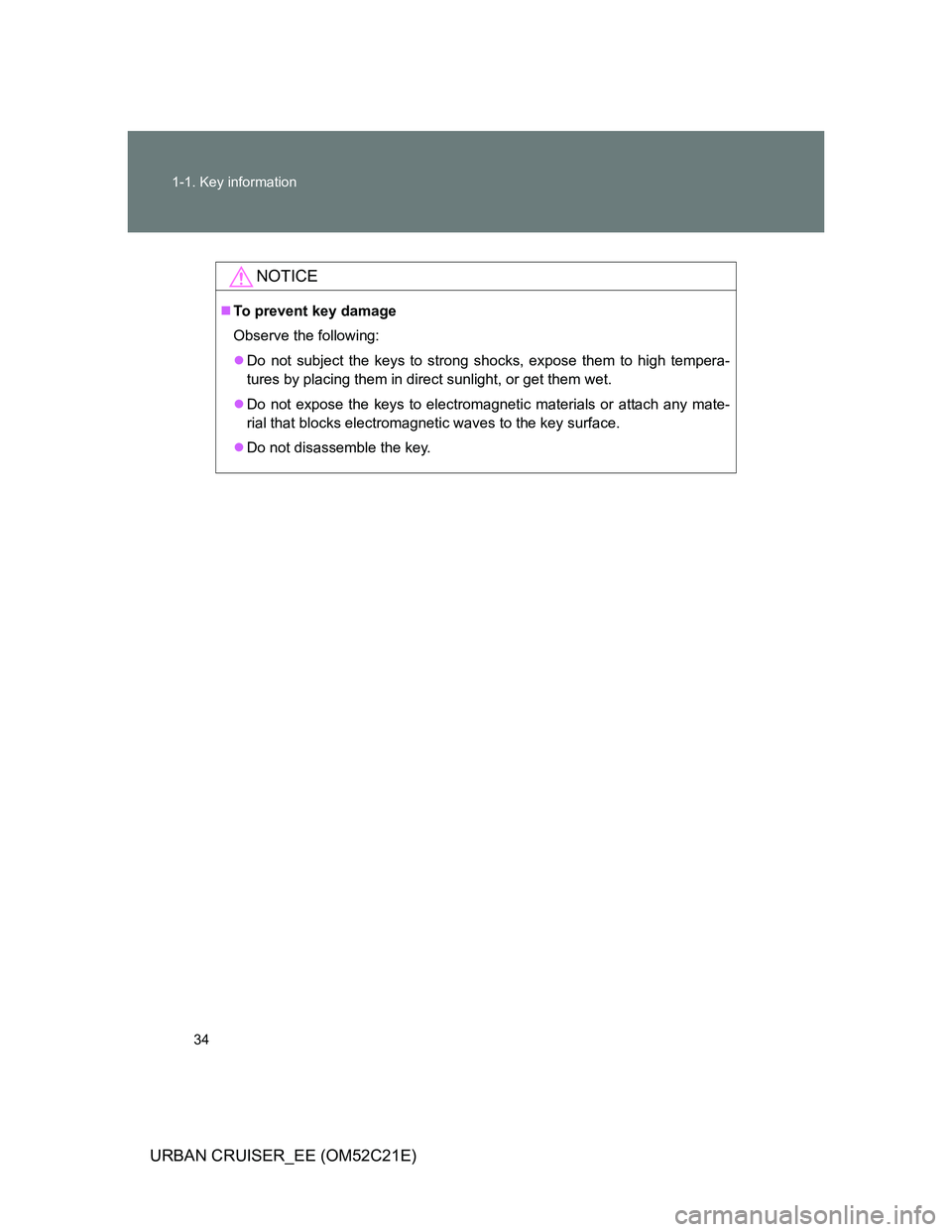

34 1-1. Key information
URBAN CRUISER_EE (OM52C21E)
NOTICE
To prevent key damage
Observe the following:
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the key.

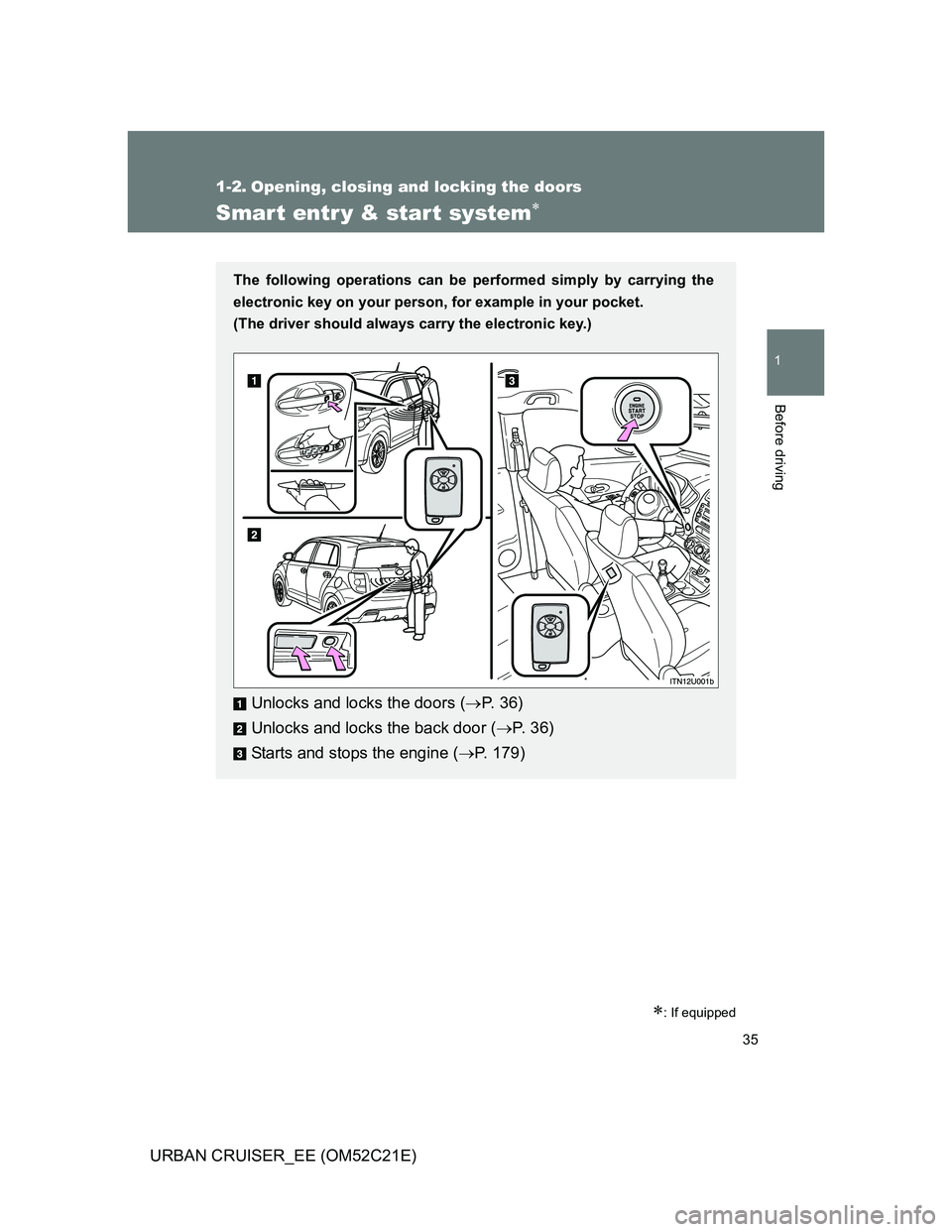

35
1
Before driving
URBAN CRUISER_EE (OM52C21E)
1-2. Opening, closing and locking the doors
Smart entr y & start system
: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors (P. 36)
Unlocks and locks the back door (P. 36)
Starts and stops the engine (P. 179)

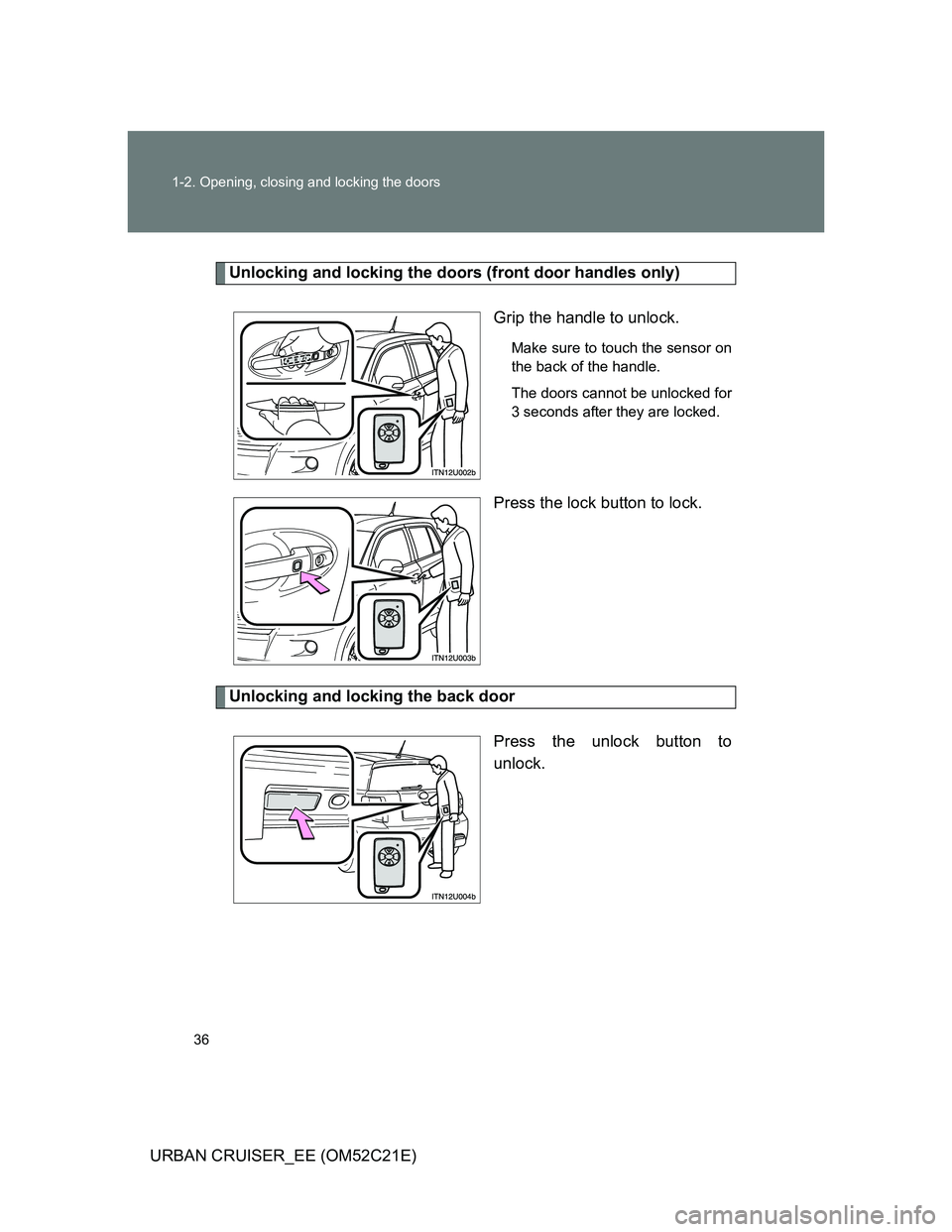

36 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
Unlocking and locking the doors (front door handles only)
Grip the handle to unlock.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after they are locked.
Press the lock button to lock.
Unlocking and locking the back door
Press the unlock button to
unlock.

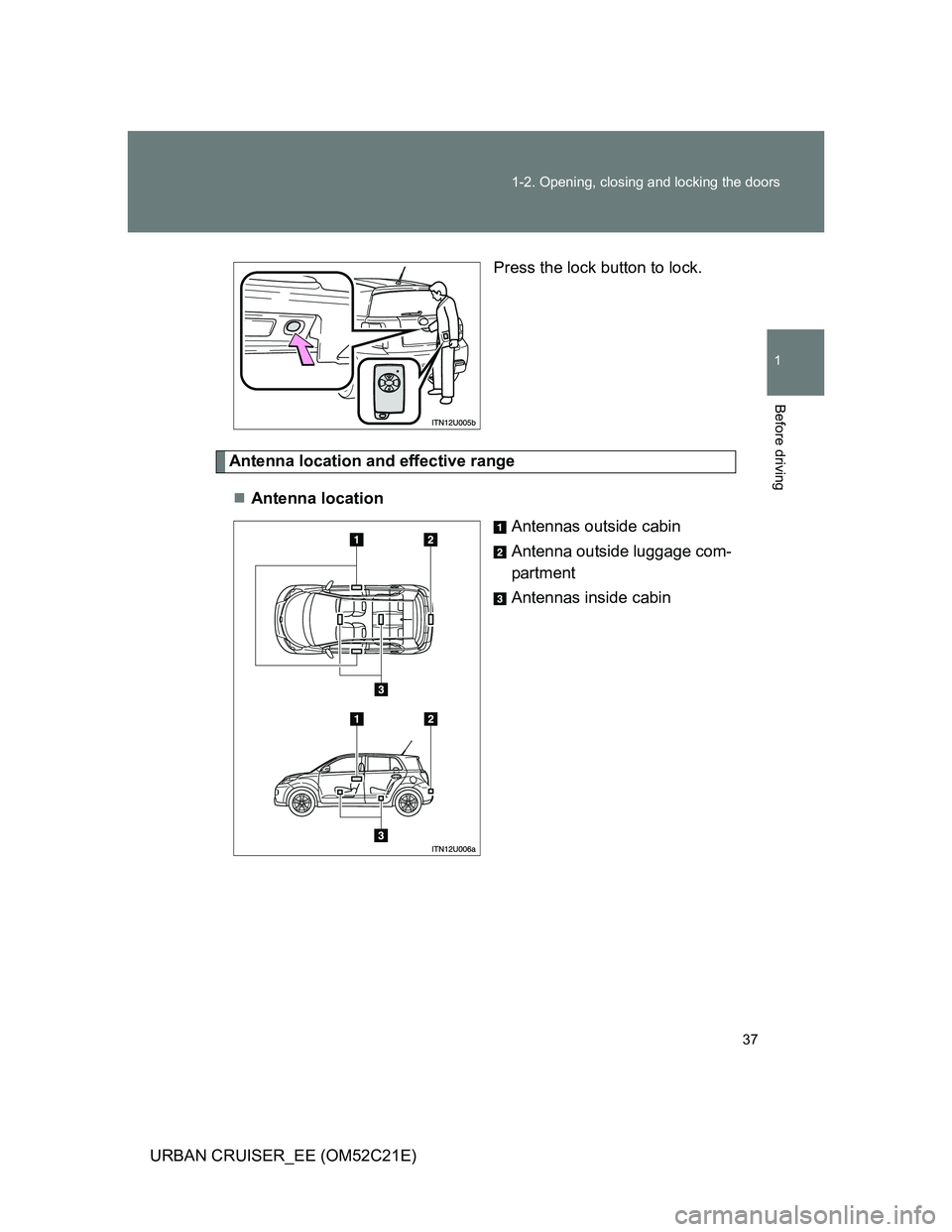

37 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)Press the lock button to lock.
Antenna location and effective range
Antenna location
Antennas outside cabin
Antenna outside luggage com-
partment
Antennas inside cabin

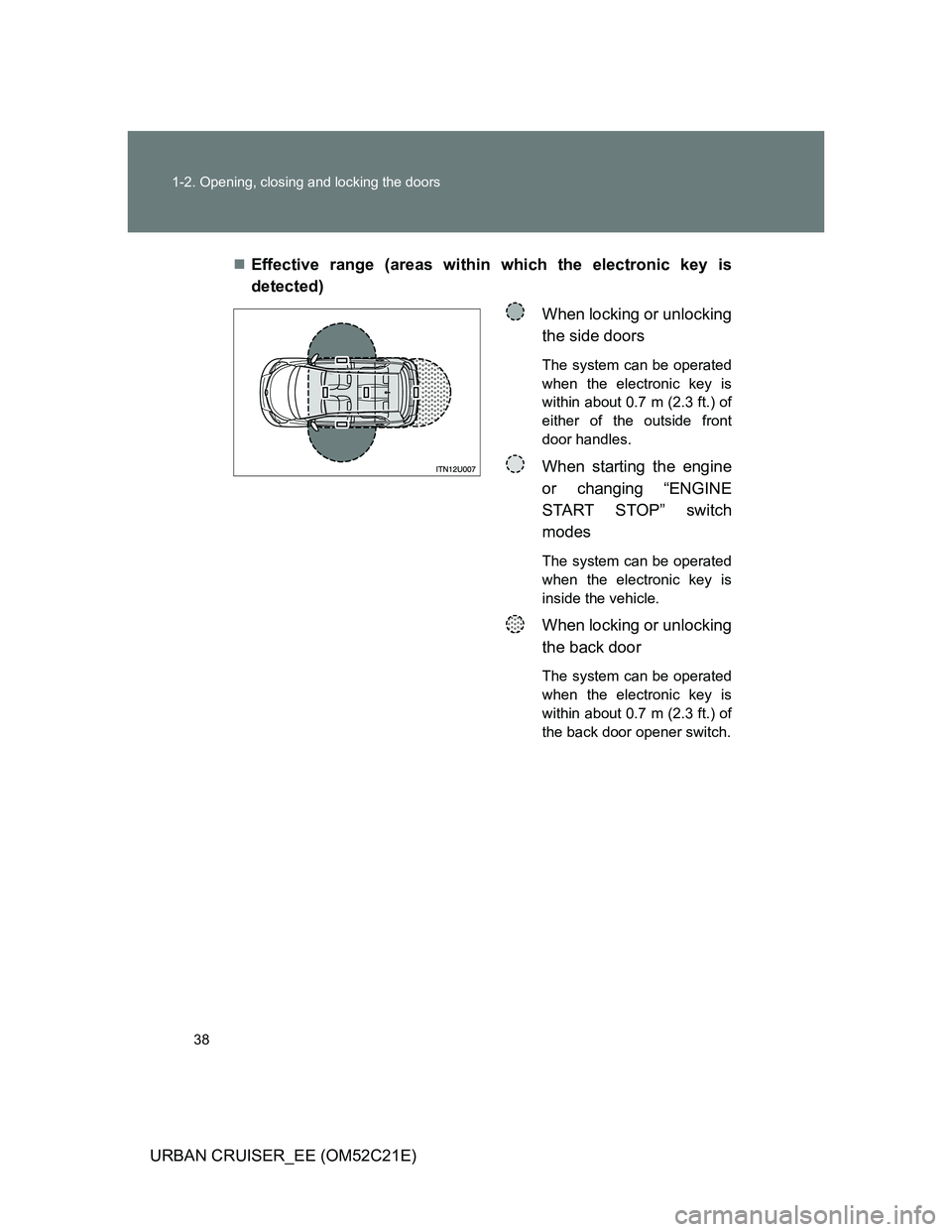

38 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the side doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
either of the outside front
door handles.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When locking or unlocking
the back door
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
the back door opener switch.

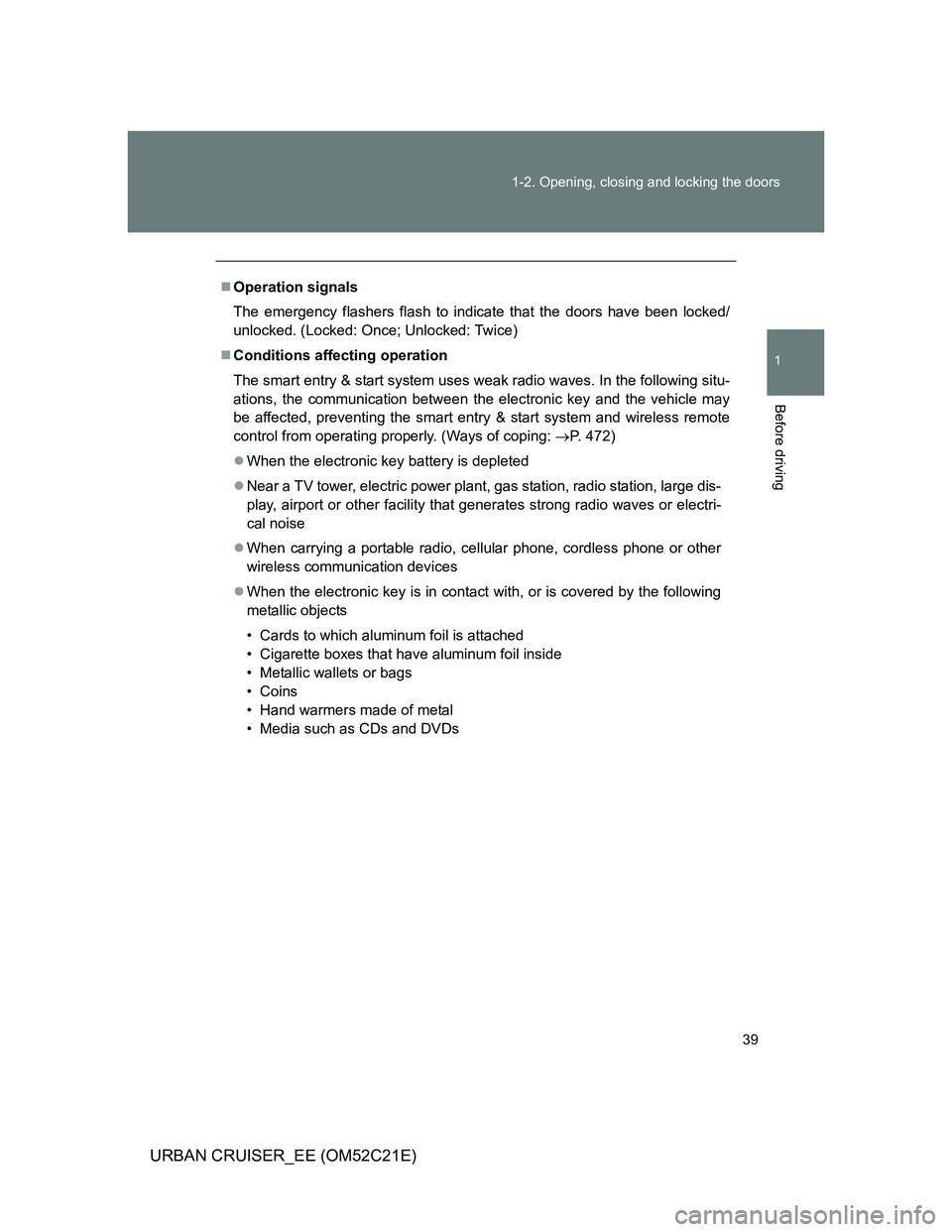

39 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situ-
ations, the communication between the electronic key and the vehicle may
be affected, preventing the smart entry & start system and wireless remote
control from operating properly. (Ways of coping: P. 472)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

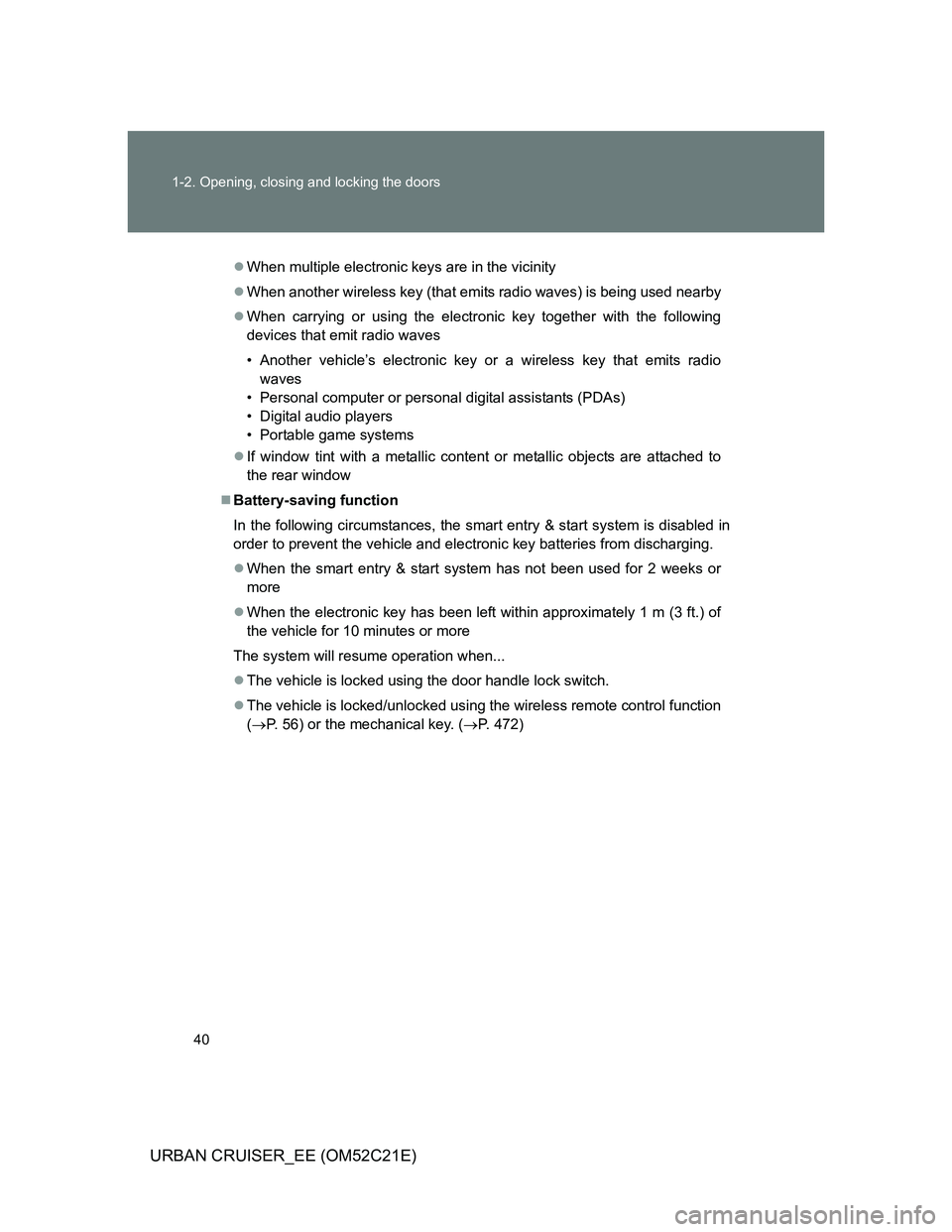

40 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
When multiple electronic keys are in the vicinity
When another wireless key (that emits radio waves) is being used nearby
When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio
waves
• Personal computer or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to
the rear window
Battery-saving function
In the following circumstances, the smart entry & start system is disabled in
order to prevent the vehicle and electronic key batteries from discharging.
When the smart entry & start system has not been used for 2 weeks or
more
When the electronic key has been left within approximately 1 m (3 ft.) of
the vehicle for 10 minutes or more
The system will resume operation when...
The vehicle is locked using the door handle lock switch.
The vehicle is locked/unlocked using the wireless remote control function
(P. 56) or the mechanical key. (P. 472)
