TOYOTA URBAN CRUISER 2011 Owners Manual

511

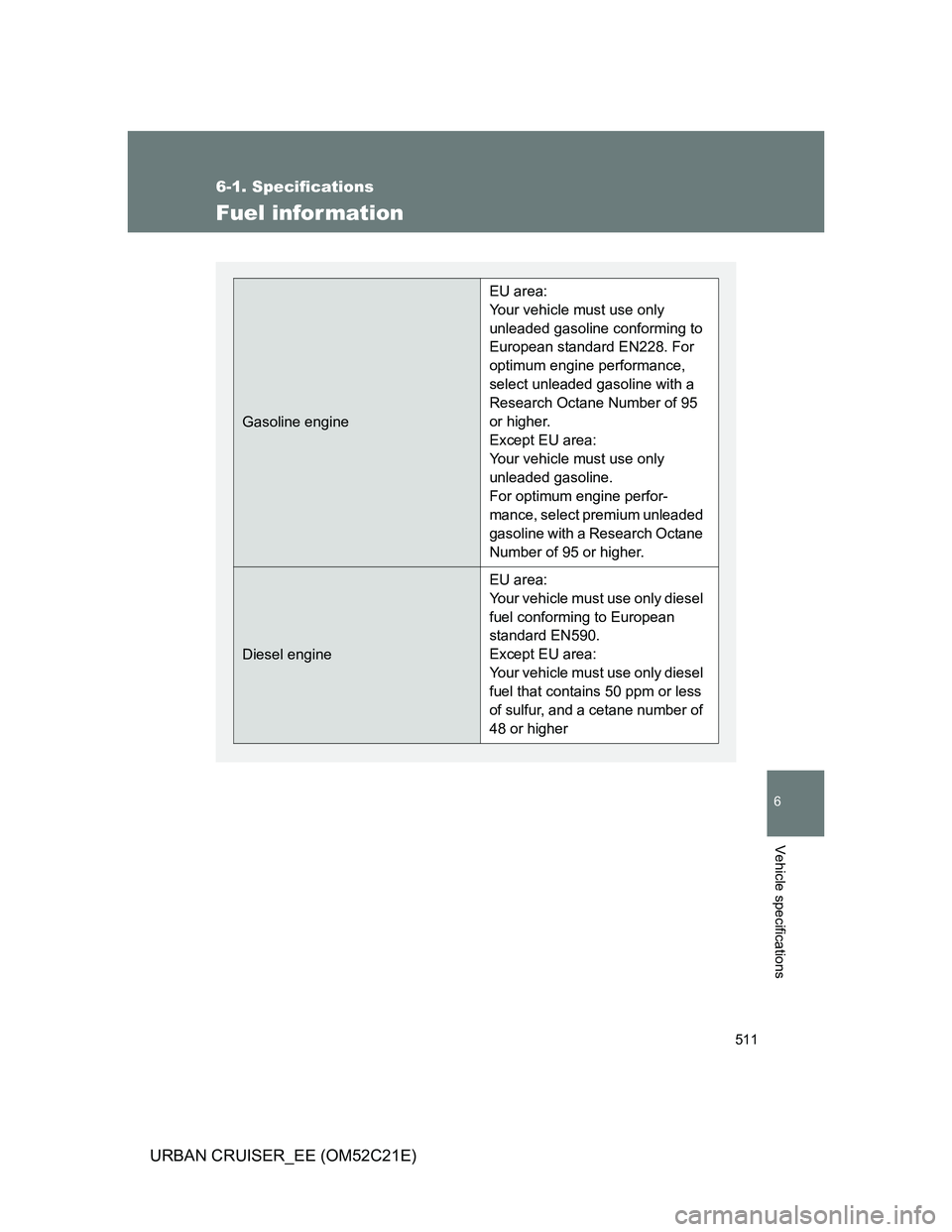

6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline.
For optimum engine perfor-
mance, select premium unleaded
gasoline with a Research Octane
Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur, and a cetane number of
48 or higher

512 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.

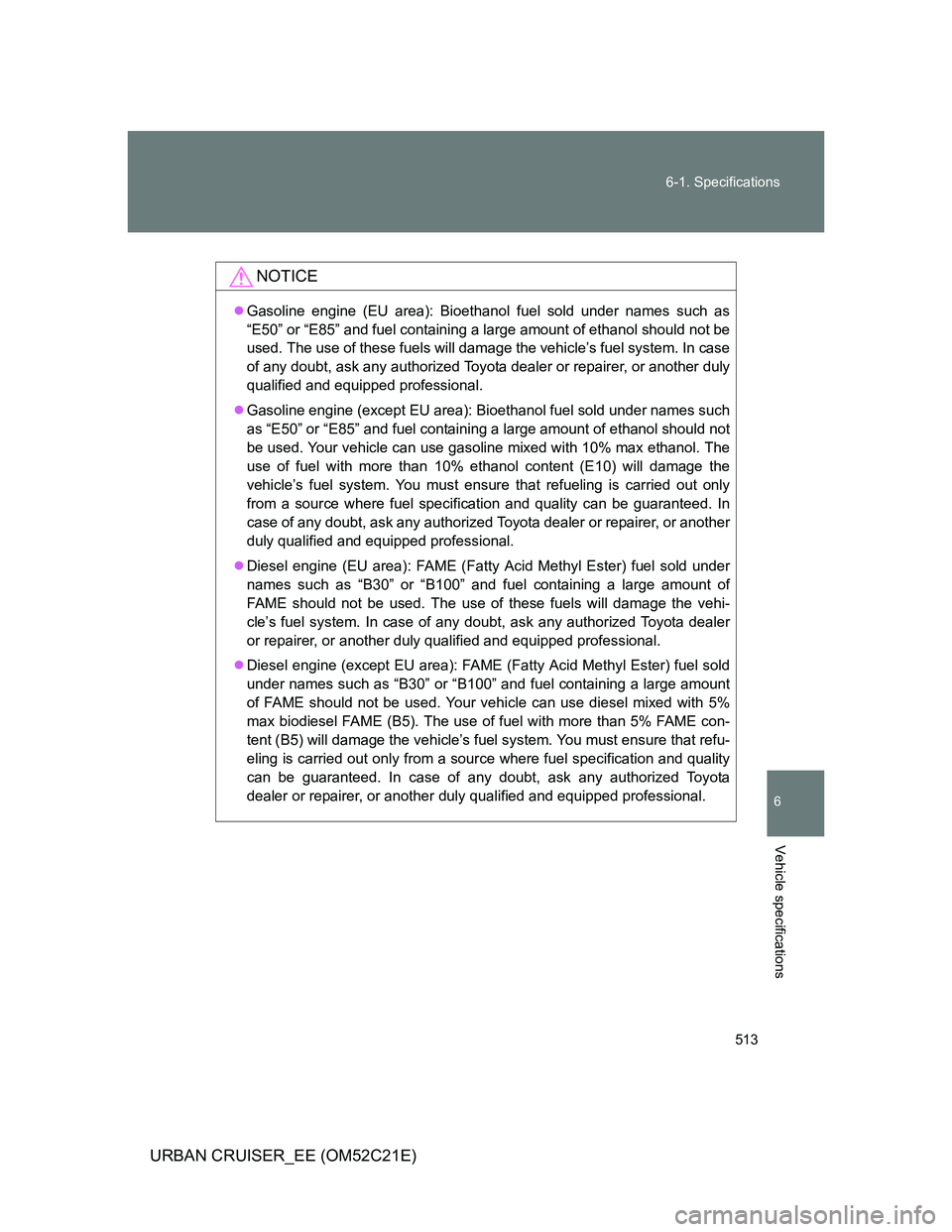

513 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
NOTICE
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

514
URBAN CRUISER_EE (OM52C21E)

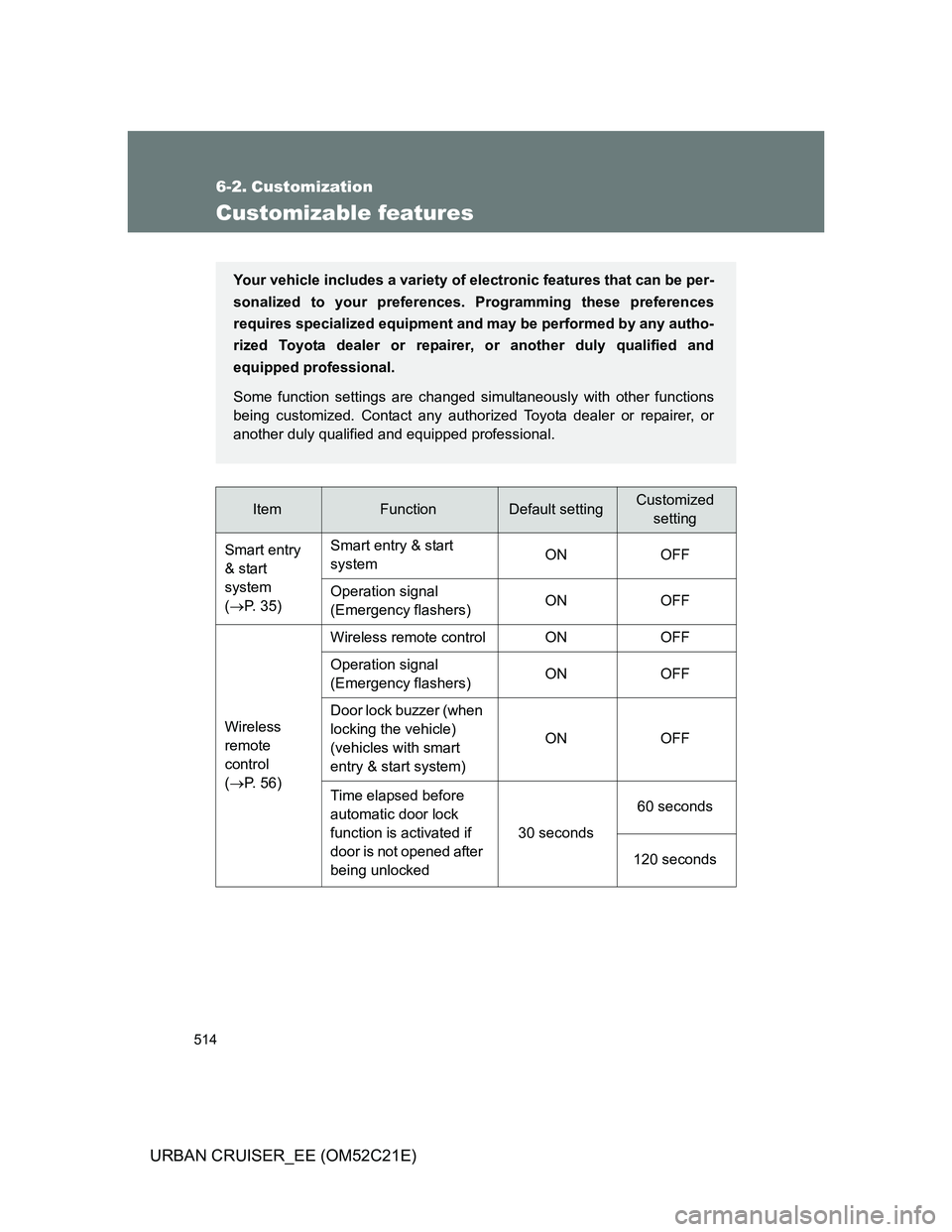

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart entry
& start
system
(P. 35)Smart entry & start
systemON OFF
Operation signal
(Emergency flashers)ON OFF
Wireless
remote
control
(P. 56)Wireless remote control ON OFF
Operation signal
(Emergency flashers)ON OFF
Door lock buzzer (when
locking the vehicle)
(vehicles with smart
entry & start system)ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

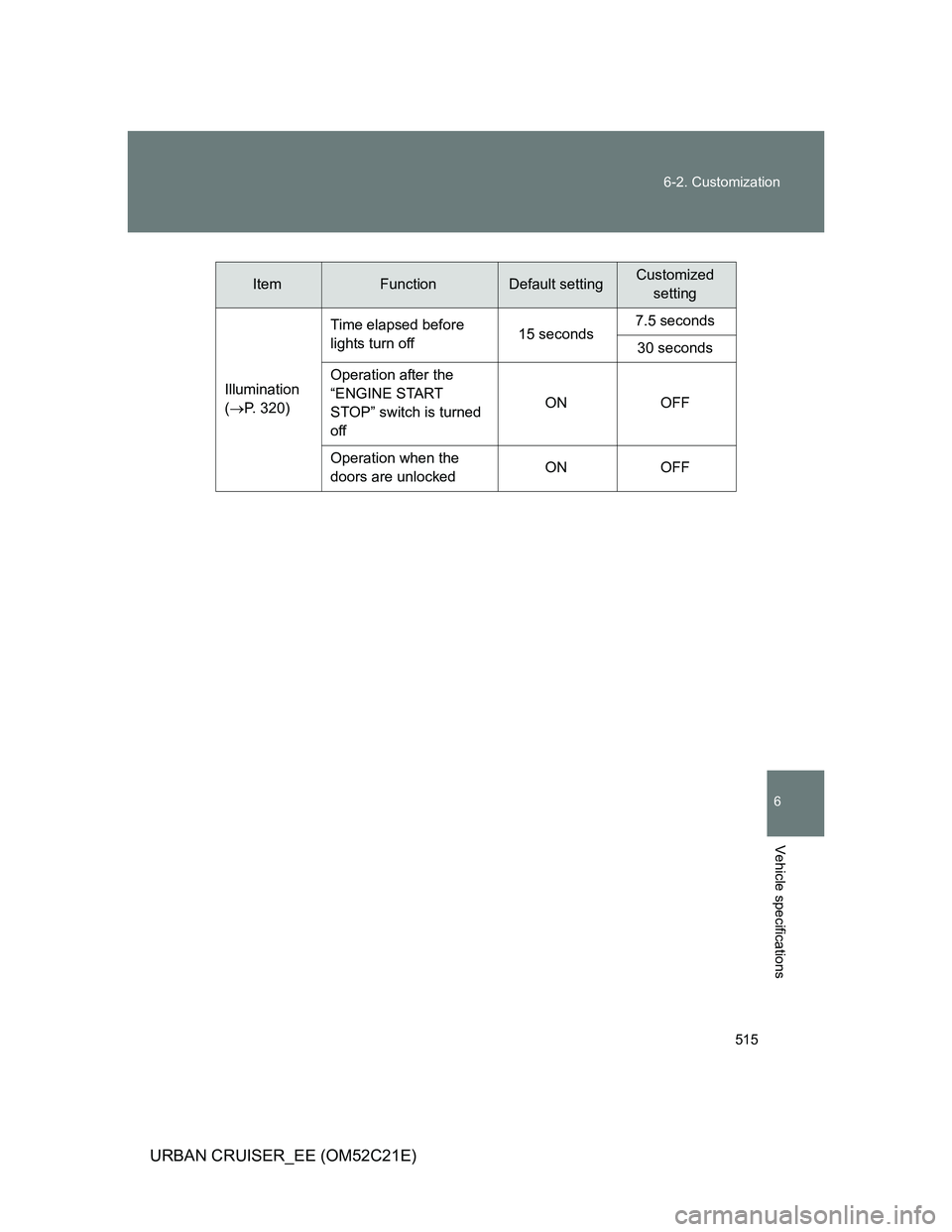

515 6-2. Customization
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
ItemFunctionDefault settingCustomized
setting
Illumination
(P. 320)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation after the
“ENGINE START
STOP” switch is turned
offON OFF
Operation when the
doors are unlockedON OFF

516
URBAN CRUISER_EE (OM52C21E)

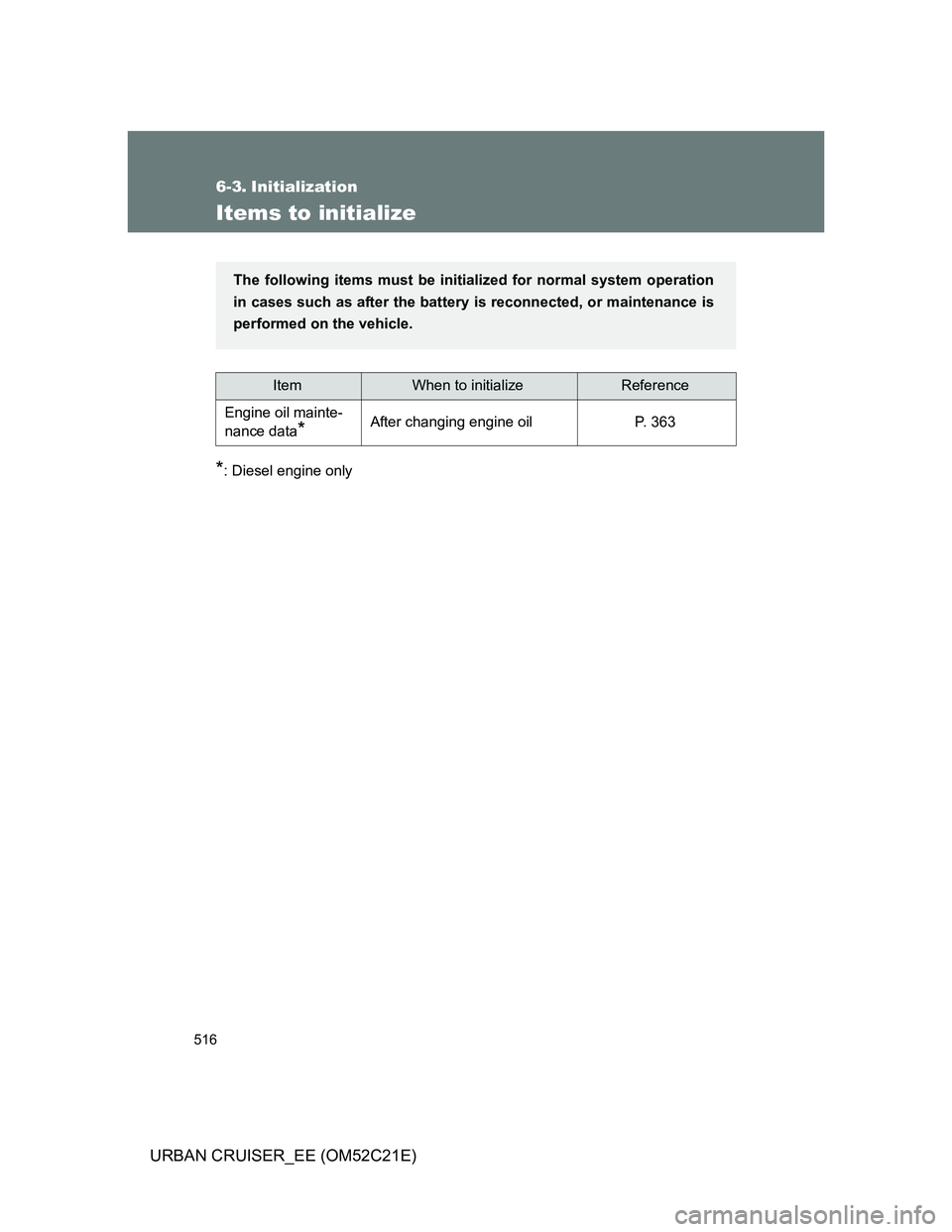

6-3. Initialization
Items to initialize
*: Diesel engine only
ItemWhen to initializeReference
Engine oil mainte-
nance data
*After changing engine oil P. 363
The following items must be initialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

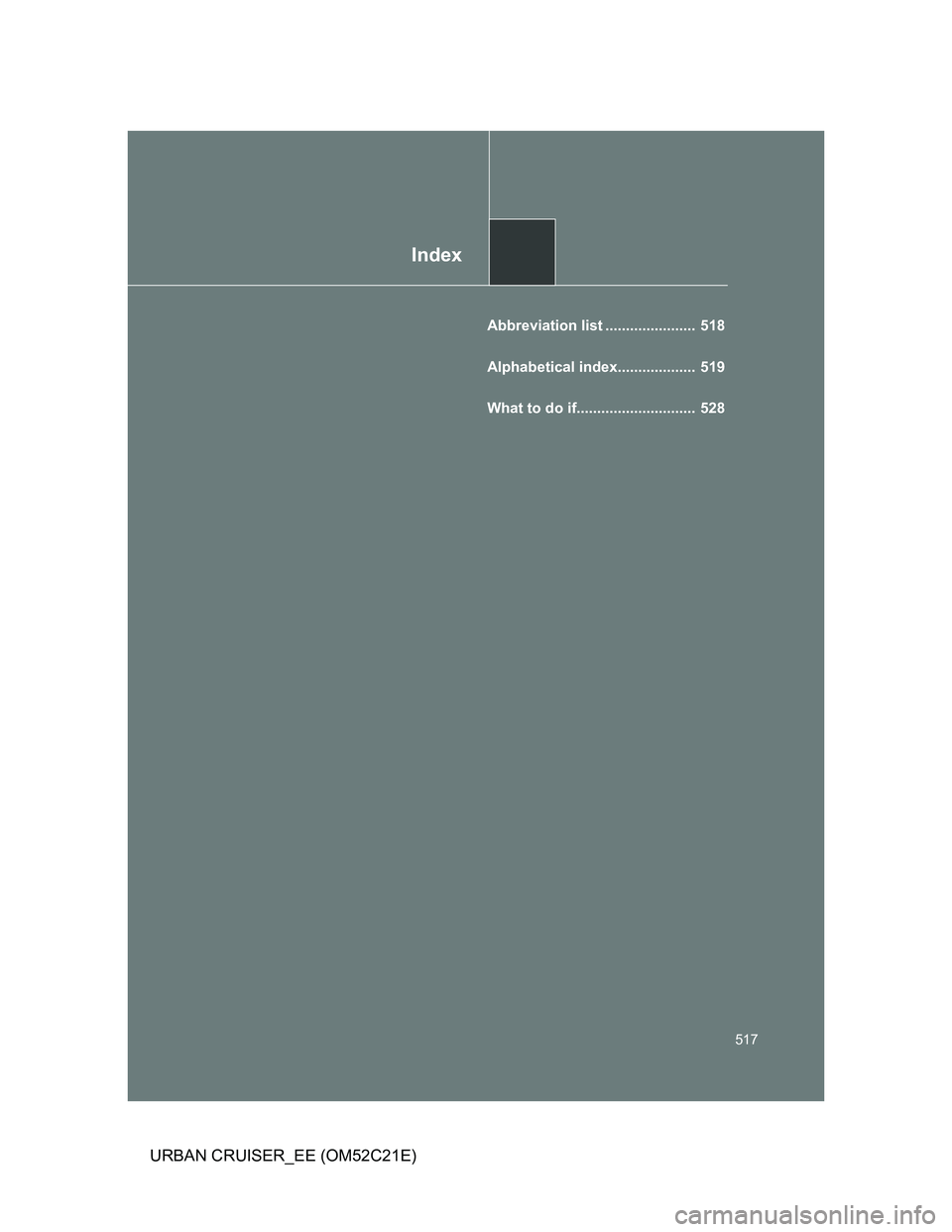

Index
517
URBAN CRUISER_EE (OM52C21E)
Abbreviation list ...................... 518
Alphabetical index................... 519
What to do if............................. 528

518
URBAN CRUISER_EE (OM52C21E)

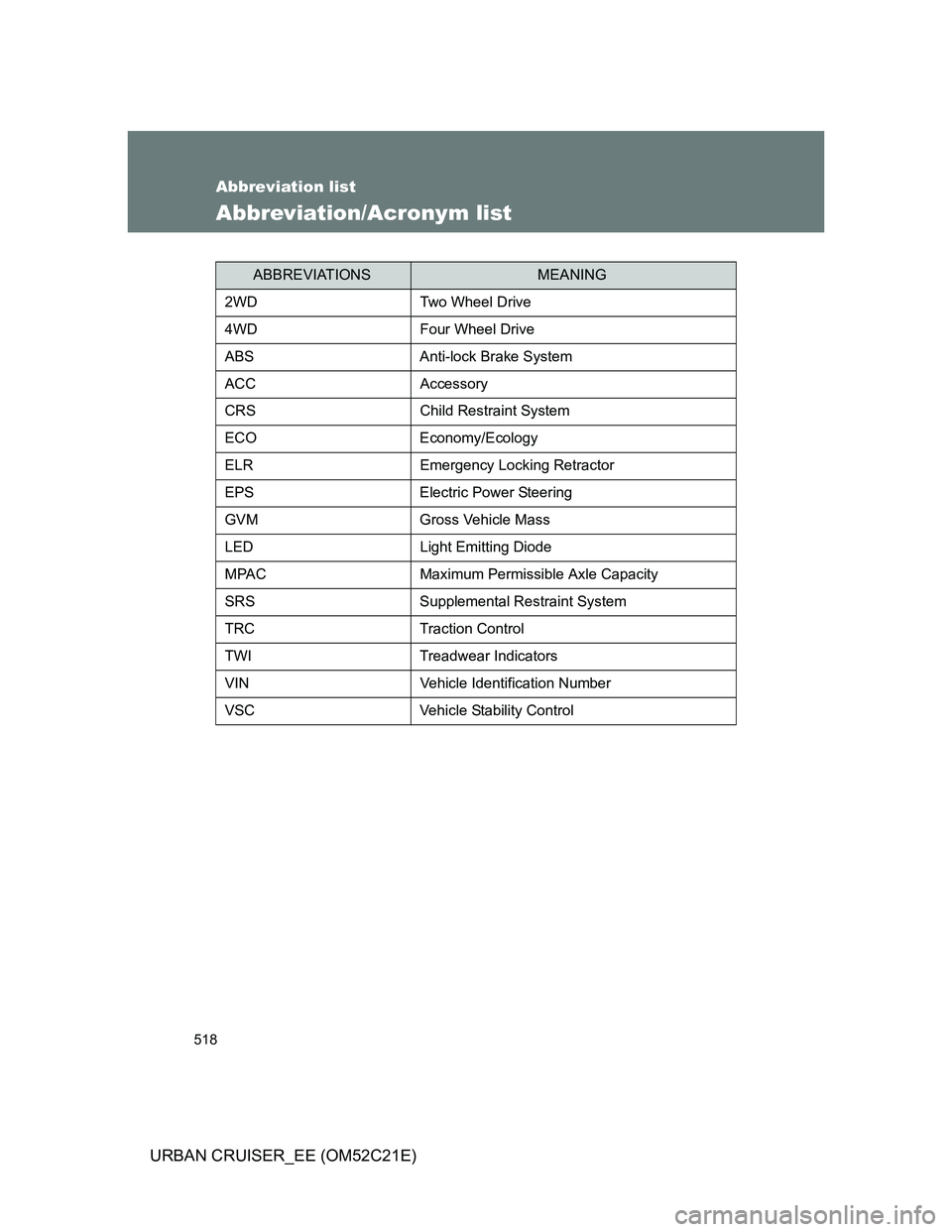

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WD Two Wheel Drive
4WD Four Wheel Drive
ABS Anti-lock Brake System
ACC Accessory
CRS Child Restraint System
ECO Economy/Ecology
ELR Emergency Locking Retractor
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
MPAC Maximum Permissible Axle Capacity
SRS Supplemental Restraint System
TRC Traction Control
TWI Treadwear Indicators
VIN Vehicle Identification Number
VSC Vehicle Stability Control

519
URBAN CRUISER_EE (OM52C21E)

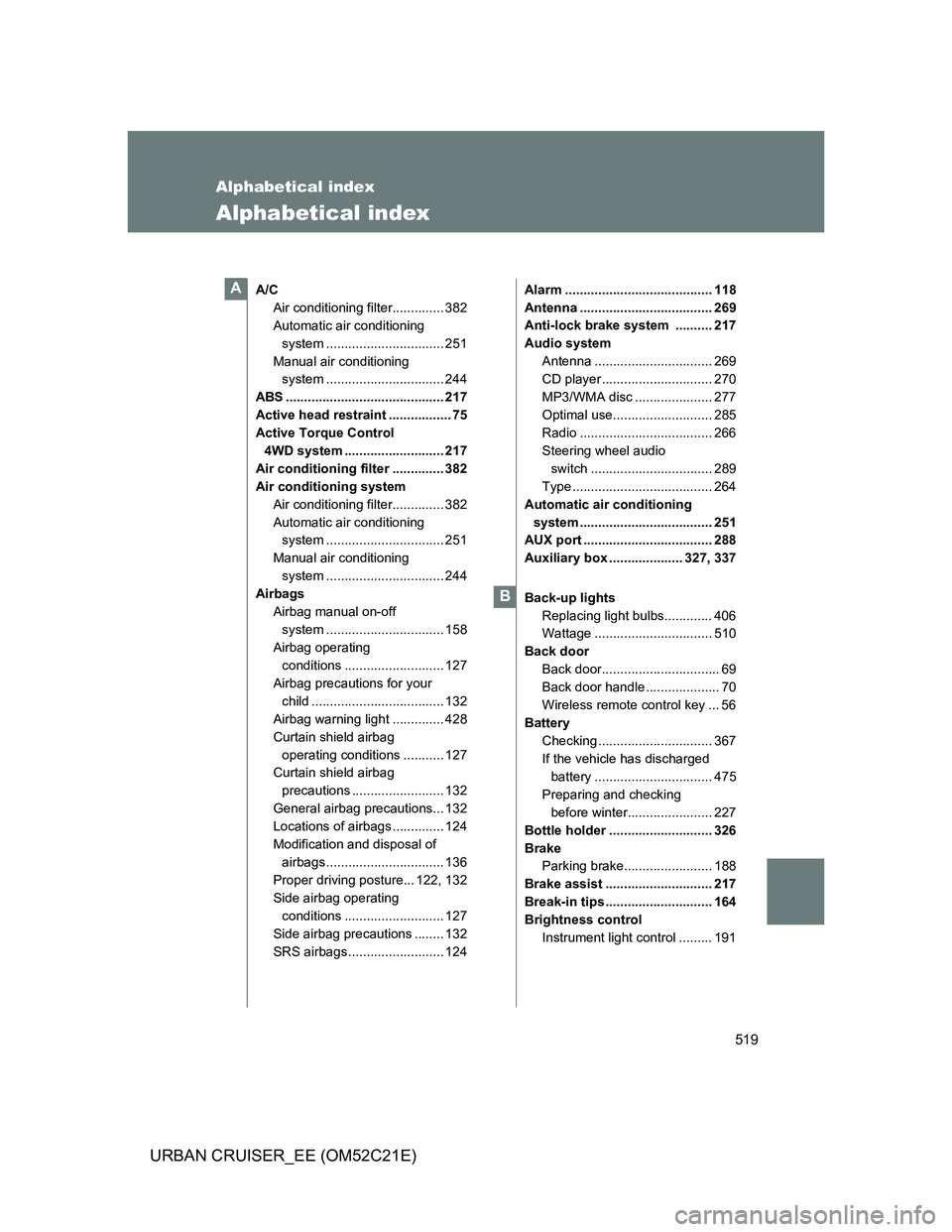

Alphabetical index
Alphabetical index
A/C
Air conditioning filter.............. 382
Automatic air conditioning
system ................................ 251
Manual air conditioning
system ................................ 244
ABS ........................................... 217
Active head restraint ................. 75
Active Torque Control
4WD system ........................... 217
Air conditioning filter .............. 382
Air conditioning system
Air conditioning filter.............. 382
Automatic air conditioning
system ................................ 251
Manual air conditioning
system ................................ 244
Airbags
Airbag manual on-off
system ................................ 158
Airbag operating
conditions ........................... 127
Airbag precautions for your
child .................................... 132
Airbag warning light .............. 428
Curtain shield airbag
operating conditions ........... 127
Curtain shield airbag
precautions ......................... 132
General airbag precautions... 132
Locations of airbags .............. 124
Modification and disposal of
airbags ................................ 136
Proper driving posture... 122, 132
Side airbag operating
conditions ........................... 127
Side airbag precautions ........ 132
SRS airbags .......................... 124Alarm ........................................ 118
Antenna .................................... 269
Anti-lock brake system .......... 217
Audio system
Antenna ................................ 269
CD player .............................. 270
MP3/WMA disc ..................... 277
Optimal use........................... 285
Radio .................................... 266
Steering wheel audio
switch ................................. 289
Type ...................................... 264
Automatic air conditioning
system .................................... 251
AUX port ................................... 288
Auxiliary box .................... 327, 337
Back-up lights
Replacing light bulbs............. 406
Wattage ................................ 510
Back door
Back door................................ 69
Back door handle .................... 70
Wireless remote control key ... 56
Battery
Checking ............................... 367
If the vehicle has discharged
battery ................................ 475
Preparing and checking
before winter....................... 227
Bottle holder ............................ 326
Brake
Parking brake........................ 188
Brake assist ............................. 217
Break-in tips ............................. 164
Brightness control
Instrument light control ......... 191A
B

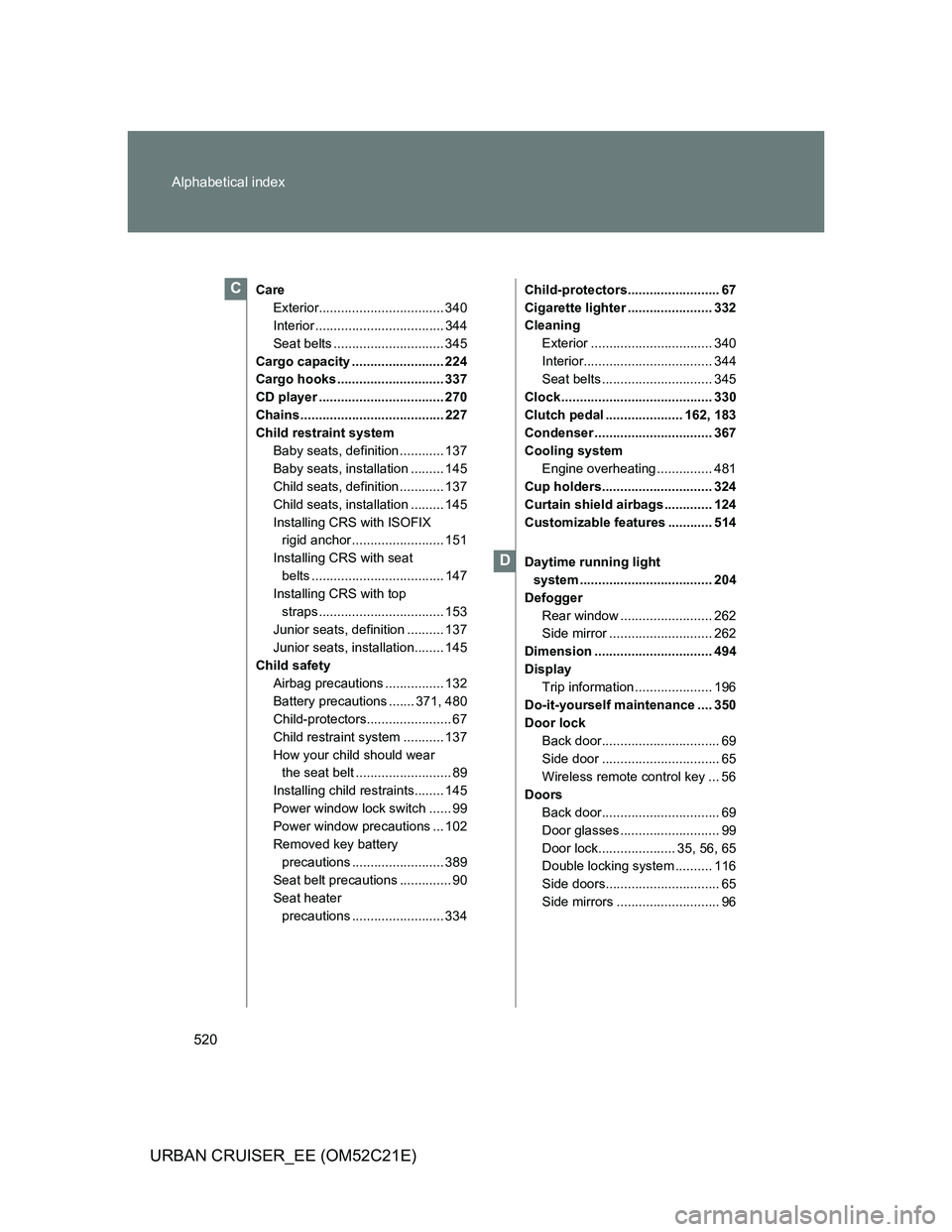

520 Alphabetical index
URBAN CRUISER_EE (OM52C21E)
Care
Exterior.................................. 340
Interior ................................... 344
Seat belts .............................. 345
Cargo capacity ......................... 224
Cargo hooks ............................. 337
CD player .................................. 270
Chains ....................................... 227
Child restraint system
Baby seats, definition ............ 137
Baby seats, installation ......... 145
Child seats, definition ............ 137
Child seats, installation ......... 145
Installing CRS with ISOFIX
rigid anchor ......................... 151
Installing CRS with seat
belts .................................... 147
Installing CRS with top
straps .................................. 153
Junior seats, definition .......... 137
Junior seats, installation........ 145
Child safety
Airbag precautions ................ 132
Battery precautions ....... 371, 480
Child-protectors....................... 67
Child restraint system ........... 137
How your child should wear
the seat belt .......................... 89
Installing child restraints........ 145
Power window lock switch ...... 99
Power window precautions ... 102
Removed key battery
precautions ......................... 389
Seat belt precautions .............. 90
Seat heater
precautions ......................... 334Child-protectors......................... 67
Cigarette lighter ....................... 332
Cleaning
Exterior ................................. 340
Interior................................... 344
Seat belts .............................. 345
Clock ......................................... 330
Clutch pedal ..................... 162, 183
Condenser ................................ 367
Cooling system
Engine overheating ............... 481
Cup holders.............................. 324
Curtain shield airbags ............. 124
Customizable features ............ 514
Daytime running light
system .................................... 204
Defogger
Rear window ......................... 262
Side mirror ............................ 262
Dimension ................................ 494
Display
Trip information ..................... 196
Do-it-yourself maintenance .... 350
Door lock
Back door................................ 69
Side door ................................ 65
Wireless remote control key ... 56
Doors
Back door................................ 69
Door glasses ........................... 99
Door lock..................... 35, 56, 65
Double locking system .......... 116
Side doors............................... 65
Side mirrors ............................ 96C
D
