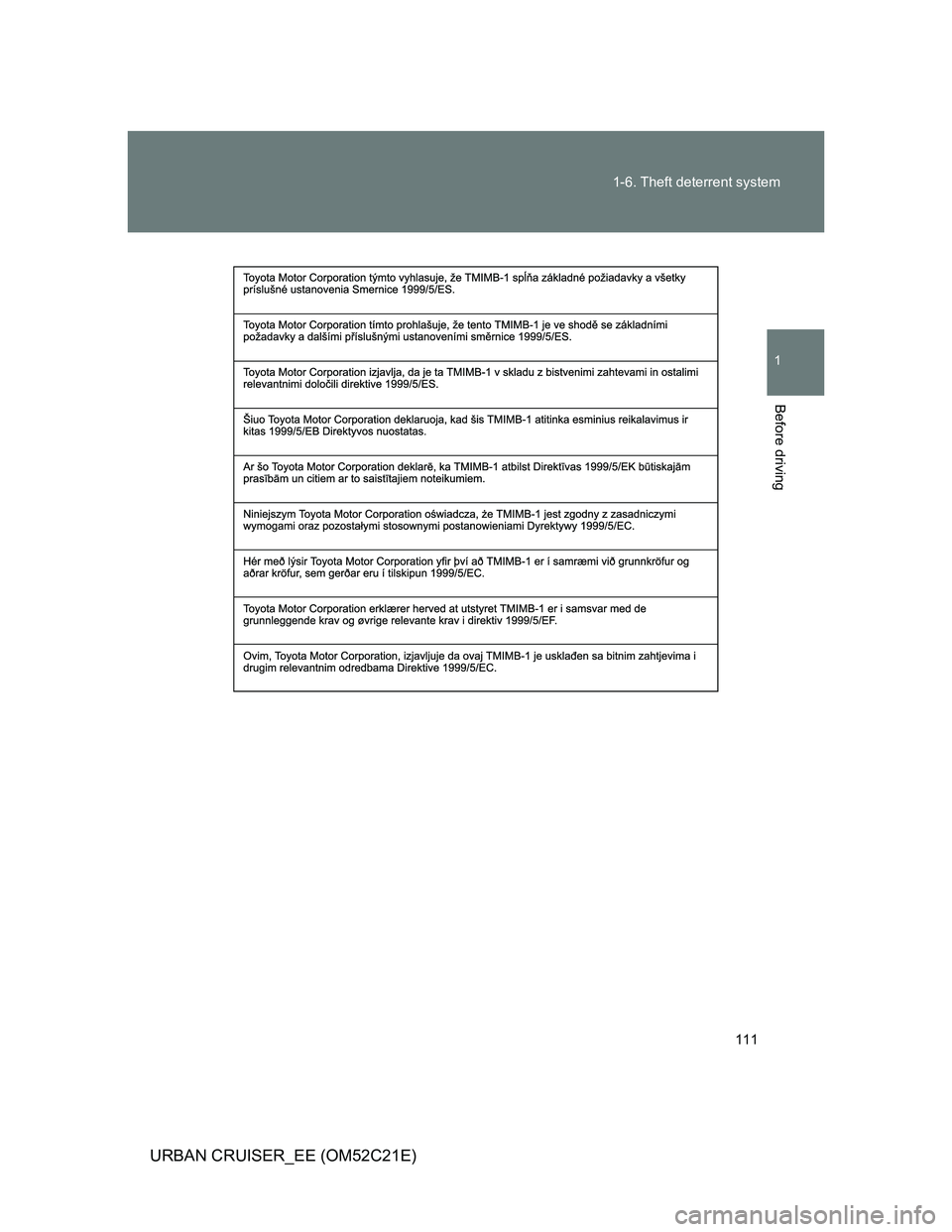

111 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

112 1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

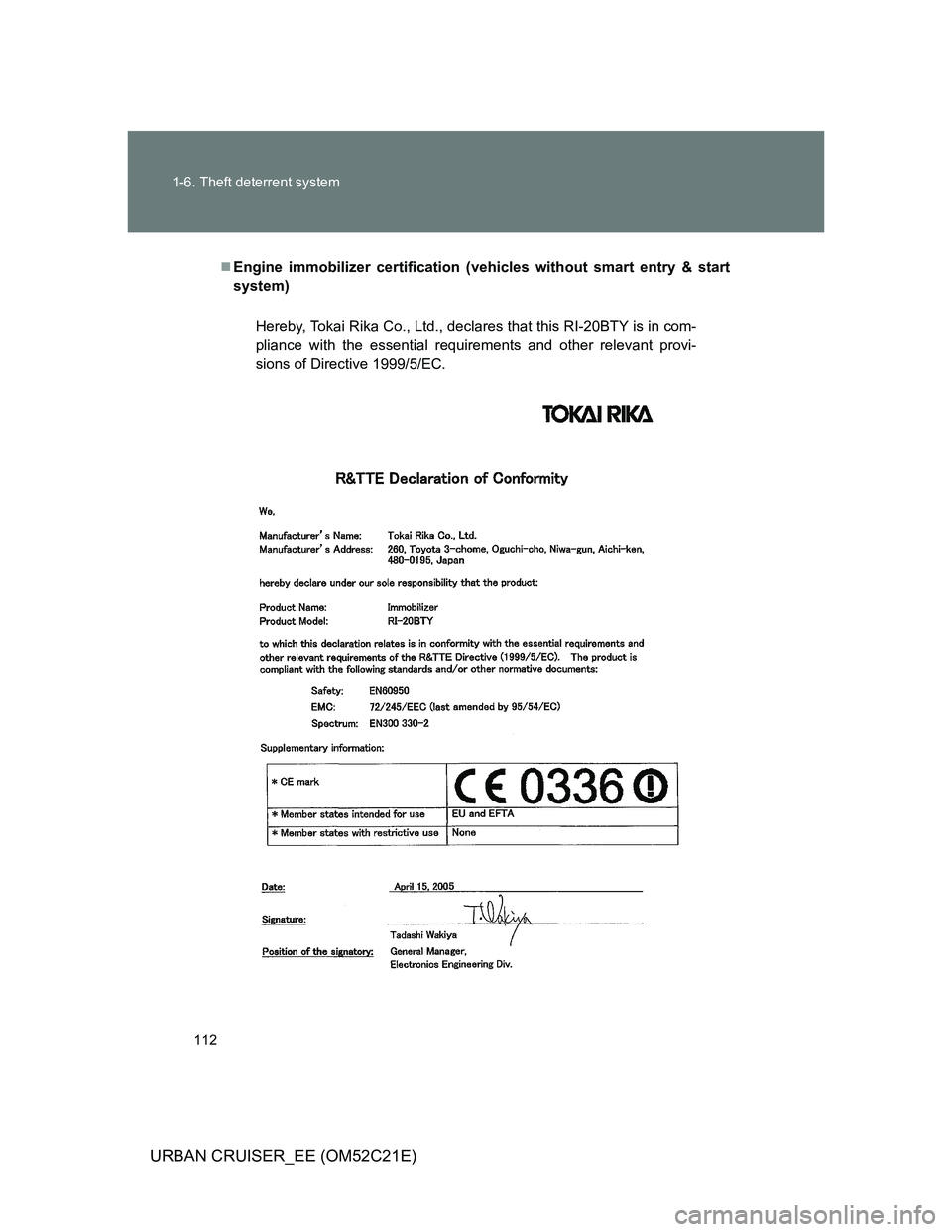

Engine immobilizer certification (vehicles without smart entry & start
system)
Hereby, Tokai Rika Co., Ltd., declares that this RI-20BTY is in com-
pliance with the essential requirements and other relevant provi-
sions of Directive 1999/5/EC.

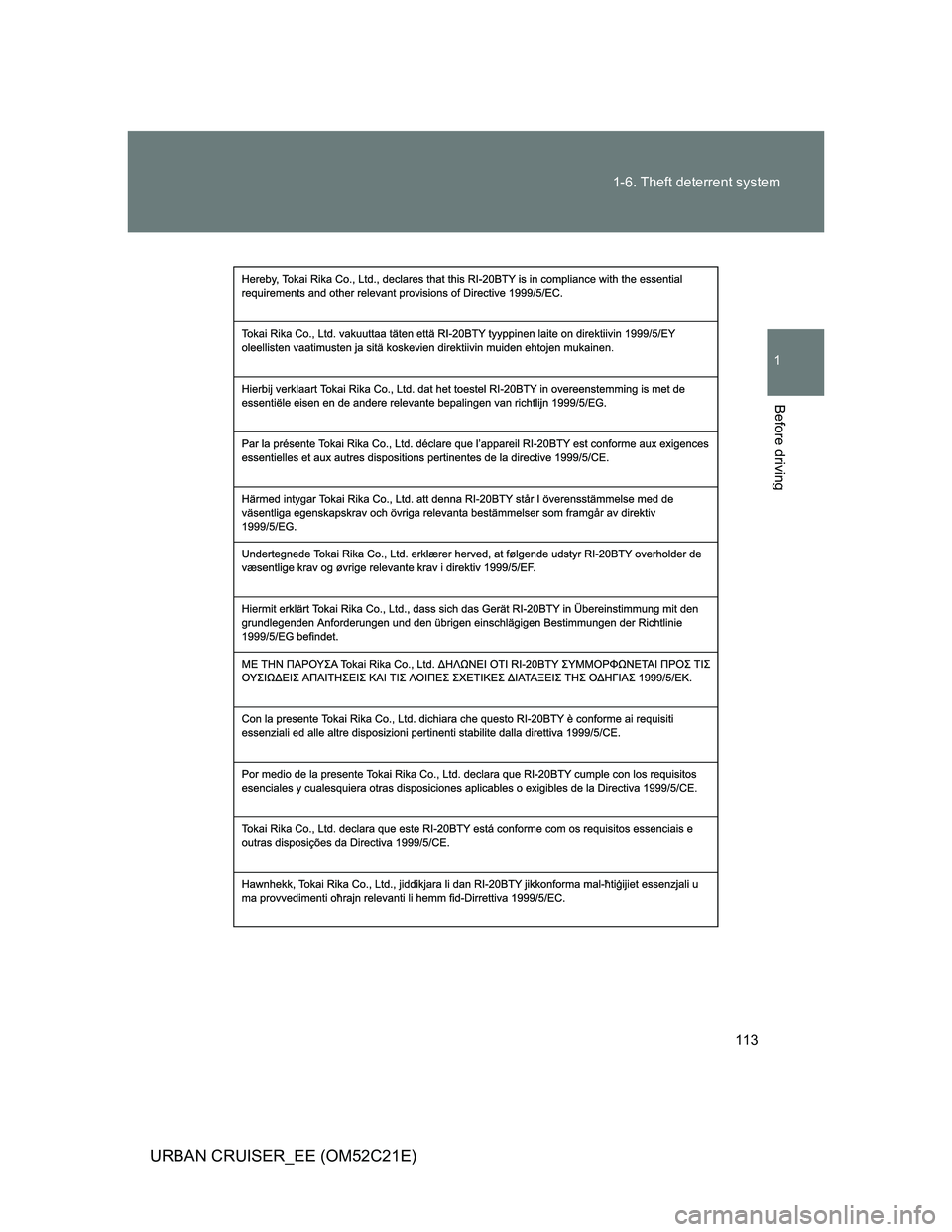

113 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

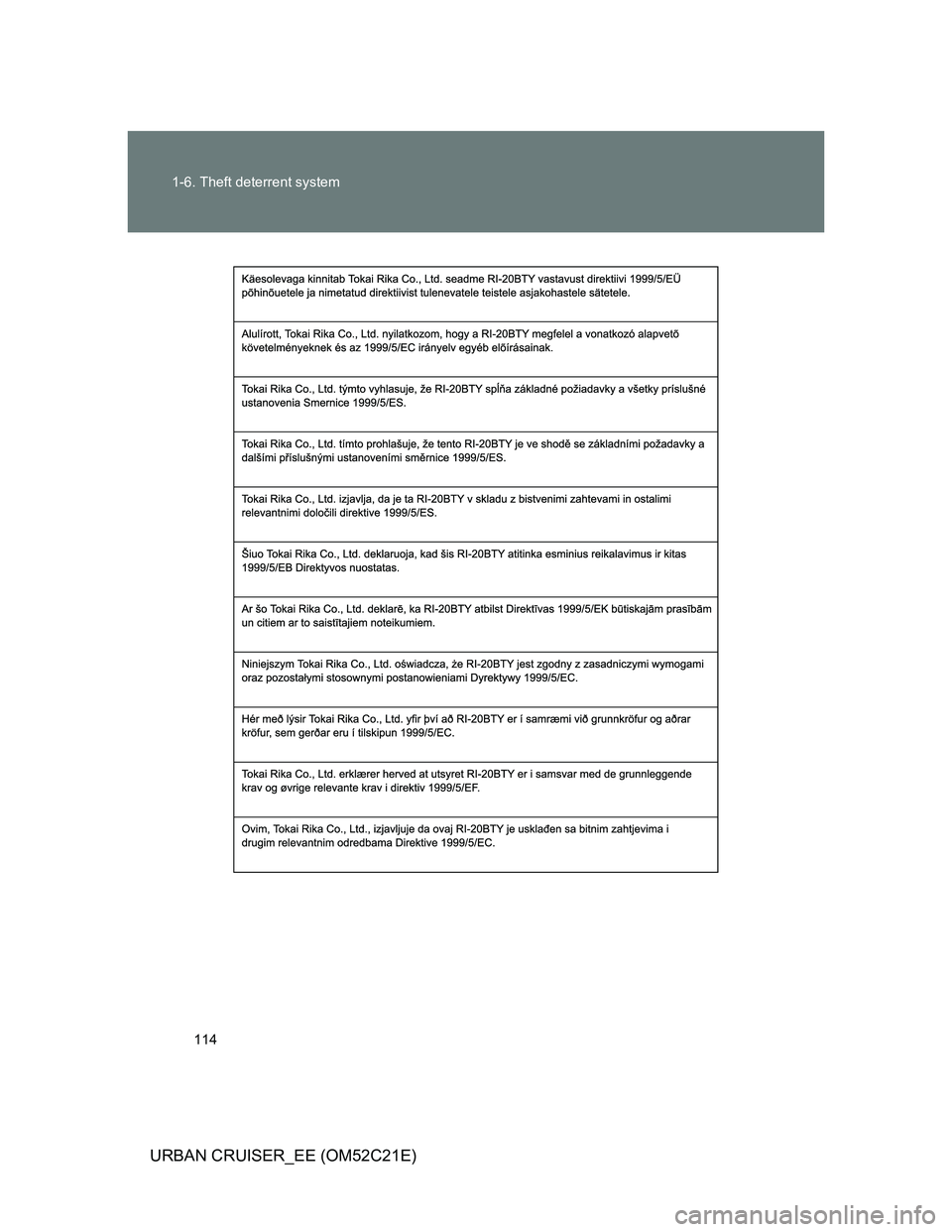

114 1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

115 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

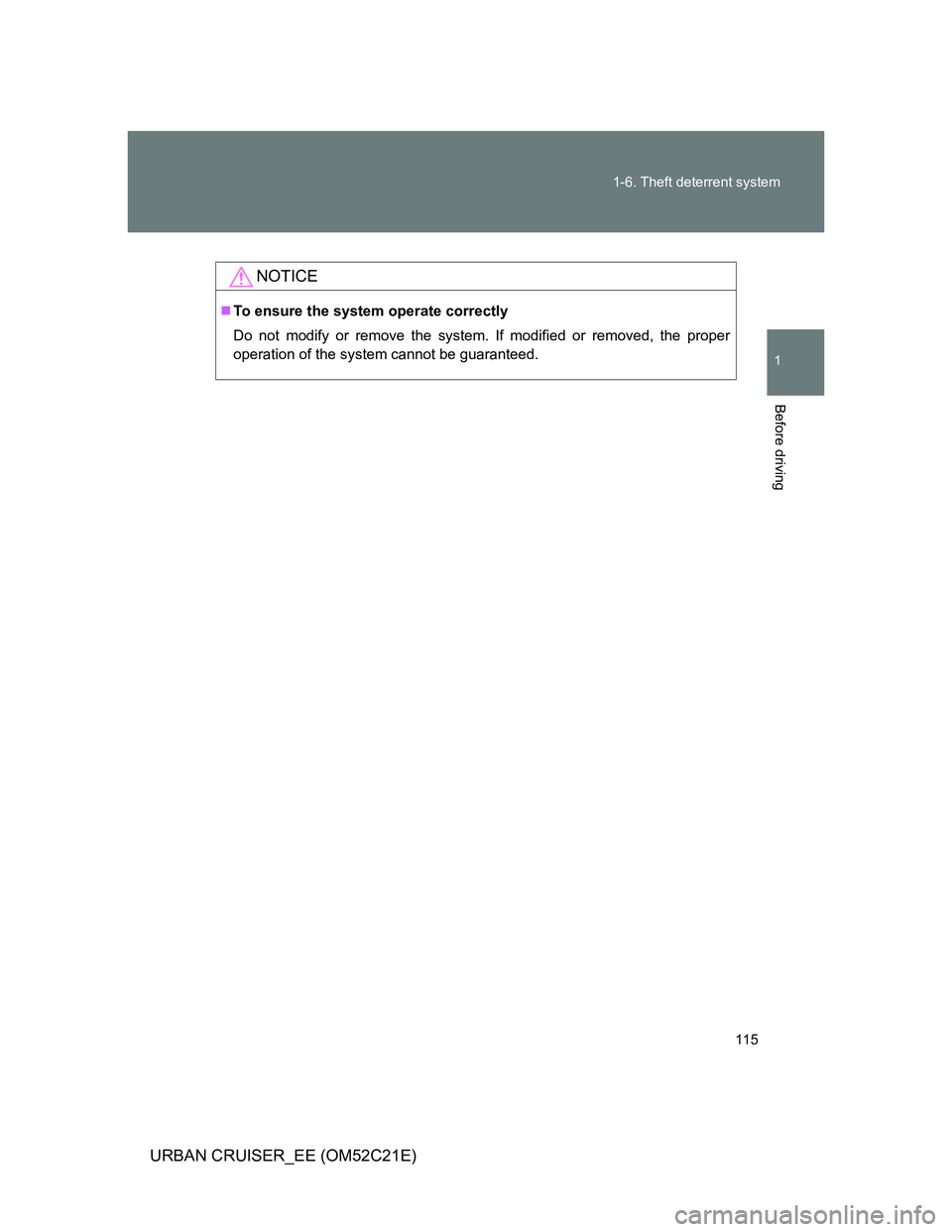

NOTICE
To ensure the system operate correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

116
1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)
Double locking system
Setting the system
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position, have all passengers
exit the vehicle and ensure that all the doors are closed.
Press the button twice within 5 seconds.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the smart entry & start system:
Press the lock button on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press the
button twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front doors.

117 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

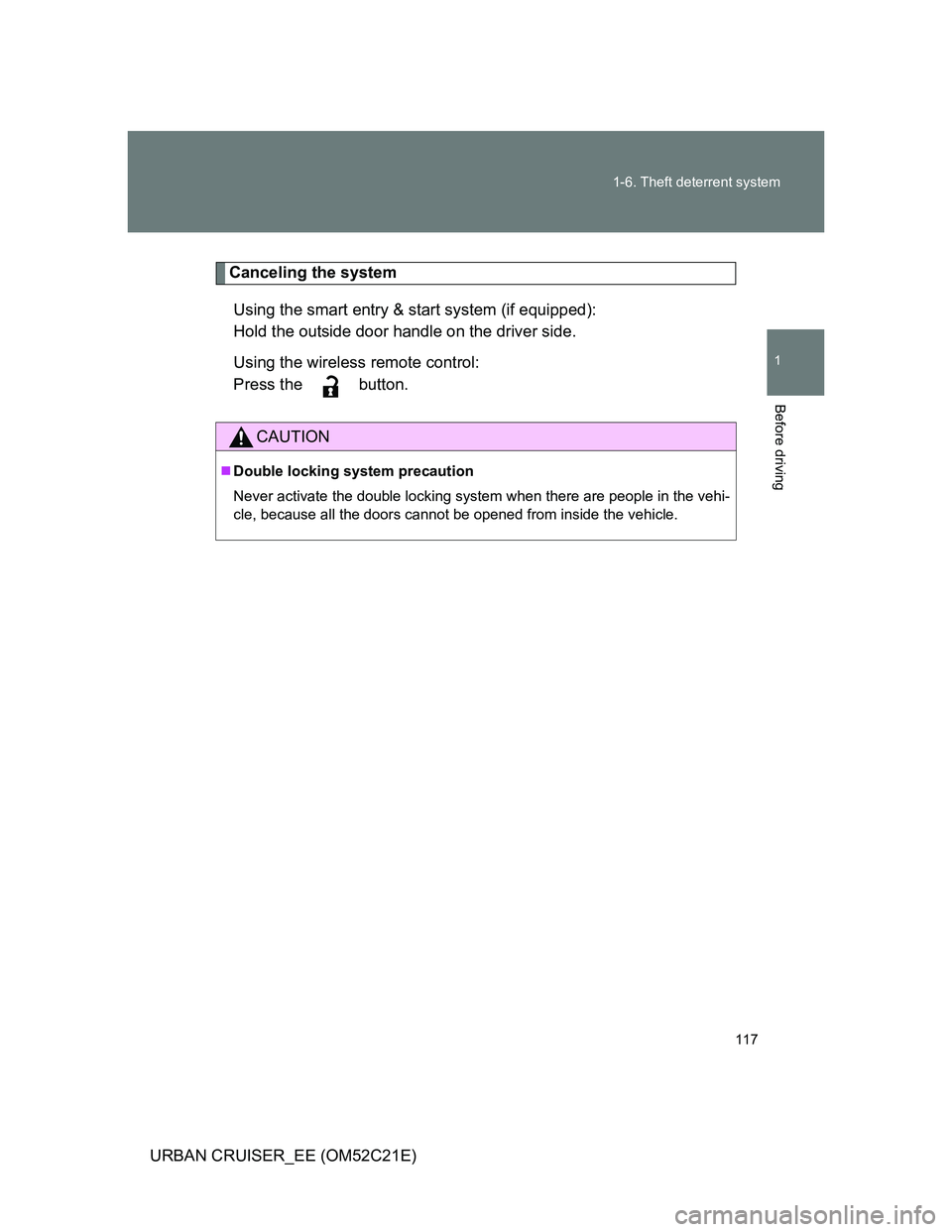

Canceling the system
Using the smart entry & start system (if equipped):
Hold the outside door handle on the driver side.
Using the wireless remote control:
Press the
button.
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

118
1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

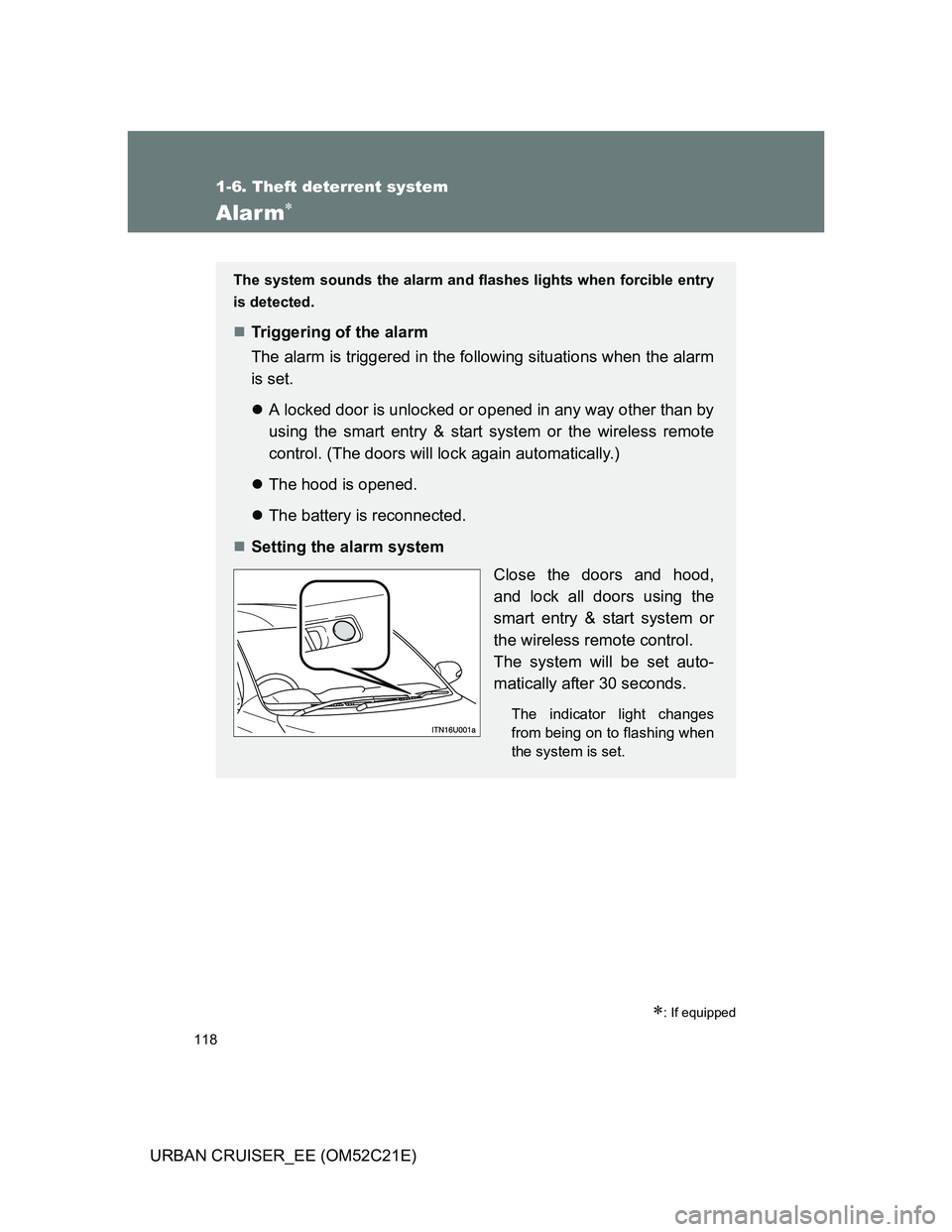

Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
A locked door is unlocked or opened in any way other than by
using the smart entry & start system or the wireless remote
control. (The doors will lock again automatically.)
The hood is opened.
The battery is reconnected.
Setting the alarm system
Close the doors and hood,
and lock all doors using the
smart entry & start system or
the wireless remote control.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing when
the system is set.

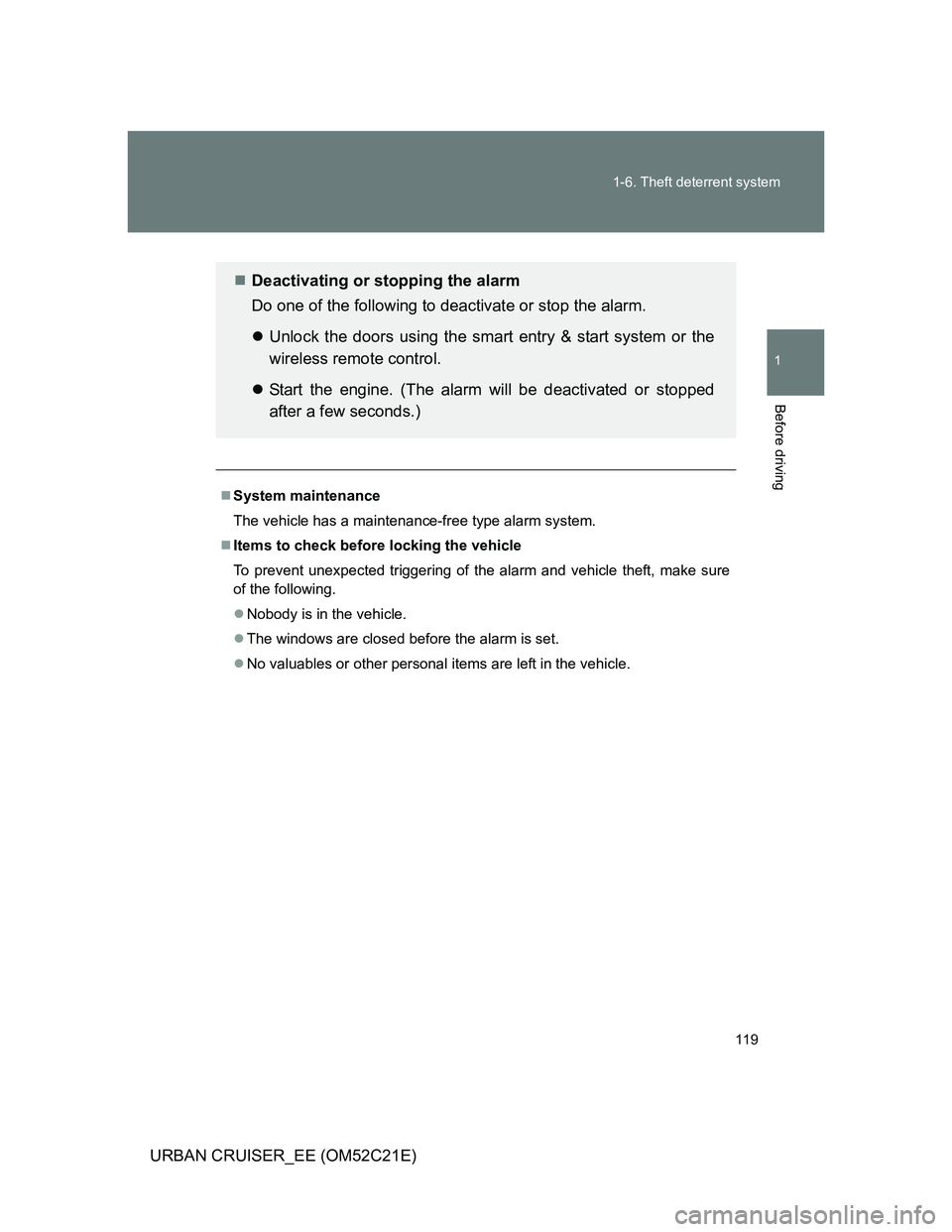

119 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors using the smart entry & start system or the
wireless remote control.
Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)

120 1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

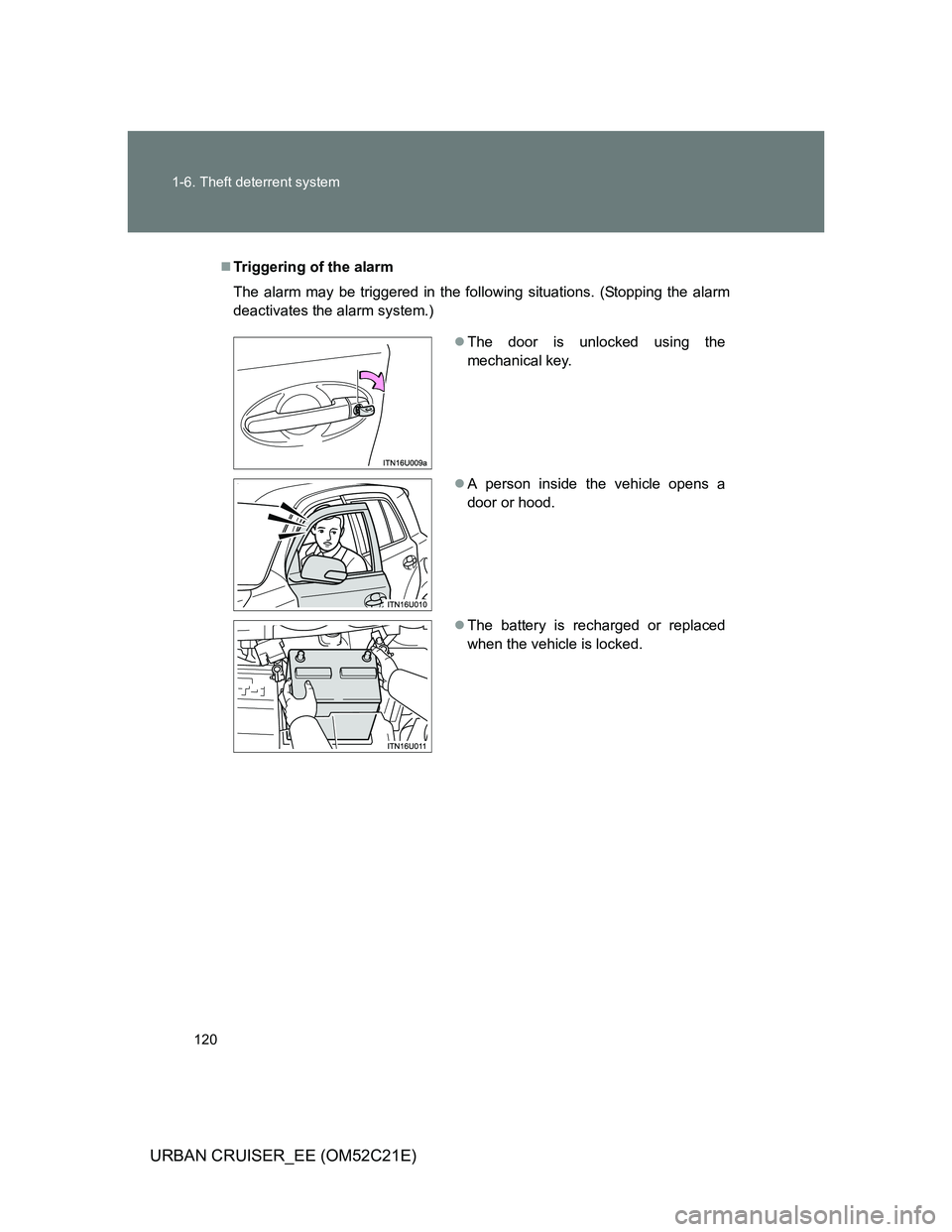

Triggering of the alarm
The alarm may be triggered in the following situations. (Stopping the alarm
deactivates the alarm system.)
The door is unlocked using the
mechanical key.
A person inside the vehicle opens a
door or hood.
The battery is recharged or replaced
when the vehicle is locked.
