TOYOTA URBAN CRUISER 2012 Owners Manual

191 2-2. Instrument cluster
2
When driving
URBAN CRUISER_EE (OM52C21E)
Instrument cluster light control
To adjust the brightness of the instrument cluster lights, push the
switch.
Darker
Brighter
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
P. 481)

192
2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)

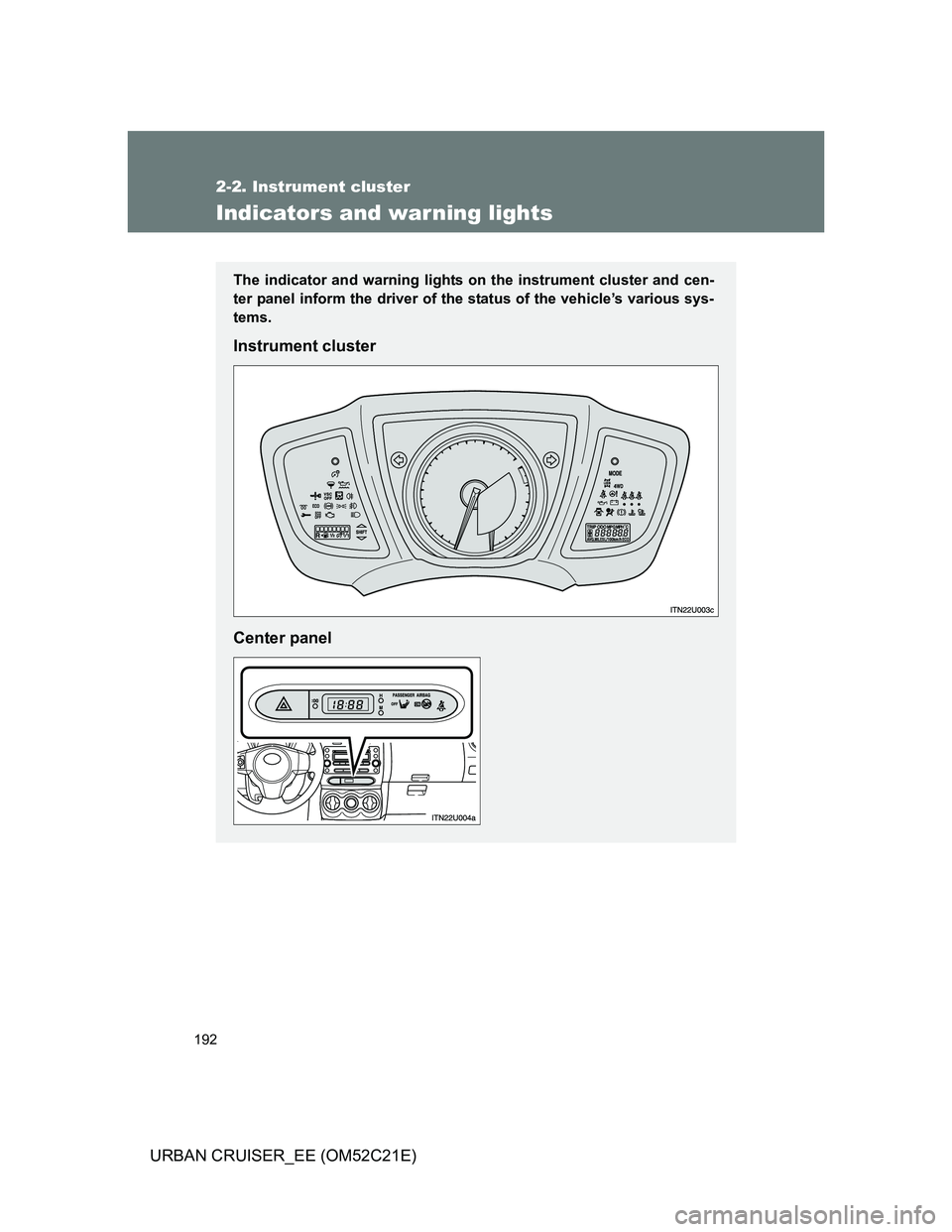

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel

193 2-2. Instrument cluster
2
When driving
URBAN CRUISER_EE (OM52C21E)

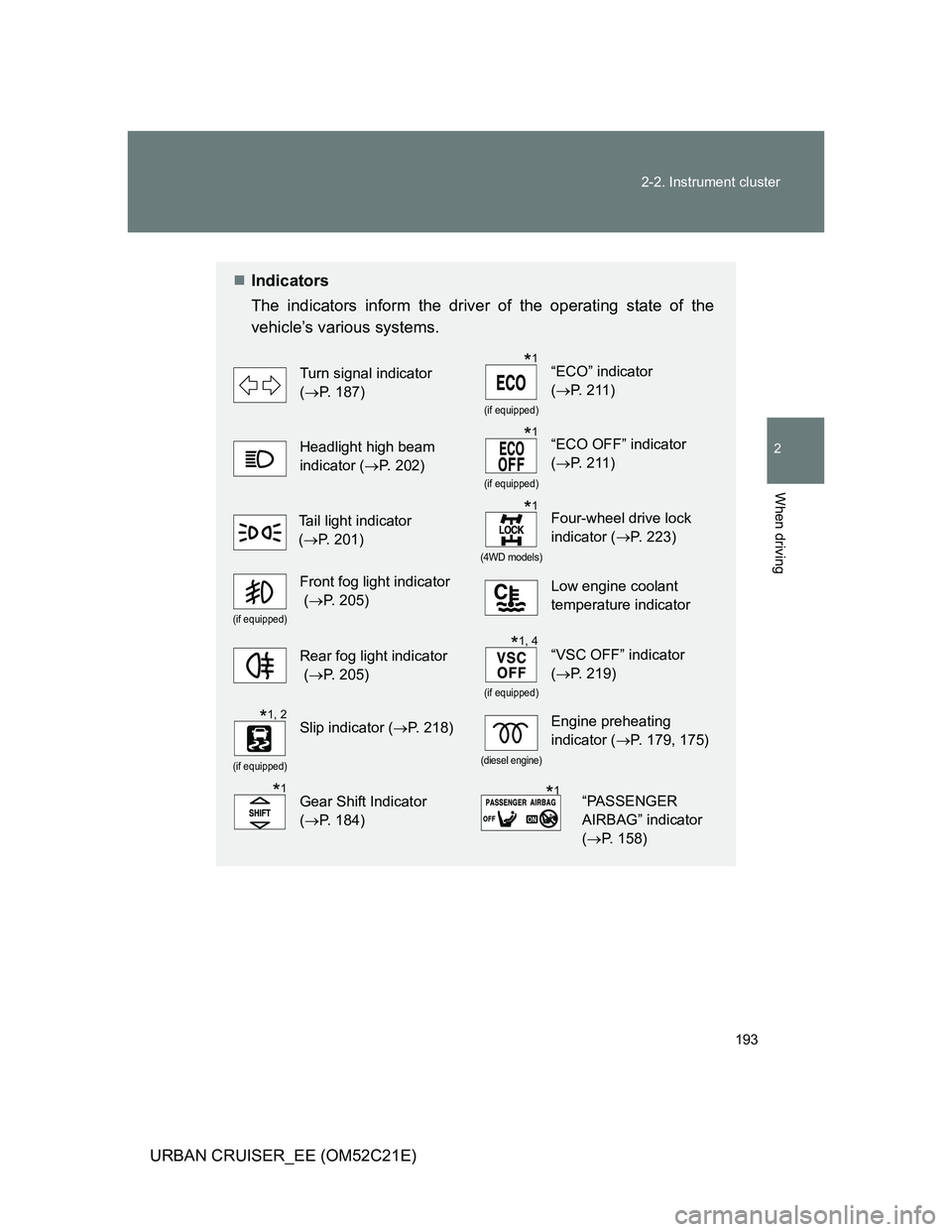

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 187)
(if equipped)
“ECO” indicator
(P. 2 1 1 )
Headlight high beam
indicator (P. 202)
(if equipped)
“ECO OFF” indicator
(P. 2 1 1 )
Tail light indicator
(P. 201)
(4WD models)
Four-wheel drive lock
indicator (
P. 223)
(if equipped)
Front fog light indicator
(P. 205)Low engine coolant
temperature indicator
Rear fog light indicator
(P. 205)
(if equipped)
“VSC OFF” indicator
(P. 219)
(if equipped)
Slip indicator (P. 218)
(diesel engine)
Engine preheating
indicator (P. 179, 175)
Gear Shift Indicator
(P. 184)“PASSENGER
AIRBAG” indicator
(P. 158)
*1
*1
*1
*1, 4
*1, 2
*1*1

194 2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)

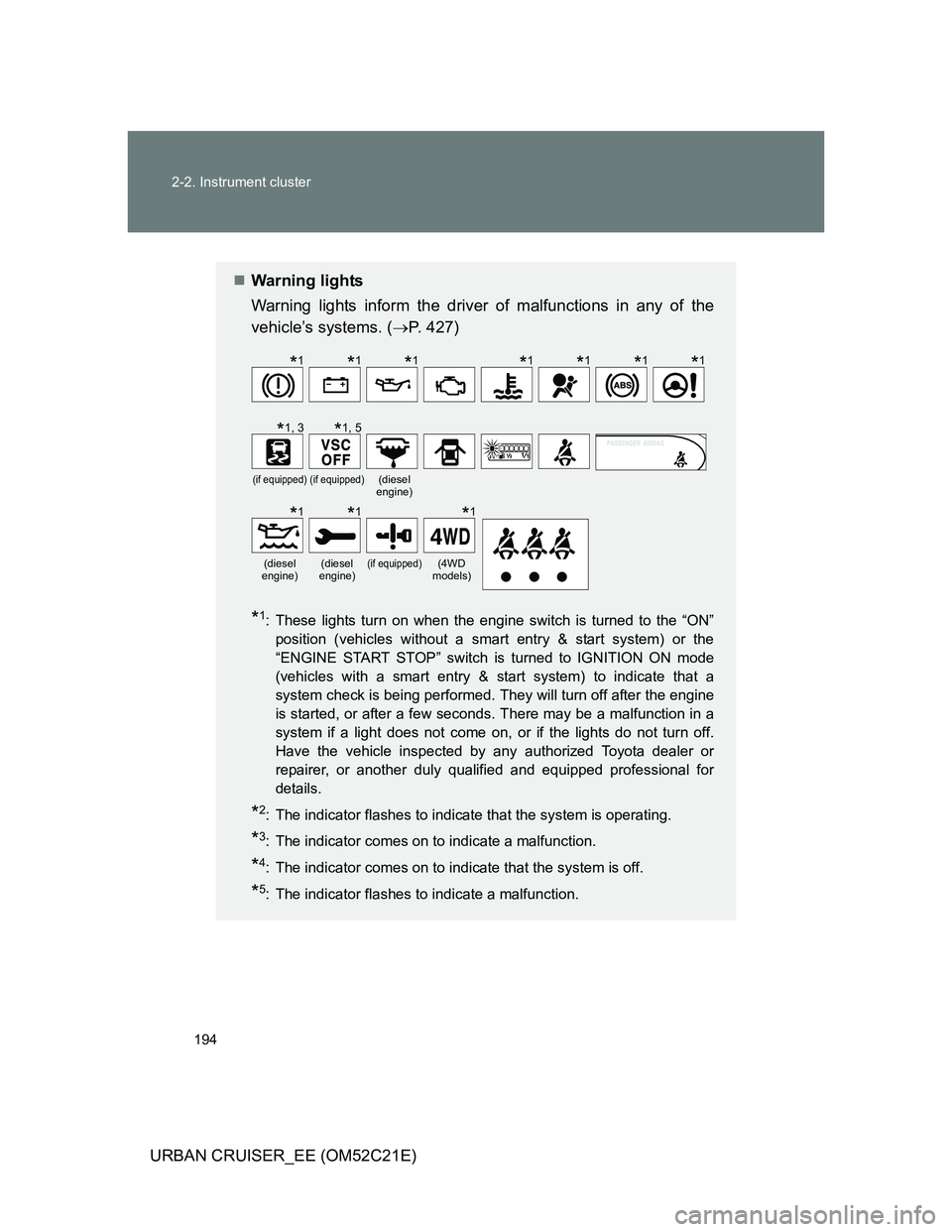

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 427)
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a
system check is being performed. They will turn off after the engine
is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or if the lights do not turn off.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
details.
*2: The indicator flashes to indicate that the system is operating.
*3: The indicator comes on to indicate a malfunction.
*4: The indicator comes on to indicate that the system is off.
*5: The indicator flashes to indicate a malfunction.
(if equipped)(if equipped)(diesel
engine)
(diesel
engine)(diesel
engine)(if equipped)(4WD
models)
*1*1*1*1*1*1*1
*1, 3*1, 5
*1*1*1

195 2-2. Instrument cluster
2
When driving
URBAN CRUISER_EE (OM52C21E)

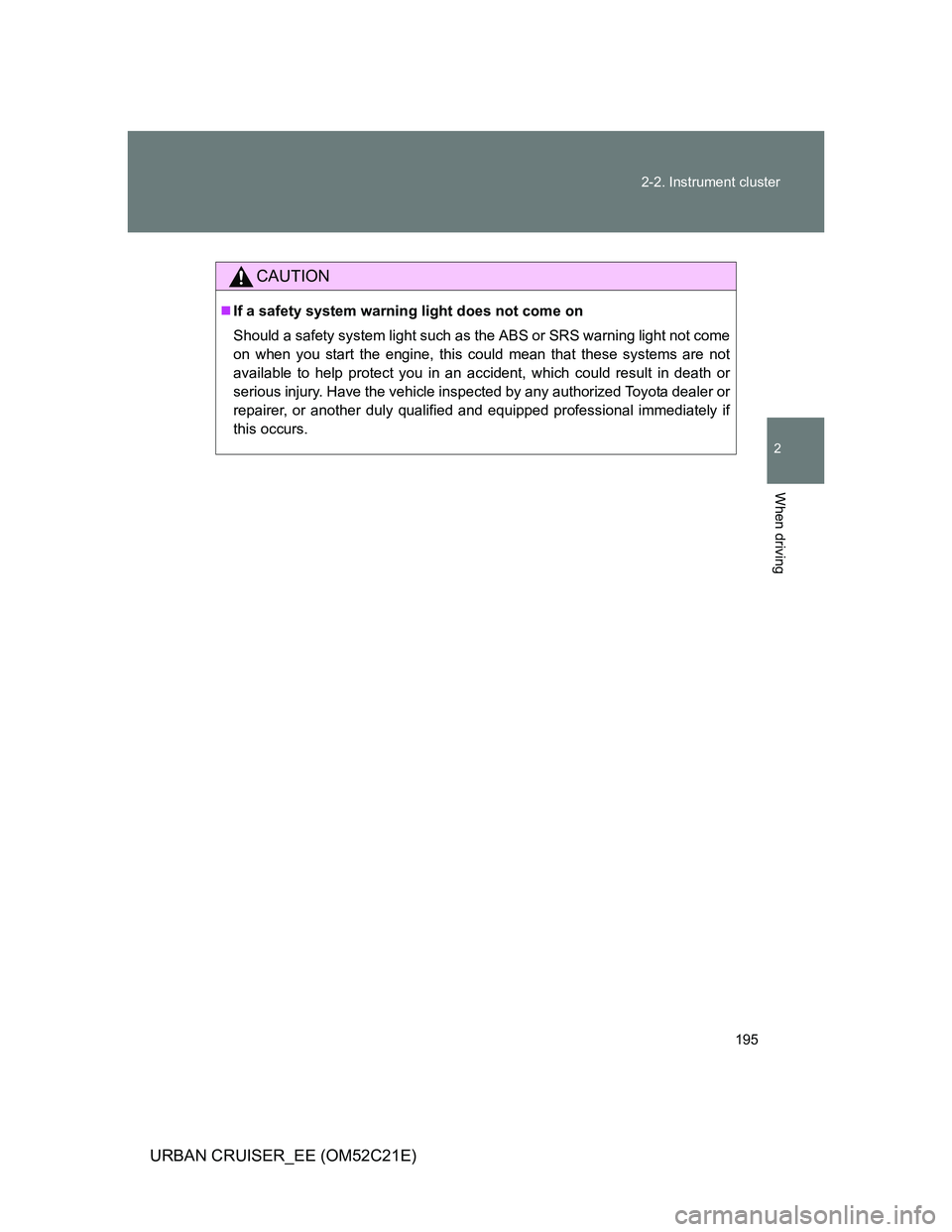

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not come
on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or
serious injury. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immediately if
this occurs.

196
2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)

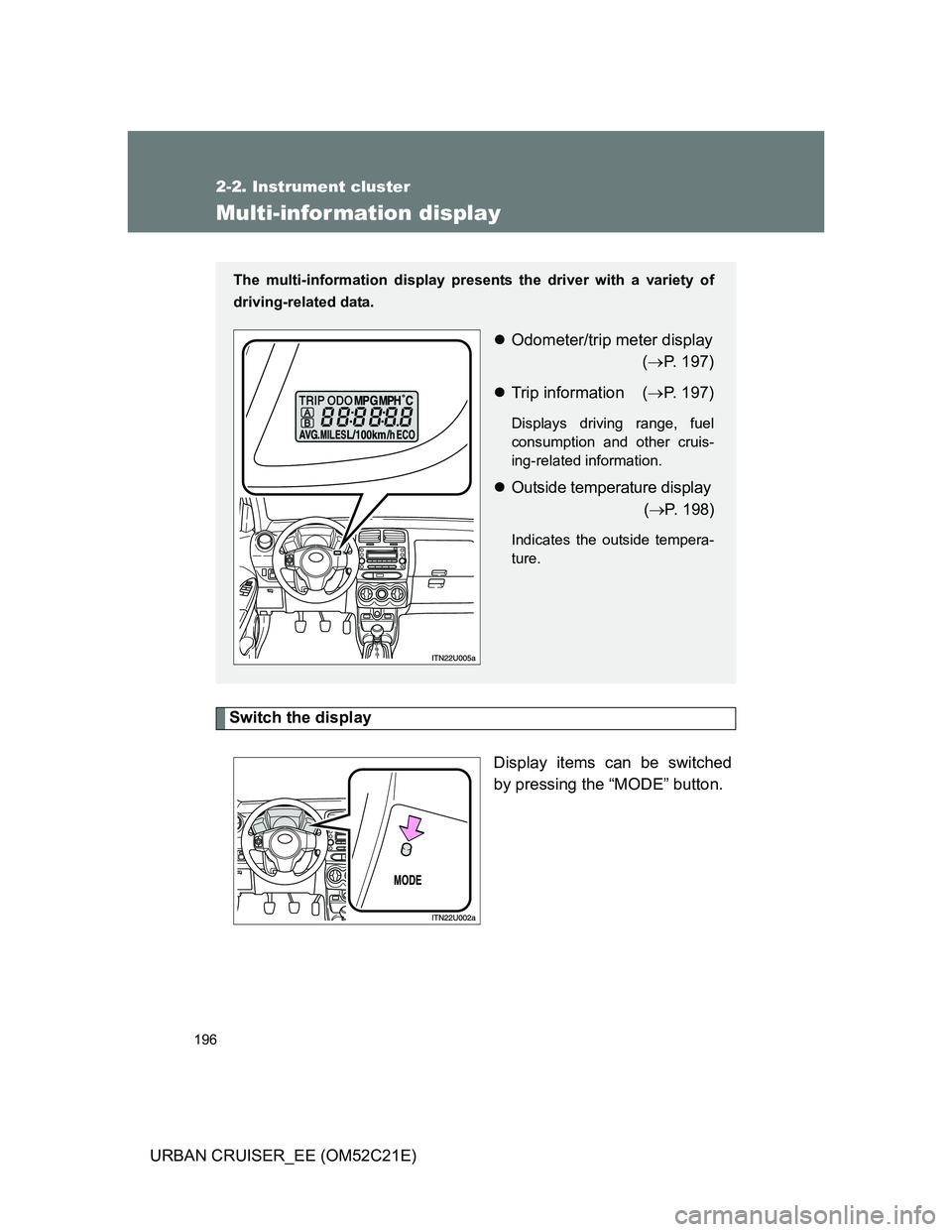

Multi-infor mation display
Switch the display
Display items can be switched
by pressing the “MODE” button.
The multi-information display presents the driver with a variety of
driving-related data.
Odometer/trip meter display
(P. 197)
Trip information (P. 197)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Outside temperature display
(P. 198)
Indicates the outside tempera-
ture.

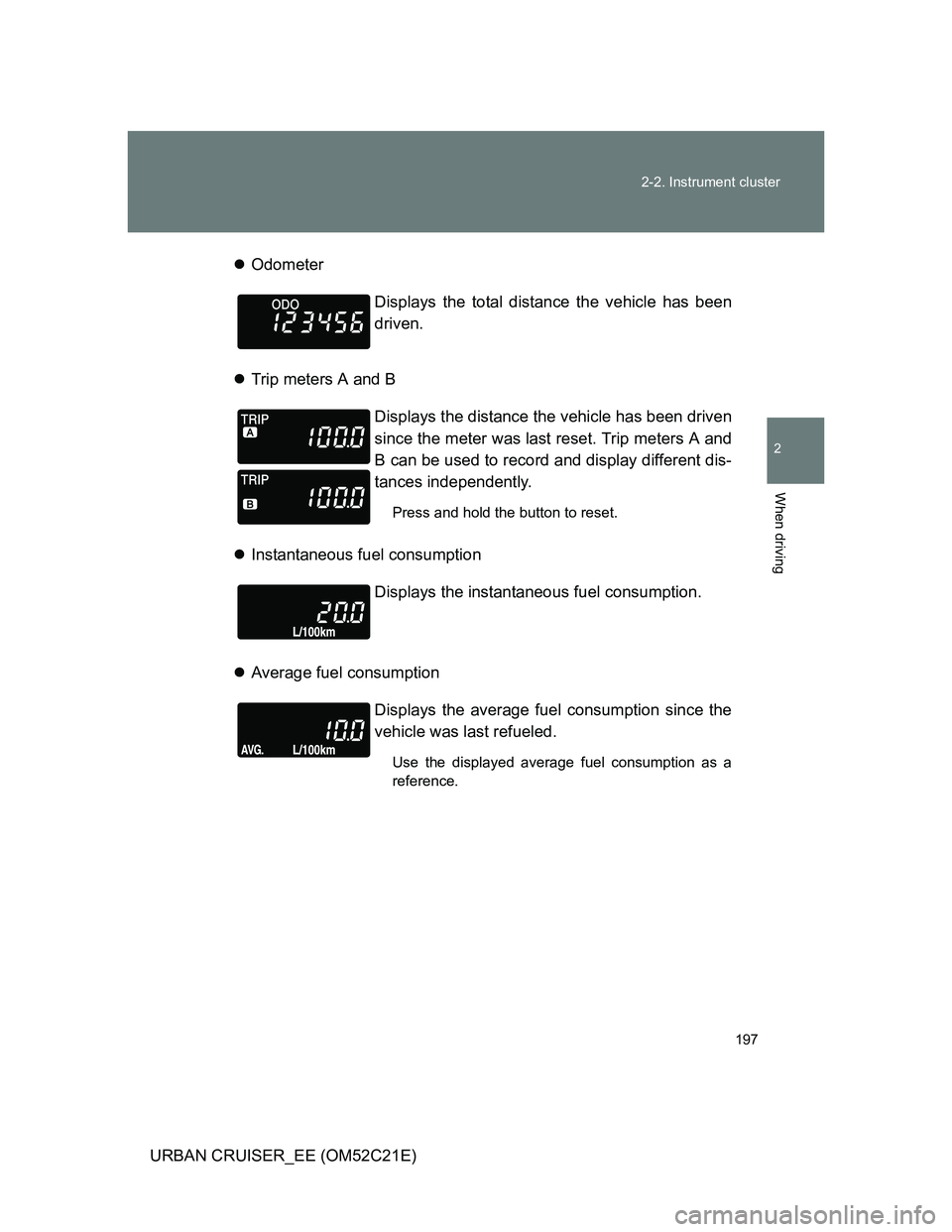

197 2-2. Instrument cluster
2
When driving
URBAN CRUISER_EE (OM52C21E)Odometer
Trip meters A and B
Instantaneous fuel consumption
Average fuel consumptionDisplays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Press and hold the button to reset.
Displays the instantaneous fuel consumption.
Displays the average fuel consumption since the
vehicle was last refueled.
Use the displayed average fuel consumption as a
reference.

198 2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)Average vehicle speed
Driving range
 Outside temperature displayDisplays the average vehicle speed since the
engine was started.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual dis-
tance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
Displays the outside temperature.
The temperature range that can be displayed is
from -40°C (-40°F) to 50°C (122°F).
When the outside air temperature falls below 3°C
(37°F) while driving, the temperature display flashes
to indicate that the outside air temperature is
becoming low.

199 2-2. Instrument cluster
2
When driving

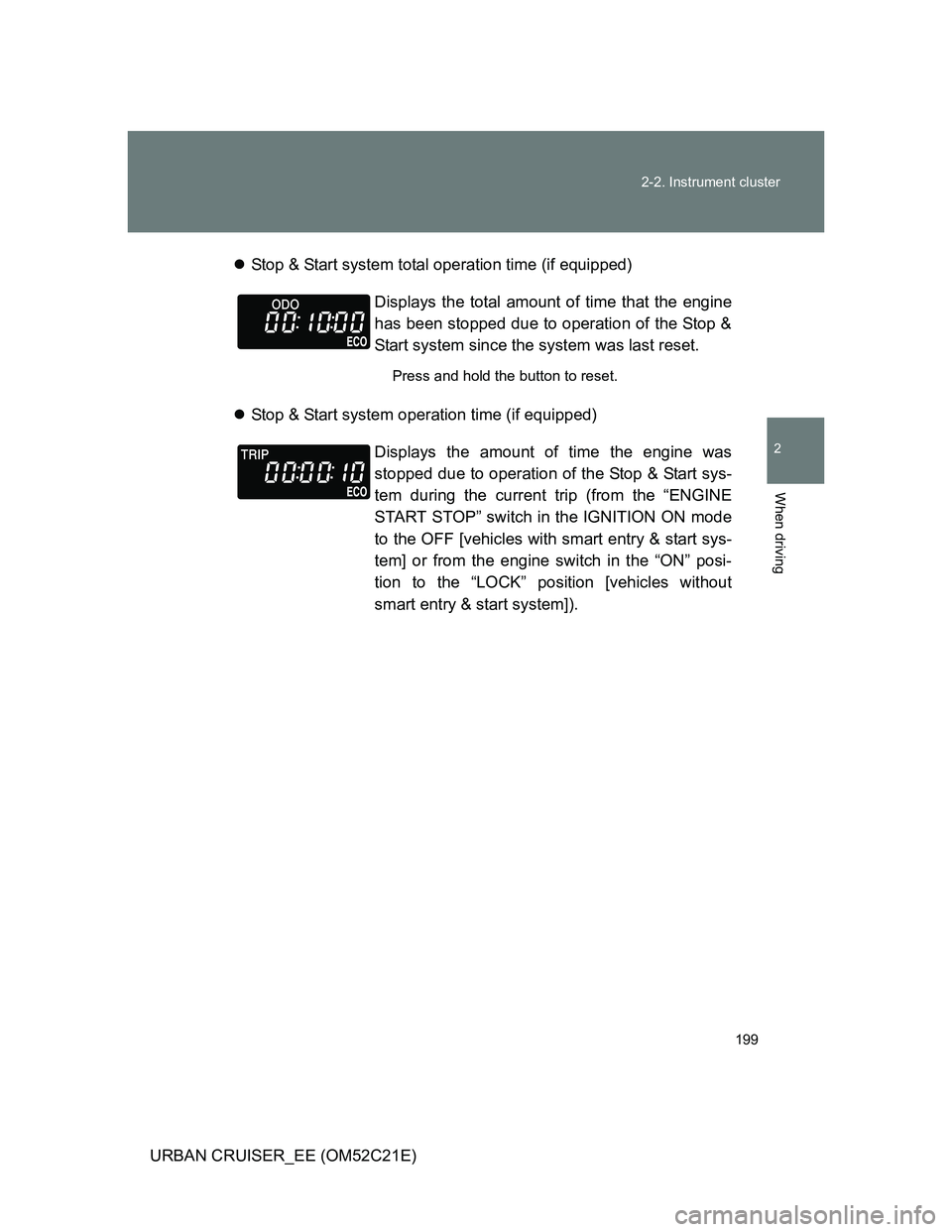

URBAN CRUISER_EE (OM52C21E)Stop & Start system total operation time (if equipped)
Stop & Start system operation time (if equipped)Displays the total amount of time that the engine
has been stopped due to operation of the Stop &
Start system since the system was last reset.
Press and hold the button to reset.
Displays the amount of time the engine was
stopped due to operation of the Stop & Start sys-
tem during the current trip (from the “ENGINE
START STOP” switch in the IGNITION ON mode
to the OFF [vehicles with smart entry & start sys-
tem] or from the engine switch in the “ON” posi-
tion to the “LOCK” position [vehicles without
smart entry & start system]).

200 2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)
Outside temperature display
In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
