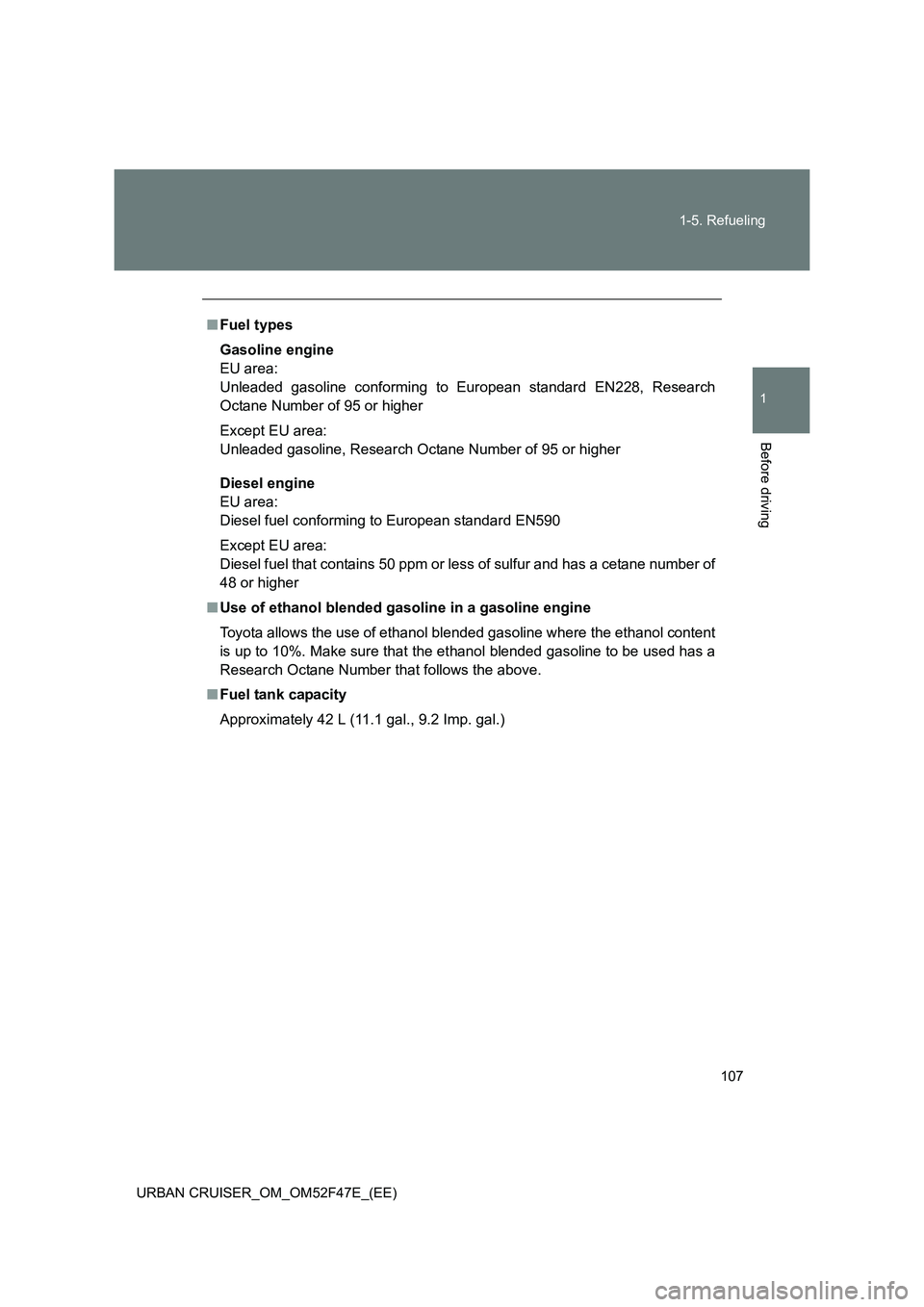

1-5. Refueling
1
Before driving
URBAN CRUISER_OM_OM52F47E_(EE)
■
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
EU area:
Diesel fuel conforming to European standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number of
48 or higher
■ Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ Fuel tank capacity
Approximately 42 L (11.1 gal., 9.2 Imp. gal.)

231
2-4. Using other driving systems
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
■

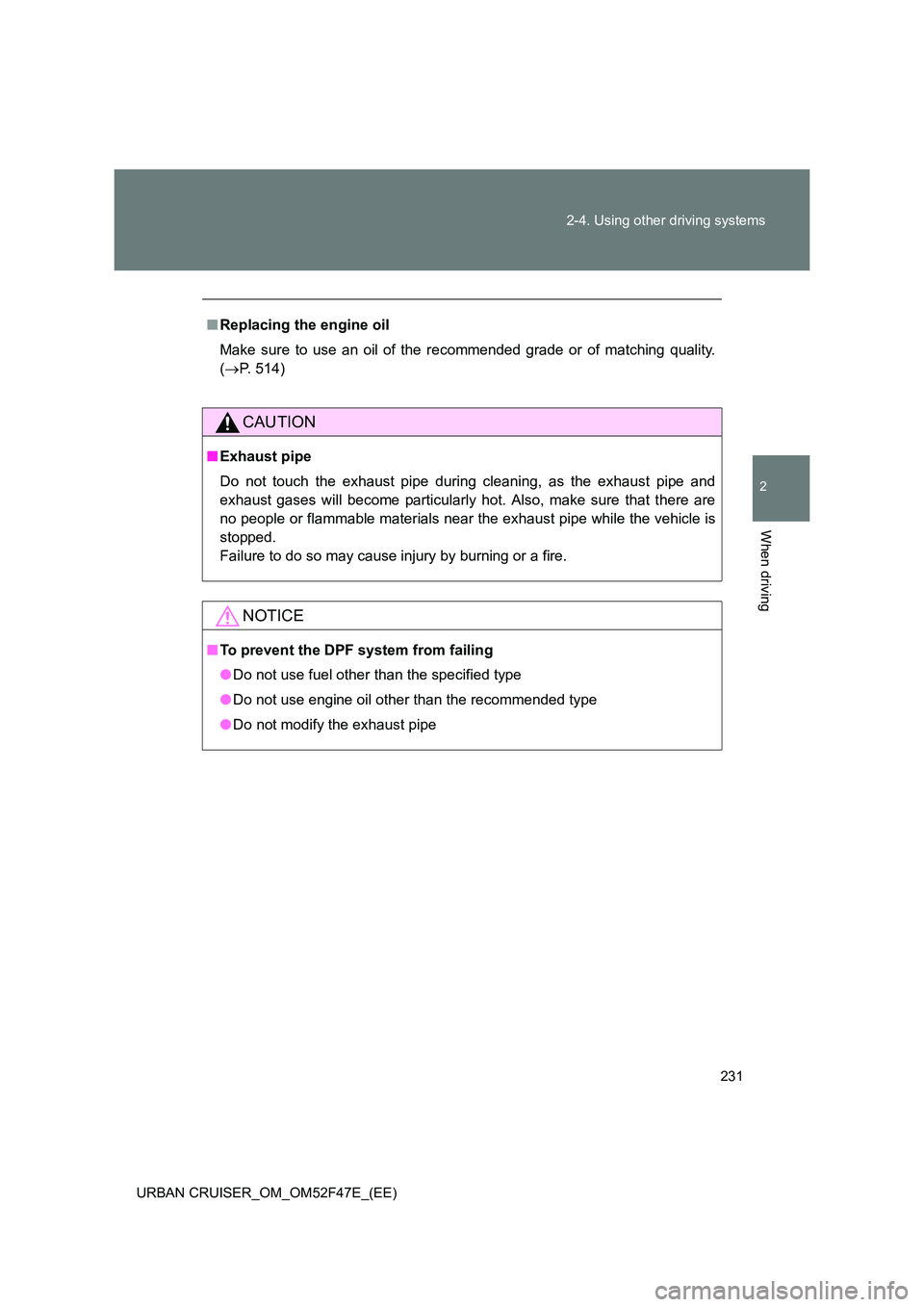

Replacing the engine oil
Make sure to use an oil of the recommended grade or of matching quality.
(→ P. 514)
CAUTION
■Exhaust pipe
Do not touch the exhaust pipe during cleaning, as the exhaust pipe and
exhaust gases will become particularly hot. Also, make sure that there are
no people or flammable materials near the exhaust pipe while the vehicle is
stopped.
Failure to do so may cause injury by burning or a fire.
NOTICE
■To prevent the DPF system from failing
●Do not use fuel other than the specified type
● Do not use engine oil other than the recommended type
● Do not modify the exhaust pipe

356
4-1. Maintenance and care
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE

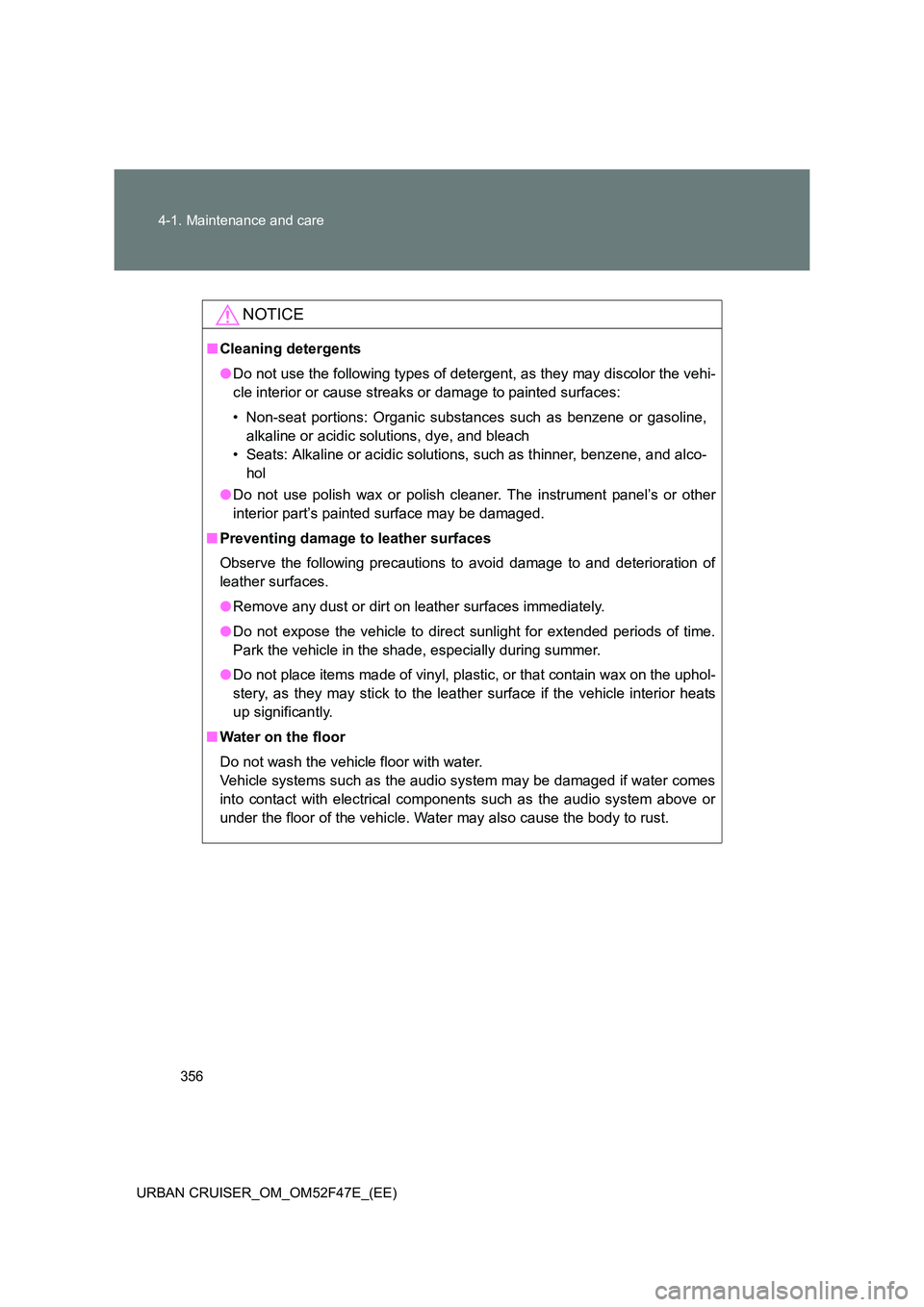

■ Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco- hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
●Remove any dust or dirt on leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

509
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_OM_OM52F47E_(EE)

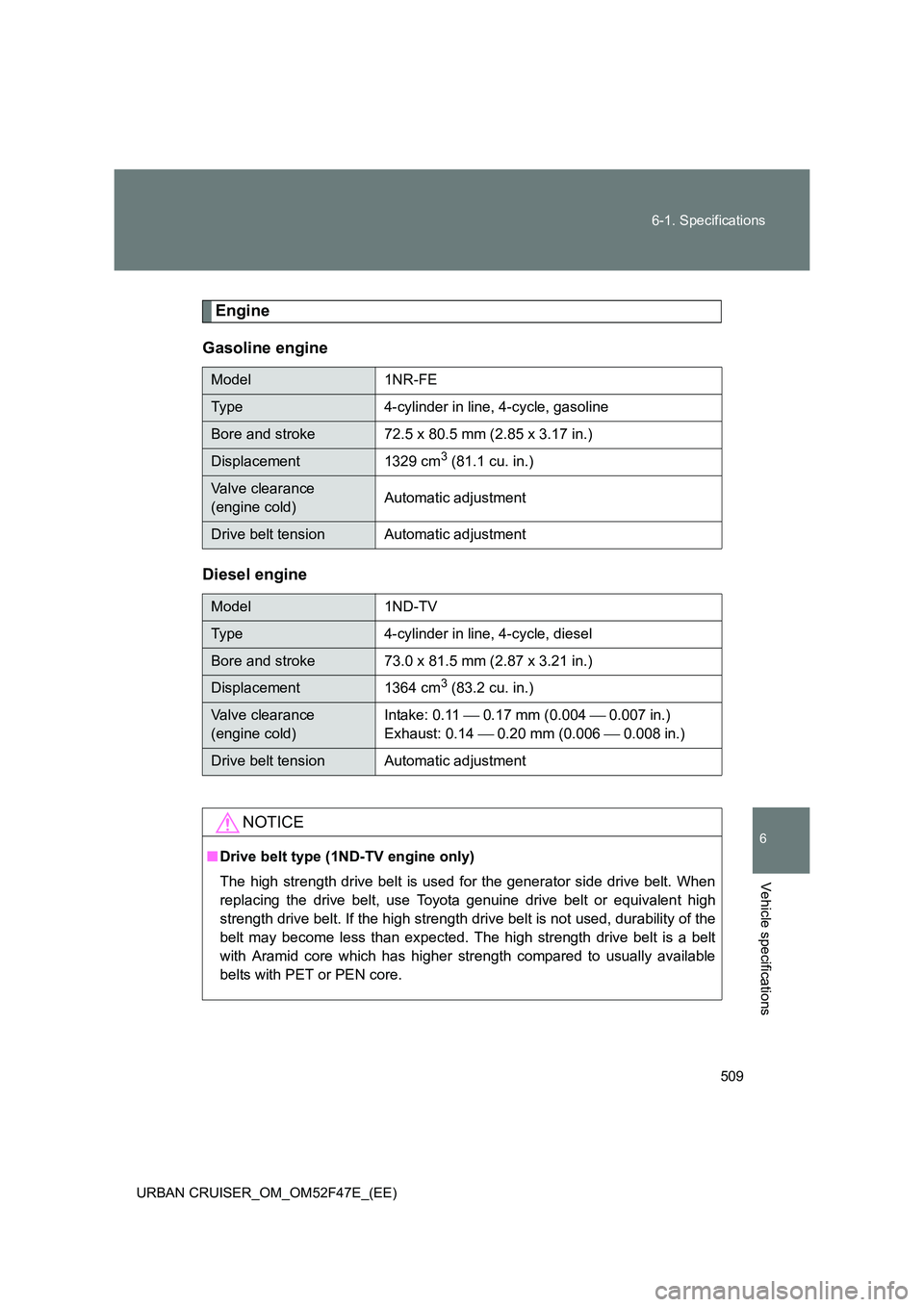

Engine
Gasoline engine
Diesel engine
Model 1NR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 72.5 x 80.5 mm (2.85 x 3.17 in.)
Displacement 1329 cm3 (81.1 cu. in.)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Model 1ND-TV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke 73.0 x 81.5 mm (2.87 x 3.21 in.)
Displacement 1364 cm3 (83.2 cu. in.)
Valve clearance
(engine cold)Intake: 0.11
 0.17 mm (0.004  0.007 in.)
Exhaust: 0.14  0.20 mm (0.006  0.008 in.)
Drive belt tension Automatic adjustment
NOTICE
■Drive belt type (1ND-TV engine only)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

510
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

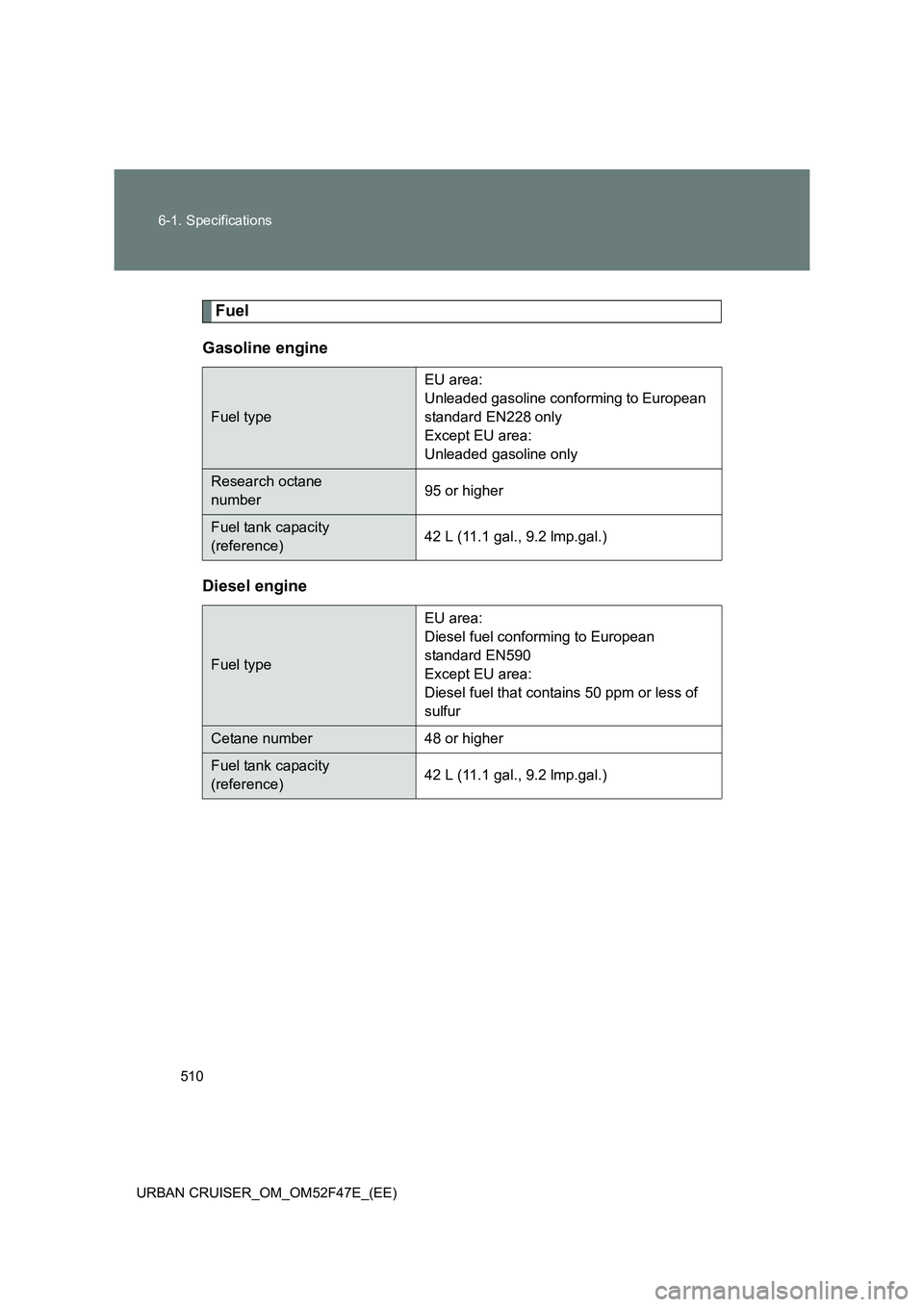

Fuel
Gasoline engine
Diesel engine
Fuel type EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number
95 or higher
Fuel tank capacity
(reference)42 L (11.1 gal., 9.2 lmp.gal.)
Fuel typeEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number 48 or higher
Fuel tank capacity
(reference)
42 L (11.1 gal., 9.2 lmp.gal.)

516
6-1. Specifications
URBAN CRUISER_OM_OM52F47E_(EE)

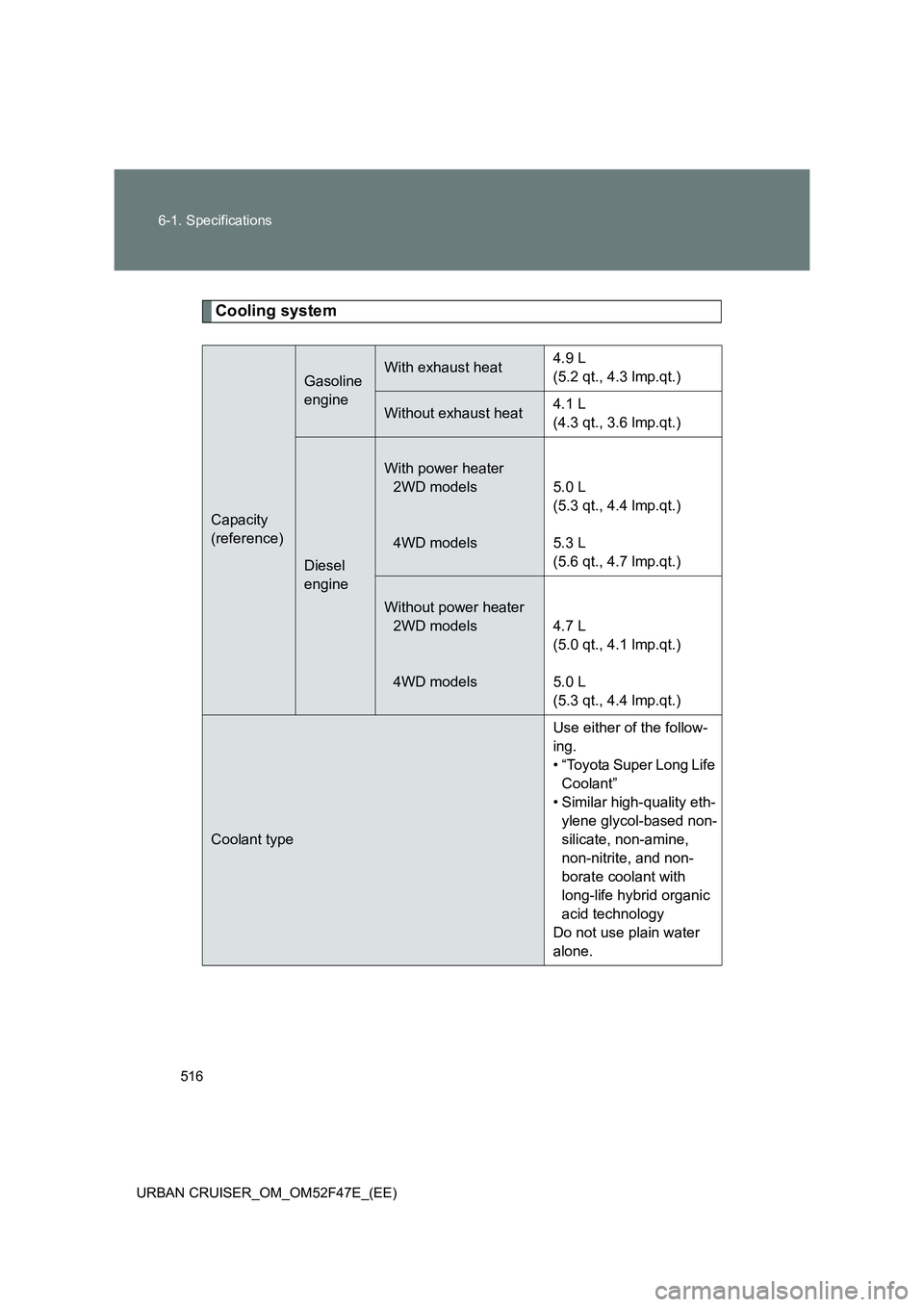

Cooling system
Capacity
(reference)
Gasoline
engineWith exhaust heat 4.9 L
(5.2 qt., 4.3 lmp.qt.)
Without exhaust heat4.1 L
(4.3 qt., 3.6 lmp.qt.)
Diesel
engine
With power heater
2WD models
4WD models 5.0 L
(5.3 qt., 4.4 lmp.qt.)
5.3 L
(5.6 qt., 4.7 lmp.qt.)
Without power heater
2WD models
4WD models 4.7 L
(5.0 qt., 4.1 lmp.qt.)
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Coolant type Use either of the follow-
ing.
• “Toyota Super Long Life
Coolant”
• Similar high-quality eth- ylene glycol-based non-
silicate, non-amine,
non-nitrite, and non-
borate coolant with
long-life hybrid organic
acid technology
Do not use plain water
alone.

534

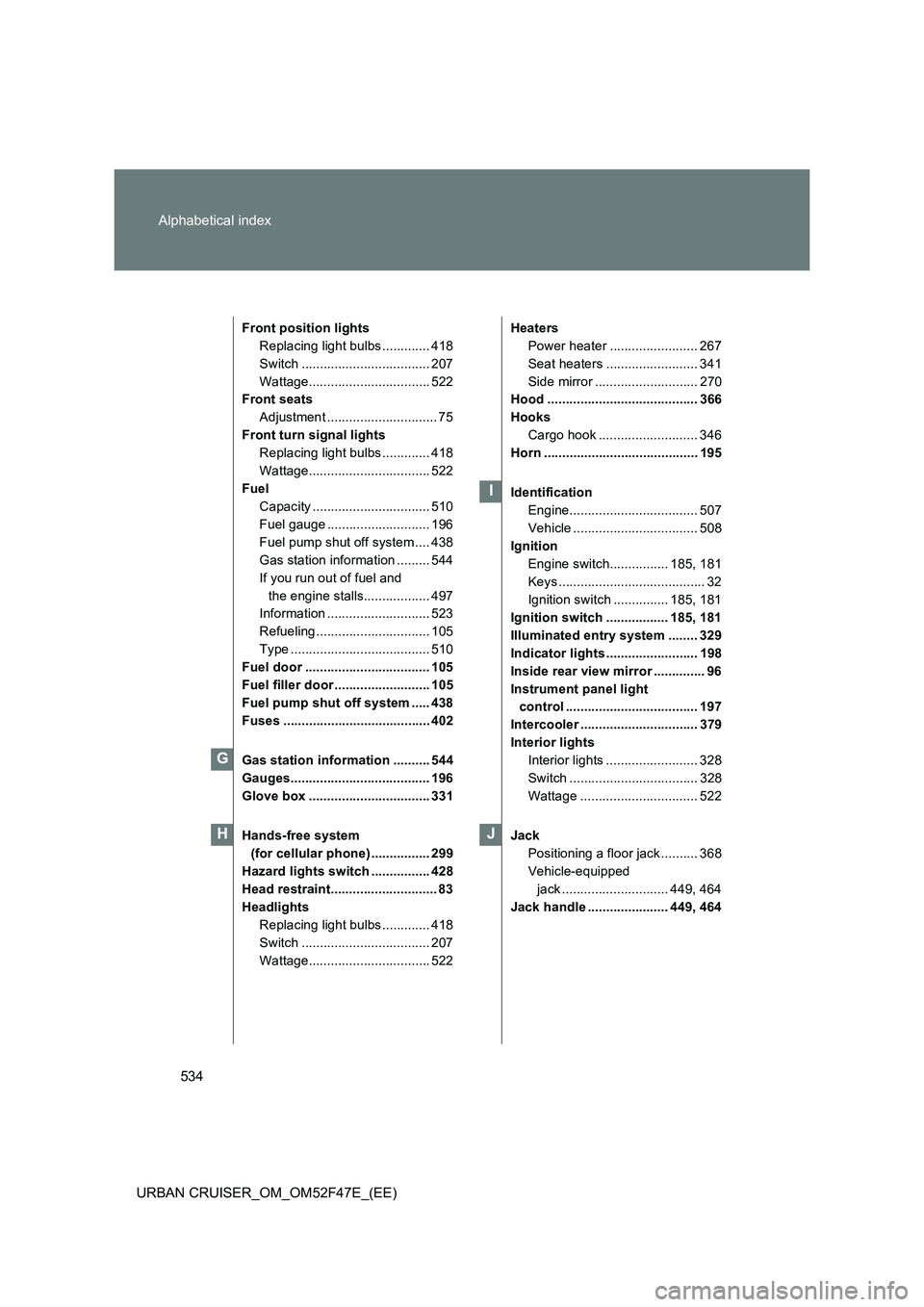

Alphabetical index
URBAN CRUISER_OM_OM52F47E_(EE)
Front position lights
Replacing light bulbs ............. 418
Switch ................................... 207
Wattage................................. 522
Front seats
Adjustment .............................. 75
Front turn signal lights Replacing light bulbs ............. 418
Wattage................................. 522
Fuel Capacity ................................ 510
Fuel gauge ............................ 196
Fuel pump shut off system .... 438
Gas station information ......... 544
If you run out of fuel and
the engine stalls.................. 497
Information ............................ 523
Refueling ............................... 105
Type ...................................... 510
Fuel door .................................. 105
Fuel filler door .......................... 105
Fuel pump shut off system ..... 438
Fuses ........................................ 402
Gas station information .......... 544
Gauges...................................... 196
Glove box ................................. 331
Hands-free system (for cellular phone) ................ 299
Hazard lights switch ................ 428
Head restraint............................. 83
Headlights Replacing light bulbs ............. 418
Switch ................................... 207
Wattage................................. 522 Heaters
Power heater ........................ 267
Seat heaters ......................... 341
Side mirror ............................ 270
Hood ......................................... 366
Hooks
Cargo hook ........................... 346
Horn .......................................... 195
Identification Engine................................... 507
Vehicle .................................. 508
Ignition Engine switch................ 185, 181
Keys ........................................ 32
Ignition switch ............... 185, 181
Ignition switch ................. 185, 181
Illuminated entry system ........ 329
Indicator lights ......................... 198
Inside rear view mirror .............. 96
Instrument panel light control .................................... 197
Intercooler ................................ 379
Interior lights Interior lights ......................... 328
Switch ................................... 328
Wattage ................................ 522
Jack Positioning a floor jack .......... 368
Vehicle-equipped jack ............................. 449, 464
Jack handle ...................... 449, 464
G
H
I
J

544
URBAN CRUISER_OM_OM52F47E_(EE)

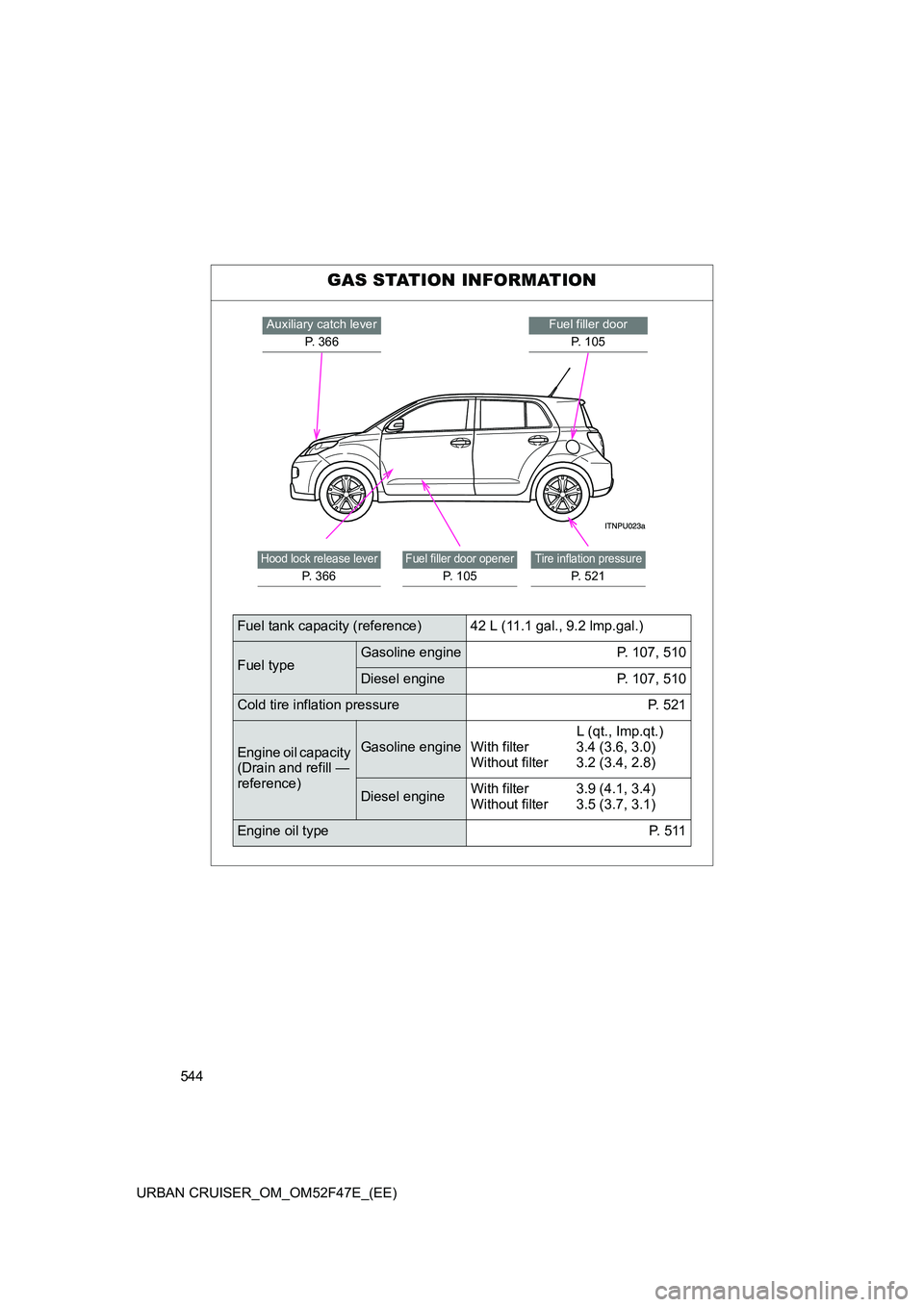

GAS STATION INFORMATION
Fuel filler door P. 105Auxiliary catch lever P. 366
Tire inflation pressure
P. 521
Fuel filler door opener
P. 105
Hood lock release lever
P. 366
Fuel tank capacity (reference) 42 L (11.1 gal., 9.2 lmp.gal.)
Fuel typeGasoline engine P. 107, 510
Diesel engine P. 107, 510
Cold tire inflation pressure P. 521
Engine oil capacity
(Drain and refill —
reference)Gasoline engine L (qt., Imp.qt.)
With filter 3.4 (3.6, 3.0)
Without filter 3.2 (3.4, 2.8)
Diesel engine With filter 3.9 (4.1, 3.4)
Without filter 3.5 (3.7, 3.1)
Engine oil type P. 511
