fuel consumption TOYOTA URBAN CRUISER 2015 Owners Manual

202
2-2. Instrument cluster
URBAN CRUISER_OM_OM52F47E_(EE)

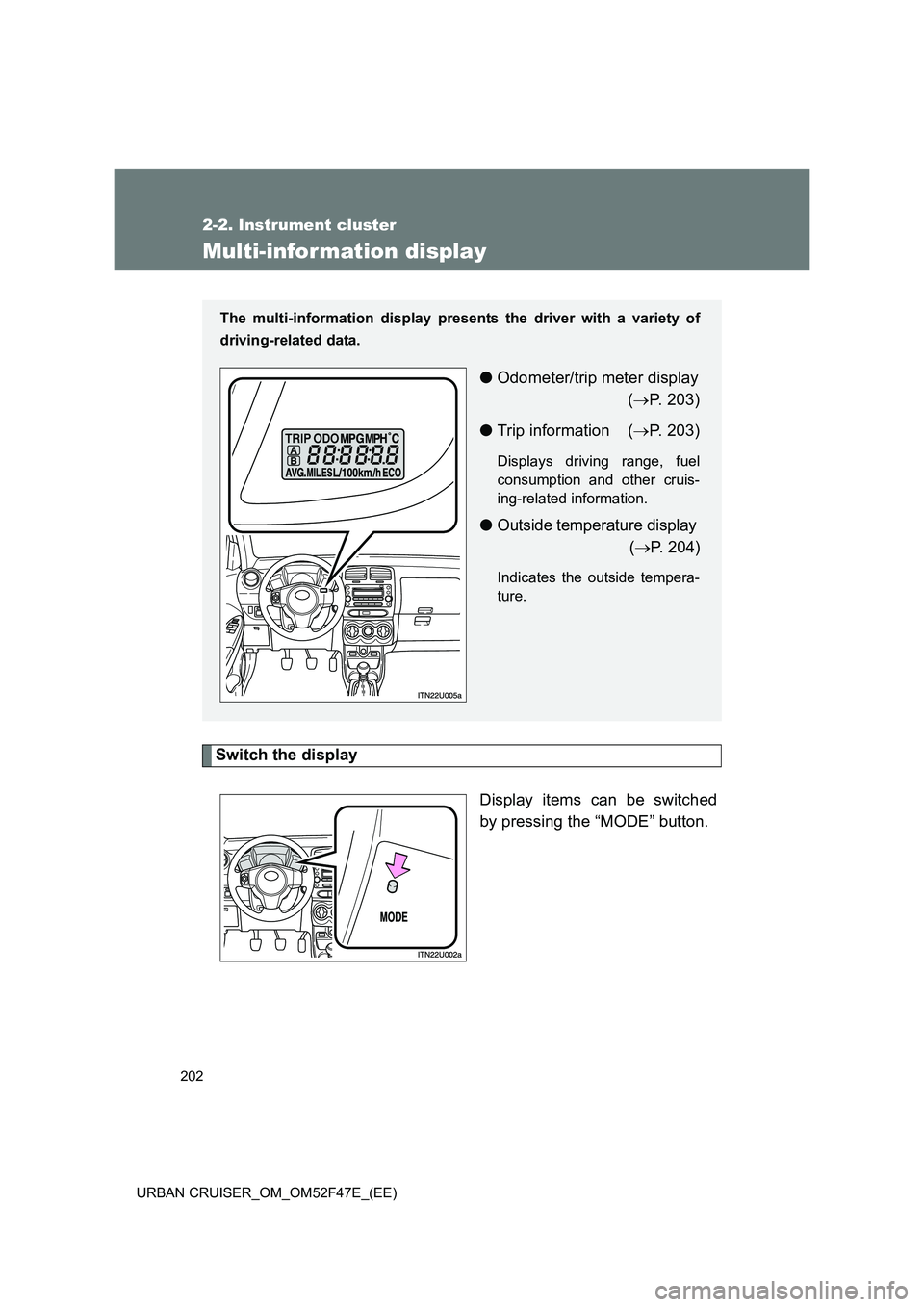

Multi-information display
Switch the displayDisplay items can be switched
by pressing the “MODE” button.
The multi-information display presents the driver with a variety of
driving-related data.
●Odometer/trip meter display
(→ P. 203)
● Trip information ( →P. 203)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Outside temperature display
(→ P. 204)
Indicates the outside tempera-
ture.

203
2-2. Instrument cluster
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
●

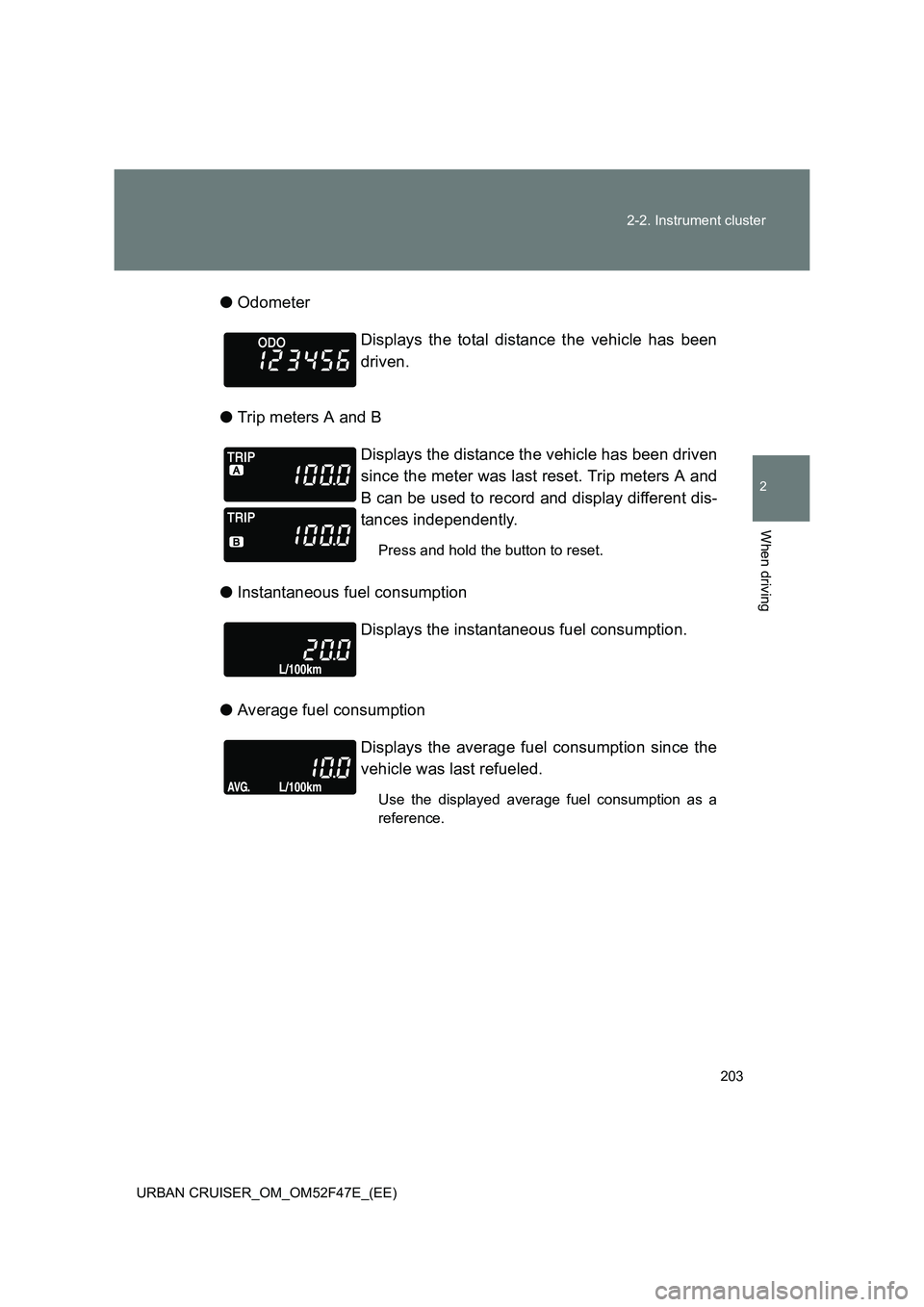

Odometer
● Trip meters A and B
● Instantaneous fuel consumption
● Average fuel consumption Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Press and hold the button to reset.
Displays the instantaneous fuel consumption.
Displays the average fuel consumption since the
vehicle was last refueled.
Use the displayed average fuel consumption as a
reference.

204
2-2. Instrument cluster
URBAN CRUISER_OM_OM52F47E_(EE)

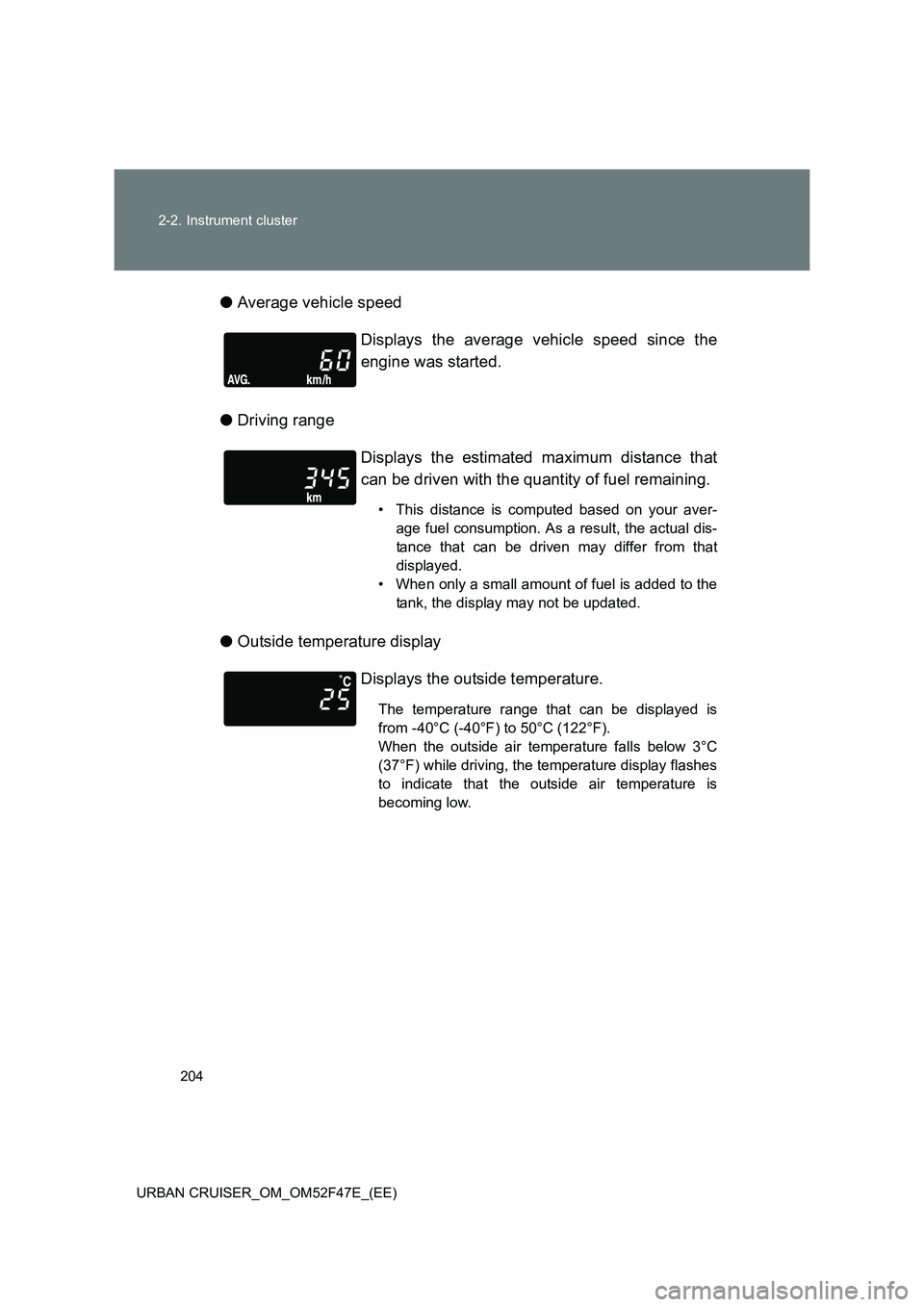

● Average vehicle speed
● Driving range
● Outside temperature display Displays the average vehicle speed since the
engine was started.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual dis-
tance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the outside temperature.
The temperature range that can be displayed is
from -40°C (-40°F) to 50°C (122°F).
When the outside air temperature falls below 3°C
(37°F) while driving, the temperature display flashes
to indicate that the outside air temperature is
becoming low.

239
2-5. Driving information
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

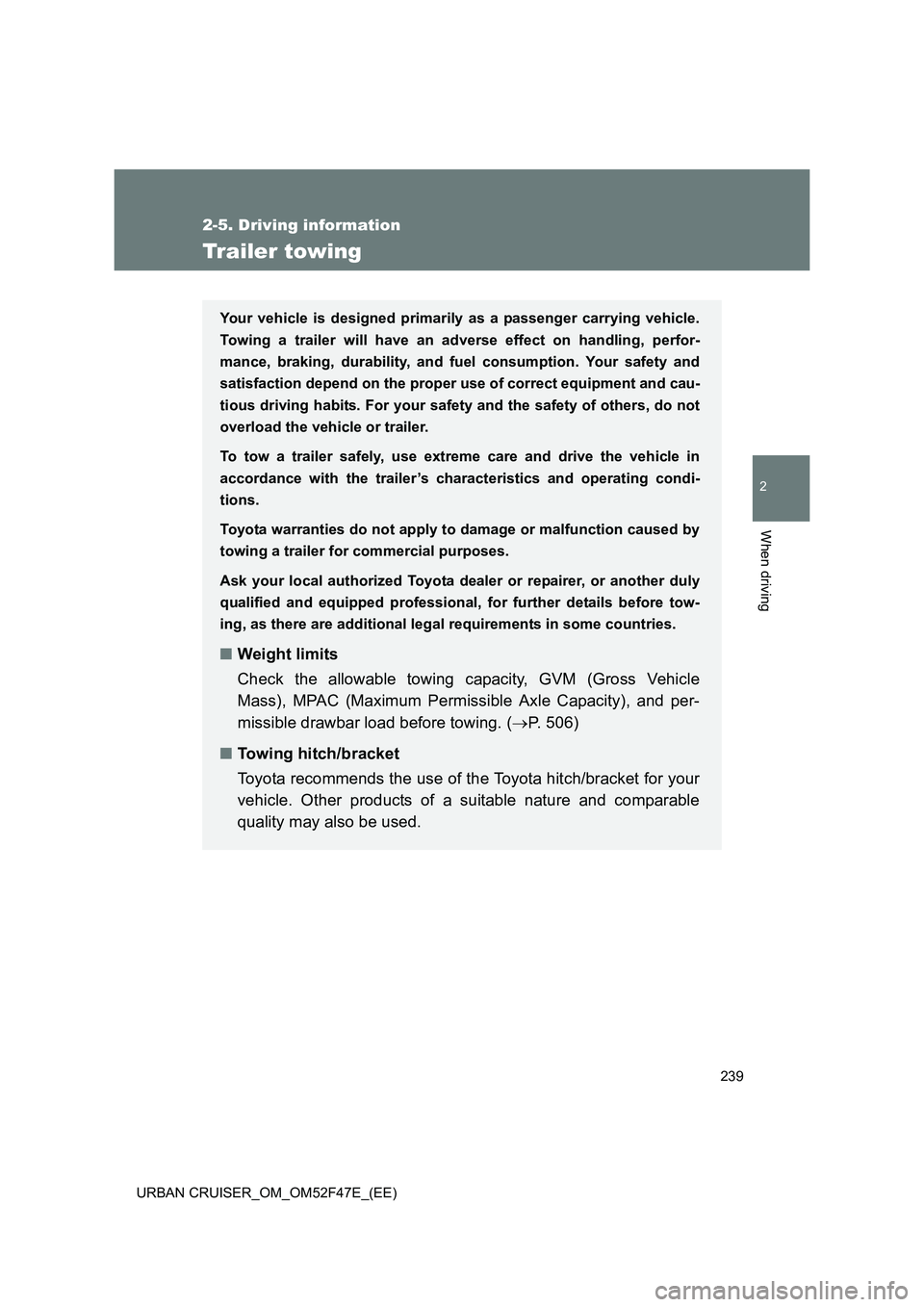

Trailer towing
Your vehicle is designed primarily as a passenger carrying vehicle.
Towing a trailer will have an adverse effect on handling, perfor-
mance, braking, durability, and fuel consumption. Your safety and
satisfaction depend on the proper use of correct equipment and cau-
tious driving habits. For your safety and the safety of others, do not
overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer’s characteristics and operating condi-
tions.
Toyota warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Ask your local authorized Toyota d ealer or repairer, or another duly
qualified and equipped professional, for further details before tow-
ing, as there are additional legal requirements in some countries.
■ Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle
Mass), MPAC (Maximum Permissible Axle Capacity), and per-
missible drawbar load before towing. ( →P. 506)
■ Towing hitch/bracket
Toyota recommends the use of the Toyota hitch/bracket for your
vehicle. Other products of a suitable nature and comparable
quality may also be used.
