TOYOTA VENZA 2012 Owners Manual (in English)

211
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73013U)

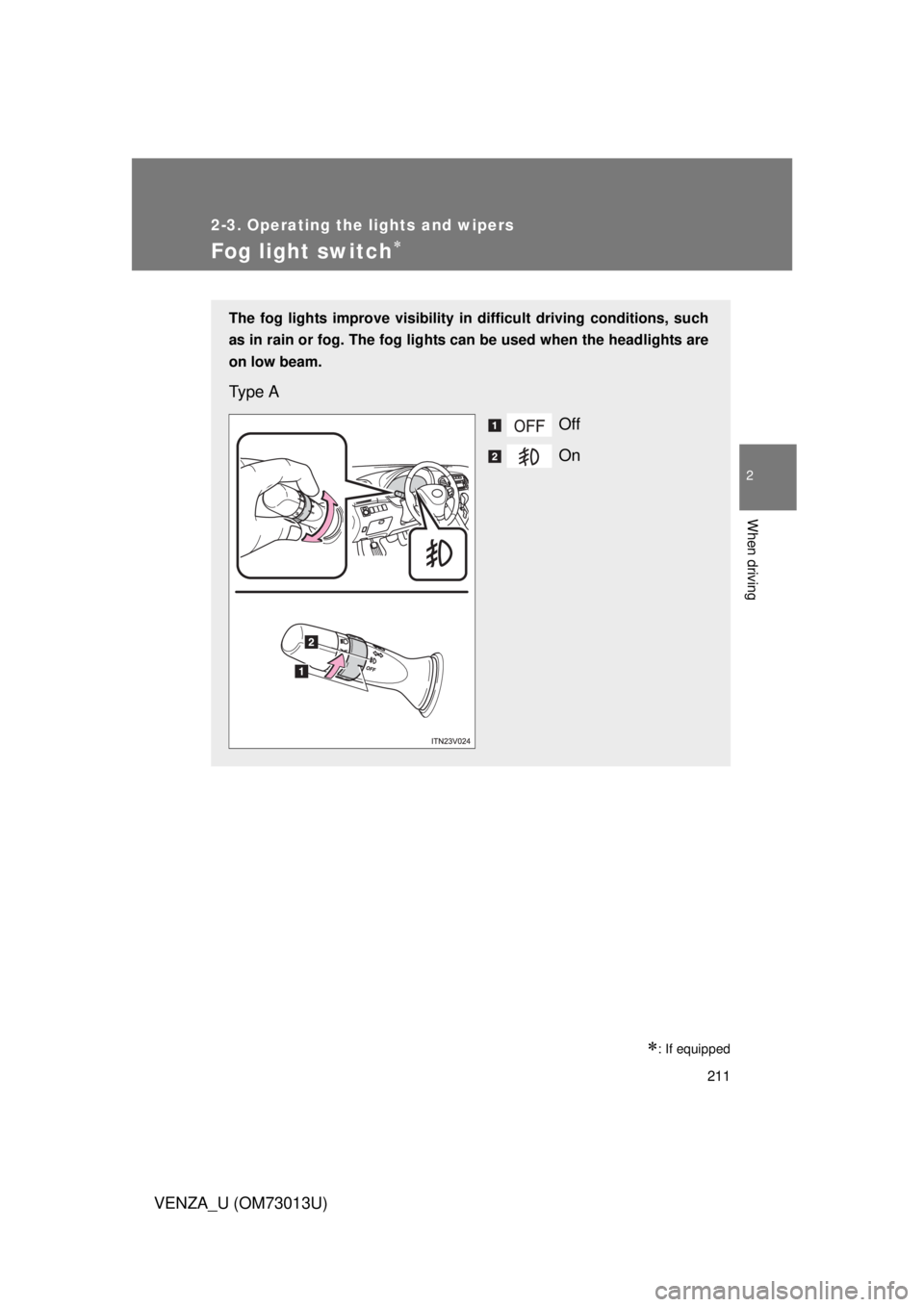

Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Type A
Off
On

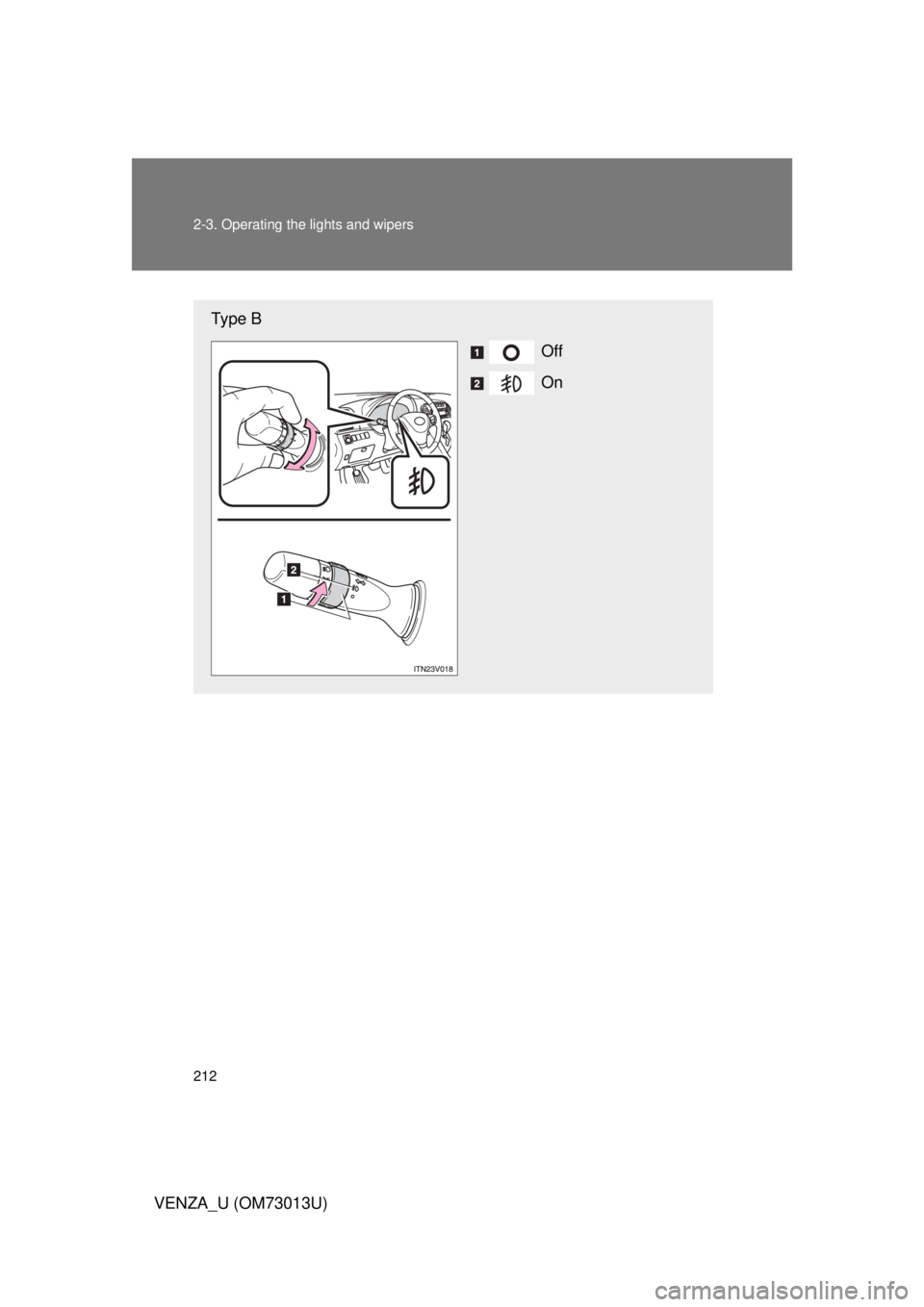

212 2-3. Operating the lights and wipers
VENZA_U (OM73013U)
Type BOff
On

213
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73013U)

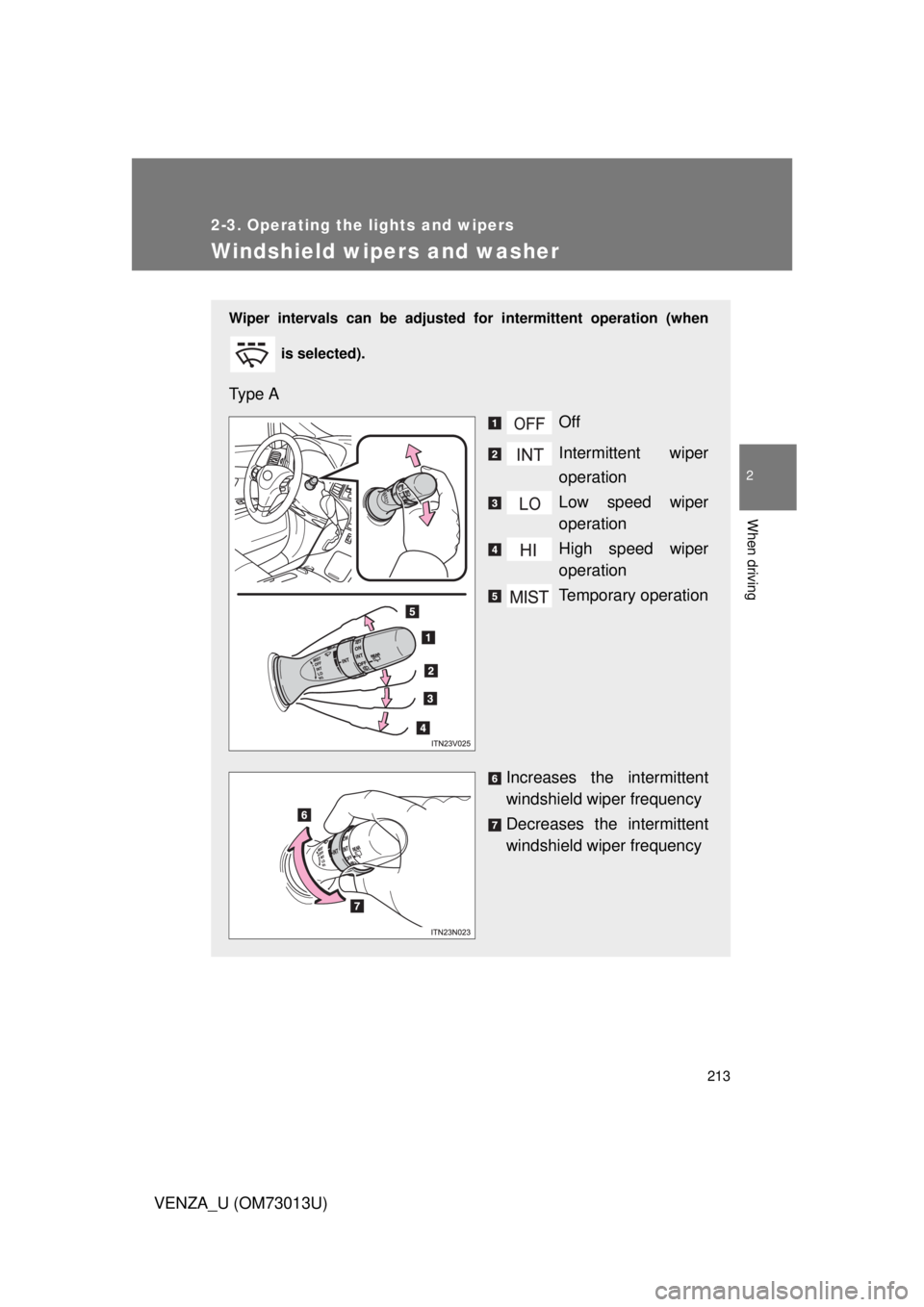

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Type A Off
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

214 2-3. Operating the lights and wipers
VENZA_U (OM73013U)

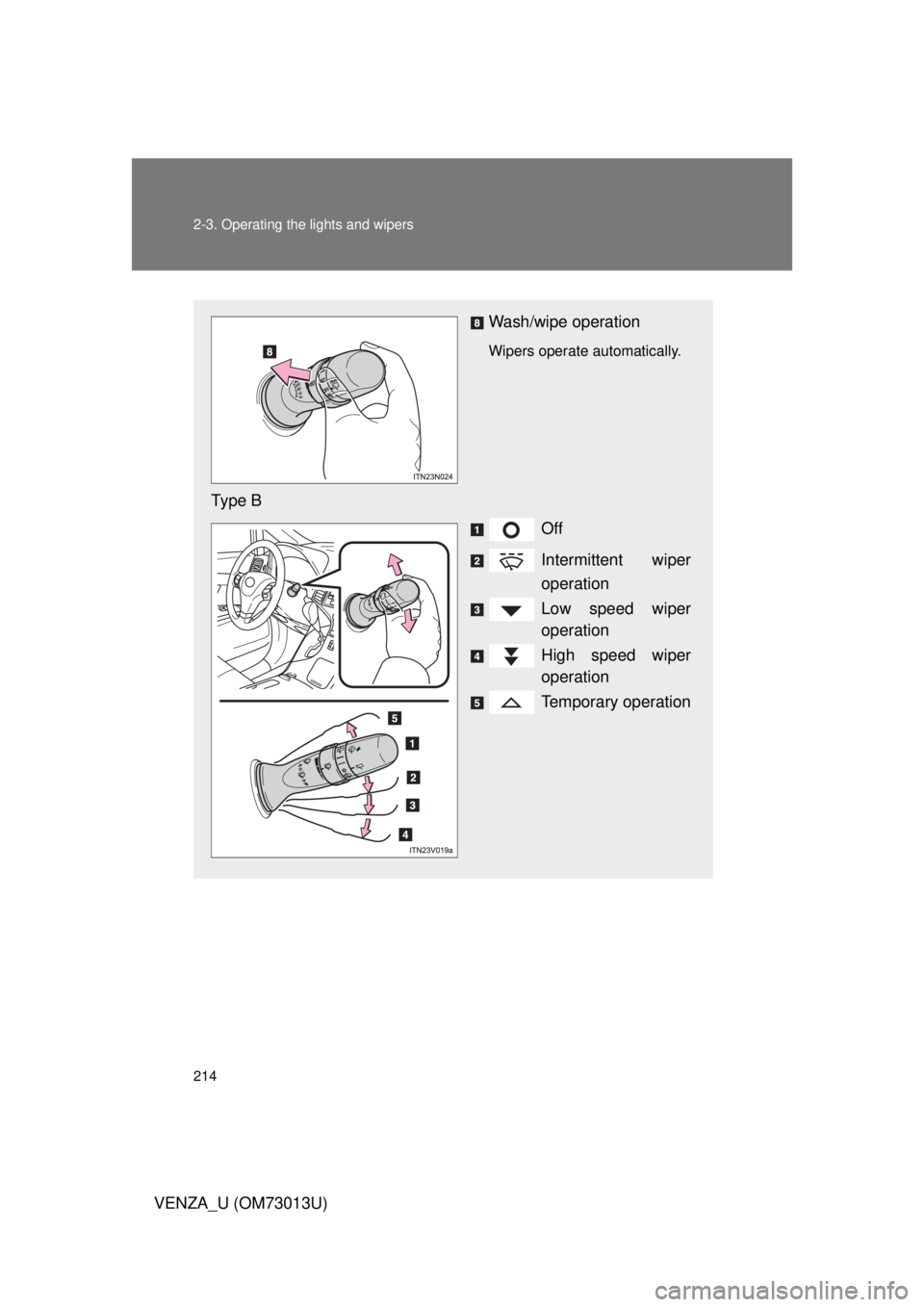

Wash/wipe operation
Wipers operate automatically.
Type BOff
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

215
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73013U)

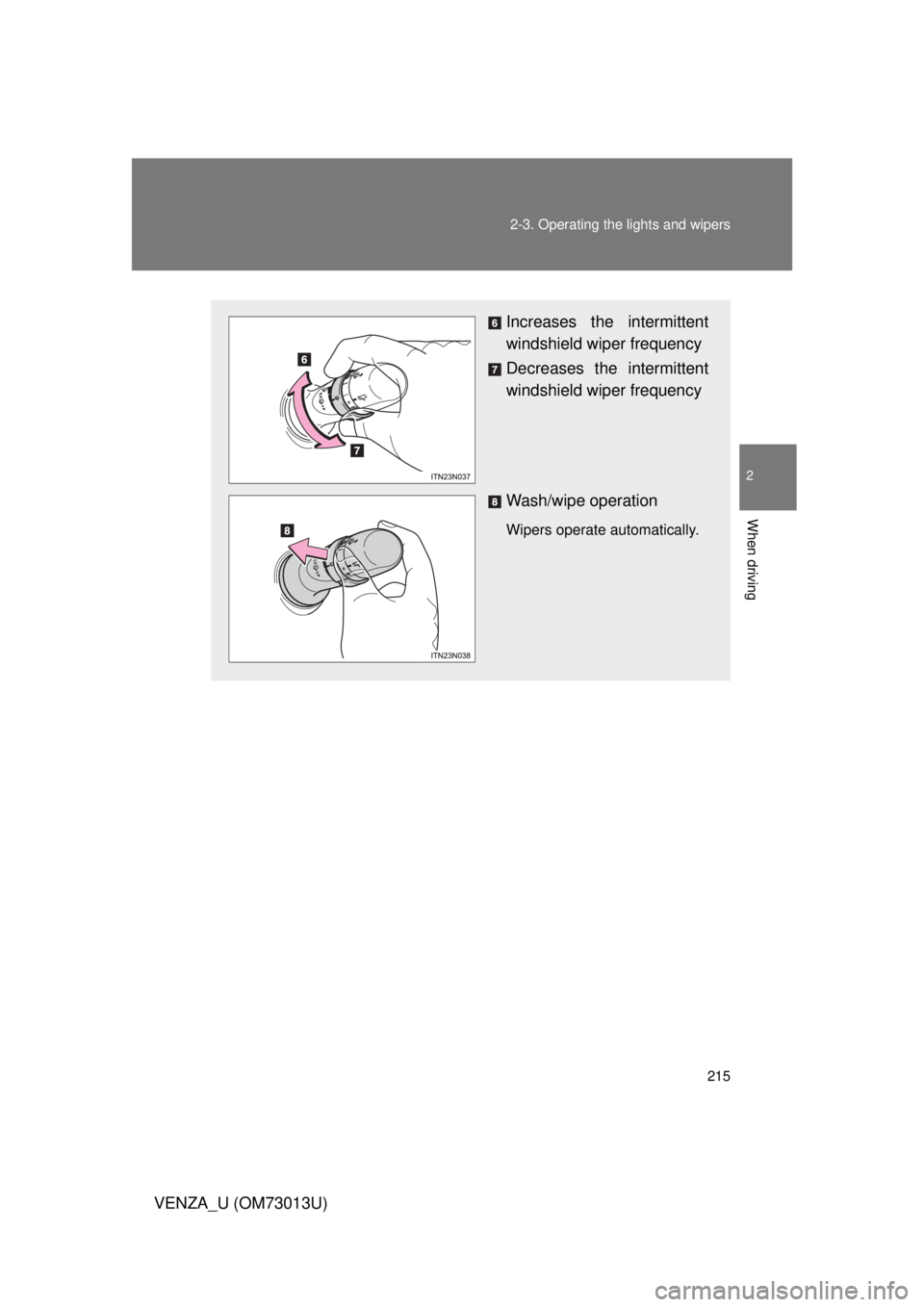

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Wash/wipe operation
Wipers operate automatically.

216 2-3. Operating the lights and wipers
VENZA_U (OM73013U)
■The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

217
2-3. Operating the lights and wipers
2
When driving
VENZA_U (OM73013U)

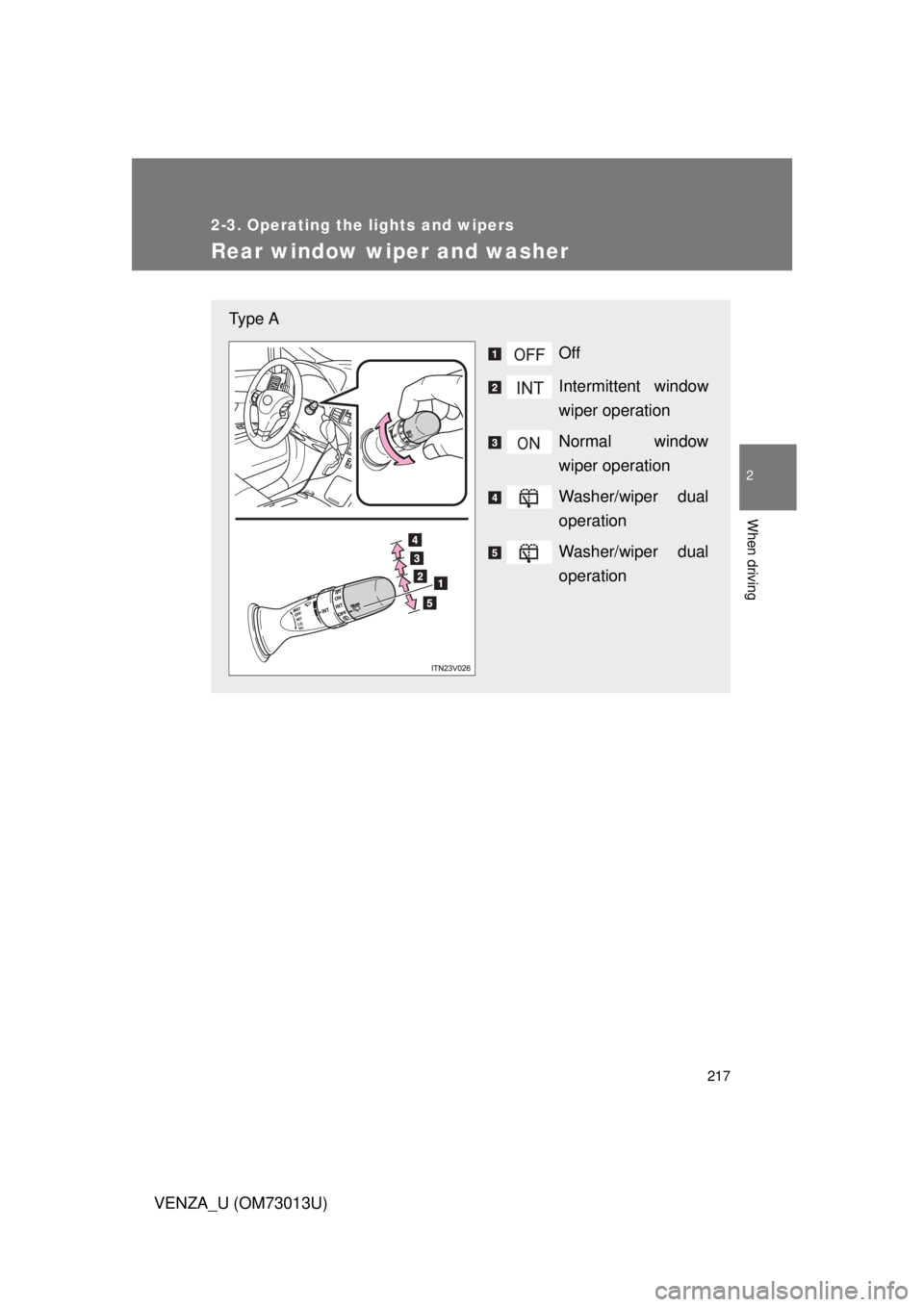

Rear window wiper and washer
Type AOff
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

218 2-3. Operating the lights and wipers
VENZA_U (OM73013U)
■The rear window wiper and w asher can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Type B
Off
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

219
2
When driving
VENZA_U (OM73013U)

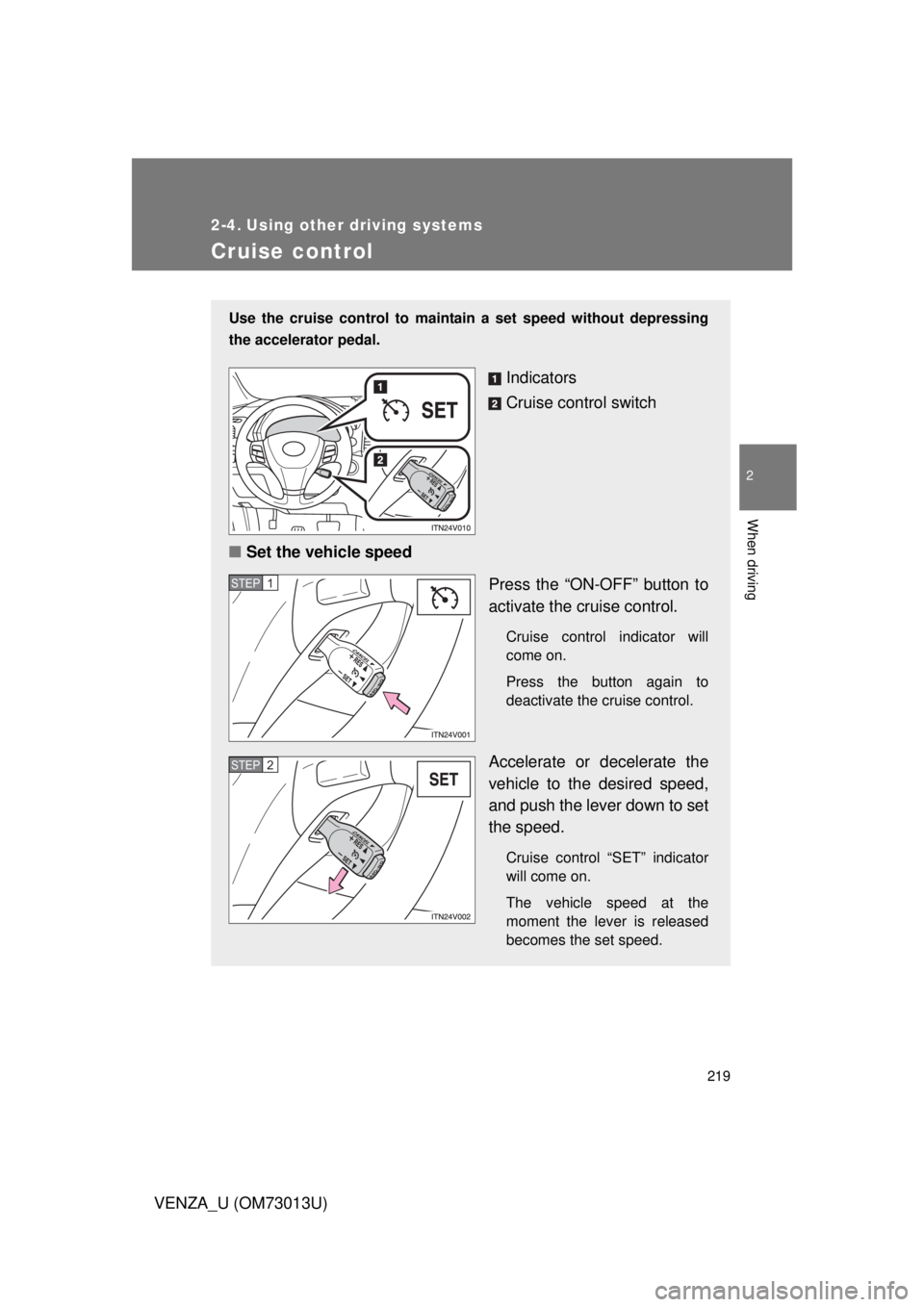

2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Set the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
Cruise control “SET” indicator
will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

220 2-4. Using other driving systems
VENZA_U (OM73013U)

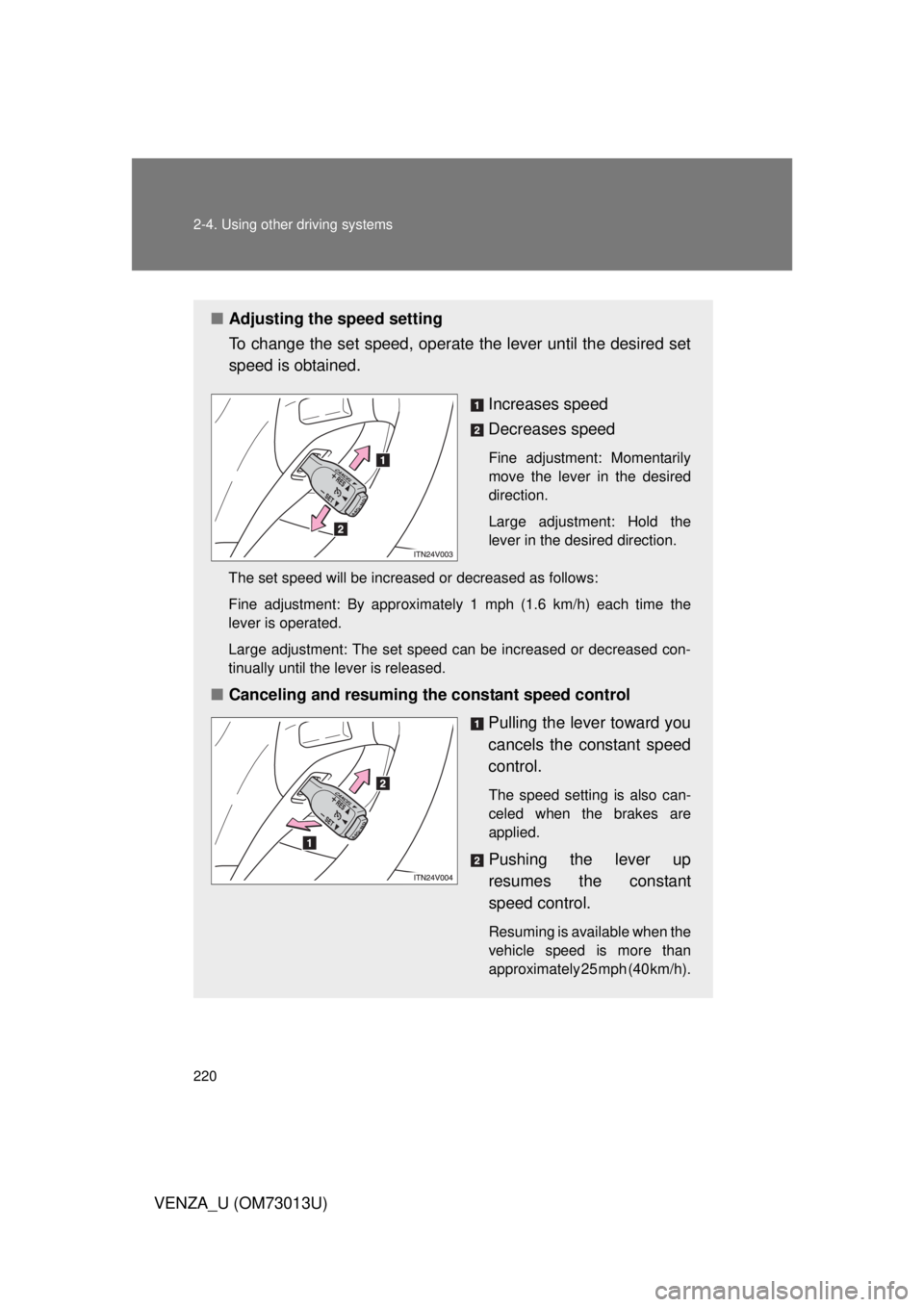

■Adjusting the speed setting
To change the set speed, operate the lever until the desired set
speed is obtained.
Increases speed
Decreases speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.
■ Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/h).
