Operating HomeLink®
Press the appropriate HomeLink button. The HomeLink indicator
light should come on.
The HomeLink compatible transceiver in your vehicle continues to send
a signal for up to 20 seconds as long as the button is pressed.
Erasing the entire HomeLink® memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds (or 20 sec-
onds depending on the model)
until the indicator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
 memory.

332 3-5. Other interior features
VENZA_OM_OM73010U_(U)
■Before programming
● Install a new battery in the remote control transmitter.
● The battery side of the remote control transmitter must be pointed away
from the HomeLink
 button.
■ Certification for the garage door opener
FCC ID: CB2300NHL3
FCC ID: CB2281AHL4
NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
■ For additional programming assistance with your HomeLink
® Univer-
sal Transceiver
Visit on the web at www.homelink.com
or call 1-800-355-3515.
CAUTION
■ When programming a garage door or other remote control devices
The garage door or other devices may operate, so ensure people and
objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink
 compatible transceiver with any garage door
opener or device that lacks safety stop and reverse features as required by
federal safety standards.
This includes any garage door that cannot detect an interfering object. A
door or device without these features increases the risk of death or serious
injury.

333
3-5. Other interior features
3
Interior features
VENZA_OM_OM73010U_(U)

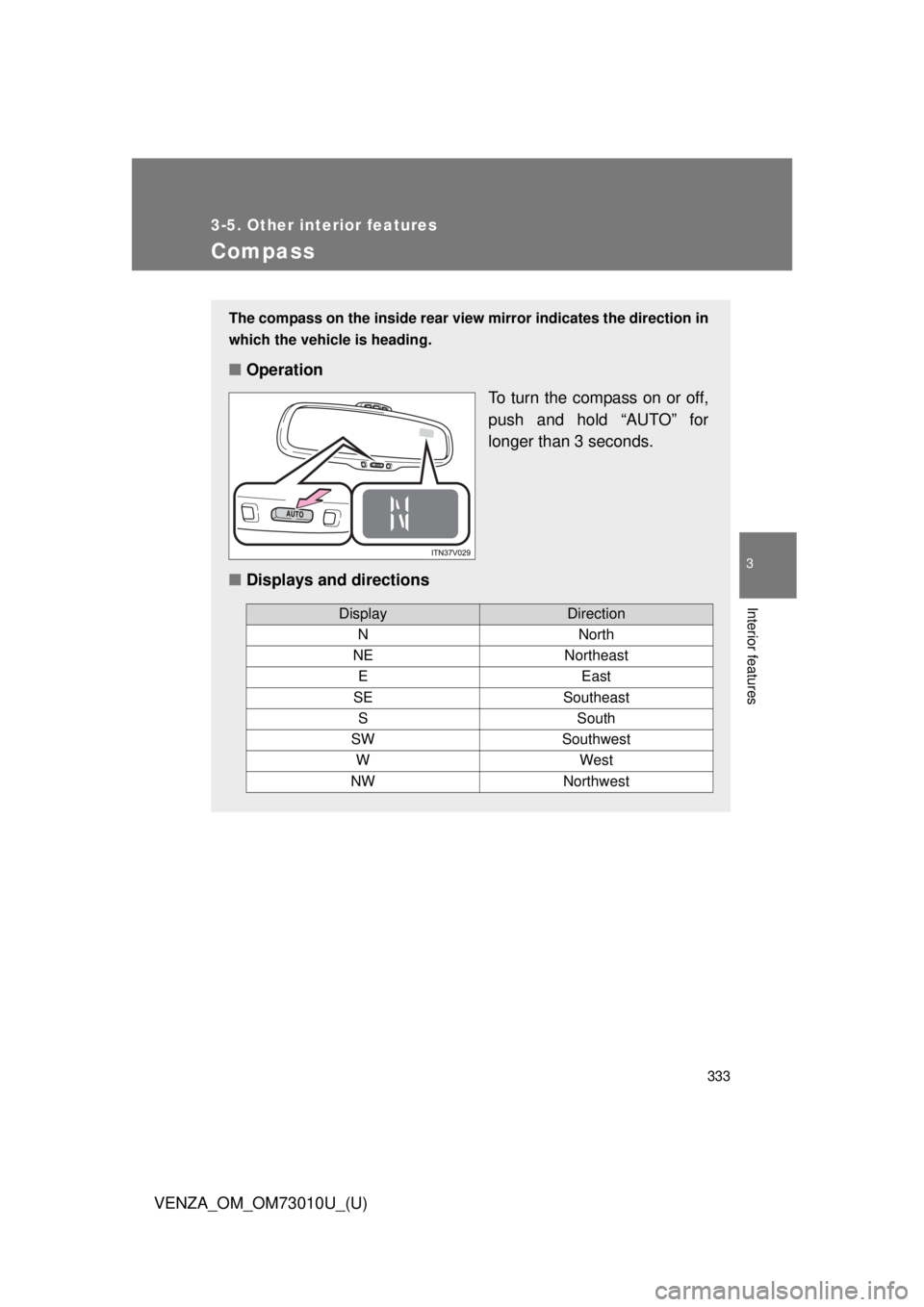

Compass
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■ Operation
To turn the compass on or off,
push and hold “AUTO” for
longer than 3 seconds.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

334 3-5. Other interior features
VENZA_OM_OM73010U_(U)
Calibrating the compassThe direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according
to the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
Samoa: 5 Guam: 8 Saipan: 8

335
3-5. Other interior features
3
Interior features
VENZA_OM_OM73010U_(U)
■
Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Push and hold “AUTO” until a
number (1 to 15) appears on the
compass display.
Press “AUTO”, and referring to the map above, select the
number of the zone where you are.
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■ Circling calibration
If “C” appears on the display,
drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direc-
tion is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP1
STEP2
STEP3
STEP4

336 3-5. Other interior features
VENZA_OM_OM73010U_(U)
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth’s magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
● The battery has been disconnected.
CAUTION
■While driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■ When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.

337
3-5. Other interior features
3
Interior features
VENZA_OM_OM73010U_(U)
NOTICE
■
To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■ To ensure normal operation of the compass
● Do not perform circling calibration of the compass in a place where the
earth’s magnetic field is subject to in terference by artificial magnetic fields.
● During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

338 3-5. Other interior features
VENZA_OM_OM73010U_(U)

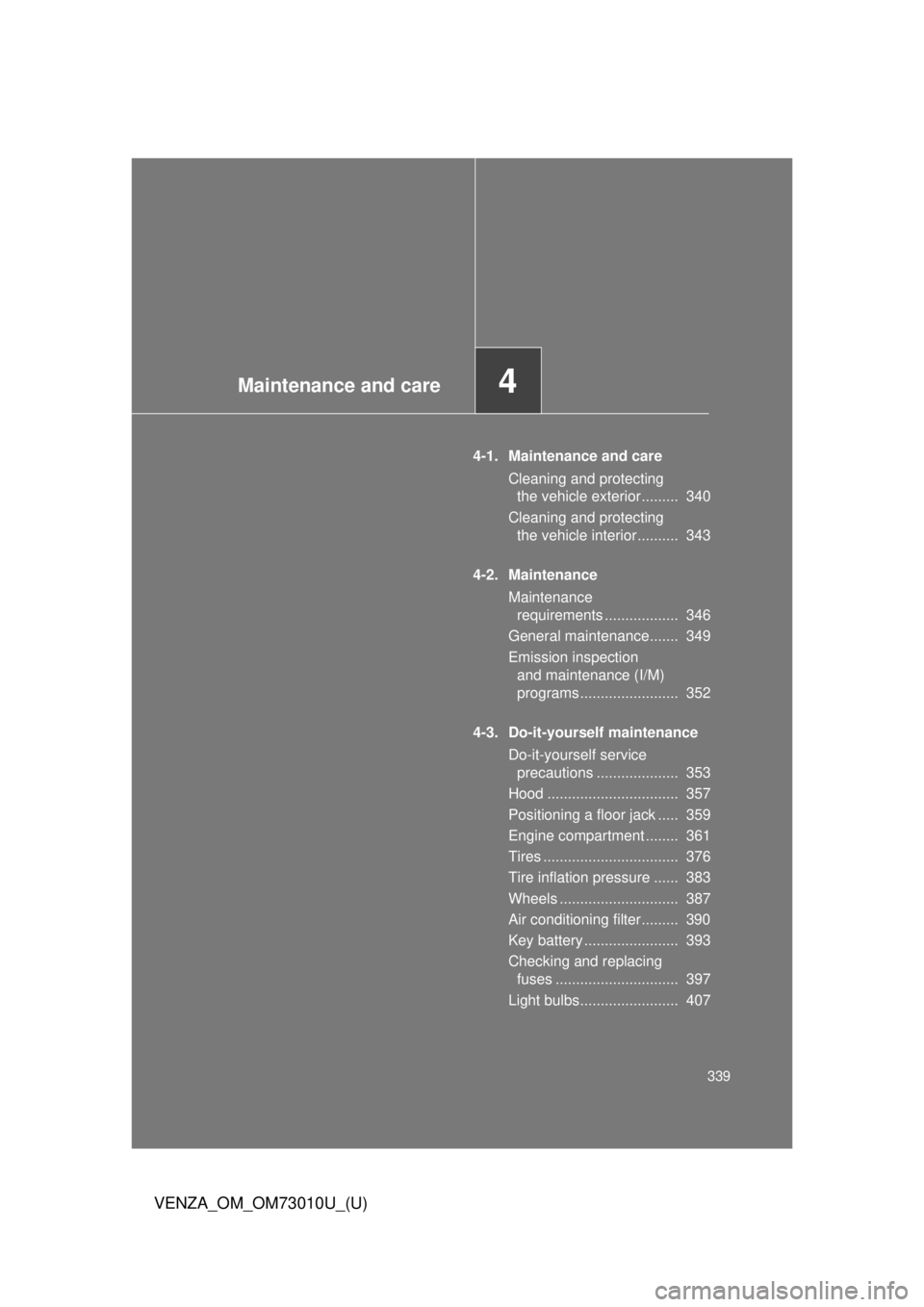

Maintenance and care4
339
VENZA_OM_OM73010U_(U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 340
Cleaning and protecting the vehicle interior .......... 343
4-2. Maintenance Maintenance requirements .................. 346
General maintenance....... 349
Emission inspection and maintenance (I/M)
programs ........................ 352
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 353
Hood ................................ 357
Positioning a floor jack ..... 359
Engine compartment ........ 361
Tires ................................. 376
Tire inflation pressure ...... 383
Wheels ............................. 387
Air conditioning filter......... 390
Key battery ....................... 393
Checking and replacing fuses .............................. 397
Light bulbs........................ 407

340
VENZA_OM_OM73010U_(U)
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
● Before washing the vehicle, do the following.
• Fold the mirrors back.
• Turn the power back door system off.
● Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Perform the following to protect the vehicle and maintain it in prime
condition.
● Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a cham-
ois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
