steering wheel TOYOTA VENZA 2013 Owners Manual (in English)

TABLE OF CONTENTSIndex
2
VENZA_OM_OM73010U_(U)
1-1. Key informationKeys ..................................... 28
1-2. Opening, closing and locking the doors
Smart key system................. 30
Wireless remote control ....... 45
Side doors ............................ 50
Back door ............................. 56
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 67
Rear seats ............................ 70
Driving position memory ....... 73
Head restraints ..................... 78
Seat belts ............................. 80
Steering wheel ..................... 87
Inside rear view mirror.......... 88
Outside rear view mirrors ..... 91 1-4. Opening and closing
the windows and moon roof
Power windows..................... 95
Moon roof ............................. 99
Sunshade ........................... 102
1-5. Refueling Opening the fuel tank cap .................................... 103
1-6. Theft deterrent system Engine immobilizer system .............................. 107
Alarm .................................. 110
Theft prevention labels (U.S.A.) ............................. 114
1-7. Safety information Correct driving posture ....... 115
SRS airbags ....................... 117
Front passenger occupant classification system ......... 132
Child restraint systems ....... 138
Installing child restraints ..... 144
1Before driving
For information regarding the equipment listed below, refer to the “Navigation
System Owner’s Manual” or “Displ ay Audio System Owner’s Manual”.
• Navigation system
• Audio system • Rear view monitor system

Before driving1
27
VENZA_OM_OM73010U_(U)
1-1. Key informationKeys ................................... 28
1-2. Opening, closing and locking the doors
Smart key system .............. 30
Wireless remote control ..... 45
Side doors .......................... 50
Back door ........................... 56
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 67
Rear seats.......................... 70
Driving position memory .... 73
Head restraints................... 78
Seat belts ........................... 80
Steering wheel ................... 87
Inside rear view mirror ....... 88
Outside rear view mirrors.............................. 91 1-4. Opening and closing
the windows and moon roof
Power windows .................. 95
Moon roof ........................... 99
Sunshade ......................... 102
1-5. Refueling Opening the fuel tank cap ................................. 103
1-6. Theft deterrent system Engine immobilizer system ........................... 107
Alarm................................ 110
Theft prevention labels (U.S.A.) .......................... 114
1-7. Safety information Correct driving posture..... 115
SRS airbags ..................... 117
Front passenger occupant classification system ...... 132
Child restraint systems..... 138
Installing child restraints ........................ 144

67
1
Before driving
VENZA_OM_OM73010U_(U)
1-3. Adjustable components (seats, mirrors, steering wheel)

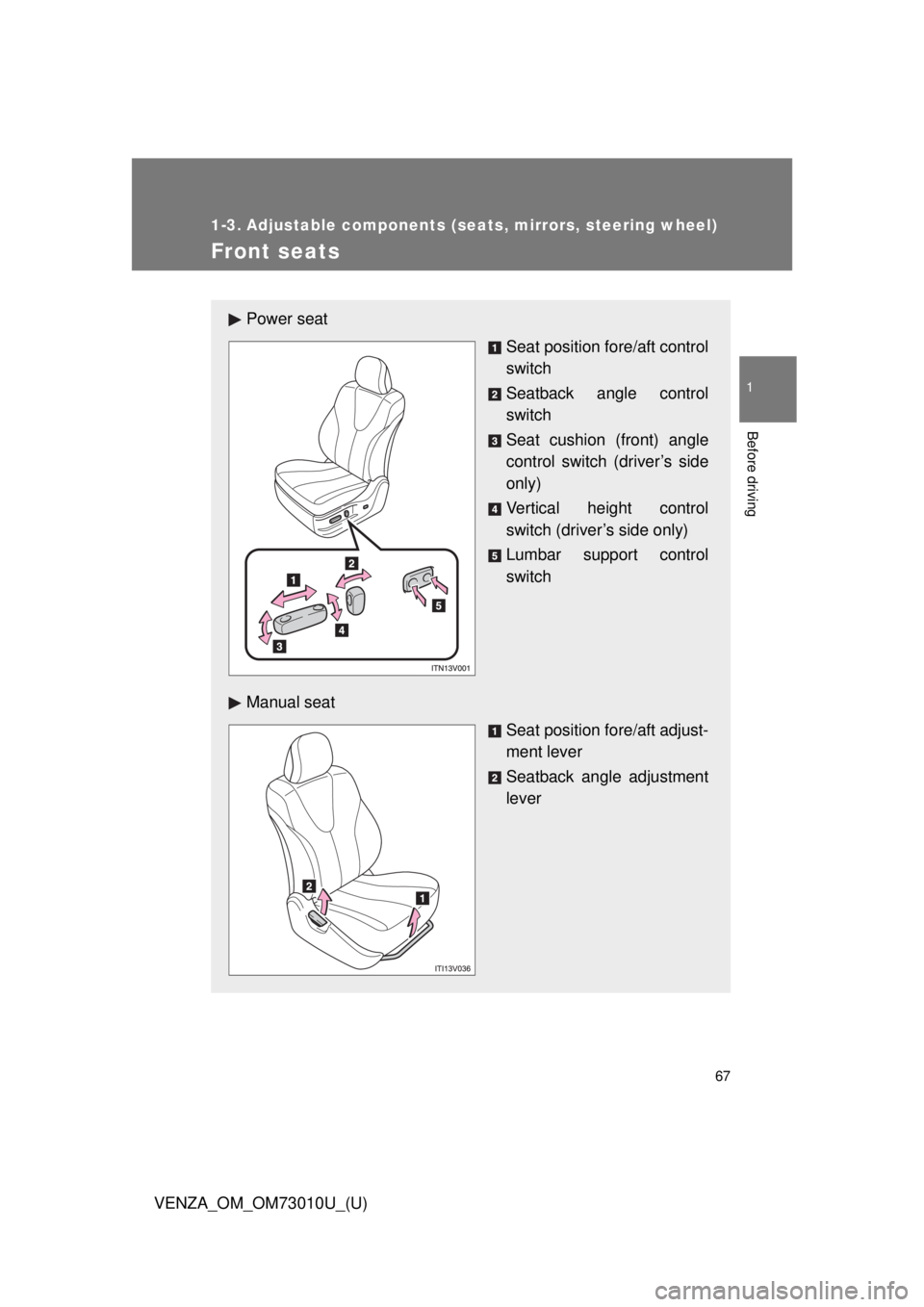

Front seats
Power seat
Seat position fore/aft control
switch
Seatback angle control
switch
Seat cushion (front) angle
control switch (driver’s side
only)
Vertical height control
switch (driver’s side only)
Lumbar support control
switch
Manual seat Seat position fore/aft adjust-
ment lever
Seatback angle adjustment
lever

68 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73010U_(U)
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may make the inner struc-
ture of the head restraint appear. This does not indicate a problem.
During
rear-end
collision
Inner
structure

69
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73010U_(U)
CAUTION
■Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.

70
1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73010U_(U)
Rear seats
Folding down the rear seatbacks■ Before folding down the rear seatbacks
Stow the seat belt buckles and
lower the head restraints to the
lowest position.
Seatback angle adjustment
lever
Pull up the lever until the lock
is completely released.
STEP1

71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
VENZA_OM_OM73010U_(U) Pass the outer seat belts and
plates through the seat belt
hangers.
This prevents the shoulder belt
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.
■
Folding down the rear seatbacks
From inside
Fold down the seatback while
pulling the seatback angle
adjustment lever.
Pull up the lever until the lock is
completely released.
From outsidePull the lever.
For left side rear seatback
For right side and center rear
seatback
STEP2

72 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73010U_(U)
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt. If the seat is too reclined, the
lap belt may slide past the hips and apply restraint forces directly to the
abdomen or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident.
■ Before folding down a rear seat
Do not fold down a rear seat when there are passengers sitting in the rear
seats or when there is luggage placed on the rear seats.
■ When returning the seatbacks to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Be careful not to get your hands pinched in the seat.
● Make sure the seatbacks are securely locked by lightly rocking it back and
forth.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
NOTICE
■When folding down the rear seatbacks
The seat belts and buckles must be stowed.

73
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VENZA_OM_OM73010U_(U)
Driving position memor y
: If equipped
Your preferred driving position (the position of the driver’s seat and
angle of the outside rear view mirrors) can be memorized and
recalled by pressing a button. It is also possible to set this function
to activate automatically wh en the doors are unlocked.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift lever is in P.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch is in IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
is in the “ON” position.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1” or “2” until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
STEP4

74 1-3. Adjustable components (seats, mirrors, steering wheel)
VENZA_OM_OM73010U_(U)
■Recalling the memorized position
Check that the shift lever is in P.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch is in IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
is in the “ON” position.
Press button “1” or “2” to recall
the desired position.
STEP1
STEP2
STEP3
