lock TOYOTA VENZA 2013 Owners Manual (in English)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Venza

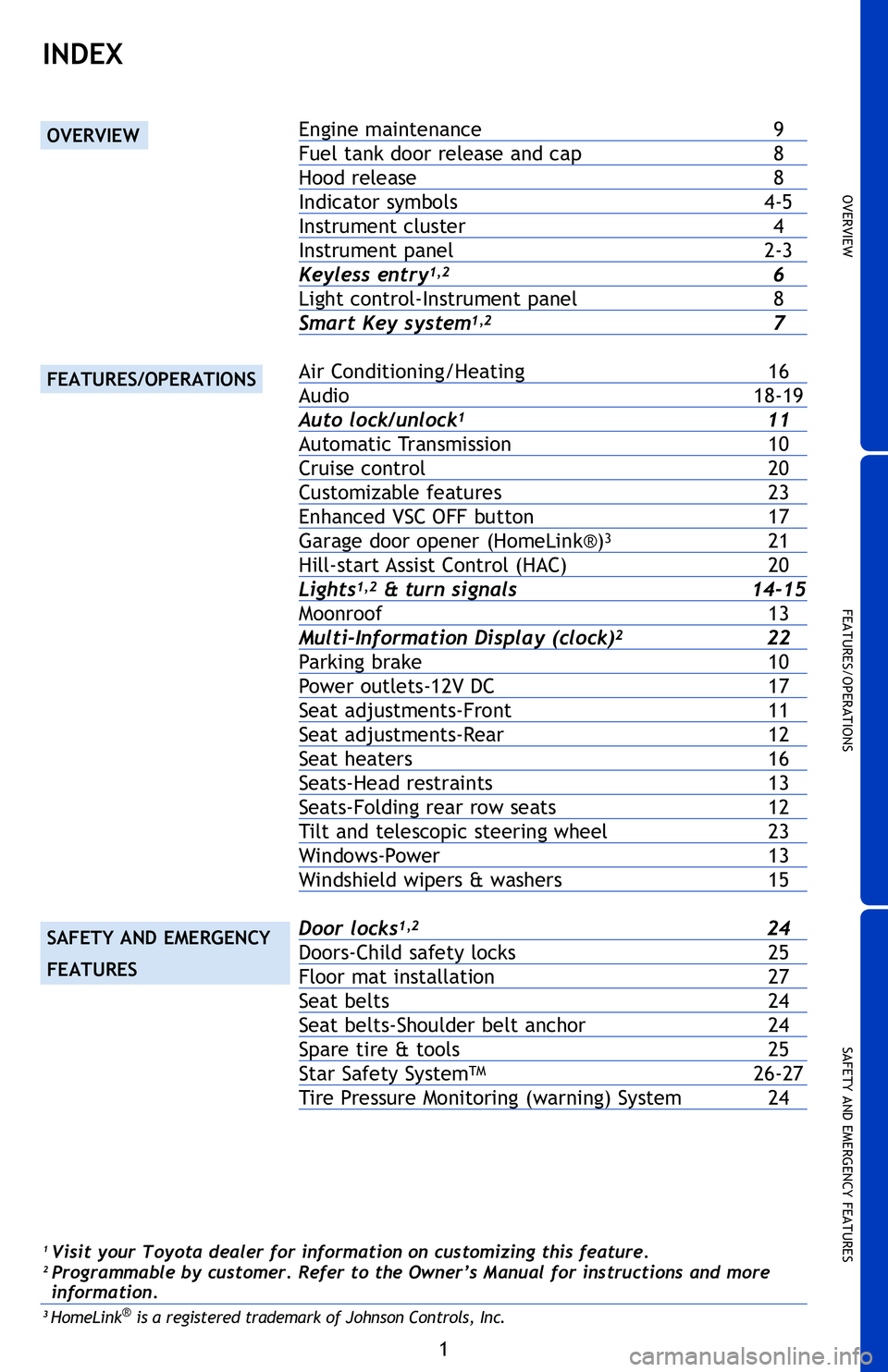

INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system
1,2 7

Air Conditioning/Heating 16
Audio 18-19
Auto lock/unlock
1 11
Automatic Transmission 10
Cruise control 20
Customizable features 23
Enhanced VSC OFF button 17
Garage door opener (HomeLink®)
3 21
Hill-start Assist Control (HAC) 20
Lights
1,2 & turn signals 14-15
Moonroof 13
Multi-Information Display (clock)
2 22
Parking brake 10
Power outlets-12V DC 17
Seat adjustments-Front 11
Seat adjustments-Rear 12
Seat heaters 16
Seats-Head restraints 13
Seats-Folding rear row seats 12
Tilt and telescopic steering wheel 23
Windows-Power 13
Windshield wipers & washers 15

Door locks
1,2 24
Doors-Child safety locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM 26-27
Tire Pressure Monitoring (warning) System 24
2013Venza.indd 15/10/12 8:32 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel light
control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display

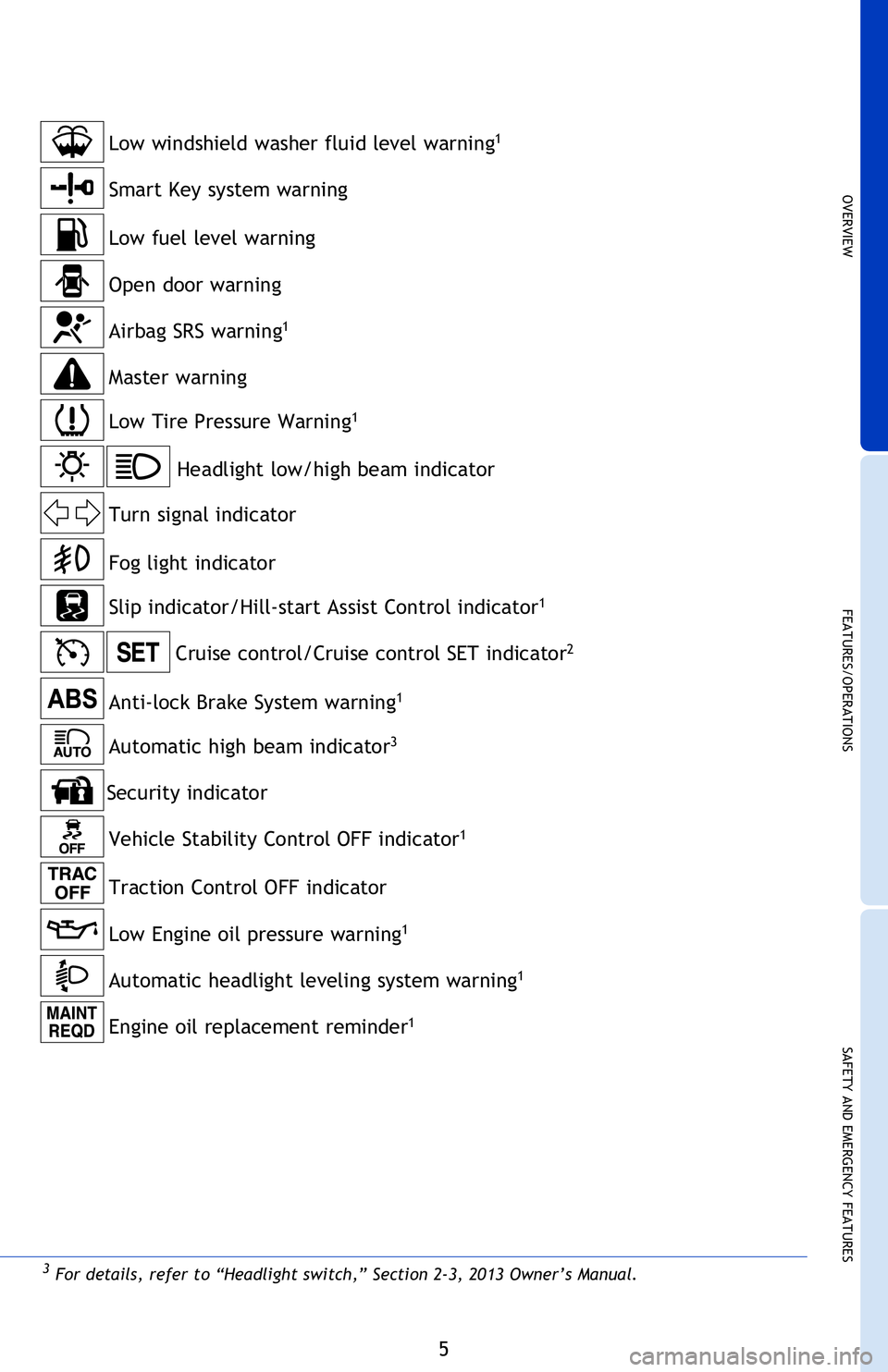

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control/Cruise control SET indicator2
Low Tire Pressure Warning1
Smart Key system warning
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
3
For details, refer to “Headlight switch,” Section 2-3, 2013 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
2013Venza.indd 55/10/12 8:33 PM

6
OVERVIEW
Smart Key system (if equipped)
Start function
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” button
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Locking operation
Carry remote to lock
Carry remote to lock/unlock
Panic button
Push and hold
Back door lock/unlock

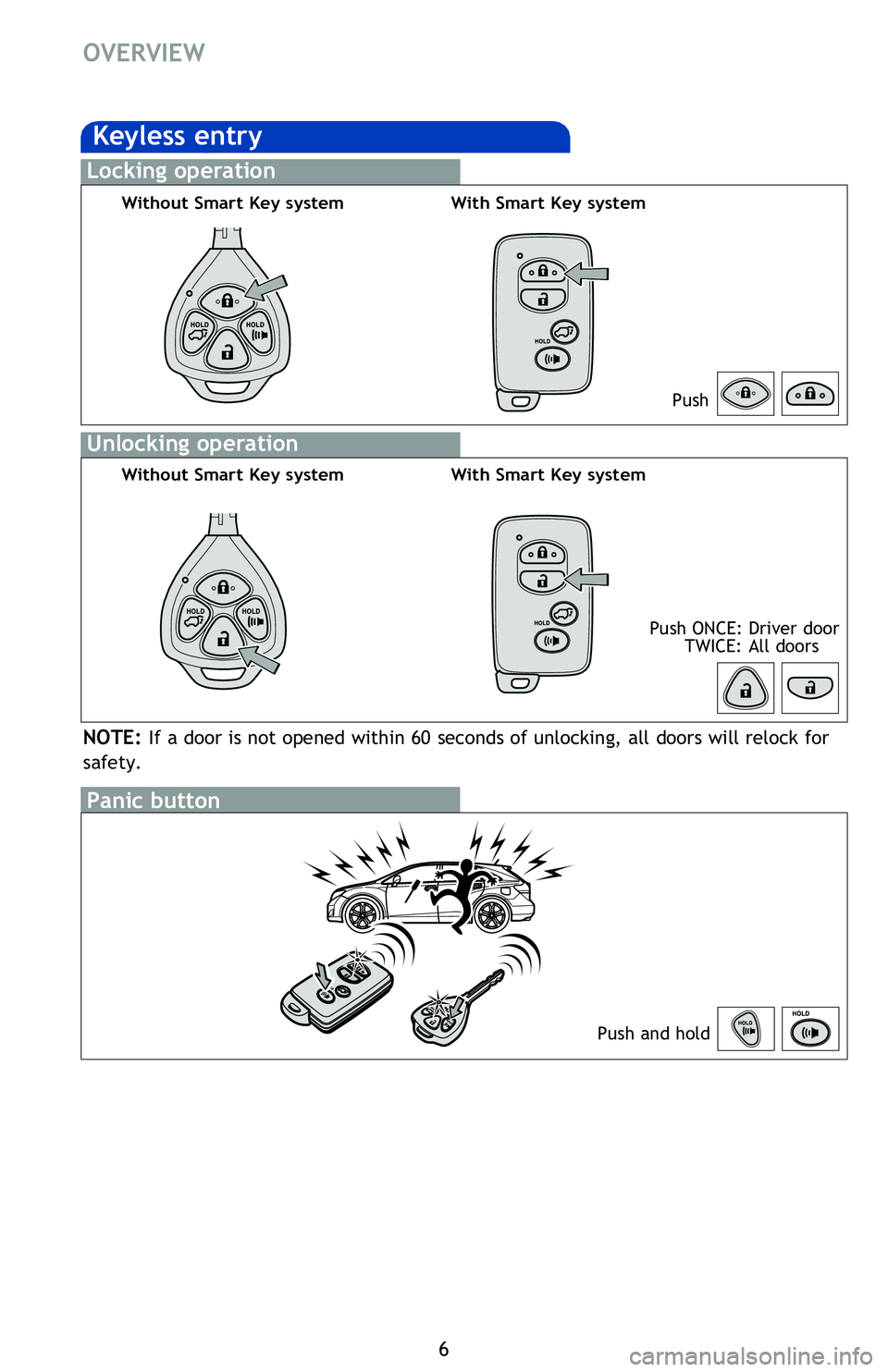

Keyless entry
Locking operation
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors Push
Without Smart Key systemWith Smart Key system
Without Smart Key systemWith Smart Key system
2013Venza.indd 65/10/12 8:33 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

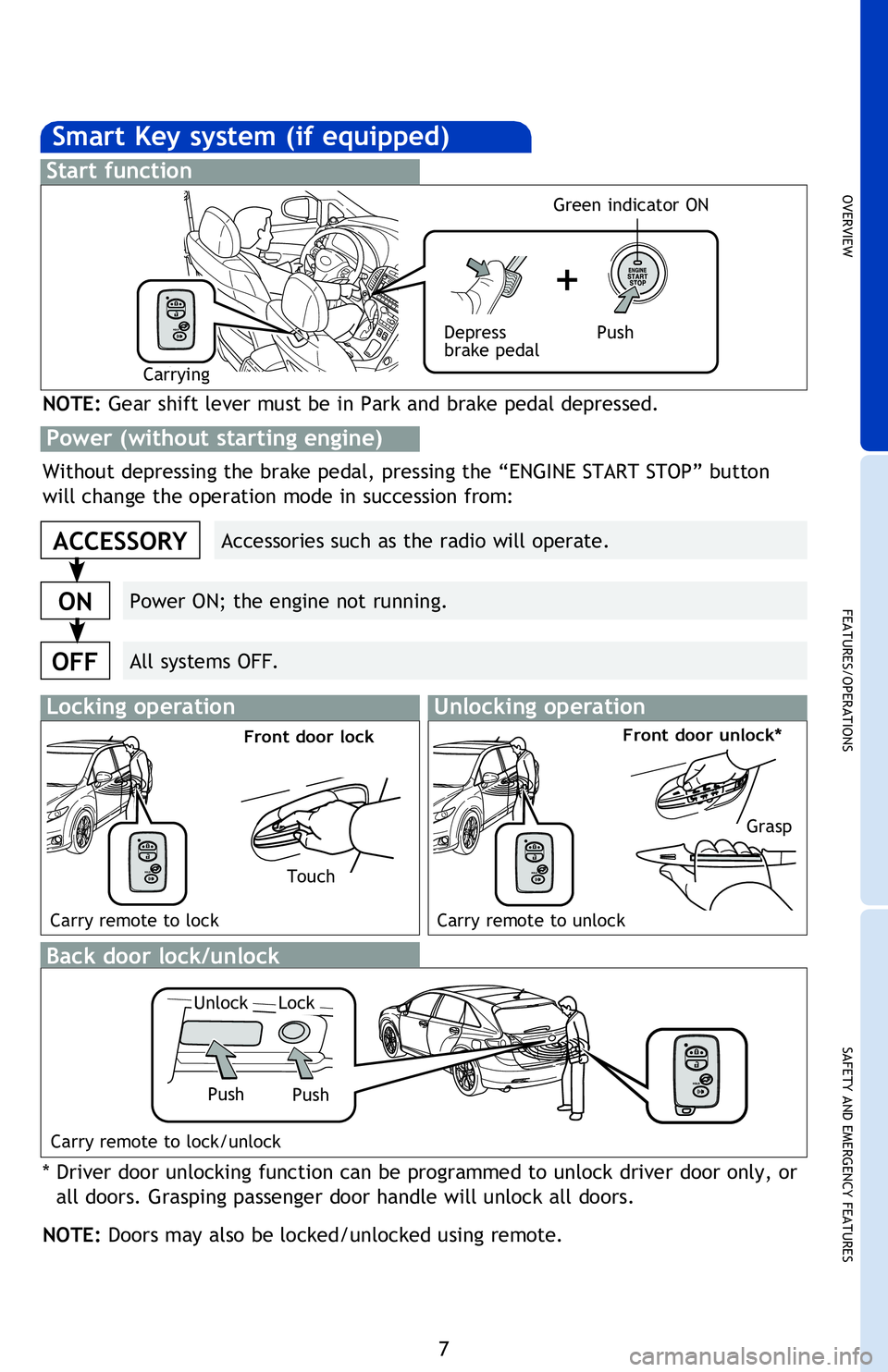

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” button
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operationUnlocking operation
Carry remote to lockCarry remote to unlock
Touch
Front door lockFront door unlock*
Grasp
Carry remote to lock/unlock
Back door lock/unlock
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
2013Venza.indd 75/10/12 8:33 PM

10
FEATURES/OPERATIONS

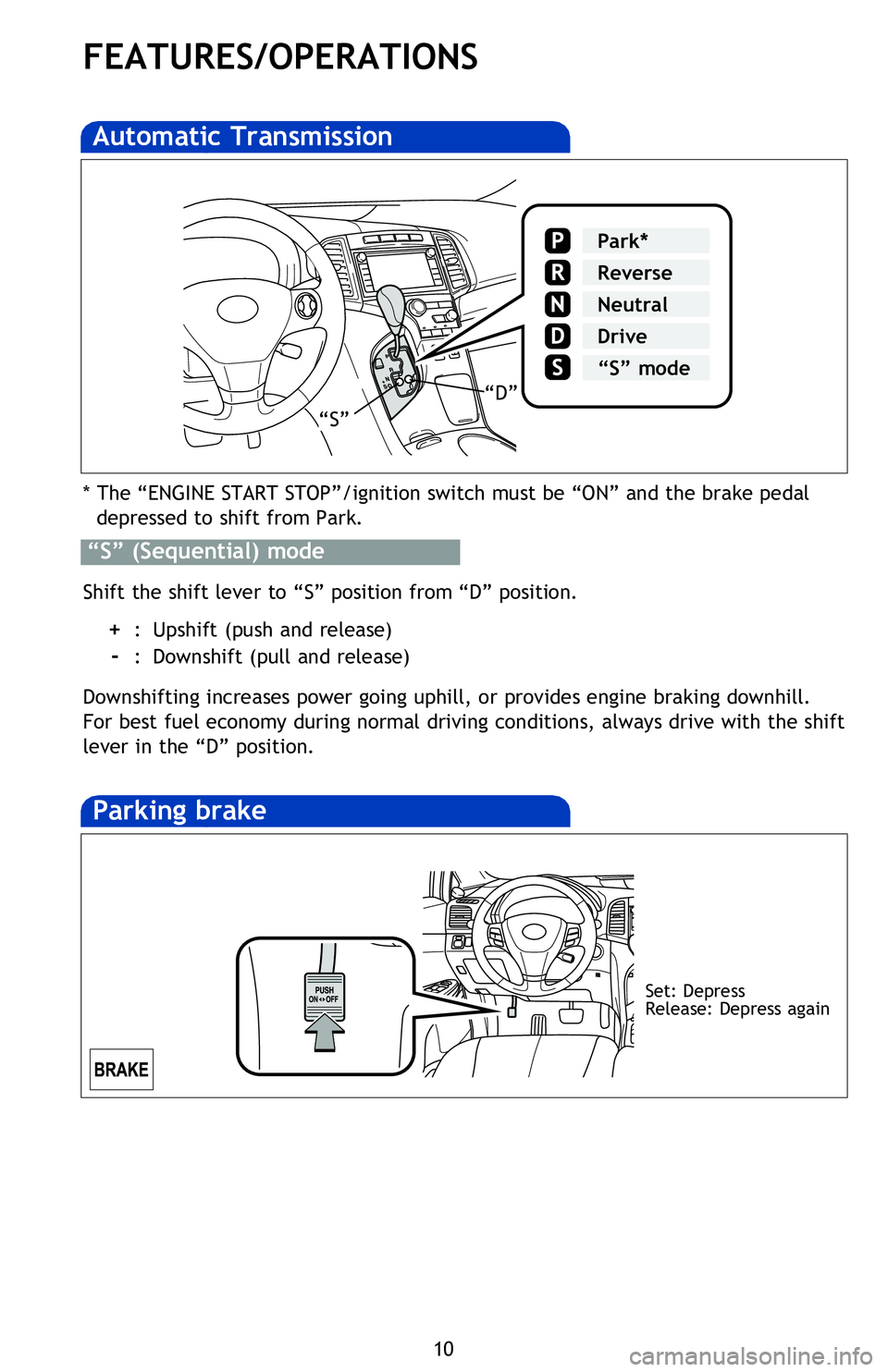

Automatic Transmission
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Seat back angle
Seat position; cushion angle and height (driver side only)
Lumbar support
Driving position memory
To set driver seat and outside rearview mirror positions:
(1) The “ENGINE START STOP”/ignition switch must be “ON” and the shift lever in
the “P” position.
(2) Adjust driver seat and outside reariew mirrors to desired positions.
(3) While pressing “SET” button, press button “1” or “2” until a beep sounds.
Press button “1” or “2” to recall set position.
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” or ignition switch OFF.
Refer to the Owner’s Manual for more details.
2013Venza.indd 105/10/12 8:34 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Set: Depress
Release: Depress again
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Seat back angle
Seat position; cushion angle and height (driver side only)
Lumbar support
Power seat (if equipped)
Driving position memory
To set driver seat and outside rearview mirror positions:
(1) The “ENGINE START STOP”/ignition switch must be “ON” and the shift lever in
the “P” position.
(2) Adjust driver seat and outside reariew mirrors to desired positions.
(3) While pressing “SET” button, press button “1” or “2” until a beep sounds.
Press button “1” or “2” to recall set position.

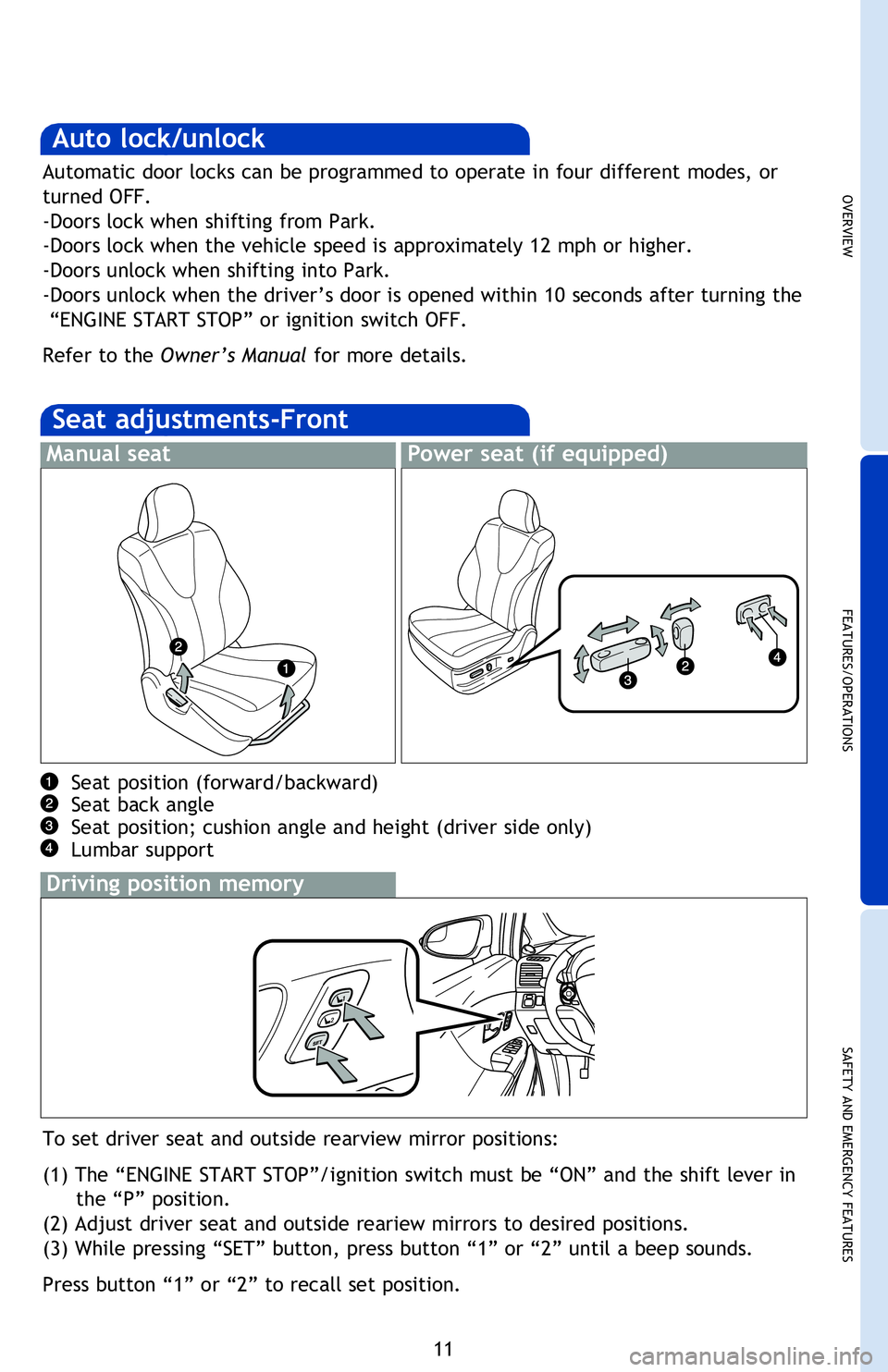

Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” or ignition switch OFF.
Refer to the Owner’s Manual for more details.
2013Venza.indd 115/10/12 8:34 PM

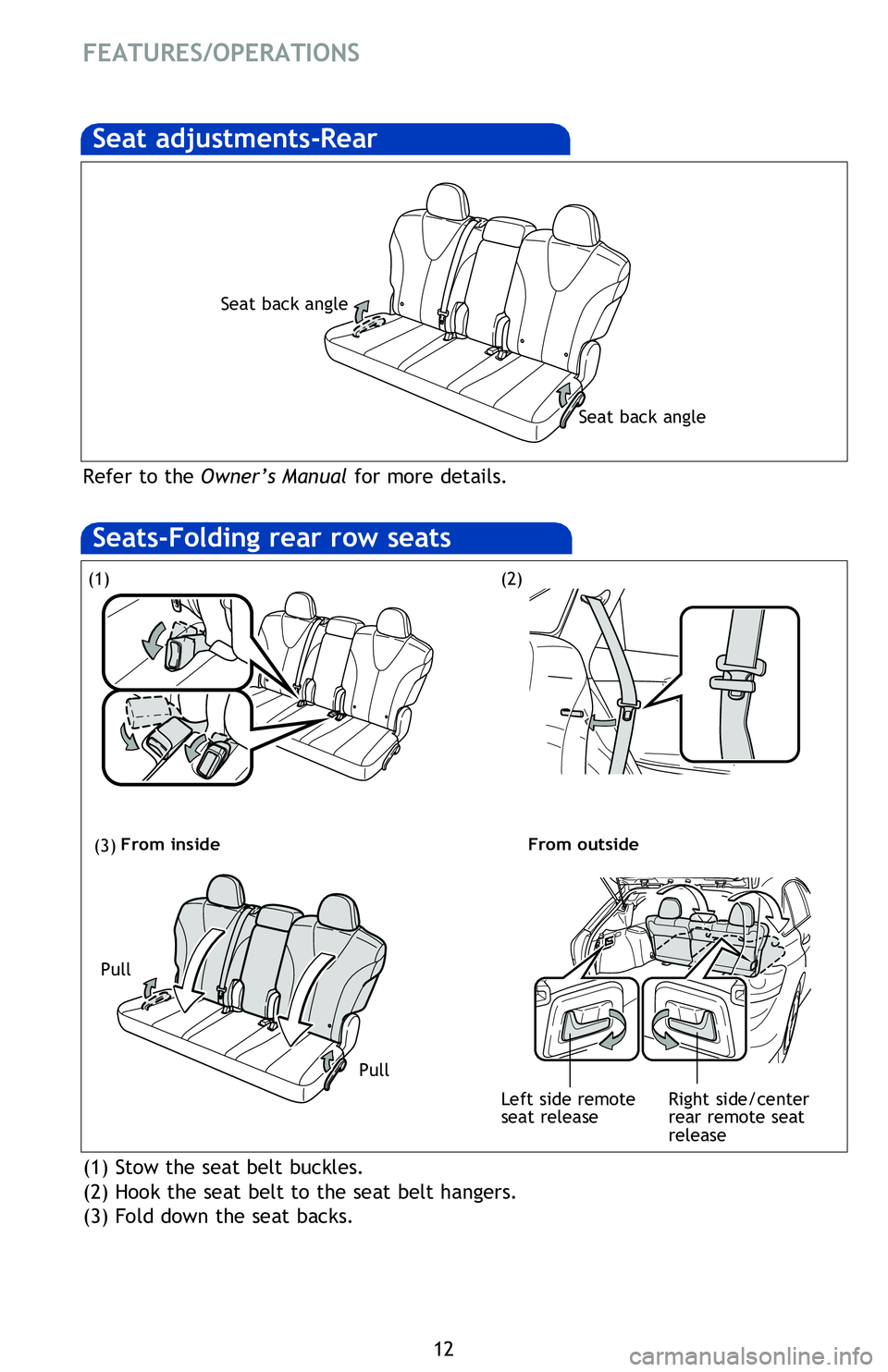

12
FEATURES/OPERATIONS
Seats-Head restraints
Front and rear (excluding center) seats
Height
(1) Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seat backs.
(1)
(3)
(2)
Seats-Folding rear row seats
Pull
Pull
From inside
From outside
Right side/center
rear remote seat
release
Left side remote
seat release
Moonroof (if equipped)
Sliding operation
Windows-Power
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway;
again to open completely.
Seat adjustments-Rear
Refer to the Owner’s Manual for more details.
Seat back angle
Seat back angle
2013Venza.indd 125/10/12 8:34 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

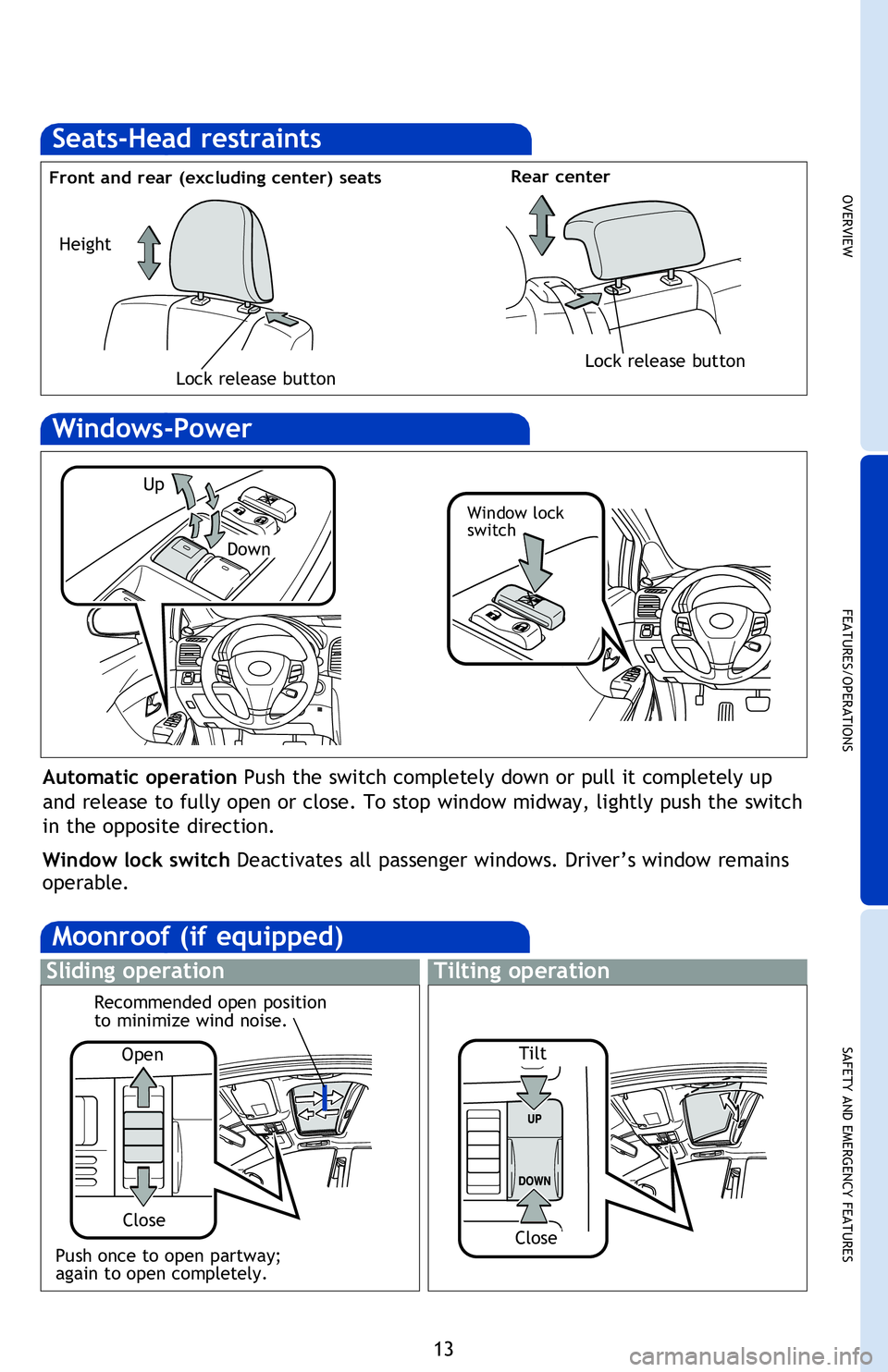

Seats-Head restraints
Front and rear (excluding center) seatsRear center
Lock release buttonLock release button
Height
(1) Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seat backs.
Right side/center rear remote seat
release
Moonroof (if equipped)
Sliding operationTilting operation
Open
Close
Recommended open position
to minimize wind noise.
Windows-Power
Up
Down
Window lock
switch
Automatic operation
Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway;
again to open completely. TiltClose
Refer to the
Owner’s Manual for more details.
2013Venza.indd 135/10/12 8:34 PM

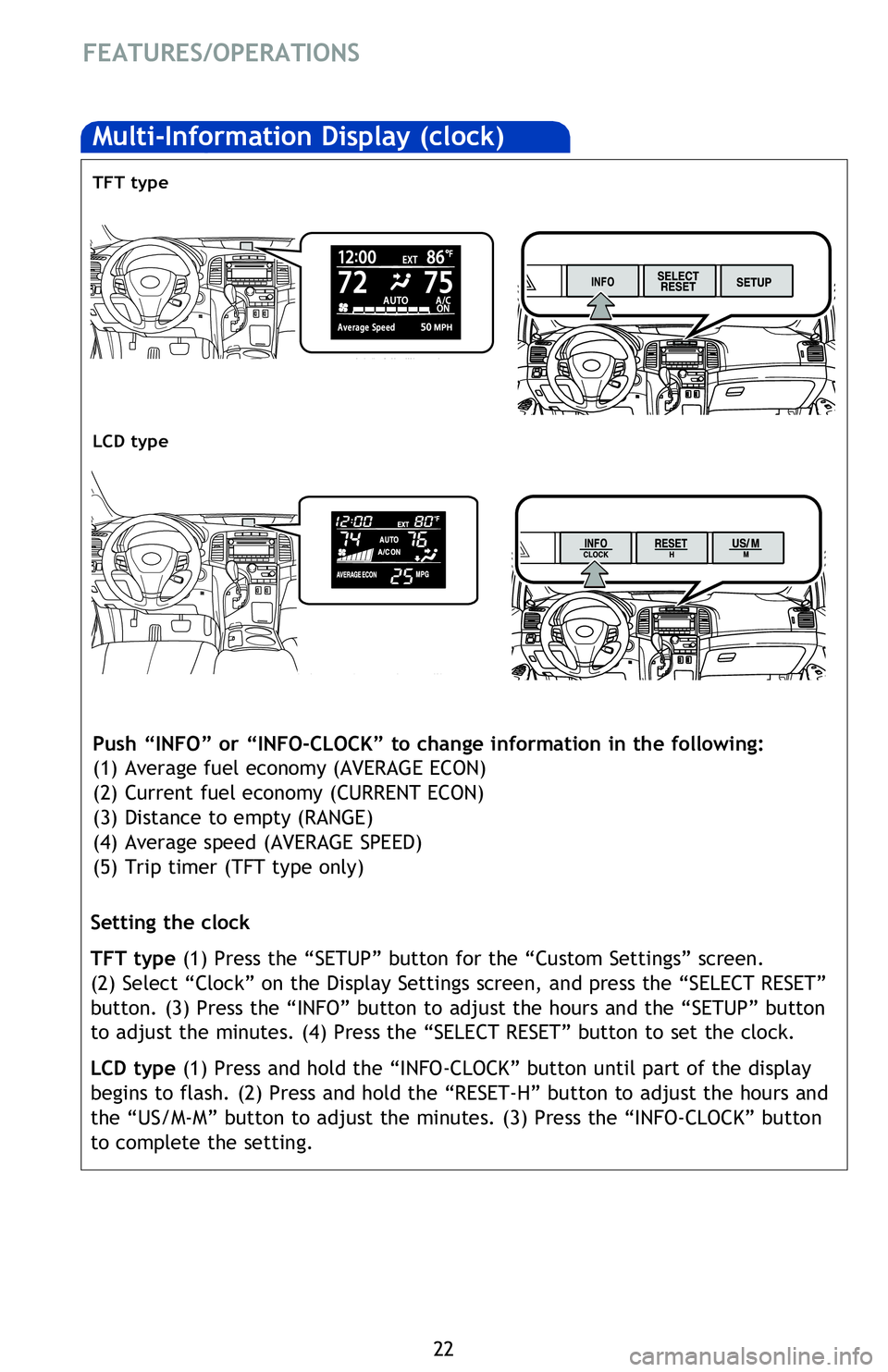

22
FEATURES/OPERATIONS
Multi-Information Display (clock)
Push “INFO” or “INFO-CLOCK” to change information in the following:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
TFT type
LCD type
Setting the clock
TFT type (1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the “SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” button
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button
to complete the setting.
Customizable features
If your vehicle has a TFT type multi-information display, you will be able to
customize certain electronic features. Press the “SETUP” button while stopped to
access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
2013Venza.indd 225/10/12 8:38 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Push “INFO” or “INFO-CLOCK” to change information in the following:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
Setting the clock
TFT type (1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the “SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” button
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button
to complete the setting.
Customizable features
If your vehicle has a TFT type multi-information display, you will be able to
customize certain electronic features. Press the “SETUP” button while stopped to
access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Length
Angle
2013Venza.indd 235/10/12 8:38 PM
