TOYOTA VERSO 2011 Owners Manual

561 6-1. Specifications
6
Vehicle specifications

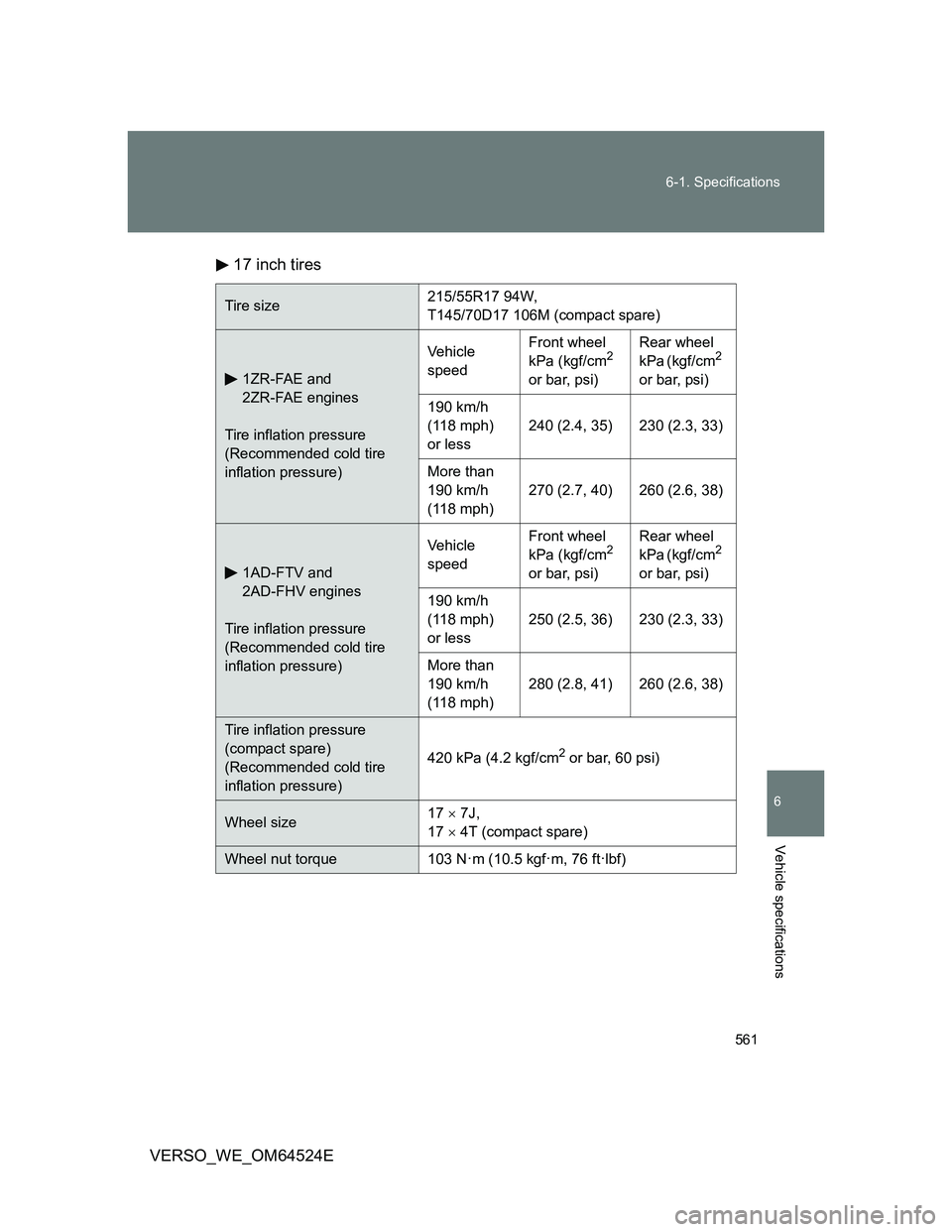

VERSO_WE_OM64524E17 inch tires
Tire size215/55R17 94W,
T145/70D17 106M (compact spare)
1ZR-FAE and
2ZR-FAE engines
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less240 (2.4, 35) 230 (2.3, 33)
More than
190 km/h
(118 mph)270 (2.7, 40) 260 (2.6, 38)
1AD-FTV and
2AD-FHV engines
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less250 (2.5, 36) 230 (2.3, 33)
More than
190 km/h
(118 mph)280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size17  7J,
17  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

562 6-1. Specifications
VERSO_WE_OM64524E

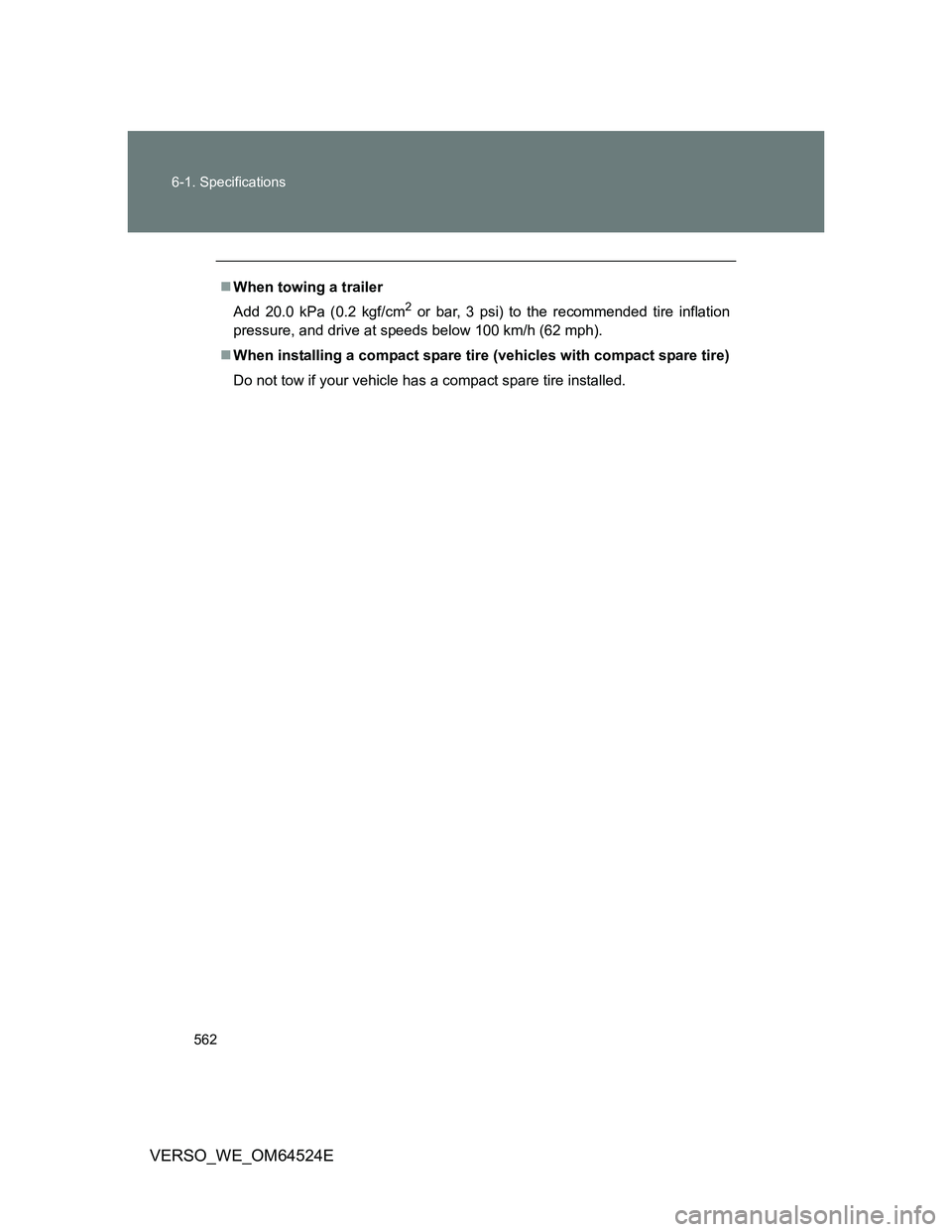

When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
When installing a compact spare tire (vehicles with compact spare tire)
Do not tow if your vehicle has a compact spare tire installed.

563 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E

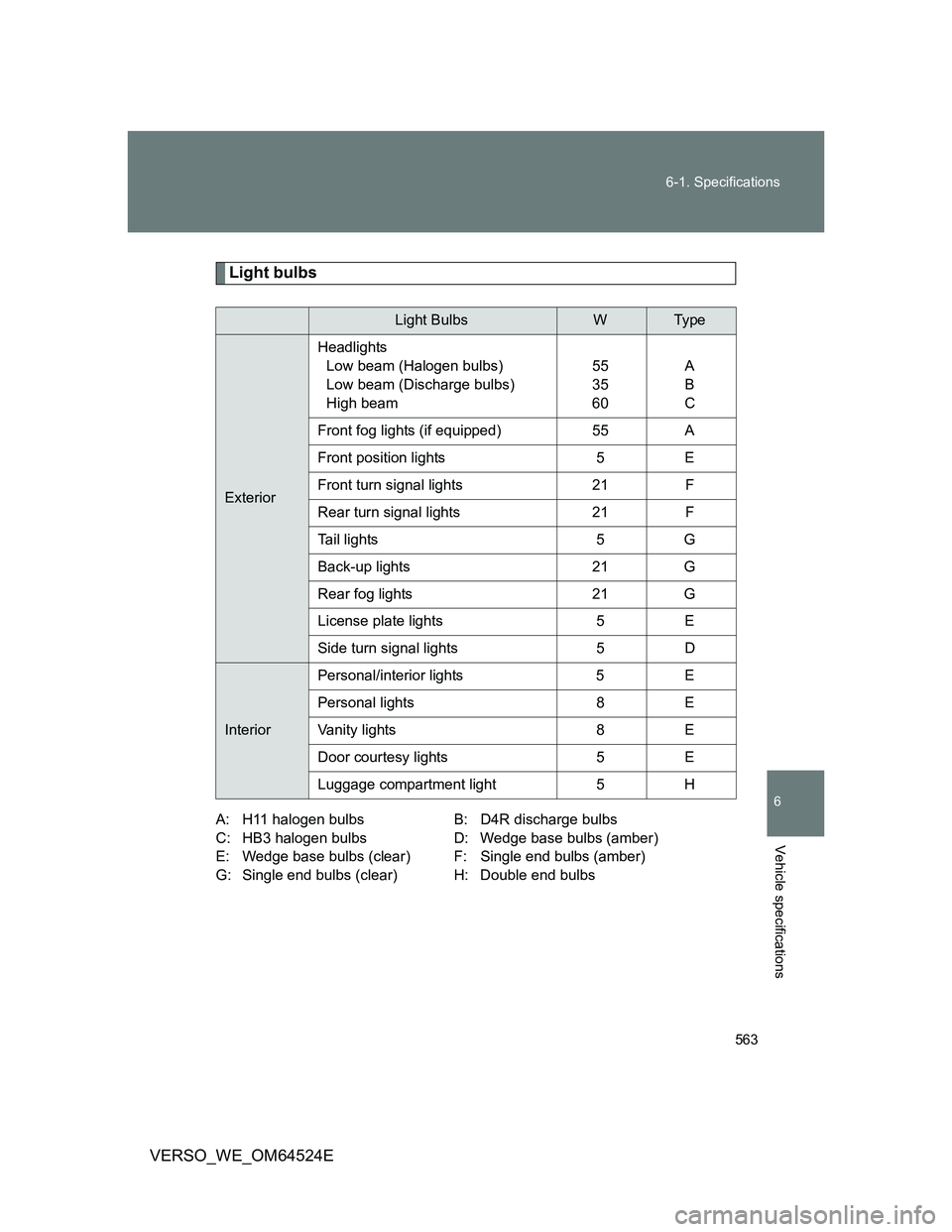

Light bulbs
A: H11 halogen bulbs B: D4R discharge bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear) F: Single end bulbs (amber)
G: Single end bulbs (clear) H: Double end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam (Halogen bulbs)
Low beam (Discharge bulbs)
High beam55
35
60A
B
C
Front fog lights (if equipped) 55 A
Front position lights 5 E
Front turn signal lights 21 F
Rear turn signal lights 21 F
Tail lights 5 G
Back-up lights 21 G
Rear fog lights 21 G
License plate lights 5 E
Side turn signal lights 5 D
InteriorPersonal/interior lights 5 E
Personal lights 8 E
Vanity lights 8 E
Door courtesy lights 5 E
Luggage compartment light 5 H

564
6-1. Specifications
VERSO_WE_OM64524E

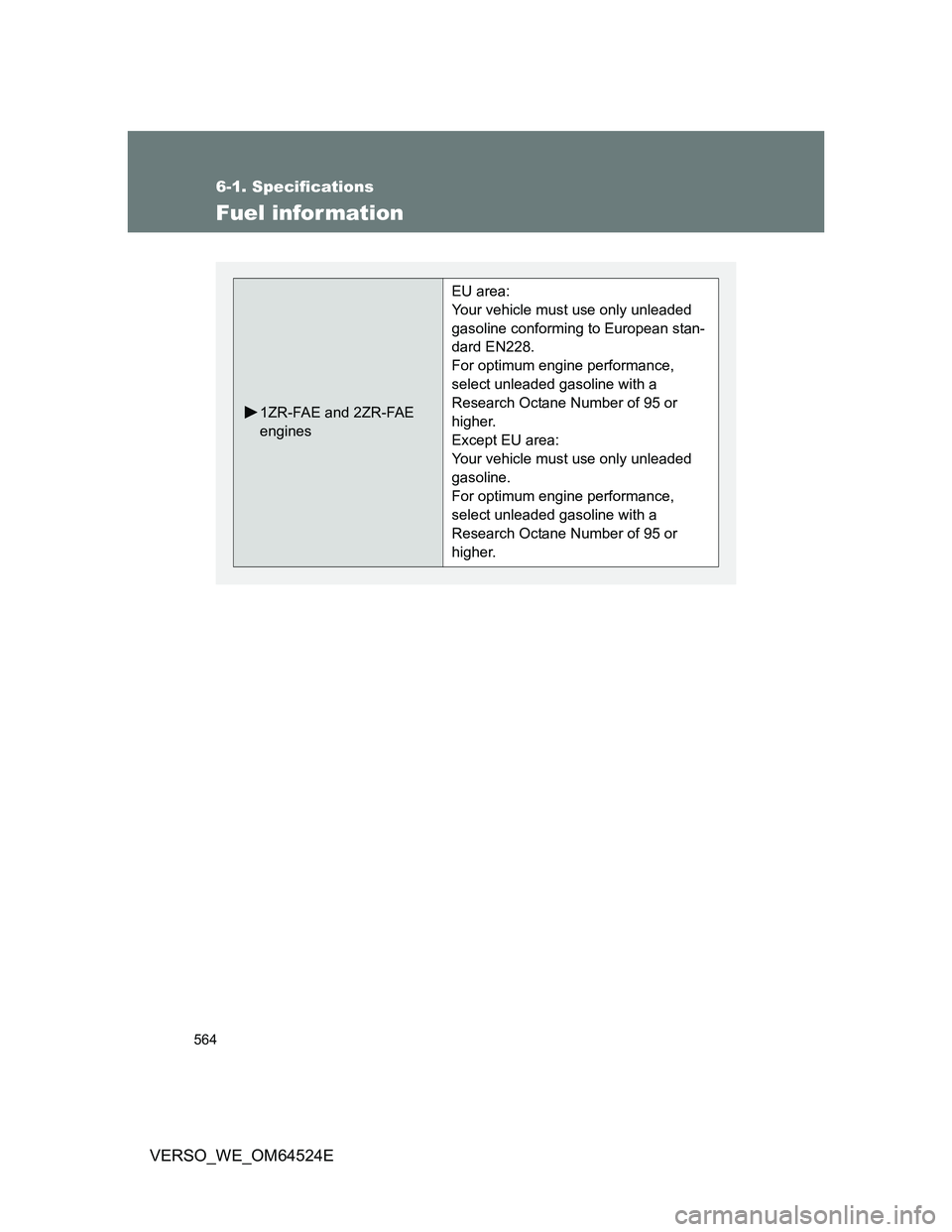

Fuel infor mation
1ZR-FAE and 2ZR-FAE
engines
EU area:
Your vehicle must use only unleaded
gasoline conforming to European stan-
dard EN228.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
Except EU area:
Your vehicle must use only unleaded
gasoline.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.

565 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E

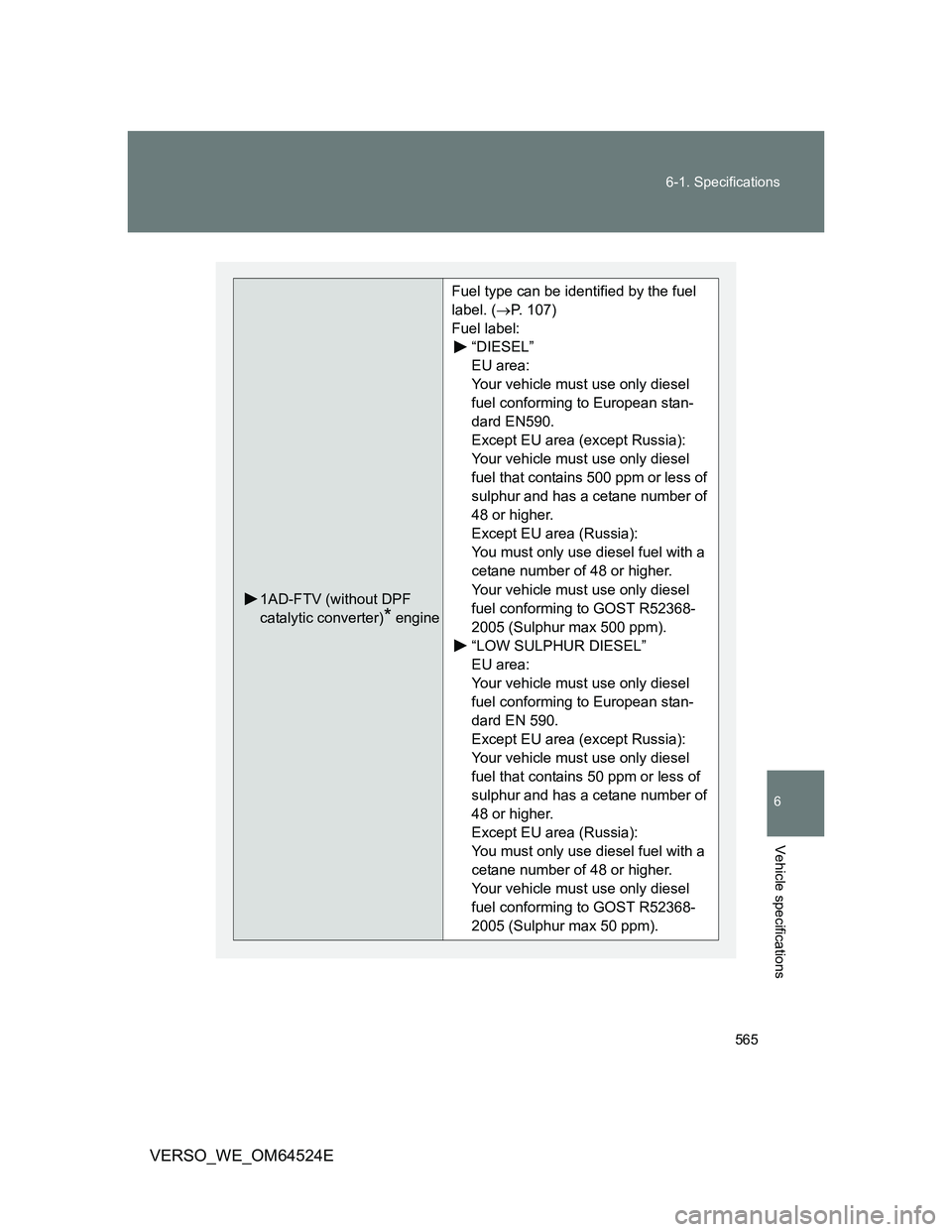

1AD-FTV (without DPF
catalytic converter)
* engine
Fuel type can be identified by the fuel
label. (P. 107)
Fuel label:
“DIESEL”
EU area:
Your vehicle must use only diesel
fuel conforming to European stan-
dard EN590.
Except EU area (except Russia):
Your vehicle must use only diesel
fuel that contains 500 ppm or less of
sulphur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a
cetane number of 48 or higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 500 ppm).
“LOW SULPHUR DIESEL”
EU area:
Your vehicle must use only diesel
fuel conforming to European stan-
dard EN 590.
Except EU area (except Russia):
Your vehicle must use only diesel
fuel that contains 50 ppm or less of
sulphur and has a cetane number of
48 or higher.
Except EU area (Russia):
You must only use diesel fuel with a
cetane number of 48 or higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).

566 6-1. Specifications
VERSO_WE_OM64524E
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulphur diesel fuel may not be available, so please confirm the availabil-
ity with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
1AD-FTV (with DPF
catalytic converter)
* and
2AD-FHV engines
EU area:
Your vehicle must use only diesel fuel
conforming to European standard
EN590.
Except EU area (except Russia):
Your vehicle must use only diesel fuel
that contains 50 ppm or less of sulphur
and has a cetane number of 48 or
higher.
Except EU area (Russia):
You must only use diesel fuel with a
cetane number of 48 or higher.
Your vehicle must use only diesel fuel
conforming to GOST R52368-2005
(Sulphur max 50 ppm).

567 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E

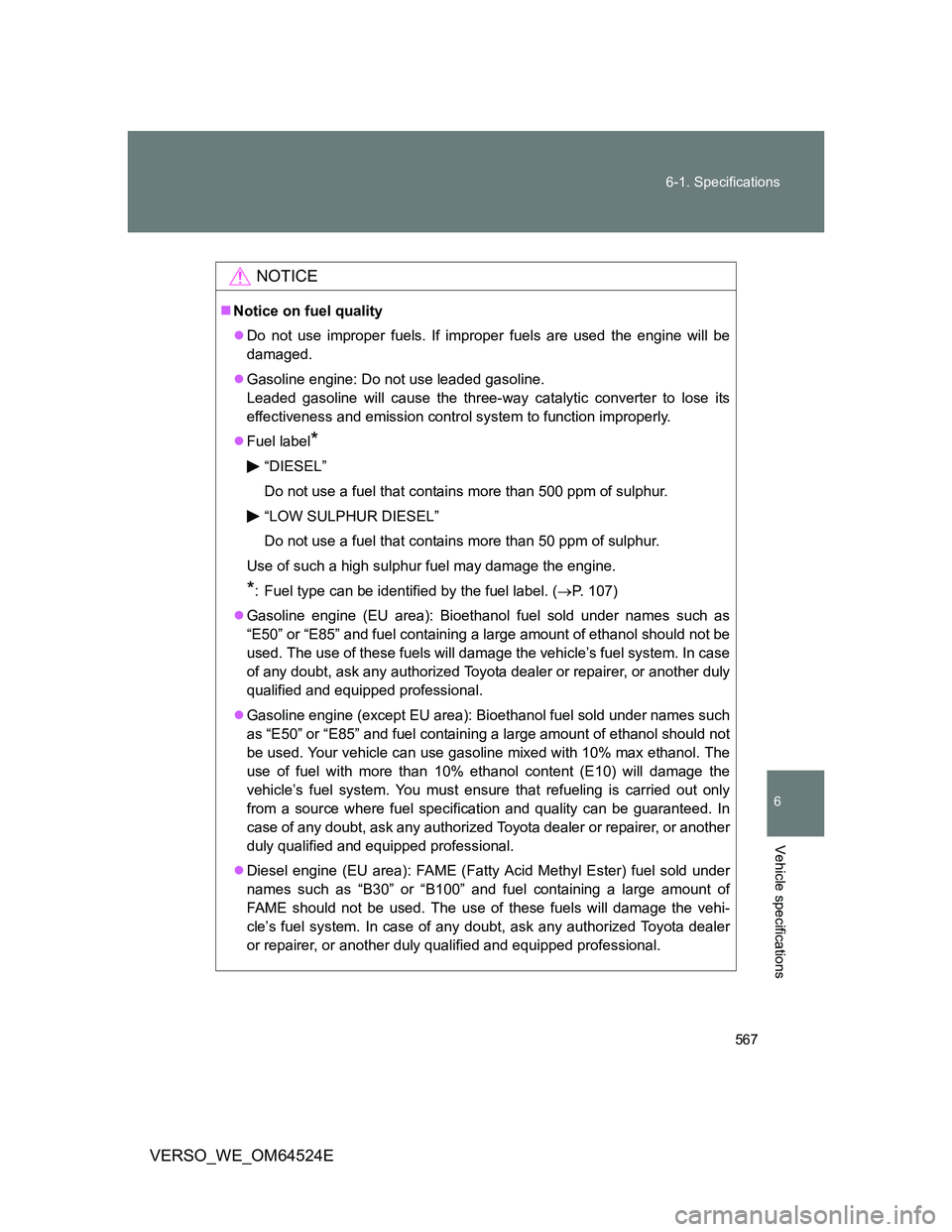

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
Fuel label
*
“DIESEL”
Do not use a fuel that contains more than 500 ppm of sulphur.
“LOW SULPHUR DIESEL”
Do not use a fuel that contains more than 50 ppm of sulphur.
Use of such a high sulphur fuel may damage the engine.
*: Fuel type can be identified by the fuel label. (P. 107)
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

568 6-1. Specifications
VERSO_WE_OM64524E

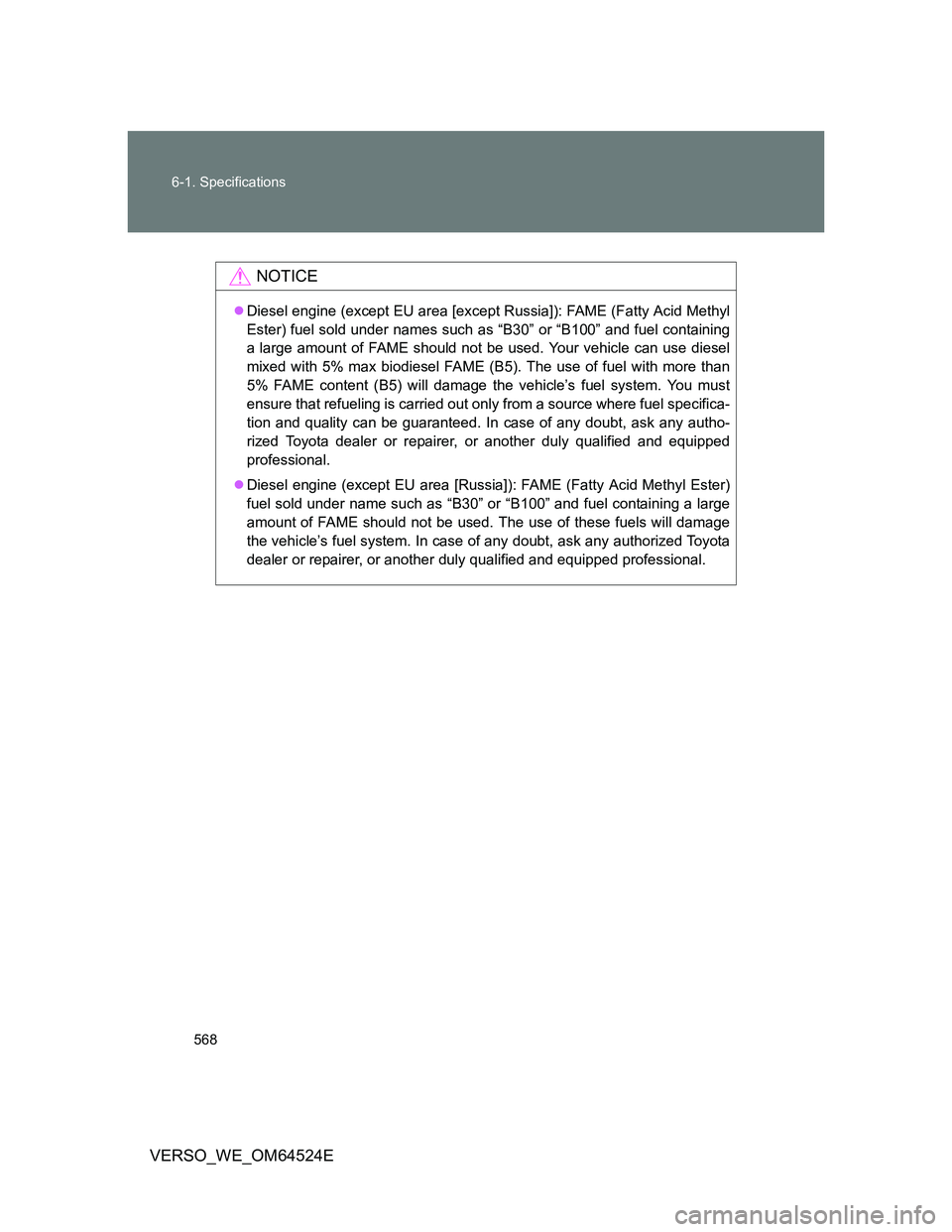

NOTICE
Diesel engine (except EU area [except Russia]): FAME (Fatty Acid Methyl
Ester) fuel sold under names such as “B30” or “B100” and fuel containing
a large amount of FAME should not be used. Your vehicle can use diesel
mixed with 5% max biodiesel FAME (B5). The use of fuel with more than
5% FAME content (B5) will damage the vehicle’s fuel system. You must
ensure that refueling is carried out only from a source where fuel specifica-
tion and quality can be guaranteed. In case of any doubt, ask any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Diesel engine (except EU area [Russia]): FAME (Fatty Acid Methyl Ester)
fuel sold under name such as “B30” or “B100” and fuel containing a large
amount of FAME should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

569
6
Vehicle specifications
VERSO_WE_OM64524E

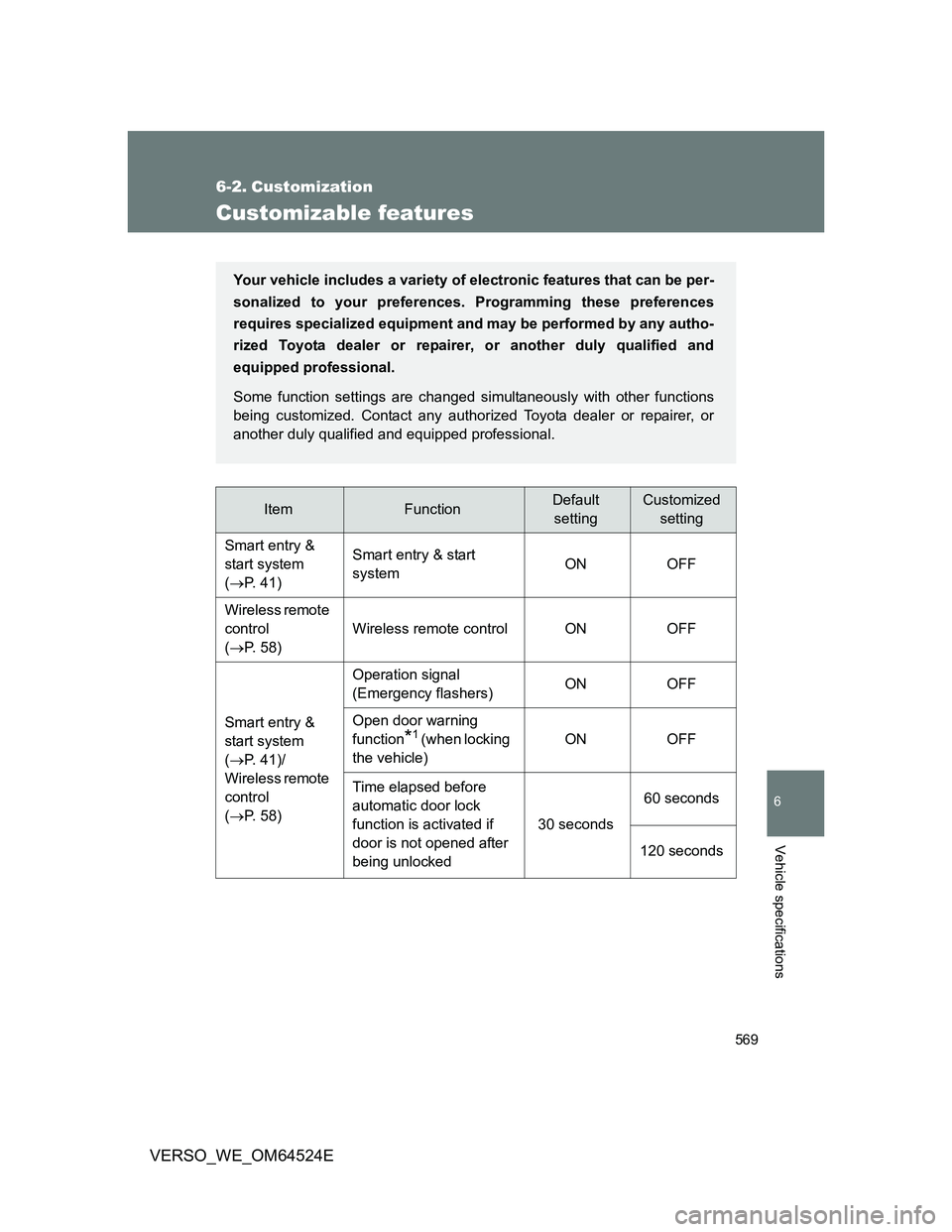

6-2. Customization
Customizable features
ItemFunctionDefault
settingCustomized
setting
Smart entry &
start system
(P. 41)Smart entry & start
systemON OFF
Wireless remote
control
(P. 58)Wireless remote control ON OFF
Smart entry &
start system
(P. 41)/
Wireless remote
control
(P. 58)Operation signal
(Emergency flashers)ON OFF
Open door warning
function
*1 (when locking
the vehicle)ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

570 6-2. Customization
VERSO_WE_OM64524E
Door lock
(P. 67)Shifting the shift lever to
position other than “P”
locks all doors
*2OFF ON
Shifting the shift lever to
“P” unlocks all doors
*2OFF ON
Speed-detecting
automatic door lock
functionON OFF
Opening driver’s door
unlocks all doors
*3ON OFF
Opening driver’s door
unlocks all doors
*4OFF ON
Automatic light
control system
(P. 239)Light sensor sensitivity Level 3 Level 1 to 5
Illumination
(P. 349)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation after the
engine switch (vehicles
without smart entry &
start system) or
“ENGINE START
STOP” switch (vehicles
with smart entry & start
system) turned offON OFF
Operation when the
doors are unlockedON OFF
Operation when you
approach the vehicle
with the electronic key
on your person
*1 (When
the interior light switch is
in the door position)ON OFF
ItemFunctionDefault
settingCustomized
setting
