TOYOTA VERSO 2011 Repair Manual

61 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64524E

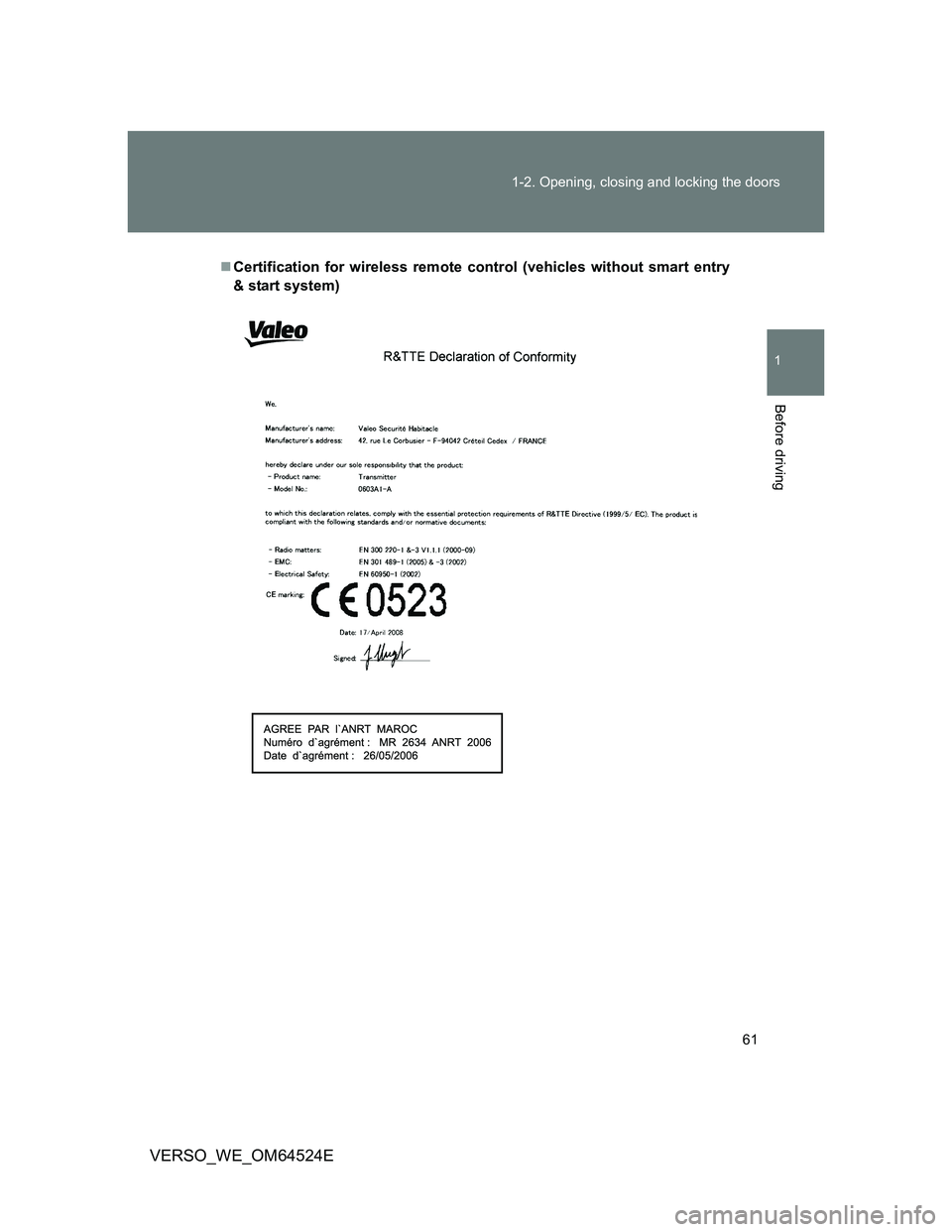

Certification for wireless remote control (vehicles without smart entry
& start system)

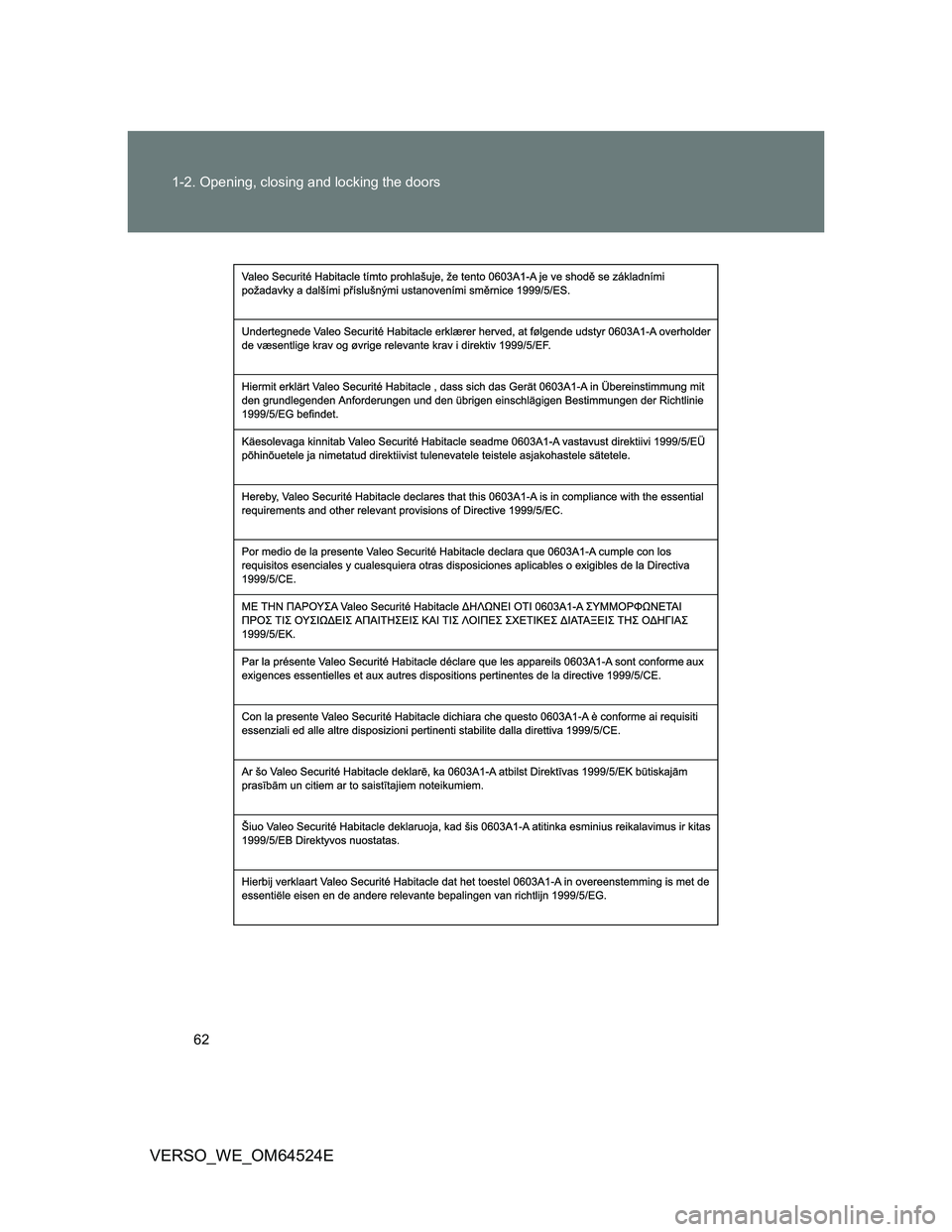

62 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E

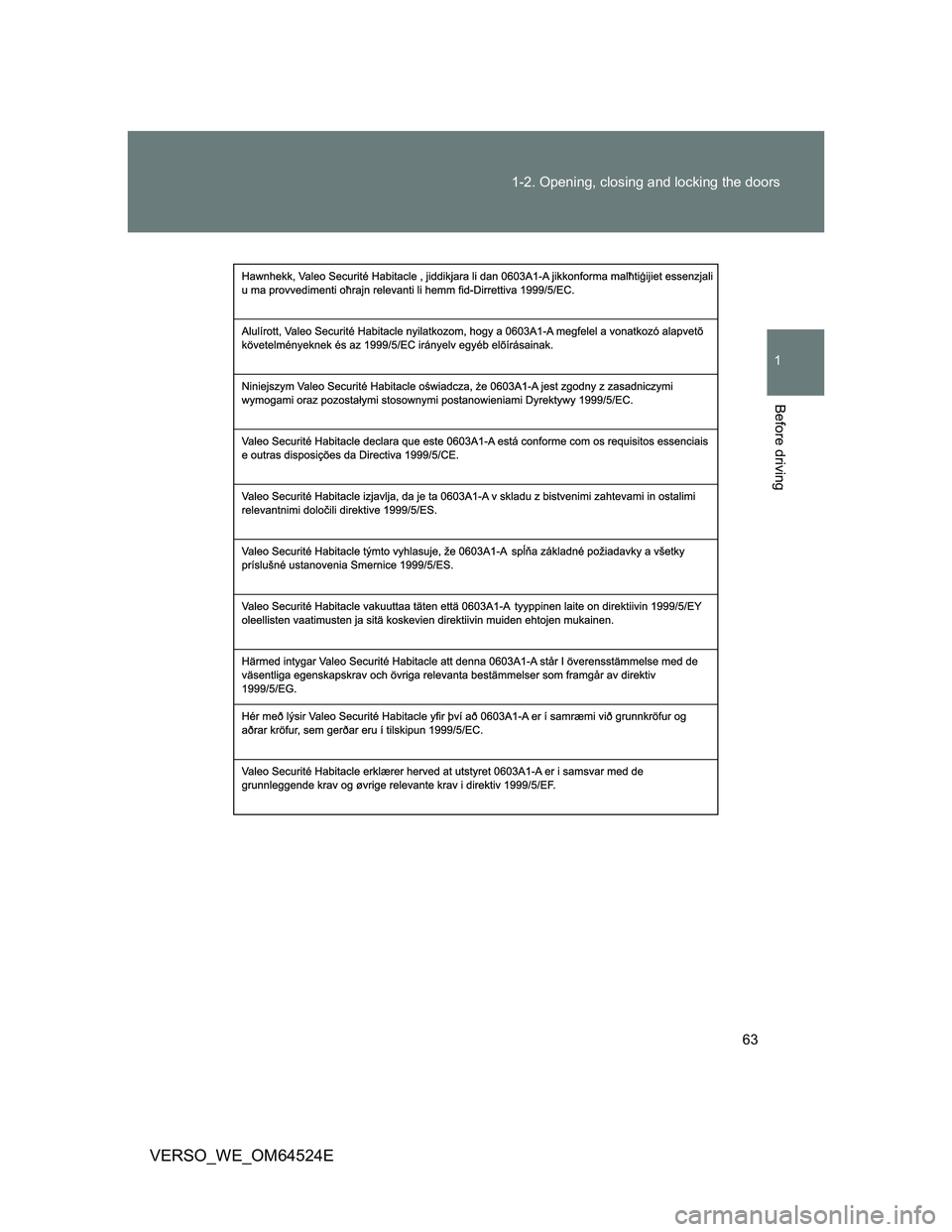

63 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64524E

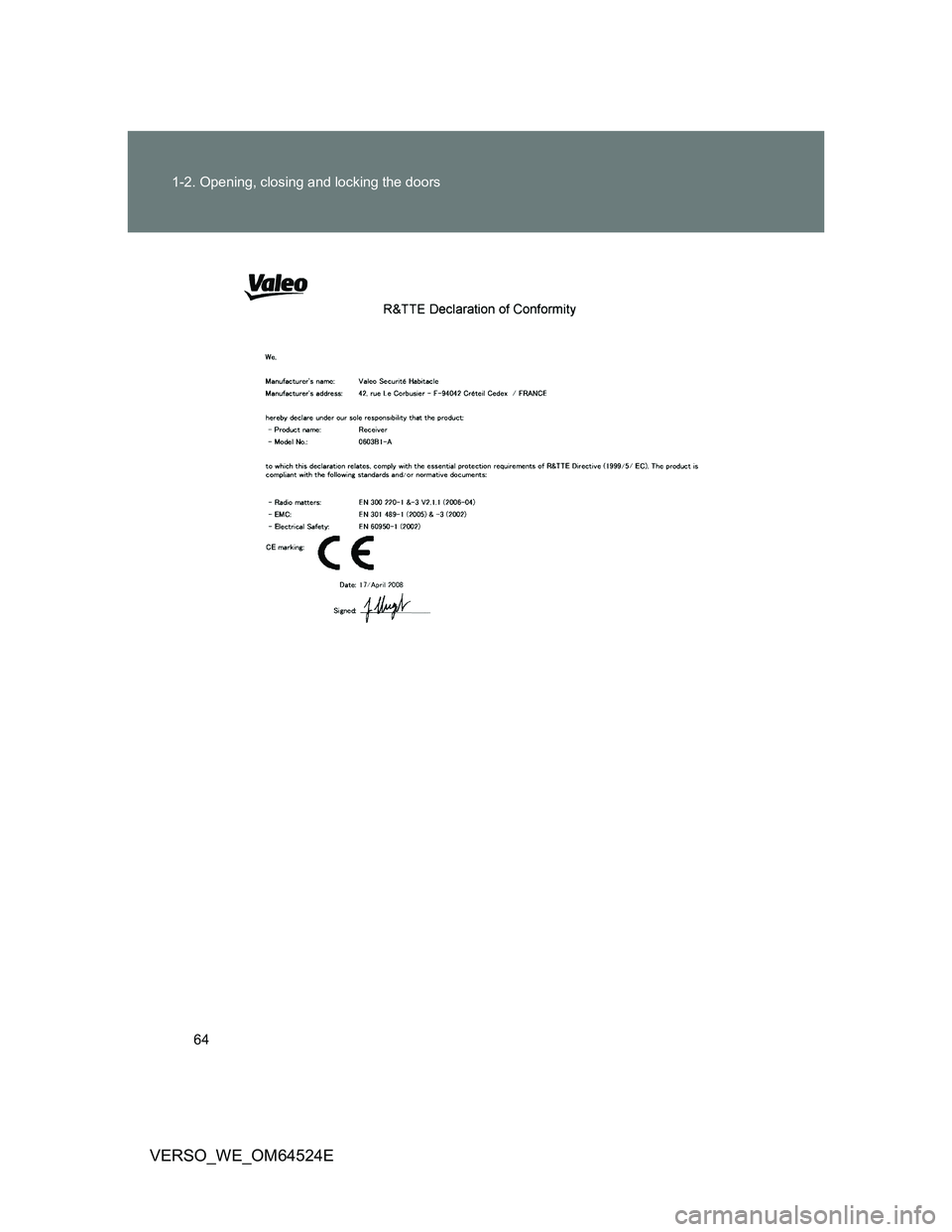

64 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E

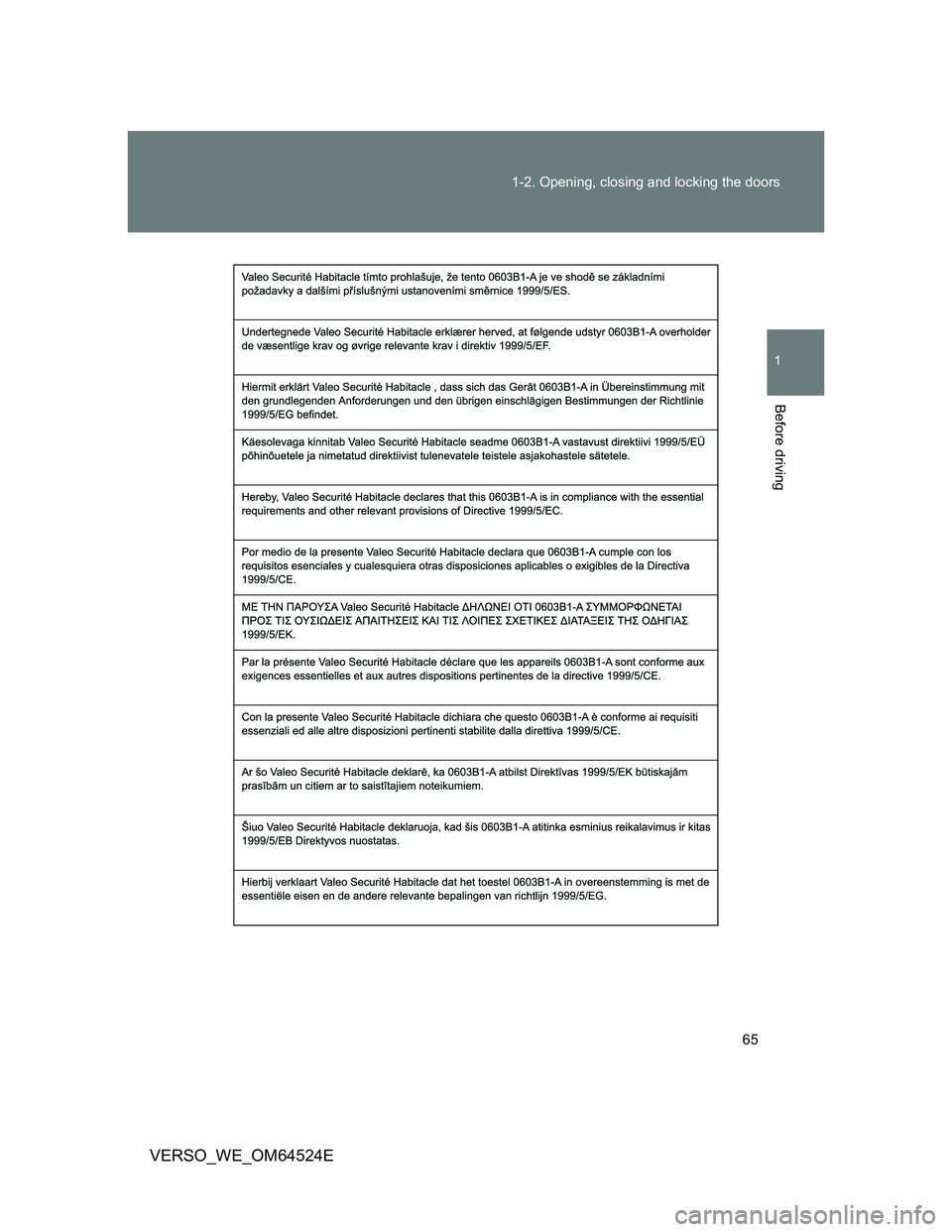

65 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64524E

66 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E

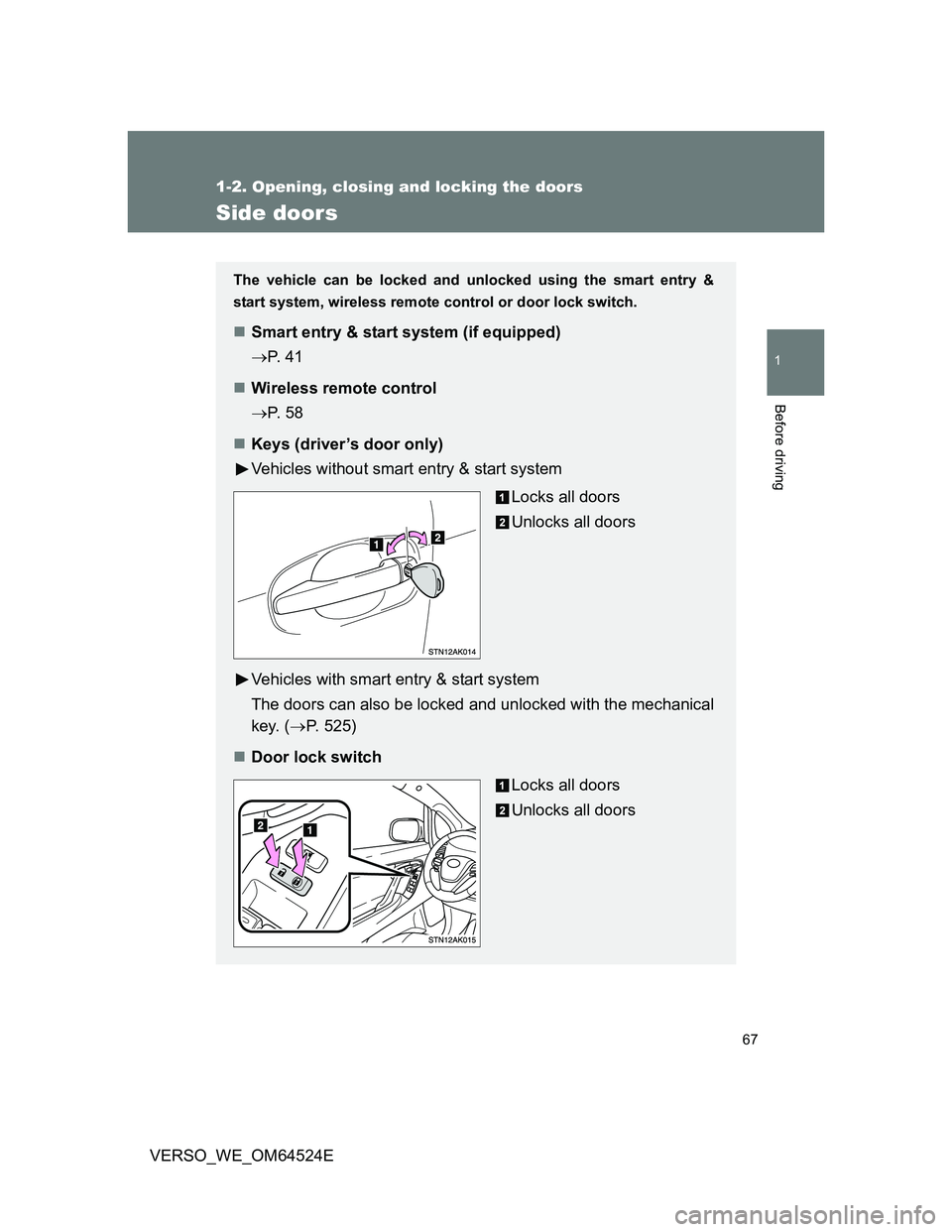

67
1
1-2. Opening, closing and locking the doors
Before driving
VERSO_WE_OM64524E
Side doors
The vehicle can be locked and unlocked using the smart entry &
start system, wireless remote control or door lock switch.
Smart entry & start system (if equipped)
P. 4 1
Wireless remote control
P. 5 8
Keys (driver’s door only)
Vehicles without smart entry & start system
Locks all doors
Unlocks all doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 525)
Door lock switch
Locks all doors
Unlocks all doors

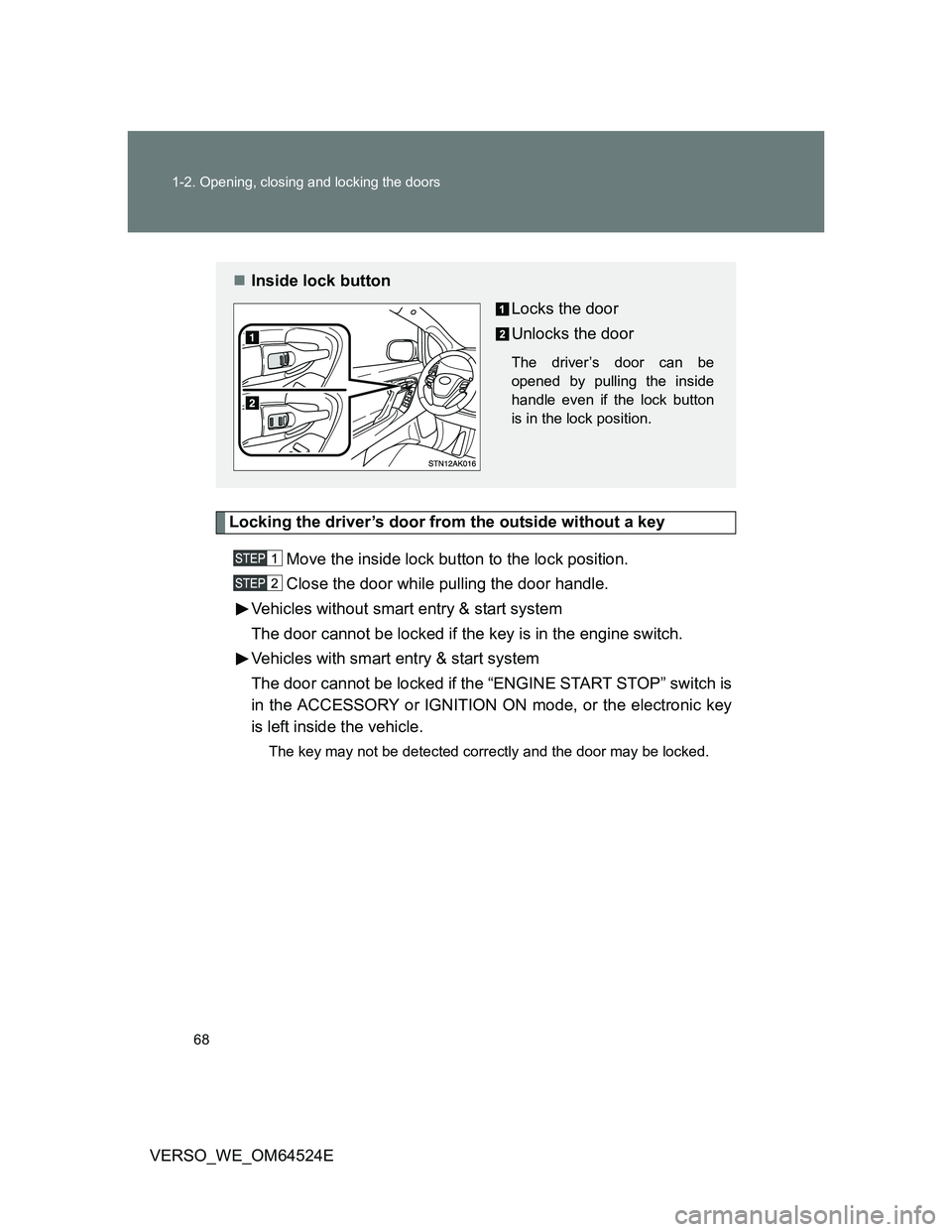

68 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E
Locking the driver’s door from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is
in the ACCESSORY or IGNITION ON mode, or the electronic key
is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Inside lock button
Locks the door
Unlocks the door
The driver’s door can be
opened by pulling the inside
handle even if the lock button
is in the lock position.

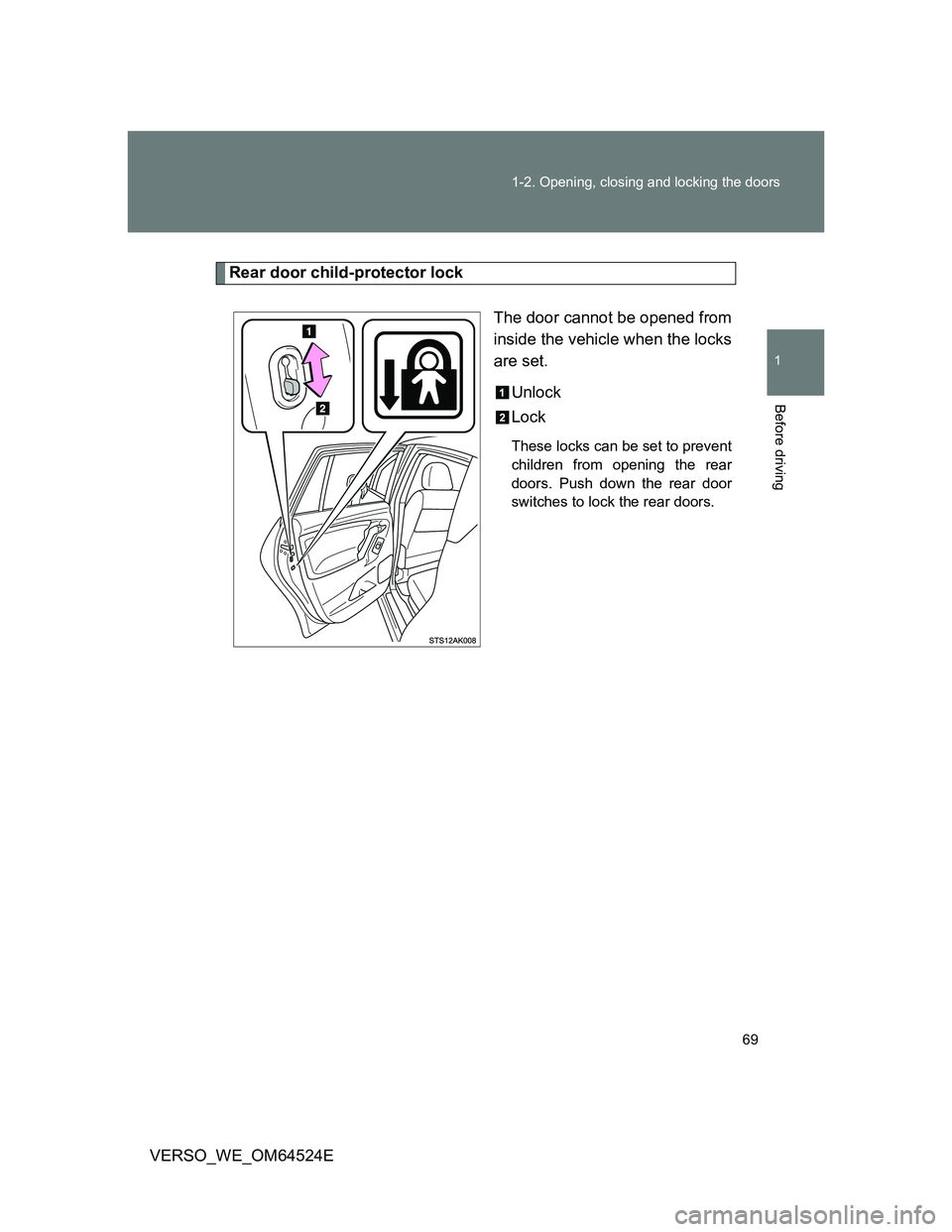

69 1-2. Opening, closing and locking the doors
1
Before driving
VERSO_WE_OM64524E
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down the rear door
switches to lock the rear doors.

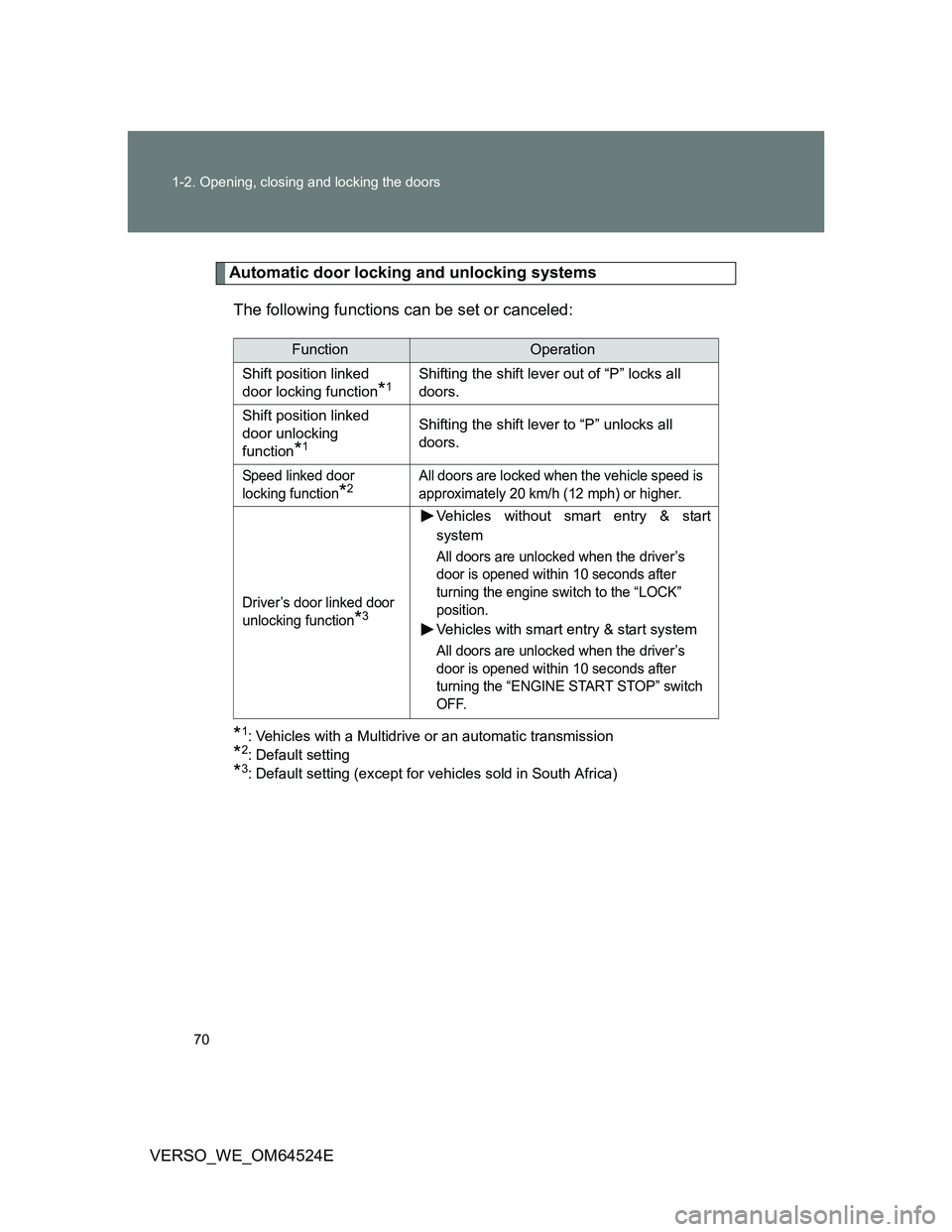

70 1-2. Opening, closing and locking the doors
VERSO_WE_OM64524E
Automatic door locking and unlocking systems
The following functions can be set or canceled:
*1: Vehicles with a Multidrive or an automatic transmission
*2: Default setting
*3: Default setting (except for vehicles sold in South Africa)
FunctionOperation
Shift position linked
door locking function
*1Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking
function
*1
Shifting the shift lever to “P” unlocks all
doors.
Speed linked door
locking function
*2All doors are locked when the vehicle speed is
approximately 20 km/h (12 mph) or higher.
Driver’s door linked door
unlocking function
*3
Vehicles without smart entry & start
system
All doors are unlocked when the driver’s
door is opened within 10 seconds after
turning the engine switch to the “LOCK”
position.
Vehicles with smart entry & start system
All doors are unlocked when the driver’s
door is opened within 10 seconds after
turning the “ENGINE START STOP” switch
OFF.
