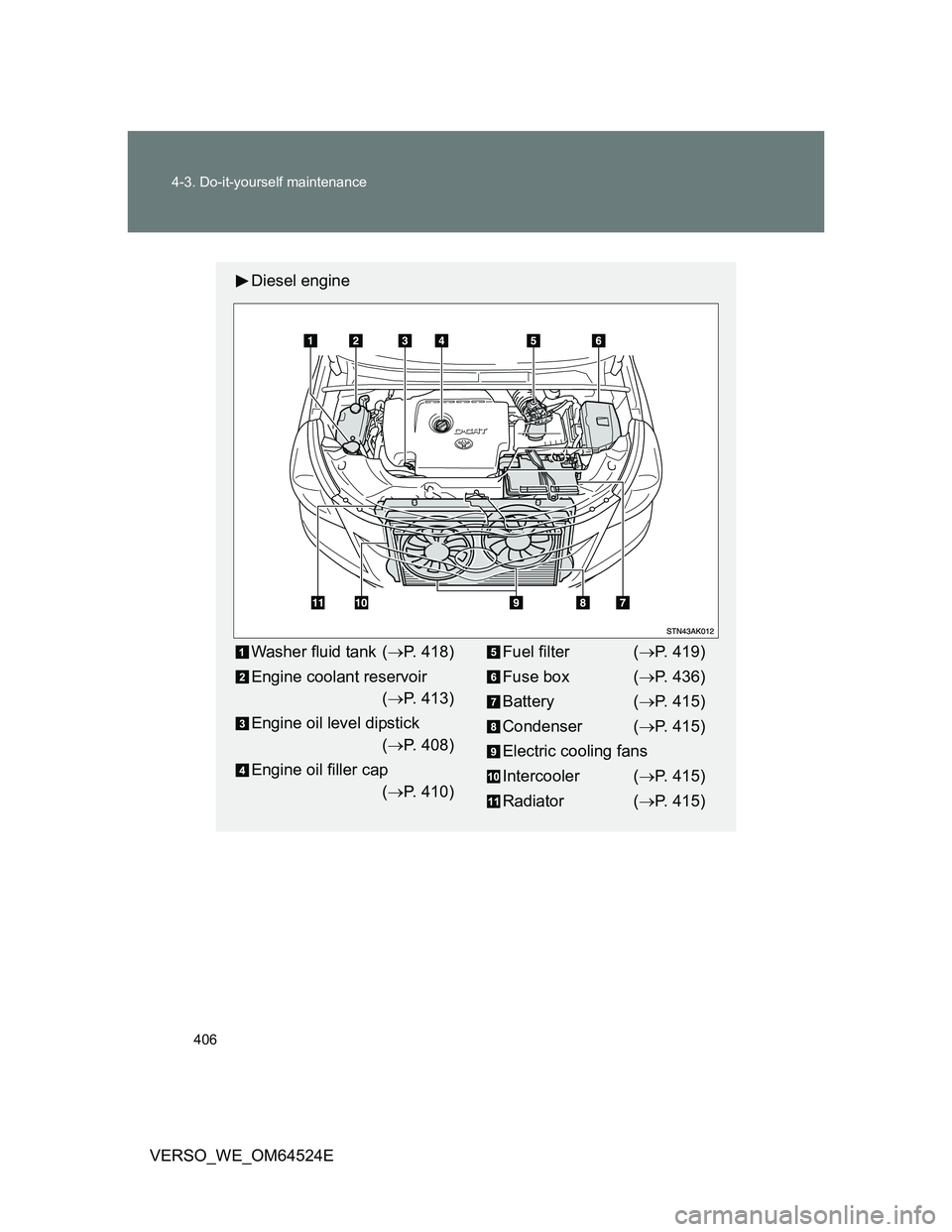

406 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Diesel engine
Washer fluid tank (P. 418)
Engine coolant reservoir
(P. 413)
Engine oil level dipstick
(P. 408)
Engine oil filler cap
(P. 410)Fuel filter (P. 419)
Fuse box (P. 436)
Battery (P. 415)
Condenser (P. 415)
Electric cooling fans
Intercooler (P. 415)
Radiator (P. 415)

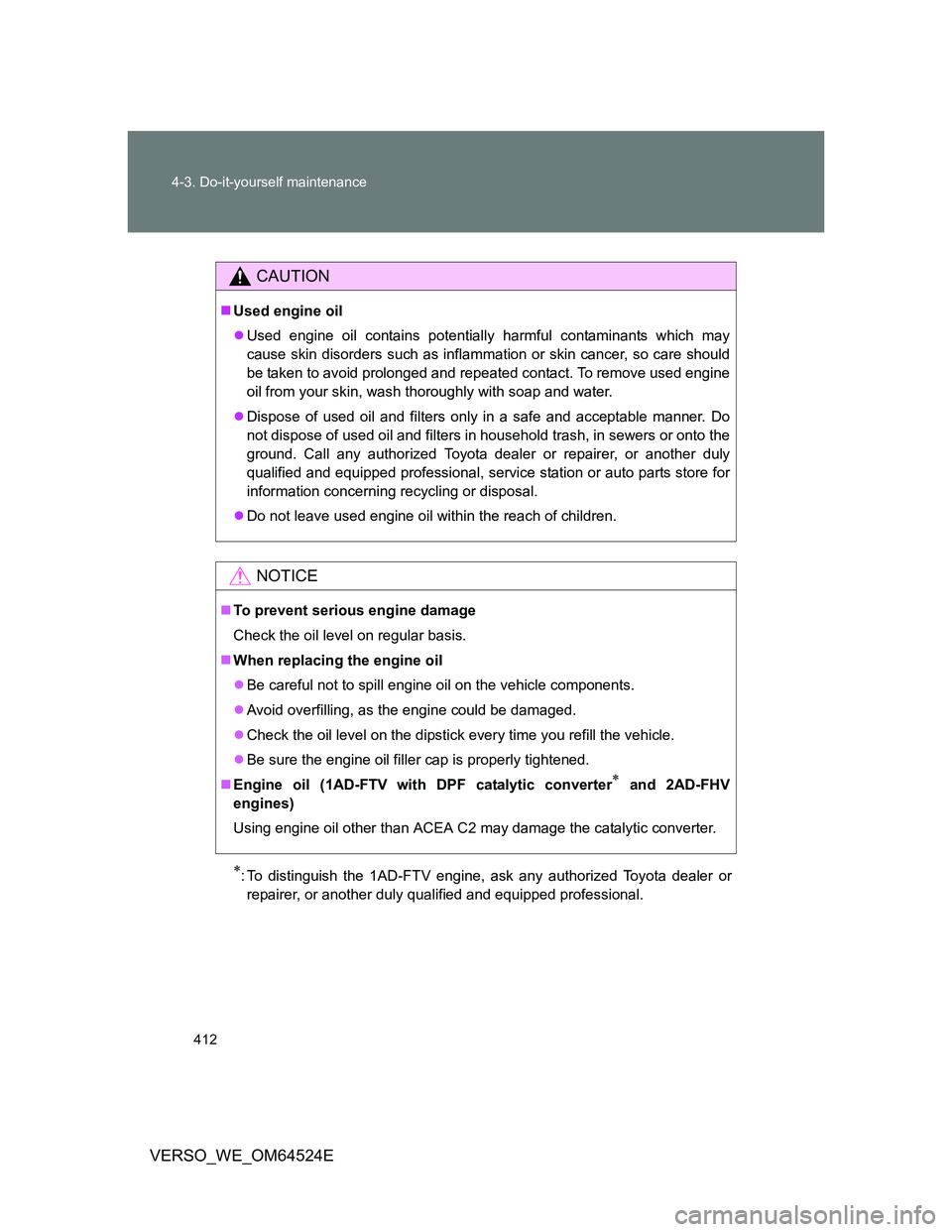

412 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, as the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
Engine oil (1AD-FTV
with DPF catalytic converter and 2AD-FHV
engines)
Using engine oil other than ACEA C2 may damage the catalytic converter.

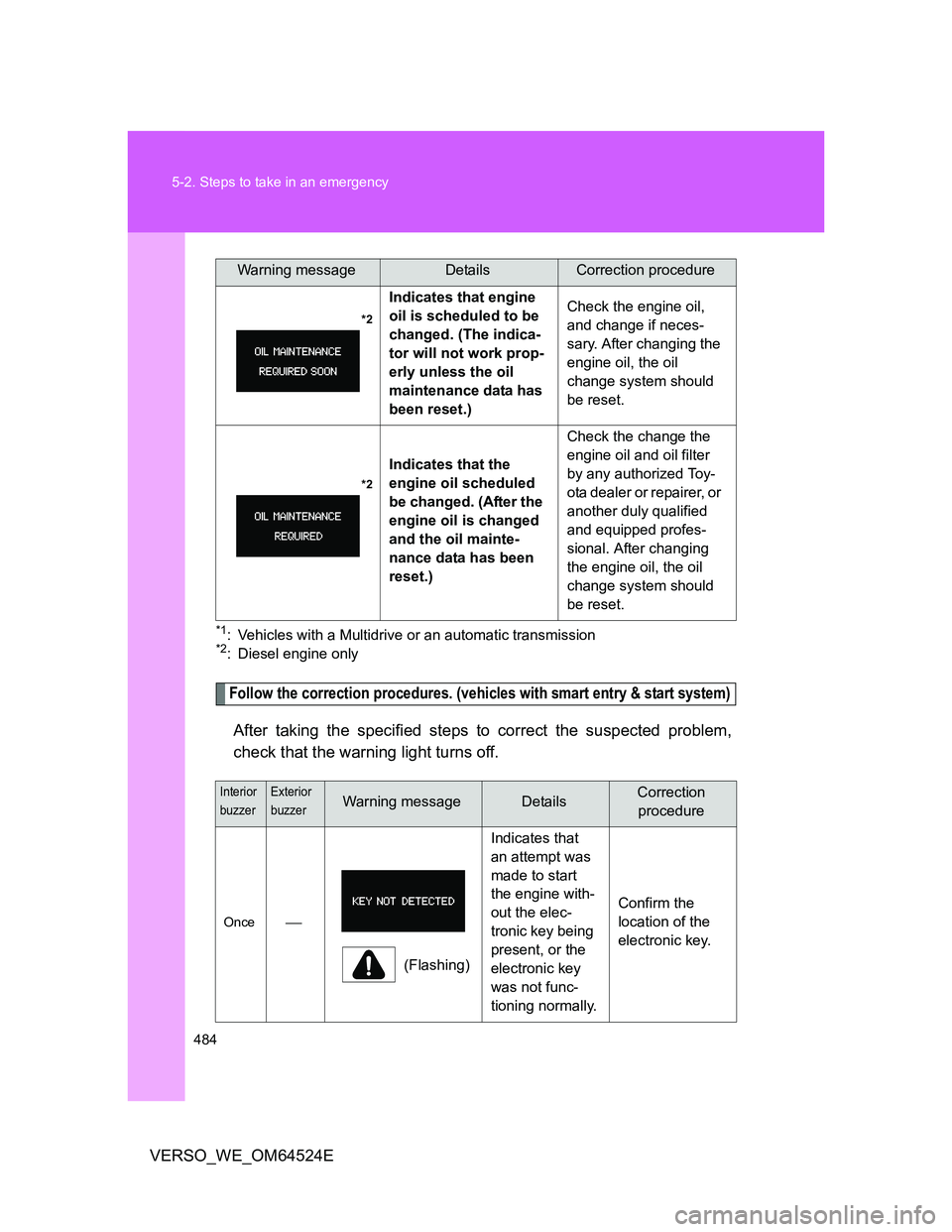

484 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission *2: Diesel engine only
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
*2
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)Check the engine oil,
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset.
*2

Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)Check the change the
engine oil and oil filter
by any authorized Toy-
ota dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashing)Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.Confirm the
location of the
electronic key.
Warning messageDetailsCorrection procedure

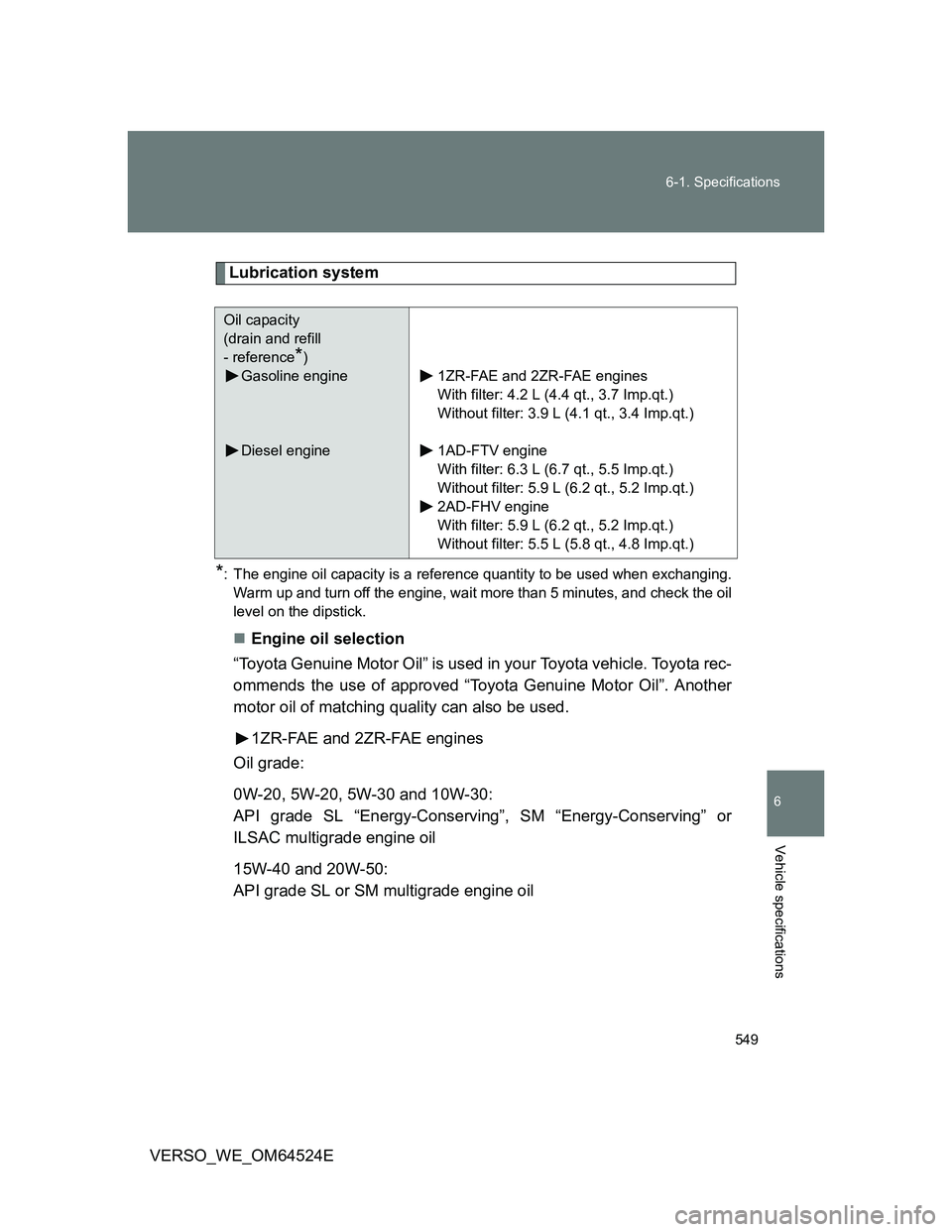

549 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
1ZR-FAE and 2ZR-FAE engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(drain and refill
- reference
*)
Gasoline engine
Diesel engine1ZR-FAE and 2ZR-FAE engines
With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV engine
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
2AD-FHV engine
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)

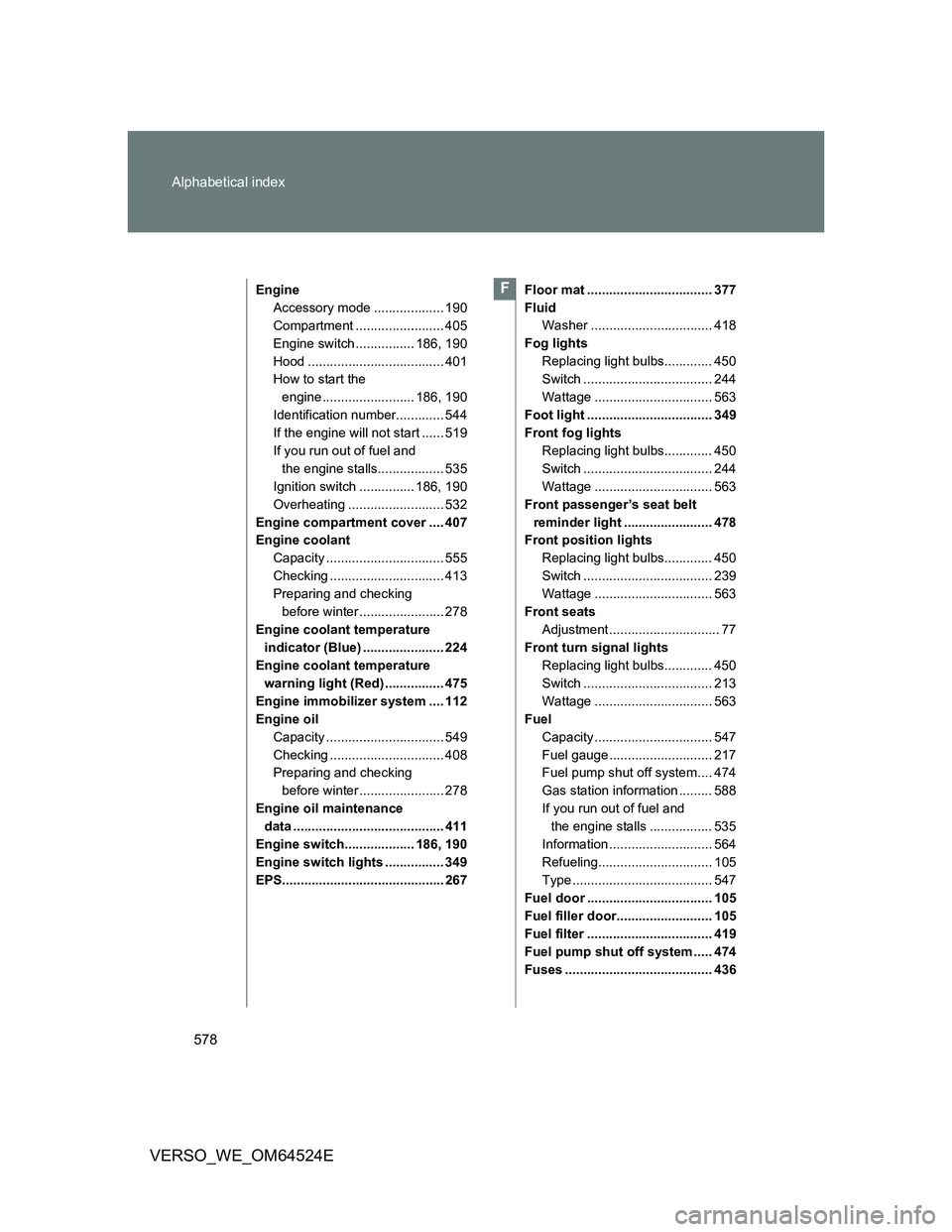

578 Alphabetical index
VERSO_WE_OM64524E
Engine
Accessory mode ................... 190
Compartment ........................ 405
Engine switch ................ 186, 190
Hood ..................................... 401
How to start the
engine ......................... 186, 190
Identification number............. 544
If the engine will not start ...... 519
If you run out of fuel and
the engine stalls.................. 535
Ignition switch ............... 186, 190
Overheating .......................... 532
Engine compartment cover .... 407
Engine coolant
Capacity ................................ 555
Checking ............................... 413
Preparing and checking
before winter ....................... 278
Engine coolant temperature
indicator (Blue) ...................... 224
Engine coolant temperature
warning light (Red) ................ 475
Engine immobilizer system .... 112
Engine oil
Capacity ................................ 549
Checking ............................... 408
Preparing and checking
before winter ....................... 278
Engine oil maintenance
data ......................................... 411
Engine switch................... 186, 190
Engine switch lights ................ 349
EPS............................................ 267Floor mat .................................. 377
Fluid
Washer ................................. 418
Fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Foot light .................................. 349
Front fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Front passenger’s seat belt
reminder light ........................ 478
Front position lights
Replacing light bulbs............. 450
Switch ................................... 239
Wattage ................................ 563
Front seats
Adjustment .............................. 77
Front turn signal lights
Replacing light bulbs............. 450
Switch ................................... 213
Wattage ................................ 563
Fuel
Capacity ................................ 547
Fuel gauge ............................ 217
Fuel pump shut off system.... 474
Gas station information ......... 588
If you run out of fuel and
the engine stalls ................. 535
Information ............................ 564
Refueling............................... 105
Type ...................................... 547
Fuel door .................................. 105
Fuel filler door.......................... 105
Fuel filter .................................. 419
Fuel pump shut off system ..... 474
Fuses ........................................ 436F

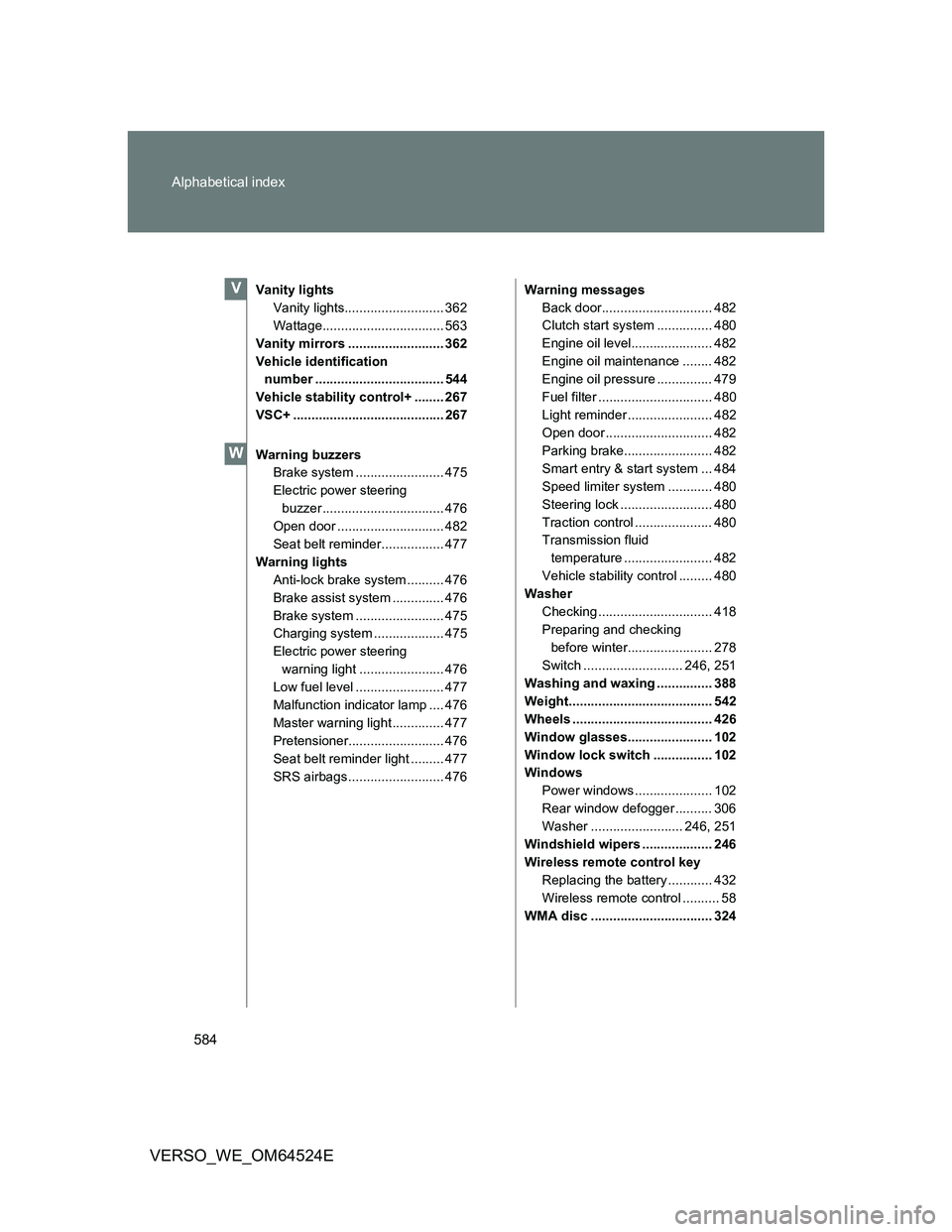

584 Alphabetical index
