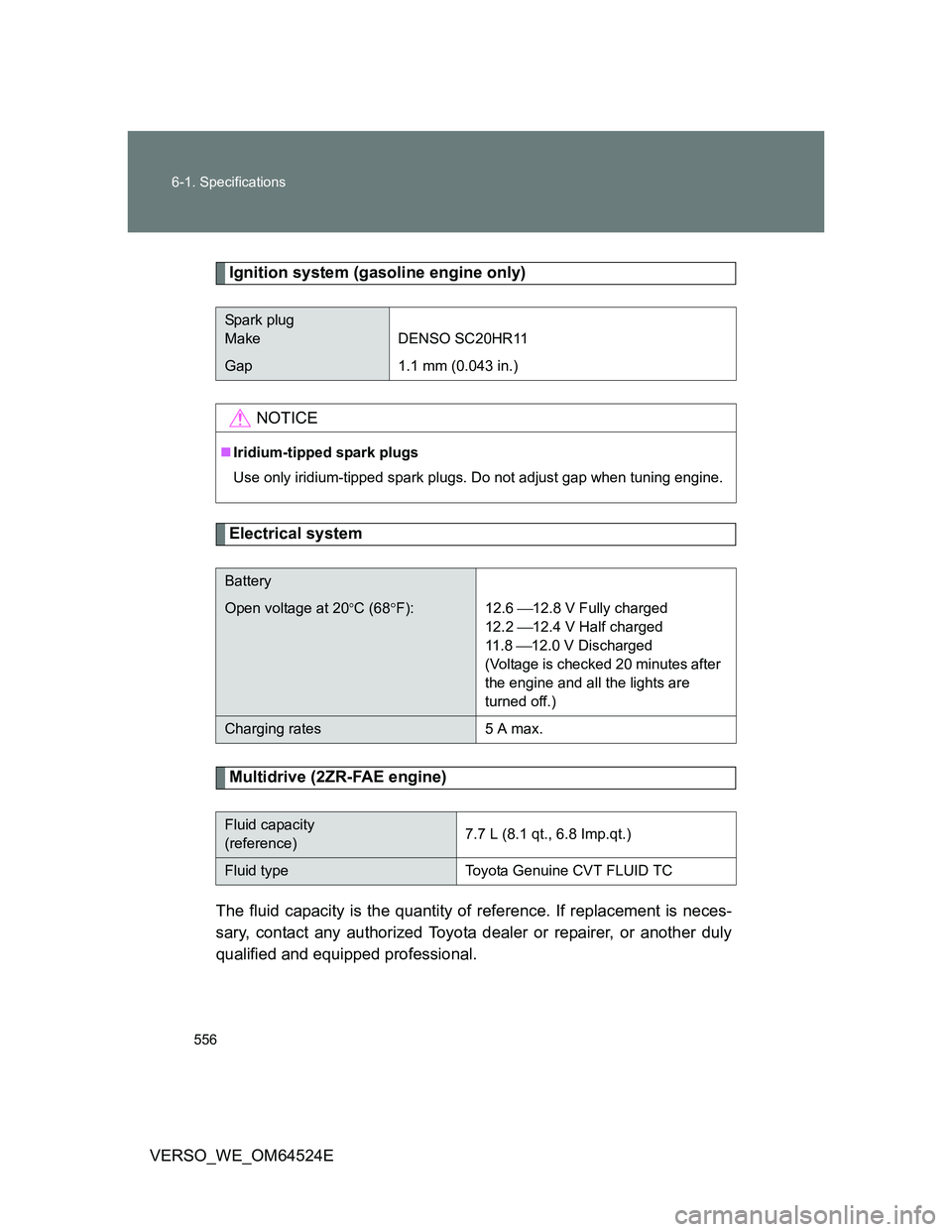

556 6-1. Specifications
VERSO_WE_OM64524E
Ignition system (gasoline engine only)
Electrical system
Multidrive (2ZR-FAE engine)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at 20C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Fluid capacity
(reference)7.7 L (8.1 qt., 6.8 Imp.qt.)
Fluid typeToyota Genuine CVT FLUID TC
