TOYOTA VERSO 2012 Owners Manual

101 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO_WE_OM64524E
The outside rear view mirrors can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
When the mirrors are fogged up (if equipped)
Turn on the outside rear view mirror defoggers to defog the mirrors.
(P. 306)
CAUTION
Caution while driving
Observe the following precautions.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
Do not adjust the mirrors.
Do not drive with the mirrors folded back.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.
When the outer foot lights turn on
Do not touch the outer foot light lens surfaces, as they can become very hot
and burn you.

102
VERSO_WE_OM64524E

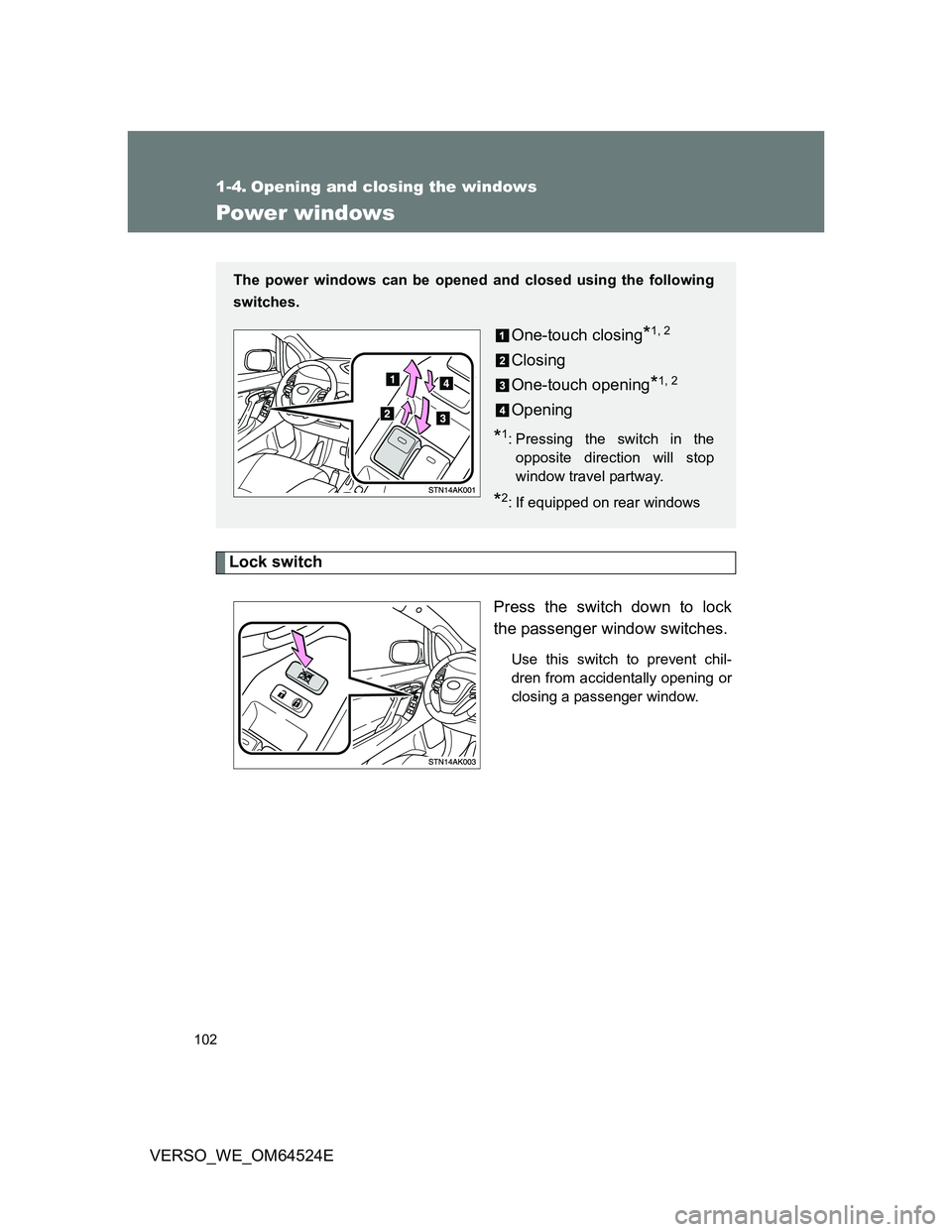

1-4. Opening and closing the windows
Power windows
Lock switch
Press the switch down to lock
the passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing*1, 2
Closing
One-touch opening
*1, 2
Opening
*1: Pressing the switch in the
opposite direction will stop
window travel partway.
*2: If equipped on rear windows

103 1-4. Opening and closing the windows
1
Before driving
VERSO_WE_OM64524E

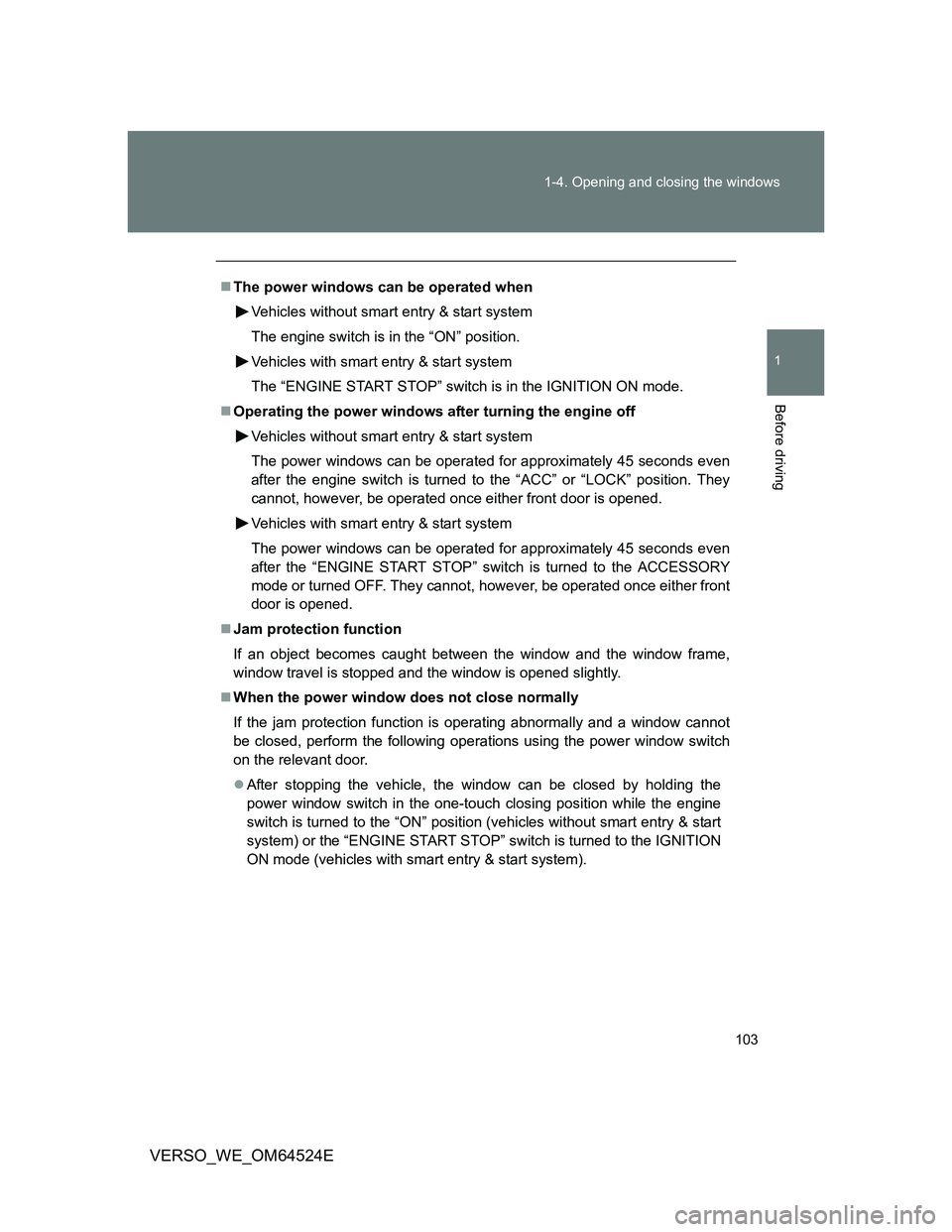

The power windows can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
Operating the power windows after turning the engine off
Vehicles without smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They
cannot, however, be operated once either front door is opened.
Vehicles with smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to the ACCESSORY
mode or turned OFF. They cannot, however, be operated once either front
door is opened.
Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the engine
switch is turned to the “ON” position (vehicles without smart entry & start
system) or the “ENGINE START STOP” switch is turned to the IGNITION
ON mode (vehicles with smart entry & start system).

104 1-4. Opening and closing the windows
VERSO_WE_OM64524E

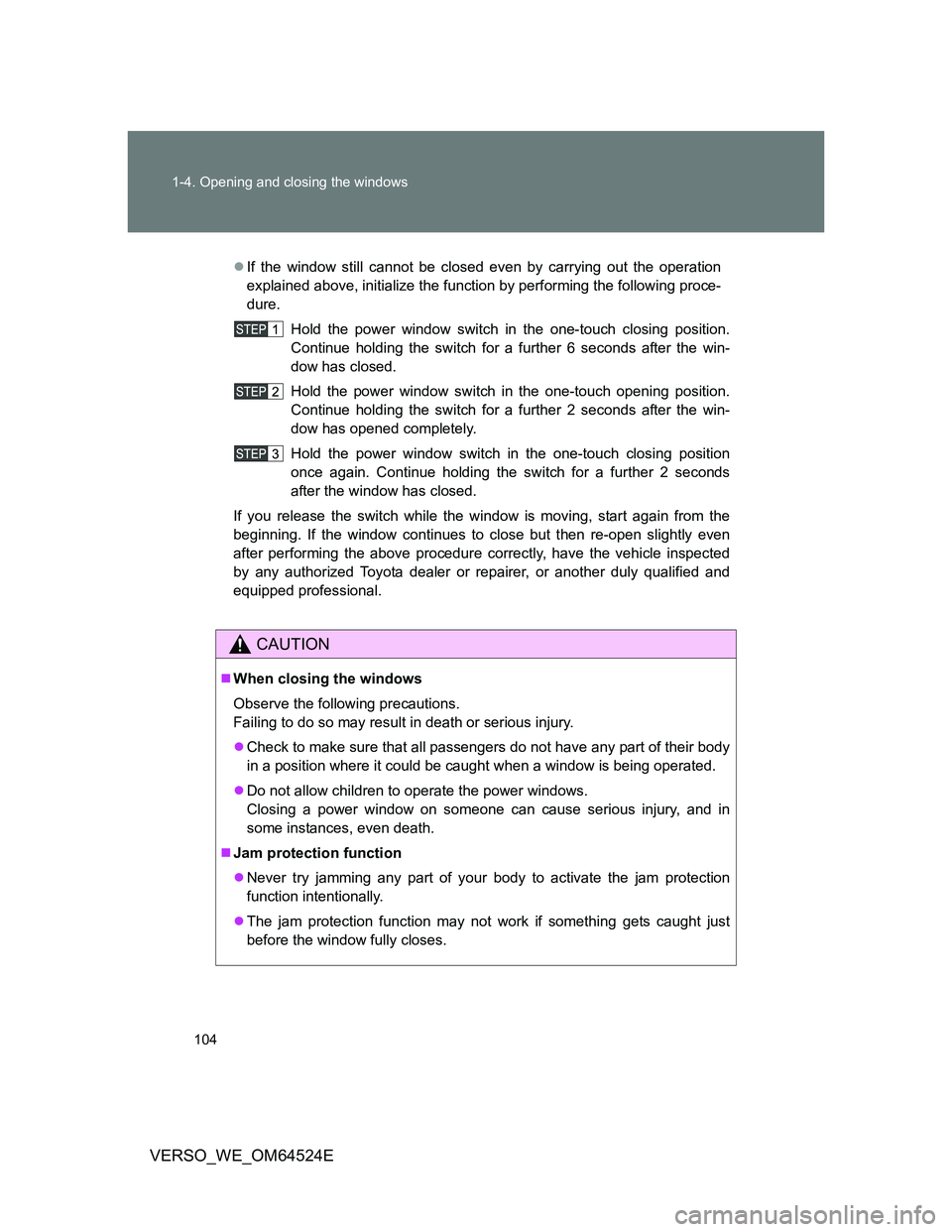

If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
CAUTION
When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window fully closes.

105
1
Before driving
VERSO_WE_OM64524E

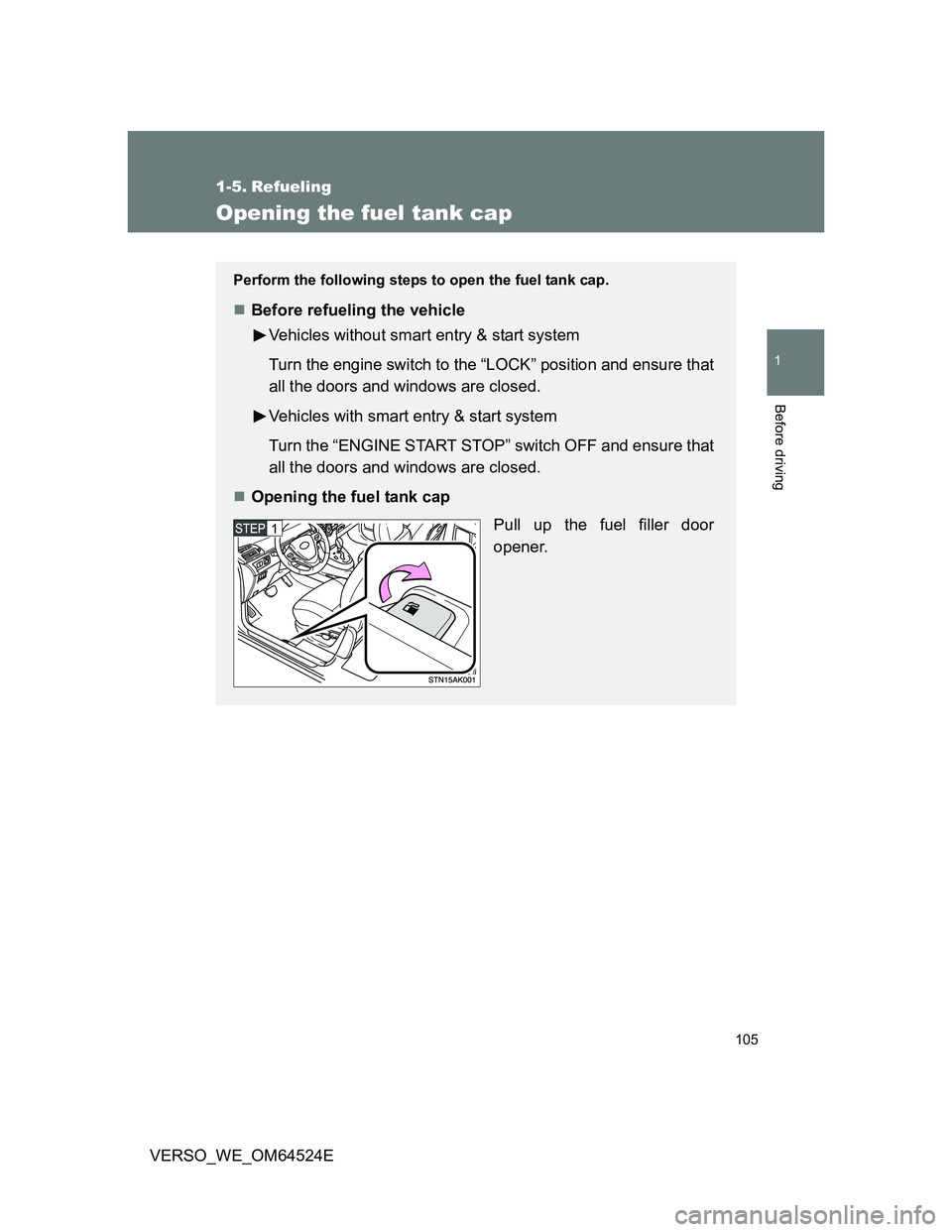

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position and ensure that
all the doors and windows are closed.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
Opening the fuel tank cap
Pull up the fuel filler door
opener.

106 1-5. Refueling
VERSO_WE_OM64524E

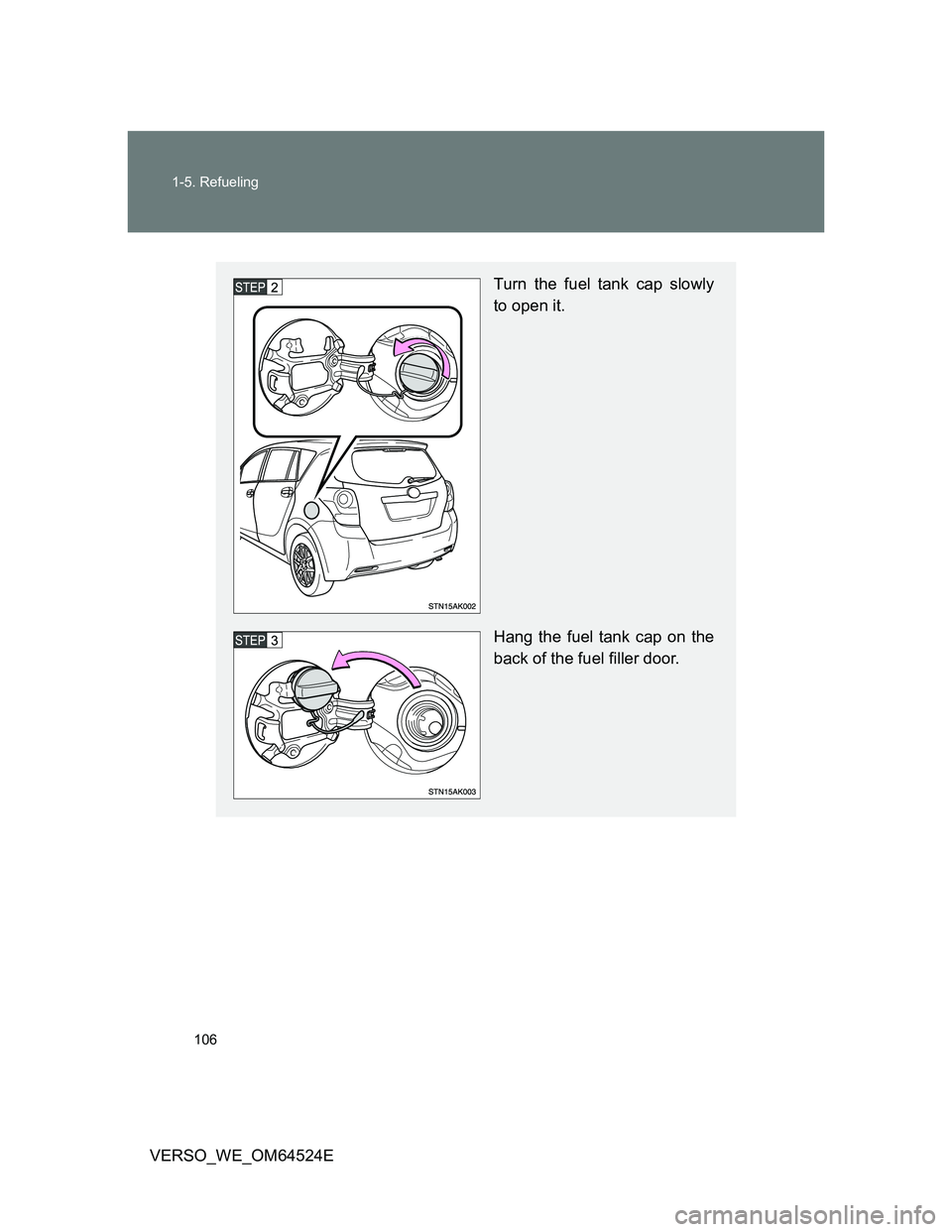

Turn the fuel tank cap slowly
to open it.
Hang the fuel tank cap on the
back of the fuel filler door.

107 1-5. Refueling
1
Before driving
VERSO_WE_OM64524E

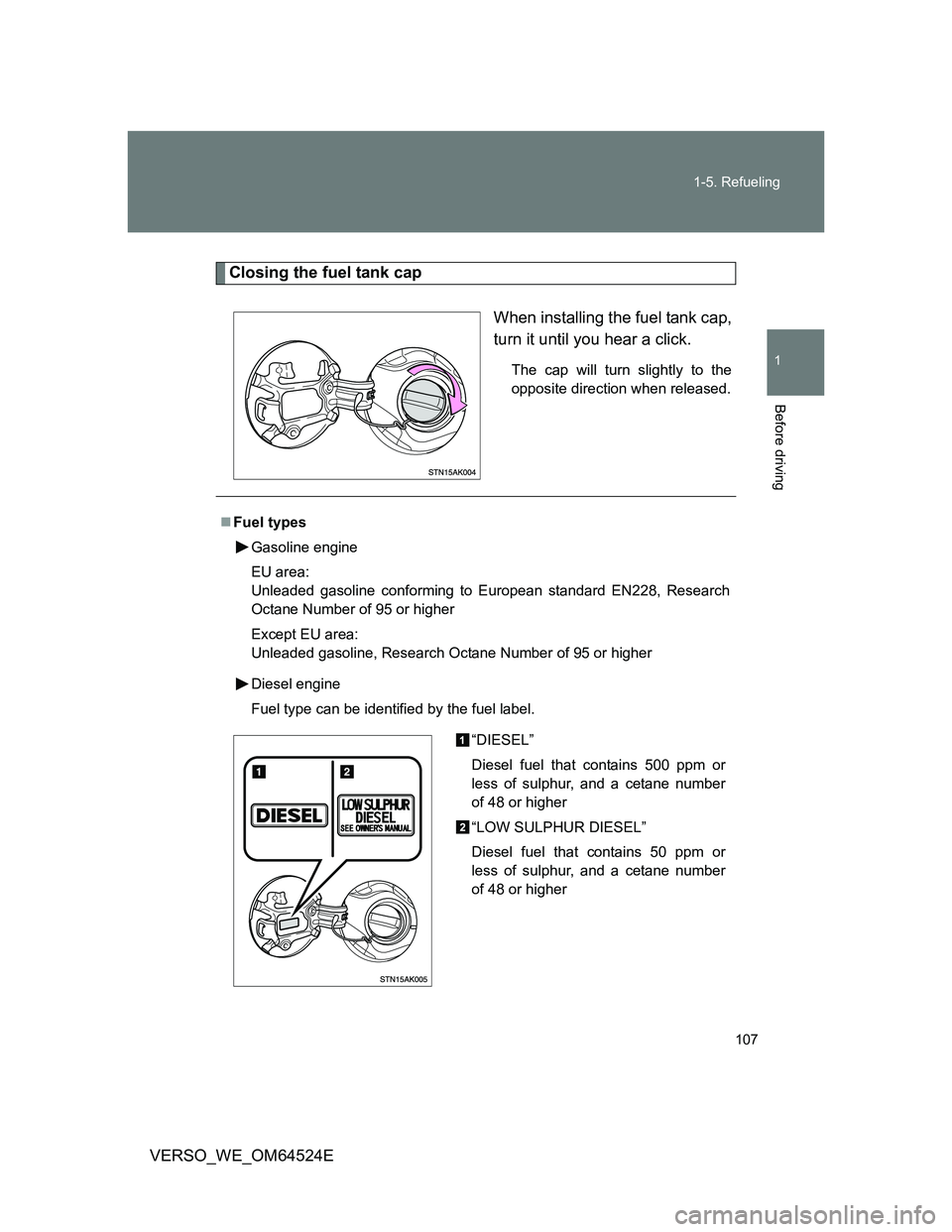

Closing the fuel tank cap
When installing the fuel tank cap,
turn it until you hear a click.
The cap will turn slightly to the
opposite direction when released.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
Fuel type can be identified by the fuel label.
“DIESEL”
Diesel fuel that contains 500 ppm or
less of sulphur, and a cetane number
of 48 or higher
“LOW SULPHUR DIESEL”
Diesel fuel that contains 50 ppm or
less of sulphur, and a cetane number
of 48 or higher

108 1-5. Refueling
VERSO_WE_OM64524E

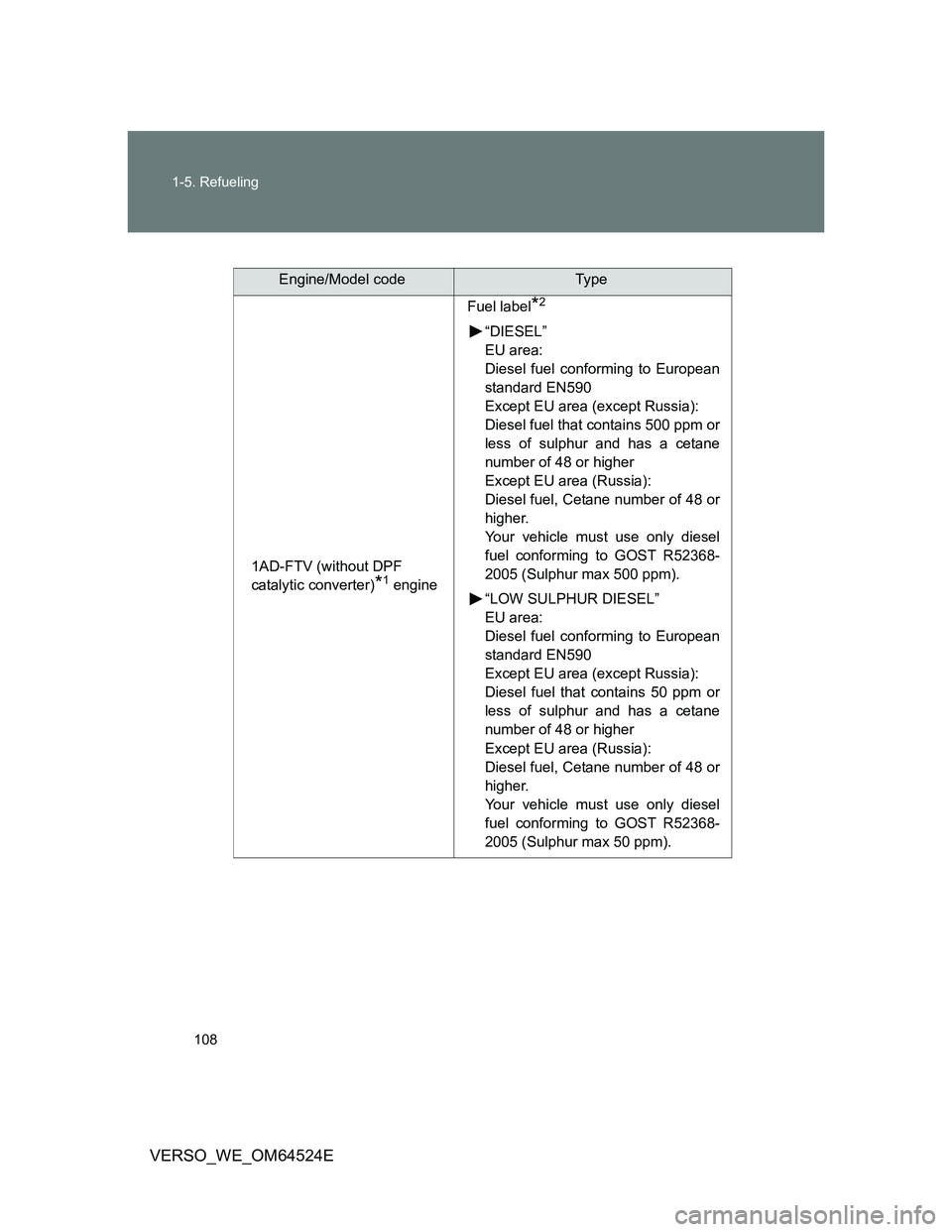

Engine/Model codeTy p e
1AD-FTV (without DPF
catalytic converter)
*1 engineFuel label
*2
“DIESEL”
EU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 500 ppm or
less of sulphur and has a cetane
number of 48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 500 ppm).
“LOW SULPHUR DIESEL”
EU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or
less of sulphur and has a cetane
number of 48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).

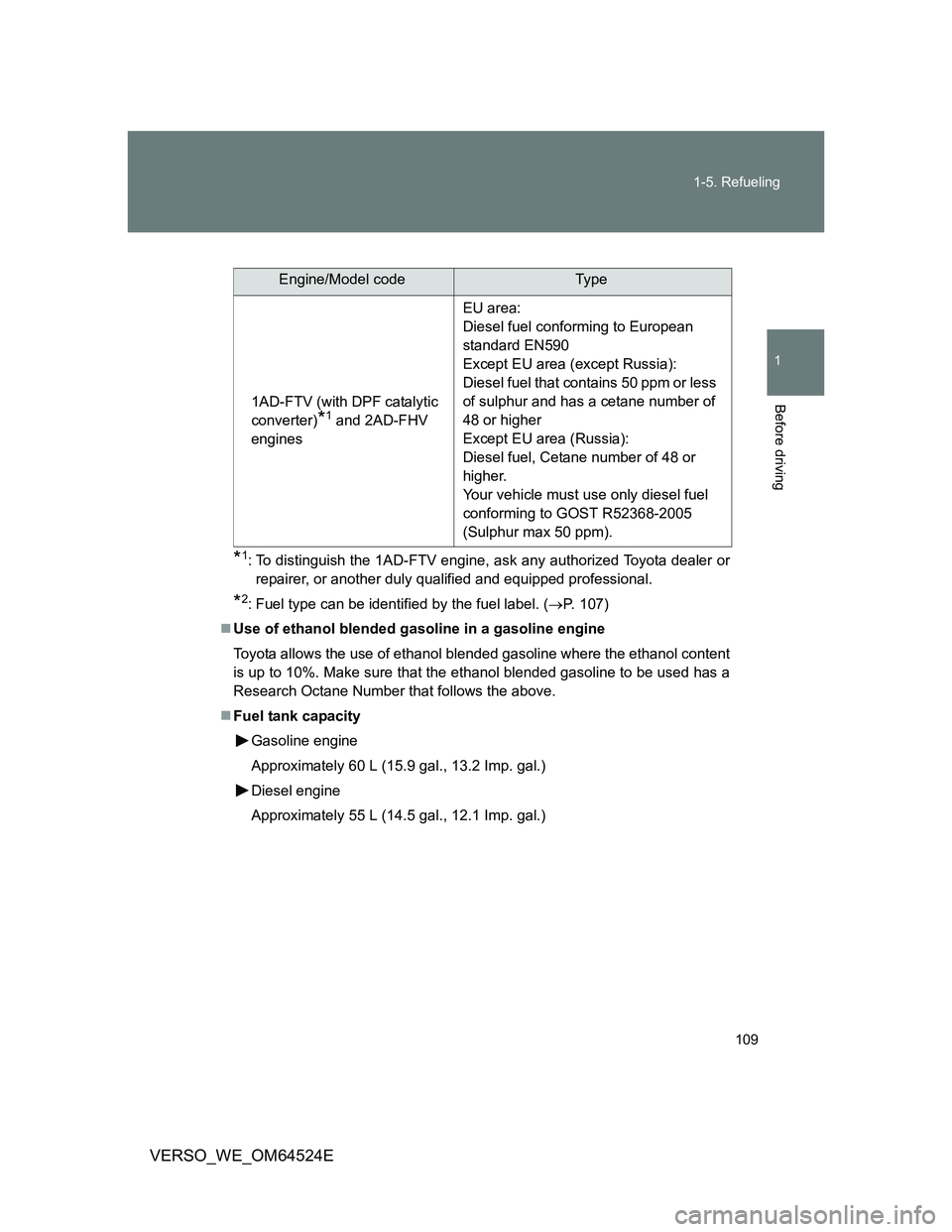

109 1-5. Refueling
1
Before driving
VERSO_WE_OM64524E
*1: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*2: Fuel type can be identified by the fuel label. (P. 107)
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel tank capacity
Gasoline engine
Approximately 60 L (15.9 gal., 13.2 Imp. gal.)
Diesel engine
Approximately 55 L (14.5 gal., 12.1 Imp. gal.)
Engine/Model codeTy p e
1AD-FTV (with DPF catalytic
converter)
*1 and 2AD-FHV
enginesEU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less
of sulphur and has a cetane number of
48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel fuel
conforming to GOST R52368-2005
(Sulphur max 50 ppm).

110 1-5. Refueling
VERSO_WE_OM64524E

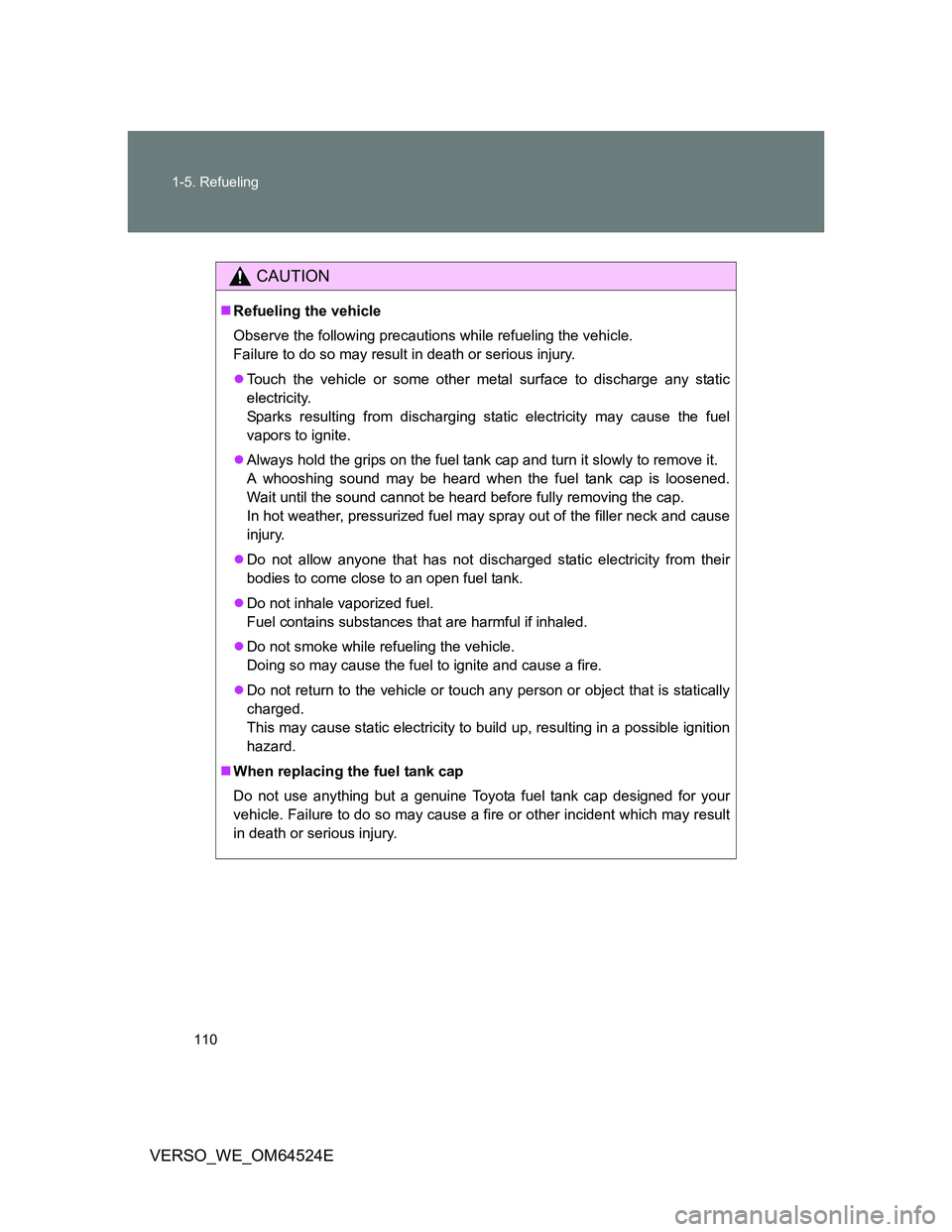

CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
