TOYOTA VERSO 2012 Owners Manual

161 1-7. Safety information
1
Before driving
VERSO_WE_OM64524E

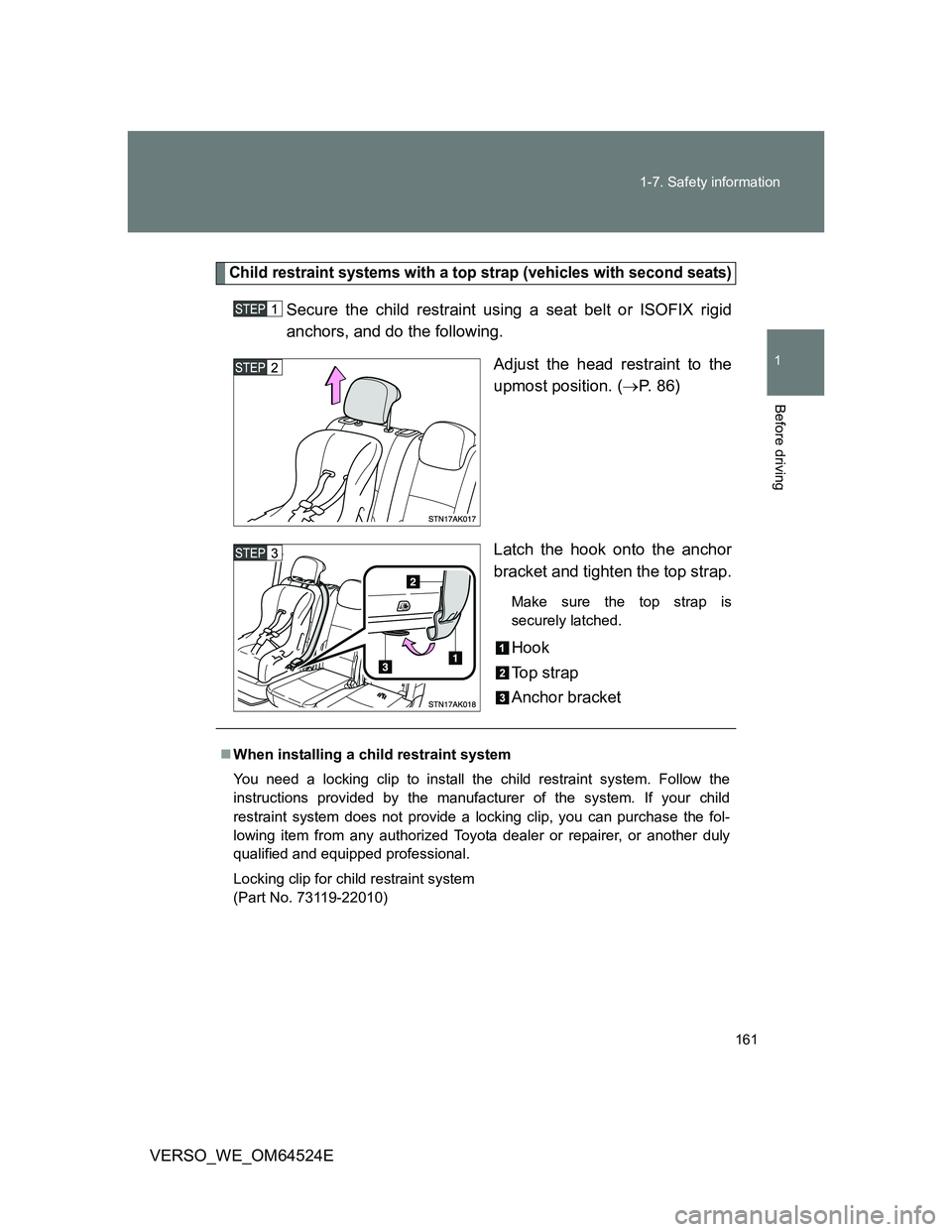

Child restraint systems with a top strap (vehicles with second seats)
Secure the child restraint using a seat belt or ISOFIX rigid
anchors, and do the following.
Adjust the head restraint to the
upmost position. (P. 8 6 )
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Hook
To p s t r a p
Anchor bracket
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

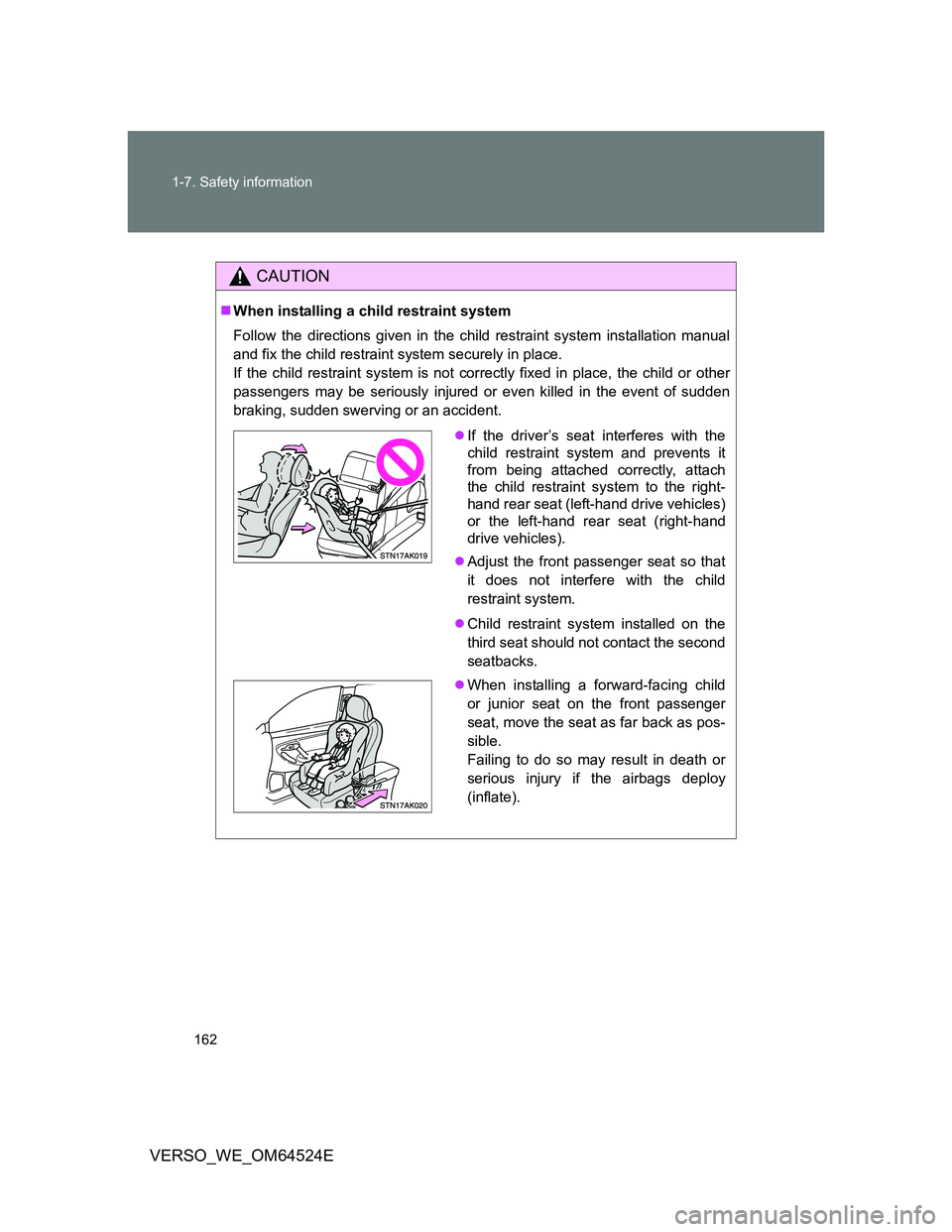

162 1-7. Safety information
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Child restraint system installed on the
third seat should not contact the second
seatbacks.
When installing a forward-facing child
or junior seat on the front passenger
seat, move the seat as far back as pos-
sible.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

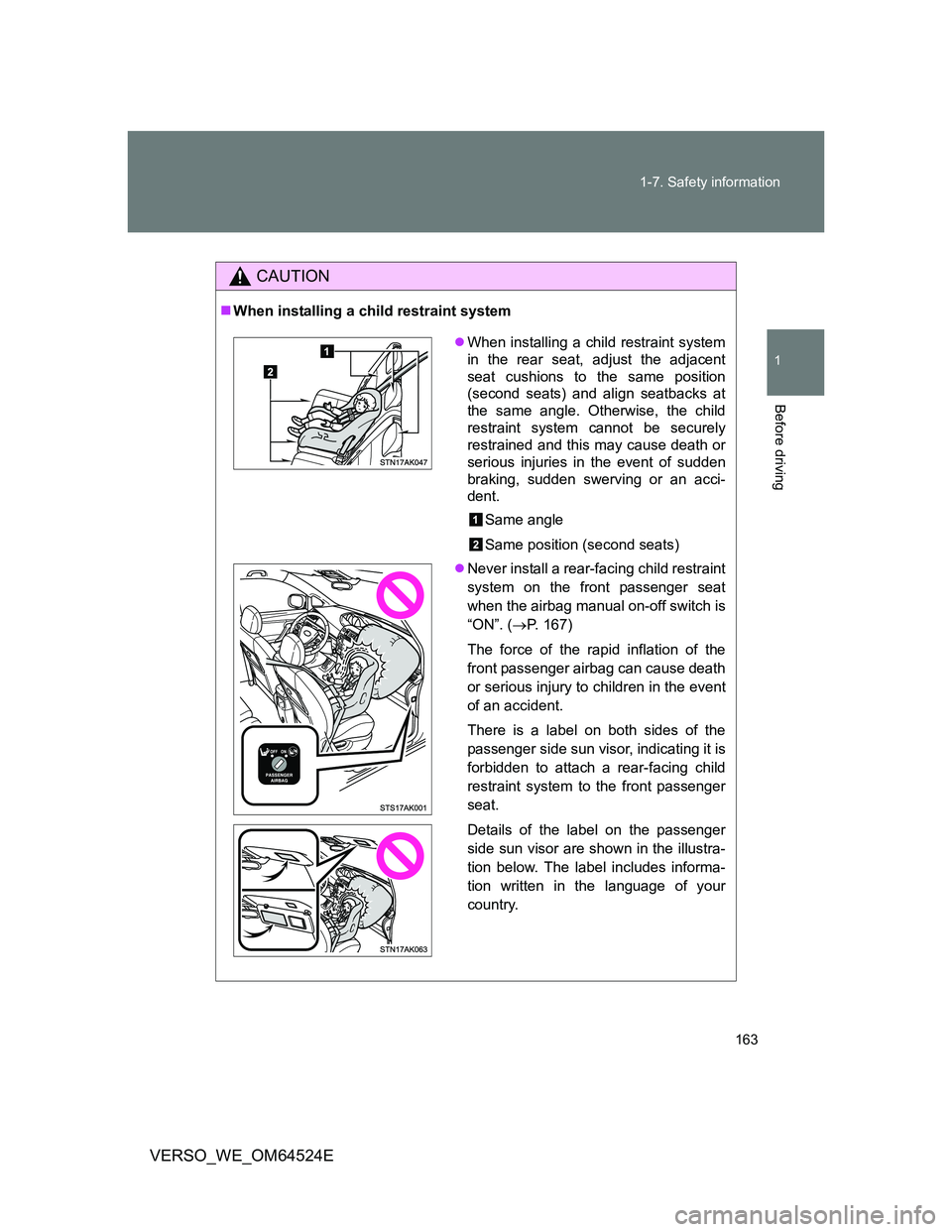

163 1-7. Safety information
1
Before driving
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
When installing a child restraint system
in the rear seat, adjust the adjacent
seat cushions to the same position
(second seats) and align seatbacks at
the same angle. Otherwise, the child
restraint system cannot be securely
restrained and this may cause death or
serious injuries in the event of sudden
braking, sudden swerving or an acci-
dent.
Same angle
Same position (second seats)
Never install a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
“ON”. (P. 167)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label on both sides of the
passenger side sun visor, indicating it is
forbidden to attach a rear-facing child
restraint system to the front passenger
seat.
Details of the label on the passenger
side sun visor are shown in the illustra-
tion below. The label includes informa-
tion written in the language of your
country.

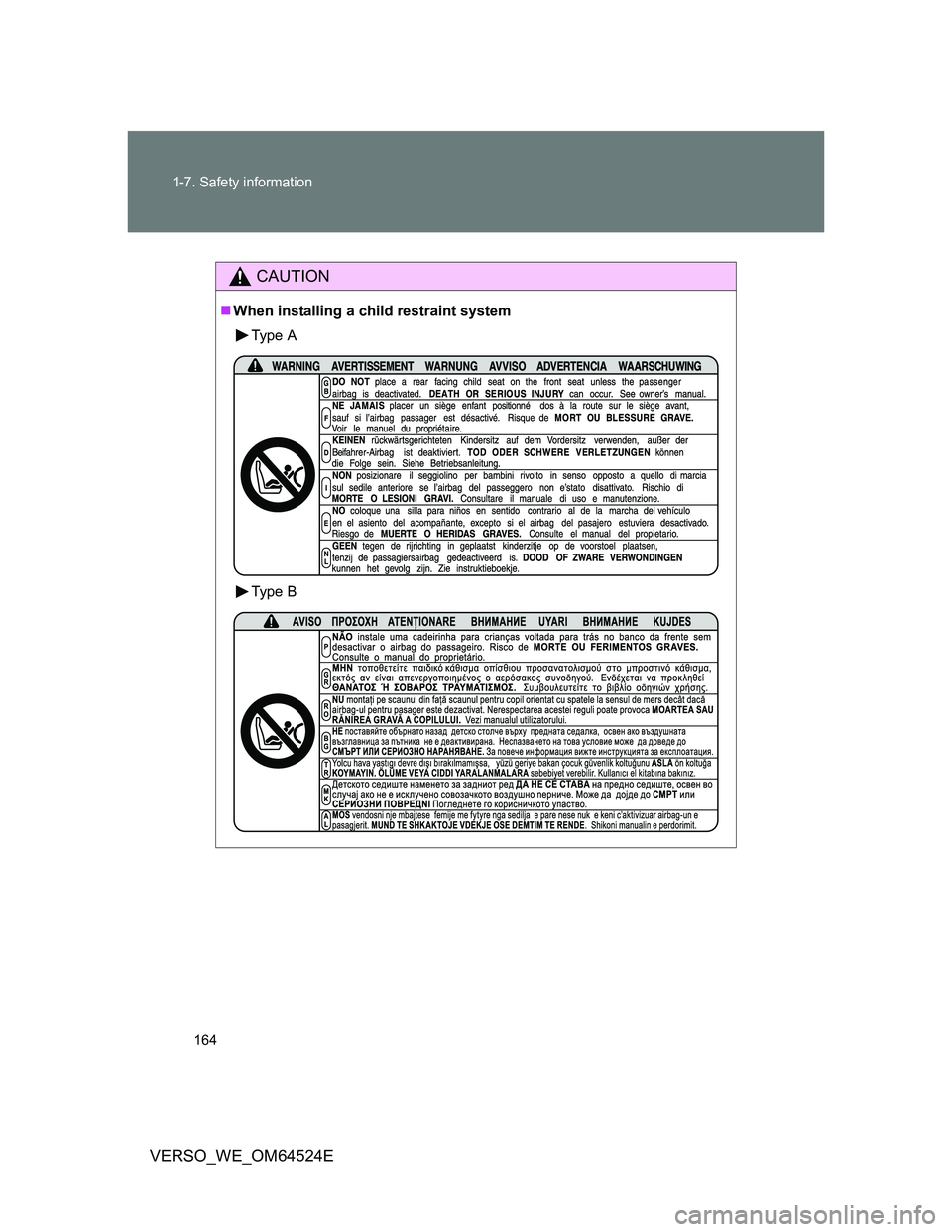

164 1-7. Safety information
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
Type A
Type B

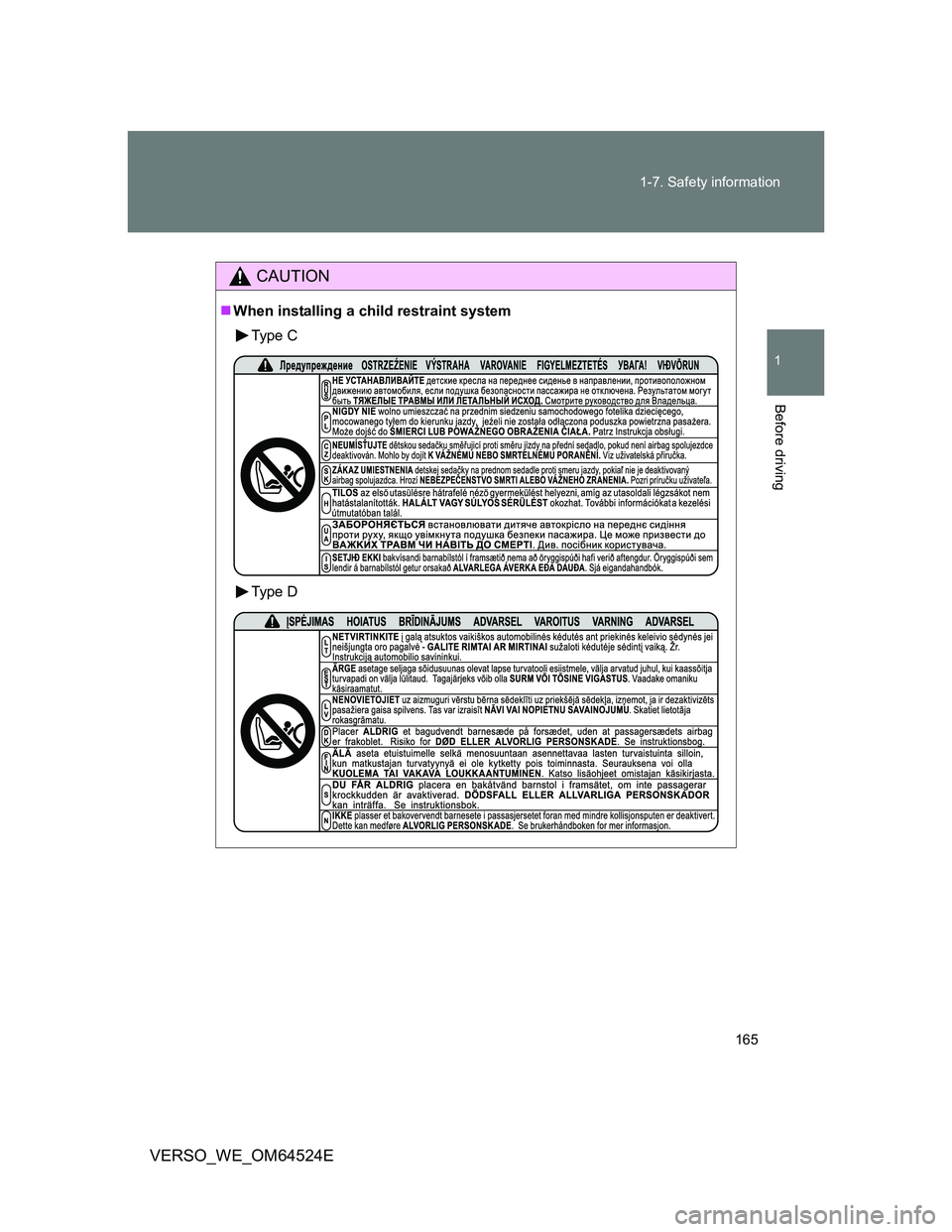

165 1-7. Safety information
1
Before driving
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
Type C
Type D

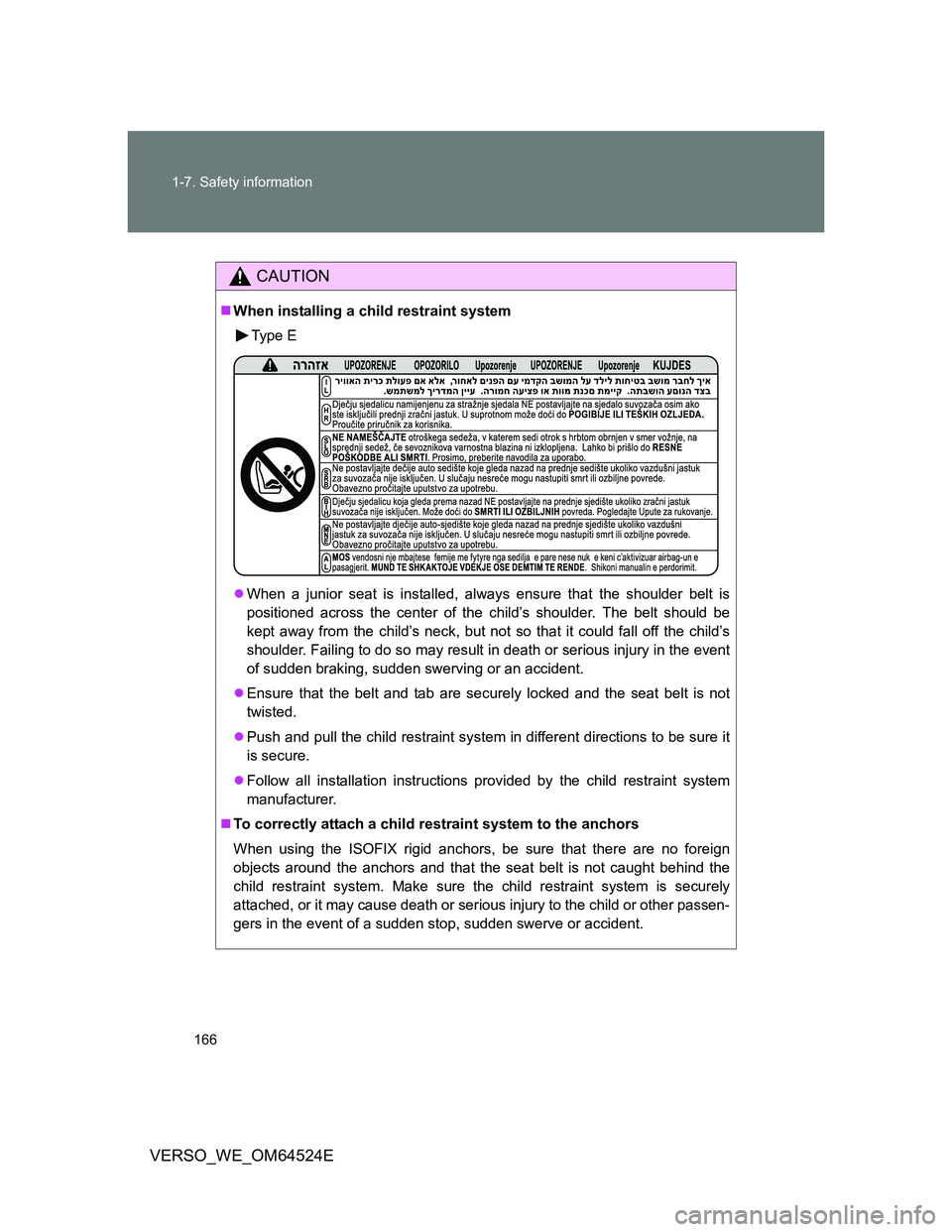

166 1-7. Safety information
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
Type E
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system in different directions to be sure it
is secure.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the anchors and that the seat belt is not caught behind the
child restraint system. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other passen-
gers in the event of a sudden stop, sudden swerve or accident.

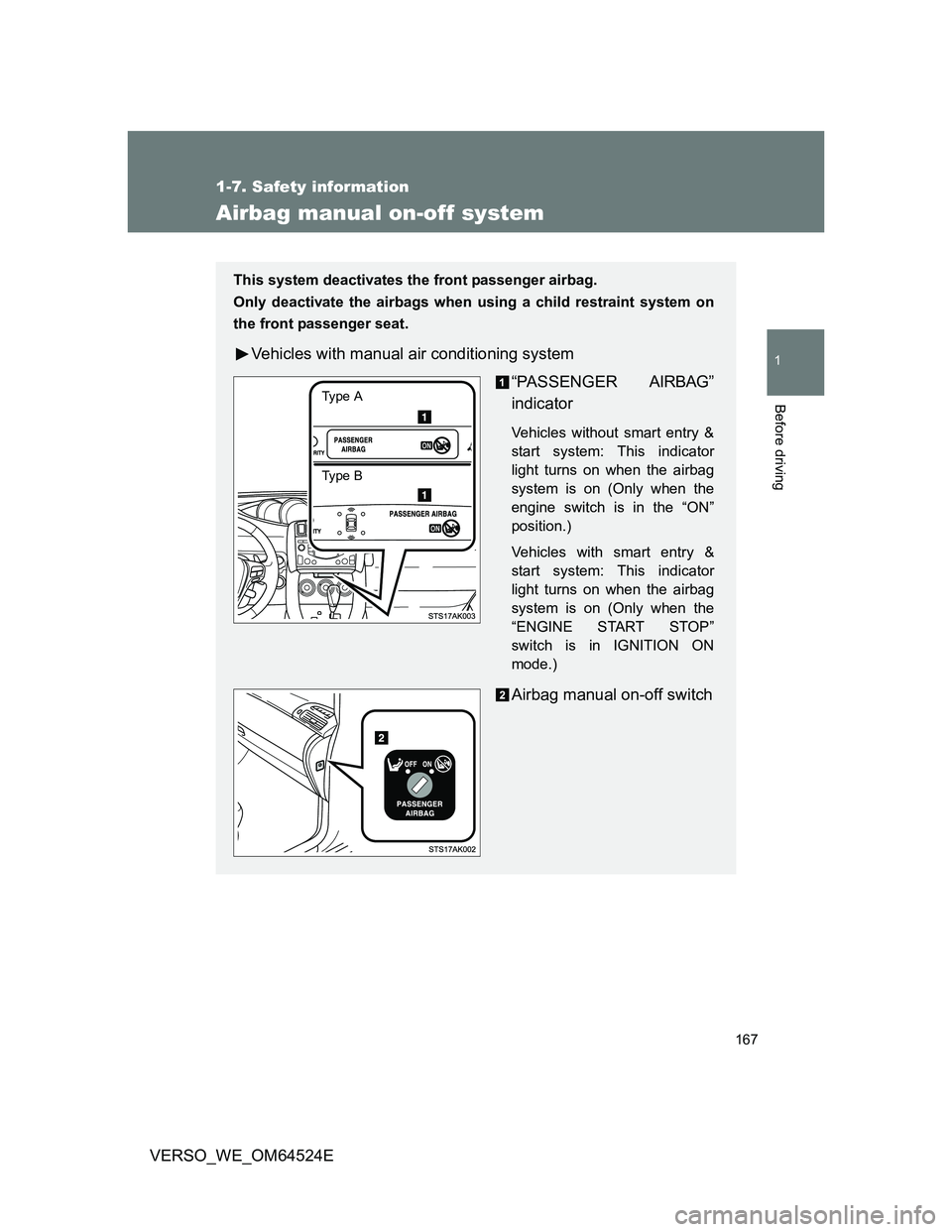

167
1
1-7. Safety information
Before driving
VERSO_WE_OM64524E
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Vehicles with manual air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (Only when the
engine switch is in the “ON”
position.)
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (Only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode.)
Airbag manual on-off switch
Type A
Type B

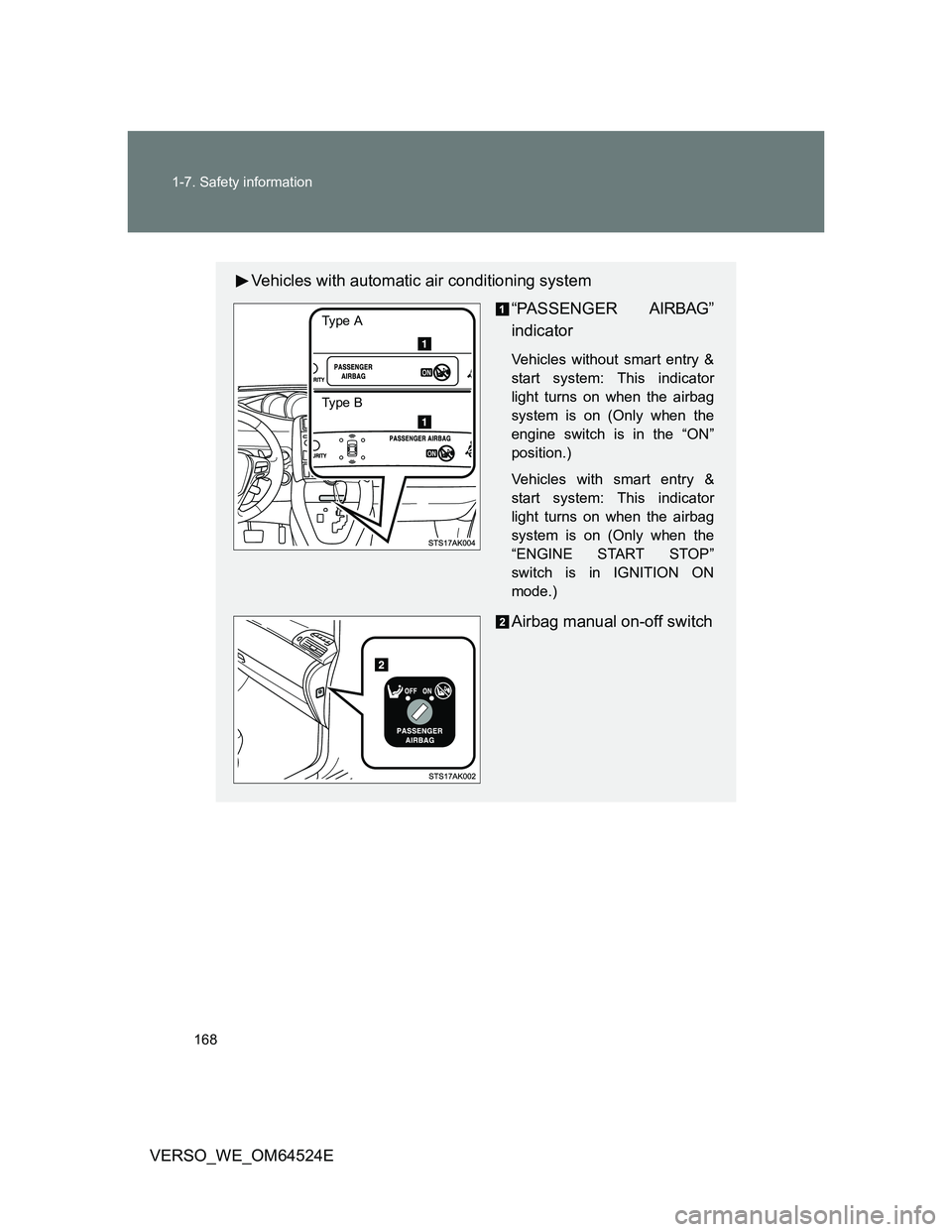

168 1-7. Safety information
VERSO_WE_OM64524E
Vehicles with automatic air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (Only when the
engine switch is in the “ON”
position.)
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (Only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode.)
Airbag manual on-off switch
Type A
Type B

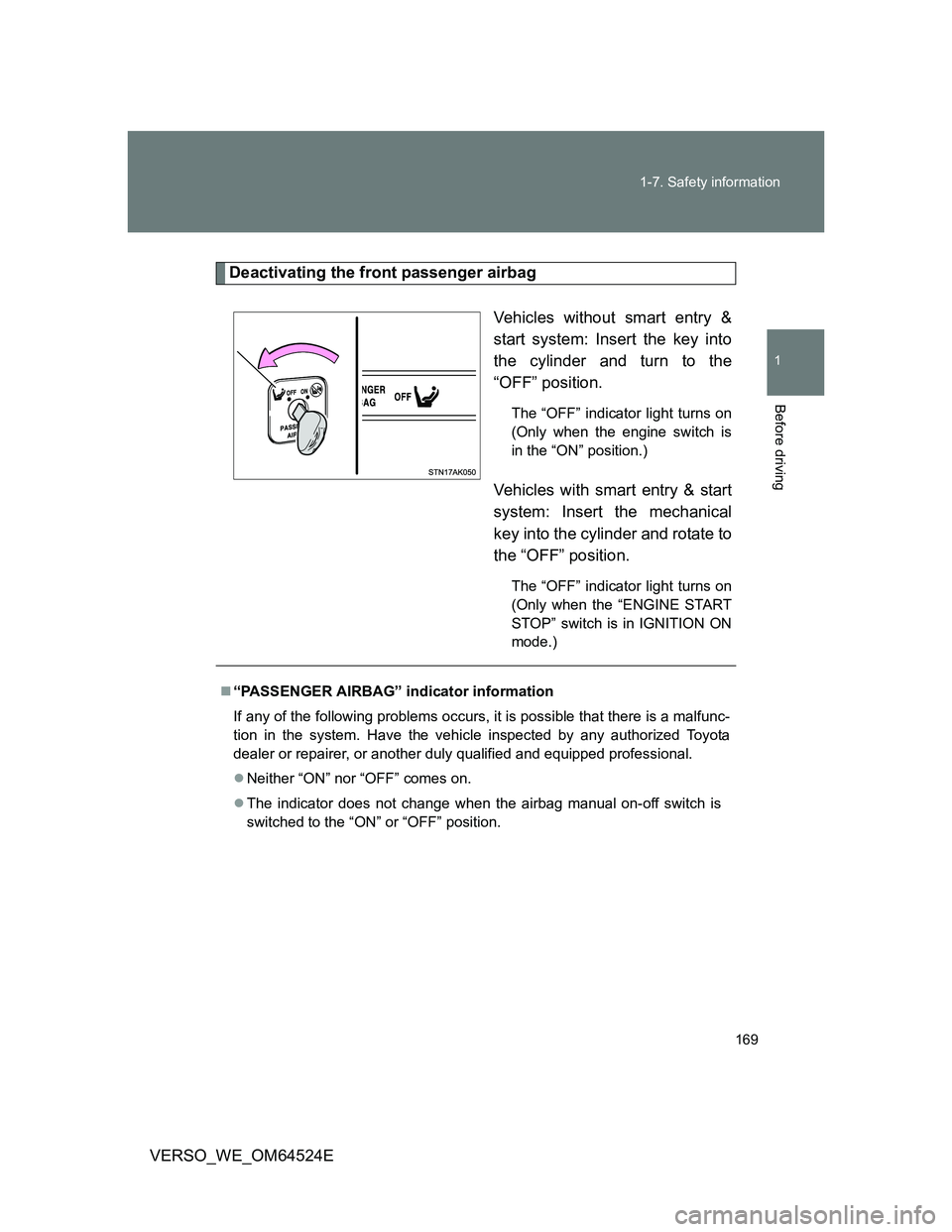

169 1-7. Safety information
1
Before driving
VERSO_WE_OM64524E
Deactivating the front passenger airbag
Vehicles without smart entry &
start system: Insert the key into
the cylinder and turn to the
“OFF” position.
The “OFF” indicator light turns on
(Only when the engine switch is
in the “ON” position.)
Vehicles with smart entry & start
system: Insert the mechanical
key into the cylinder and rotate to
the “OFF” position.
The “OFF” indicator light turns on
(Only when the “ENGINE START
STOP” switch is in IGNITION ON
mode.)
“PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator does not change when the airbag manual on-off switch is
switched to the “ON” or “OFF” position.

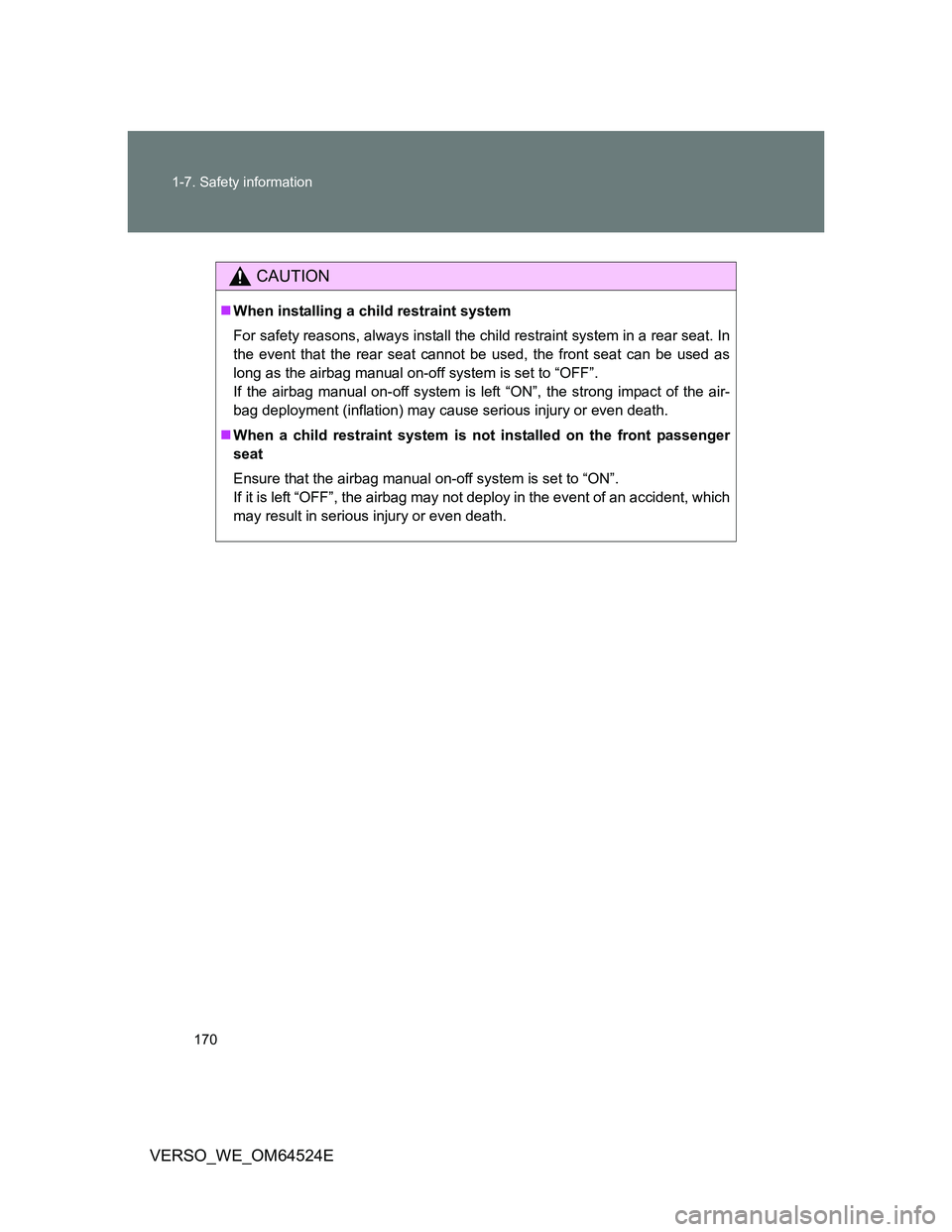

170 1-7. Safety information
VERSO_WE_OM64524E
CAUTION
When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.
