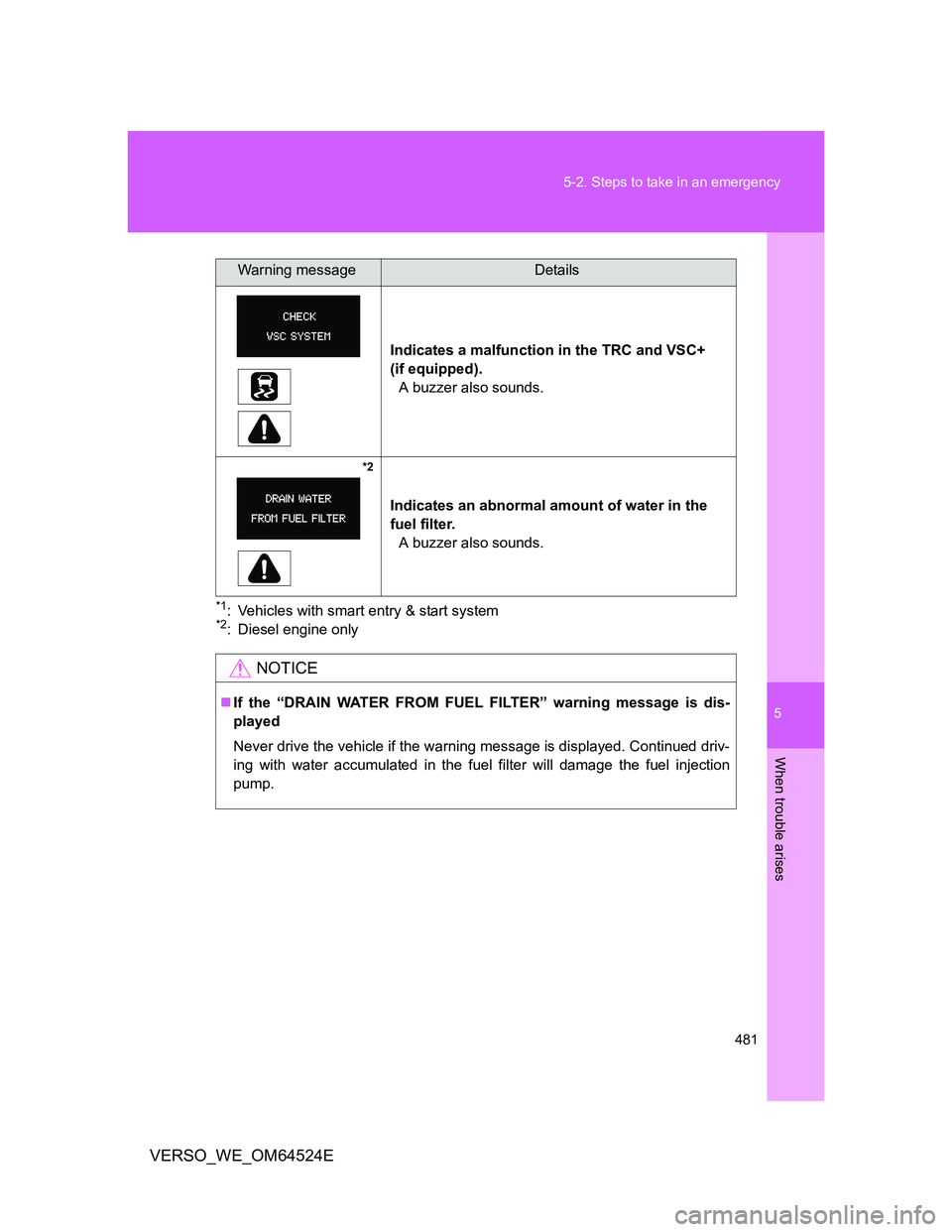

481 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
*1: Vehicles with smart entry & start system*2: Diesel engine onlyIndicates a malfunction in the TRC and VSC+
(if equipped).
A buzzer also sounds.
*2
Indicates an abnormal amount of water in the
fuel filter.
A buzzer also sounds.
NOTICE
If the “DRAIN WATER FROM FUEL FILTER” warning message is dis-
played
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.
Warning messageDetails

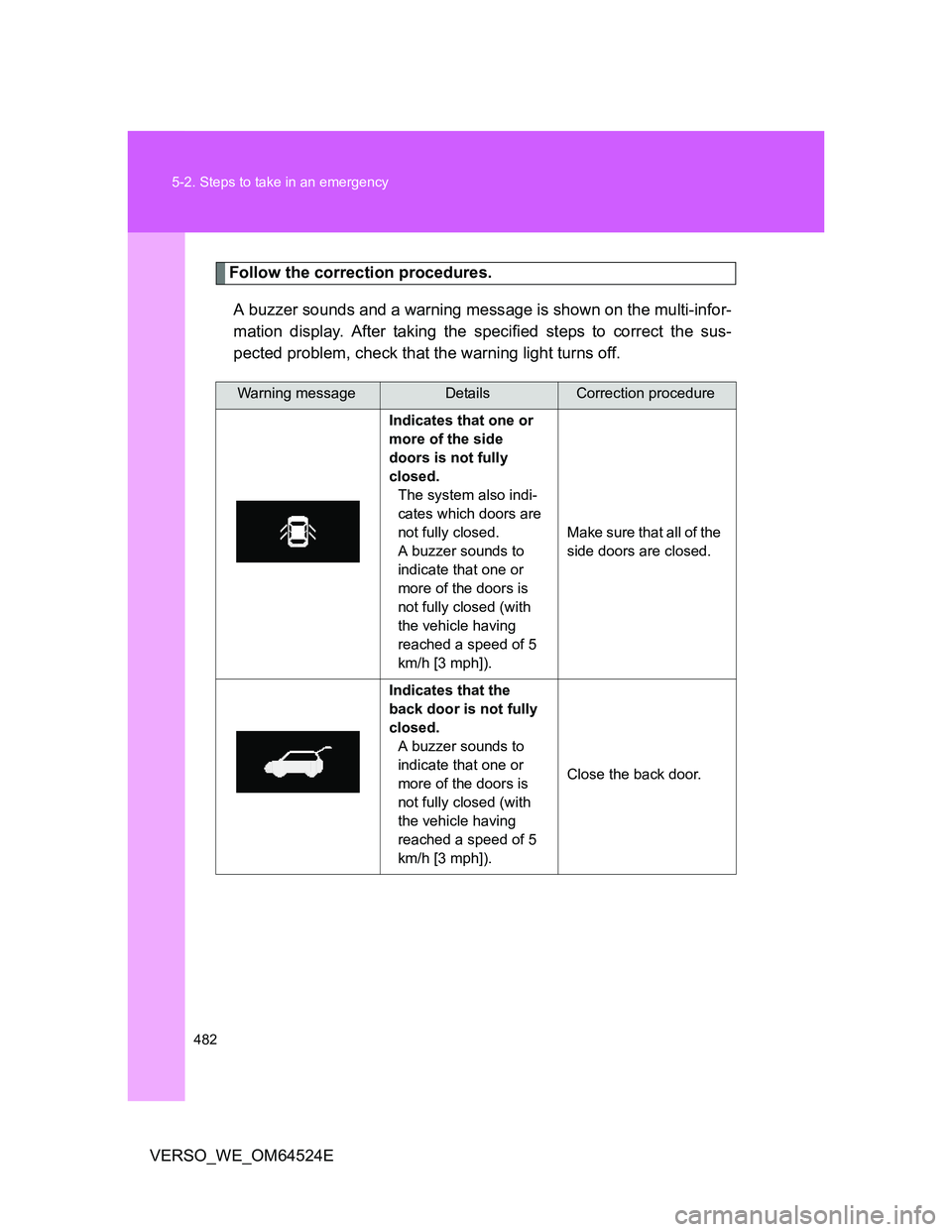

482 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Follow the correction procedures.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. After taking the specified steps to correct the sus-
pected problem, check that the warning light turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the side
doors is not fully
closed.
The system also indi-
cates which doors are
not fully closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 5
km/h [3 mph]).Make sure that all of the
side doors are closed.
Indicates that the
back door is not fully
closed.
A buzzer sounds to
indicate that one or
more of the doors is
not fully closed (with
the vehicle having
reached a speed of 5
km/h [3 mph]).Close the back door.

5

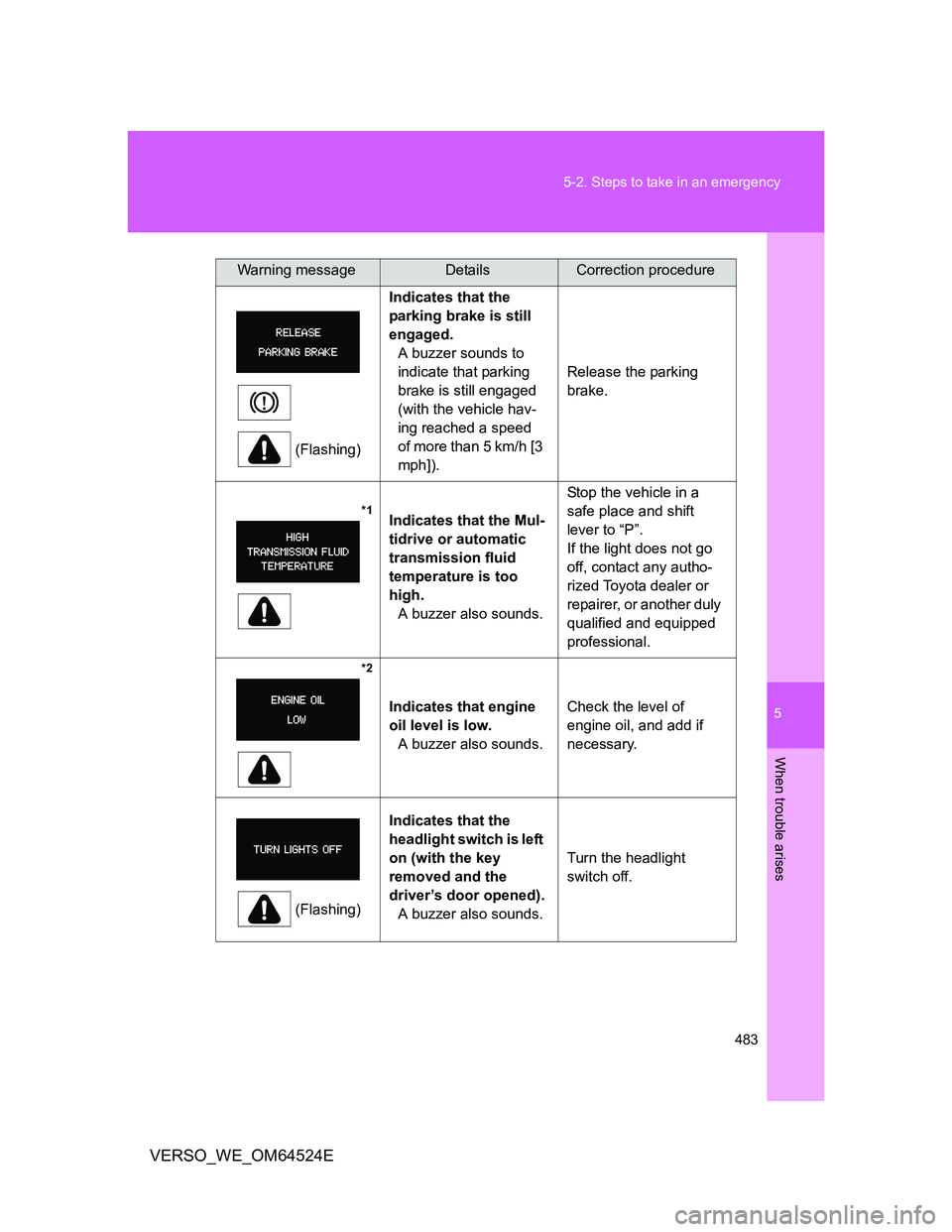

483 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
(Flashing)Indicates that the
parking brake is still
engaged.
A buzzer sounds to
indicate that parking
brake is still engaged
(with the vehicle hav-
ing reached a speed
of more than 5 km/h [3
mph]).Release the parking
brake.
*1Indicates that the Mul-
tidrive or automatic
transmission fluid
temperature is too
high.
A buzzer also sounds.Stop the vehicle in a
safe place and shift
lever to “P”.
If the light does not go
off, contact any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional.
*2
Indicates that engine
oil level is low.
A buzzer also sounds.Check the level of
engine oil, and add if
necessary.
(Flashing)Indicates that the
headlight switch is left
on (with the key
removed and the
driver’s door opened).
A buzzer also sounds.Turn the headlight
switch off.
Warning messageDetailsCorrection procedure

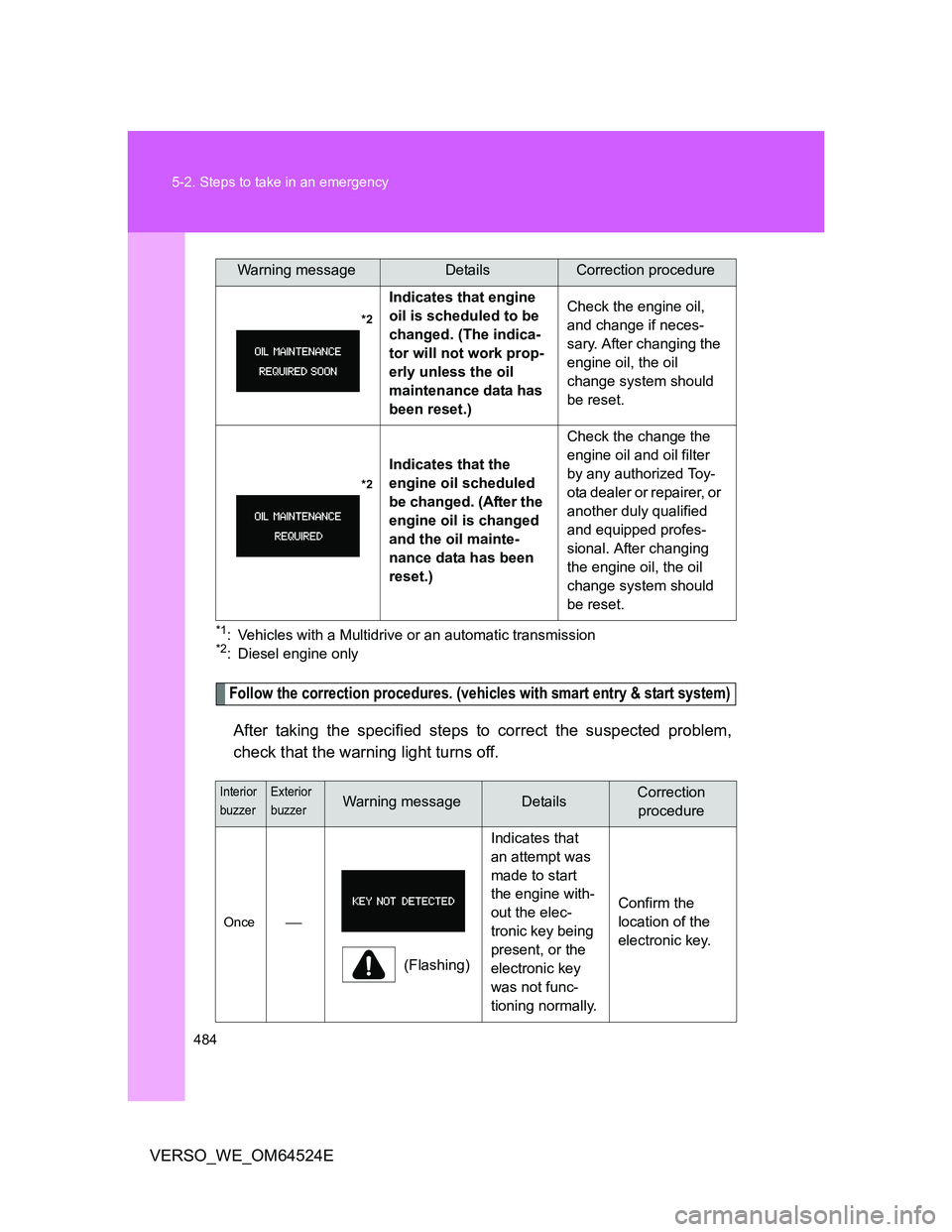

484 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission *2: Diesel engine only
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
*2
Indicates that engine
oil is scheduled to be
changed. (The indica-
tor will not work prop-
erly unless the oil
maintenance data has
been reset.)Check the engine oil,
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset.
*2

Indicates that the
engine oil scheduled
be changed. (After the
engine oil is changed
and the oil mainte-
nance data has been
reset.)Check the change the
engine oil and oil filter
by any authorized Toy-
ota dealer or repairer, or
another duly qualified
and equipped profes-
sional. After changing
the engine oil, the oil
change system should
be reset.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashing)Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.Confirm the
location of the
electronic key.
Warning messageDetailsCorrection procedure

5

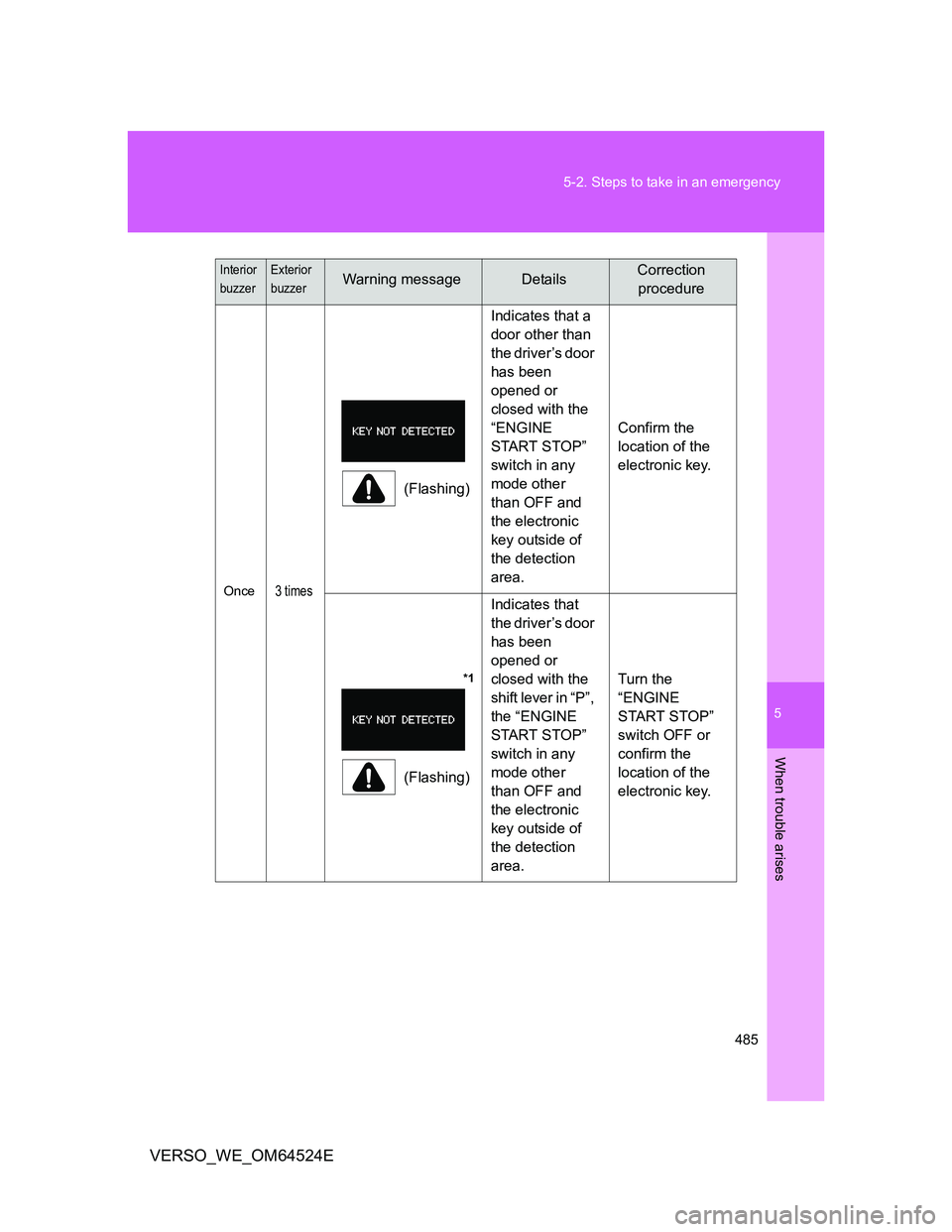

485 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Once3 times
(Flashing)Indicates that a
door other than
the driver’s door
has been
opened or
closed with the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.Confirm the
location of the
electronic key.
*1
(Flashing)Indicates that
the driver’s door
has been
opened or
closed with the
shift lever in “P”,
the “ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

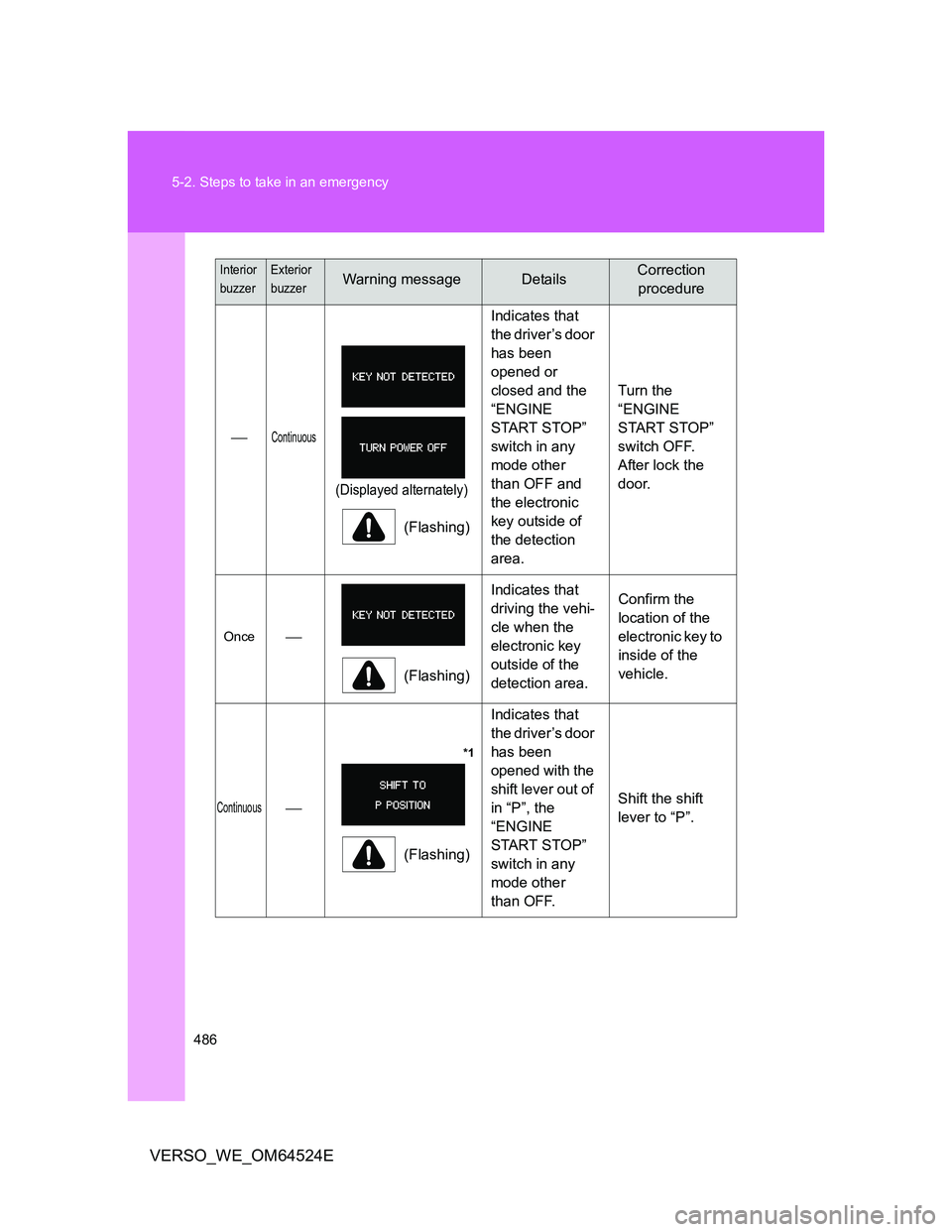

486 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Continuous
(Displayed alternately)
(Flashing)Indicates that
the driver’s door
has been
opened or
closed and the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.Turn the
“ENGINE
START STOP”
switch OFF.
After lock the
door.
Once
(Flashing)Indicates that
driving the vehi-
cle when the
electronic key
outside of the
detection area.Confirm the
location of the
electronic key to
inside of the
vehicle.
Continuous
*1
(Flashing)Indicates that
the driver’s door
has been
opened with the
shift lever out of
in “P”, the
“ENGINE
START STOP”
switch in any
mode other
than OFF.Shift the shift
lever to “P”.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5

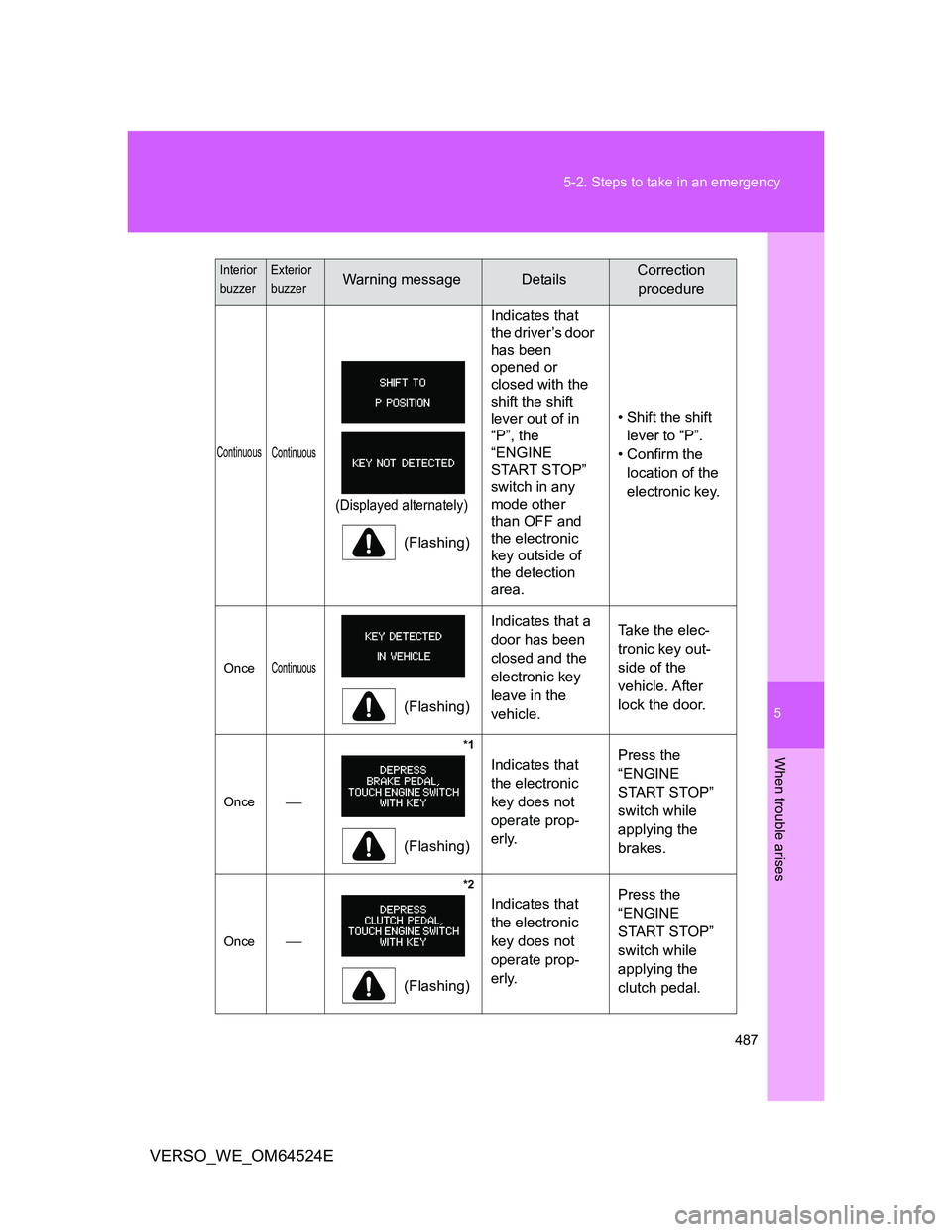

487 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Continuous
Continuous
(Displayed alternately)
(Flashing)Indicates that
the driver’s door
has been
opened or
closed with the
shift the shift
lever out of in
“P”, the
“ENGINE
START STOP”
switch in any
mode other
than OFF and
the electronic
key outside of
the detection
area.• Shift the shift
lever to “P”.
• Confirm the
location of the
electronic key.
OnceContinuous
(Flashing)Indicates that a
door has been
closed and the
electronic key
leave in the
vehicle.Take the elec-
tronic key out-
side of the
vehicle. After
lock the door.
Once
*1
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

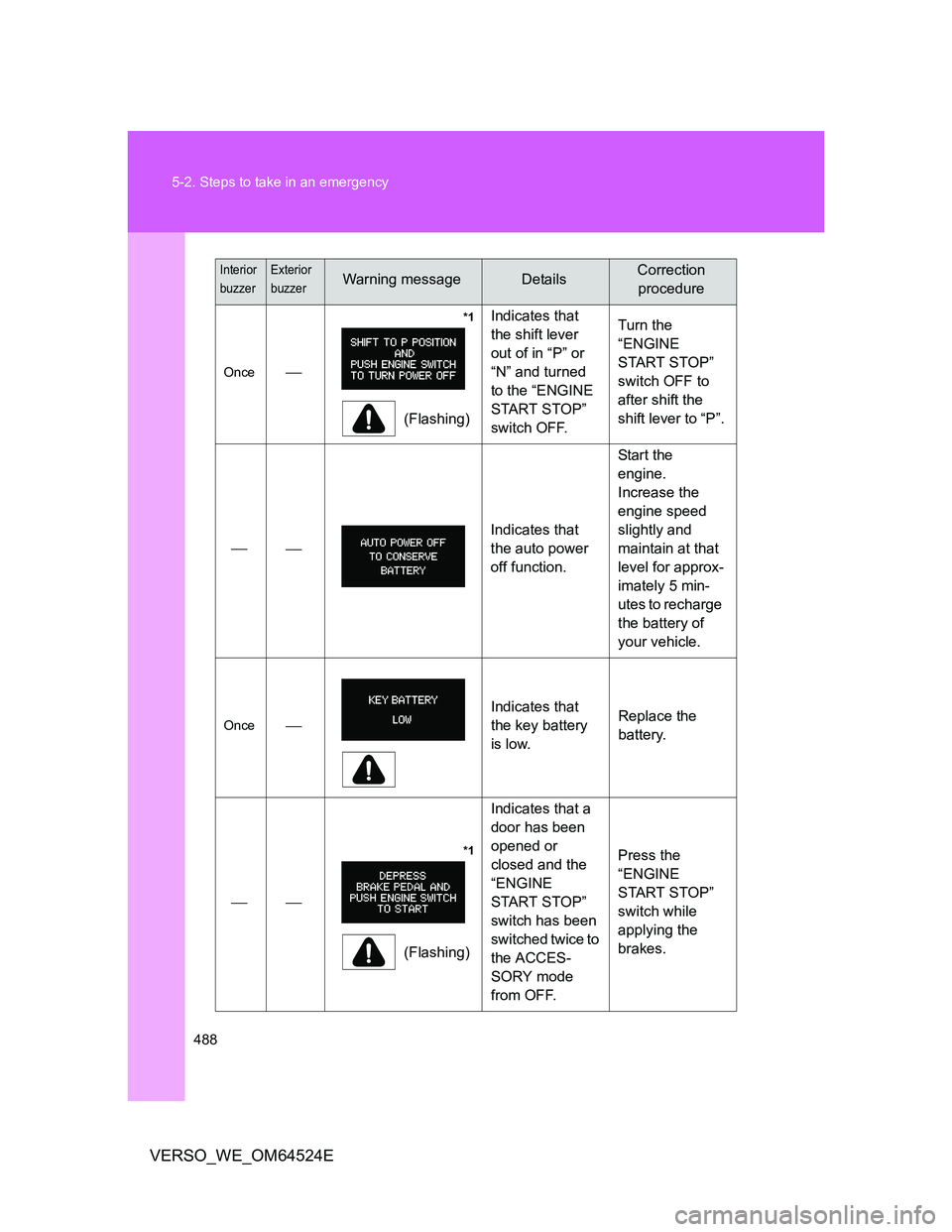

488 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Once
*1
(Flashing)Indicates that
the shift lever
out of in “P” or
“N” and turned
to the “ENGINE
START STOP”
switch OFF.Turn the
“ENGINE
START STOP”
switch OFF to
after shift the
shift lever to “P”.

Indicates that
the auto power
off function.Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
OnceIndicates that
the key battery
is low.Replace the
battery.

*1
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5

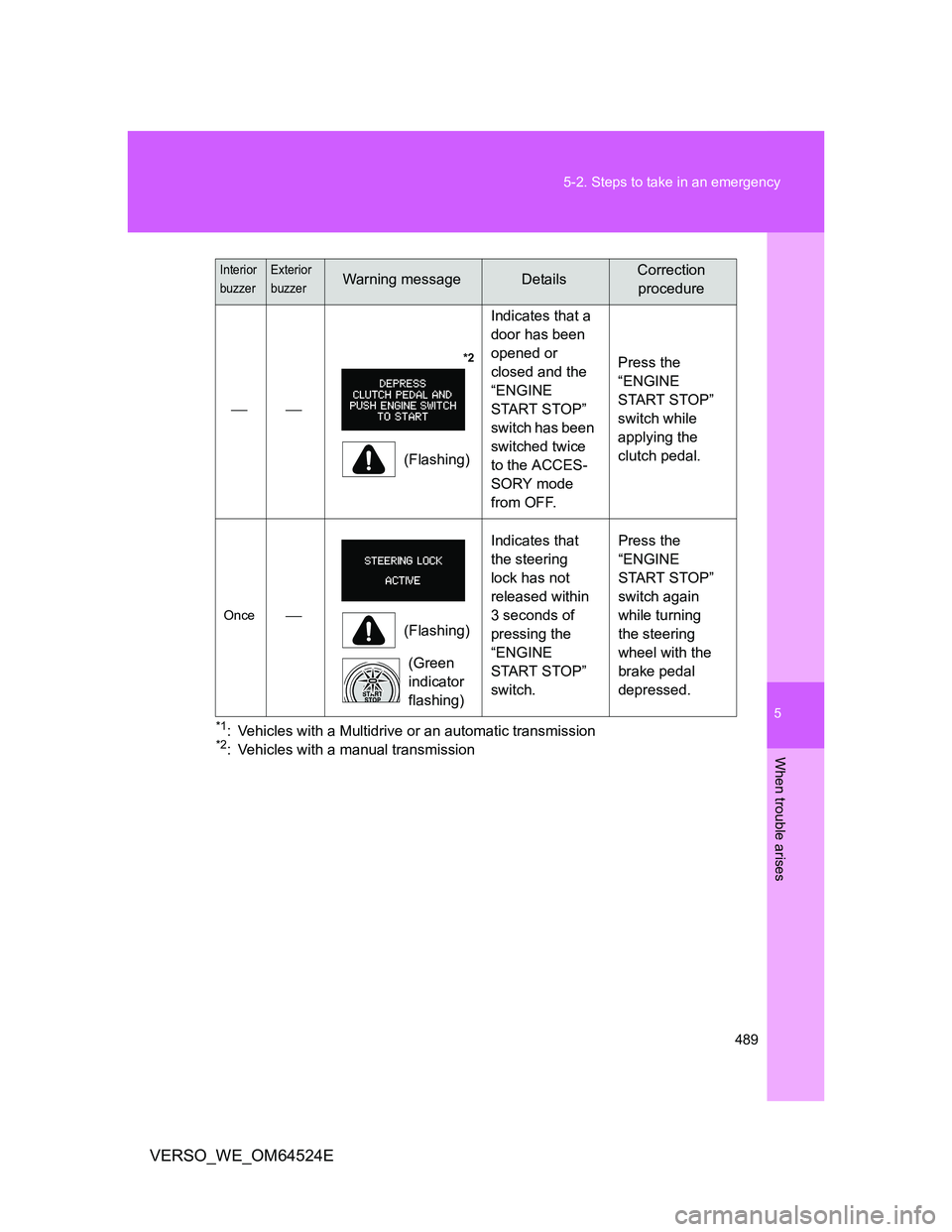

489 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission*2: Vehicles with a manual transmission
*2
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice
to the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
(Flashing)
(Green
indicator
flashing)Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

490
5-2. Steps to take in an emergency
VERSO_WE_OM64524E

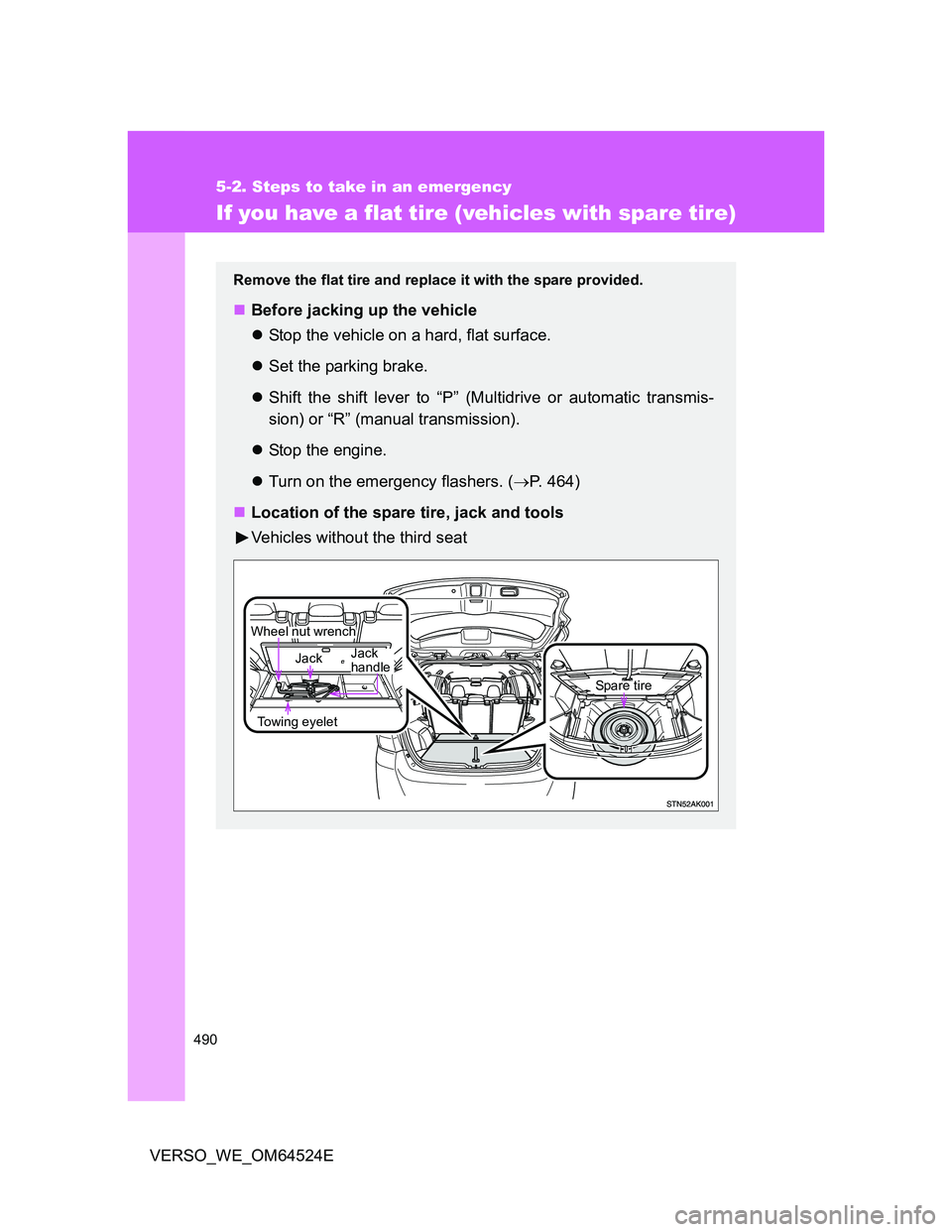

If you have a flat tire (vehicles with spare tire)
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “P” (Multidrive or automatic transmis-
sion) or “R” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 464)
Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack
handleJack
Wheel nut wrench
Towing eyelet
