open hood TOYOTA VERSO 2012 Owners Manual

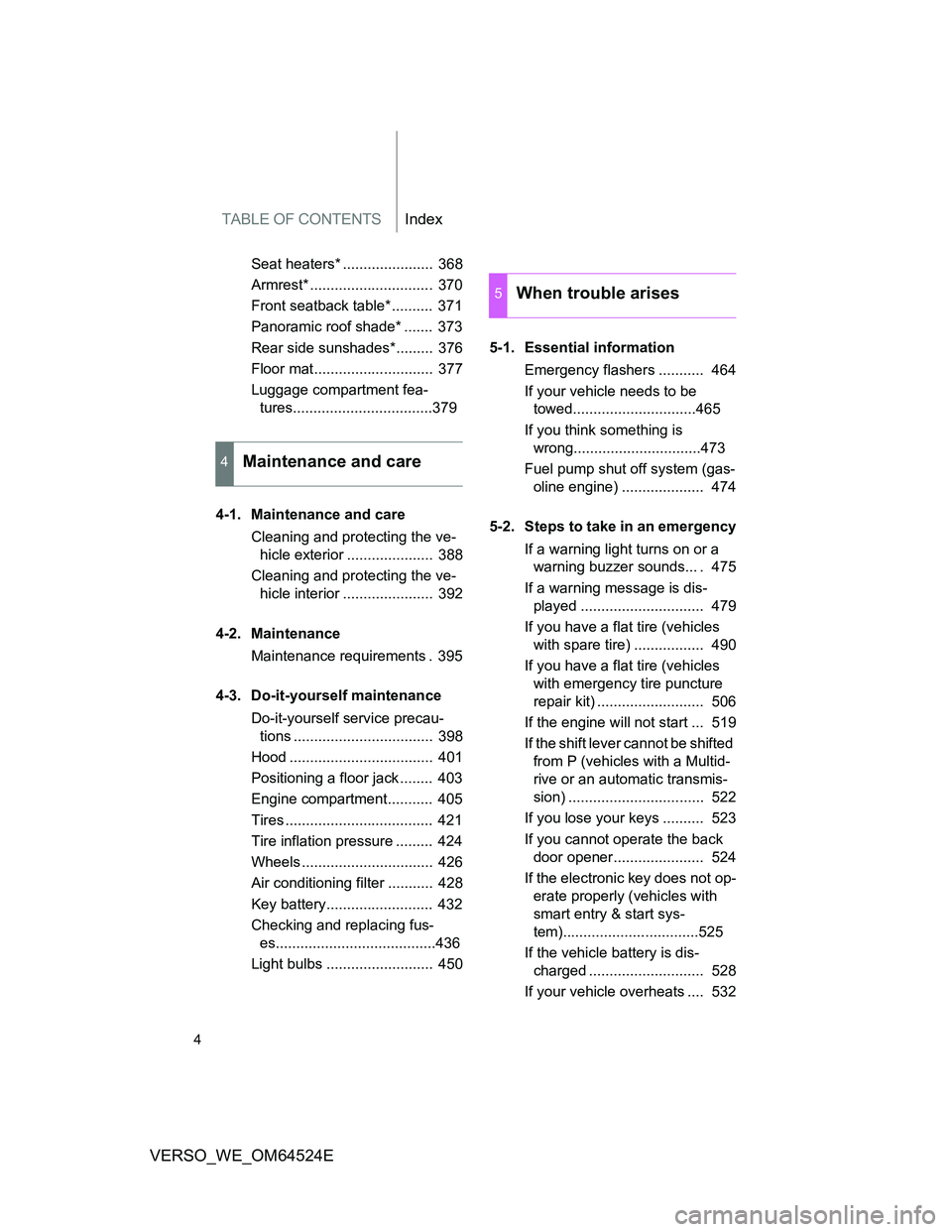

TABLE OF CONTENTSIndex
4
VERSO_WE_OM64524E
Seat heaters* ...................... 368
Armrest* .............................. 370
Front seatback table* .......... 371
Panoramic roof shade* ....... 373
Rear side sunshades*......... 376
Floor mat............................. 377
Luggage compartment fea-
tures..................................379
4-1. Maintenance and care
Cleaning and protecting the ve-
hicle exterior ..................... 388
Cleaning and protecting the ve-
hicle interior ...................... 392
4-2. Maintenance
Maintenance requirements . 395
4-3. Do-it-yourself maintenance
Do-it-yourself service precau-
tions .................................. 398
Hood ................................... 401
Positioning a floor jack ........ 403
Engine compartment........... 405
Tires .................................... 421
Tire inflation pressure ......... 424
Wheels ................................ 426
Air conditioning filter ........... 428
Key battery.......................... 432
Checking and replacing fus-
es.......................................436
Light bulbs .......................... 4505-1. Essential information
Emergency flashers ........... 464
If your vehicle needs to be
towed..............................465
If you think something is
wrong...............................473
Fuel pump shut off system (gas-
oline engine) .................... 474
5-2. Steps to take in an emergency
If a warning light turns on or a
warning buzzer sounds... . 475
If a warning message is dis-
played .............................. 479
If you have a flat tire (vehicles
with spare tire) ................. 490
If you have a flat tire (vehicles
with emergency tire puncture
repair kit) .......................... 506
If the engine will not start ... 519
If the shift lever cannot be shifted
from P (vehicles with a Multid-
rive or an automatic transmis-
sion) ................................. 522
If you lose your keys .......... 523
If you cannot operate the back
door opener...................... 524
If the electronic key does not op-
erate properly (vehicles with
smart entry & start sys-
tem).................................525
If the vehicle battery is dis-
charged ............................ 528
If your vehicle overheats .... 532
4Maintenance and care
5When trouble arises

13
VERSO_WE_OM64524E

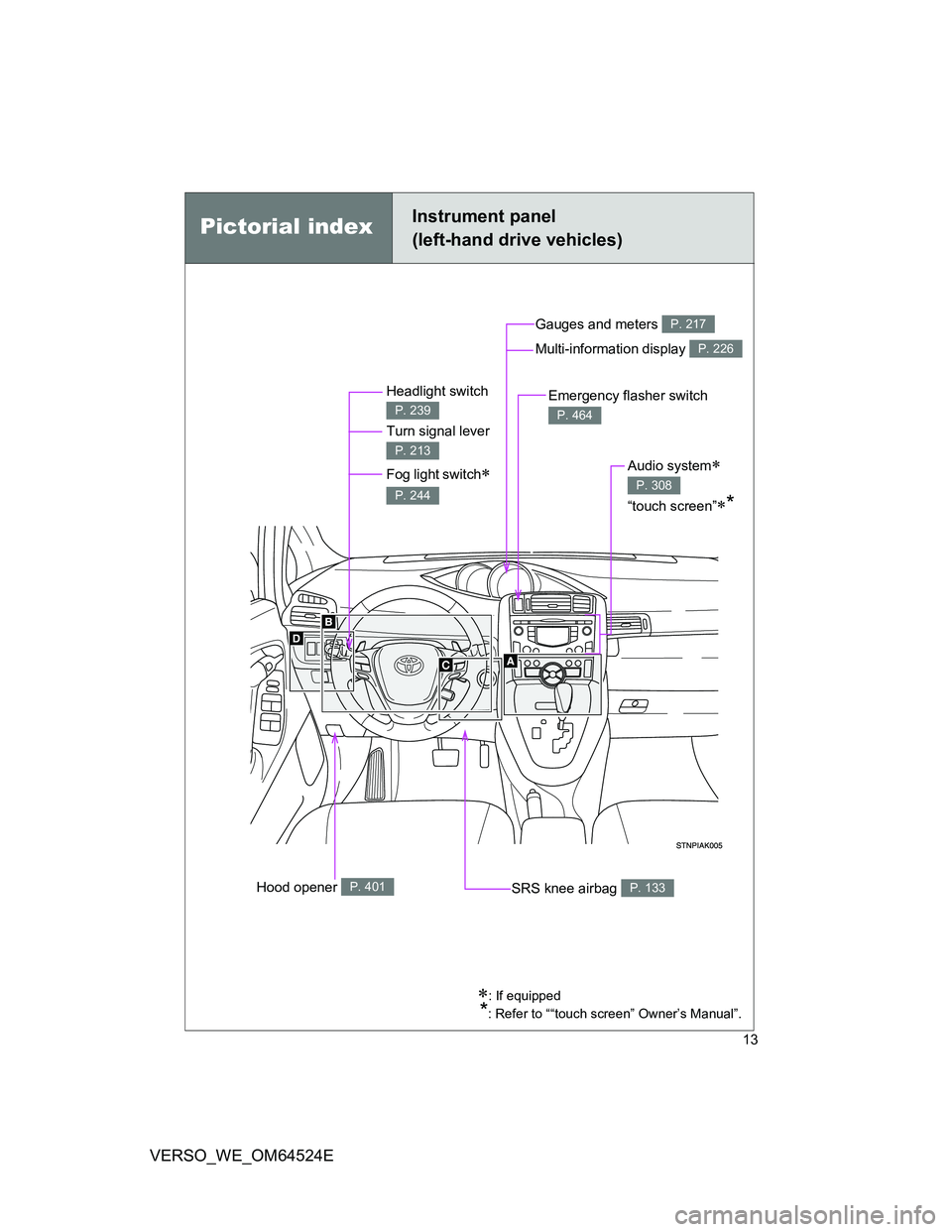

Pictorial indexInstrument panel
(left-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch

P. 239
P. 213
P. 244
Hood opener P. 401
Gauges and meters
Multi-information display P. 217
P. 226
Audio system
“touch screen”
*
P. 308
SRS knee airbag P. 133
Emergency flasher switch
P. 464
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

24
VERSO_WE_OM64524E

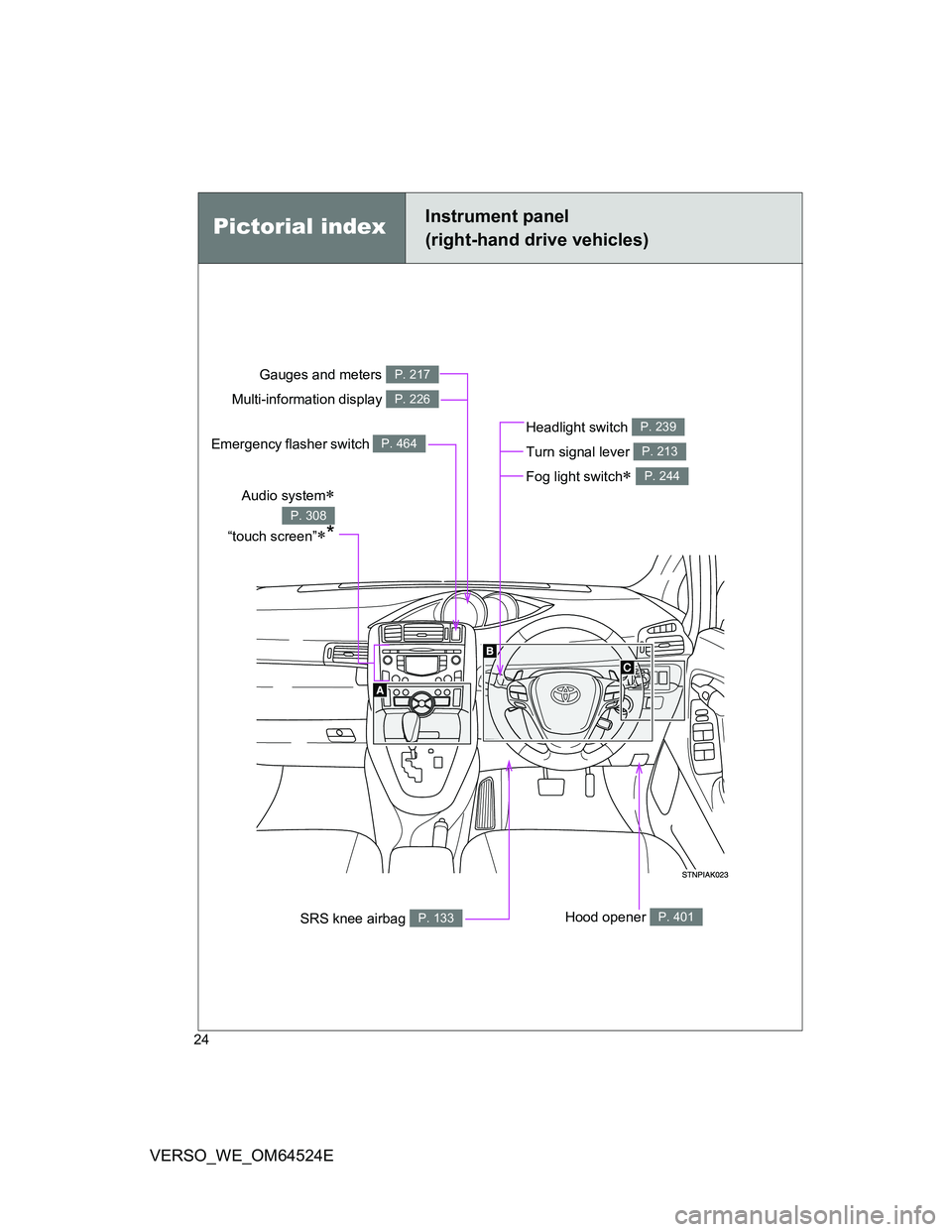

Pictorial indexInstrument panel
(right-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch

P. 239
P. 213
P. 244
Hood opener P. 401
Gauges and meters
Multi-information display P. 217
P. 226
Audio system
“touch screen”*
P. 308
SRS knee airbag P. 133
Emergency flasher switch P. 464

122
1-6. Theft deterrent system
VERSO_WE_OM64524E
Alarm
: If equipped
The system sounds the alarm and flashes lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations when the alarm
is set.
A locked door is unlocked or opened in any way other than
using the entry function (vehicles with smart entry & start sys-
tem) or wireless remote control. (The doors will lock again
automatically.)
The hood is opened.
Vehicles with the intrusion sensor: The intrusion sensor
detects something moving inside the vehicle. (An intruder gets
in the vehicle.)
Vehicles with the glass breakage sensor: The back door win-
dow is tapped or broken.
The battery is reconnected.

125 1-6. Theft deterrent system
1
Before driving
VERSO_WE_OM64524E

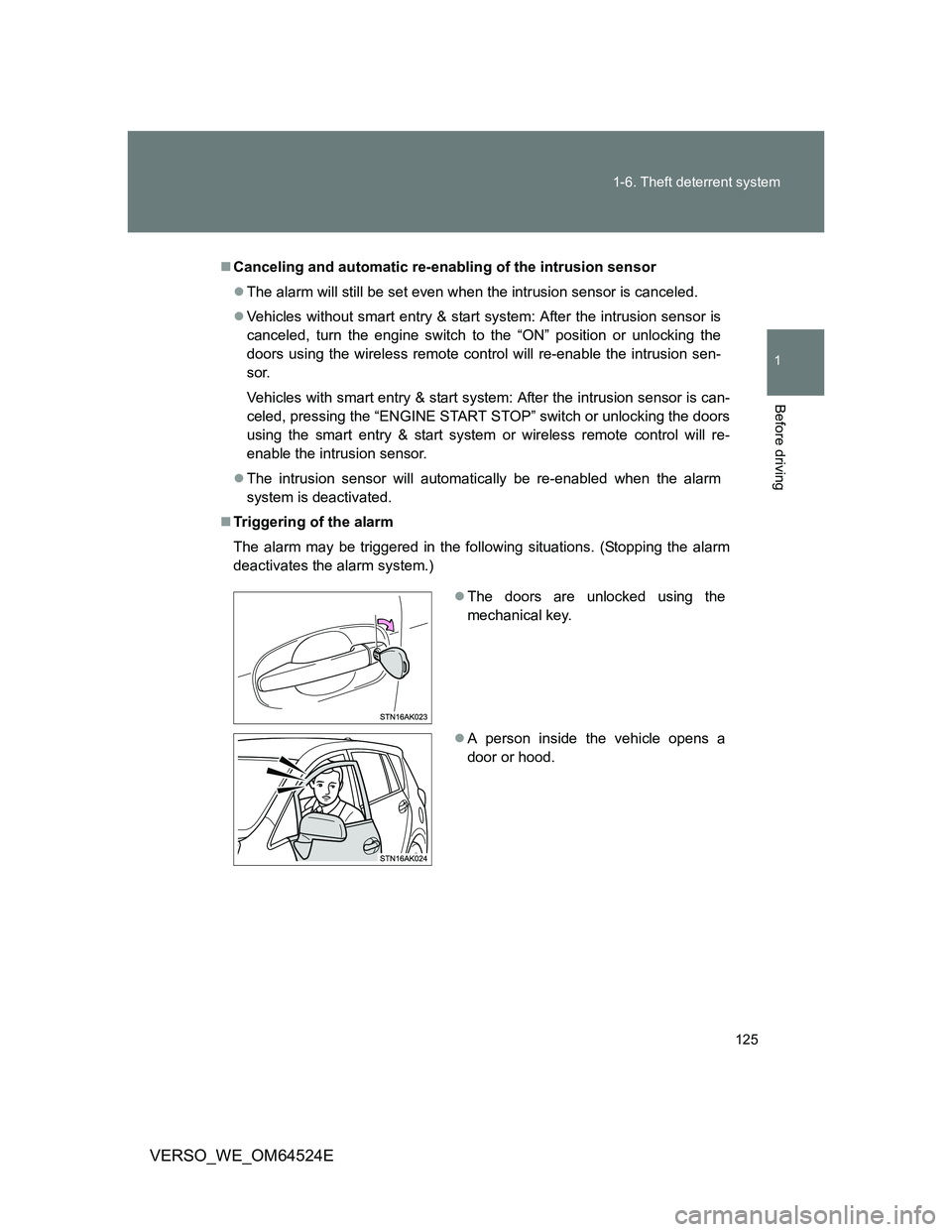

Canceling and automatic re-enabling of the intrusion sensor
The alarm will still be set even when the intrusion sensor is canceled.
Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “ON” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sen-
sor.
Vehicles with smart entry & start system: After the intrusion sensor is can-
celed, pressing the “ENGINE START STOP” switch or unlocking the doors
using the smart entry & start system or wireless remote control will re-
enable the intrusion sensor.
The intrusion sensor will automatically be re-enabled when the alarm
system is deactivated.
Triggering of the alarm
The alarm may be triggered in the following situations. (Stopping the alarm
deactivates the alarm system.)
The doors are unlocked using the
mechanical key.
A person inside the vehicle opens a
door or hood.

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Pull up the hood catch and lift
the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
When moving the supporting
rod, hold the support rod cover.

402 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

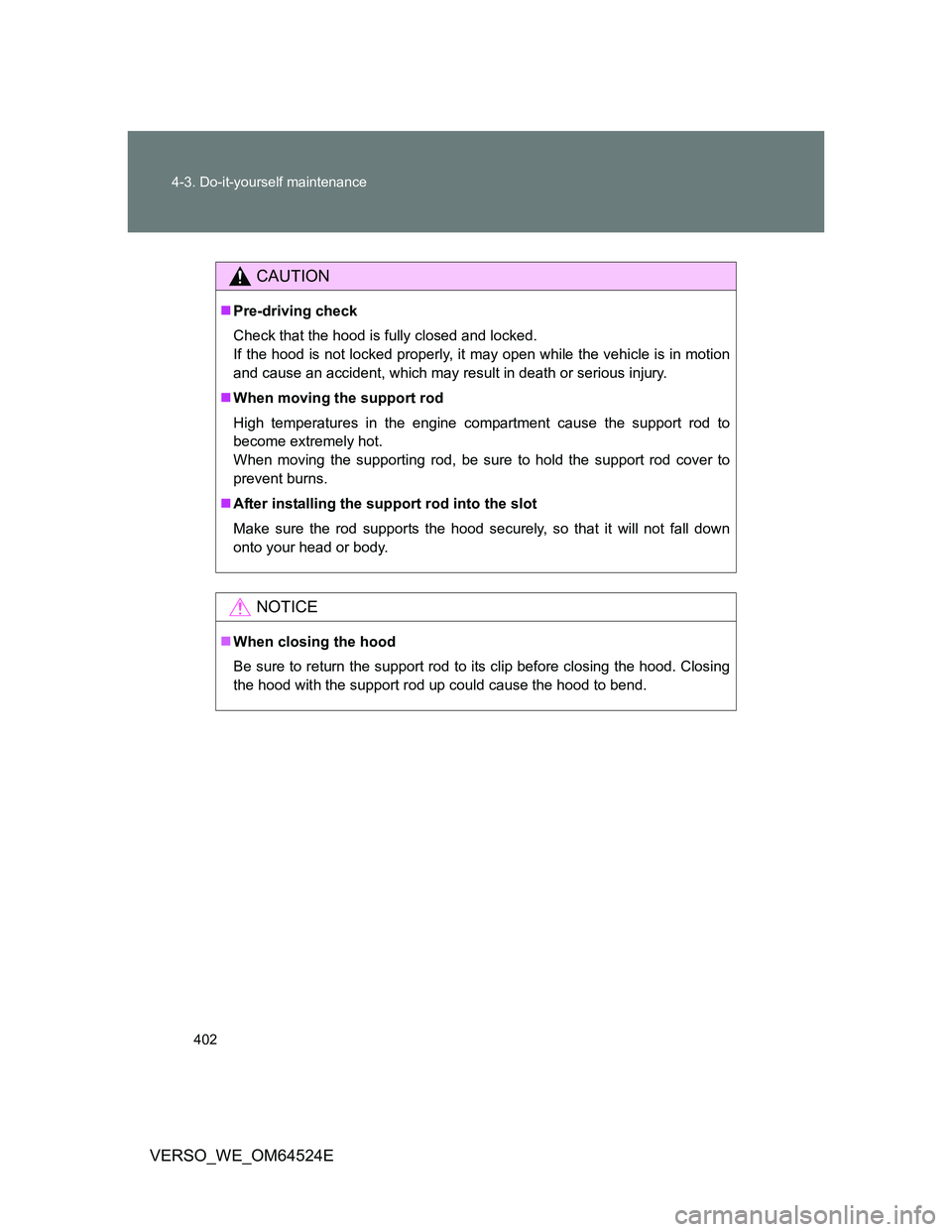

CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
When moving the support rod
High temperatures in the engine compartment cause the support rod to
become extremely hot.
When moving the supporting rod, be sure to hold the support rod cover to
prevent burns.
After installing the support rod into the slot
Make sure the rod supports the hood securely, so that it will not fall down
onto your head or body.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

534 5-2. Steps to take in an emergency
VERSO_WE_OM64524E

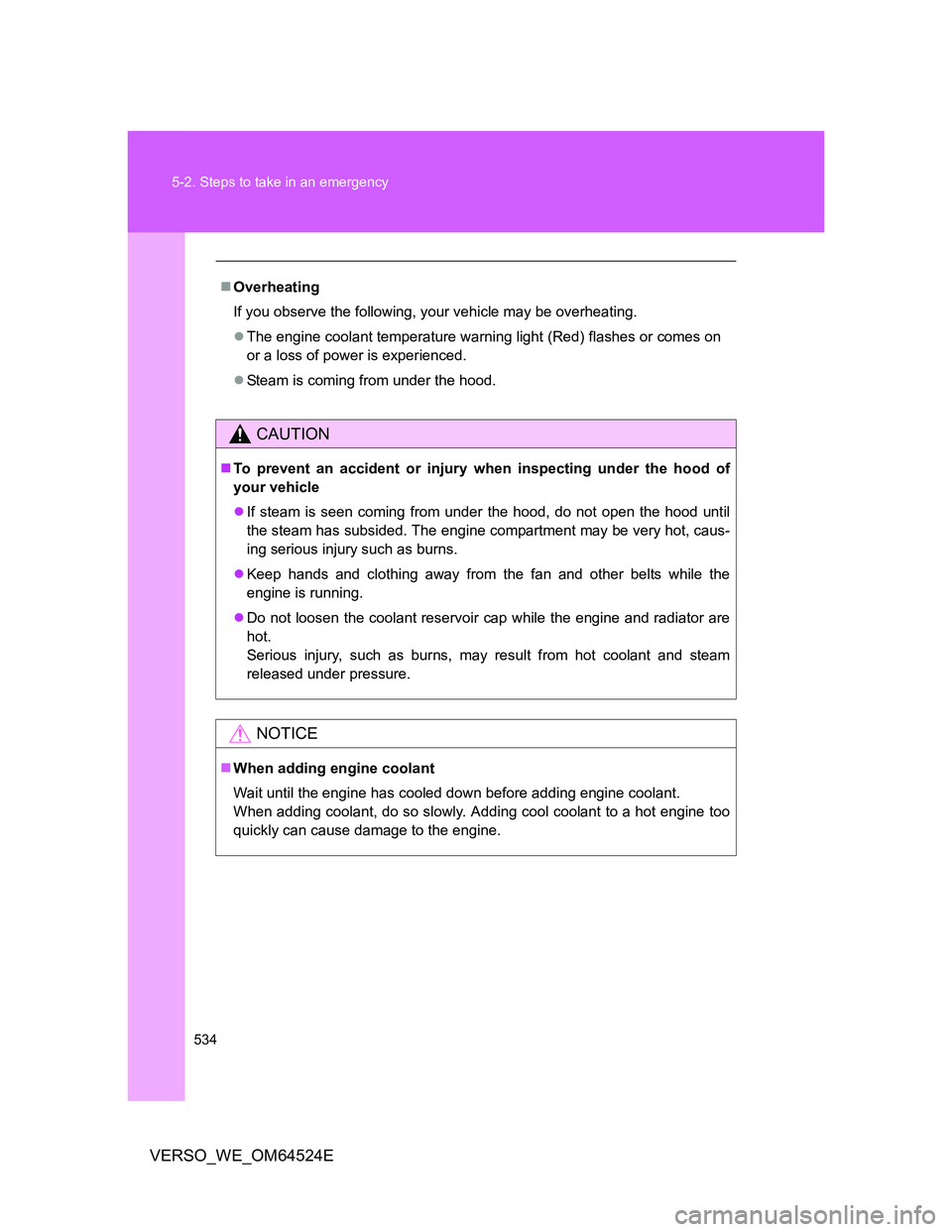

Overheating
If you observe the following, your vehicle may be overheating.
The engine coolant temperature warning light (Red) flashes or comes on
or a loss of power is experienced.
Steam is coming from under the hood.
CAUTION
To prevent an accident or injury when inspecting under the hood of
your vehicle
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
Keep hands and clothing away from the fan and other belts while the
engine is running.
Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

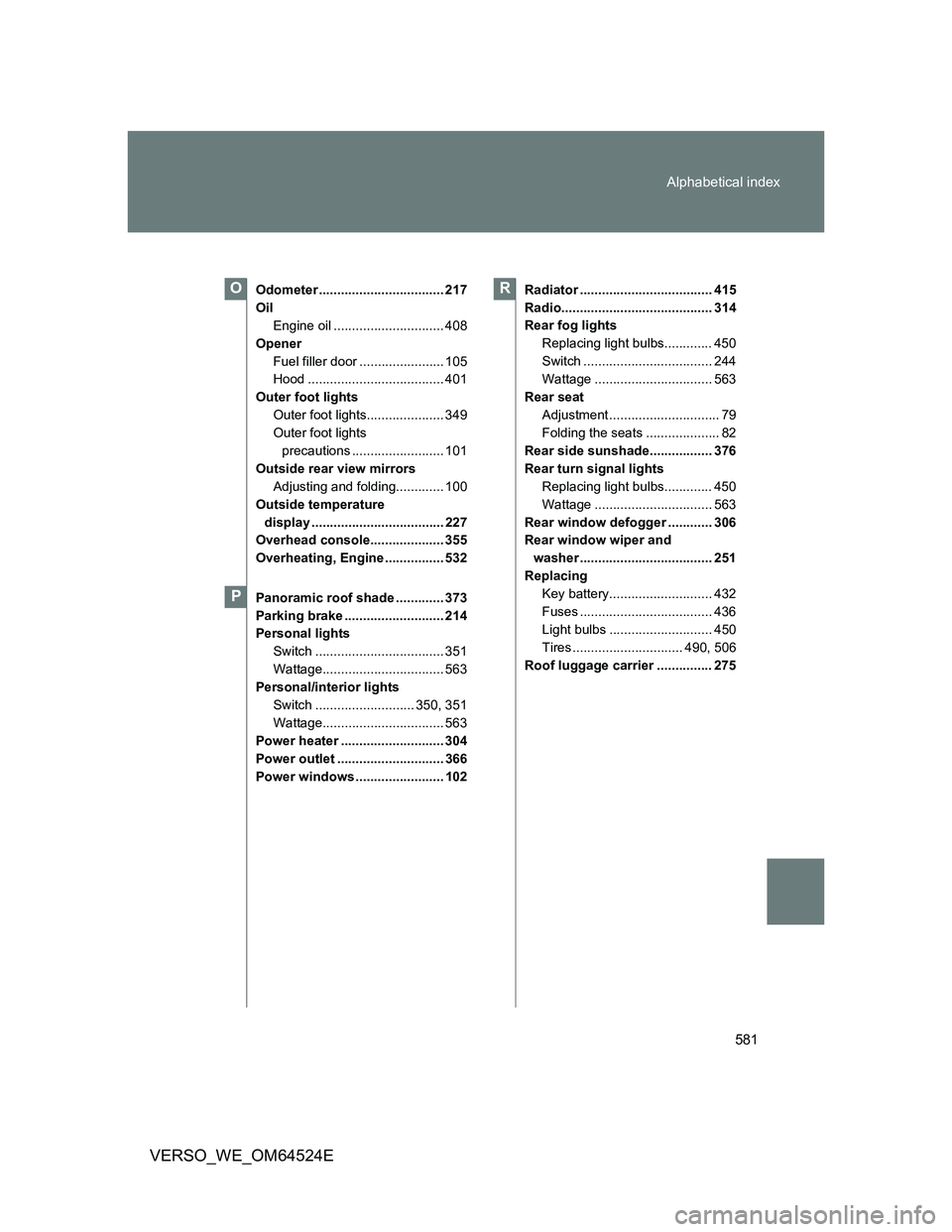

581 Alphabetical index
VERSO_WE_OM64524E
Odometer .................................. 217
Oil
Engine oil .............................. 408
Opener
Fuel filler door ....................... 105
Hood ..................................... 401
Outer foot lights
Outer foot lights..................... 349
Outer foot lights
precautions ......................... 101
Outside rear view mirrors
Adjusting and folding............. 100
Outside temperature
display .................................... 227
Overhead console.................... 355
Overheating, Engine ................ 532
Panoramic roof shade ............. 373
Parking brake ........................... 214
Personal lights
Switch ................................... 351
Wattage................................. 563
Personal/interior lights
Switch ........................... 350, 351
Wattage................................. 563
Power heater ............................ 304
Power outlet ............................. 366
Power windows ........................ 102Radiator .................................... 415
Radio......................................... 314
Rear fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Rear seat
Adjustment .............................. 79
Folding the seats .................... 82
Rear side sunshade................. 376
Rear turn signal lights
Replacing light bulbs............. 450
Wattage ................................ 563
Rear window defogger ............ 306
Rear window wiper and
washer .................................... 251
Replacing
Key battery............................ 432
Fuses .................................... 436
Light bulbs ............................ 450
Tires .............................. 490, 506
Roof luggage carrier ............... 275O
P
R

588
VERSO_WE_OM64524E

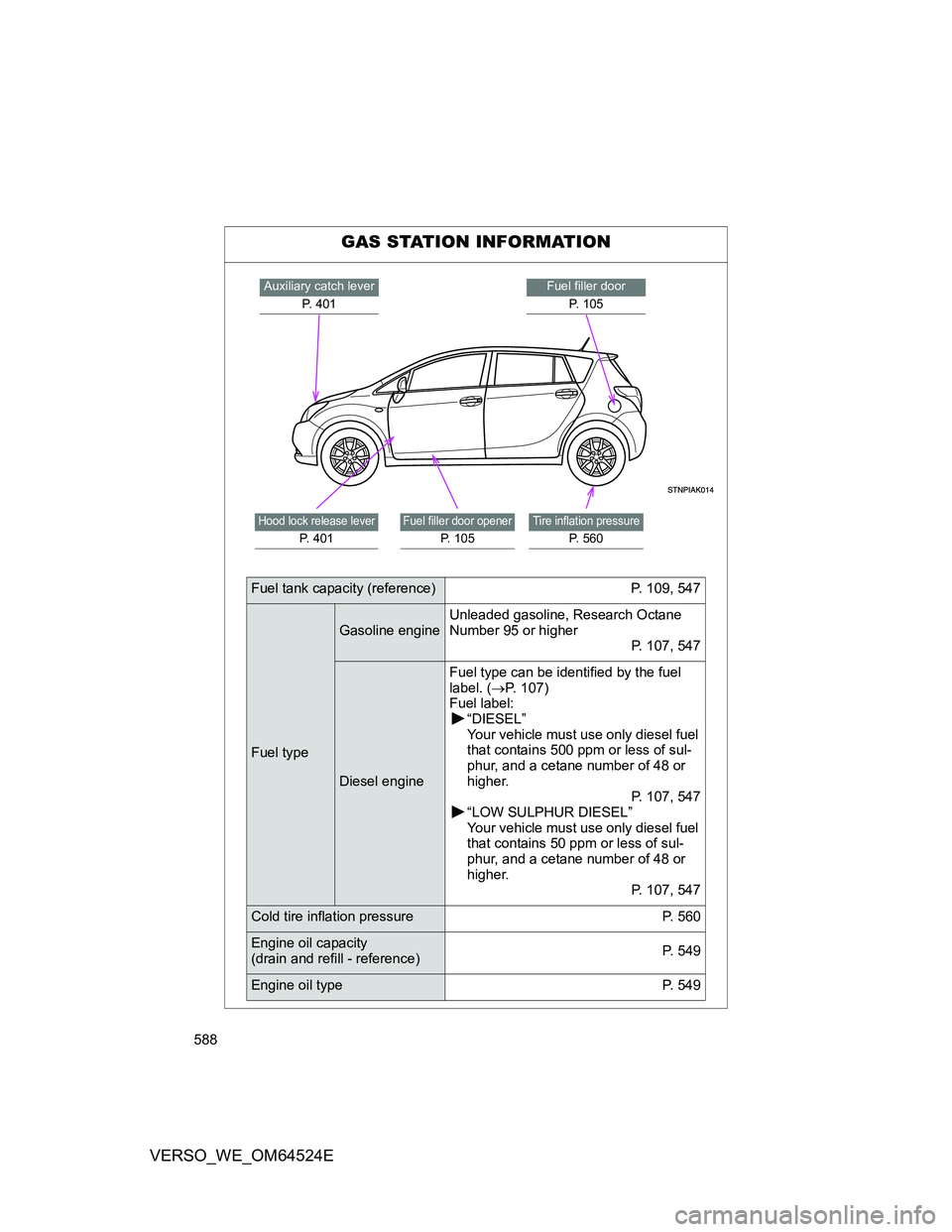

GAS STATION INFORMATION
Fuel filler door
P. 105Auxiliary catch lever
P. 401
Tire inflation pressure
P. 560
Fuel filler door opener
P. 105
Hood lock release lever
P. 401
Fuel tank capacity (reference) P. 109, 547
Fuel type
Gasoline engineUnleaded gasoline, Research Octane
Number 95 or higher
P. 107, 547
Diesel engineFuel type can be identified by the fuel
label. (P. 107)
Fuel label:
“DIESEL”
Your vehicle must use only diesel fuel
that contains 500 ppm or less of sul-
phur, and a cetane number of 48 or
higher.
P. 107, 547
“LOW SULPHUR DIESEL”
Your vehicle must use only diesel fuel
that contains 50 ppm or less of sul-
phur, and a cetane number of 48 or
higher.
P. 107, 547
Cold tire inflation pressure P. 560
Engine oil capacity
(drain and refill - reference)P. 549
Engine oil type P. 549
