TOYOTA VERSO 2013 Owners Manual

5
501 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

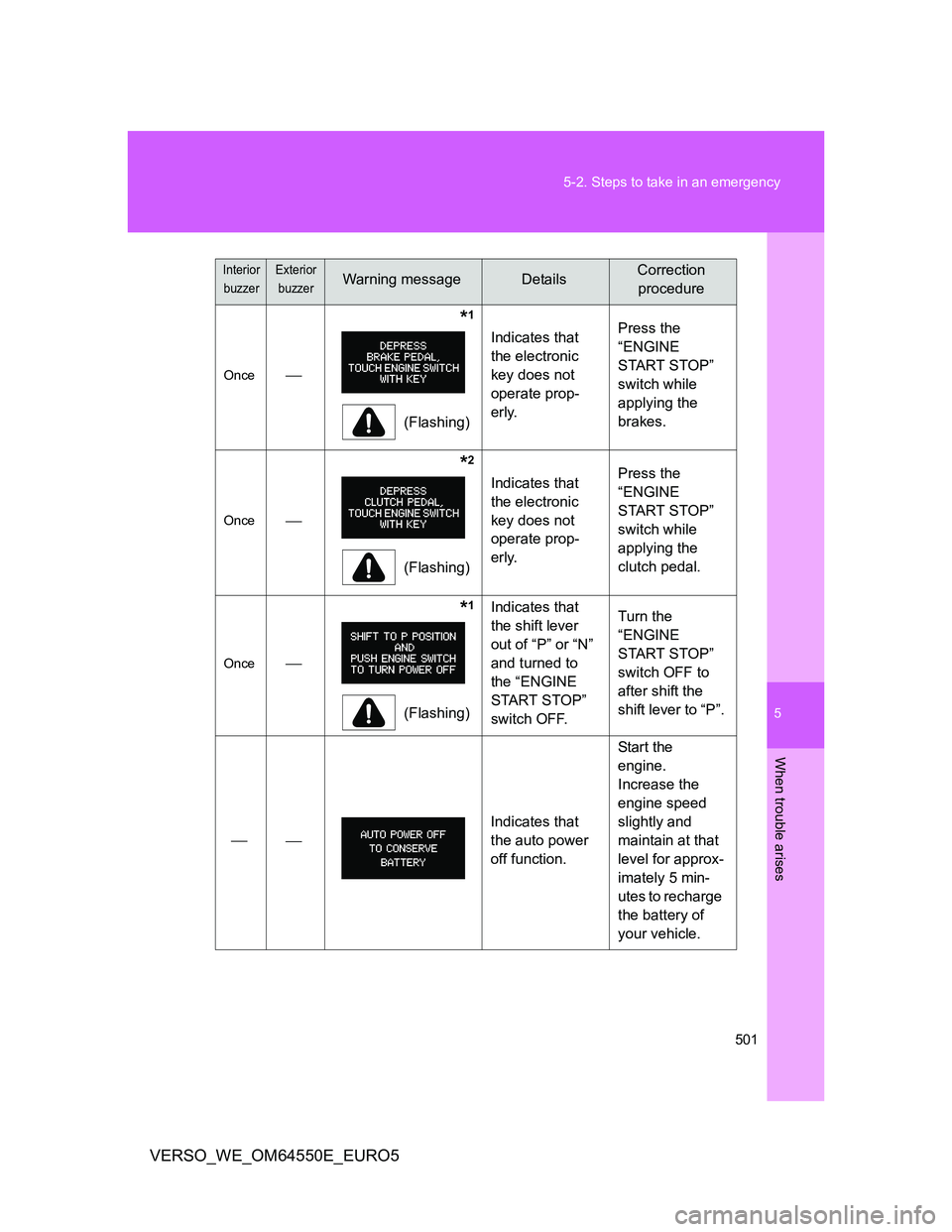

Once
*1
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashing)Indicates that
the electronic
key does not
operate prop-
erly.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
*1
(Flashing)Indicates that
the shift lever
out of “P” or “N”
and turned to
the “ENGINE
START STOP”
switch OFF.Turn the
“ENGINE
START STOP”
switch OFF to
after shift the
shift lever to “P”.

Indicates that
the auto power
off function.Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

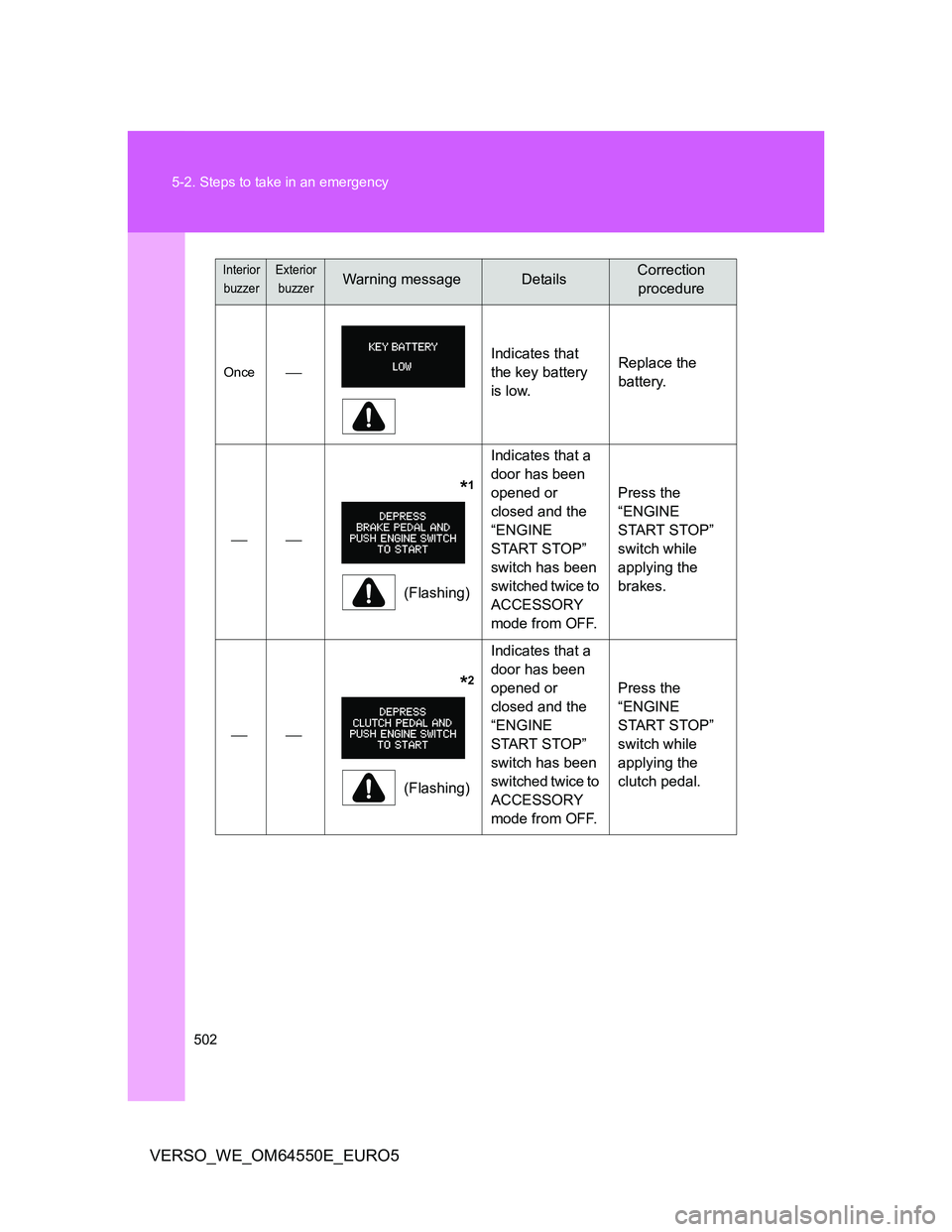

502 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5
OnceIndicates that
the key battery
is low.Replace the
battery.

*1
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
brakes.

*2
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
503 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

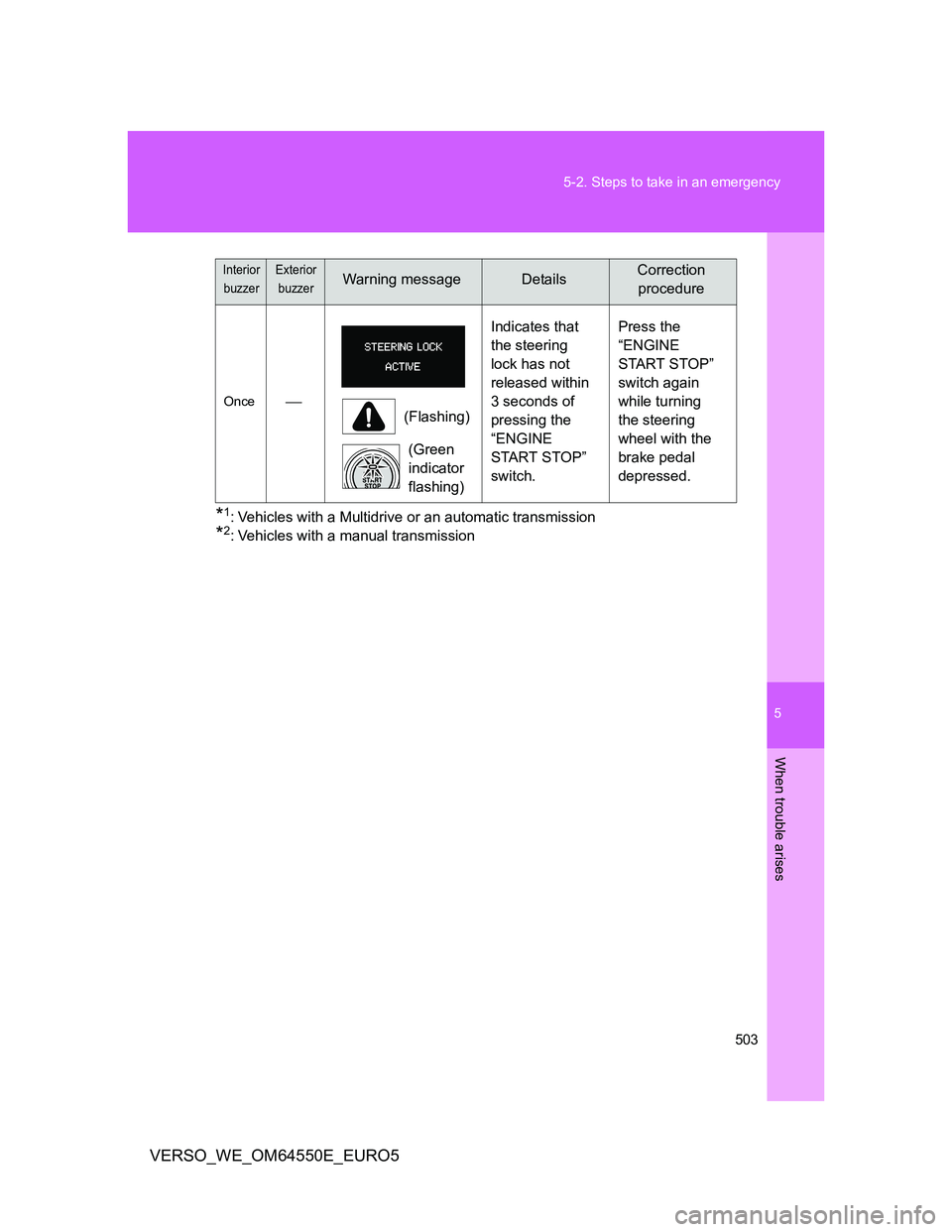

*1: Vehicles with a Multidrive or an automatic transmission
*2: Vehicles with a manual transmission
Once
(Flashing)
(Green
indicator
flashing)Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

504
5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5

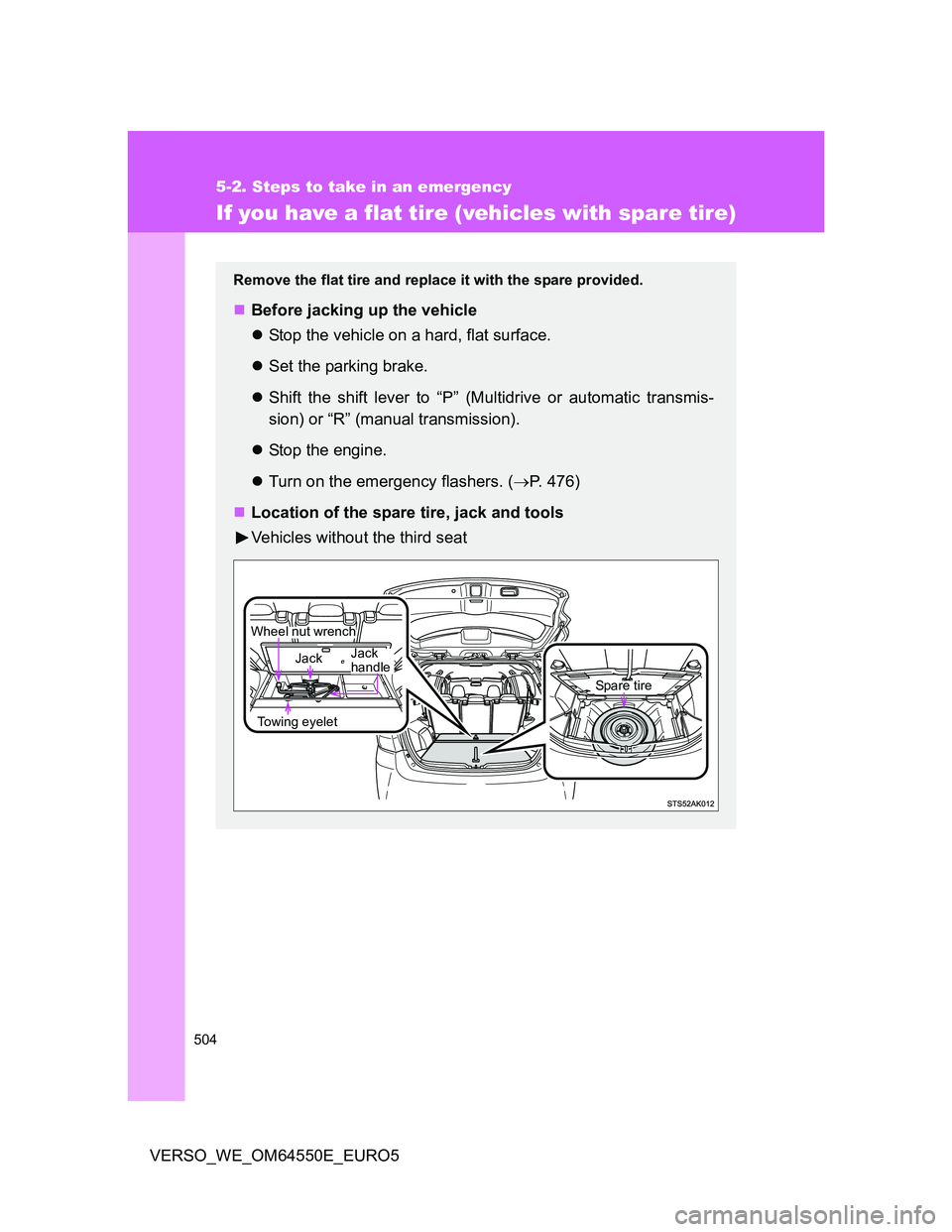

If you have a flat tire (vehicles with spare tire)
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “P” (Multidrive or automatic transmis-
sion) or “R” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 476)
Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack
handleJack
Wheel nut wrench
Towing eyelet

5
505 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

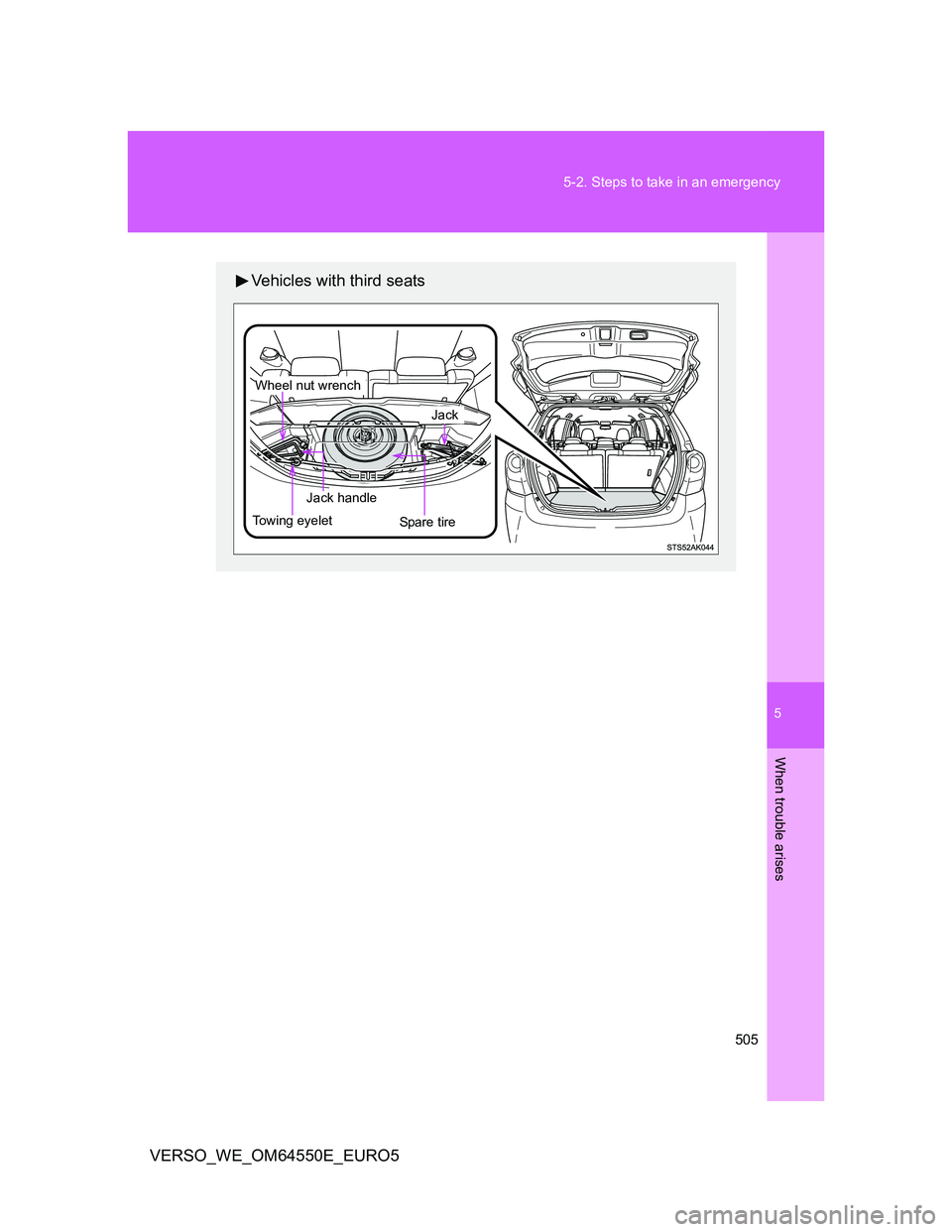

Vehicles with third seats
Spare tir e
Jack handle
Jack
Wheel nut wrench
Towing eyelet

506 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5

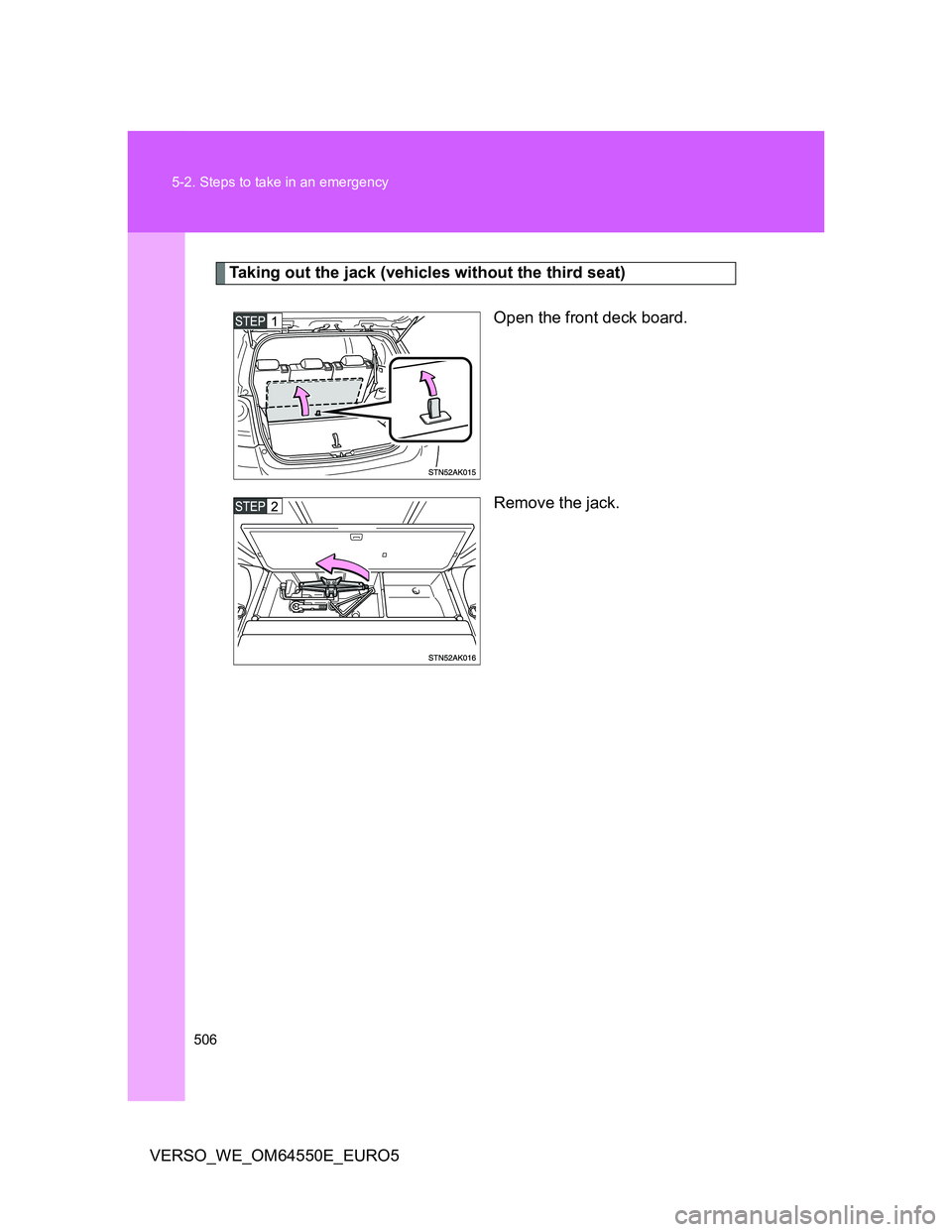

Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.

5
507 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

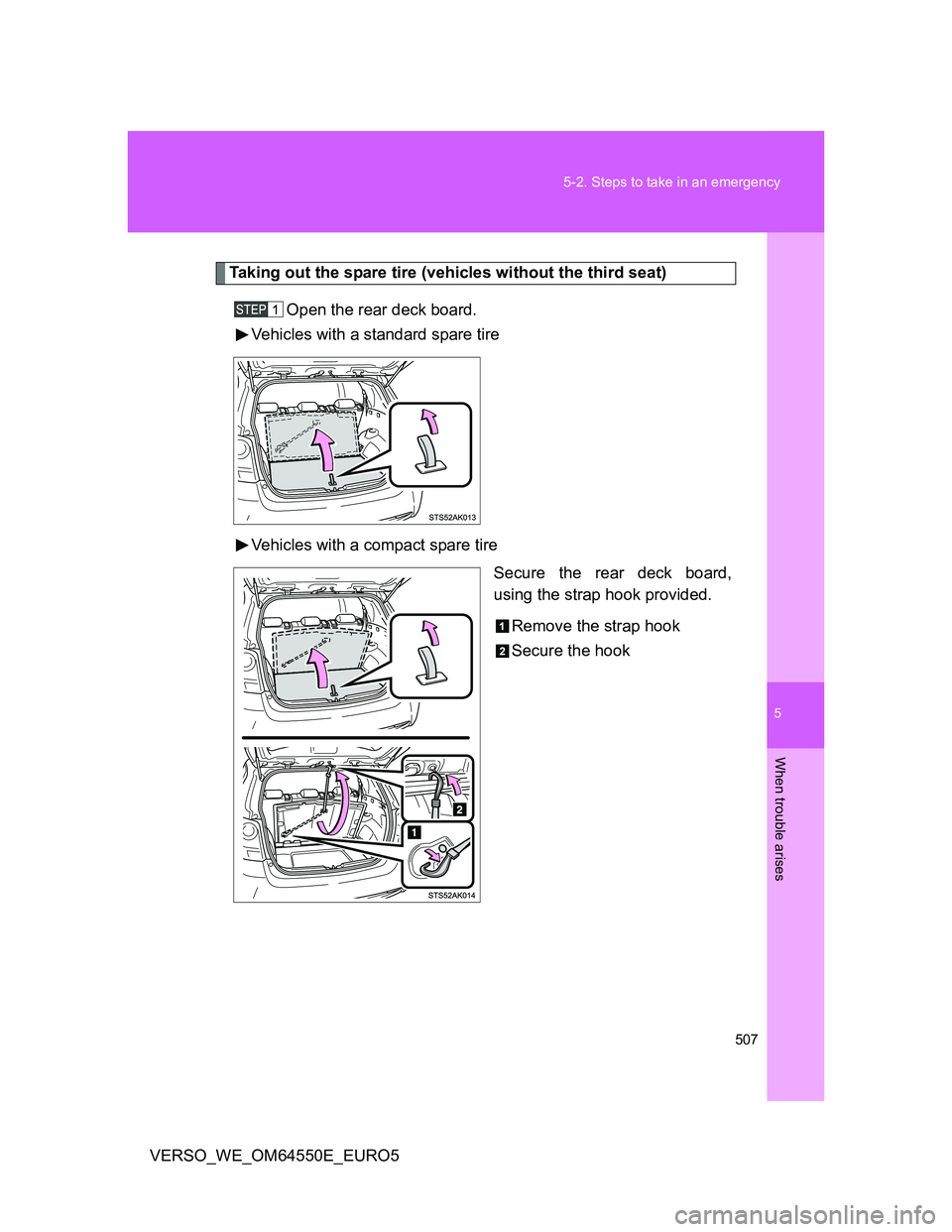

Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

508 5-2. Steps to take in an emergency

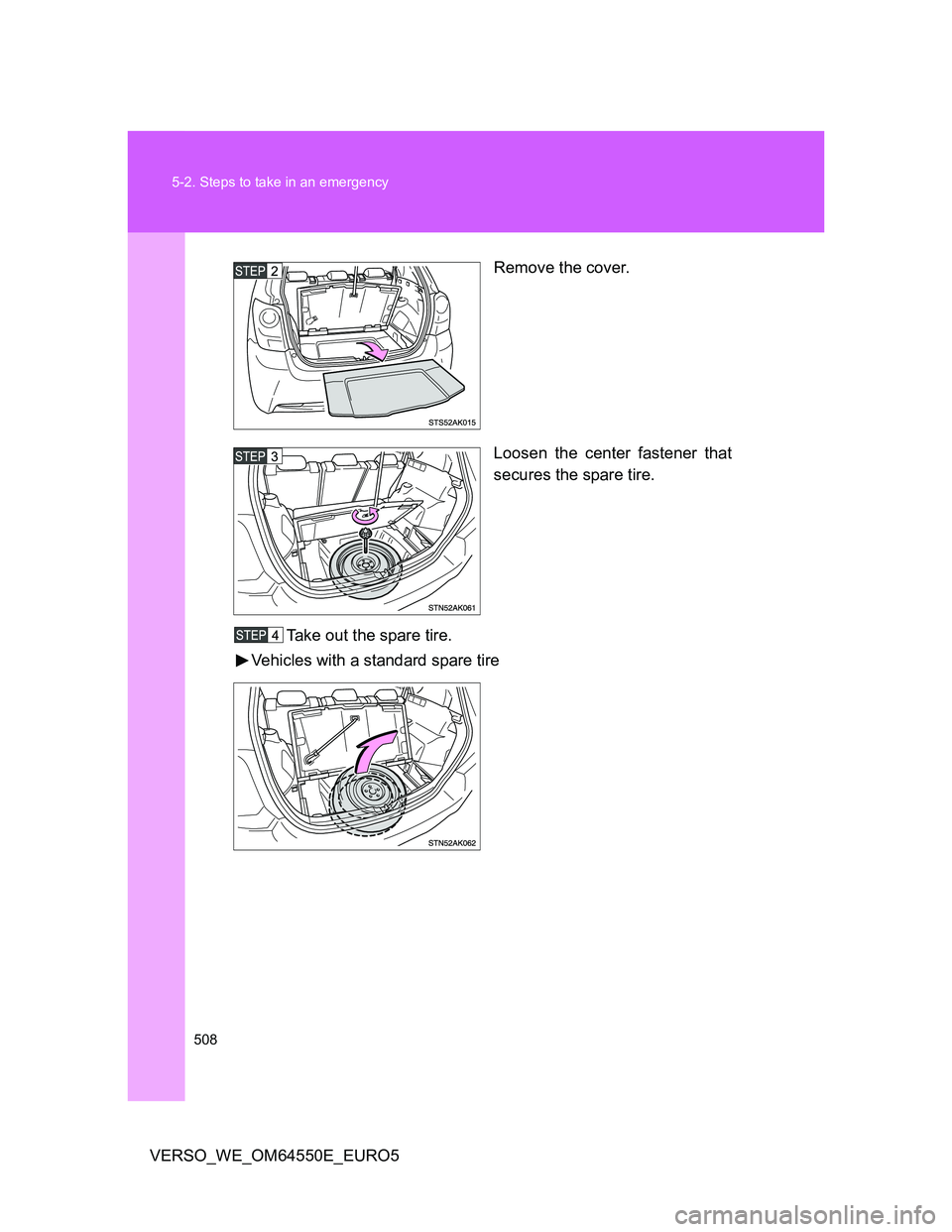

VERSO_WE_OM64550E_EURO5Remove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire

5
509 5-2. Steps to take in an emergency
When trouble arises

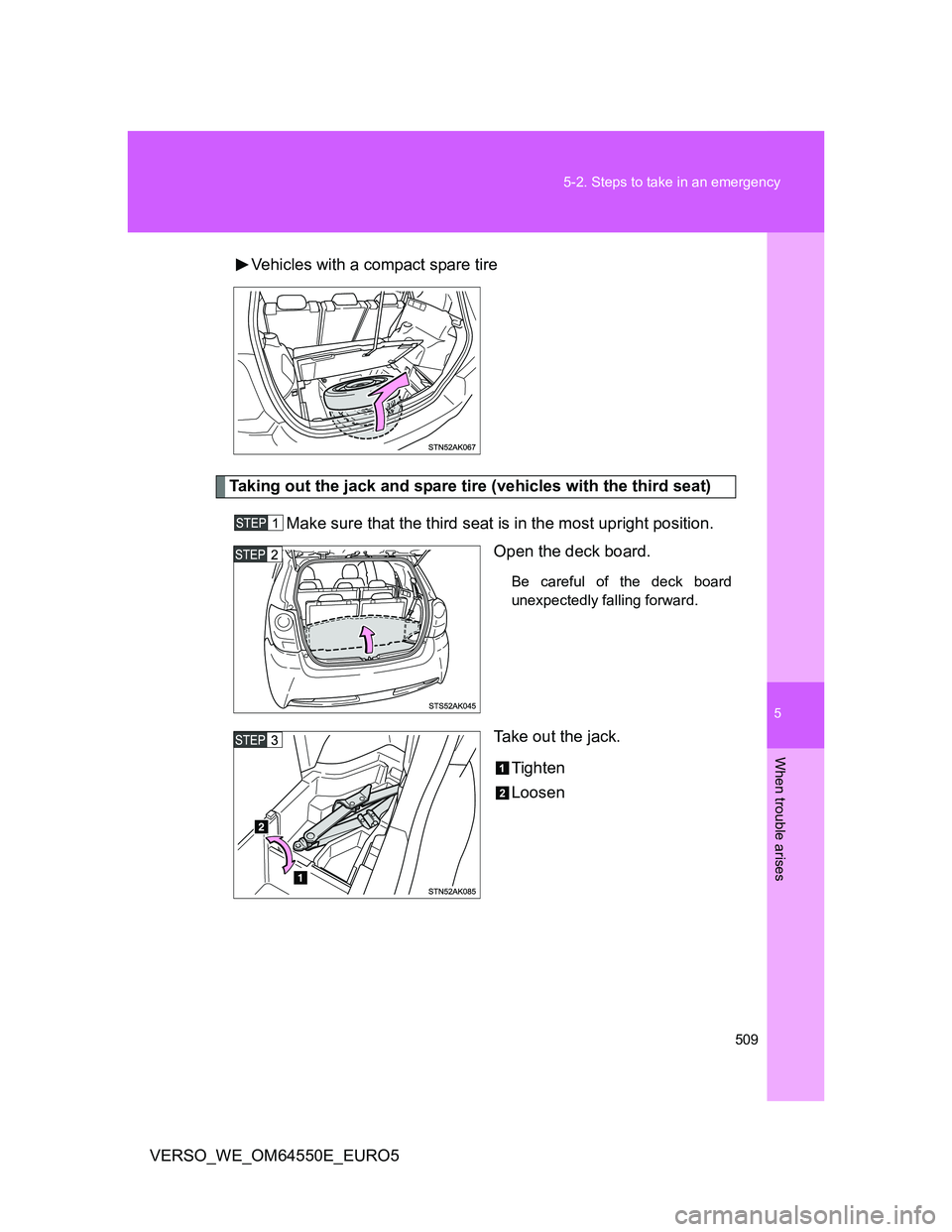

VERSO_WE_OM64550E_EURO5Vehicles with a compact spare tire
Taking out the jack and spare tire (vehicles with the third seat)
Make sure that the third seat is in the most upright position.
Open the deck board.
Be careful of the deck board
unexpectedly falling forward.
Take out the jack.
Tighten
Loosen

510 5-2. Steps to take in an emergency

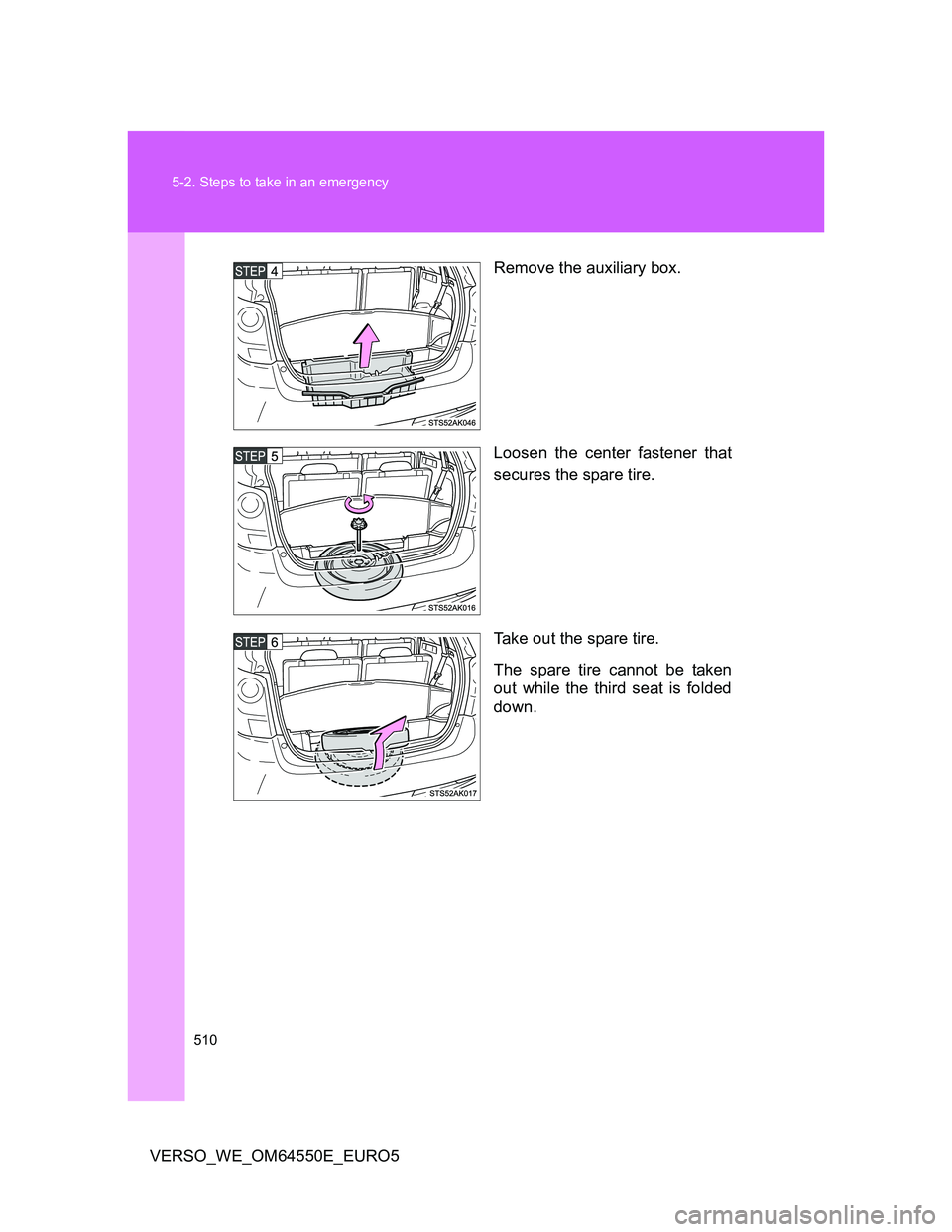

VERSO_WE_OM64550E_EURO5Remove the auxiliary box.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down.
