TOYOTA VERSO S 2013 Owners Manual

201
2-2. Instrument cluster
2
When driving
VERSO-S_EE

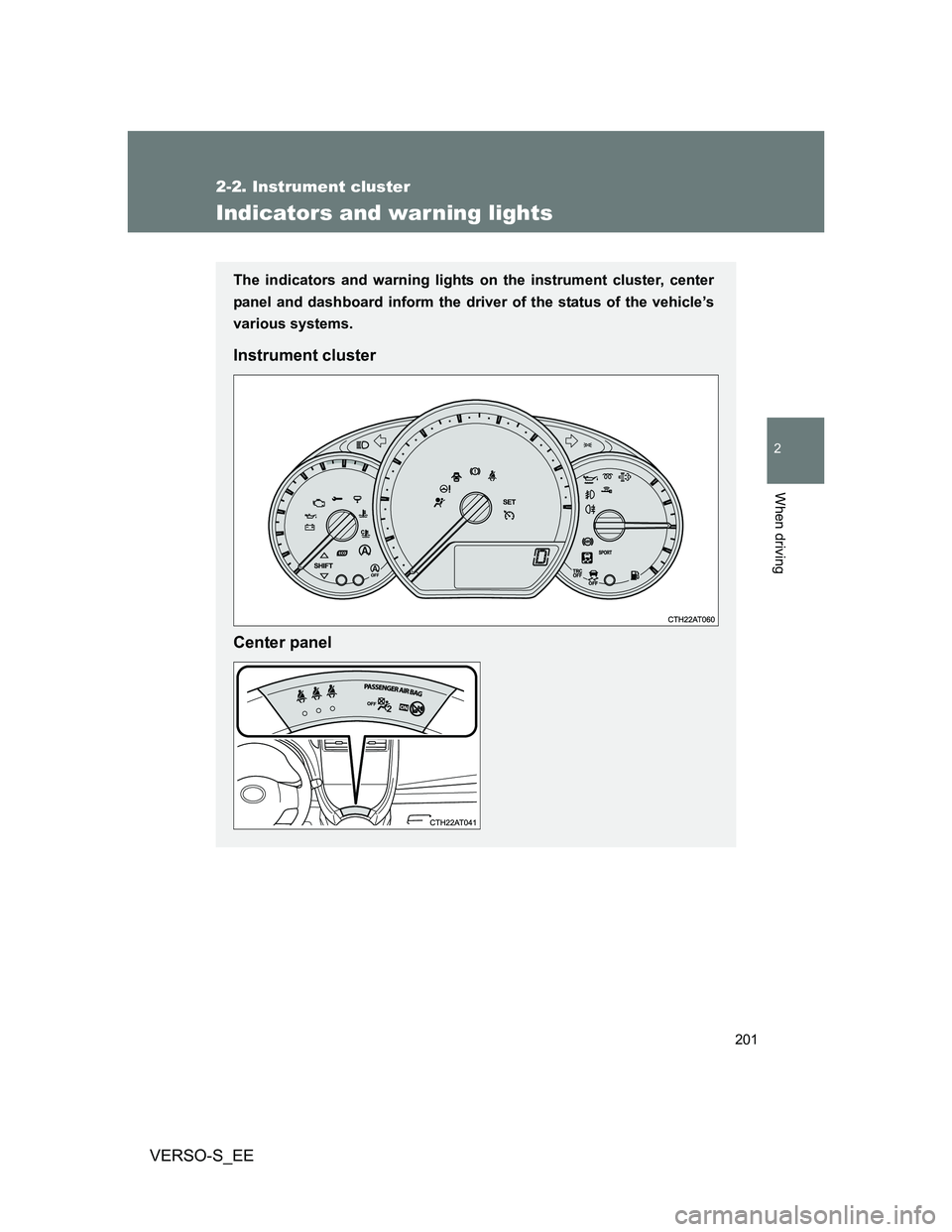

Indicators and warning lights
The indicators and warning lights on the instrument cluster, center
panel and dashboard inform the driver of the status of the vehicle’s
various systems.
Instrument cluster
Center panel

202 2-2. Instrument cluster
VERSO-S_EE

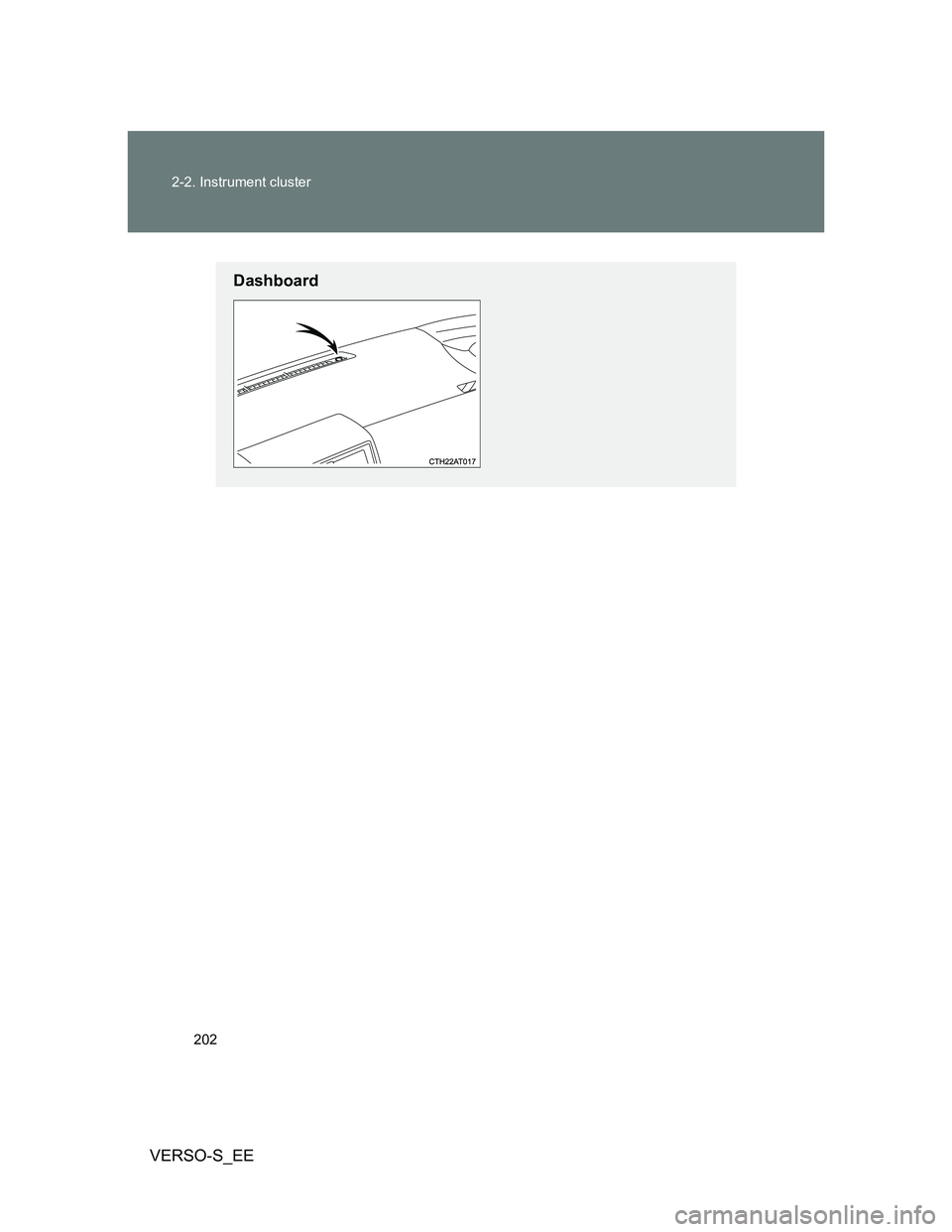

Dashboard

203 2-2. Instrument cluster
2
When driving
VERSO-S_EE

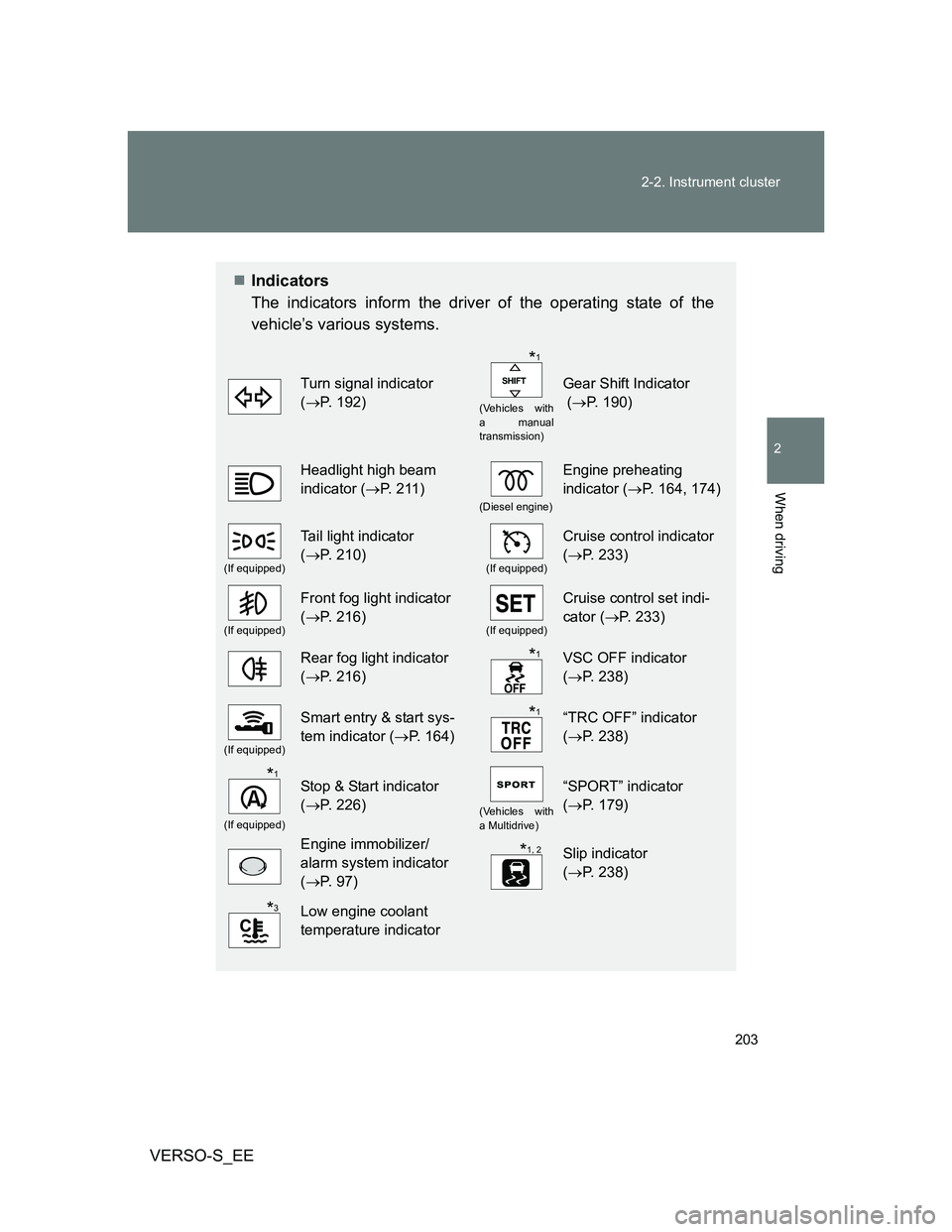

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 192)
(Vehicles with
a manual
transmission)
Gear Shift Indicator
(P. 190)
Headlight high beam
indicator (P. 211)
(Diesel engine)
Engine preheating
indicator (P. 164, 174)
(If equipped)
Tail light indicator
(P. 210)
(If equipped)
Cruise control indicator
(P. 233)
(If equipped)
Front fog light indicator
(P. 216)
(If equipped)
Cruise control set indi-
cator (P. 233)
Rear fog light indicator
(P. 216)VSC OFF indicator
(P. 238)
(If equipped)
Smart entry & start sys-
tem indicator (P. 164)“TRC OFF” indicator
(P. 238)
(If equipped)
Stop & Start indicator
(P. 226)
(Vehicles with
a Multidrive)
“SPORT” indicator
(P. 179)
Engine immobilizer/
alarm system indicator
(P. 97)Slip indicator
(P. 238)
Low engine coolant
temperature indicator
*1
*1
*1
*1
*1, 2
*3

204 2-2. Instrument cluster
VERSO-S_EE
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start
system) or the engine switch is turned to the “ON” position (vehicles
without a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: This indicator turns on when the engine coolant temperature is low.

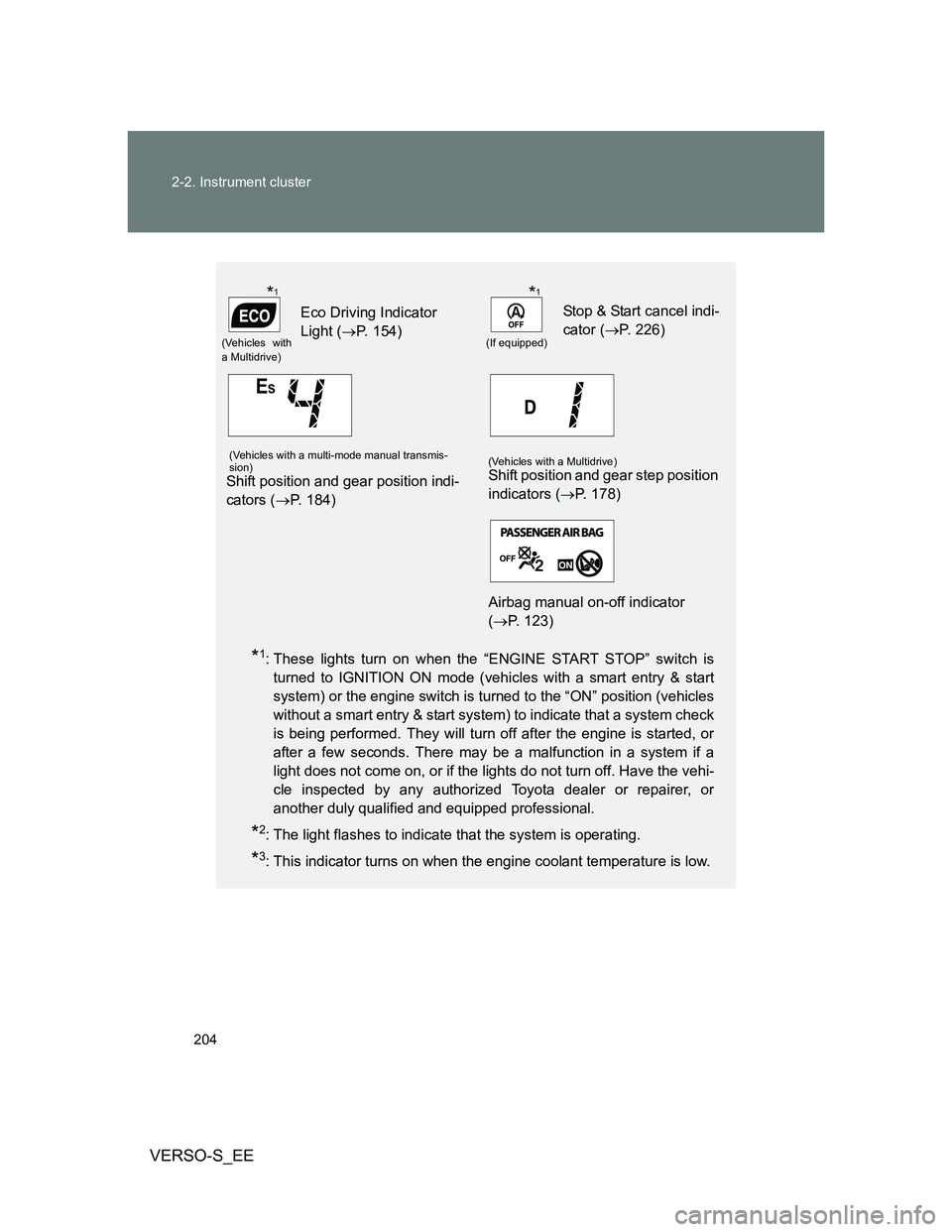

(Vehicles with
a Multidrive)
Eco Driving Indicator
Light (P. 154)
(If equipped)
Stop & Start cancel indi-
cator (P. 226)
(Vehicles with a multi-mode manual transmis-
sion)
Shift position and gear position indi-
cators (P. 184)
(Vehicles with a Multidrive)Shift position and gear step position
indicators (P. 178)
Airbag manual on-off indicator
(P. 123)
*1*1

205 2-2. Instrument cluster
2
When driving
VERSO-S_EE

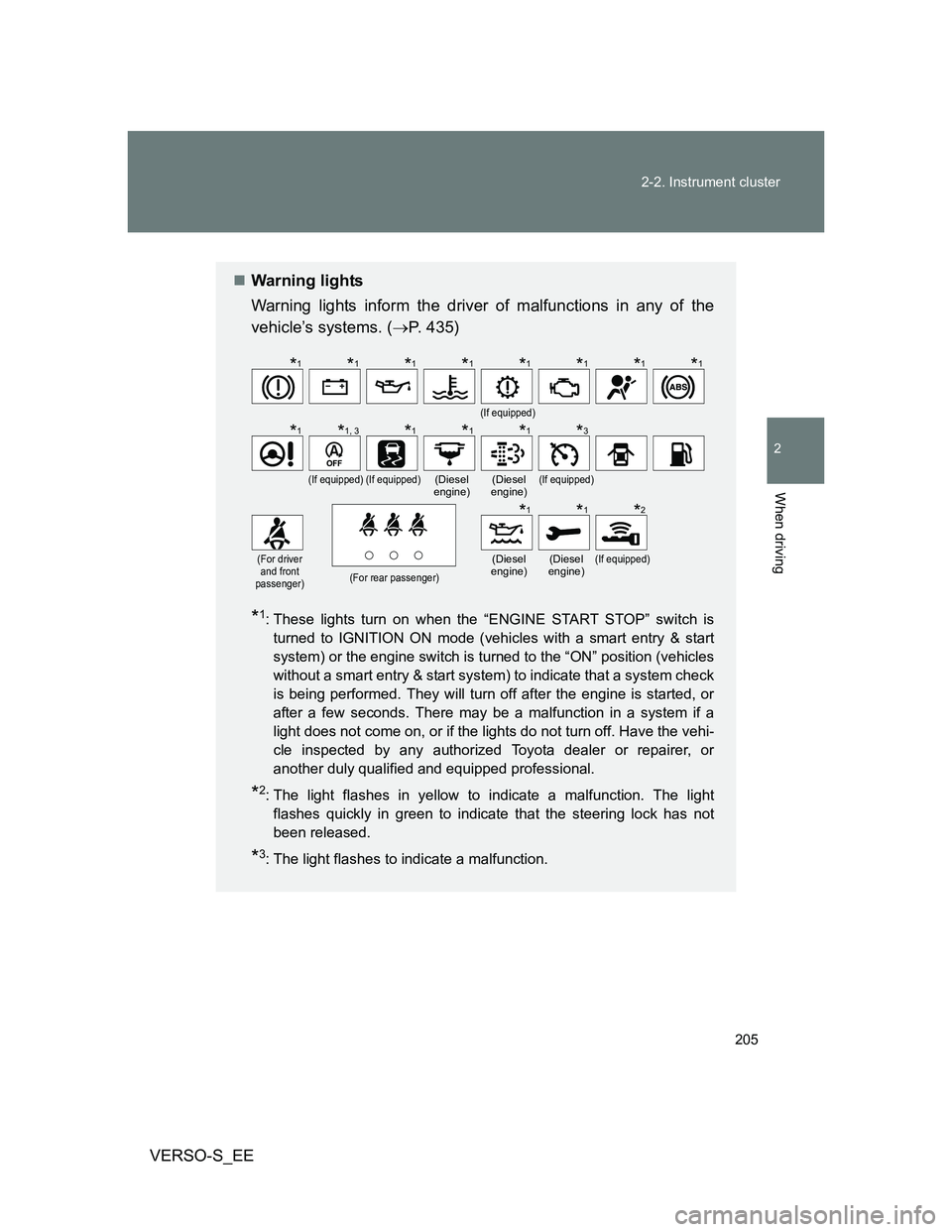

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 435)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start
system) or the engine switch is turned to the “ON” position (vehicles
without a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light flashes to indicate a malfunction.
(If equipped)
(If equipped)(If equipped)(Diesel
engine)(Diesel
engine)(If equipped)
(For driver
and front
passenger)
(For rear passenger)
(Diesel
engine)(Diesel
engine)(If equipped)
*1*1*1*1*1*1*1*1
*1*1, 3*1*1*1*3
*1*1*2

206 2-2. Instrument cluster
VERSO-S_EE

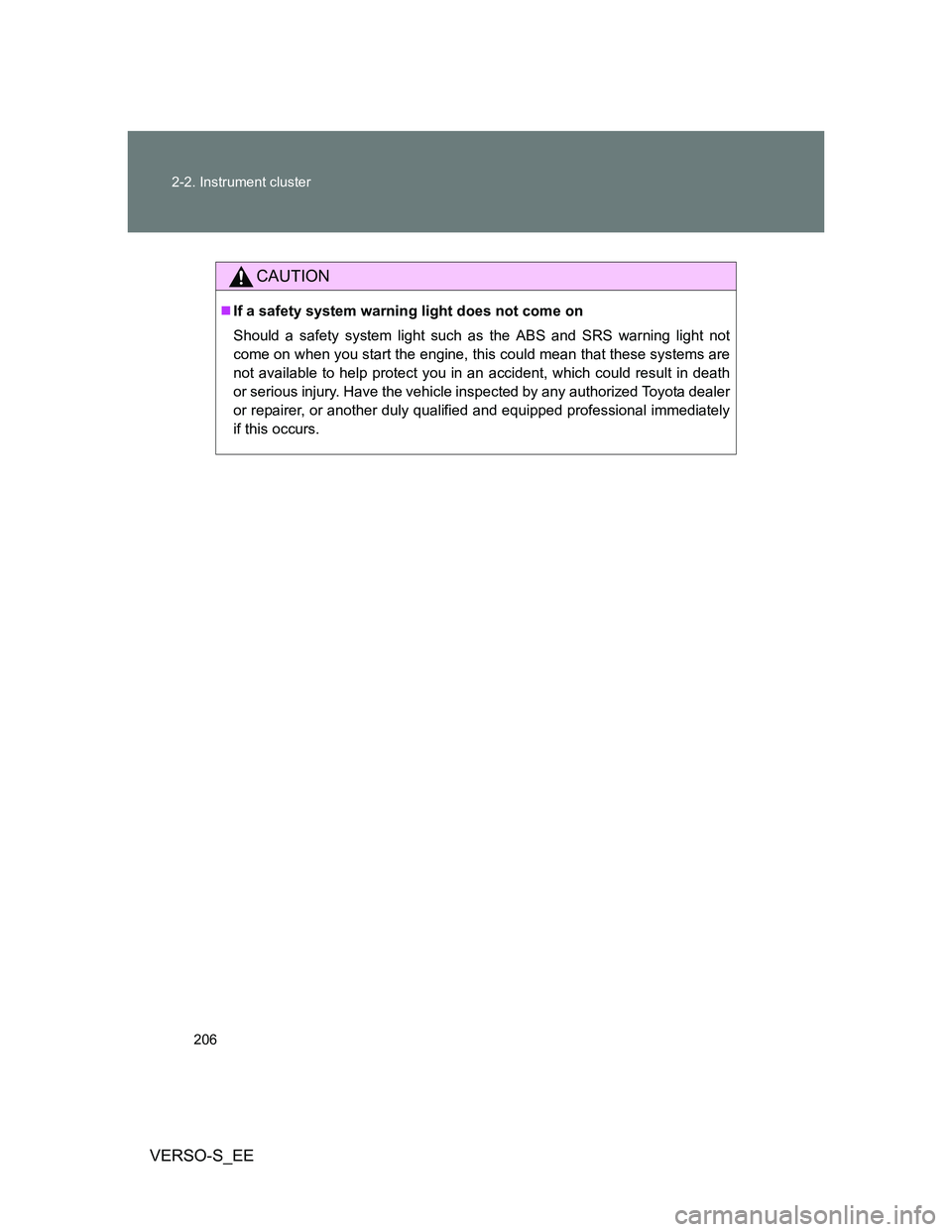

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.

207
2-2. Instrument cluster
2
When driving
VERSO-S_EE

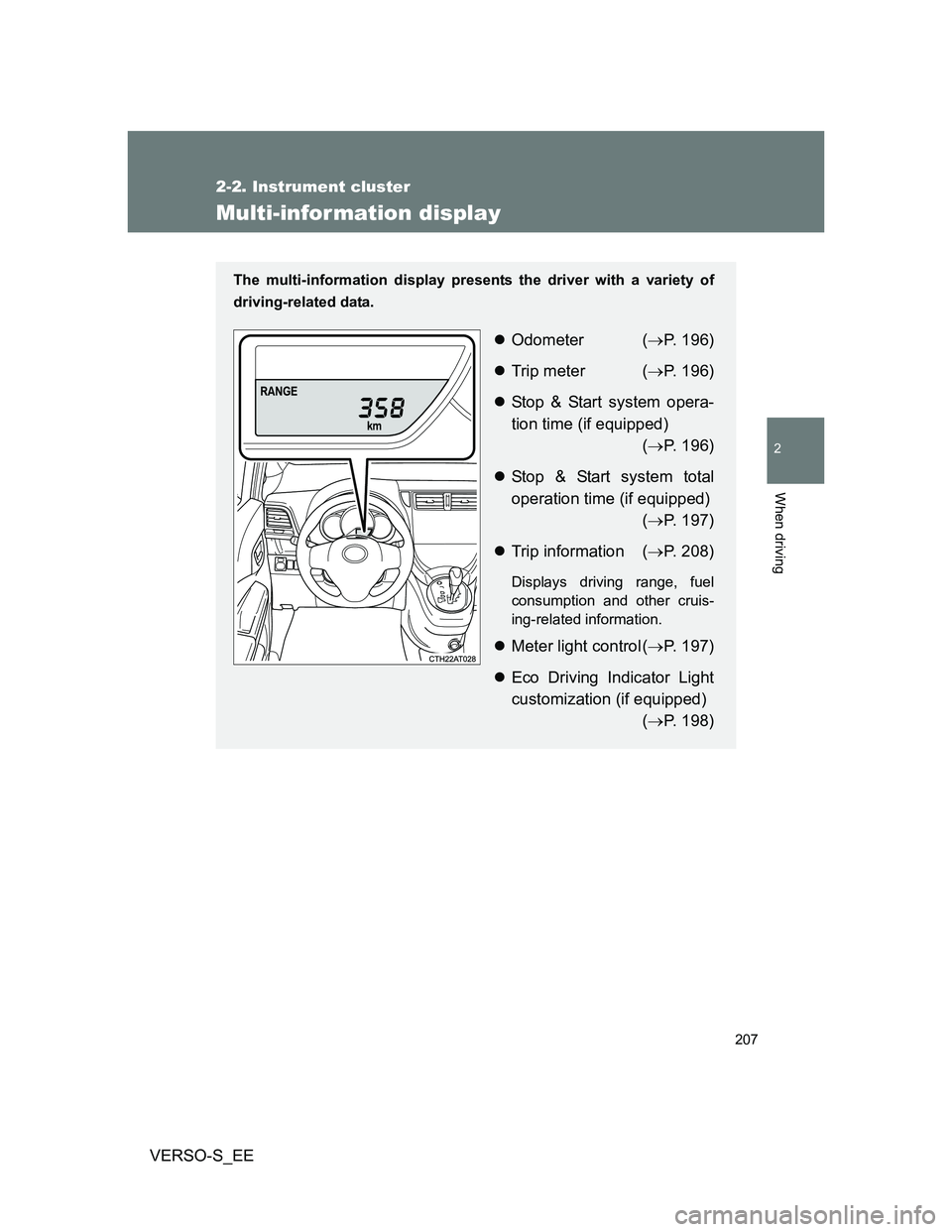

Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 196)
Trip meter (P. 196)
Stop & Start system opera-
tion time (if equipped)
(P. 196)
Stop & Start system total
operation time (if equipped)
(P. 197)
Trip information (P. 208)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Meter light control (P. 197)
Eco Driving Indicator Light
customization (if equipped)
(P. 198)

208 2-2. Instrument cluster
VERSO-S_EE

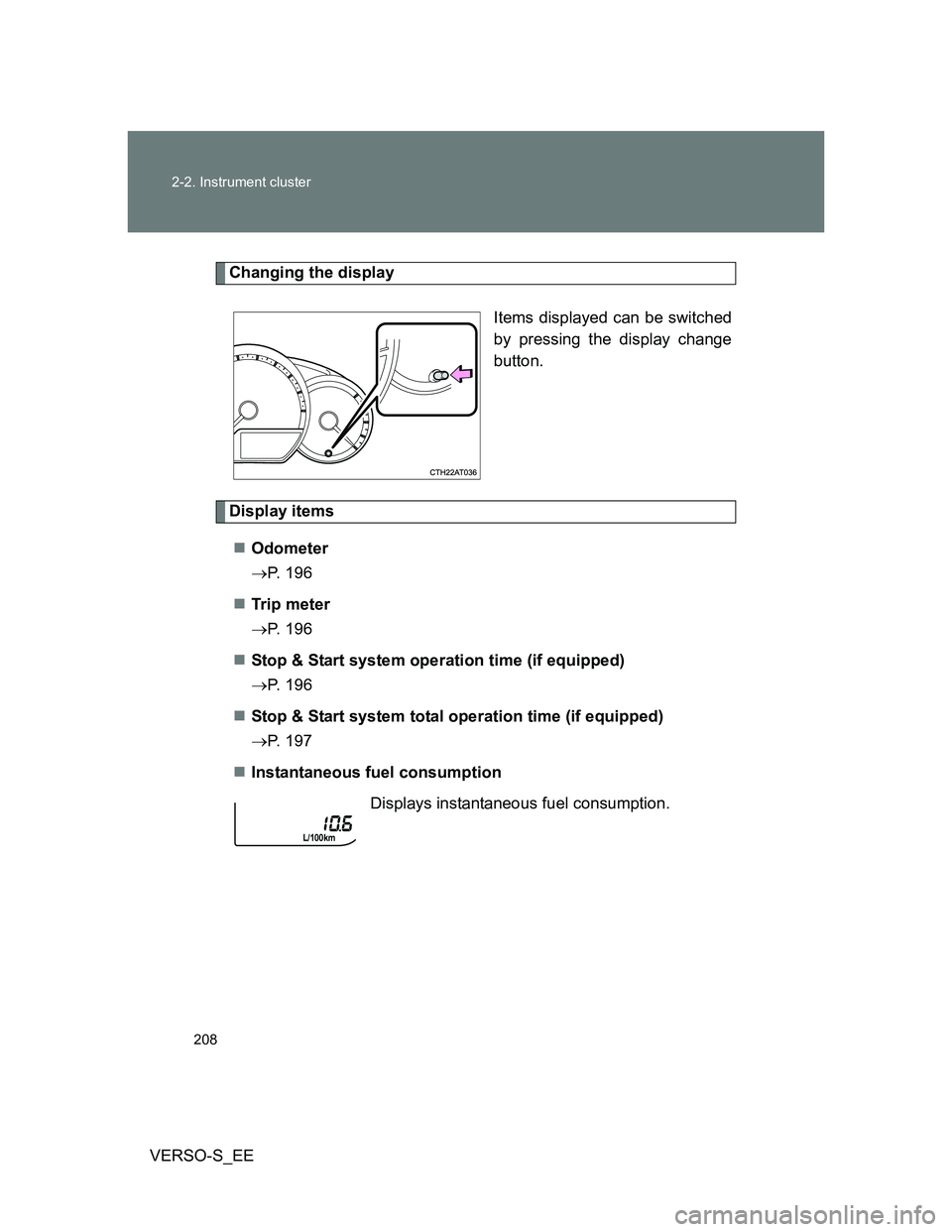

Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
P. 196
Tr ip m eter
P. 196
Stop & Start system operation time (if equipped)
P. 196
Stop & Start system total operation time (if equipped)
P. 197
Instantaneous fuel consumption
Displays instantaneous fuel consumption.

209 2-2. Instrument cluster
2
When driving

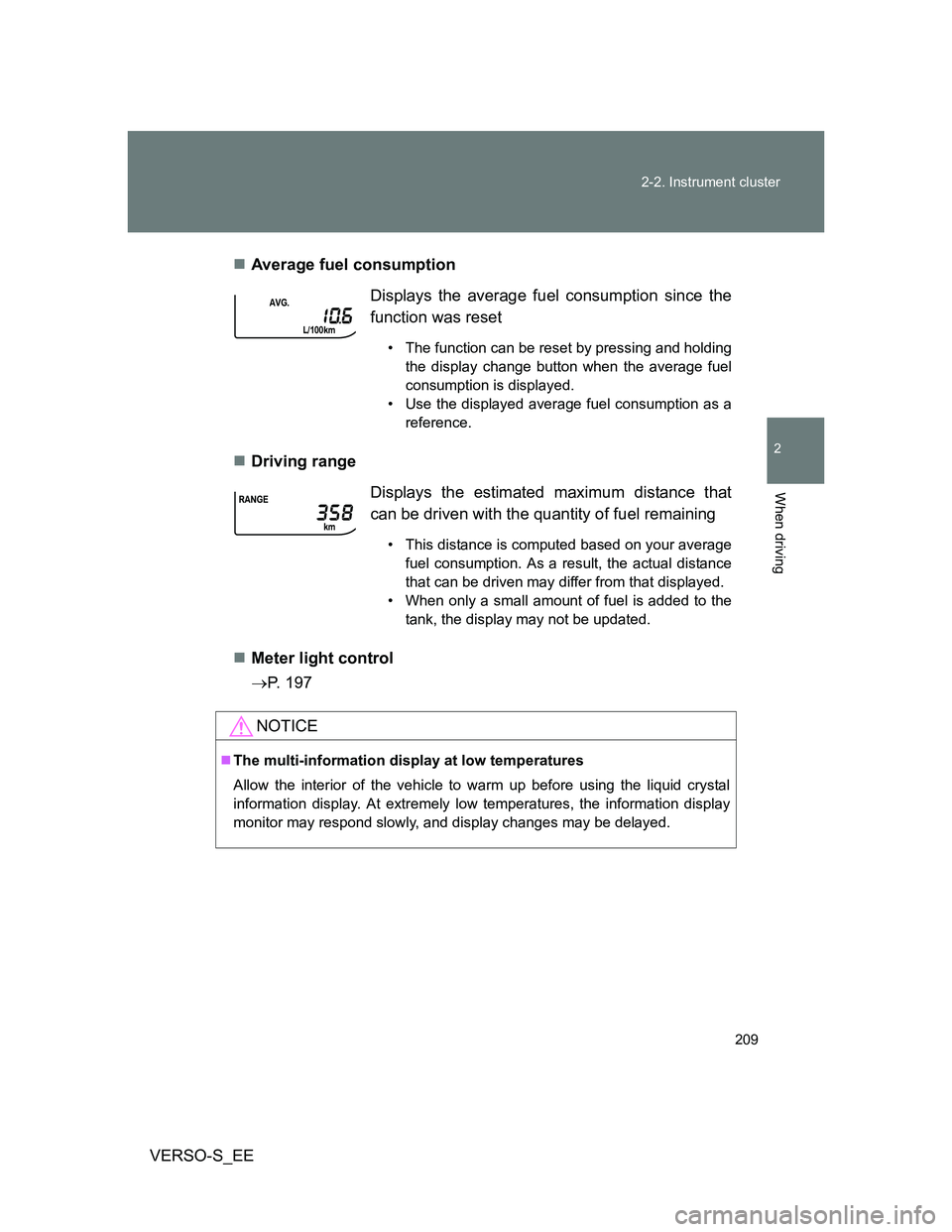

VERSO-S_EEAverage fuel consumption
Driving range
Meter light control
P. 197Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

210
VERSO-S_EE

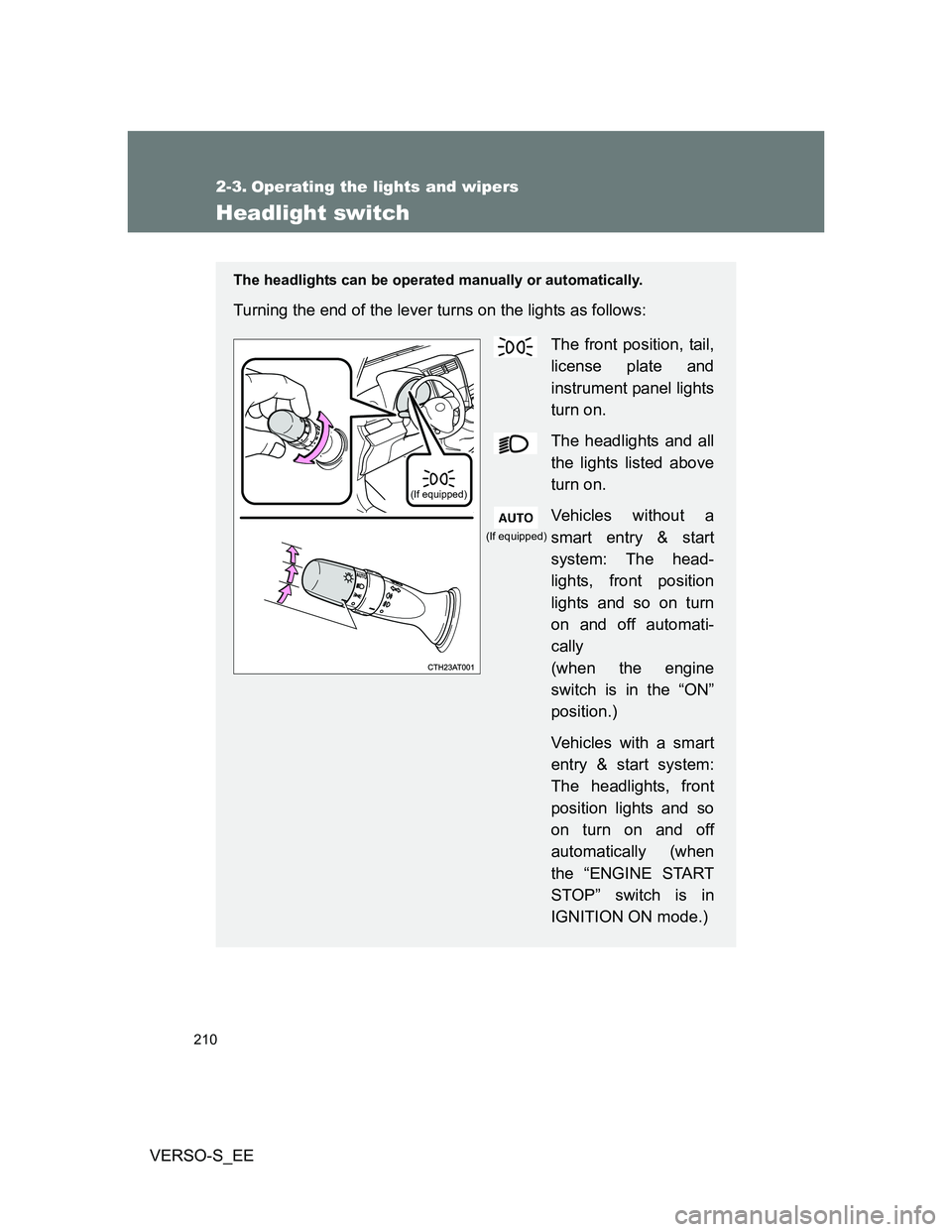

2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
the lights listed above
turn on.
Vehicles without a
smart entry & start
system: The head-
lights, front position
lights and so on turn
on and off automati-
cally
(when the engine
switch is in the “ON”
position.)
Vehicles with a smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the “ENGINE START
STOP” switch is in
IGNITION ON mode.)
(If equipped)
(If equipped)
