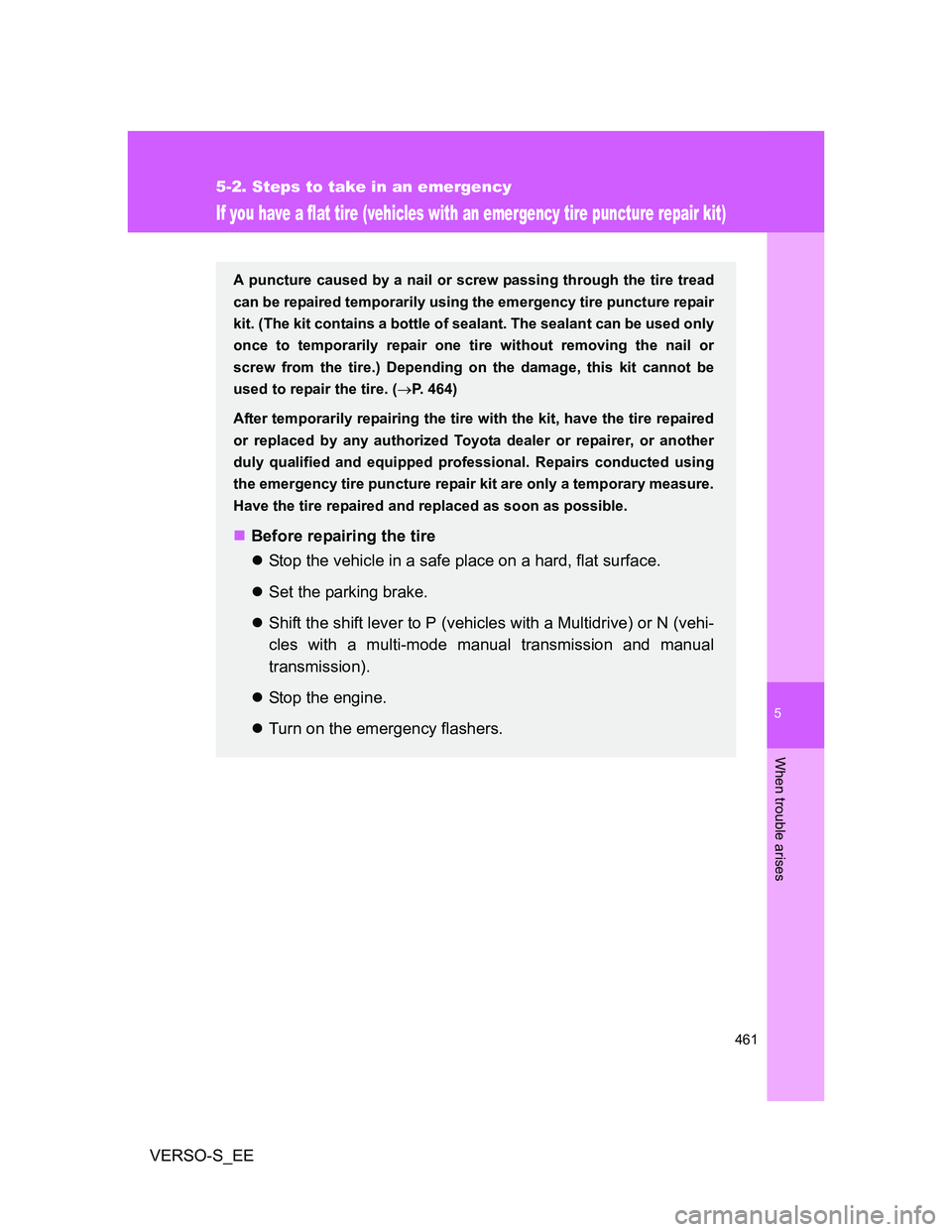

If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) Depending on the damage, this kit cannot be
used to repair the tire. (P. 464)
After temporarily repairing the tire with the kit, have the tire repaired
or replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. Repairs conducted using
the emergency tire puncture repair kit are only a temporary measure.
Have the tire repaired and replaced as soon as possible.
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (vehicles with a Multidrive) or N (vehi-
cles with a multi-mode manual transmission and manual
transmission).
Stop the engine.
Turn on the emergency flashers.

462 5-2. Steps to take in an emergency
VERSO-S_EE

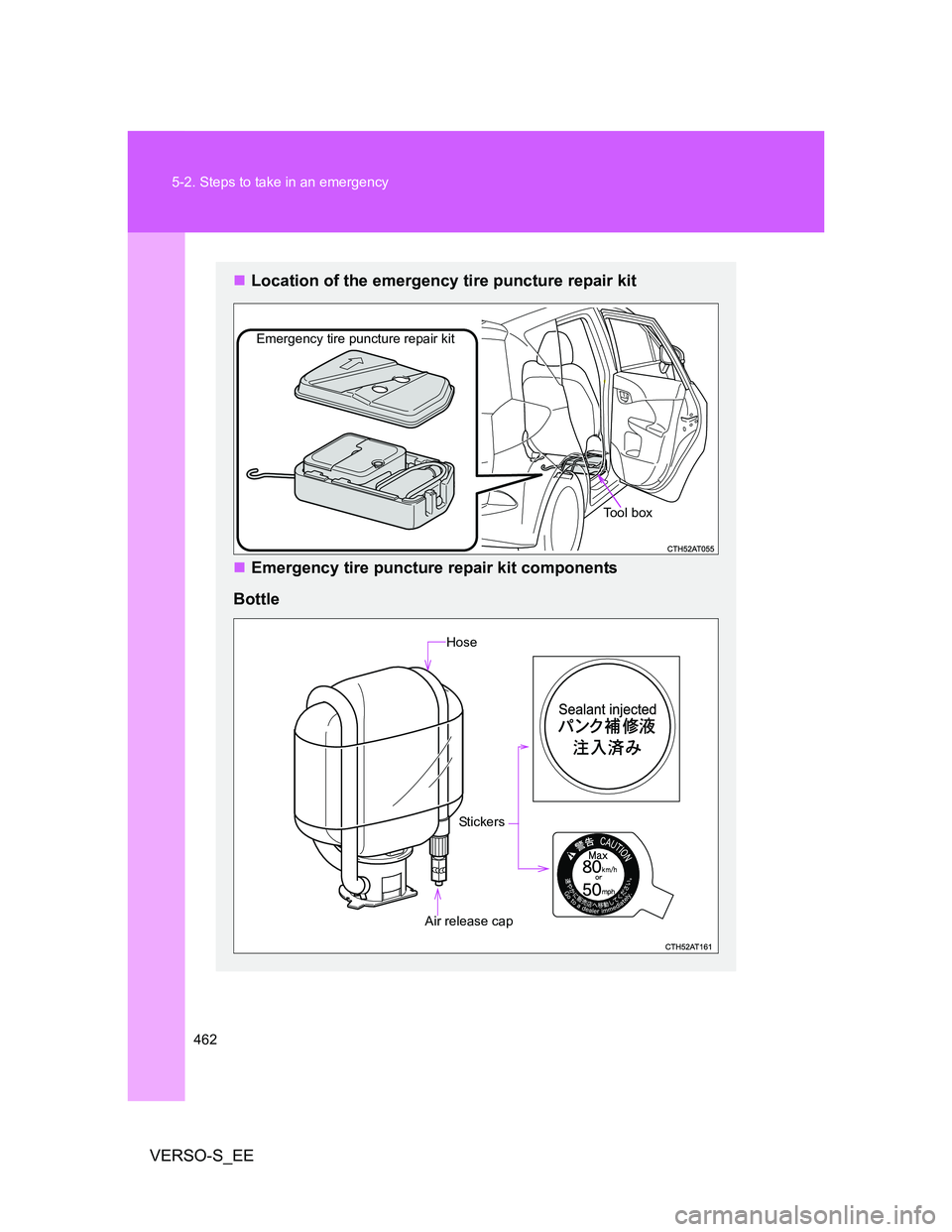

Location of the emergency tire puncture repair kit
Emergency tire puncture repair kit components
Bottle
Tool box
Emergency tire puncture repair kit
Air release capHose
Stickers

5
463 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EE

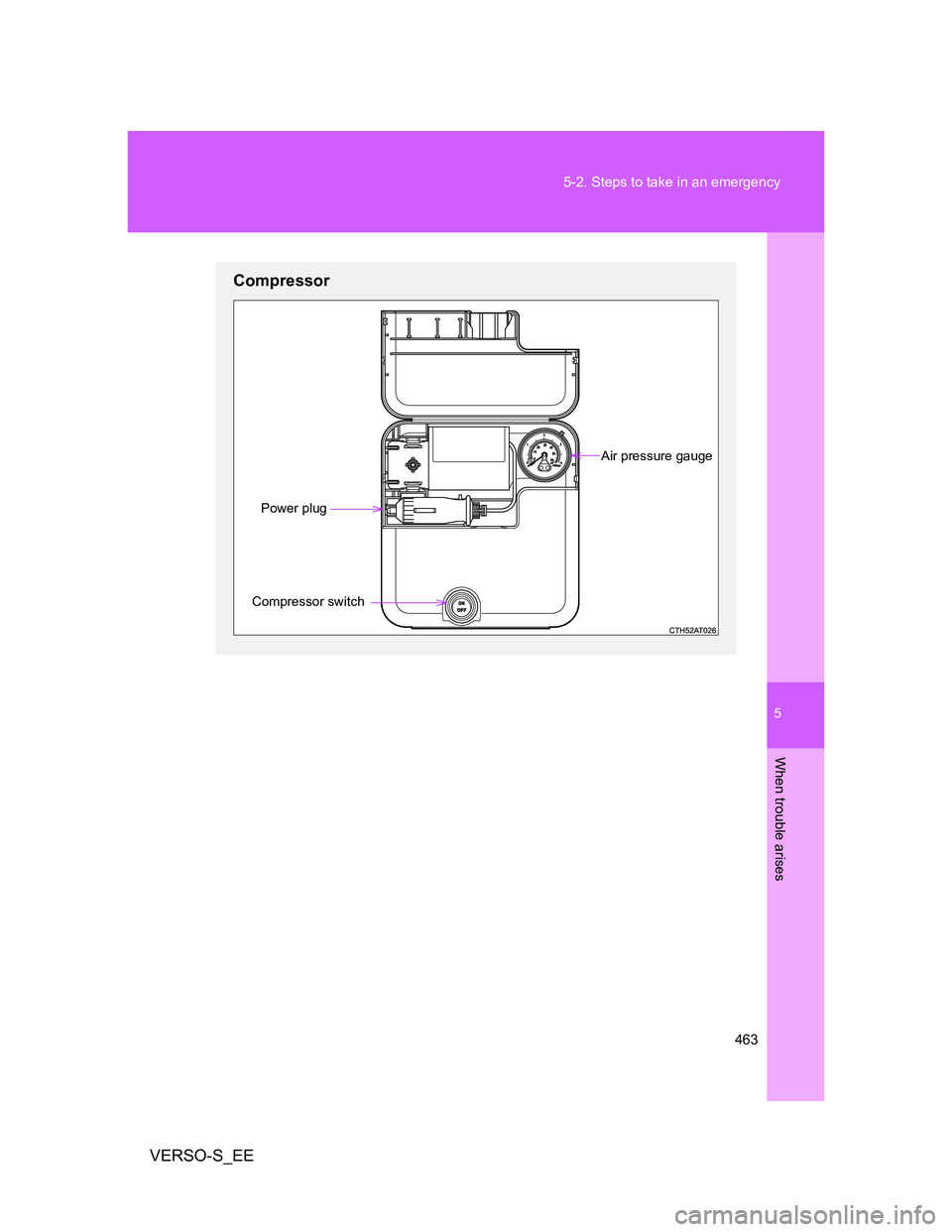

Compressor
Power plugAir pressure gauge
Compressor switch

464 5-2. Steps to take in an emergency
VERSO-S_EE

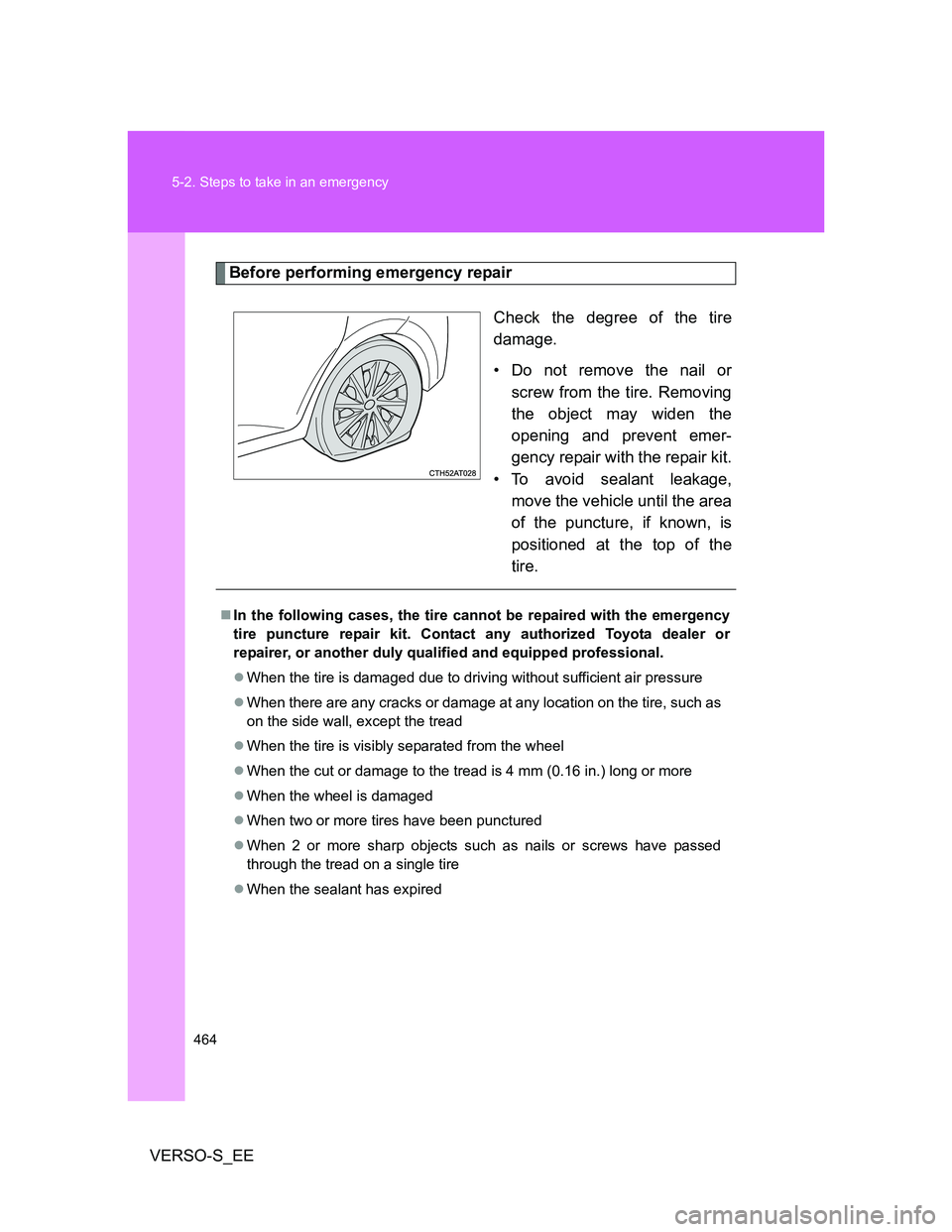

Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.
In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When 2 or more sharp objects such as nails or screws have passed
through the tread on a single tire
When the sealant has expired

5
465 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EE
Taking out the emergency tire puncture repair kit
Move the front right seat forward. (P. 69)
Unhook the hook and take out
the tool box.
Take out the emergency tire
puncture repair kit.
STEP1
STEP2
Emergency tire
puncture repair kit
STEP3

466 5-2. Steps to take in an emergency
VERSO-S_EE

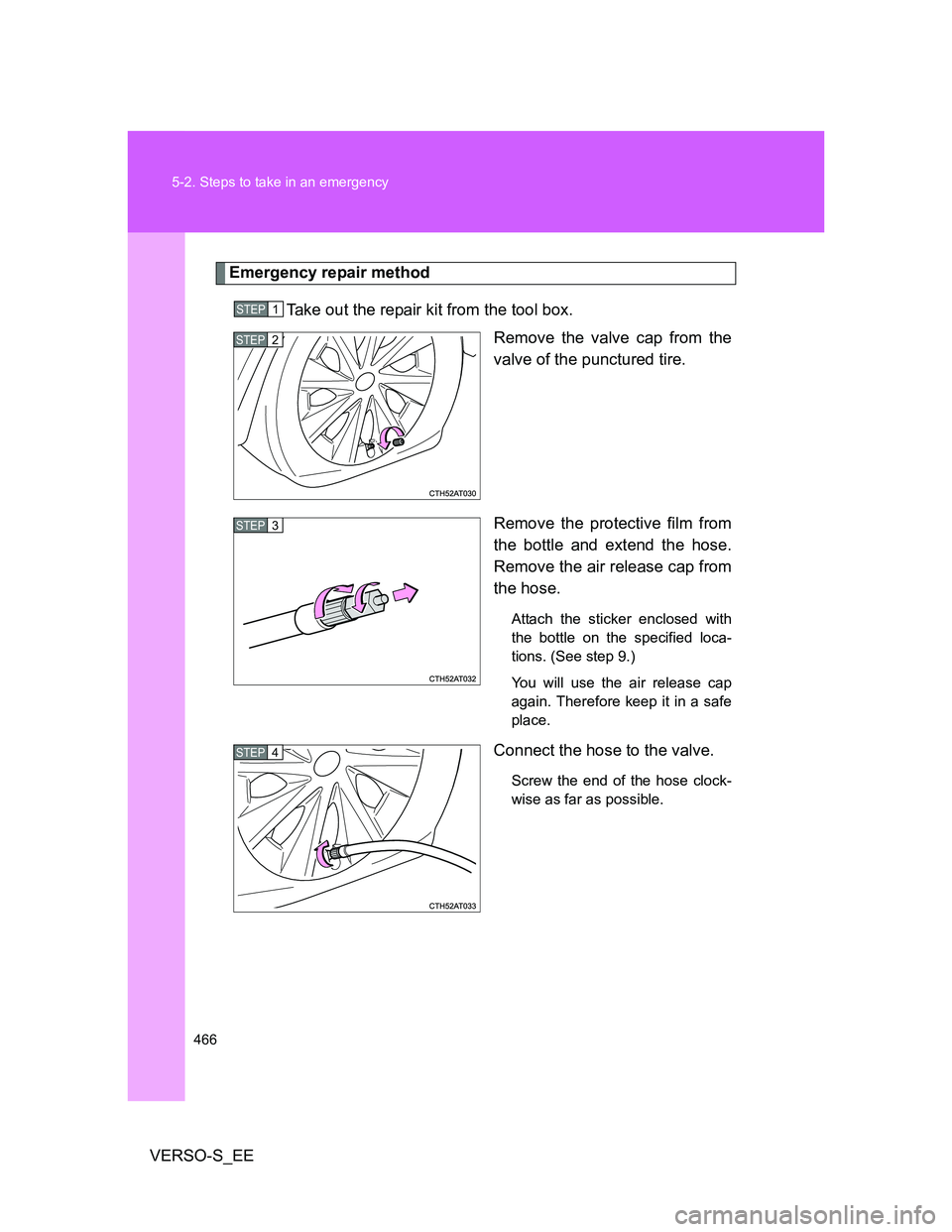

Emergency repair method
Take out the repair kit from the tool box.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap from
the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See step 9.)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
STEP1
STEP2
STEP3
STEP4

5
467 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EEMake sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet socket. (P. 333)
Front
STEP5
STEP6
STEP7

468 5-2. Steps to take in an emergency

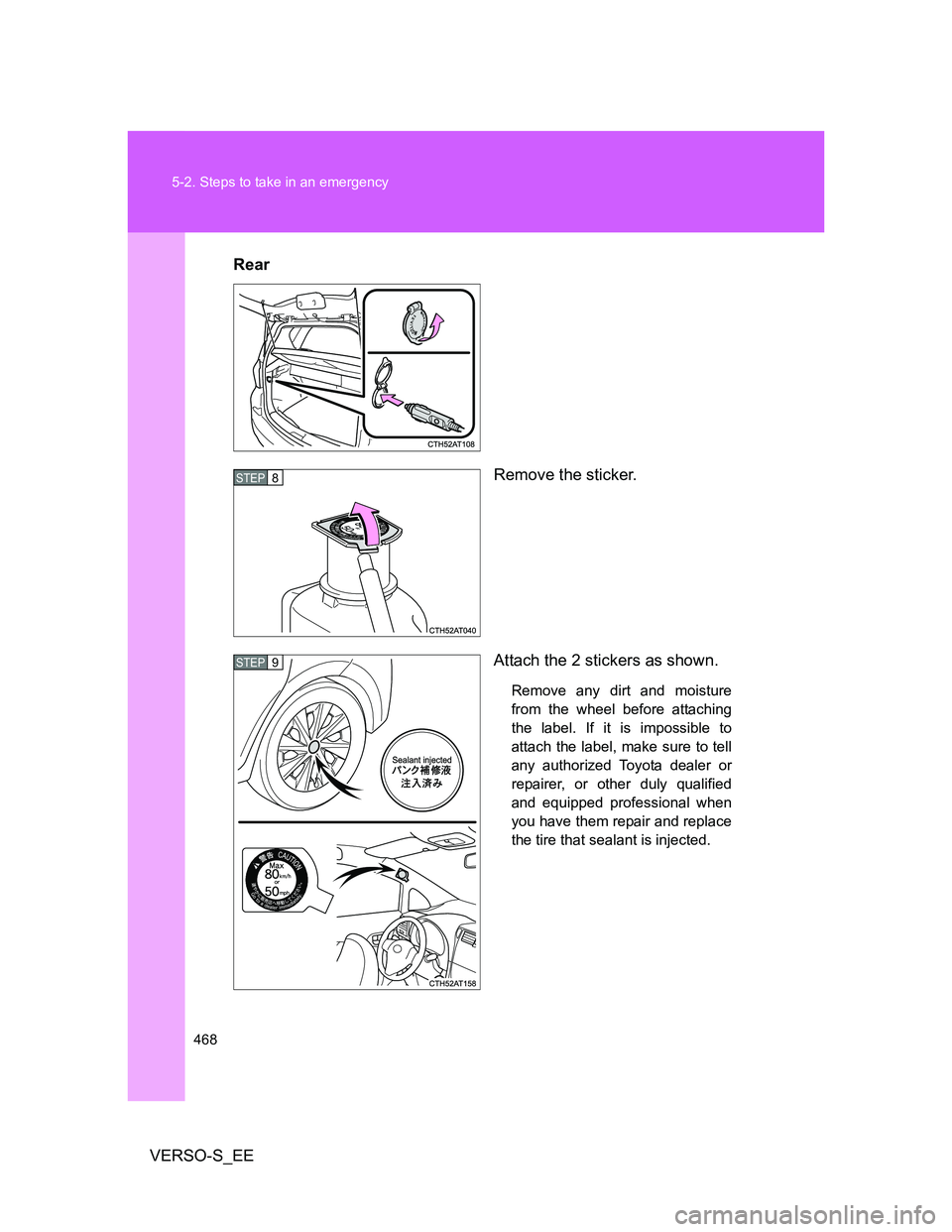

VERSO-S_EERear
Remove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or other duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
STEP8
STEP9

5
469 5-2. Steps to take in an emergency
When trouble arises
VERSO-S_EEConnect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle vertically into the com-
pressor to connect making sure
that the claw on the bottle's neck
is hooked onto the cutout of the
compressor case.
Check the specified tire inflation
pressure.
Tire inflation pressure is speci-
fied on the label in the glove box.
(P. 523)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
STEP10
STEP11
STEP12
STEP13

470 5-2. Steps to take in an emergency

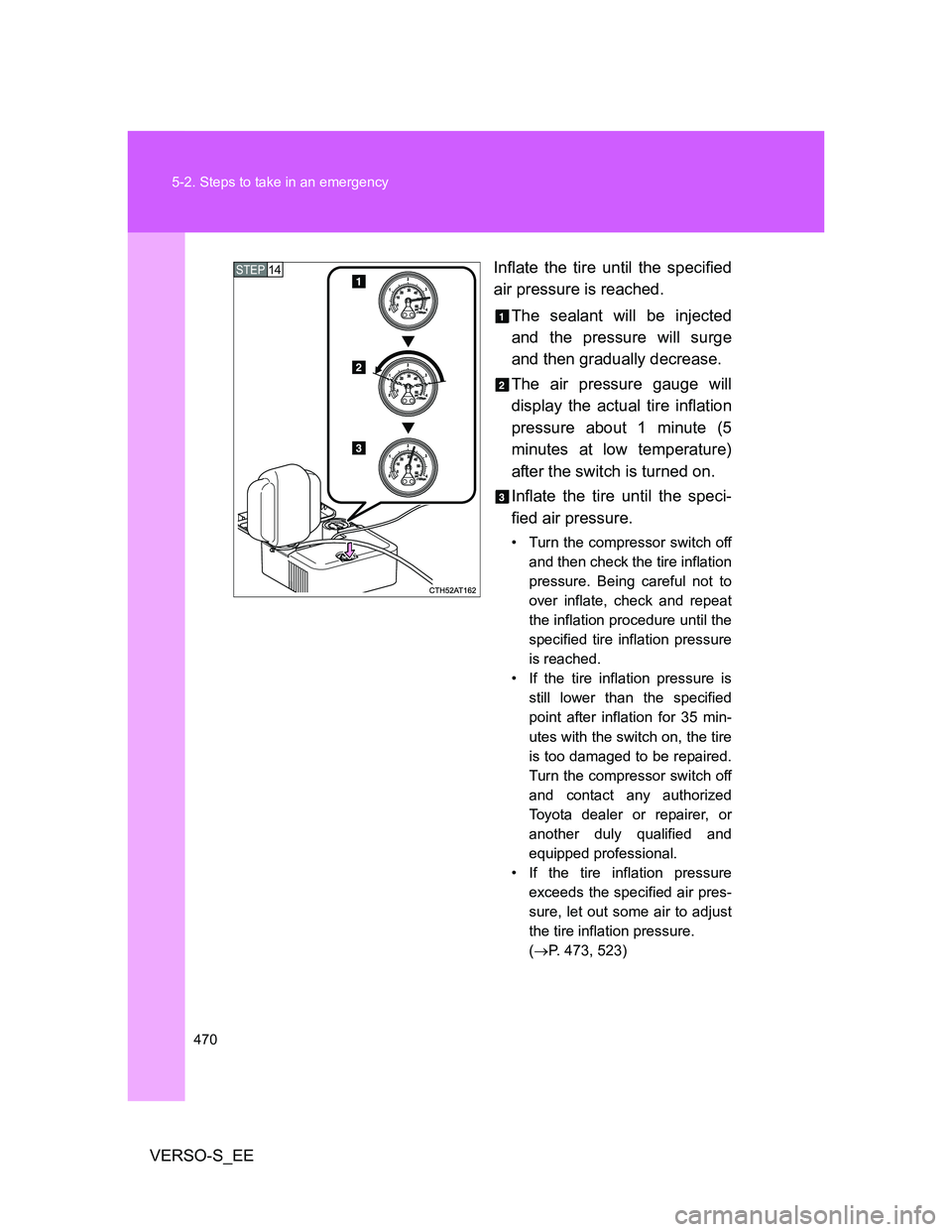

VERSO-S_EEInflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 minute (5
minutes at low temperature)
after the switch is turned on.
Inflate the tire until the speci-
fied air pressure.
• Turn the compressor switch off
and then check the tire inflation
pressure. Being careful not to
over inflate, check and repeat
the inflation procedure until the
specified tire inflation pressure
is reached.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure
exceeds the specified air pres-
sure, let out some air to adjust
the tire inflation pressure.
(P. 473, 523)
STEP14
