478

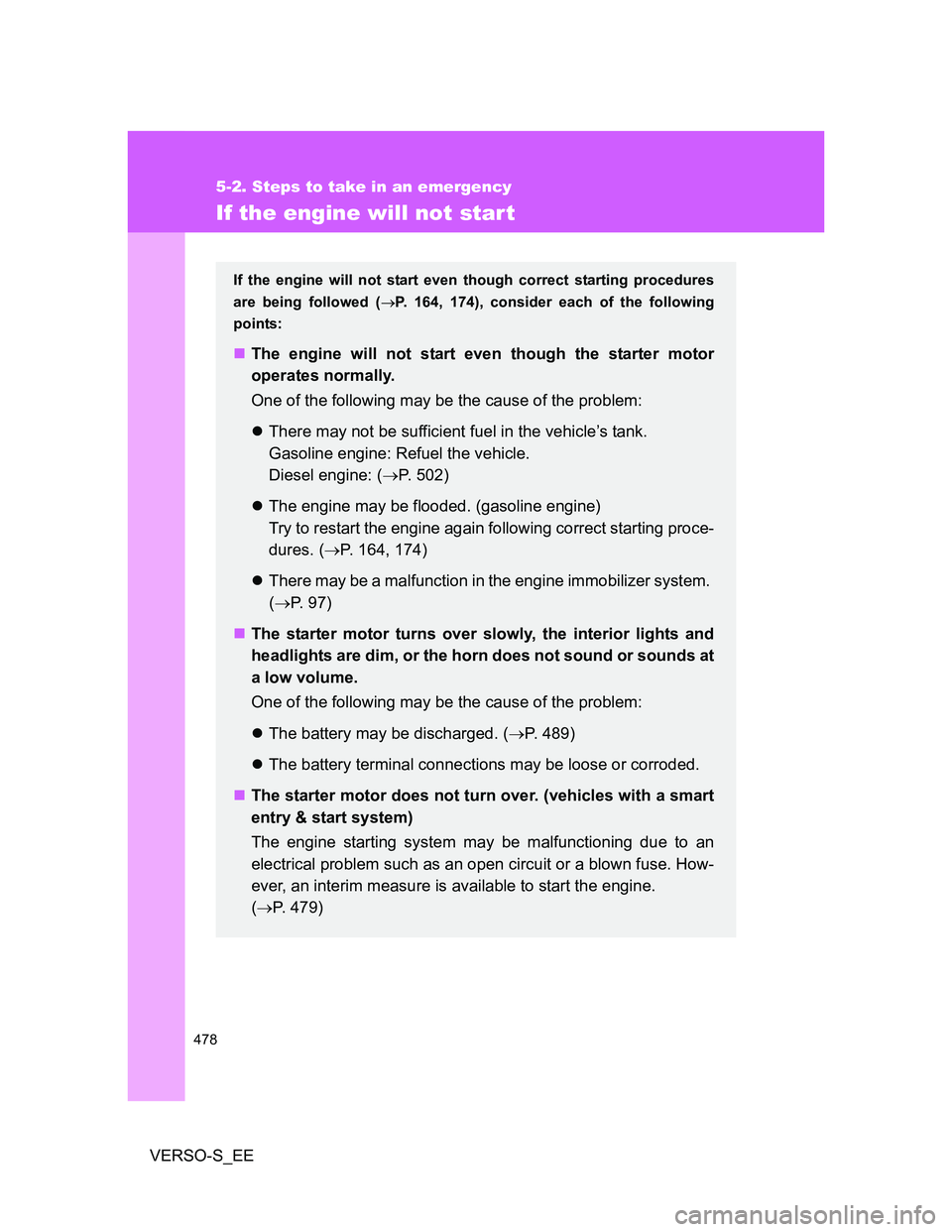

5-2. Steps to take in an emergency
VERSO-S_EE
If the engine will not start
If the engine will not start even though correct starting procedures
are being followed (P. 164, 174), consider each of the following
points:
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 502)
The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting proce-
dures. (P. 164, 174)
There may be a malfunction in the engine immobilizer system.
(P. 9 7 )
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
The battery may be discharged. (P. 489)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over. (vehicles with a smart
entry & start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 479)

525

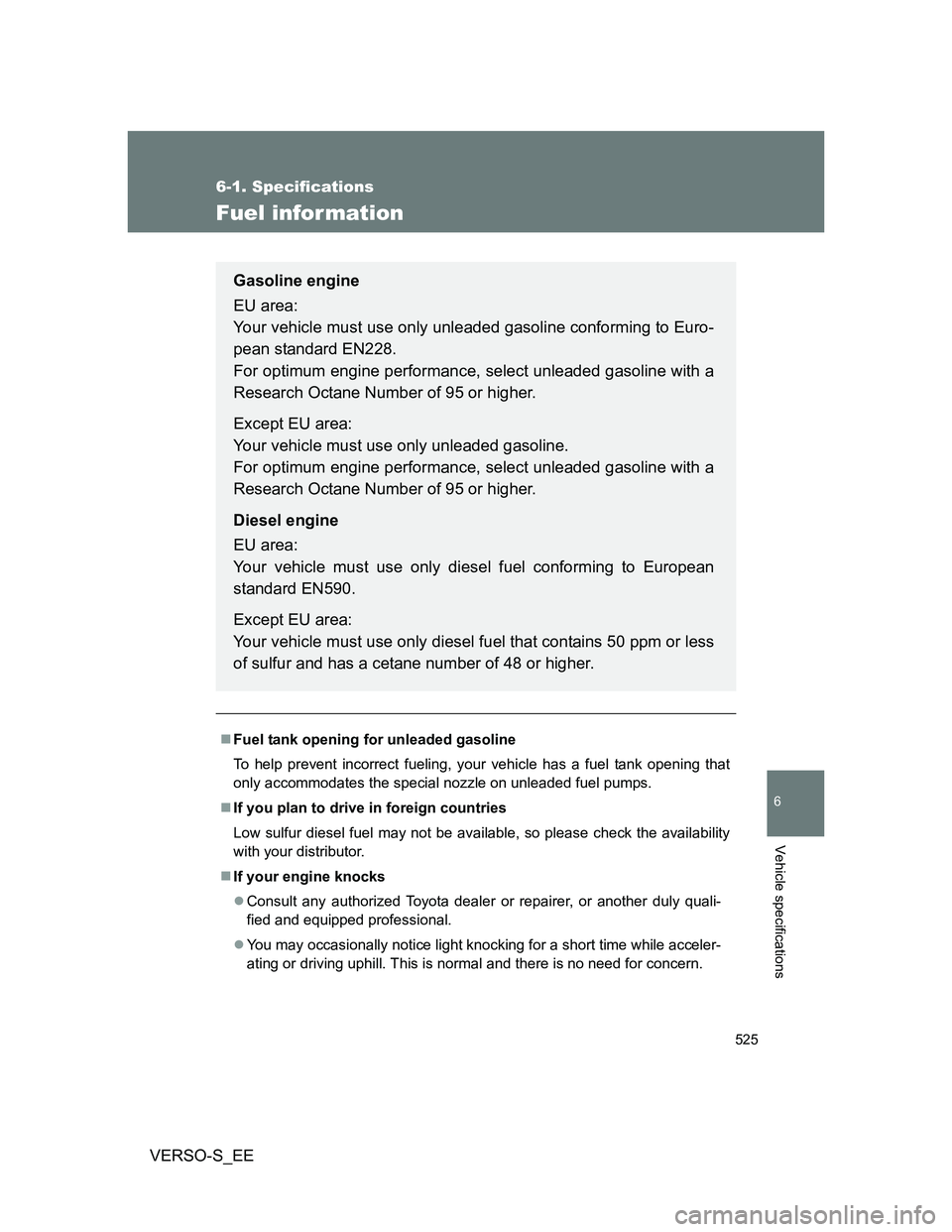

6-1. Specifications
6
Vehicle specifications
VERSO-S_EE
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to Euro-
pean standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or less
of sulfur and has a cetane number of 48 or higher.

552
VERSO-S_EE

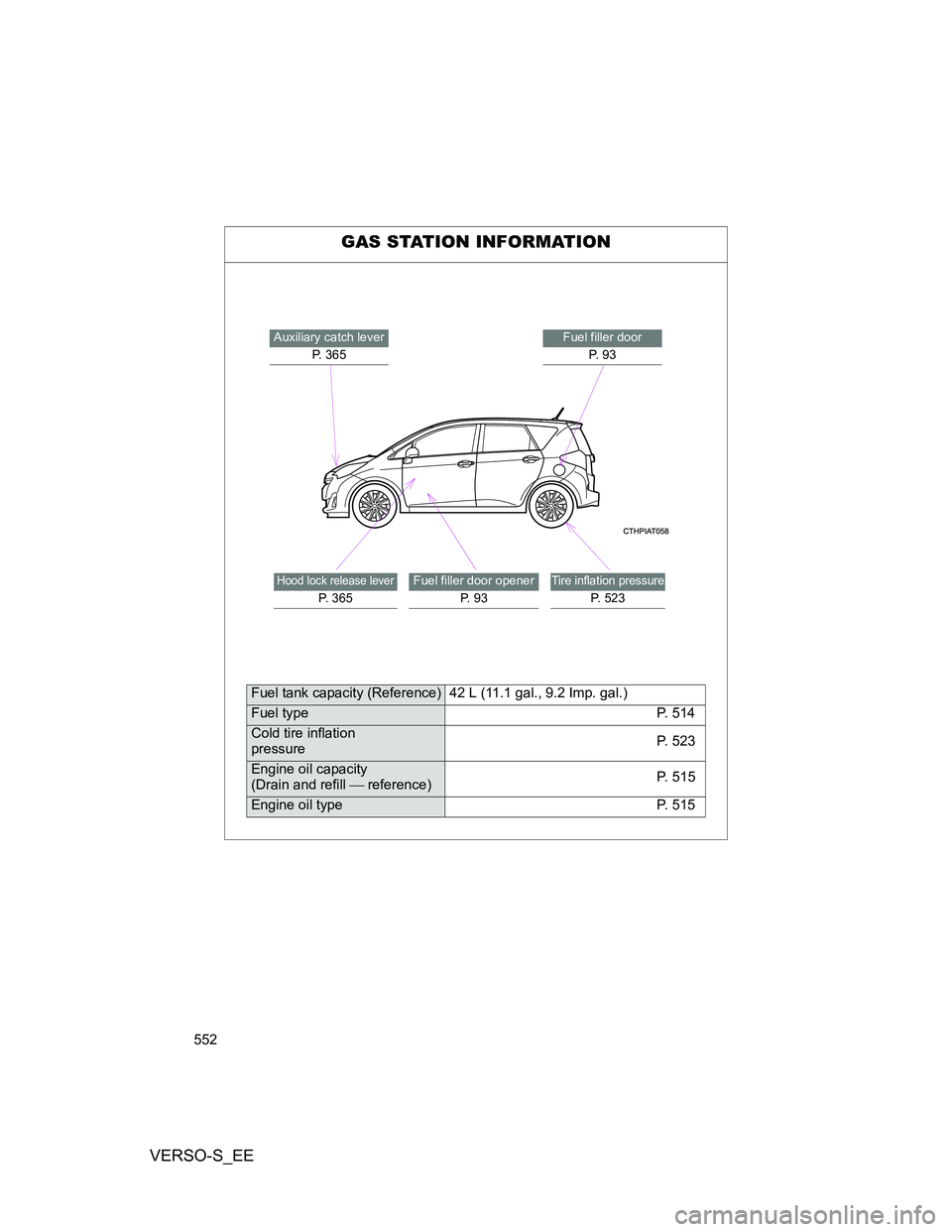

GAS STATION INFORMATION
Auxiliary catch lever
P. 365Fuel filler door
P. 9 3
Hood lock release lever
P. 3 6 5
Fuel filler door opener
P. 9 3Tire inflation pressure
P. 523
Fuel tank capacity (Reference) 42 L (11.1 gal., 9.2 Imp. gal.)
Fuel type P. 514
Cold tire inflation
pressureP. 523
Engine oil capacity
(Drain and refill  reference)P. 515
Engine oil type P. 515
