TOYOTA VERSO S 2014 Owners Manual

231 2-3. Operating the lights and wipers
2
When driving
VERSO-S_EE
Rain-sensing windshield wiper
When “AUTO” is selected, the wiper will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Rain-sensing wiper opera-
tion (“AUTO”)
Low speed wiper operation
High speed wiper operation
Temporary operation

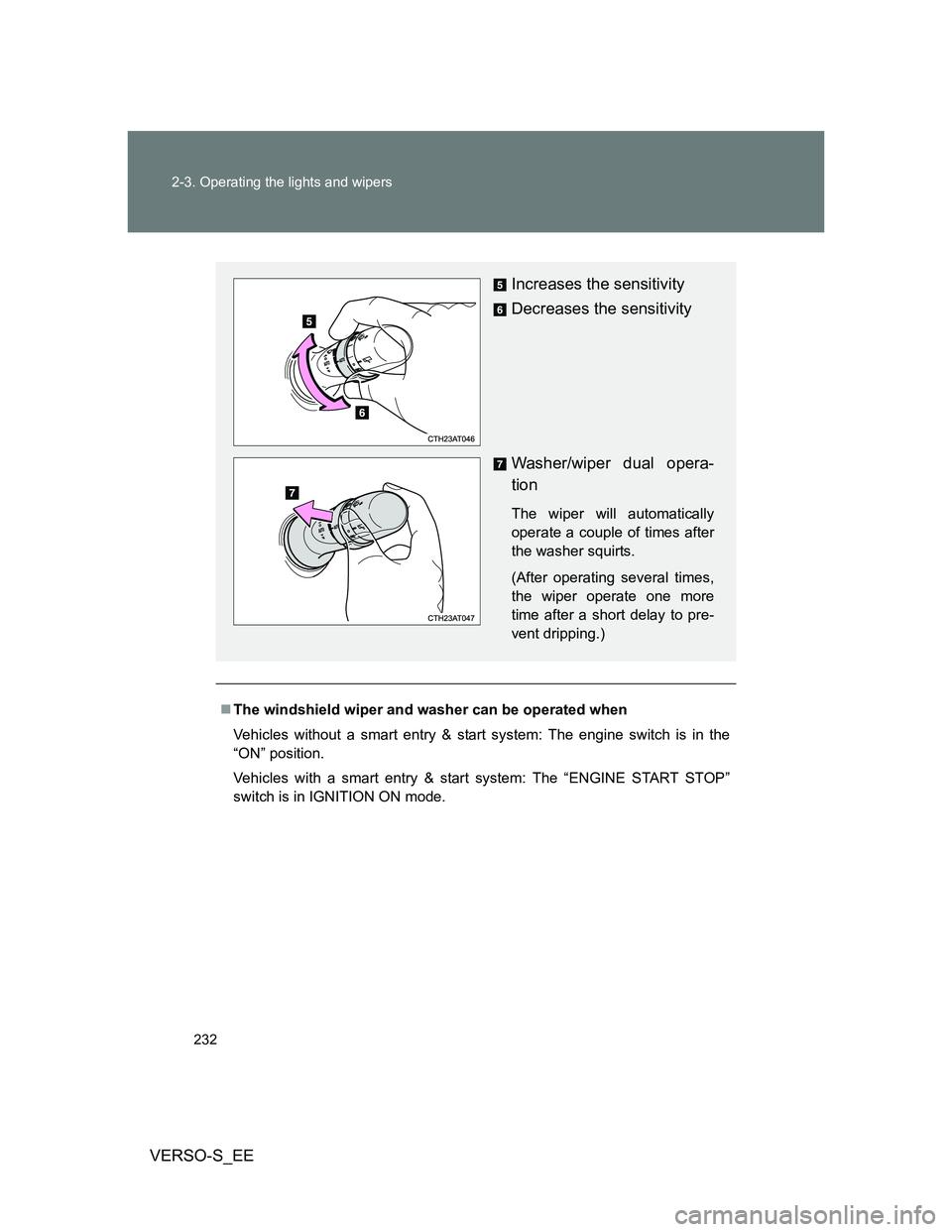

232 2-3. Operating the lights and wipers
VERSO-S_EE
The windshield wiper and washer can be operated when
Vehicles without a smart entry & start system: The engine switch is in the
“ON” position.
Vehicles with a smart entry & start system: The “ENGINE START STOP”
switch is in IGNITION ON mode.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wiper operate one more
time after a short delay to pre-
vent dripping.)

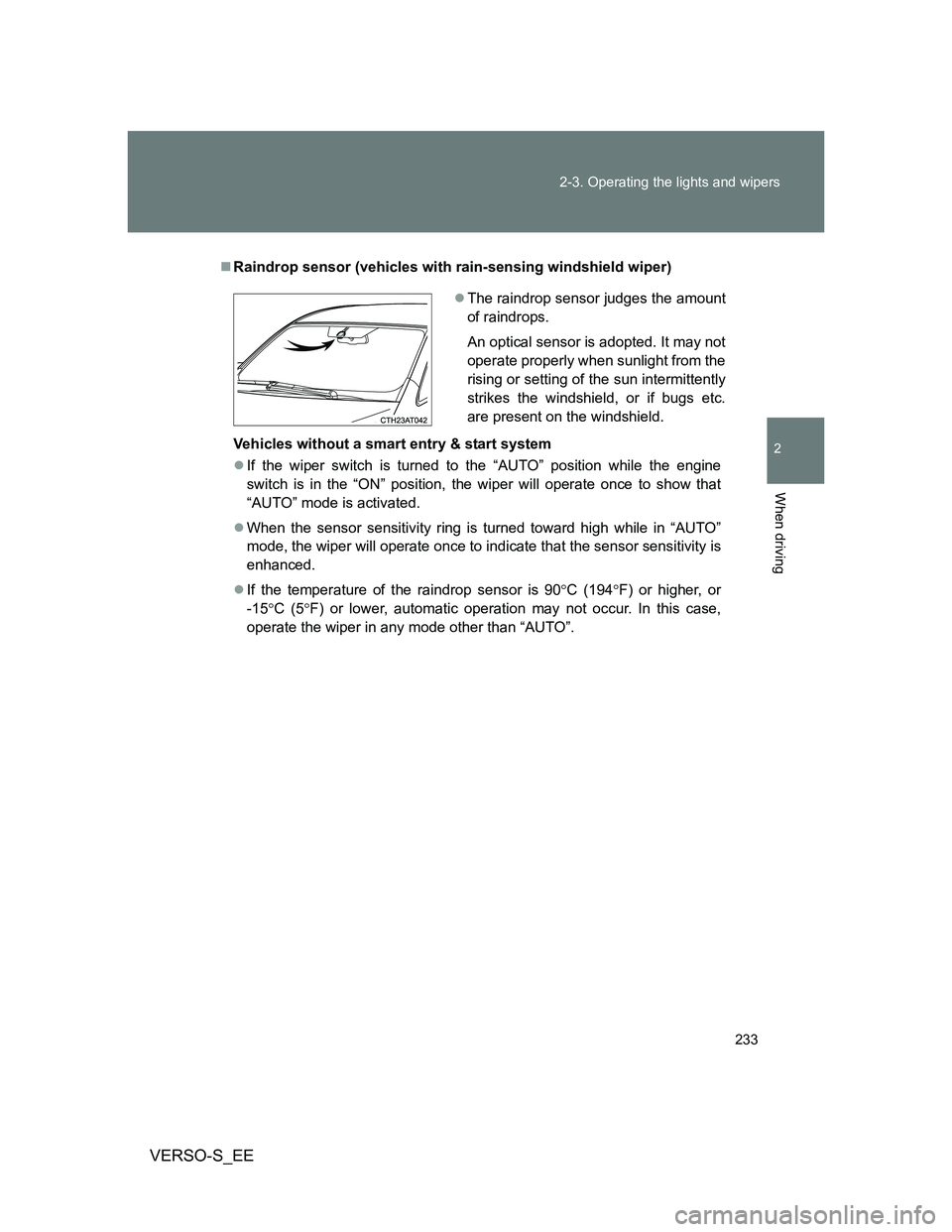

233 2-3. Operating the lights and wipers
2
When driving
VERSO-S_EE
Raindrop sensor (vehicles with rain-sensing windshield wiper)
Vehicles without a smart entry & start system
If the wiper switch is turned to the “AUTO” position while the engine
switch is in the “ON” position, the wiper will operate once to show that
“AUTO” mode is activated.
When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wiper in any mode other than “AUTO”.
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

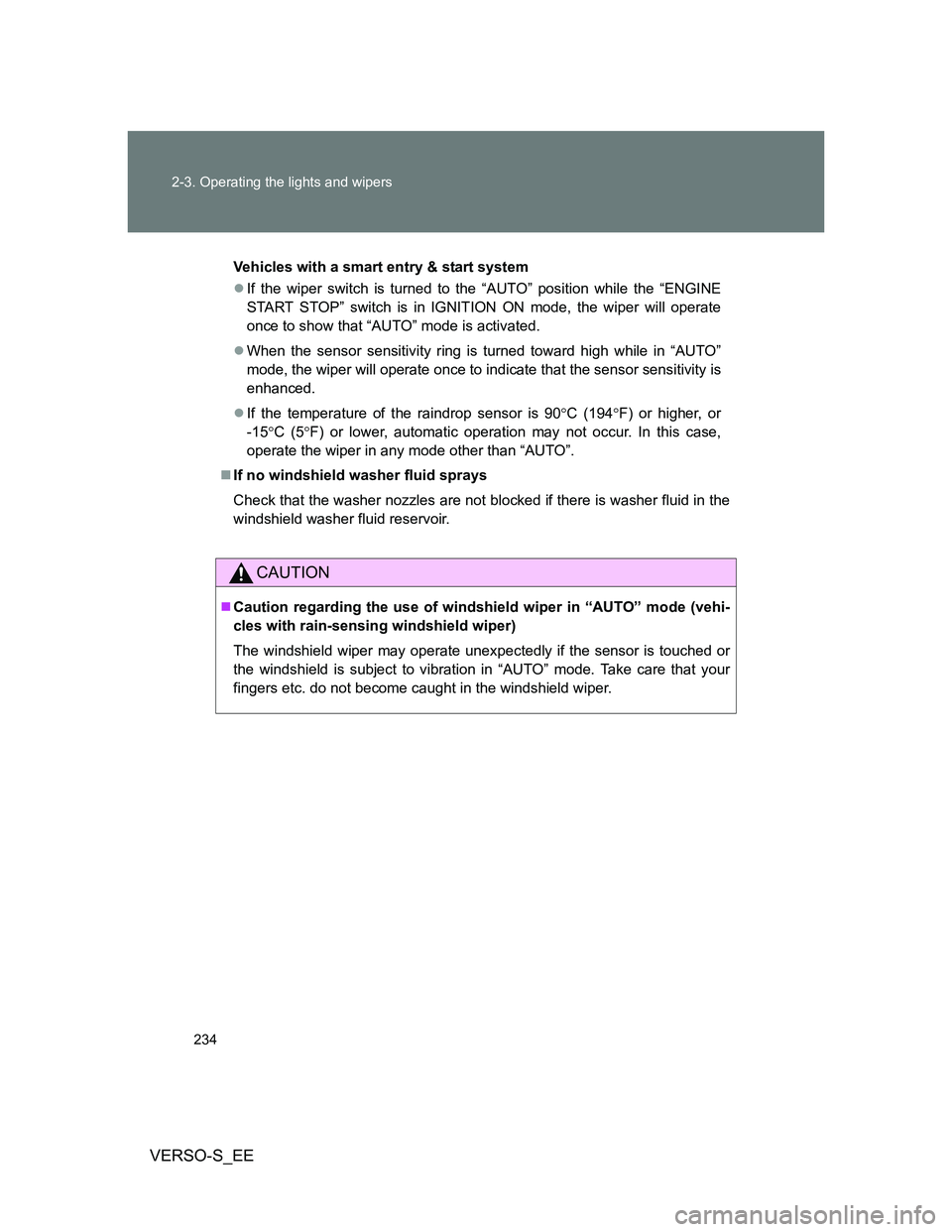

234 2-3. Operating the lights and wipers
VERSO-S_EE
Vehicles with a smart entry & start system
If the wiper switch is turned to the “AUTO” position while the “ENGINE
START STOP” switch is in IGNITION ON mode, the wiper will operate
once to show that “AUTO” mode is activated.
When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wiper in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wiper in “AUTO” mode (vehi-
cles with rain-sensing windshield wiper)
The windshield wiper may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wiper.

235 2-3. Operating the lights and wipers
2
When driving
VERSO-S_EE
NOTICE
When the windshield is dry
Do not use the wiper, as they may damage the windshield.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

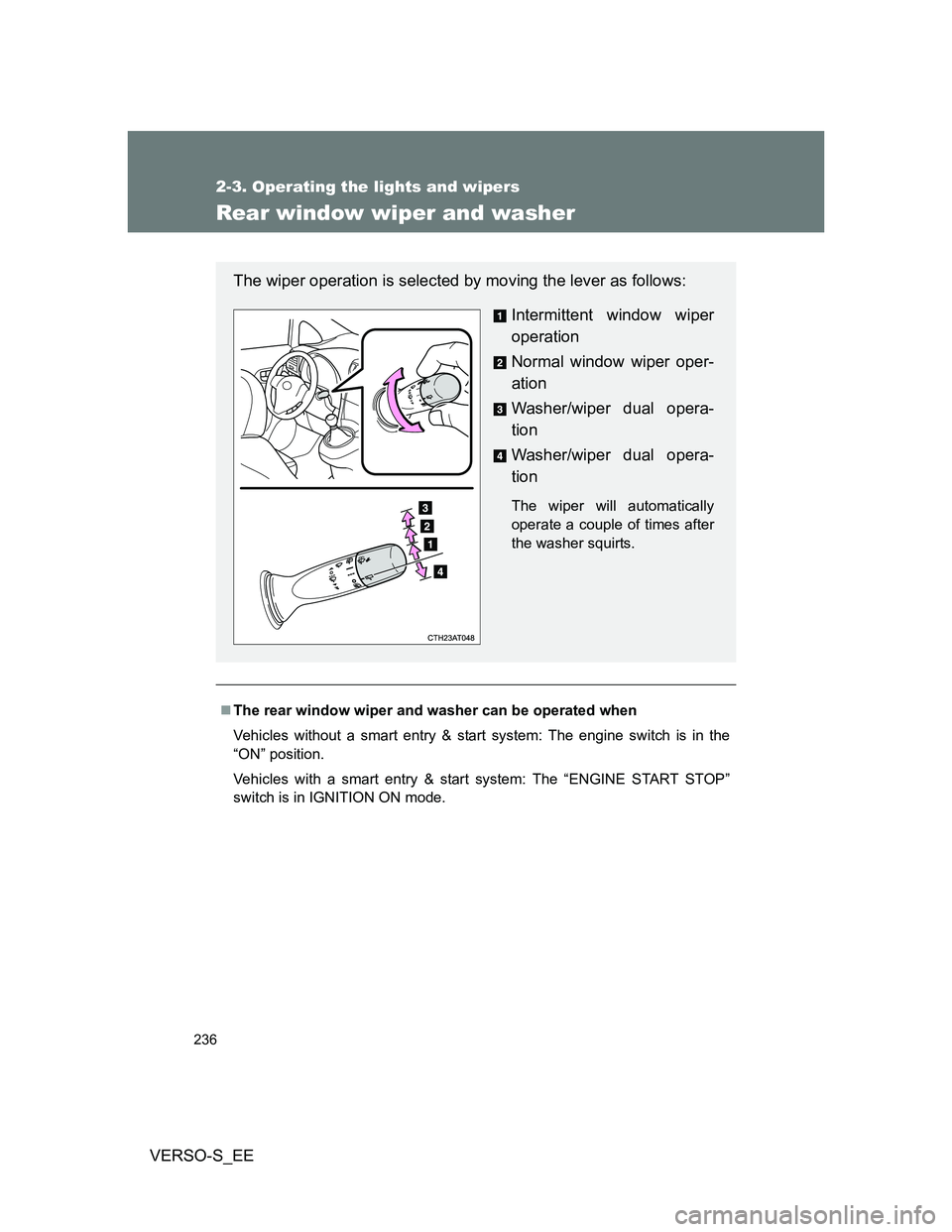

236
2-3. Operating the lights and wipers
VERSO-S_EE
Rear window wiper and washer
The rear window wiper and washer can be operated when
Vehicles without a smart entry & start system: The engine switch is in the
“ON” position.
Vehicles with a smart entry & start system: The “ENGINE START STOP”
switch is in IGNITION ON mode.
The wiper operation is selected by moving the lever as follows:
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.

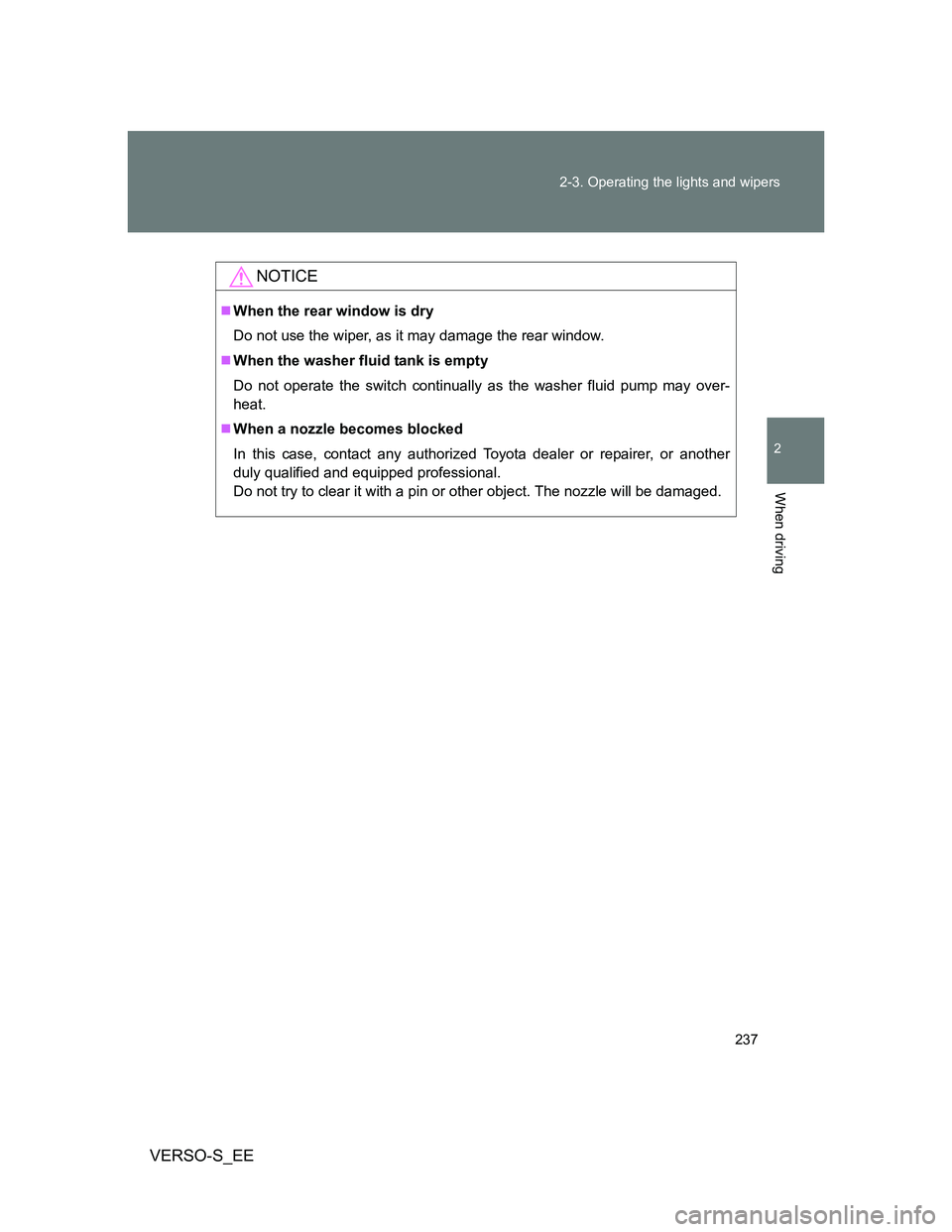

237 2-3. Operating the lights and wipers
2
When driving
VERSO-S_EE
NOTICE
When the rear window is dry
Do not use the wiper, as it may damage the rear window.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

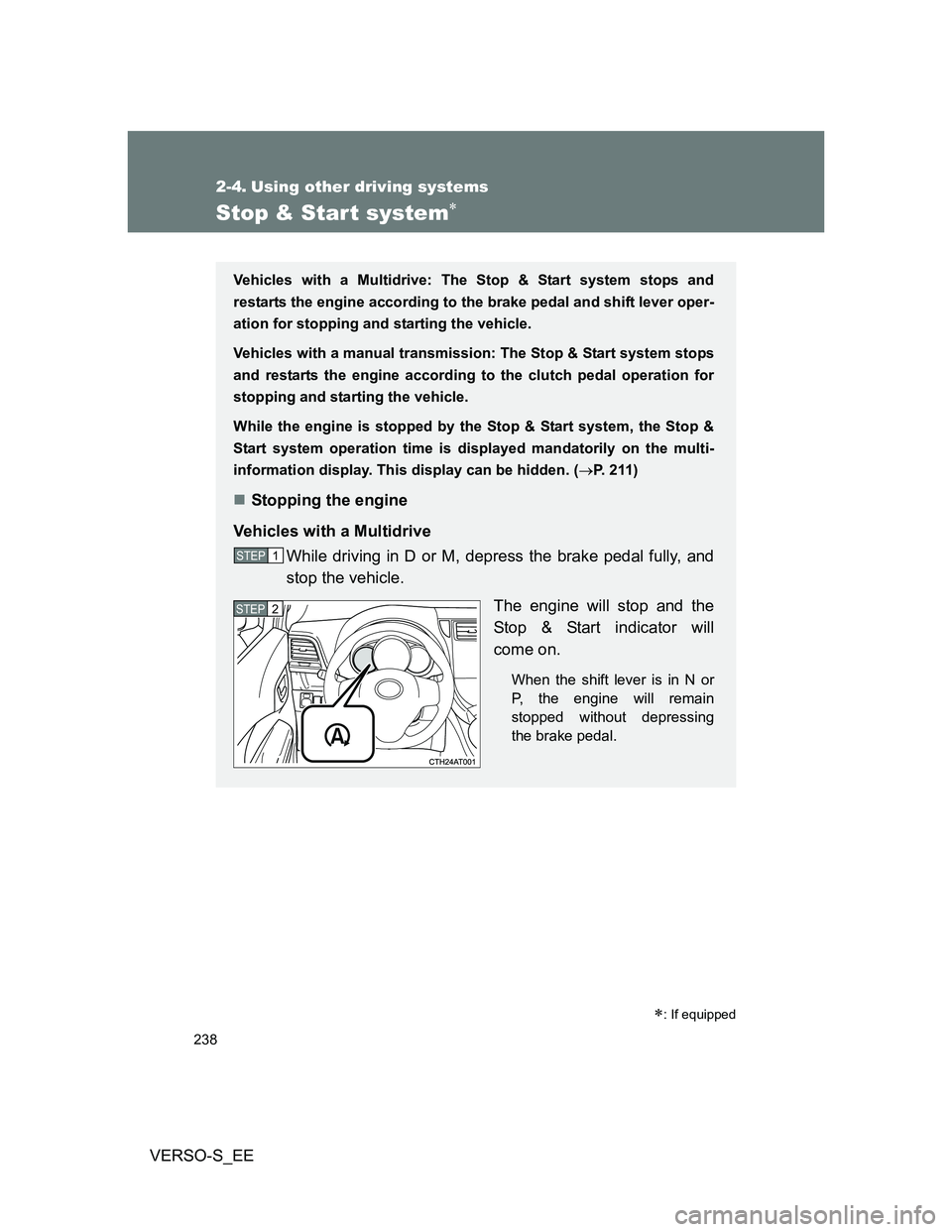

238
VERSO-S_EE
2-4. Using other driving systems
Stop & Start system
: If equipped
Vehicles with a Multidrive: The Stop & Start system stops and
restarts the engine according to the brake pedal and shift lever oper-
ation for stopping and starting the vehicle.
Vehicles with a manual transmission: The Stop & Start system stops
and restarts the engine according to the clutch pedal operation for
stopping and starting the vehicle.
While the engine is stopped by the Stop & Start system, the Stop &
Start system operation time is displayed mandatorily on the multi-
information display. This display can be hidden. (P. 211)
Stopping the engine
Vehicles with a Multidrive
While driving in D or M, depress the brake pedal fully, and
stop the vehicle.
The engine will stop and the
Stop & Start indicator will
come on.
When the shift lever is in N or
P, the engine will remain
stopped without depressing
the brake pedal.
STEP1
STEP2

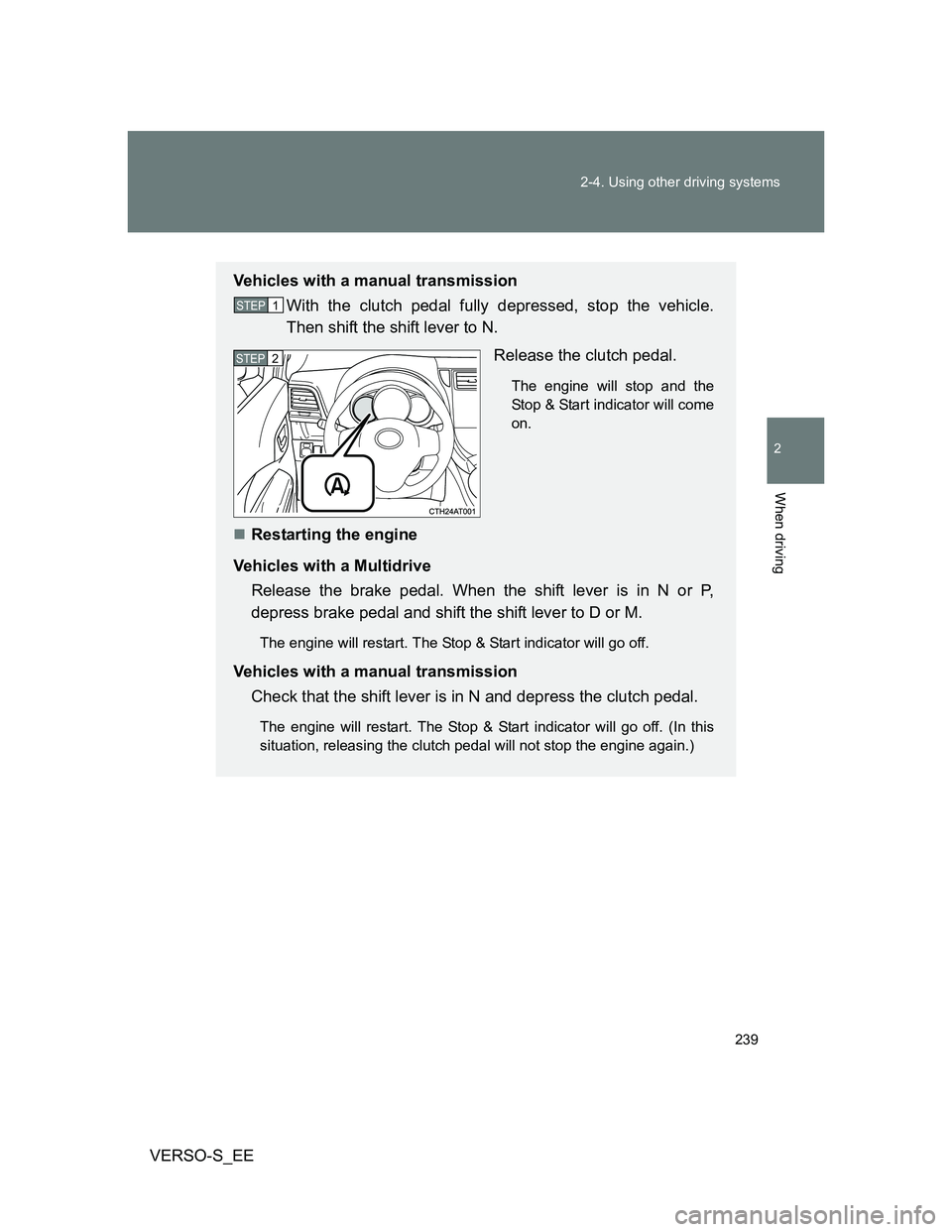

239 2-4. Using other driving systems
2
When driving
VERSO-S_EE
Vehicles with a manual transmission
With the clutch pedal fully depressed, stop the vehicle.
Then shift the shift lever to N.
Release the clutch pedal.
The engine will stop and the
Stop & Start indicator will come
on.
Restarting the engine
Vehicles with a Multidrive
Release the brake pedal. When the shift lever is in N or P,
depress brake pedal and shift the shift lever to D or M.
The engine will restart. The Stop & Start indicator will go off.
Vehicles with a manual transmission
Check that the shift lever is in N and depress the clutch pedal.
The engine will restart. The Stop & Start indicator will go off. (In this
situation, releasing the clutch pedal will not stop the engine again.)
STEP1
STEP2

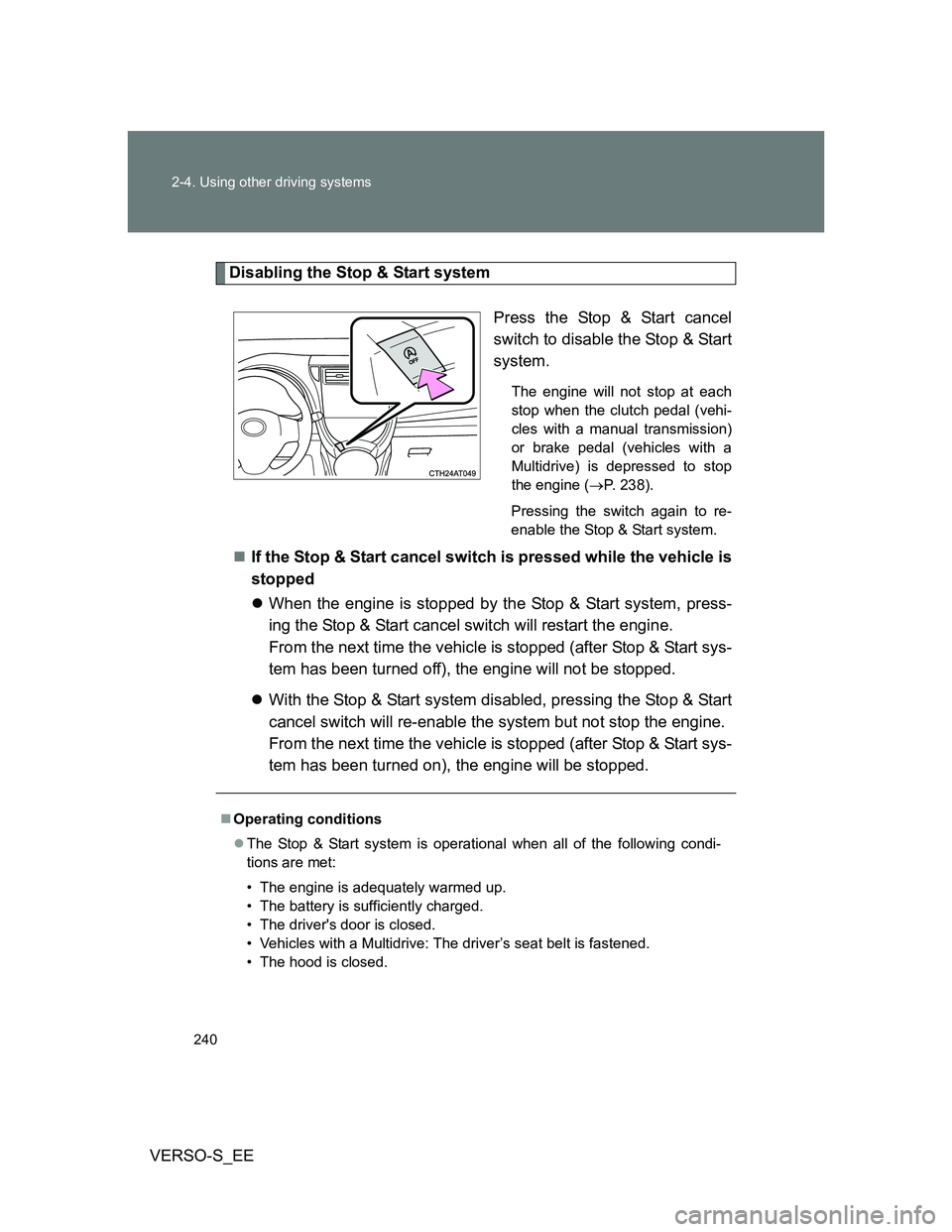

240 2-4. Using other driving systems
VERSO-S_EE
Disabling the Stop & Start system
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The engine will not stop at each
stop when the clutch pedal (vehi-
cles with a manual transmission)
or brake pedal (vehicles with a
Multidrive) is depressed to stop
the engine (P. 238).
Pressing the switch again to re-
enable the Stop & Start system.
If the Stop & Start cancel switch is pressed while the vehicle is
stopped
When the engine is stopped by the Stop & Start system, press-
ing the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.
Operating conditions
The Stop & Start system is operational when all of the following condi-
tions are met:
• The engine is adequately warmed up.
• The battery is sufficiently charged.
• The driver's door is closed.
• Vehicles with a Multidrive: The driver’s seat belt is fastened.
• The hood is closed.
