421 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

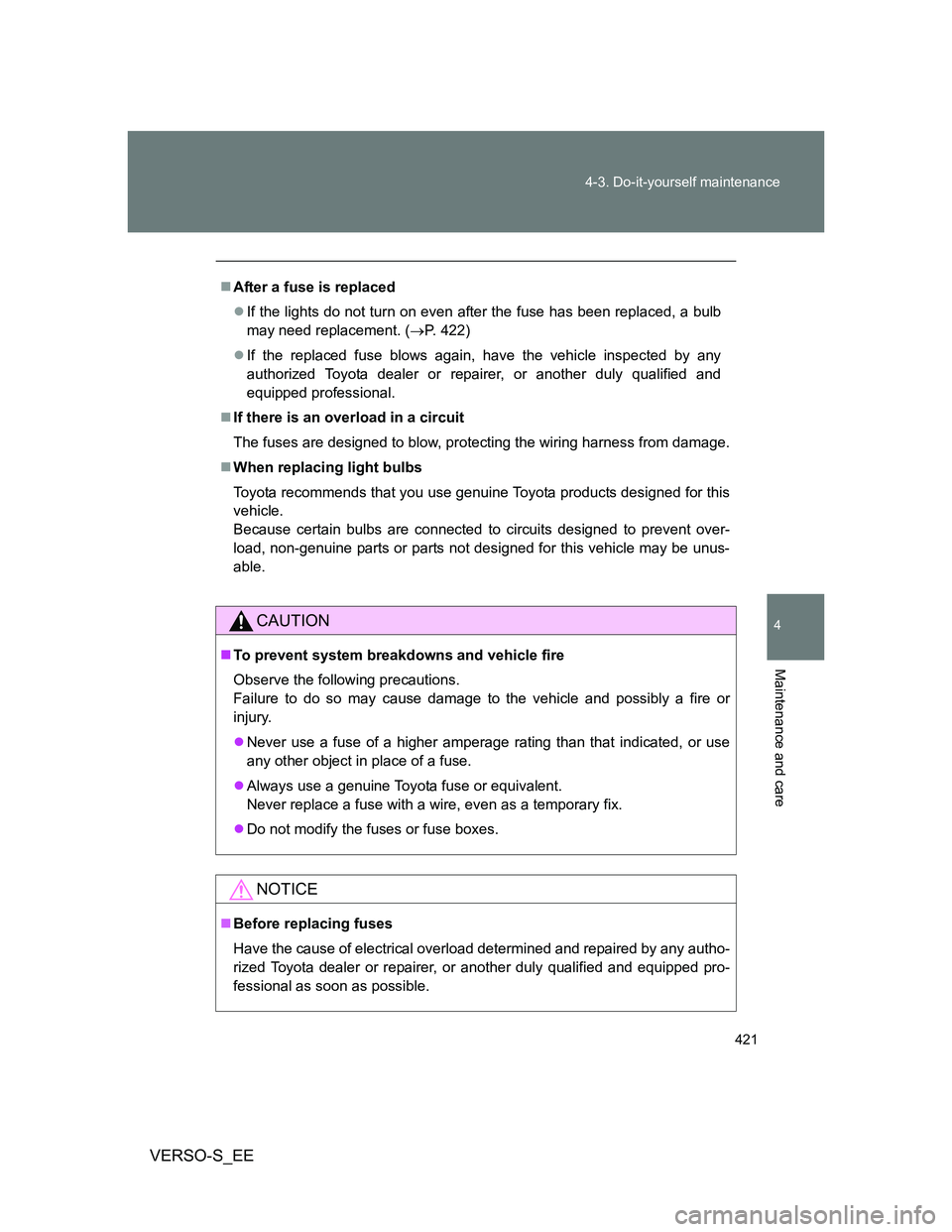

After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 422)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.

422
4-3. Do-it-yourself maintenance
VERSO-S_EE

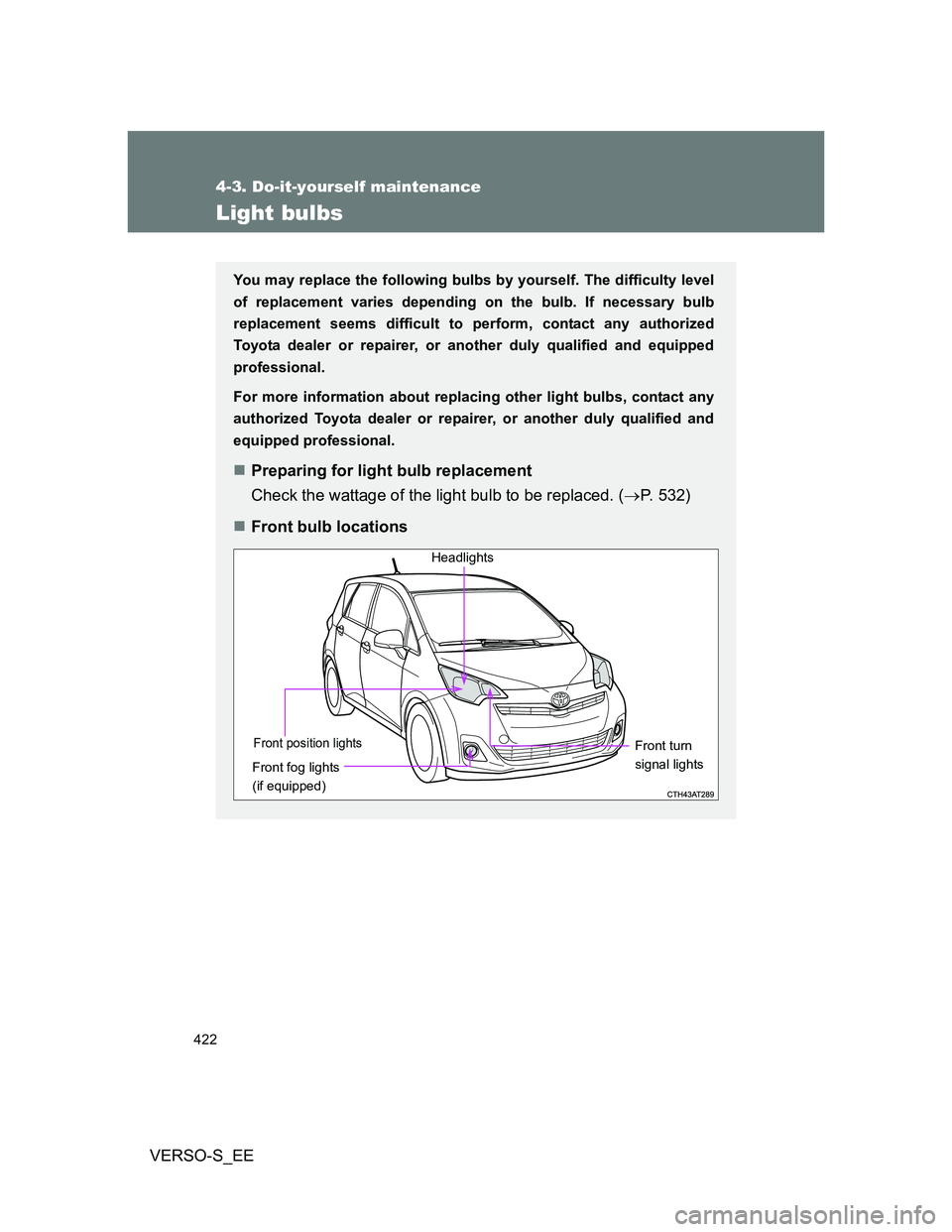

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 532)
Front bulb locations
Front position lights
Front fog lights
(if equipped)
Headlights
Front turn
signal lights

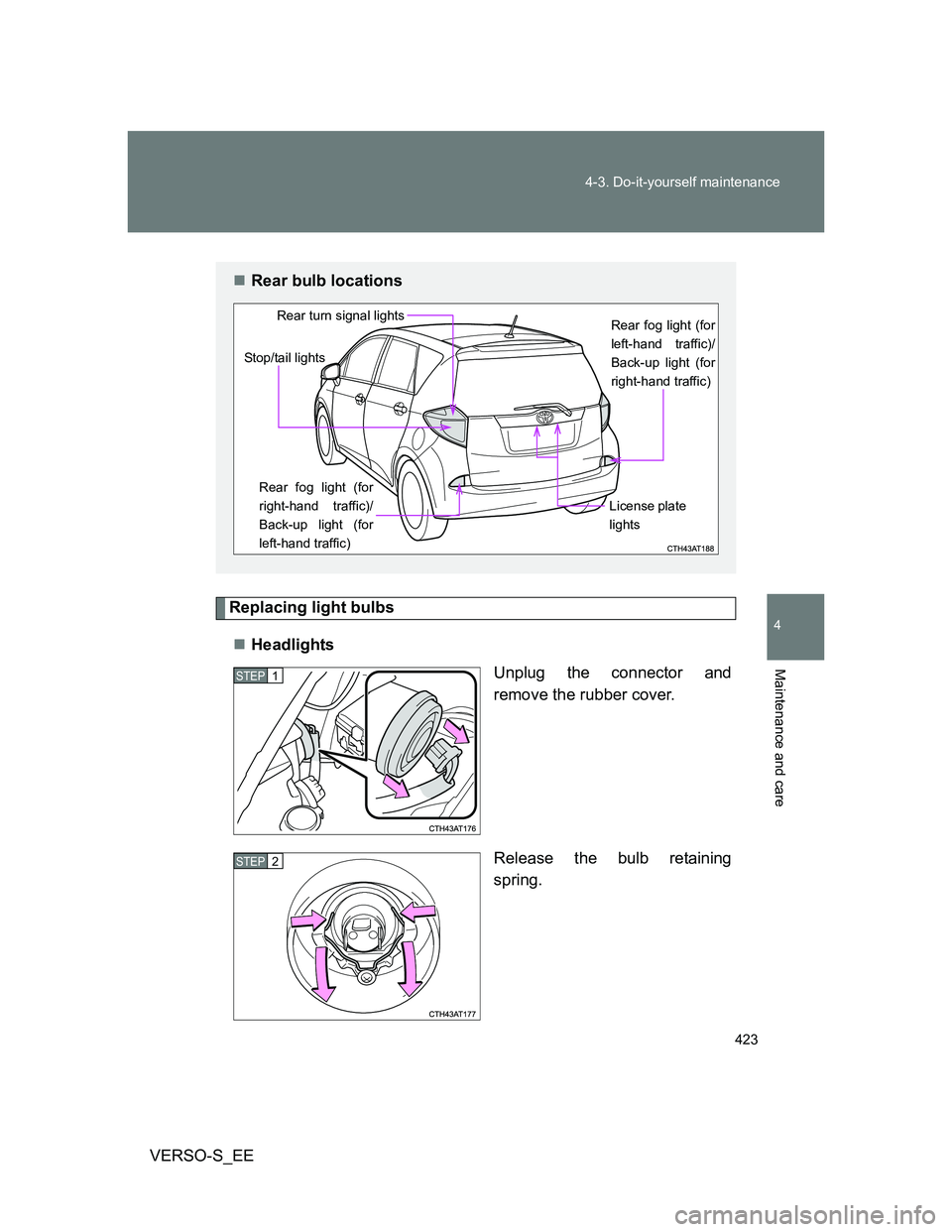

423 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
Replacing light bulbs
Headlights
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic) Stop/tail lights
License plate
lights
Rear turn signal lights
STEP1
STEP2

424 4-3. Do-it-yourself maintenance

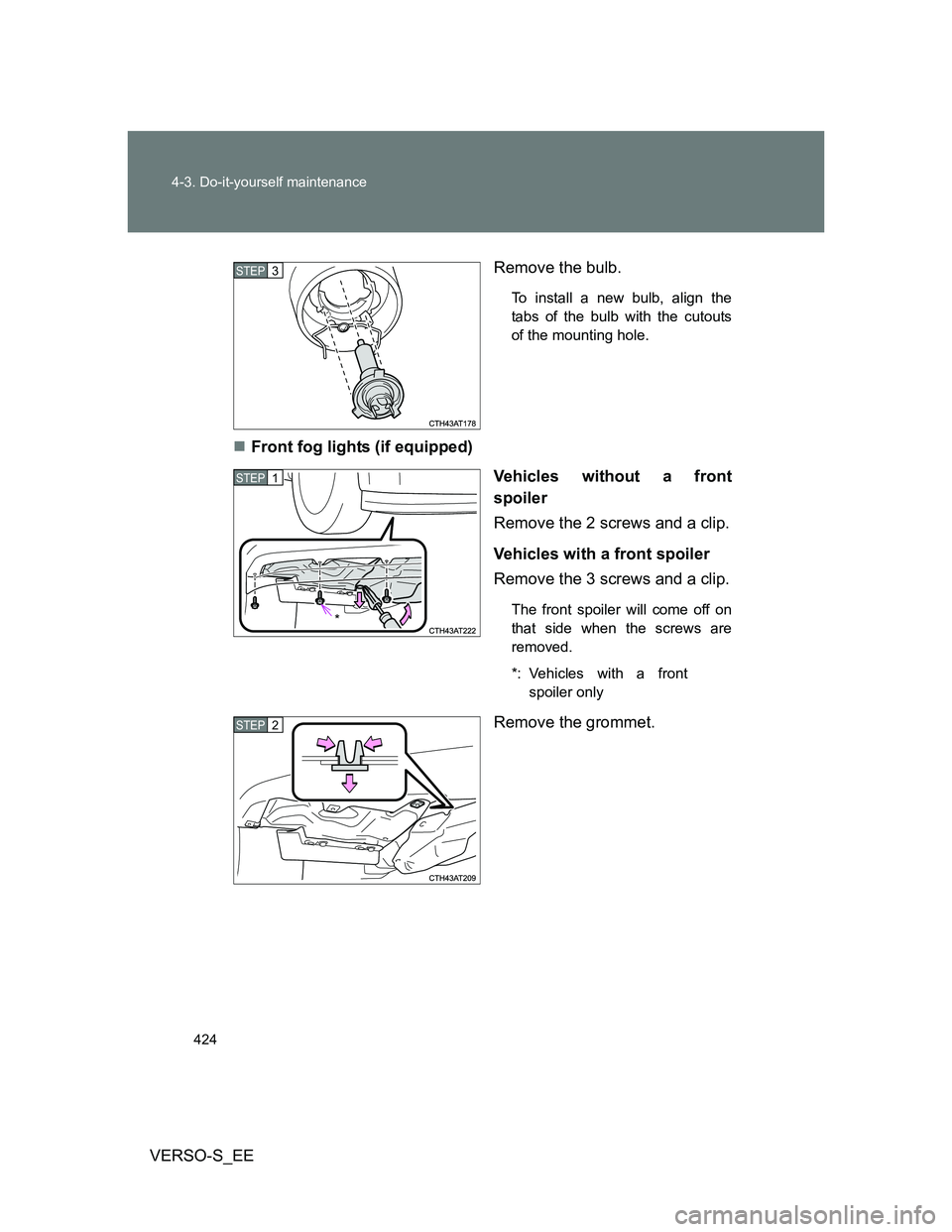

VERSO-S_EERemove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Remove the grommet.
STEP3
STEP1
*
STEP2

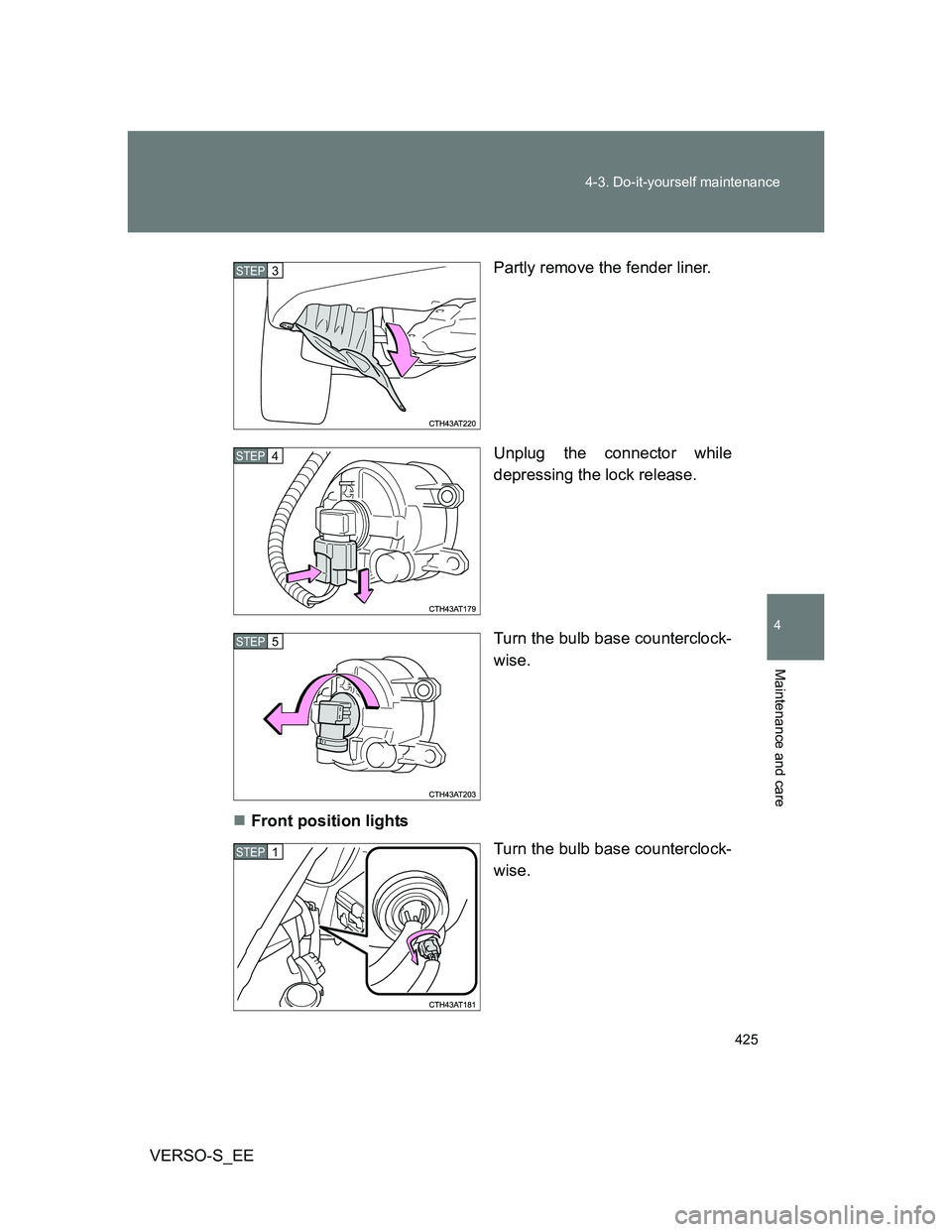

425 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
STEP3
STEP4
STEP5
STEP1

426 4-3. Do-it-yourself maintenance

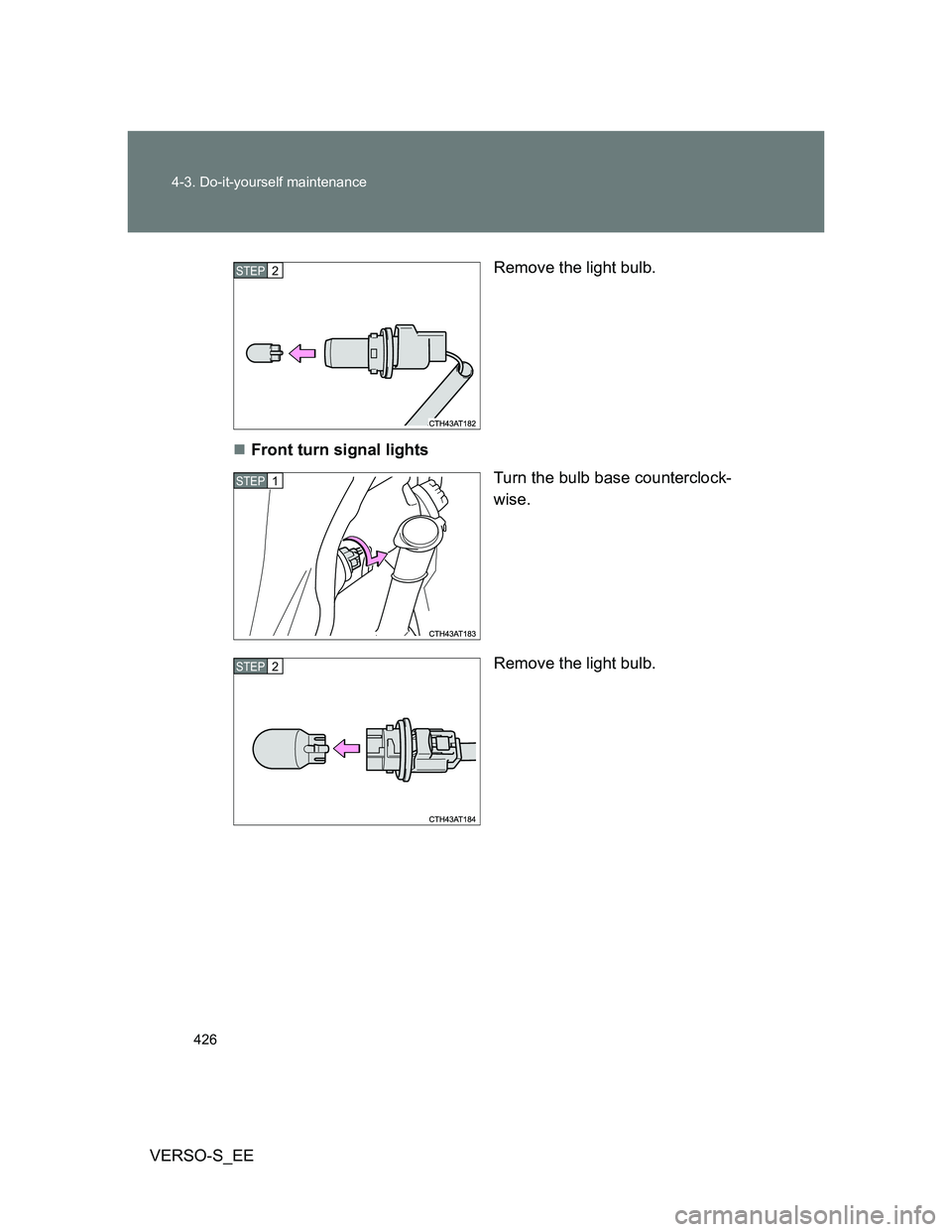

VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

427 4-3. Do-it-yourself maintenance
4
Maintenance and care

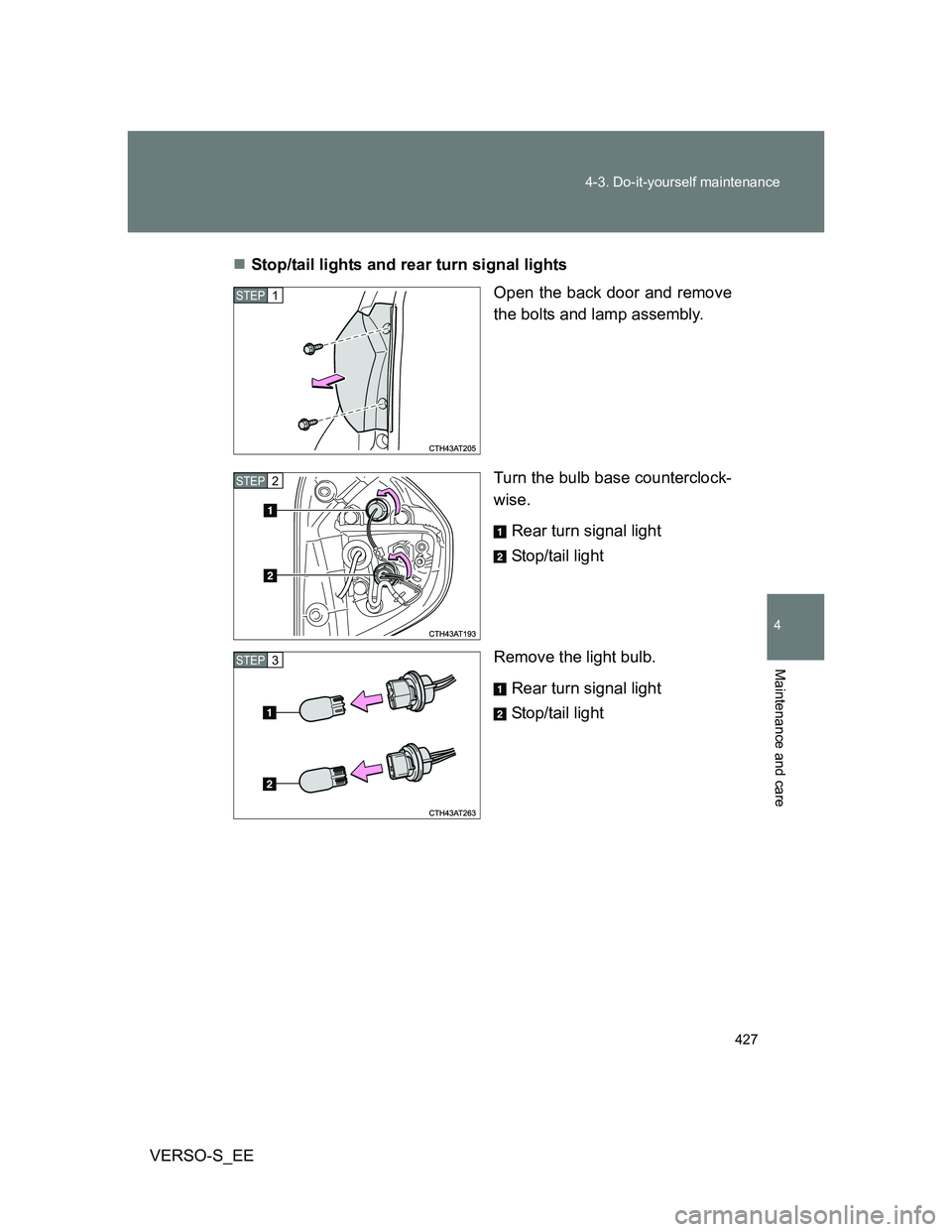

VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

428 4-3. Do-it-yourself maintenance

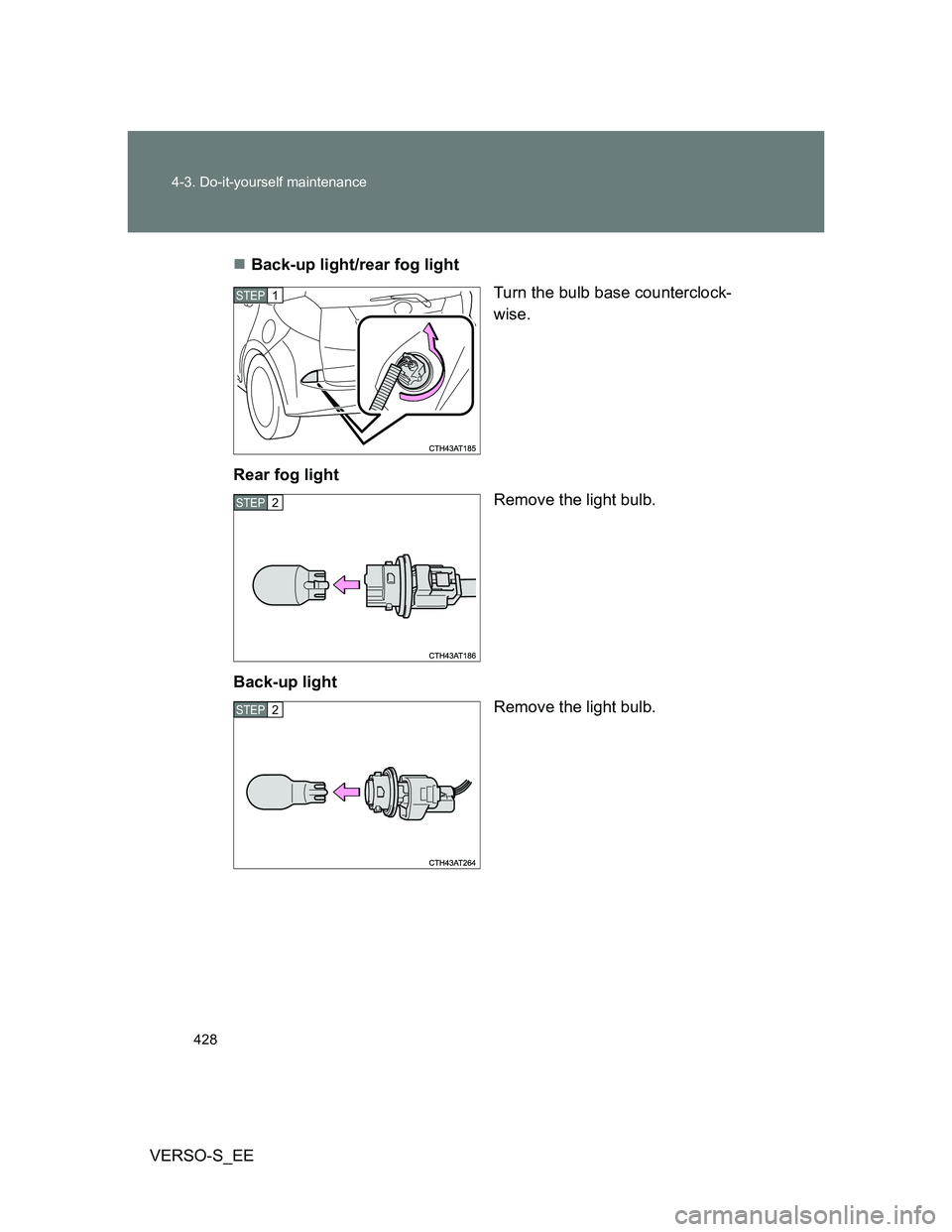

VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

429 4-3. Do-it-yourself maintenance
4
Maintenance and care

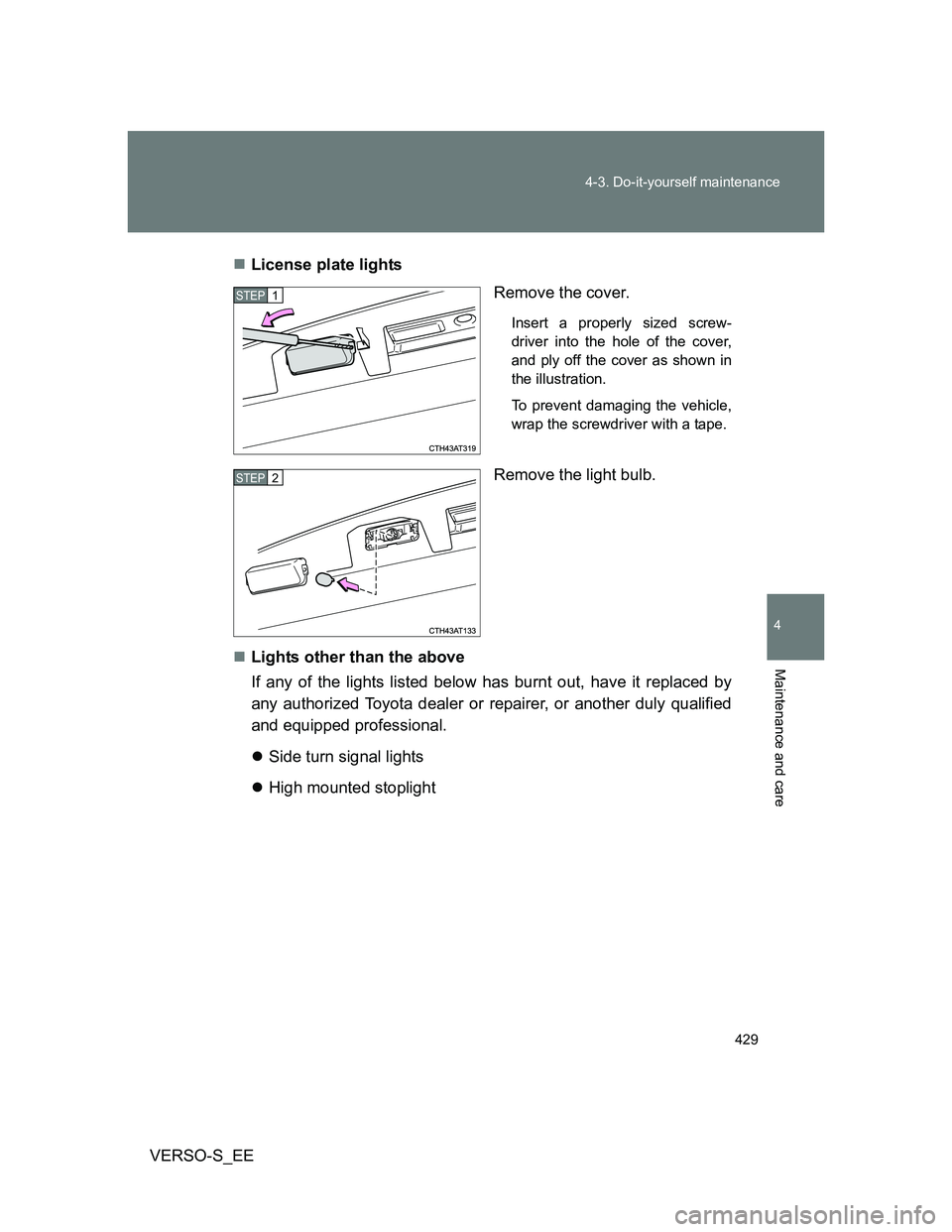

VERSO-S_EELicense plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
STEP1
STEP2

430 4-3. Do-it-yourself maintenance
VERSO-S_EE

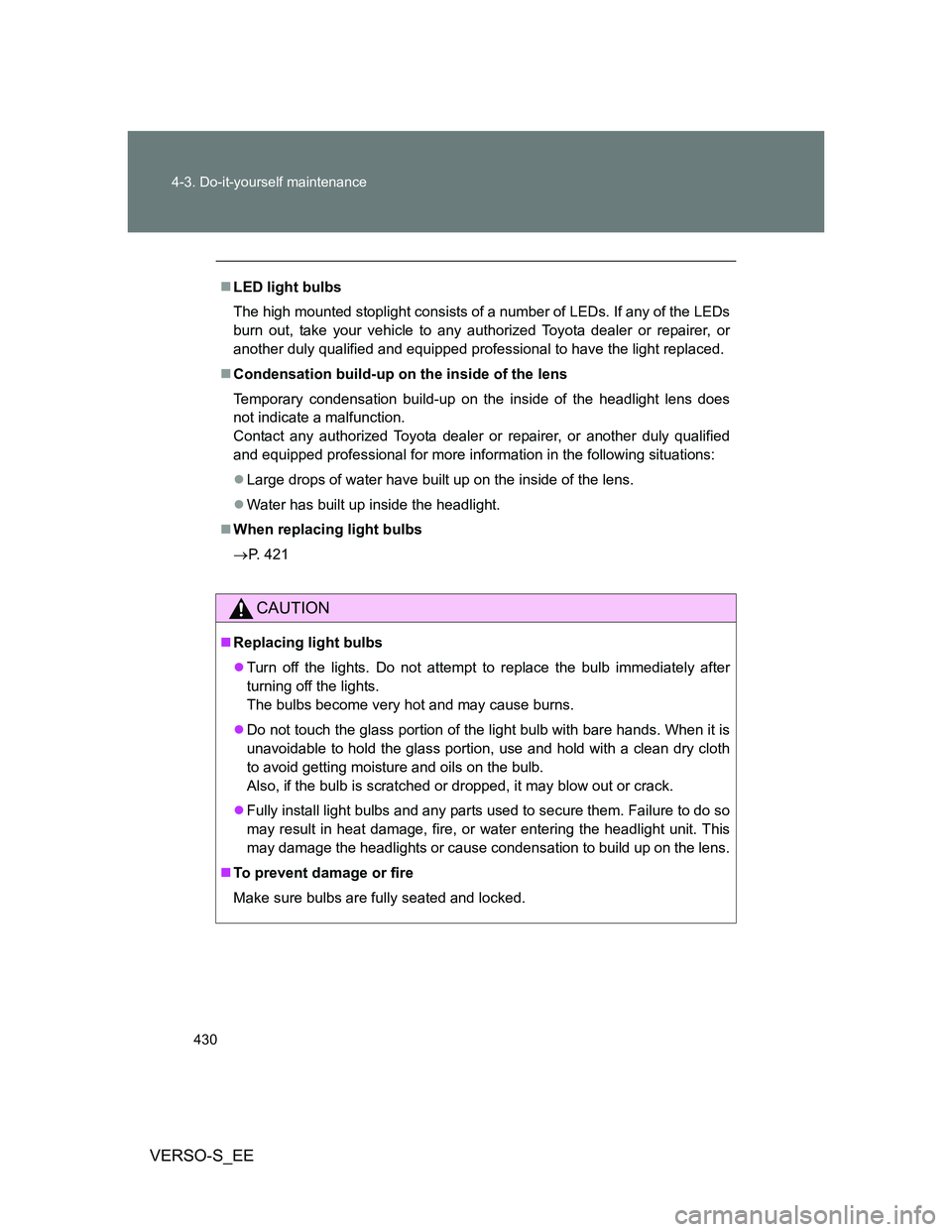

LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 421
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
